How to Install Reactive Resume V4 on Your Synology NAS

How to Install Reactive Resume V4 on Your Synology NAS

Do you remember my guides on how to install Reactive Resume V1 and Reactive Resume V3 on your Synology NAS? Today I want to show you how to install the new V4 version of Reactive Resume. Reactive Resume is a free and open source resume builder that’s built to make the mundane tasks of creating, updating and sharing your resume as easy as 1, 2, 3. With this app, you can create multiple resumes, share them with recruiters or friends through a unique link and print it as a PDF, all for free, no ads, no tracking, without losing the integrity and privacy of your data. In this step by step guide I will show you how to install Reactive Resume V4 on your Synology NAS using Docker and Portainer. Note: If you want a more lightweight Resume container, you can check my OpenResume guide.

💡Note: This guide works perfectly with the latest Reactive Resume v4.1.6 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in RXV4-ACCESS. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: rxv4access.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 9751

Reactive Resume V4 Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 4

  • STEP 9

Now click the “Create” button. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 5

  • STEP 10

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in RVX4-DOWNLOAD. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: rxv4download.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 9753

Reactive Resume V4 Synology NAS Set up 6

  • STEP 11

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 12

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 7

  • STEP 13

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 8

  • STEP 14

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it rxv4. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Reactive Resume V4 Synology NAS Set up 9

  • STEP 15

Now create two new folders inside the rxv4 folder that you created at STEP 14 and name them data and db. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Reactive Resume V4 Synology NAS Set up 10 new 2024

  • STEP 16

Follow my step by step guide on how to activate SMTP for your Gmail account. This step is mandatory. Note: If you don’t want to use the easiest way for SMTP with Google and you already have SMTP details from your own Mail Server, you can just skip this STEP and use your personalized email SMTP details instead.

  • STEP 17

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 18

In the Name field type in rxv4. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  db:
    image: postgres:16
    container_name: Resume-DB
    hostname: resume-db
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "resume", "-U", "resumeuser"]
      timeout: 45s
      interval: 10s
      retries: 10
    volumes:
      - /volume1/docker/rxv4/db:/var/lib/postgresql/data:rw
    environment:
      POSTGRES_DB: resume
      POSTGRES_USER: resumeuser
      POSTGRES_PASSWORD: resumepass
    restart: on-failure:5

  minio:
    image: minio/minio:latest
    command: server /data
    container_name: Resume-MINIO
    hostname: resume-minio
    mem_limit: 4g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    user: 1026:100
    healthcheck:
      test: ["CMD", "mc", "ready", "local"]
      interval: 5s
      timeout: 5s
      retries: 5
    ports:
      - 9753:9000
    volumes:
      - /volume1/docker/rxv4/data:/data:rw
    environment:
      MINIO_ROOT_USER: minioadmin
      MINIO_ROOT_PASSWORD: miniopass
    restart: on-failure:5

  chrome:
    image: browserless/chrome:1-puppeteer-16.2.0
    container_name: Resume-CHROME
    hostname: chrome
    mem_limit: 4g
    cpu_shares: 768
    user: 1026:100
    environment:
      TOKEN: chrome_token
      EXIT_ON_HEALTH_FAILURE: false
      PRE_REQUEST_HEALTH_CHECK: false
    restart: on-failure:5

  resume:
    image: amruthpillai/reactive-resume:latest
    container_name: Resume-ACCESS
    hostname: resume
    restart: on-failure:5
    mem_limit: 6g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    ports:
      - 9751:3000
    environment:
      PORT: 3000
      NODE_ENV: production
      ACCESS_TOKEN_SECRET: access_token_secret
      REFRESH_TOKEN_SECRET: refresh_token_secret
      PUBLIC_URL: https://rxv4access.yourname.synology.me  # resume address STEP 6
      STORAGE_URL: https://rxv4download.yourname.synology.me/default/ #  minio address STEP 10
      CHROME_TOKEN: chrome_token
      CHROME_URL: ws://chrome:3000
      DATABASE_URL: postgresql://resumeuser:resumepass@resume-db:5432/resume
      STORAGE_ENDPOINT: minio
      STORAGE_PORT: 9000
      STORAGE_REGION: us-east-1
      STORAGE_BUCKET: default
      STORAGE_ACCESS_KEY: minioadmin
      STORAGE_SECRET_KEY: miniopass
      STORAGE_USE_SSL: false
      MAIL_FROM: noreply@localhost
      SMTP_URL: smtp://yourownGmailaddress:appassword@smtp.gmail.com:587
      DISABLE_EMAIL_AUTH: false
      VITE_DISABLE_SIGNUPS: false
    depends_on:
      db:
        condition: service_healthy
      minio:
        condition: service_healthy
      chrome:
        condition: service_started

Note: Before you paste the code above in the Web editor area below, change the value numbers for user with your own UID and GID values. (Follow my step by step guide on how to do this.) 1026 is my personal UID value and 100 is my personal GID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for PUBLIC_URL and type in your own synology.me DDNS that you have previously created at STEP 6.
Note: Before you paste the code above in the Web editor area below, change the value for STORAGE_URL and type in your own synology.me DDNS that you have previously created at STEP 10 followed by /default/.
Note: On the SMTP_URL area, type in your own Gmail address. STEP 16.
Note: On the SMTP_URL area, type in your own Gmail App Password. STEP 16.

Reactive Resume V4 Synology NAS Set up 11 new 2024

  • STEP 19

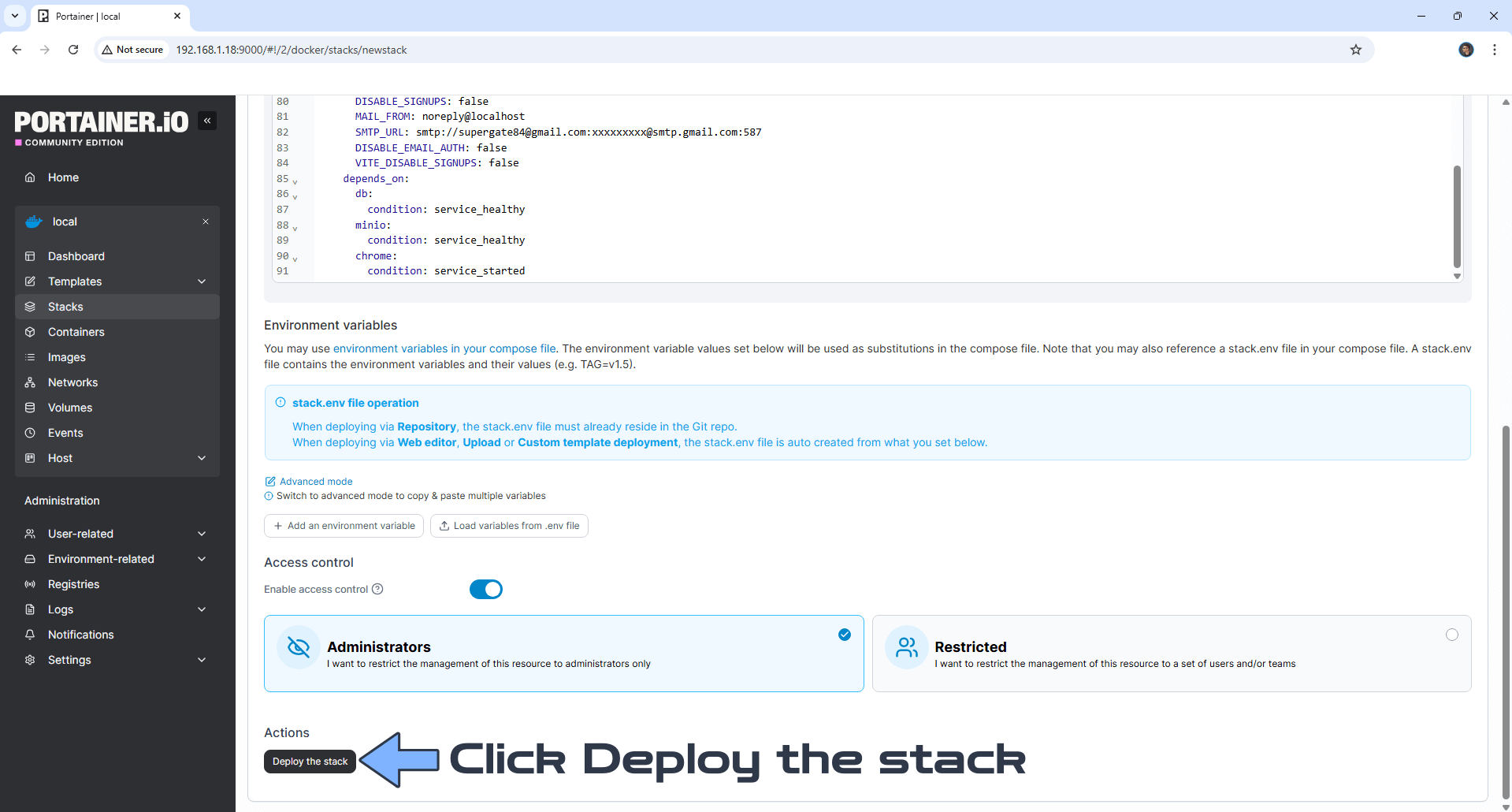

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Reactive Resume V4 Synology NAS Set up 12 new 2024

⌛Now just wait because the Reactive Resume V4 images are about 4.5GB.

  • STEP 20

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Reactive Resume V4 Synology NAS Set up 13

  • STEP 21

Go back to STEP 1 or you will deal with karma 🙂.

  • STEP 22

Now open your browser and type in your HTTPS/SSL certificate like this https://rxv4access.yourname.synology.me that you have previously created at STEP 10. In my case it’s https://rxv4access.mariushosting.synology.me If everything goes right, you will see the Reactive Resume V4 main page. Click Get Started. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 14

  • STEP 23

Change the theme to Dark Mode, then click Create one now to create a new account. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 15

  • STEP 24

Add your own credentials then click Sign up. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 16

  • STEP 25

Check your email then click the link to verify your email address. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 17

  • STEP 26

If everything goes right, you will see a message that says that your email has been verified. Click Create a new resume. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 18

  • STEP 27

Give a Title and a Slug to your Resume, then click Create. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 19

  • STEP 28

Click to open your Resume. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 20

  • STEP 29

After you have completed your Resume, you can download it. Click the little download icon on the right, then PDF to download it in a PDF format. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 21

  • STEP 30

Chrome browser will automatically block your pop-ups. In the browser, click on the Pop-ups icon, then check Always allow pop-ups and redirects from your synology.me DDNS address, then click Done. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 22

  • STEP 31

At this point, if you click PDF again, you should be able to download your Resume file without any issues. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 23

  • STEP 32

With Reactive Resume V4 you have so many layouts and colors available to create a stunning Resume.

Reactive Resume V4 Synology NAS Set up 24

  • STEP 33

You can easily share your Resume. On the right sidebar, click on the share icon, then turn on “Public” and copy the link. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 25

  • STEP 34

Share your public URL link that you have previously copied at STEP 33 with your friends or potential employers. Follow the instructions in the image below.

Reactive Resume V4 Synology NAS Set up 26

Enjoy Reactive Resume V4!
