How to Install Reactive Resume V3 on Your Synology NAS

How to Install Reactive Resume V3 on Your Synology NAS

Do you remember my old guide on how to install Reactive Resume on your Synology NAS? Today I want to show you how to install the new V3 version of Reactive Resume. Reactive Resume is a free and open source resume builder that’s built to make the mundane tasks of creating, updating and sharing your resume as easy as 1, 2, 3. With this app, you can create multiple resumes, share them with recruiters or friends through a unique link and print it as a PDF, all for free, no ads, no tracking, without losing the integrity and privacy of your data. In this step by step guide I will show you how to install Reactive Resume V3 on your Synology NAS using Docker and Portainer.

Note: This guide works perfectly with the latest Reactive Resume v3.6.14 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in RX-RESUME-SERVER. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: rxresumeserver.yourname.synology.me
Port: 443

Destination:
Protocol: HTTP
Hostname: Add your own NAS IP.
Port: 8661

Rx Resume Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 4

  • STEP 9

Now click the “Create” button. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 5

  • STEP 10

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in RX-RESUME-ACCESS. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: rxresume.yourname.synology.me
Port: 443

Destination:
Protocol: HTTP
Hostname: Add your own NAS IP.
Port: 8662

Rx Resume Synology NAS Set up 6

  • STEP 11

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 12

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Rx Resume HTTP2 Synology

  • STEP 13

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

Rx Resume HTTP Compression Synology

  • STEP 14

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it rxv3. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Rx Resume Synology NAS Set up 7

  • STEP 15

Now create three new folders inside the rxv3 folder that you created at STEP 14 and name them db, exports, uploads. Follow the instructions in the image below.
Note: Be careful enter only lowercase, not uppercase letters.

Rx Resume Synology NAS Set up 8

  • STEP 16

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 17

In the Name field type in rxresume. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  resume-db:
    image: postgres
    container_name: RXRESUME-DB
    hostname: resume-db
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "reresume", "-U", "reresumeuser"]
      interval: 10s
      timeout: 5s
      retries: 5
    user: 1026:100
    volumes:
      - /volume1/docker/rxv3/db:/var/lib/postgresql/data
    environment:
      POSTGRES_DB: reresume
      POSTGRES_USER: reresumeuser
      POSTGRES_PASSWORD: reresumepw
    restart: always

  resume-server:
    image: amruthpillai/reactive-resume:server-latest
    container_name: RXRESUME-SERVER
    hostname: resume-server
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: curl -fSs http://localhost:3100/health || exit 1
      interval: 30s
      timeout: 5s
      retries: 3
    ports:
      - 192.168.1.18:8661:3100
    volumes:
      - /volume1/docker/rxv3/exports:/app/server/dist/assets/exports
      - /volume1/docker/rxv3/uploads:/app/server/dist/assets/uploads
    environment:
      - PUBLIC_URL=https://rxresume.yourname.synology.me
      - PUBLIC_SERVER_URL=https://rxresumeserver.yourname.synology.me
      - POSTGRES_DB=reresume
      - POSTGRES_USER=reresumeuser
      - POSTGRES_PASSWORD=reresumepw
      - SECRET_KEY=MariushostingMariushostingMari13
      - POSTGRES_HOST=resume-db
      - POSTGRES_PORT=5432
      - JWT_SECRET=MariushostingMariushostingMari13
      - JWT_EXPIRY_TIME=604800
    restart: always
    depends_on:
      resume-db:
        condition: service_healthy

  resume-client:
    image: amruthpillai/reactive-resume:client-latest
    container_name: RXRESUME-CLIENT
    hostname: resume-client
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: curl -fSs 127.0.0.1:3000 || exit 1
      interval: 30s
      timeout: 5s
      retries: 3
    ports:
      - 192.168.1.18:8662:3000
    environment:
      - PUBLIC_URL=https://rxresume.yourname.synology.me
      - PUBLIC_SERVER_URL=https://rxresumeserver.yuorname.synology.me
    restart: always
    depends_on:
      resume-server:
        condition: service_healthy

Note: Before you paste the code above in the Web editor area below, change the value numbers for user with your own UID and GID values. (Follow my step by step guide on how to do this.) 1026 is my personal UID value and 100 is my personal GID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for ports and add your own Synology Local NAS IP. 192.168.1.18 is my own Synology Local NAS IP. You should type in your own Synology Local NAS IP.
Note: Before you paste the code above in the Web editor area below, change the value for PUBLIC_URL and type in your own synology.me DDNS that you have previously created at STEP 10.
Note: Before you paste the code above in the Web editor area below, change the value for PUBLIC_SERVER_URL and type in your own synology.me DDNS that you have previously created at STEP 6.
Note: Before you paste the code above in the Web editor area below, change the value for SECRET_KEY and add your own SECRET KEY. MariushostingMariushostingMari13 is an example for a SECRET KEY. You should invent your own Value. Add 32 random characters, both letters and numbers.
Note: Before you paste the code above in the Web editor area below, change the value for JWT_SECRET and add your own JWT SECRET. MariushostingMariushostingMari13 is an example for a JWT SECRET. You should invent your own Value. Add 32 random characters, both letters and numbers.

Rx Resume Synology NAS Set up 9

  • STEP 18

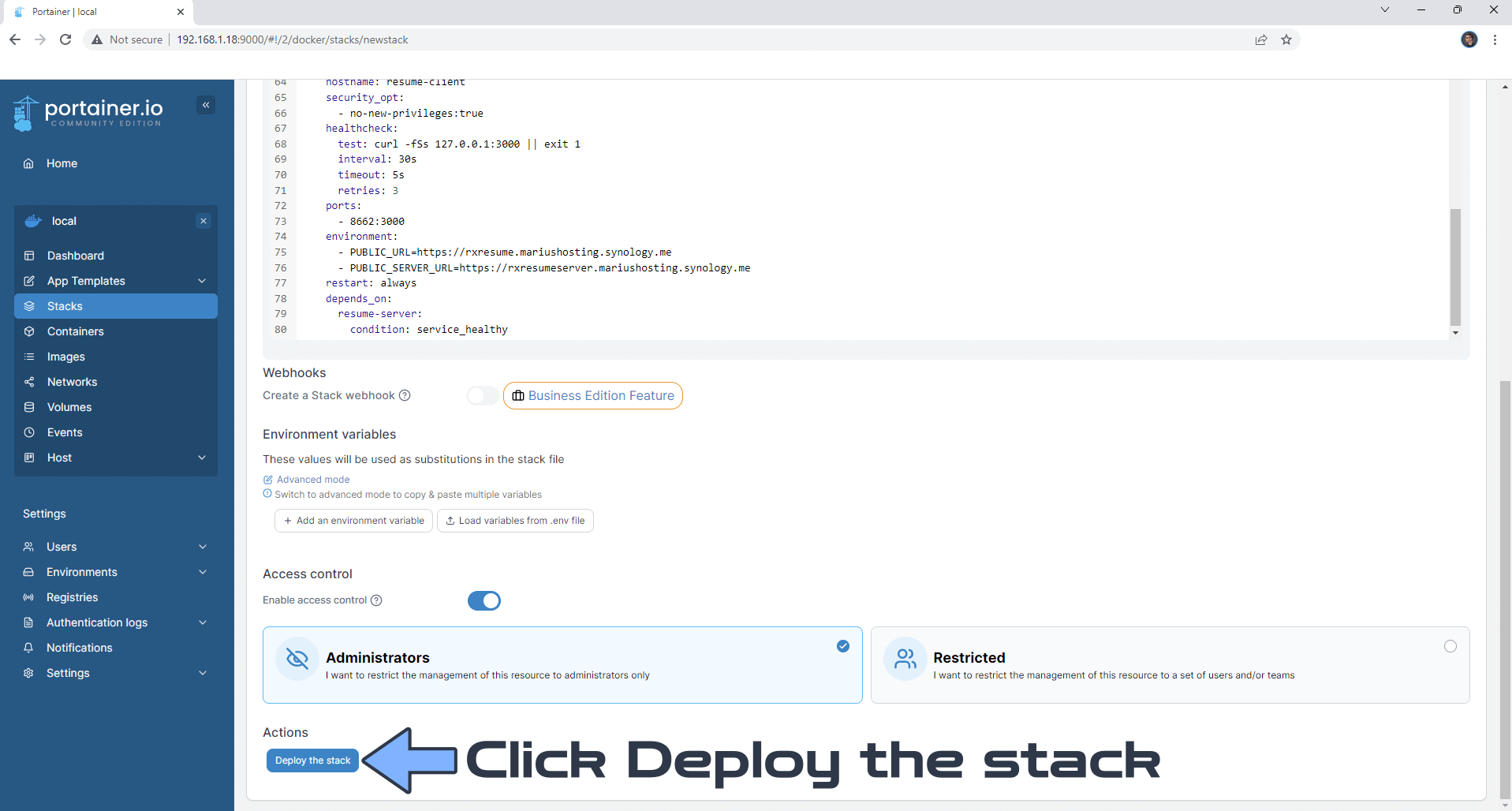

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Rx Resume Synology NAS Set up 10

  • STEP 19

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Rx Resume Synology NAS Set up 11

  • STEP 20

Go back to STEP 1 or you will deal with karma 🙂.

  • STEP 21

You will automatically start to download over 4GB of files. You will either need patience or a very good internet line. Now open your browser and type in your HTTPS/SSL certificate like this https://rxresume.yourname.synology.me that you have previously created at STEP 10. In my case it’s https://rxresume.mariushosting.synology.me If everything goes right, you will see the Reactive Resume main page. Click Register. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 12

  • STEP 22

Add your own credentials then click Register. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 13

  • STEP 23

Click Go to App. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 14

  • STEP 24

Click Create New Resume. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 15

  • STEP 25

Give a name and a slug to your Resume then click Create Resume. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 16

  • STEP 26

Click to open your Resume. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 17

  • STEP 27

Start creating your new Resume. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 18

  • STEP 28

You can easily share your Resume. On the right sidebar click on the share icon then turn on “Public” and copy the link. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 19

  • STEP 29

Share your public URL link that you have previously copied at STEP 28 with your friends or potential employers. Follow the instructions in the image below.

Rx Resume Synology NAS Set up 20

  • STEP 30

Find out How to Disable Registration of New Users in Reactive Resume V3.

Note: Find out how to update the Reactive Resume V3 container with the latest image.
Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.

This post was updated on Saturday / December 3rd, 2022 at 12:20 AM
