Synology: Install Memos With Portainer

Synology Install Memos With Portainer

MyĀ previous guide for Memos involved the use of Task Scheduler. Today Iā€™m offering a recommended and excellent alternative for installing the latest Memos version via Portainer. Memos is an open-source, self-hosted memo hub with knowledge management and collaboration. I really like how Memos works and you’re sure to be impressed by its ease of use in various scenarios. You can also install a the Memos client on your Mobile Phone. In this step by step guide I will show you how to install Memos on your Synology NAS using Docker & Portainer.

šŸ’”Note: This guide works perfectly with the latest Memos v0.22.5 release.

šŸ’”Note: Check out my new guide on how to Install Memos With MySQL as a Database.

šŸ’”Note: Check out my new guide on how to Install Memos With PostgreSQL as a Database.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go toĀ File Station and open the docker folder. Inside the docker folder, create one new folder and name it memos. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Memos Synology NAS Portainer Set up 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 5

In the Name field type in memos. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  memos:
    container_name: Memos
    image: ghcr.io/usememos/memos:stable
    mem_limit: 4g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    restart: on-failure:5
    ports:
      - 5235:5230
    volumes:
      - /volume1/docker/memos:/var/opt/memos:rw

Memos Synology NAS 1 Portainer Set up 2

  • STEP 6

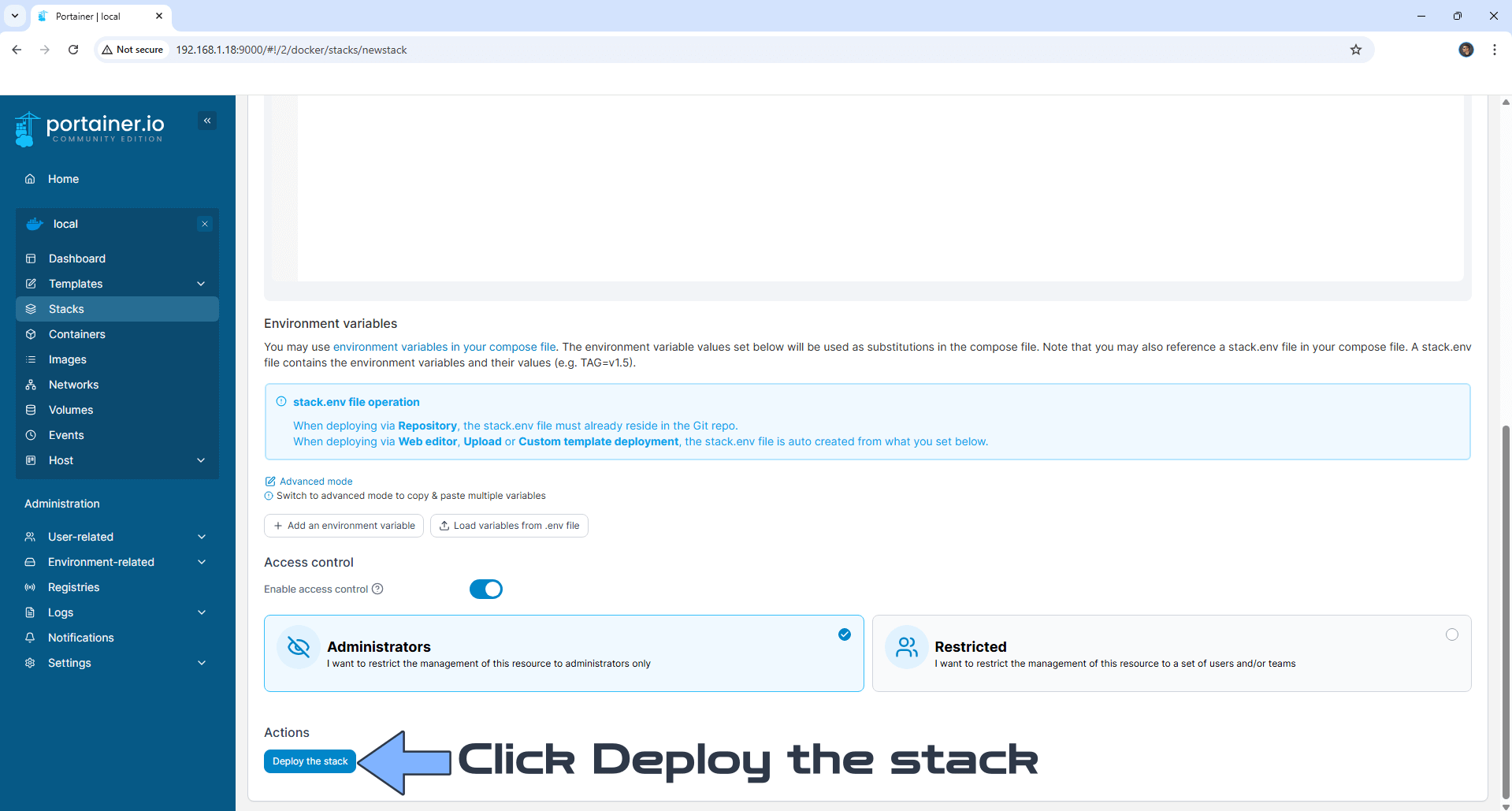

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Memos Synology NAS 2 Portainer Set up 2

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Memos Synology NAS Portainer Set up 4

  • STEP 8

Go back toĀ STEP 1Ā or you will deal with karma šŸ™‚

  • STEP 9

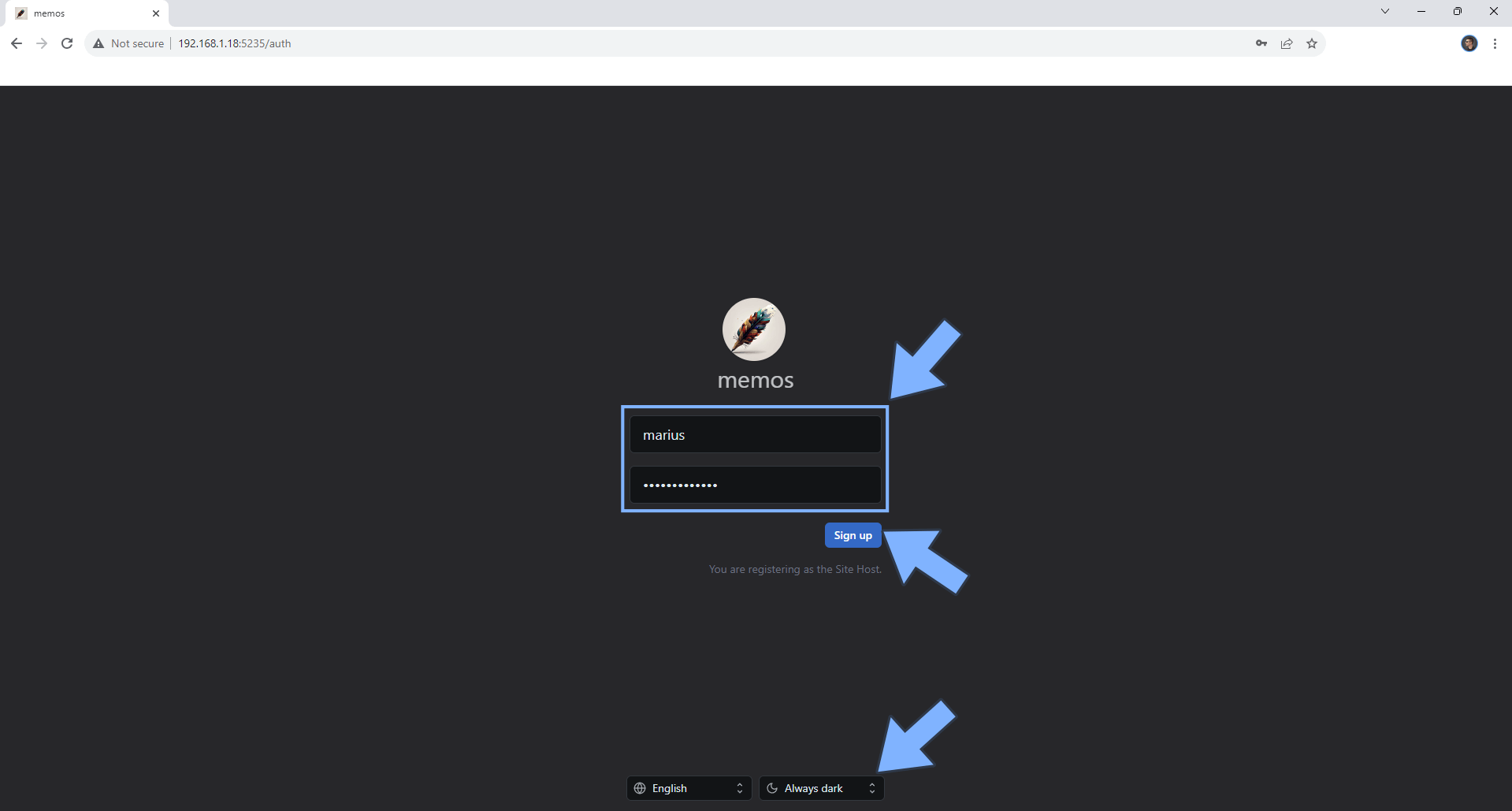

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser andĀ type in http://Synology-ip-address:5235 Add your own Username and Password then click Sign up. You can also change the default language and you have an option to switch the theme to Dark Mode. Follow the instructions in the image below.

Memos Synology NAS Portainer Set up 5 new 2024

  • STEP 10

On the left sidebar click Settings, then Preferences to switch the theme to Dark Mode. Follow the instructions in the image below.

Memos Synology NAS Portainer Set up 6 new 2024

  • STEP 11

Your Memos dashboard at a glance!

Memos Synology NAS Portainer Set up 7 new 2024

Enjoy Memos!

Note: If you want to run the Memos container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Memos work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find outĀ how to update the Memos container with the latest image.
Note: How to Add USB Support on DSM 7.2.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.

This post was updated on Friday / September 6th, 2024 at 6:58 AM
