How to Install Minecraft Bedrock on Your Synology NAS

How to Install Minecraft Bedrock on Your Synology NAS

Minecraft is a game where players place blocks and go on adventures. This includes anything from crafting simple items like containers or weapons, to building structures like houses, castles, and cities, or even making complex mechanical-devices, all within the game’s world. Minecraft Bedrock servers allow players to play online or via a local area network with other people. What is the difference between Minecraft Java Edition and Minecraft Bedrock Edition? Minecraft Java Edition is only available on Windows, Mac, and Linux. Minecraft Bedrock Edition is available on Windows 10 and 11, Xbox One, Xbox Series S and X, PlayStation 4 and 5, Nintendo Switch, Fire OS/TV, Android, iOS, Windows Mobile and Samsung Gear VR. In this step by step guide I will show you how to install Minecraft Bedrock Server on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest Minecraft Java Server 1.20.0 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go to File Station and open the docker folder. Inside the docker folder create one new folder and name it minecraft-bedrock. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Minecraft Bedrock Edition Server Synology NAS Set up 1

  • STEP 4

Now create two new folders inside the minecraft-bedrock folder that you created at STEP 3 and name them config and worlds. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Minecraft Bedrock Edition Server Synology NAS Set up 2

  • STEP 5

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 6

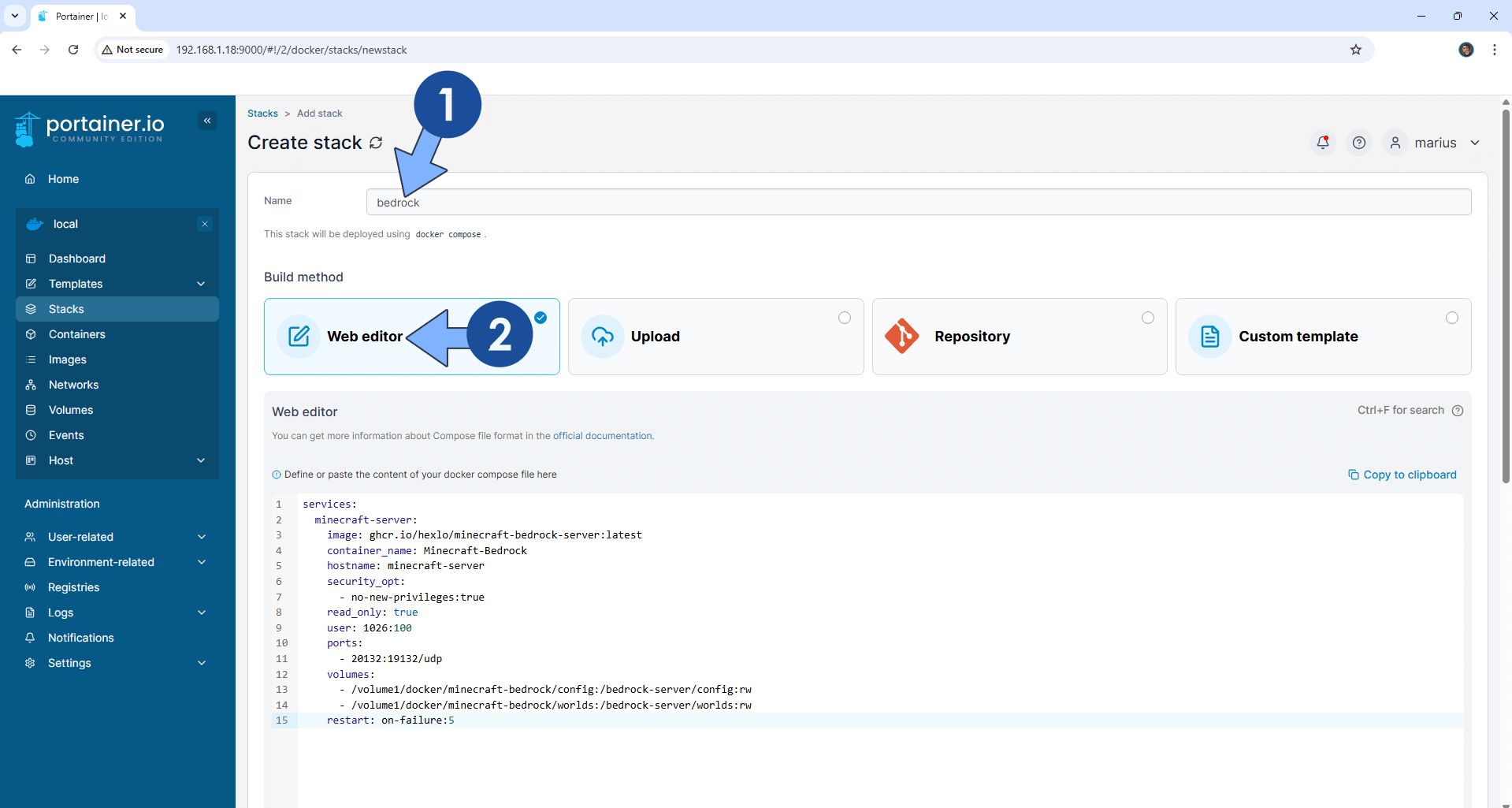

In the Name field type in bedrock. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  minecraft-server:
    image: ghcr.io/hexlo/minecraft-bedrock-server:latest
    container_name: Minecraft-Bedrock
    hostname: minecraft-server
#    stdin_open: true
#    tty: true
    mem_limit: 2g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    read_only: true
    user: 1026:100
    ports:
      - 20132:19132/udp
    volumes:
      - /volume1/docker/minecraft-bedrock/config:/bedrock-server/config:rw
      - /volume1/docker/minecraft-bedrock/worlds:/bedrock-server/worlds:rw
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value numbers for user with your own values. (Follow my step by step guide on how to do this.1026 is my personal UID value and 100 is my personal GID value. You have to type in your own values.

Minecraft Bedrock Edition Server Synology NAS Set up 3

  • STEP 7

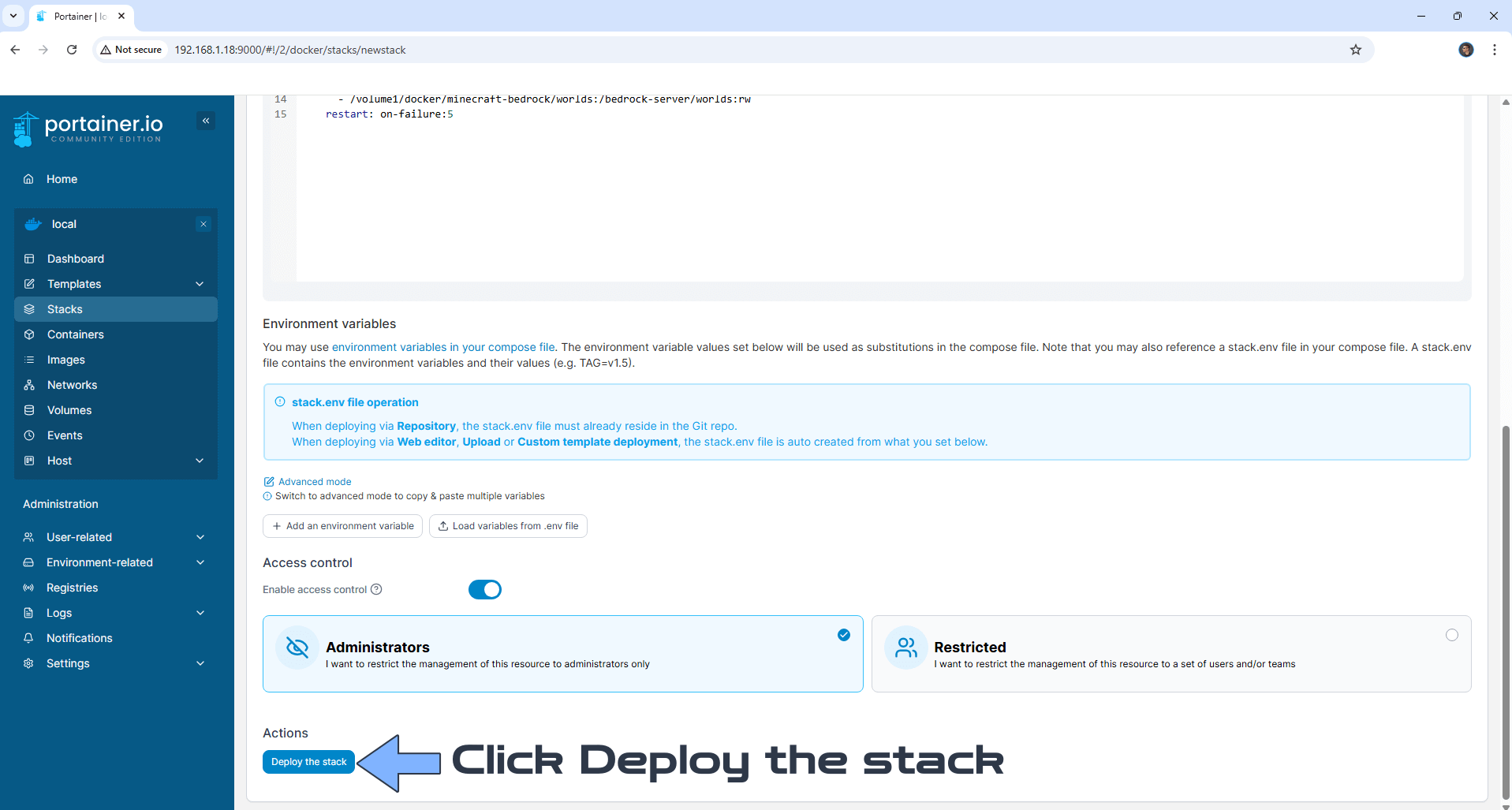

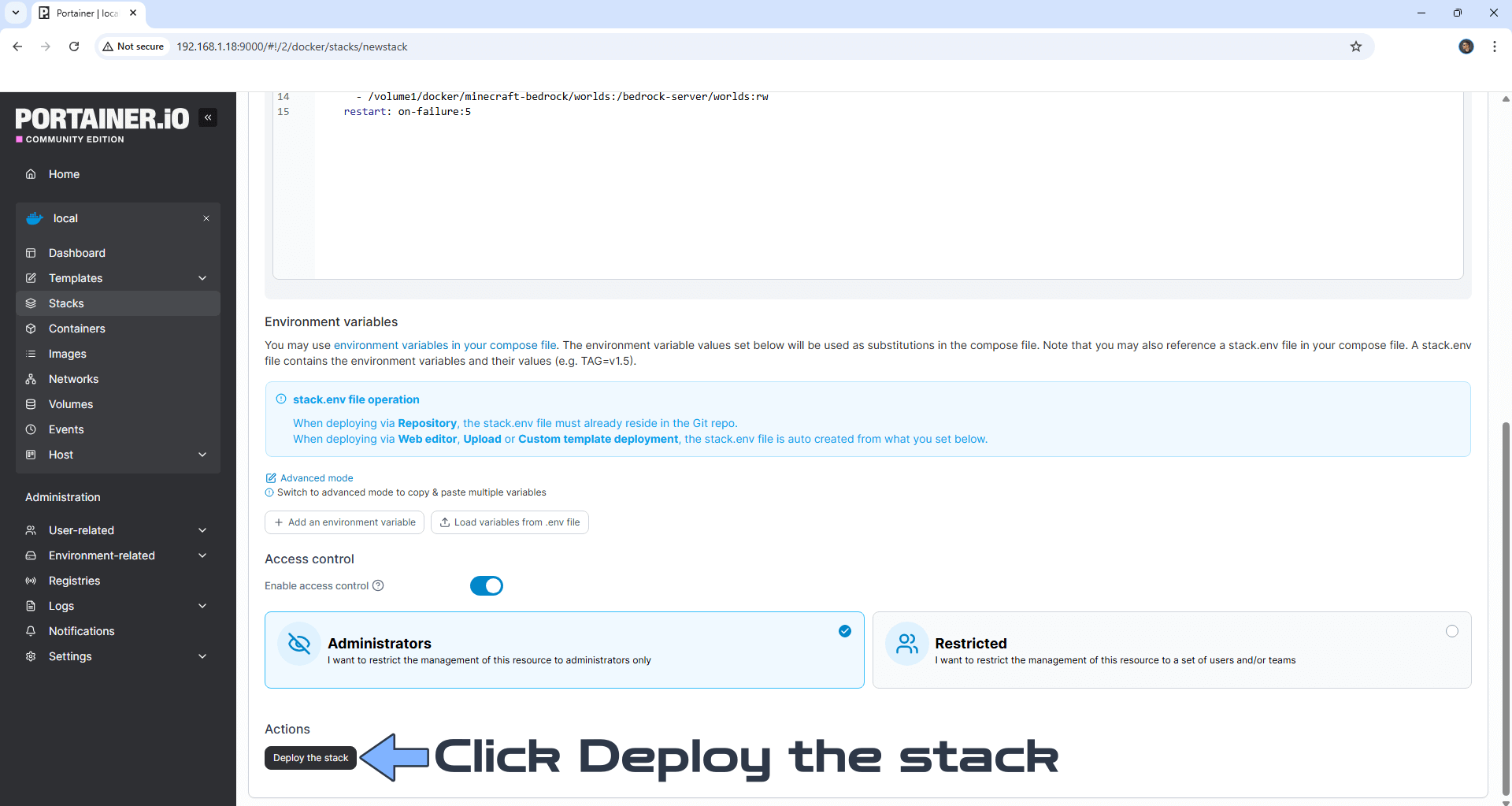

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Minecraft Bedrock Edition Server Synology NAS Set up 4

  • STEP 8

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Minecraft Bedrock Edition Server Synology NAS Set up 5

  • STEP 9

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 10

Wait approximately 3-5 minutes, then try to access your own server via the Minecraft Bedrock edition game. Go to Servers then click Add Server. Follow the instructions in the image below.

Minecraft Bedrock Edition Server Synology NAS Set up 7

  • STEP 11

In the Server Address area type in your NAS IP and in the Port area type in 20132. Click Save then Play. Follow the instructions in the image below.

Minecraft Bedrock Edition Server Synology NAS Set up 8

  • STEP 12

If you want to change some Minecraft Bedrock server settings, go to File Station /docker/minecraft-bedrock/config – download the server.properties file on your computer, then modify it as you see fit using a text editor. Once the modification is done, overwrite the server.properties file in File Station with your own modified server.properties file. To apply the change, it’s mandatory to restart the Minecraft-Bedrock container.

Minecraft Bedrock Edition Server Synology NAS Set up 9

Modify the server.properties file as you see fit.

Minecraft Bedrock Synology NAS Server settings

  • STEP 13

If you want to run the Minecraft Bedrock Server container over HTTPS, check my guide on How to Run Docker Containers Over HTTPS. Remember to port forward ports 19132 and 20132 UDP on your router pointing to your NAS to make it accessible externally. In order to make Minecraft Bedrock work via HTTPS, it’s mandatory to activate WebSocket.

Note: Find out how to update the Minecraft Bedrock Server Edition container with the latest image.
Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.

This post was updated on Saturday / February 24th, 2024 at 8:28 PM
