My previous guide for WBO involved the use of Task Scheduler. Today I’m offering a recommended and excellent alternative for installing the latest WBO version via Portainer. WBO is a free and open-source online collaborative whiteboard that allows many users to draw simultaneously on a large virtual board. The board is updated in real time for all connected users, and its state is always persisted. It can be used for many different purposes, including art, entertainment, design and teaching. In this step by step guide I will show you how to install WBO on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest WBO v1.21.2 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Go to File Station and open the docker folder. Inside the docker folder create one new folder and name it wbo. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 5

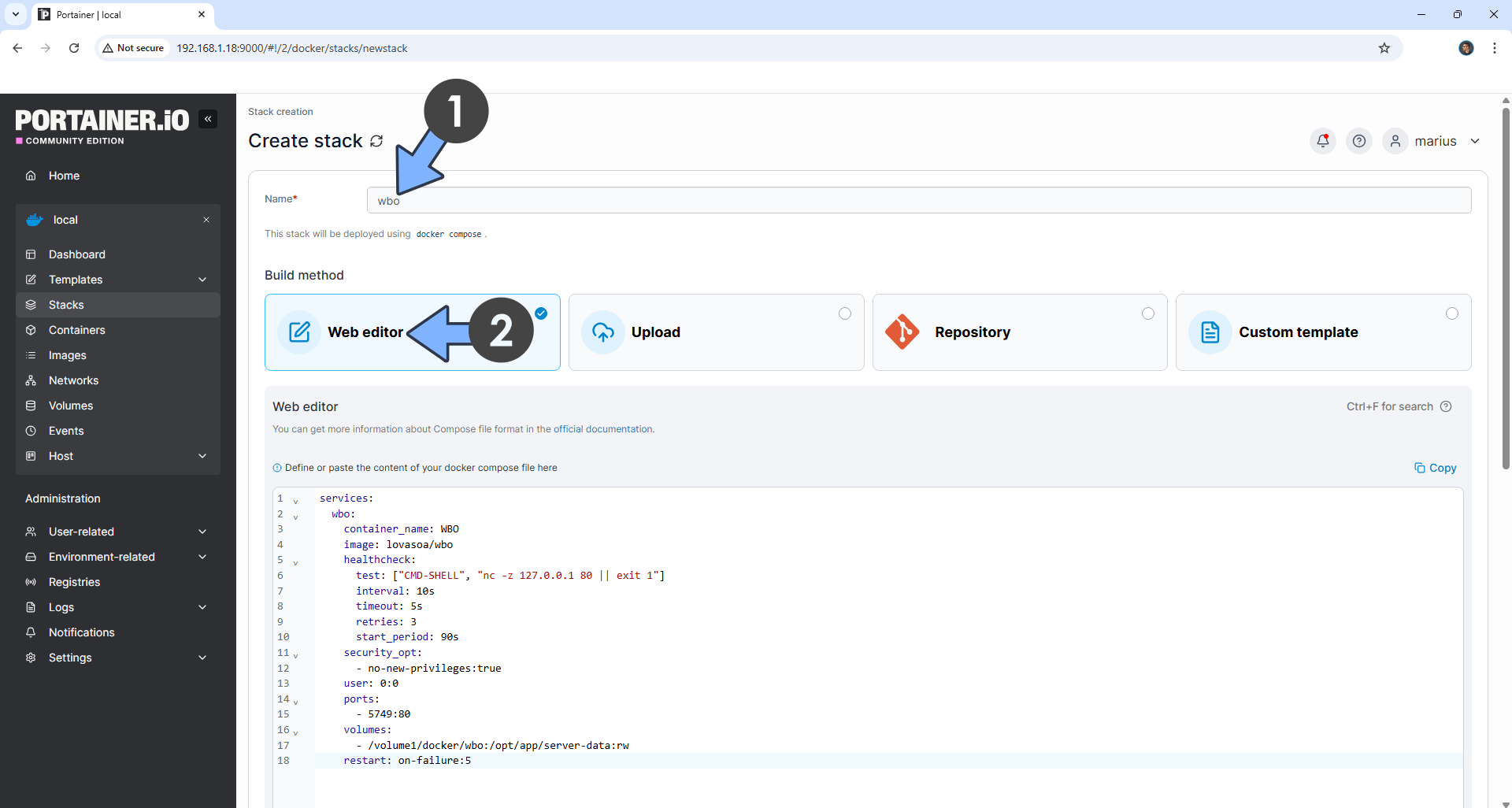

In the Name field type in wbo. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  wbo:
    container_name: WBO
    image: lovasoa/wbo
    healthcheck:
      test: ["CMD-SHELL", "nc -z 127.0.0.1 80 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    security_opt:
      - no-new-privileges:true
    user: 0:0
    restart: on-failure:5
    ports:
      - 5749:80
    volumes:
      - /volume1/docker/wbo:/opt/app/server-data:rw

• STEP 6

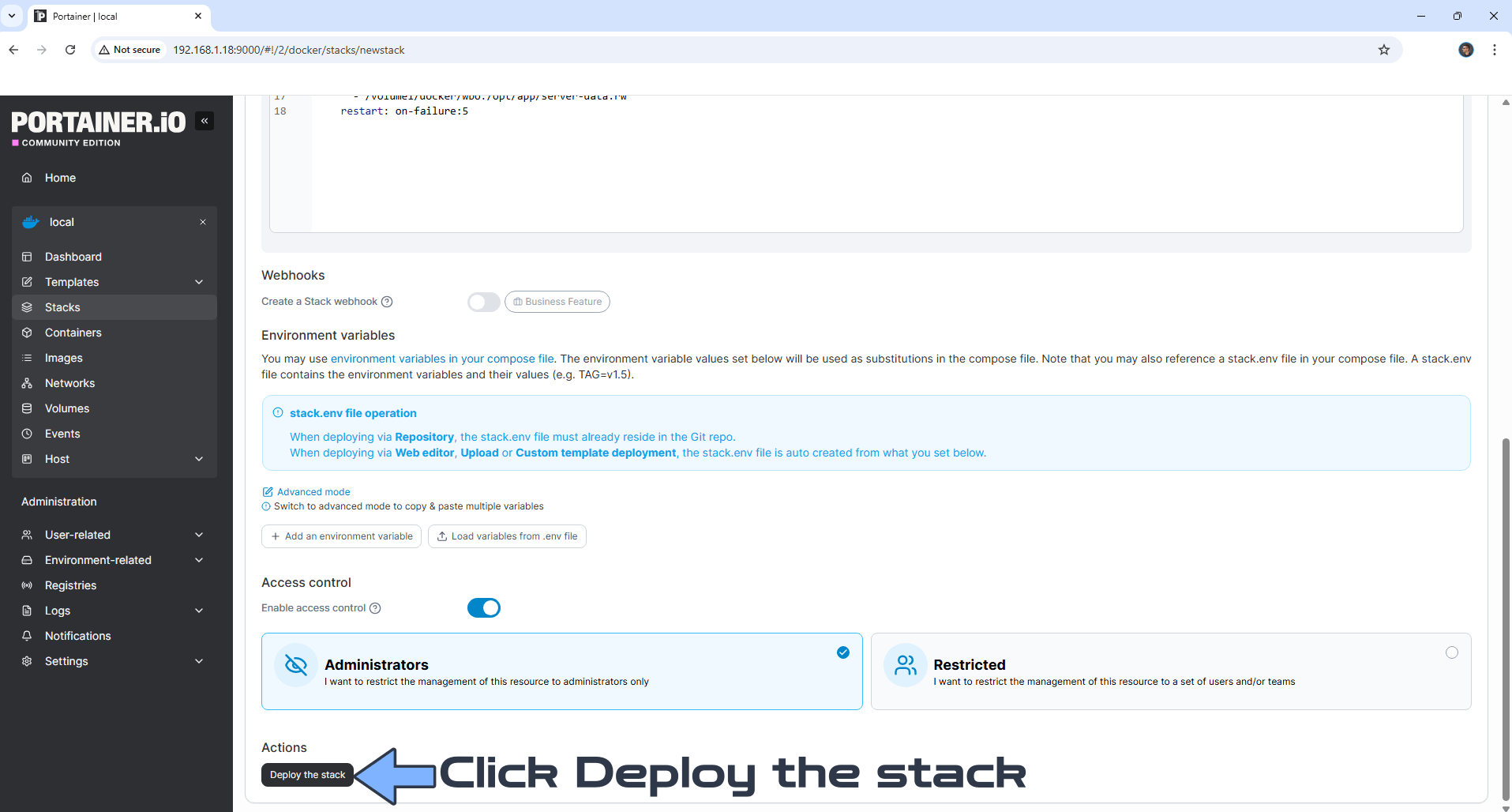

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 8

Go back to STEP 1 or you will deal with karma 🙂

• STEP 9

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:5479 Choose the Public Board or the Private Board. Follow the instructions in the image below.

• STEP 10

Your WBO dashboard at a glance!

Enjoy WBO!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the WBO container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make WBO work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the WBO container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.

This post was updated on Monday / November 4th, 2024 at 12:02 AM
