WBO is a free and open-source online collaborative whiteboard that allows many users to draw simultaneously on a large virtual board. The board is updated in real time for all connected users, and its state is always persisted. It can be used for many different purposes, including art, entertainment, design and teaching. In this step by step guide I will show you how to install WBO on your Synology NAS using Docker.
WBO v1.20.0 release.
This guide works perfectly with the latestSTEP 1
Please Support My work by Making a Donation.
STEP 2
Install Container Manager via Synology “Package Center”. If you run an older DSM version (under 7.2), search for Docker instead of Container Manager.
STEP 3

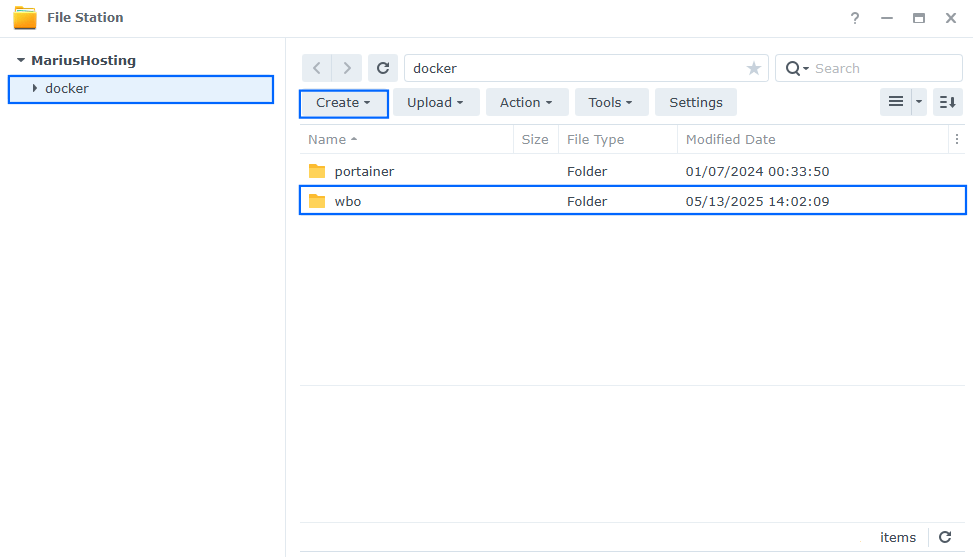

Go to File Station and open the docker folder. Inside the docker folder create one new folder and name it wbo. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.
STEP 4
Go to Control Panel / Task Scheduler / Create / Scheduled Task / User-defined script. Follow the instructions in the image below.
STEP 5
Once you click on User-defined script, a new window will open. Follow the instructions below:
- General: In the Task field type in Install WBO. Uncheck the “Enabled” option. Select root User.
- Schedule: Select Run on the following date then select “Do not repeat“.
- Task Settings: Check “Send run details by email“, add your email then copy paste the code below in the Run command area. After that, click OK.
docker run -d --name=wbo \ -p 5479:80 \ -v /volume1/docker/wbo:/opt/app/server-data \ --restart always \ lovasoa/wbo chown -R 1000:1000 /volume1/docker/wbo
STEP 6
After you click OK on STEP 5 a new warning pop up window will open. Click OK.
After you click OK, type in your DSM Password then click Submit. Follow the instructions in the image below.
STEP 7
After you click Submit on STEP 6, select your “Install WBO” Task then click the “Run” tab. You will be asked to run Install WBO – click OK. Follow the instructions in the image below.
STEP 8
Go back to STEP 1 or you will deal with karma 🙂
STEP 9
The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:5479 Choose the Public Board or the Private Board. Follow the instructions in the image below.
Enjoy WBO!
If you encounter issues by using this container, make sure to check out the Common Docker issues article.
Note: If you want to run the WBO container over HTTPS, check out my guide on How to Run Docker Containers Over HTTPS.
Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the WBO container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
This post was updated on Saturday / February 24th, 2024 at 5:49 AM
