Synology: Install Scrypted With Portainer

Synology Install Scrypted With Portainer

My previous guide for Scrypted involved the use of Task Scheduler. Today I’m offering a recommended and excellent alternative for installing the latest Scrypted version via Portainer. Scrypted is a home automation platform primarily focusing on making camera experiences seamless. Scrypted can bridge most cameras to the three major home hubs: HomeKit (including HomeKit Secure Video), Google Home, and Alexa. Scrypted streams are fast, low latency, and have rock solid reliability. In this step by step guide I will show you how to install Scrypted on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest version of Scrypted v0.114.0

💡Note: Check out my new guide on how to Install Scrypted on Your UGREEN NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Scrypted Synology NAS Portainer Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

Scrypted Synology NAS Portainer Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in scrypted. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: scrypted.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 11080

Scrypted Synology NAS Portainer Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity / Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Scrypted Synology NAS Portainer Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

Scrypted Synology NAS Portainer Set up 5

  • STEP 10

Go to File Station and open the docker folder. Inside the docker folder, create one new folders and name it scrypted. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Scrypted Synology NAS Portainer Set up 6

  • STEP 11

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 12

In the Name field type in scrypted. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  scrypted:
    container_name: Scrypted
    image: koush/scrypted
    healthcheck:
     test: curl -f http://localhost:11080/ || exit 1
    mem_limit: 8g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    restart: on-failure:5
    network_mode: host
    volumes:
      - /volume1/docker/scrypted:/server/volume:rw

Scrypted Synology NAS Portainer Set

  • STEP 13

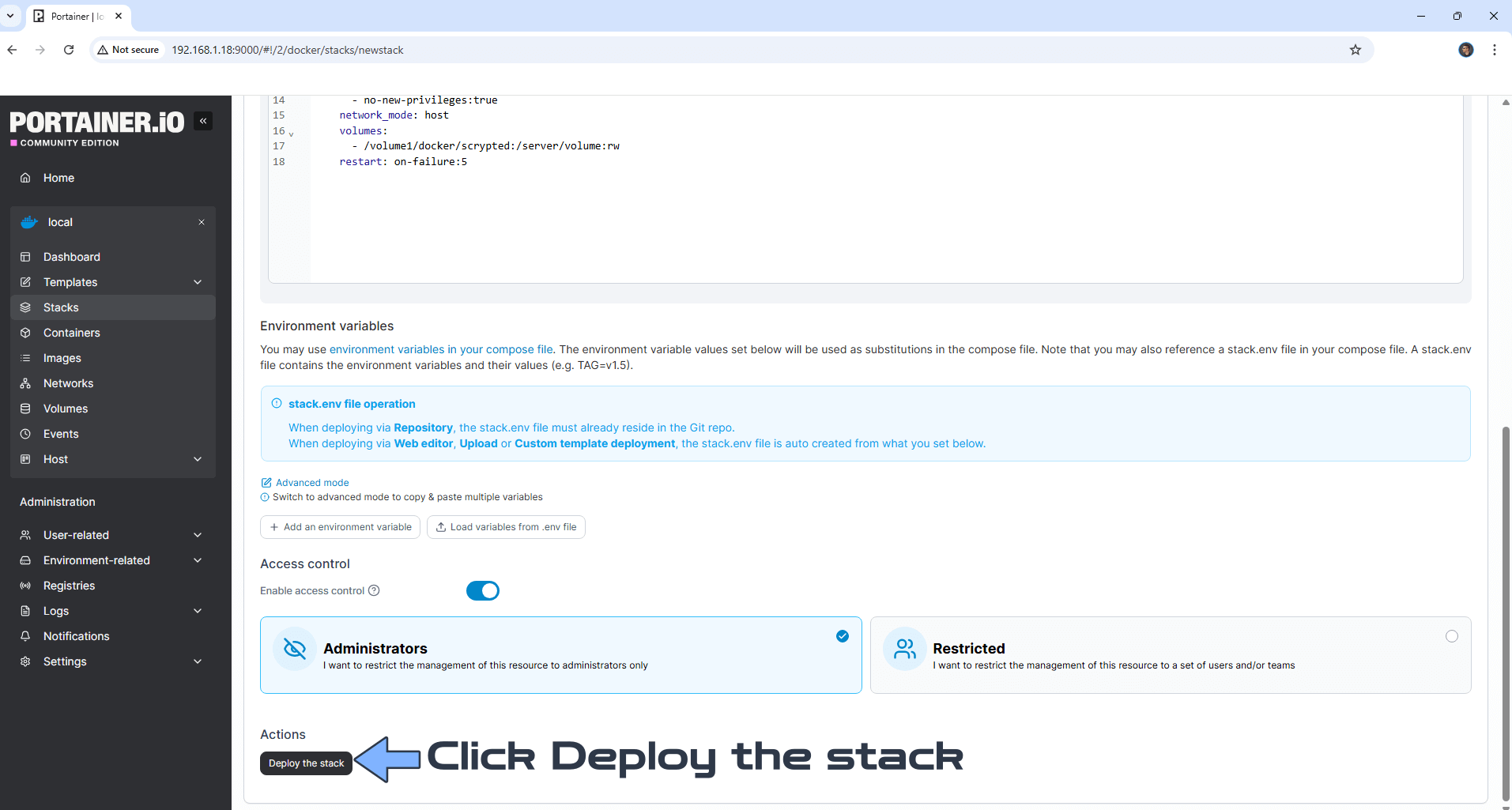

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Scrypted Synology NAS Portainer Set up 8

⌛Now just wait because the Scrypted image is about 4GB.

  • STEP 14

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Scrypted Synology NAS Portainer Set up 9

  • STEP 15

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 16

Now open your browser and type in your HTTPS/SSL certificate like this https://scrypted.yourname.synology.me In my case it’s https://scrypted.mariushosting.synology.me If everything goes right, you will see the Scrypted Login page. Add your own Username and your own Password then click Log In. Follow the instructions in the image below.

Scrypted Synology NAS Portainer Set up 10

  • STEP 17

Click Management Console. Follow the instructions in the image below.

Scrypted Synology NAS Portainer Set up 11

  • STEP 18

Your Scrypted dashboard at a glance! If you want to set up your Surveillance Cameras read the Scrypted Full Documentation.

Scrypted Synology NAS Portainer Set up 12

Enjoy Scrypted!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: How to Add USB Support on DSM 7.

Note: Find out how to update the Scrypted container with the latest image.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.

This post was updated on Monday / July 29th, 2024 at 12:04 AM
