Synology Install Remmina With Portainer

MyĀ previous guide for RemminaĀ involved the use of Task Scheduler. Today Iā€™m offering a recommended and excellent alternative for installing the latest Remmina version via Portainer. Remmina is a remote desktop client written in GTK, aiming to be useful for system administrators and traveling, who need to work with lots of remote computers in front of either large or tiny screens. Remmina supports multiple network protocols, in an integrated and consistent user interface. Currently RDP, VNC, SPICE, NX, XDMCP, SSH and EXEC are supported. In this step by step guide I will show you how to install Remmina on your Synology NAS using Docker & Portainer.

šŸ’”Note: This guide works perfectly with the latest Remmina v1.4.36 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go toĀ File Station and open the docker folder. Inside the docker folder, create one new folder and name it remmina. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Remmina Synology NAS Portainer Set up 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 5

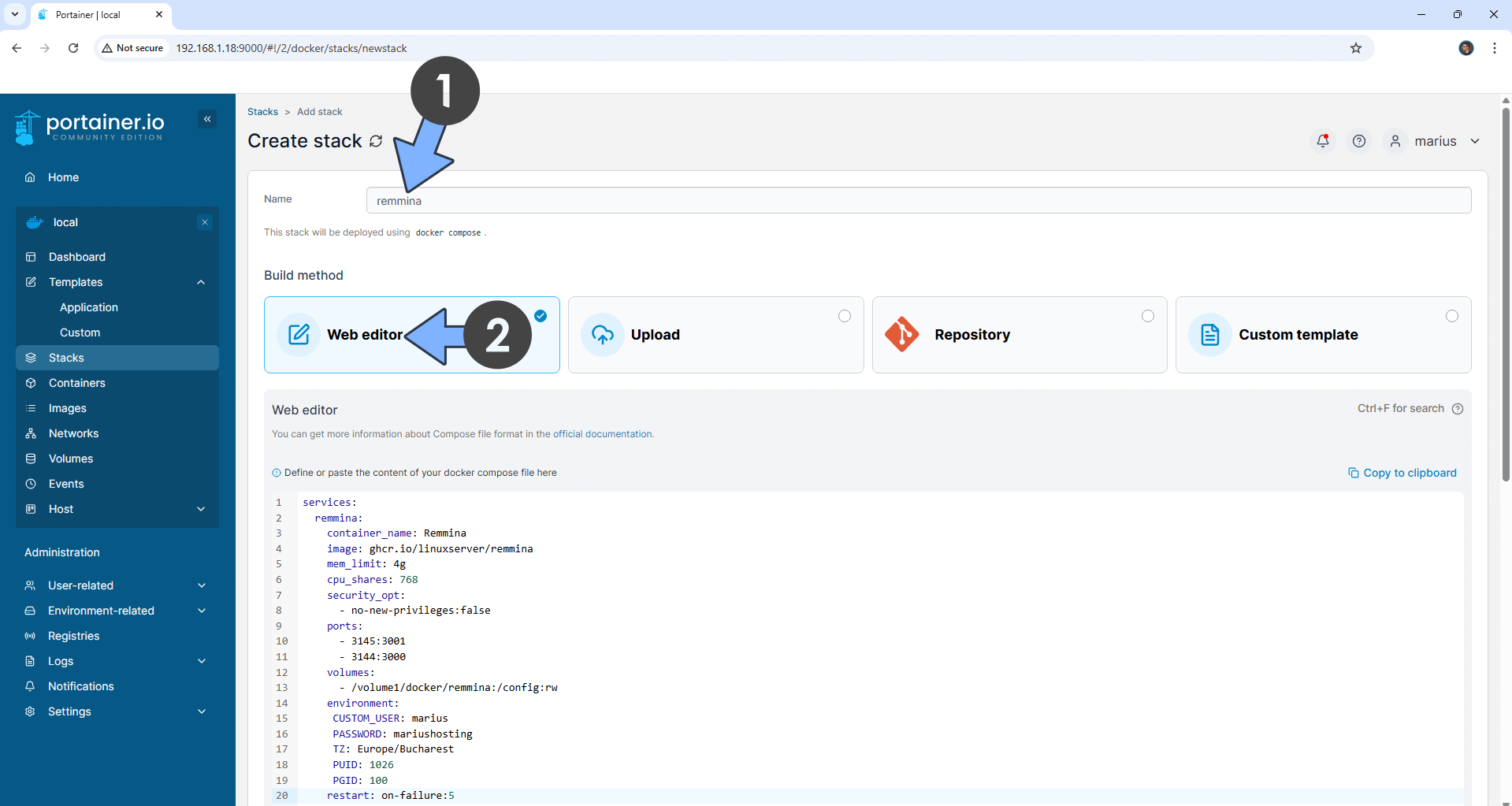

In the Name field type in remmina. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  remmina:
    container_name: Remmina
    image: ghcr.io/linuxserver/remmina
    mem_limit: 4g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:false
    restart: on-failure:5
    ports:
      - 3144:3000
    volumes:
      - /volume1/docker/remmina:/config:rw
    environment:
     CUSTOM_USER: marius
     PASSWORD: mariushosting
     TZ: Europe/Bucharest
     PUID: 1026
     PGID: 100

Note: Before you paste the code above in the Web editor area below, change the value for CUSTOM_USER. Type in your own username. marius is an example for a username.
Note: Before you paste the code above in the Web editor area below, change the value for PASSWORD. Type in your own password. mariushosting is an example for a password.
Note: Before you paste the code above in the Web editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUIDĀ andĀ PGIDĀ with your own values. (Follow my step by step guide on how to do this.)

Remmina Synology NAS Portainer Set up 2

  • STEP 6

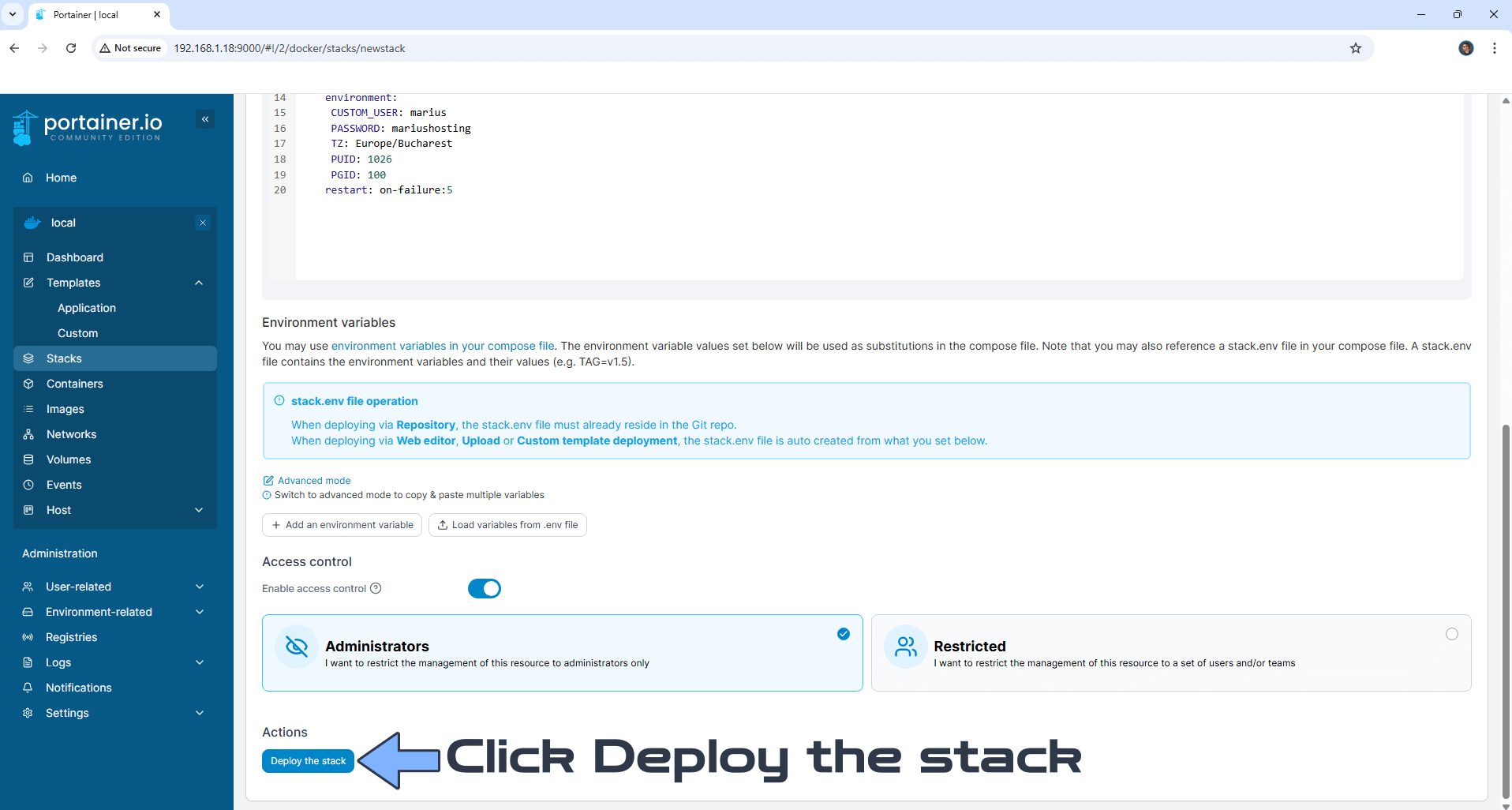

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Remmina Synology NAS Portainer Set up 3

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Remmina Synology NAS Portainer Set up 4

  • STEP 8

Go back toĀ STEP 1Ā or you will deal with karma šŸ™‚

  • STEP 9

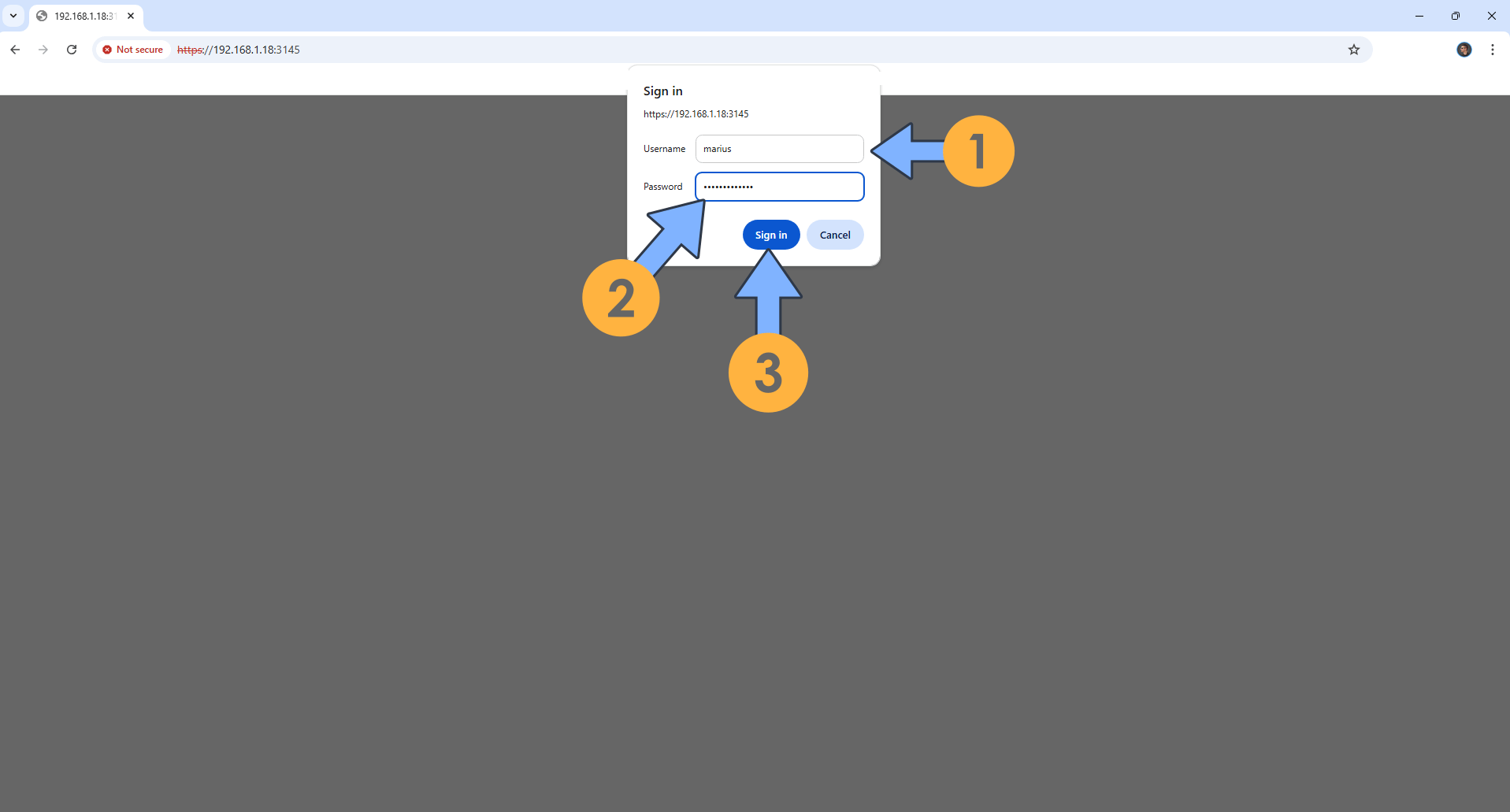

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type inĀ http://Synology-ip-address:3144 If everything goes right, you will see the Remmina Login page. Type in your own CUSTOM_USER and PASSWORD that you have previously created at STEP 5 then click Sign In. Follow the instructions in the image below.

Remmina Synology NAS Portainer Set up 5

  • STEP 10

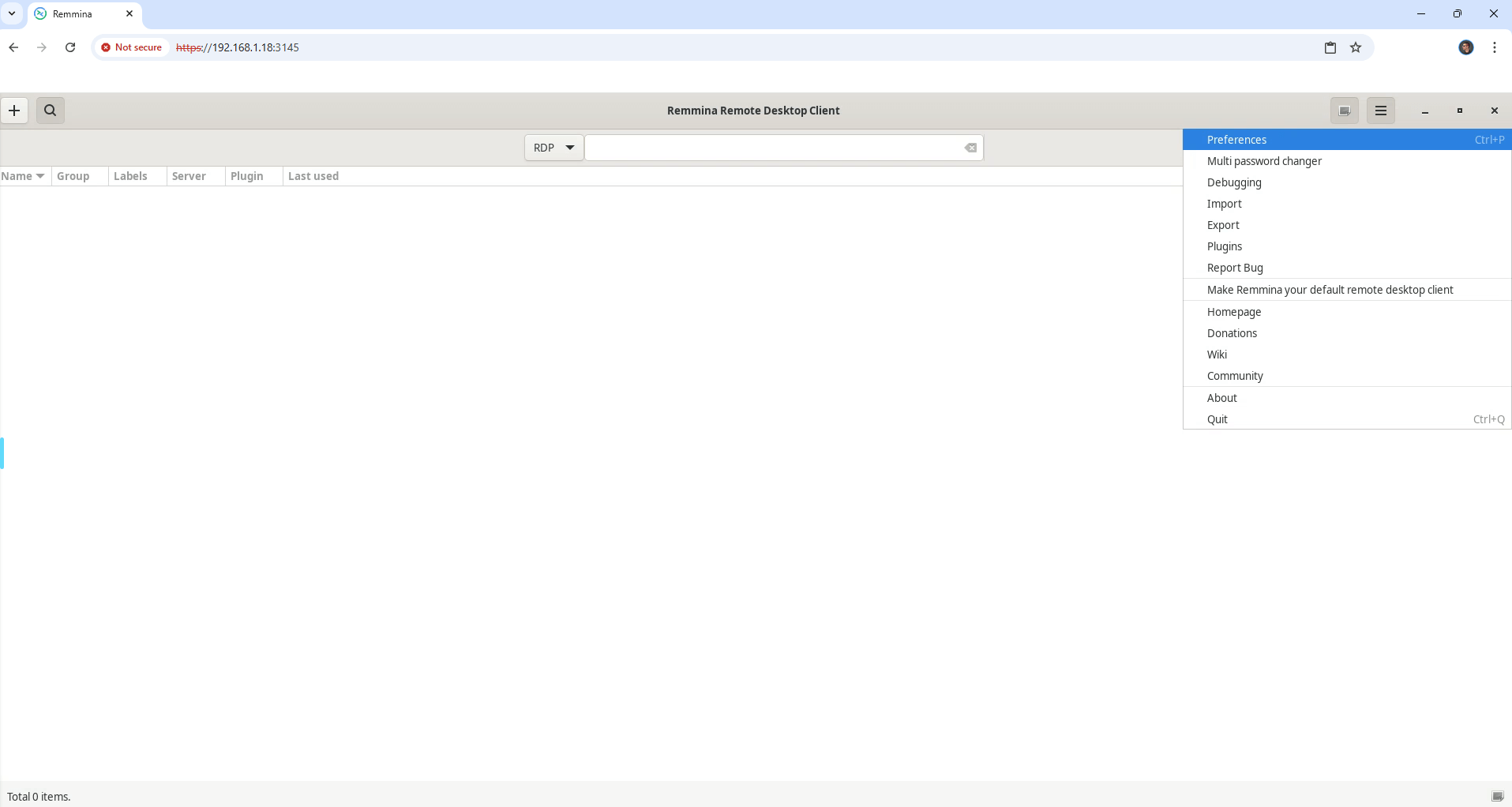

Your Remmina dashboard at a glance!

Remmina Synology NAS Portainer Set up 6

Enjoy Remmina!

šŸ†˜TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issuesĀ article.

Note: If you want to run the Remmina container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Remmina work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find outĀ how to update the Remmina container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
