UltiMaker Cura is a free, easy-to-use 3D printing software trusted by millions of users. Fine-tune your 3D model with 400+ settings for the best slicing and printing results. With hundreds of settings & community-managed print profiles, UltiMaker Cura is sure to lead your next project to a success. In this step by step guide I will show you how to install UltiMaker Cura on your Synology NAS using Docker.

💡Note: This guide works perfectly with the latest UltiMaker Cura v5.9.0 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it ultimakercura. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 5

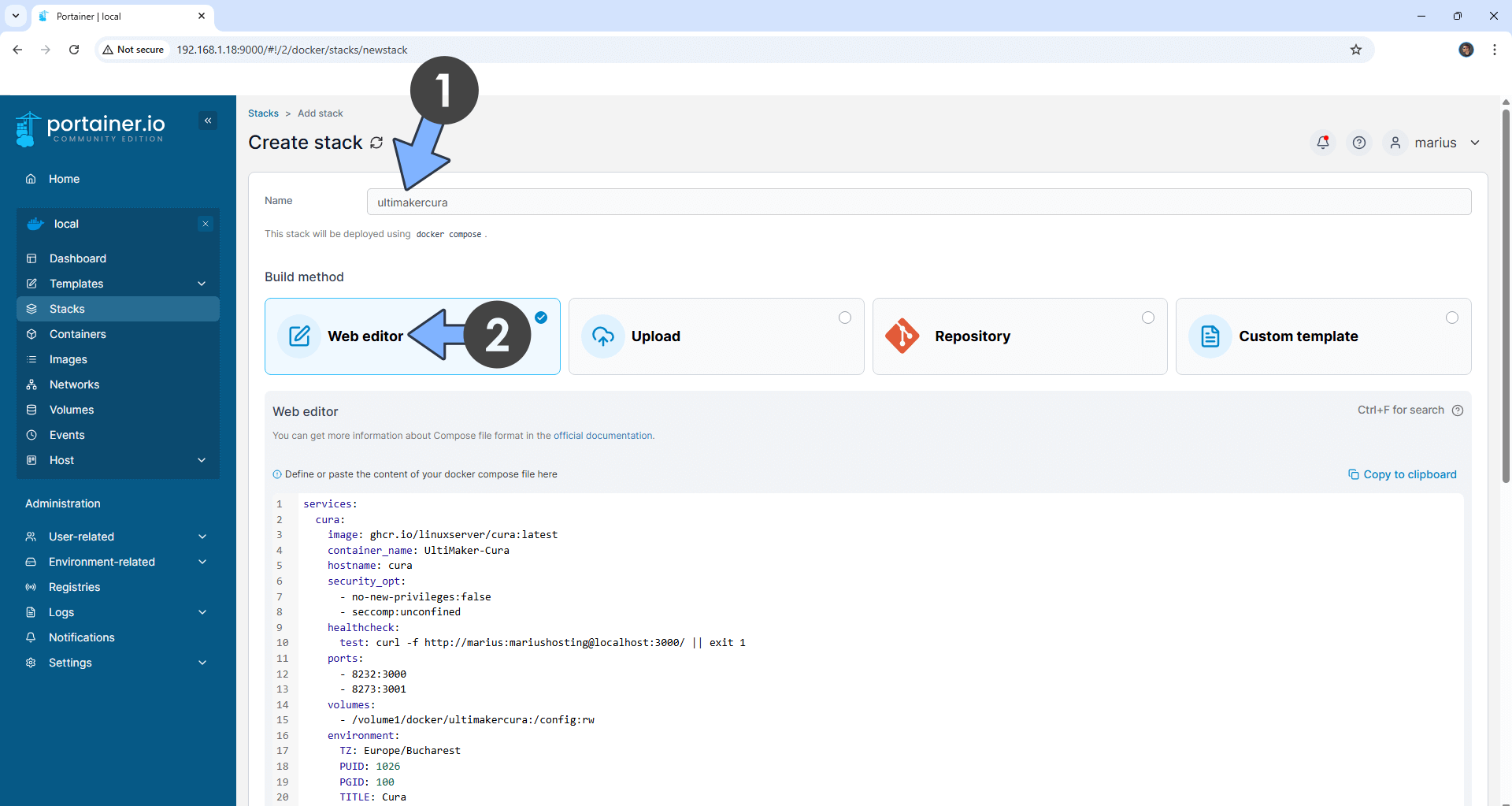

In the Name field type in ultimakercura. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  cura:
    image: ghcr.io/linuxserver/cura:latest
    container_name: UltiMaker-Cura
    hostname: cura
    mem_limit: 4g
    cpu_shares: 1024
    security_opt:
      - no-new-privileges:true
      - seccomp:unconfined
    healthcheck:
      test: curl -f http://marius:mariushosting@localhost:3000/ || exit 1
    ports:
      - 8232:3000
    volumes:
      - /volume1/docker/ultimakercura:/config:rw
    environment:
      TZ: Europe/Bucharest
      PUID: 1026
      PGID: 100
      TITLE: Cura
      CUSTOM_USER: marius
      PASSWORD: mariushosting
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for TZ. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Run command area, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.)
Note: Before you paste the code above in the Web editor area below, change the value for CUSTOM_USER. Type in your own username. marius is an example for a username.
Note: Before you paste the code above in the Web editor area below, change the value for PASSWORD. Type in your own password. mariushosting is an example for a password.
Note: The healthcheck should mirror the CUSTOM_USER and PASSWORD.

• STEP 6

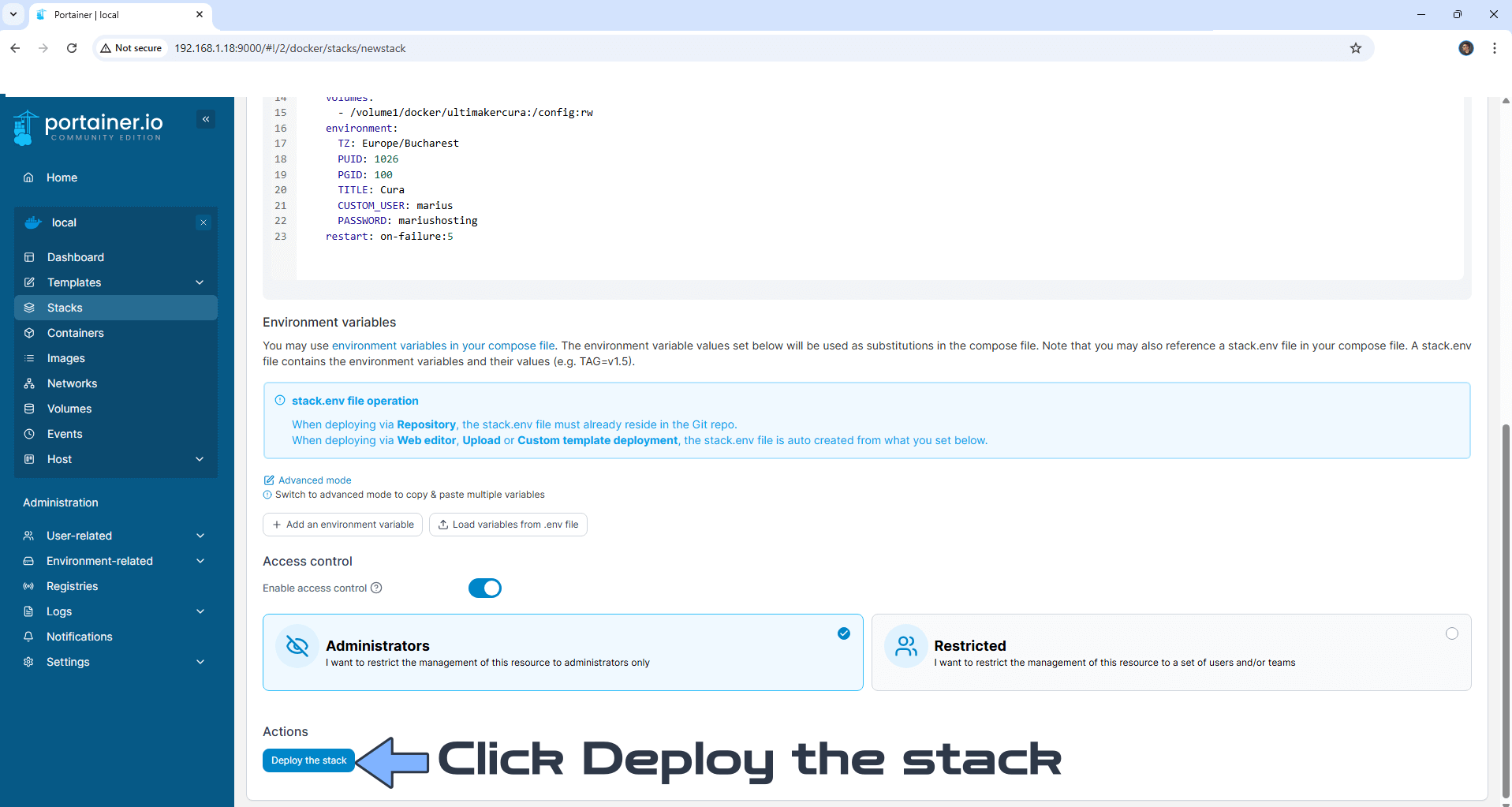

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

⌛Now just wait because the UltiMaker Cura image is about 3.5GB.

• STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 8

Go back to STEP 1 or you will deal with karma 🙂

• STEP 9

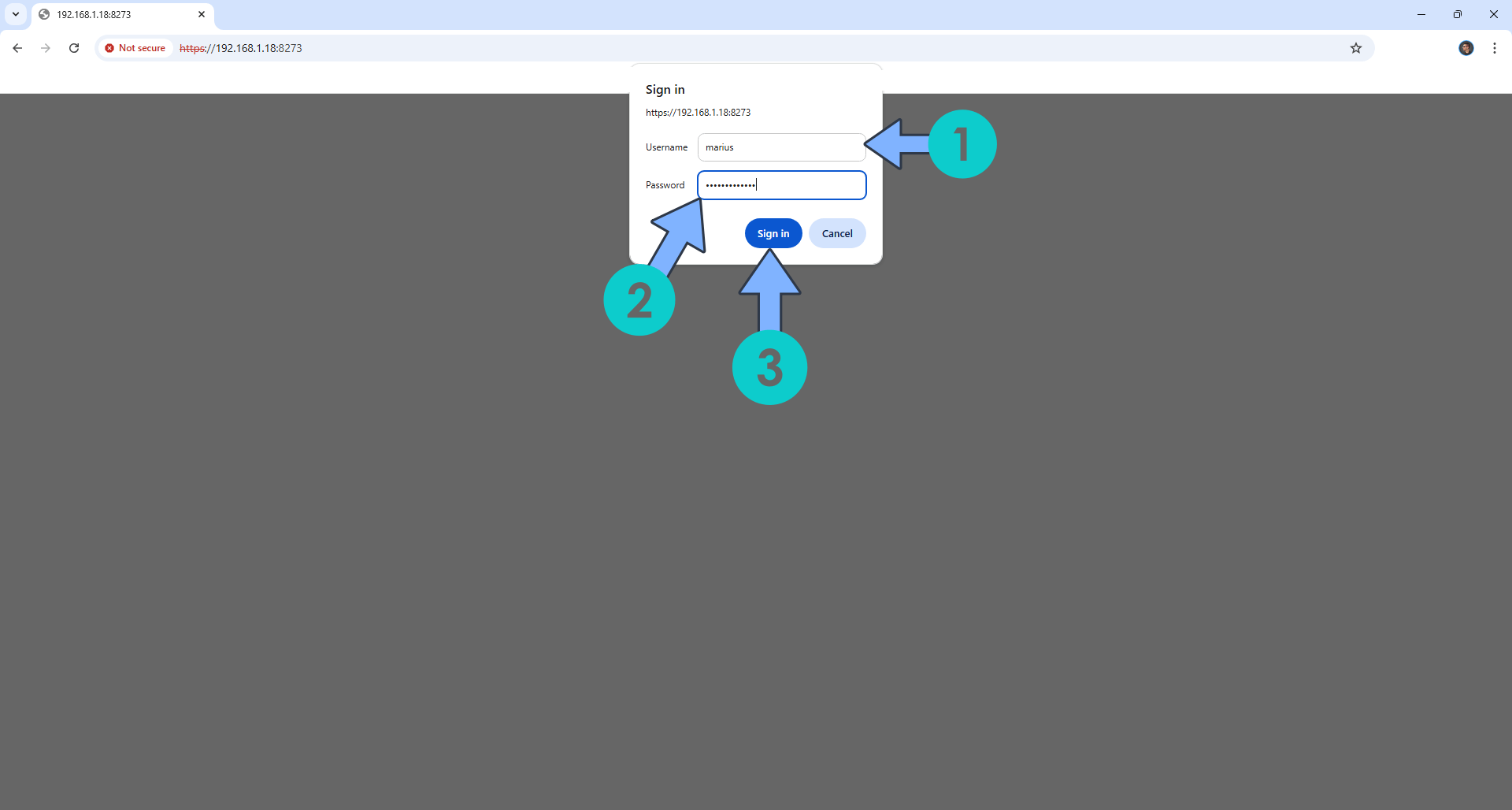

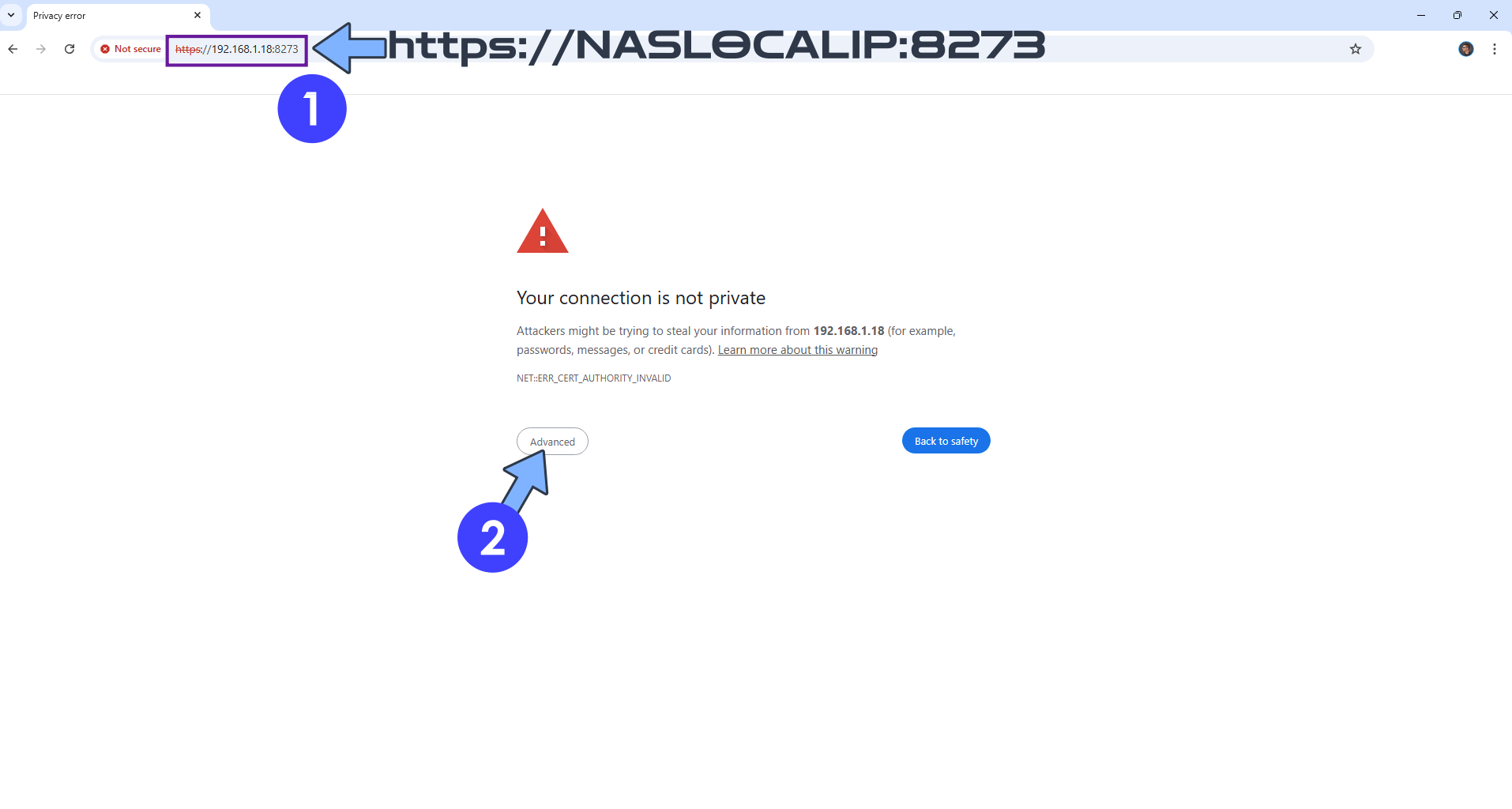

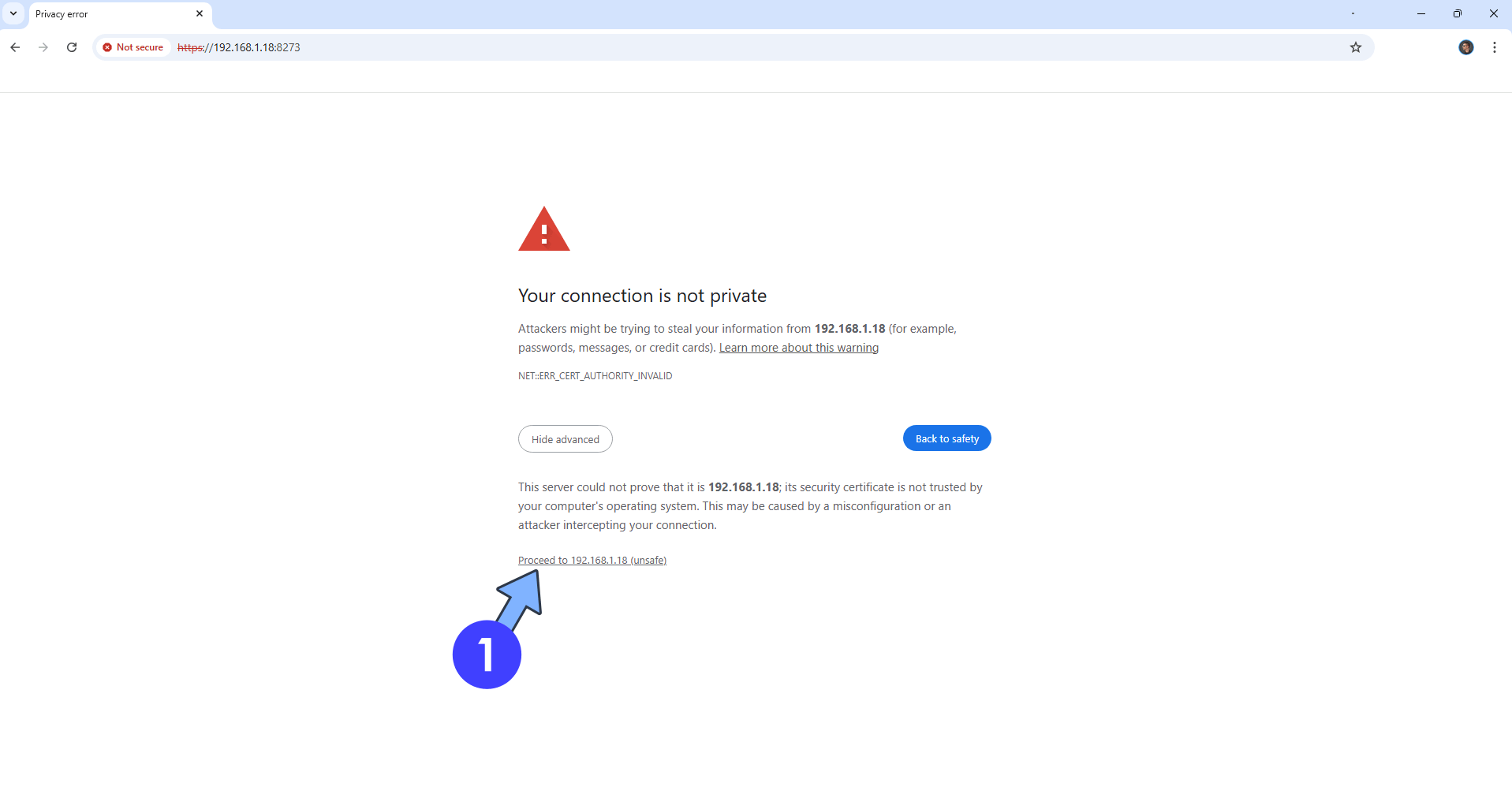

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:8232 If everything goes right, you will see the UltiMaker Cura Login page. Type in your own CUSTOM_USER and PASSWORD that you have previously created at STEP 5 then click Sign In. Follow the instructions in the image below.

• STEP 10

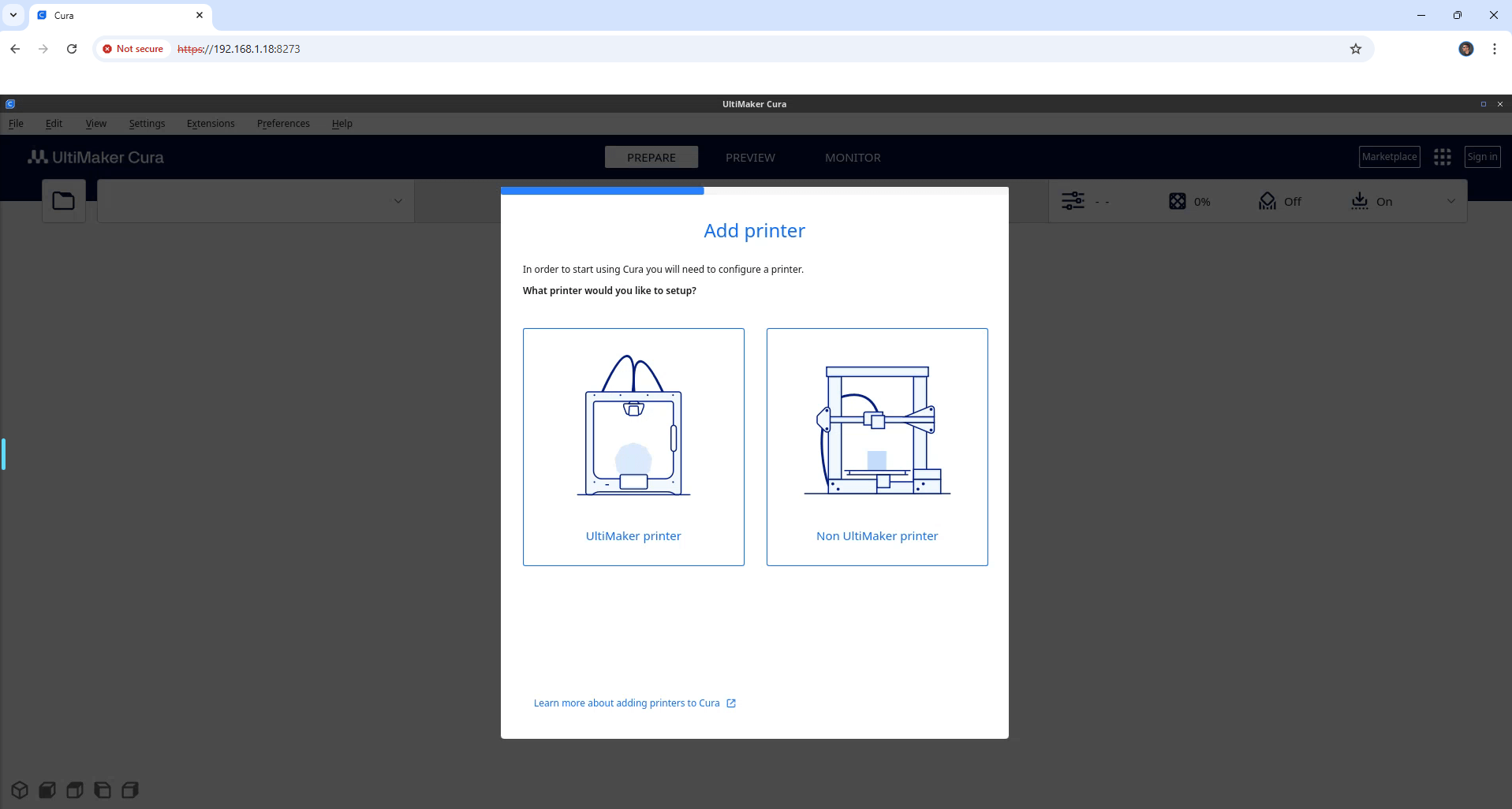

Select your Printer!

Enjoy UltiMaker Cura!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the UltiMaker Cura container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make UltiMaker Cura work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the UltiMaker Cura container with the latest image.
Note: How to Add USB Support on DSM 7.2.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.

This post was updated on Sunday / November 24th, 2024 at 1:10 PM
