My previous guide for SpeedTest Tracker involved the use of PostgreSQL as a database. SpeedTest Tracker is a program that runs a speedtest check every hour and graphs the results in a fancy way. The back-end is written in Laravel and the front-end uses Filament. It uses Ookla’s Speedtest cli to get the data and uses Chart.js to plot the results. In this step by step guide I will show you how to install SpeedTest Tracker on your Synology NAS with SQLite using Docker & Portainer. Note: SQLite is a lightweight database and is recommended for use on slower or older Synology NAS models.

💡Note: This guide works perfectly with the latest Speedtest Tracker v.0.21.6 release.

💡Note: Check out my guide on how to Install Speedtest Tracker With Postgres as a Database.

💡Note: Check out my new guide on how to Install Speedtest Tracker on Your UGREEN NAS.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

• STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

• STEP 5

Now click the “Create” button. Follow the instructions in the image below.

• STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Speedtest. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: speedtest.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 8999

• STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

• STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

• STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

• STEP 10

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it speedtest. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 11

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 12

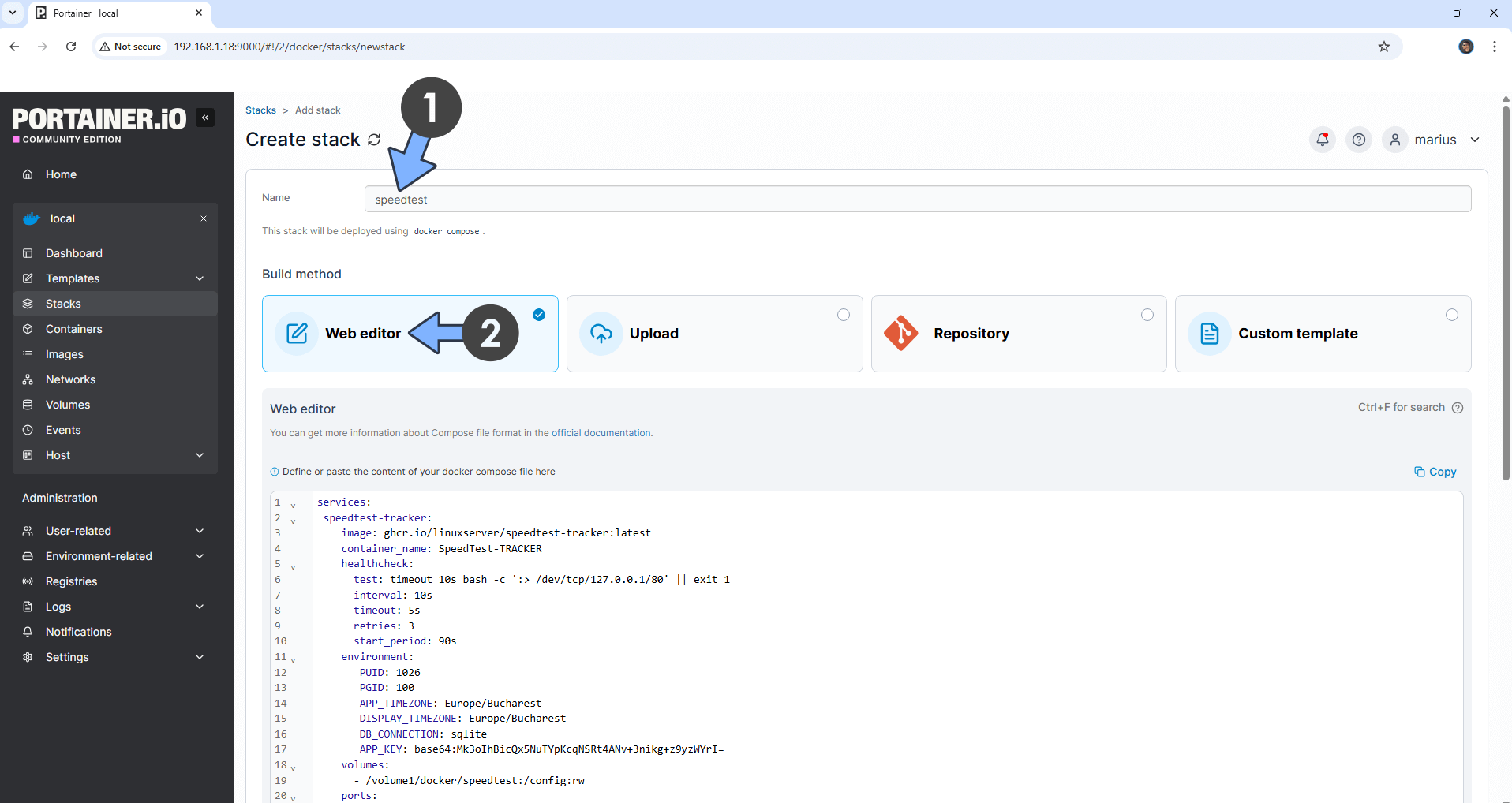

In the Name field type in speedtest. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
 speedtest-tracker:
    image: ghcr.io/linuxserver/speedtest-tracker:latest
    container_name: SpeedTest-TRACKER
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/80' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    environment:
       PUID: 1026
       PGID: 100
       APP_TIMEZONE: Europe/Bucharest
       DISPLAY_TIMEZONE: Europe/Bucharest
       DB_CONNECTION: sqlite
       APP_KEY: base64:Mk3oIhBicQx5NuTYpKcqNSRt4ANv+3nikg+z9yzWYrI=
    volumes:
      - /volume1/docker/speedtest:/config:rw
    ports:
      - 8999:80
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.)
Note: Before you paste the code above in the Web editor area below, change the value for APP_TIMEZONE. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value for DISPLAY_TIMEZONE. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value for APP_KEY. (Generate your own free APP KEY.)

• STEP 13

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 14

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 15

Go back to STEP 1 or you will deal with karma 🙂.

• STEP 16

Now open your browser and type in your HTTPS/SSL certificate like this https://speedtest.yourname.synology.me/admin/login In my case it’s https://speedtest.mariushosting.synology.me/admin/login If everything goes right, you will see the Speedtest Sign in page. Type in the default Email address and Password, then click Sign in. Follow the instructions in the image below.

⚠️Warning: the default Email address is admin@example.com and the default password is password

• STEP 17

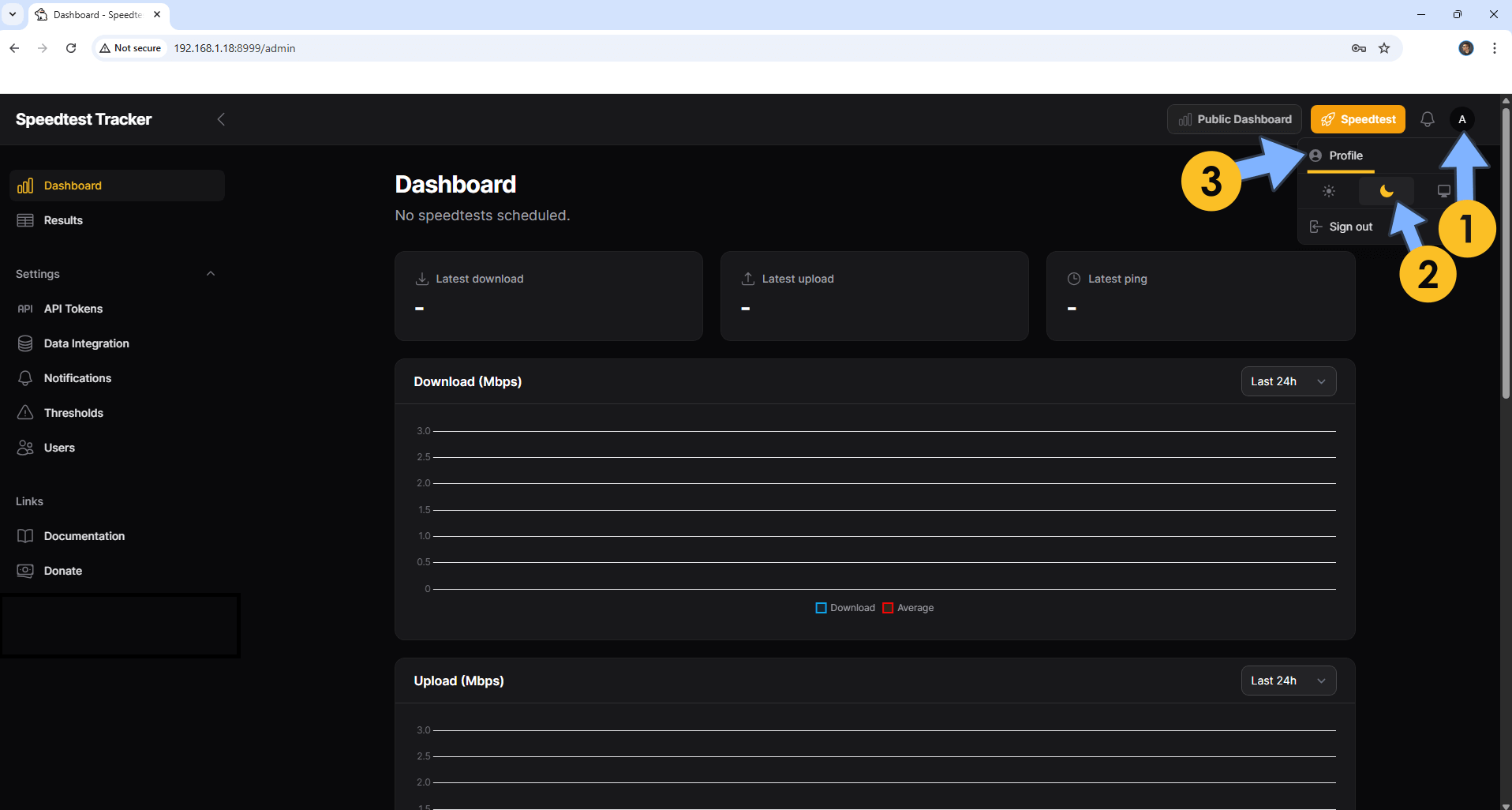

At the top right of the page, switch to dark mode. Follow the instructions in the image below.

• STEP 18

Change the default Email address and Password with your own credentials. On the left sidebar click Users then the current Admin user. Follow the instructions in the image below.

• STEP 19

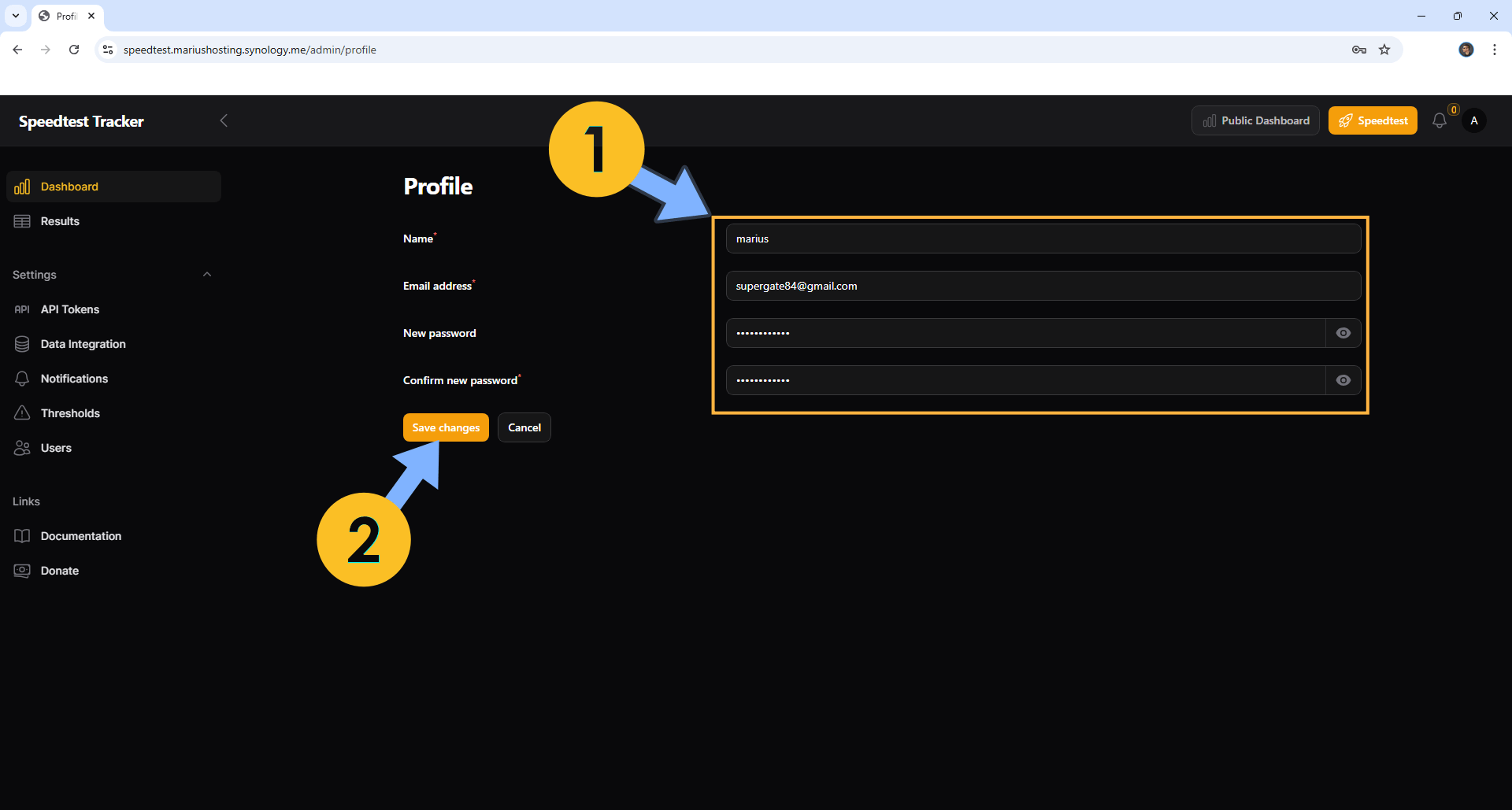

Type in your own credentials then click Save changes. Follow the instructions in the image below.

• STEP 20

You will be prompted to enter your new credentials that you have previously added at STEP 19. Click Sign in. Follow the instructions in the image below.

• STEP 21

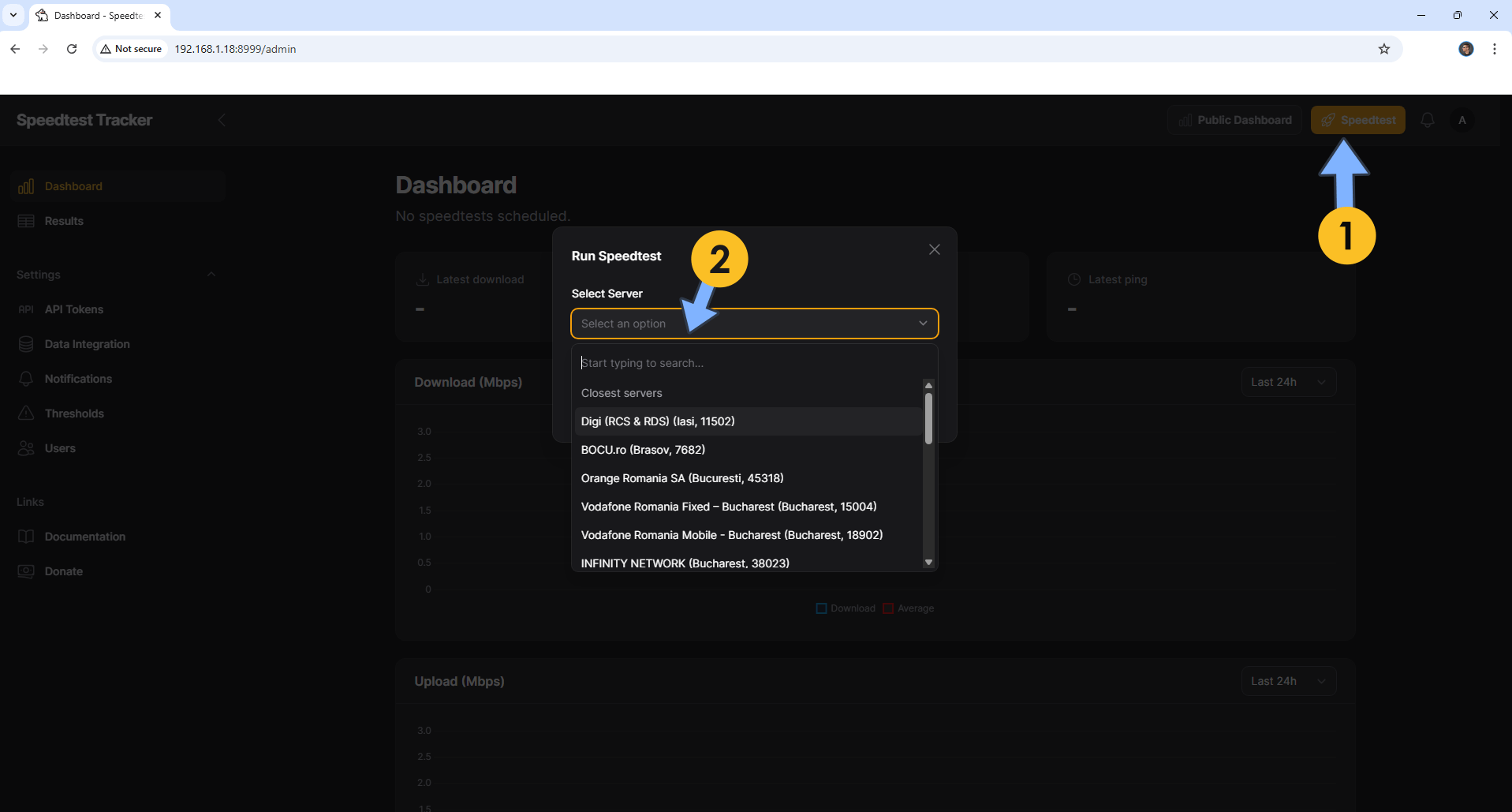

Start your first test. Click Run Speedtest at the top right of the Dashboard page, then Ookla speedtest. Follow the instructions in the image below.

• STEP 22

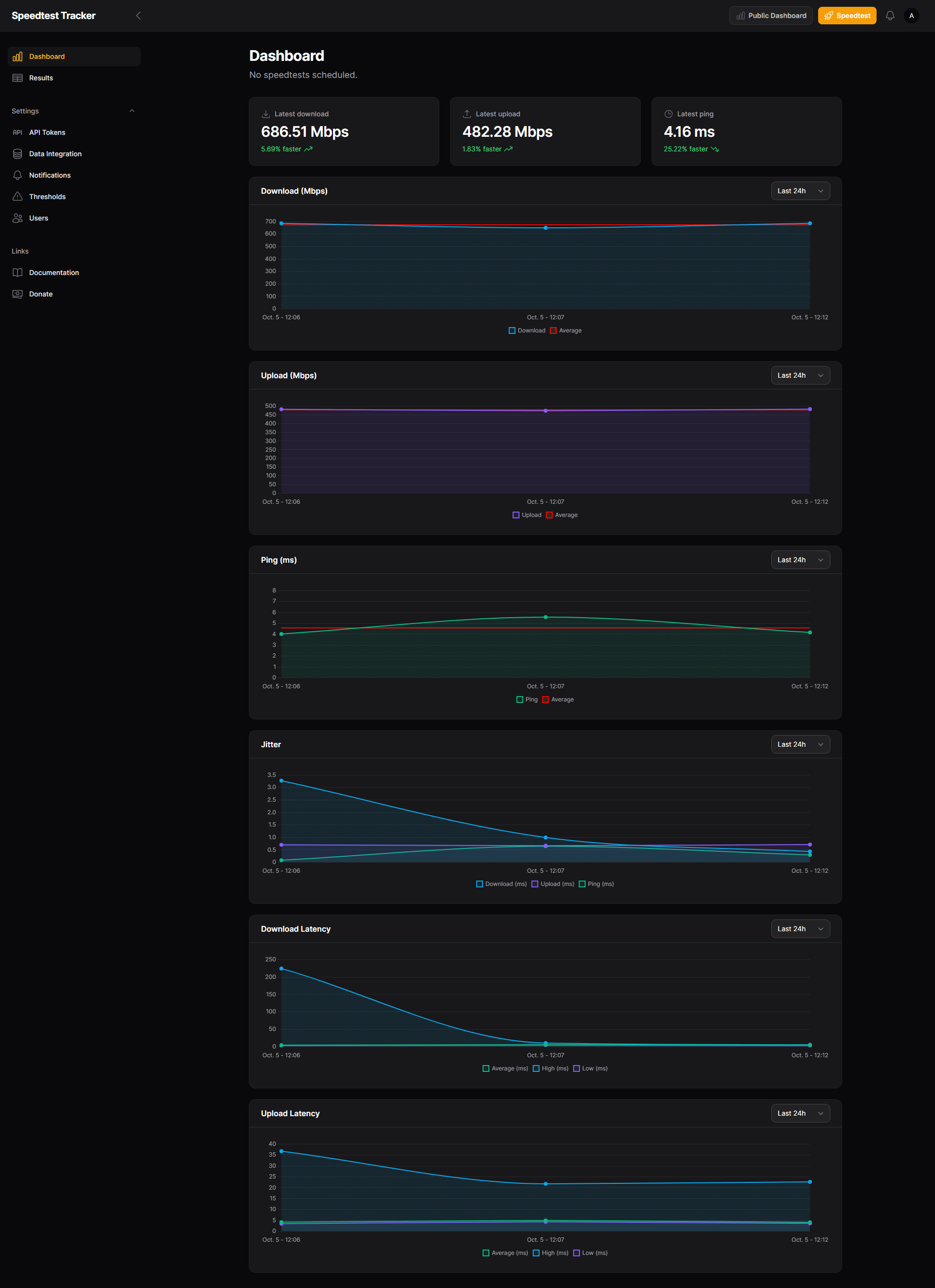

Your SpeedTest Tracker dashboard at a glance!

• STEP 23

Download (click on the blue link below) to download the SpeedTest Tracker Docker Compose stack with SPEEDTEST SCHEDULE integration. 🔒Note: Support my work to unlock the password. You can use this password to download any file on mariushosting forever!

👉🏻SpeedTest Docker Compose Stack For Portainer With SCHEDULE Integration

Enjoy SpeedTest Tracker with SQLite database!
