How to Install Speedtest Tracker on Your UGREEN NAS

How to Install Speedtest Tracker on Your UGREEN NAS

SpeedTest Tracker is a program that runs a speedtest check every hour and graphs the results in a fancy way. The back-end is written in Laravel and the front-end uses Filament. It uses Ookla’s Speedtest cli to get the data and uses Chart.js to plot the results. In this step by step guide I will show you how to install SpeedTest Tracker on your UGREEN NAS with SQLite using Docker & Portainer.

💡Note: This guide works perfectly with the latest Speedtest Tracker v.0.20.7 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your UGREEN NAS, skip this STEP.

  • STEP 3

Go to File Manager and open the docker folder. Inside the docker folder, create one new folder and name it speedtest. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Speedtest Tracker UGREEN NAS Set up 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

UGREEN NAS Portainer Add Stack

  • STEP 5

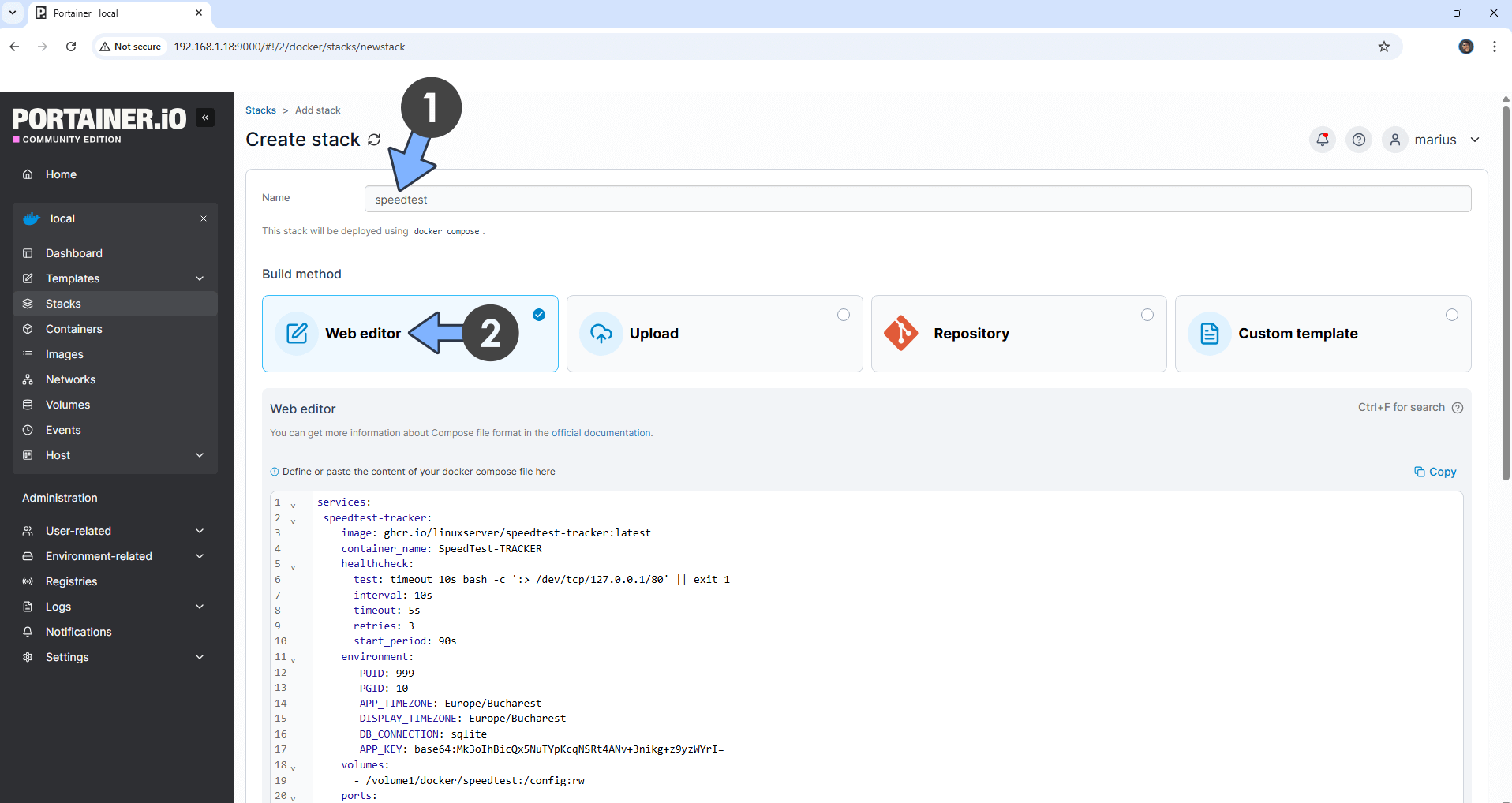

In the Name field type in speedtest. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
 speedtest-tracker:
    image: ghcr.io/linuxserver/speedtest-tracker:latest
    container_name: SpeedTest-TRACKER
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/80' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    environment:
       PUID: 999
       PGID: 10
       TZ: Europe/Bucharest
       DISPLAY_TIMEZONE: Europe/Bucharest
       DB_CONNECTION: sqlite
       APP_KEY: base64:Mk3oIhBicQx5NuTYpKcqNSRt4ANv+3nikg+z9yzWYrI=
    volumes:
      - /volume1/docker/speedtest:/config:rw
    ports:
      - 8999:80
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.)
Note: Before you paste the code above in the Web editor area below, change the value for TZ. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value for DISPLAY_TIMEZONE. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value for APP_KEY. (Generate your own free APP KEY.)

Speedtest Tracker UGREEN NAS Set up 2

  • STEP 6

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Speedtest Tracker UGREEN NAS Set up 3

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Speedtest Tracker UGREEN NAS Set up 4

  • STEP 8

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 9

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://ugreennas-ip-address:8999/admin/login If everything goes right, you will see the Speedtest Sign in page. Type in the default Email address and Password, then click Sign in. Follow the instructions in the image below.

⚠️Warning: the default Email address is admin@example.com and the default password is password

Speedtest Tracker UGREEN NAS Set up 5

  • STEP 10

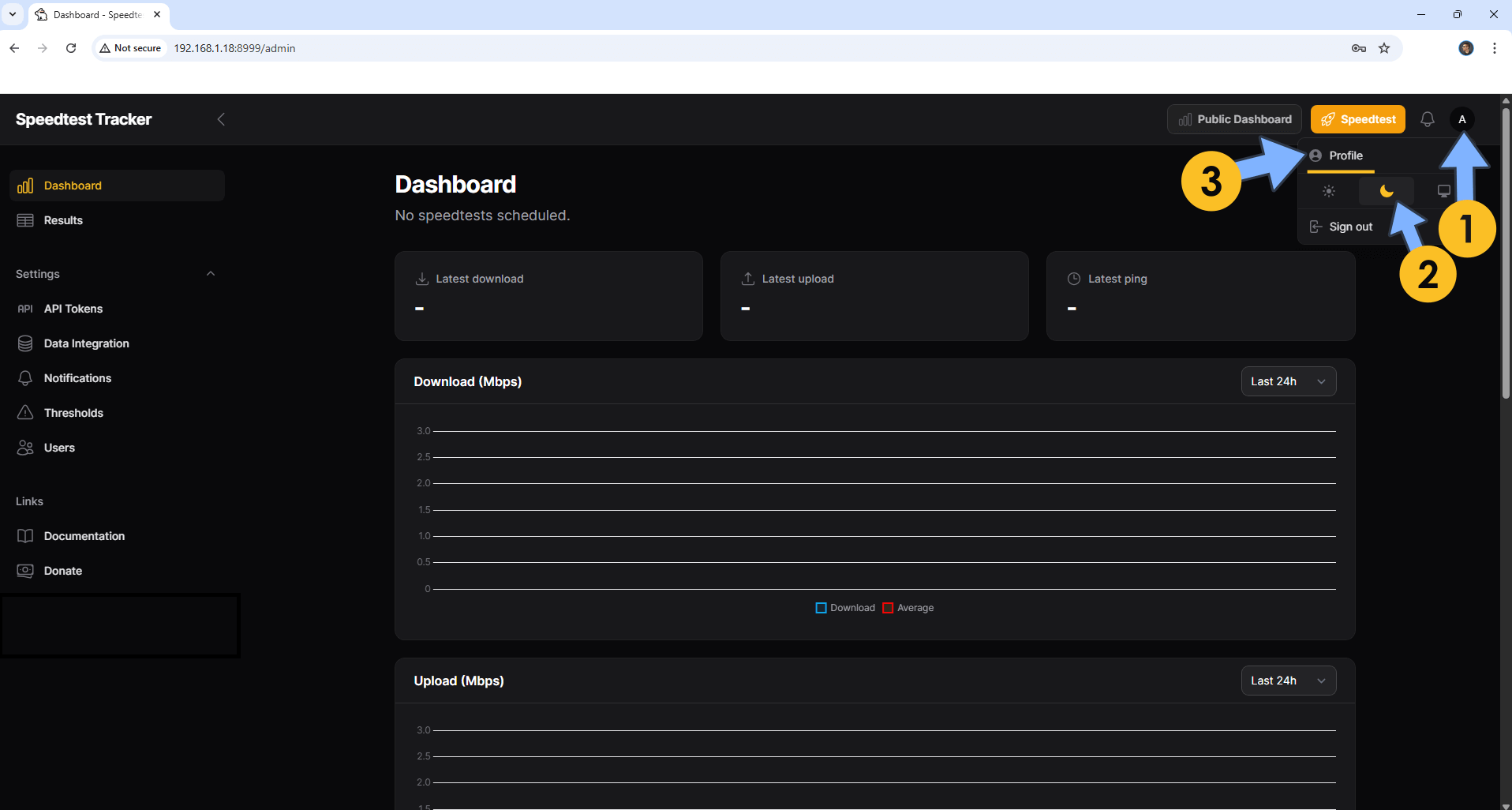

At the top right of the page, switch to dark mode. Follow the instructions in the image below.

Speedtest Tracker UGREEN NAS Set up 6

  • STEP 11

Change the default Email address and Password with your own credentials. On the left sidebar click Users then the current Admin user. Follow the instructions in the image below.

Speedtest Tracker UGREEN NAS Set up 7

  • STEP 12

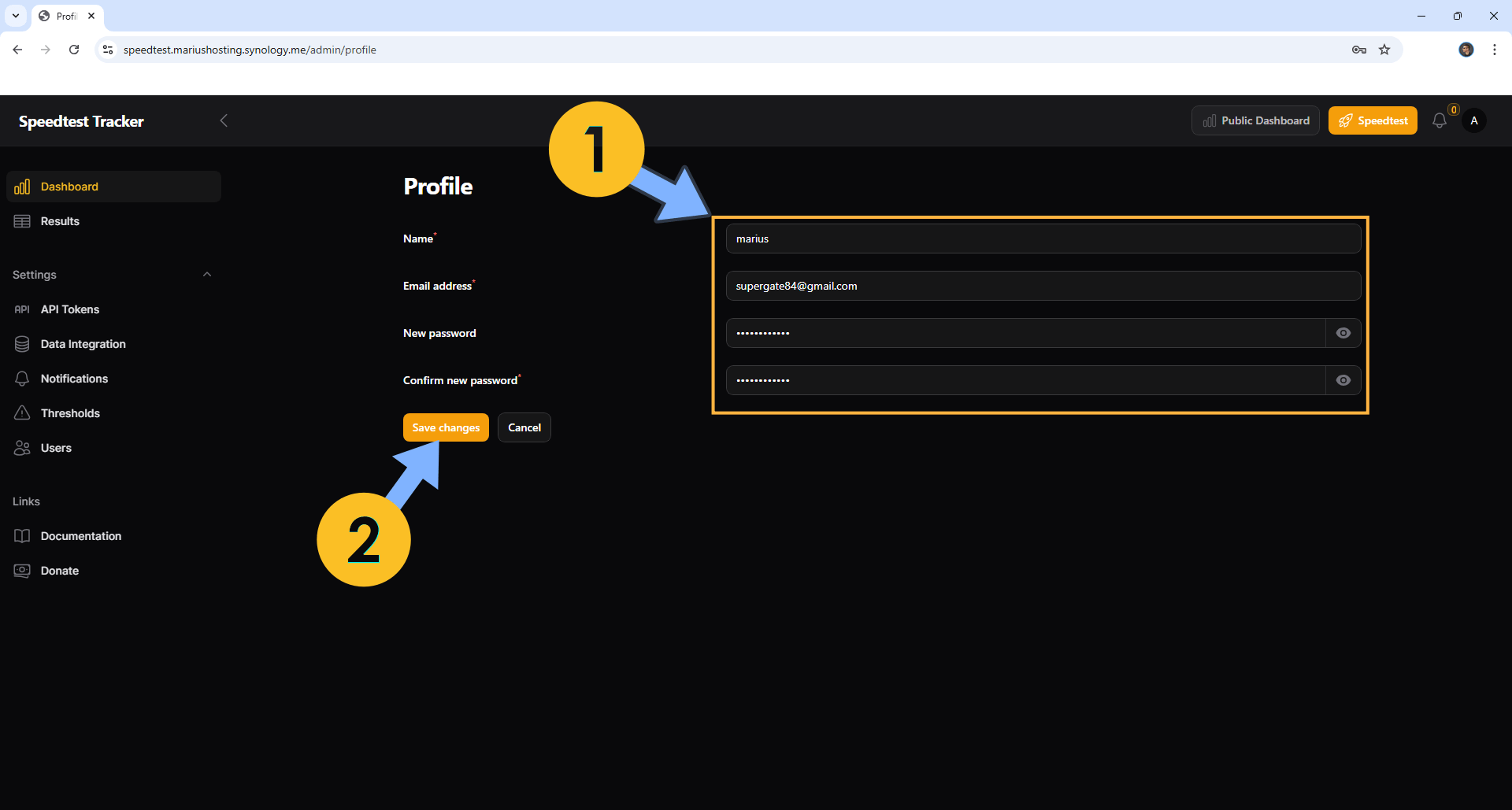

Type in your own credentials then click Save changes. Follow the instructions in the image below.

Speedtest Tracker UGREEN NAS Set up 8

  • STEP 13

You will be prompted to enter your new credentials that you have previously added at STEP 12. Click Sign in. Follow the instructions in the image below.

Speedtest Tracker UGREEN NAS Set up 9

  • STEP 14

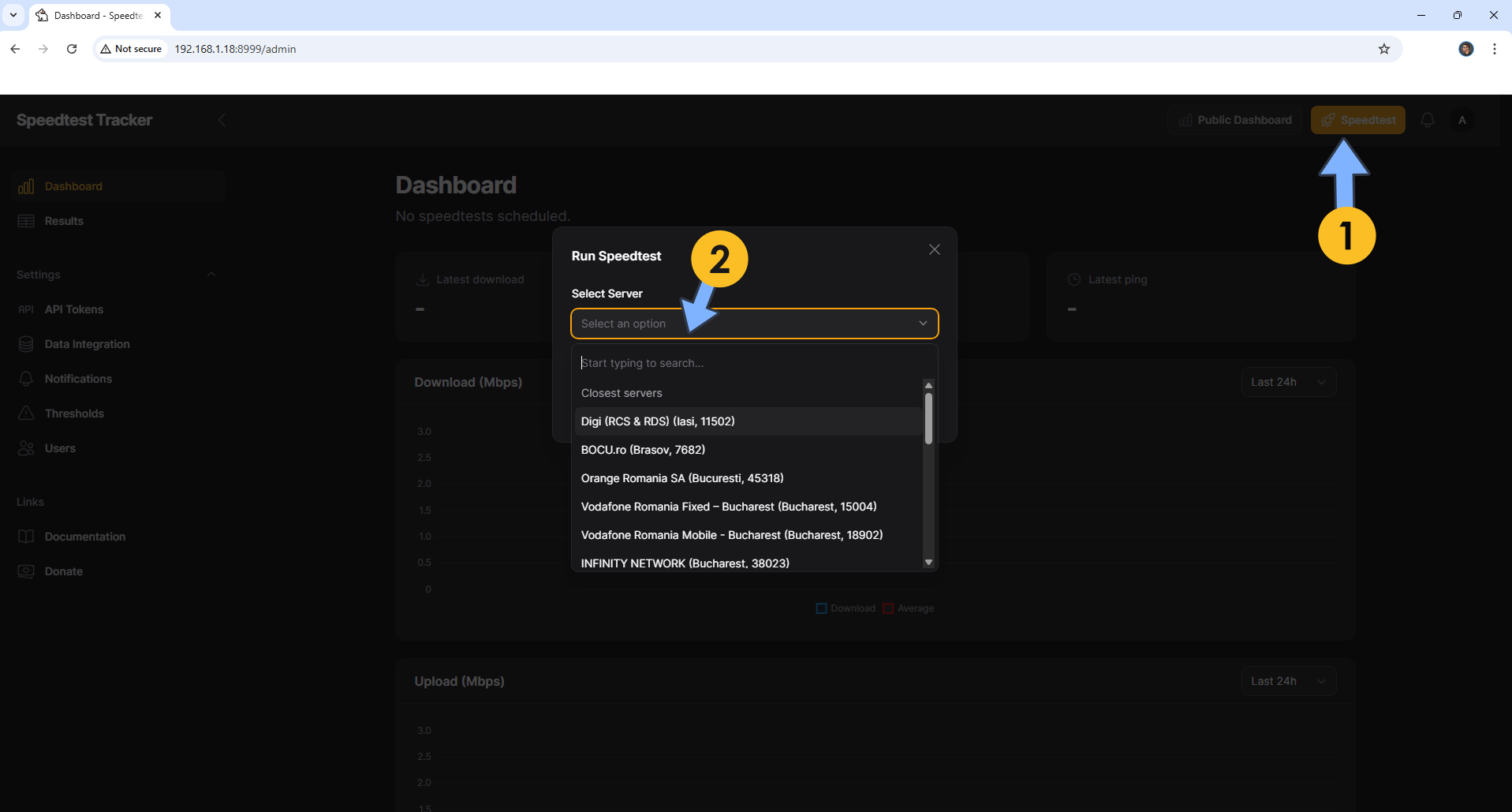

Start your first test. Click Run Speedtest at the top right of the Dashboard page, then Ookla speedtest. Follow the instructions in the image below.

Speedtest Tracker UGREEN NAS Set up 10

  • STEP 15

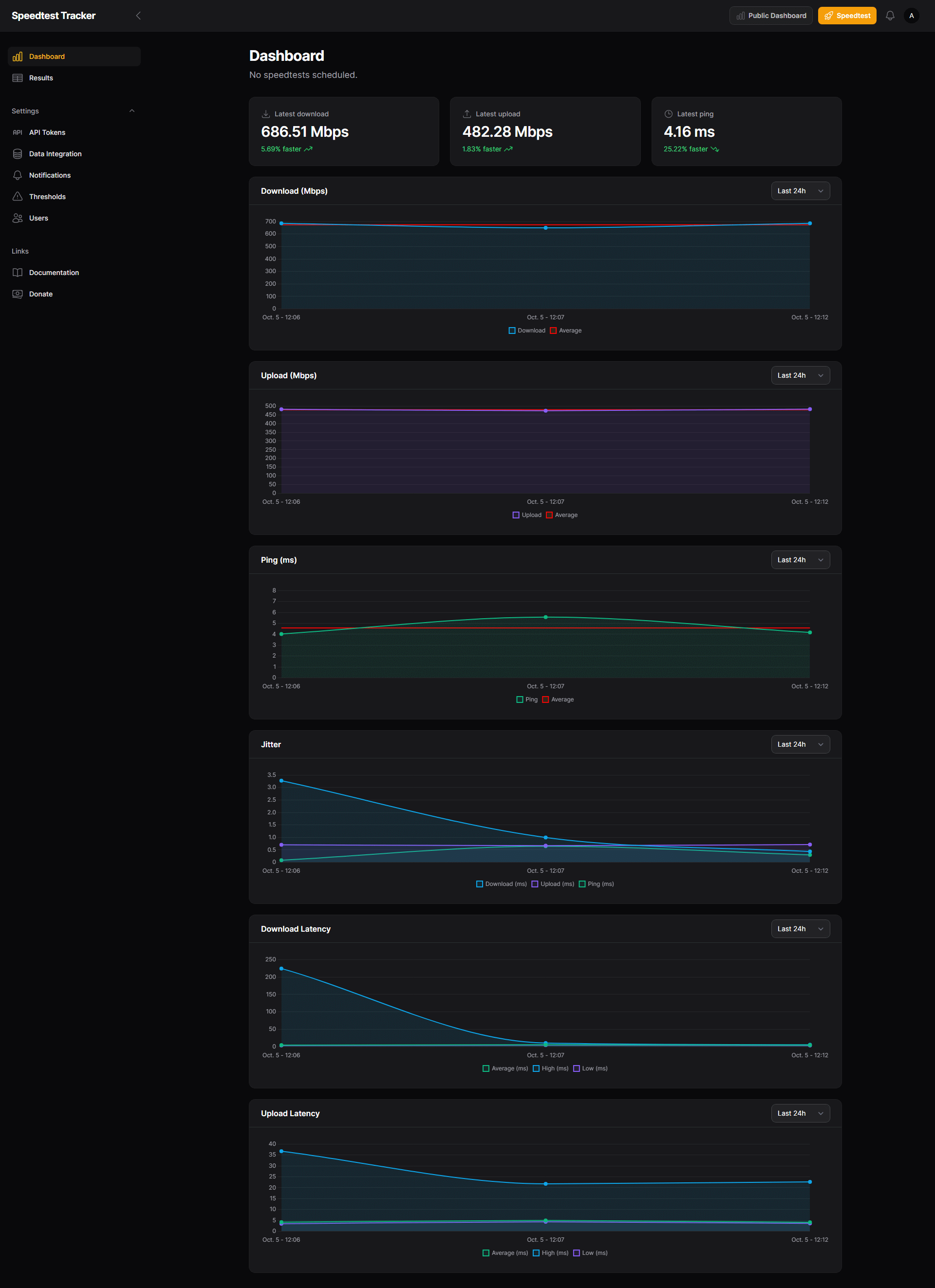

Your Speedtest Tracker dashboard at a glance!

Speedtest Tracker UGREEN NAS Set up 11

Enjoy Speedtest Tracker on your UGREEN NAS!

This post was updated on Thursday / July 11th, 2024 at 3:08 AM
