Shlink is a self-hosted open source URL shortener which provides both a REST and a CLI interface to interact with it. Shlink comes with some features which are not usually available in other hosted and self-hosted services. Shlink is a more advanced alternative to reduced URL shortener. In this step by step guide I will show you how to install Shlink on your Synology NAS using Docker and Portainer.

Note: This guide works perfectly with the latest Shlink v3.3.2 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Shlink Synology NAS Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

Shlink Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Shlink URL. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: url.yourname.synology.me
Port: 443

Destination:
Protocol: HTTP
Hostname: Add your own NAS IP.
Port: 8335

Shlink Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Shlink Synology NAS Set up 4

  • STEP 9

Now click the “Create” button. Follow the instructions in the image below.

Shlink Synology NAS Set up 5

  • STEP 10

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Shlink ACCESS. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: shlink.yourname.synology.me
Port: 443

Destination:
Protocol: HTTP
Hostname: Add your own NAS IP.
Port: 8336

Shlink Synology NAS Set up 6

  • STEP 11

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 12

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Shlink HTTP2 Synology

  • STEP 13

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

Shlink HTTP Compression Synology

  • STEP 14

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it shlinkdb. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Shlink Synology NAS Set up 7

  • STEP 15

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 16

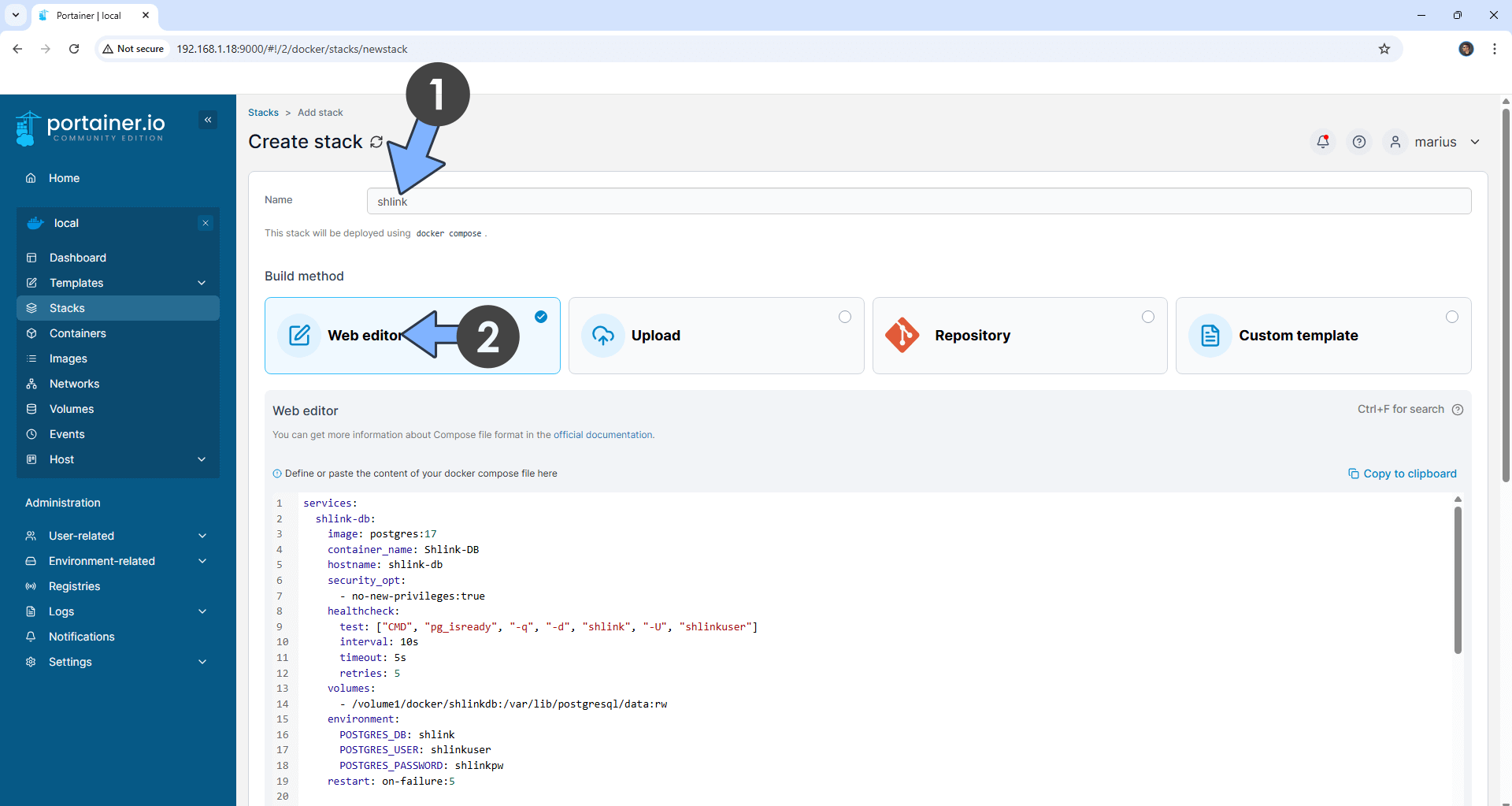

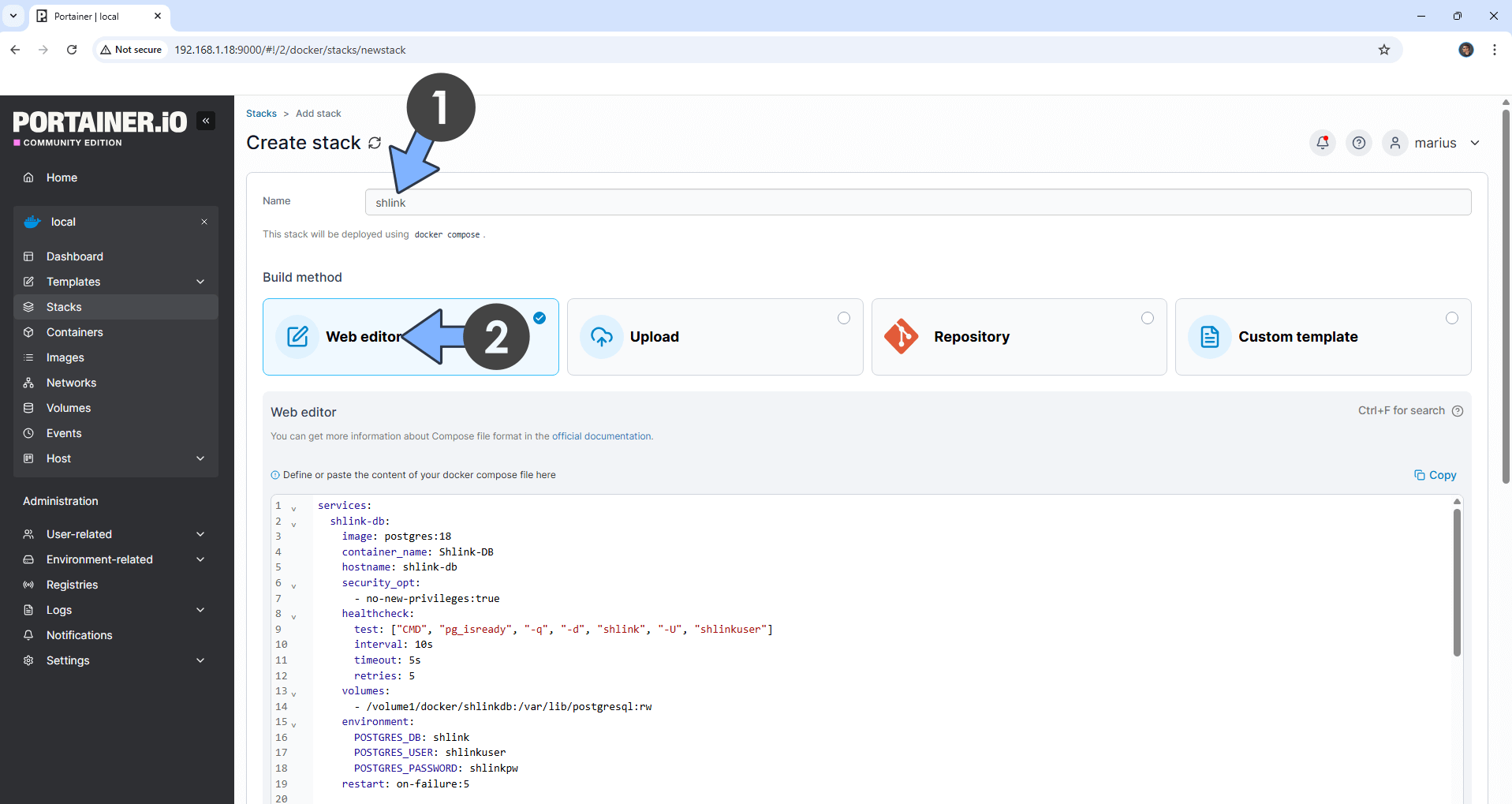

In the Name field type in shlink. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  shlink-db:
    image: postgres
    container_name: Shlink-DB
    hostname: shlink-db
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "shlink", "-U", "shlinkuser"]
      interval: 10s
      timeout: 5s
      retries: 5
    user: 1026:100
    volumes:
      - /volume1/docker/shlinkdb:/var/lib/postgresql/data
    environment:
      POSTGRES_DB: shlink
      POSTGRES_USER: shlinkuser
      POSTGRES_PASSWORD: shlinkpw
    restart: always

  shlink:
    image: shlinkio/shlink:stable
    container_name: Shlink
    hostname: shlink
    security_opt:
      - no-new-privileges:true
    ports:
      - 192.168.1.18:8335:8080
    environment:
      - TIMEZONE=Europe/Bucharest
      - INITIAL_API_KEY=59f4baa0-b67b-444d-8a06-f455b37ec180
      - DB_DRIVER=postgres
      - DB_NAME=shlink
      - DB_USER=shlinkuser
      - DB_PASSWORD=shlinkpw
      - DB_HOST=shlink-db
      - DB_PORT=5432
      - DEFAULT_DOMAIN=url.yourname.synology.me
      - IS_HTTPS_ENABLED=true
      - GEOLITE_LICENSE_KEY=ot1mmLCACB3N8IL6
    restart: always
    depends_on:
      shlink-db:
        condition: service_healthy

  shlink-web:
    image: shlinkio/shlink-web-client:stable
    container_name: Shlink-WEB
    hostname: shlink-web
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: wget --no-verbose --tries=1 --spider http://localhost:80/ || exit 1
    ports:
      - 192.168.1.18:8336:80
    environment:
      - SHLINK_SERVER_NAME=mariushosting
      - SHLINK_SERVER_URL=https://url.yourname.synology.me
      - SHLINK_SERVER_API_KEY=59f4baa0-b67b-444d-8a06-f455b37ec180
    restart: always
    depends_on:
      - shlink

Note: Before you paste the code above in the Web editor area below, change the value numbers for user with your own UID and GID values. (Follow my step by step guide on how to do this.) 1026 is my personal UID value and 100 is my personal GID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for ports and add your own Synology Local NAS IP. 192.168.1.18 is my own Synology Local NAS IP. You should type in your own Synology Local NAS IP.
Note: Before you paste the code above in the Web editor area below, change the value for TZ. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value for DEFAULT_DOMAIN and type in your own synology.me DDNS that you have previously created at STEP 6 but without https:// at the beginning.
Note: Before you paste the code above in the Web editor area below, change the value for SHLINK_SERVER_NAME. mariushosting is an example for a server name. You should use your own server name.
Note: Before you paste the code above in the Web editor area below, change the value for SHLINK_SERVER_URL and type in your own synology.me DDNS that you have previously created at STEP 6 with https:// at the beginning.

Shlink Synology NAS Set up 8

  • STEP 17

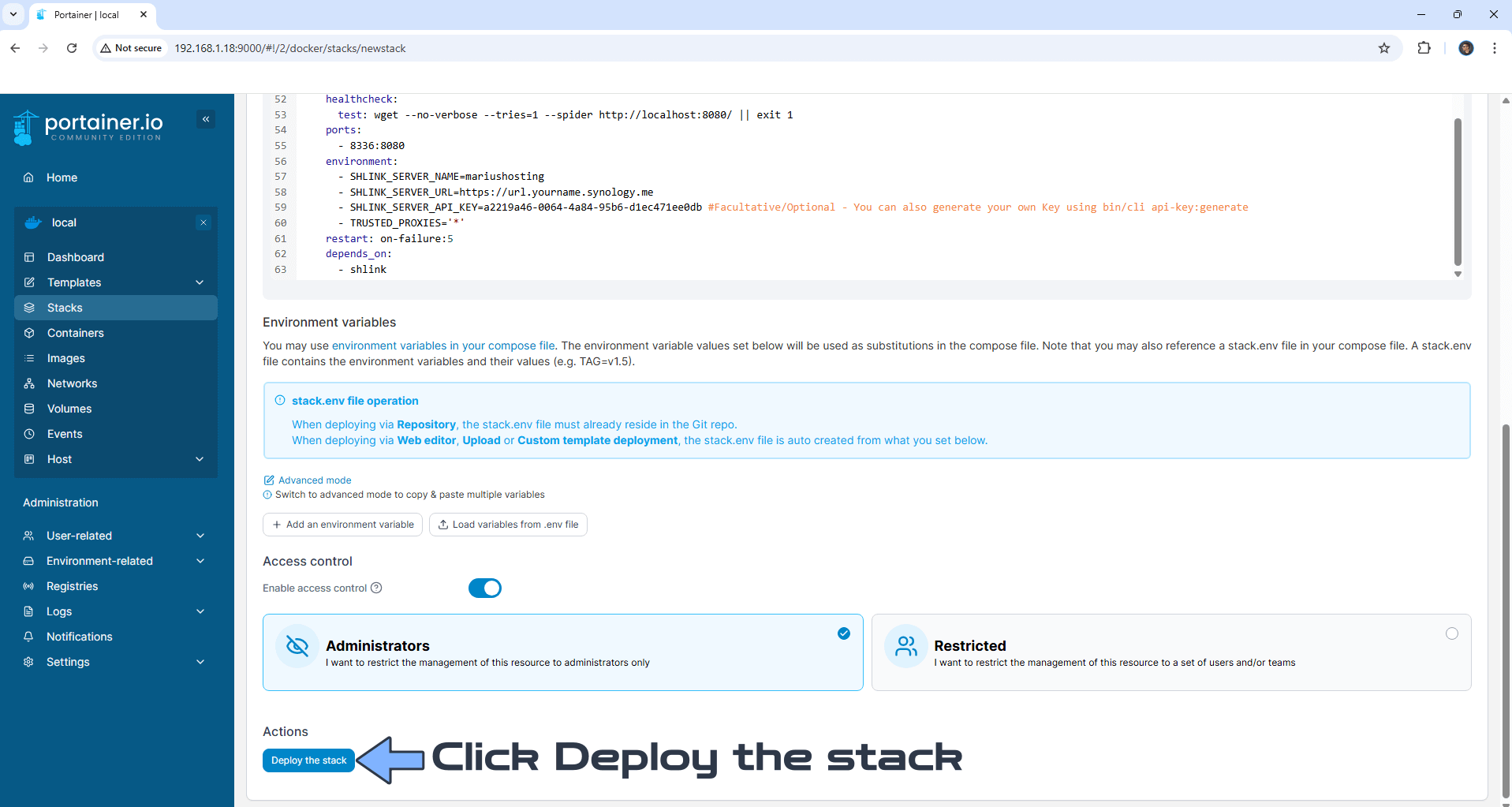

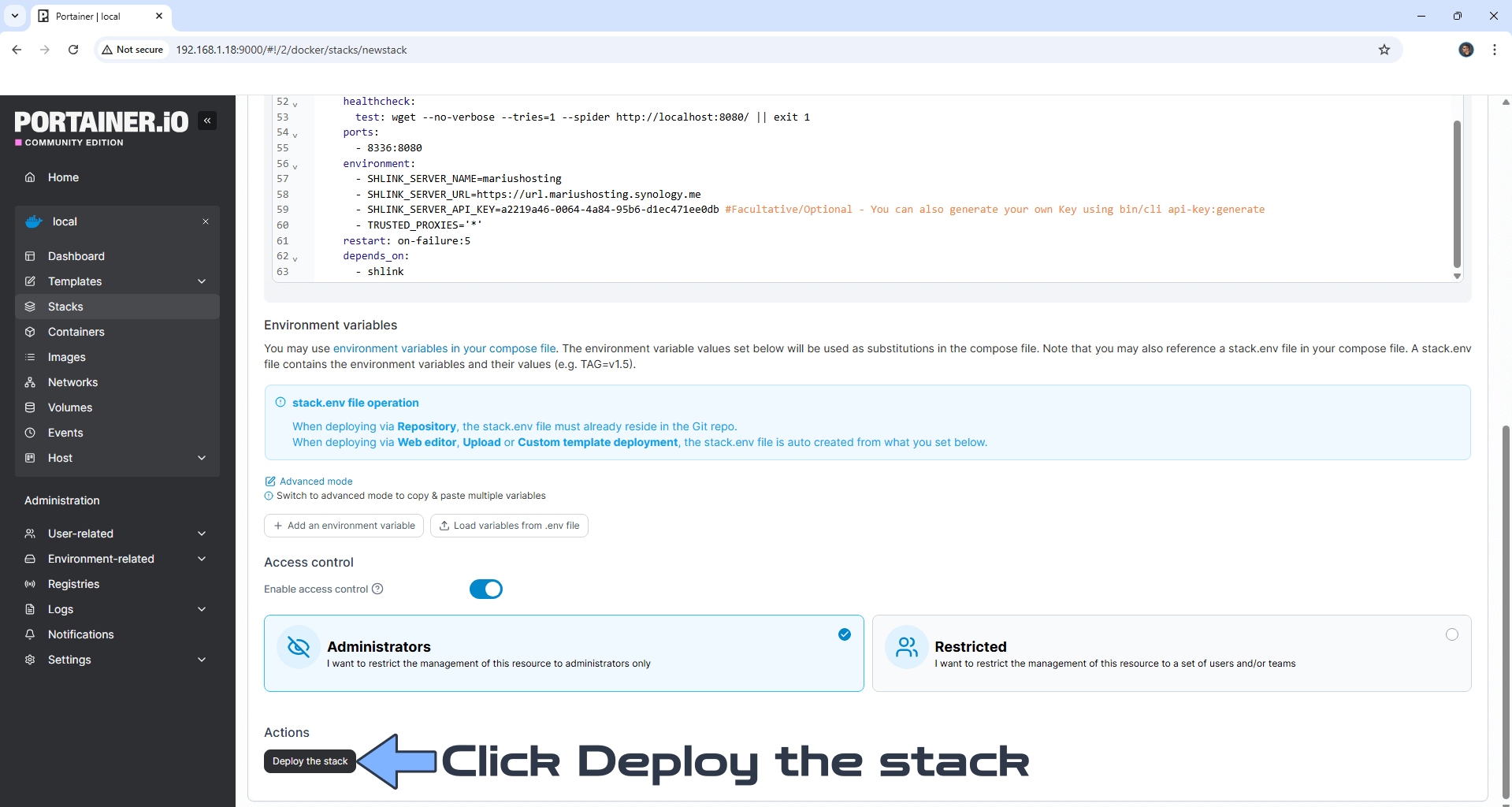

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Shlink Synology NAS Set up 9

  • STEP 18

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Shlink Synology NAS Set up 10

  • STEP 19

Go back to STEP 1 or you will deal with karma 🙂.

  • STEP 20

Now open your browser and type in your HTTPS/SSL certificate like this https://shlink.yourname.synology.me that you have previously created at STEP 10. In my case it’s https://shlink.mariushosting.synology.me If everything goes right, you will see the Shlink main page. Click on your own Server Name. Follow the instructions in the image below.

Shlink Synology NAS Set up 11

  • STEP 21

Create your first short URL. Add a long link URL, add a custom slug then click Save. Follow the instructions in the image below.

Shlink Synology NAS Set up 12

  • STEP 22

You can now access your long URL using your new short URL. Follow the instructions in the image below.

Shlink Synology NAS Set up 13

  • STEP 23

At the top right of the page click Settings then choose “Use dark theme” to use Dark Mode. Follow the instructions in the image below.

Shlink Synology NAS Set up 14

Enjoy Shlink!

Shlink Synology NAS Set up 15
