How to Install OpenSpeedTest on Your Synology NAS

by

How to Install OpenSpeedTest on Your Synology NAS

OpenSpeedTest is the most accurate and powerful online bandwidth test. You can use it to test your Home/Office LAN speed including your Local Area Network/Wi-Fi. The tool is designed to replicate your real-world connection speed. In this step by step guide I will show you how to install OpenSpeedTest on your Synology NAS using Docker.

💡Note: This guide works perfectly with the latest OpenSpeedTest v2.0.5 release.

💡Note: Check out my new guide on how to Install OpenSpeedTest Using Portainer.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Container Manager via Synology “Package Center”. If you run an older DSM version (under 7.2), search for Docker instead of Container Manager.

Download Container Manager Synology Docker

  • STEP 3

Go to Control Panel / Task Scheduler / Create / Scheduled Task / User-defined script. Follow the instructions in the image below.

Synology User Defined Script

  • STEP 4

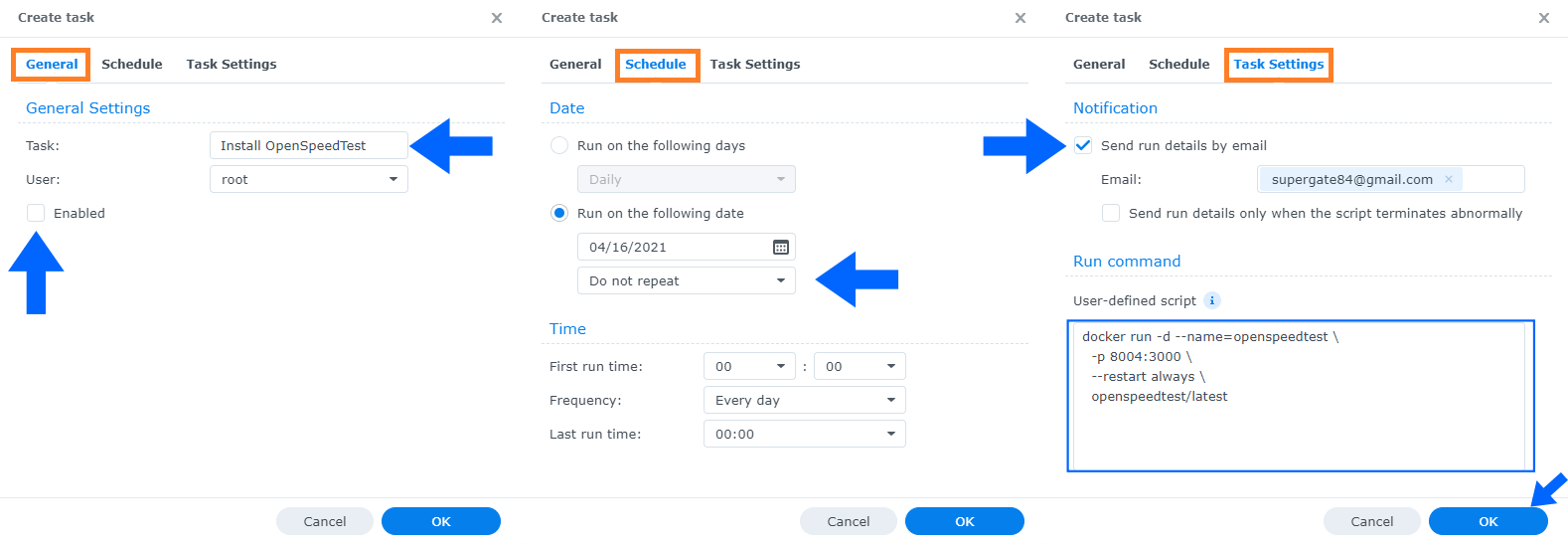

Once you click on User-defined script a new window will open. Follow the instructions below:

  1. General: In the Task field type in “Install OpenSpeedTest“. Uncheck “Enabled” option. Select root User.
  2. Schedule: Select Run on the following date then select “Do not repeat“.
  3. Task Settings: Check “Send run details by email“, add your email then copy paste the code below in the Run command area. After that click OK.
docker run -d --name=openspeedtest \
-p 8004:3000 \
--restart always \
openspeedtest/latest

OpenSpeedTest Synology NAS Set up 2 new 2023

  • STEP 5

After you click OK on STEP 4 a new warning pop up window will open. Click OK.

OpenSpeedTest Synology NAS Set up 3

After you click OK, type in your DSM Password then click Submit. Follow the instructions in the image below.

Synology Task Scheduler Confirm Admin Password

  • STEP 6

After you click Submit on STEP 5, select your “Install OpenSpeedTest” Task then click the “Run” tab. You will be asked to run Install OpenSpeedTest – click OK. Follow the instructions in the image below.

OpenSpeedTest Synology NAS Set up 4 new 2024

  • STEP 7

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 8

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:8004 Change the theme to Dark Mode then click Start. follow the instructions in the image below.

OpenSpeedTest Synology NAS Set up 5 new 2024

  • STEP 9

Your OpenSpeedTest dashboard at a glance!

OpenSpeedTest Synology NAS Set up 6 new 2024

Enjoy OpenSpeedTest!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the OpenSpeedTest container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make OpenSpeedTest work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the OpenSpeedTest container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
