Invio is a fast, self-hosted invoicing application designed for simplicity and transparency, allowing users to maintain full control over their data and deploy it anywhere. Invoices are rendered as HTML from selected templates and business settings, with PDF generation using wkhtmltopdf and an HTML fallback option. In this step by step guide I will show you how to install Invio on your Synology NAS using Docker and Portainer.

💡Note: This guide works perfectly with the latest Invio v2.2.0 release.

STEP 1

Please Support My work by Making a Donation.

STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

STEP 4

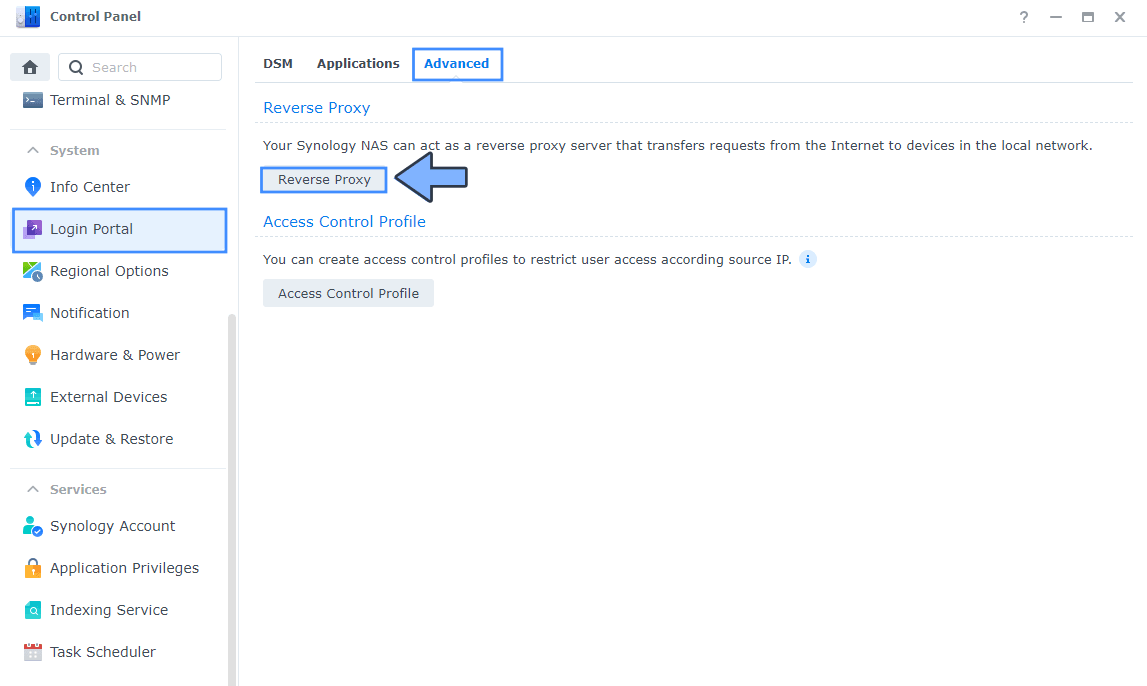

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

STEP 5

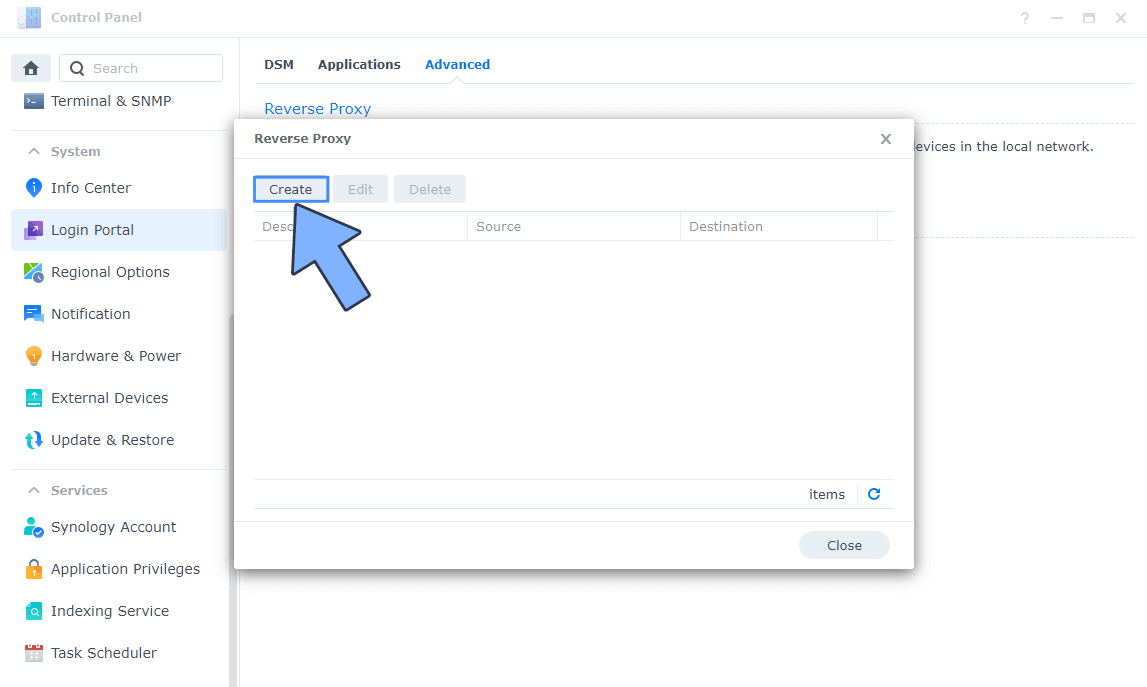

Now click the “Create” button. Follow the instructions in the image below.

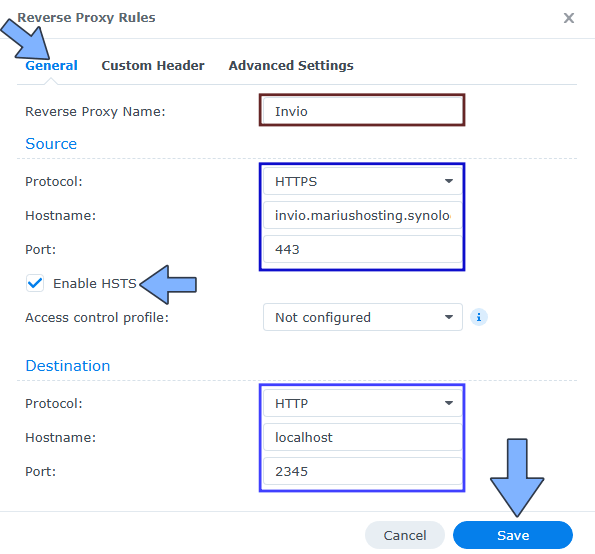

STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Invio. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: invio.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 2345

STEP 7

On the Reverse Proxy Rules, click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

STEP 8

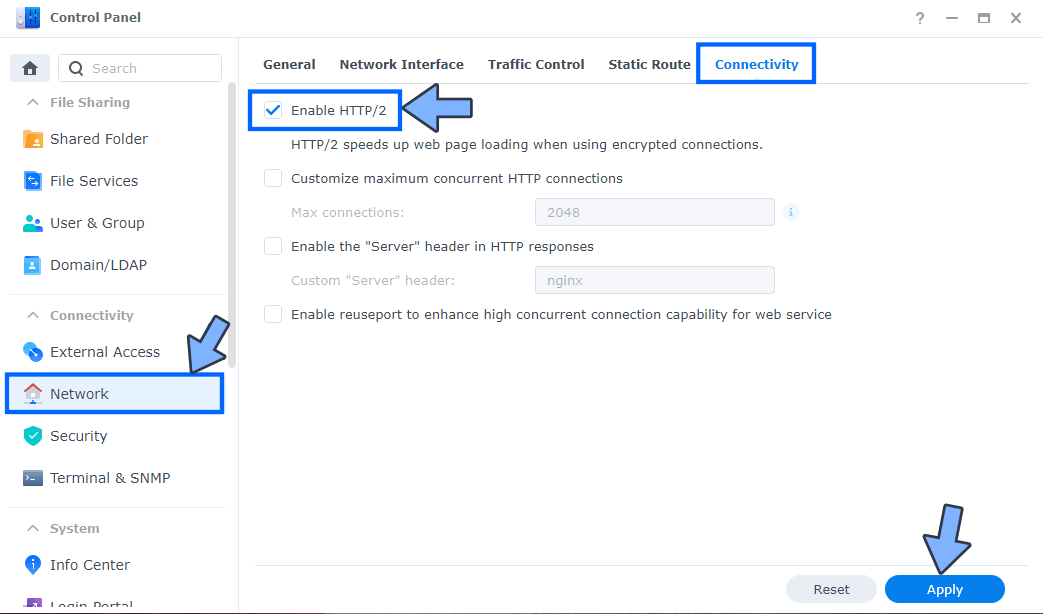

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

STEP 9

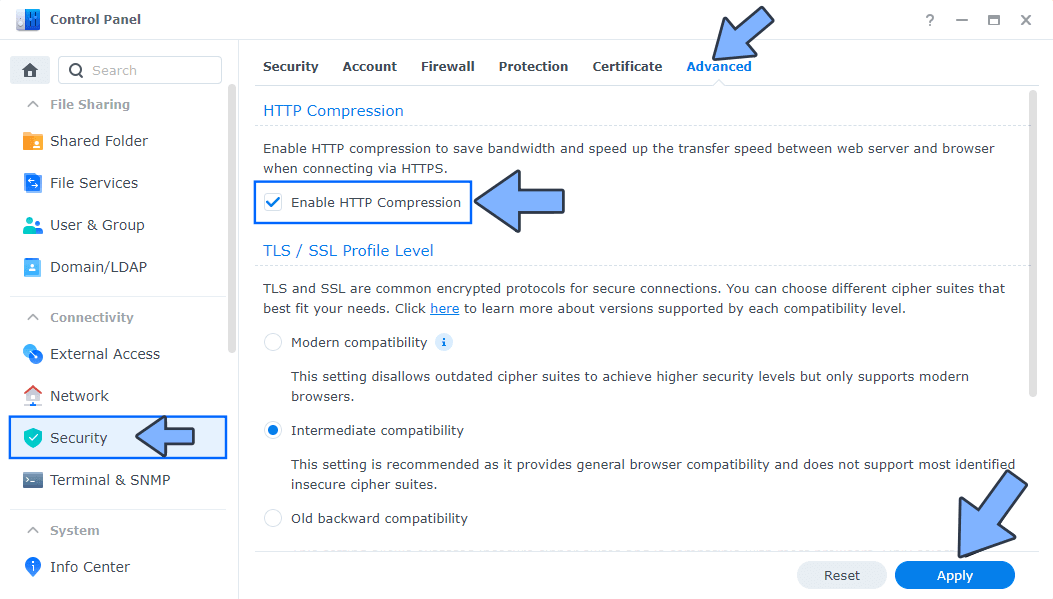

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

STEP 10

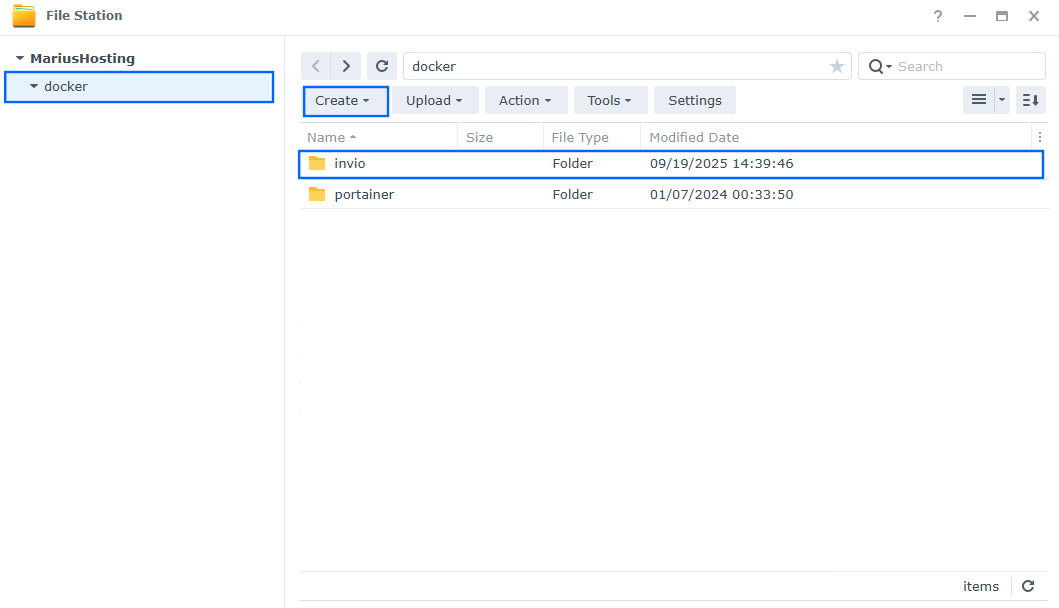

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it invio. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

STEP 11

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then click inside the local rectangle. Follow the instructions in the image below.

On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

STEP 12

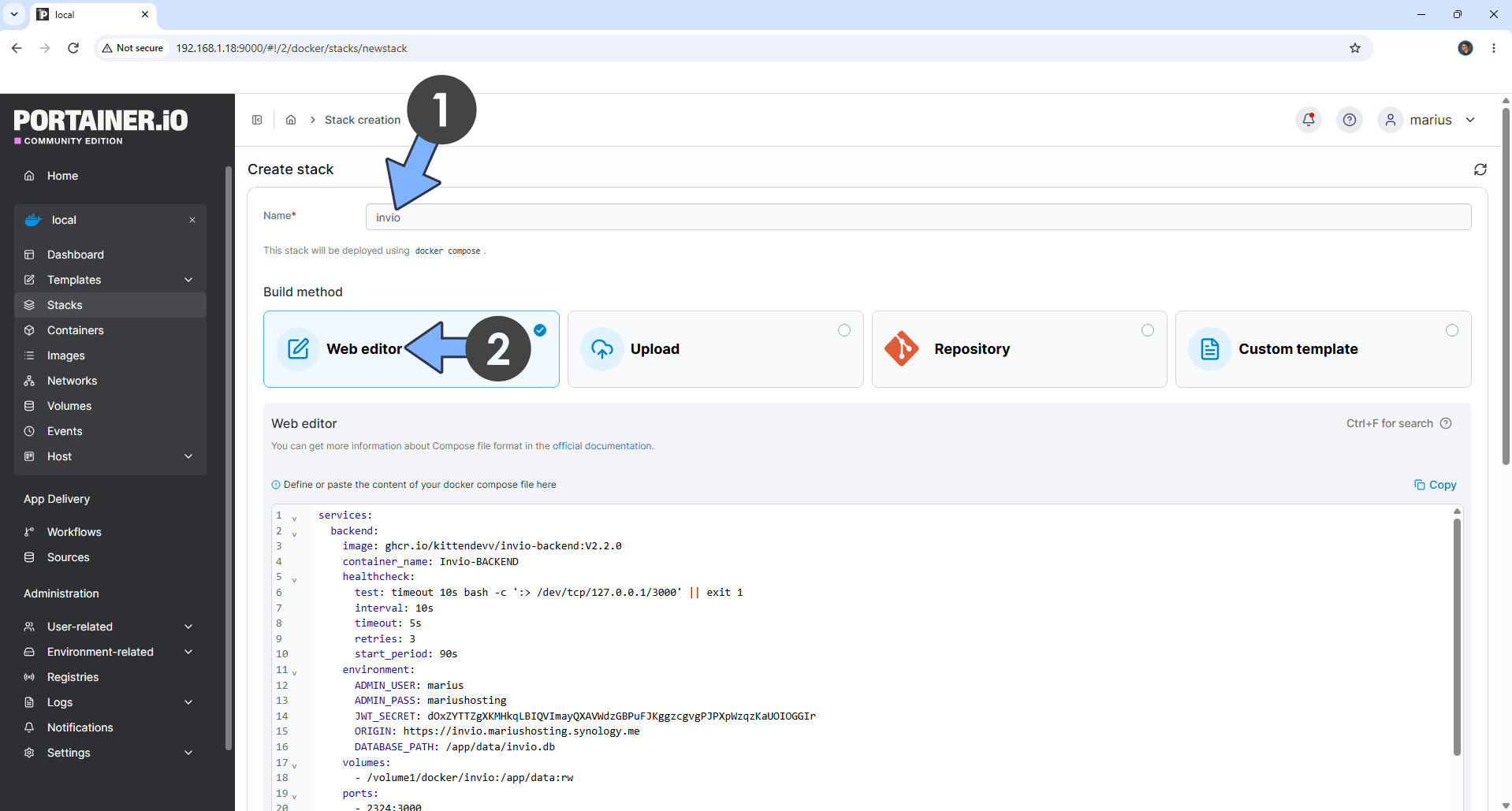

In the Name field type in invio. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  backend:
    image: ghcr.io/kittendevv/invio-backend:V2.2.0
    container_name: Invio-BACKEND
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/3000' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    environment:
      ADMIN_USER: marius
      ADMIN_PASS: mariushosting
      JWT_SECRET: dOxZYTTZgXKMHkqLBIQVImayQXAVWdzGBPuFJKggzcgvgPJPXpWzqzKaUOIOGGIr
      ORIGIN: https://invio.yourname.synology.me
      DATABASE_PATH: /app/data/invio.db
    volumes:
      - /volume1/docker/invio:/app/data:rw
    ports:
      - 2324:3000
    restart: on-failure:5

  frontend:
    image: ghcr.io/kittendevv/invio-frontend:V2.2.0
    container_name: Invio-FRONTEND
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/8000' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    environment:
      PORT: 8000
      BACKEND_URL: http://backend:3000
    depends_on:
      - backend
    ports:
      - 2345:8000
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for ADMIN_USER. Type in your own username. marius is an example for a username. You will need this username later at STEP 16.
Note: Before you paste the code above in the Web editor area below, change the value for ADMIN_PASS. Type in your own password. mariushosting is an example for a password. You will need this password later at STEP 16.
Note: Before you paste the code above in the Web editor area below, change the value for JWT_SECRET. (Generate your own Random 64 length JWT_SECRET.)
Note: Before you paste the code above in the Web editor area below, change the value for ORIGIN and type in your own synology.me DDNS with https:// at the beginning that you have previously created at STEP 6.

STEP 13

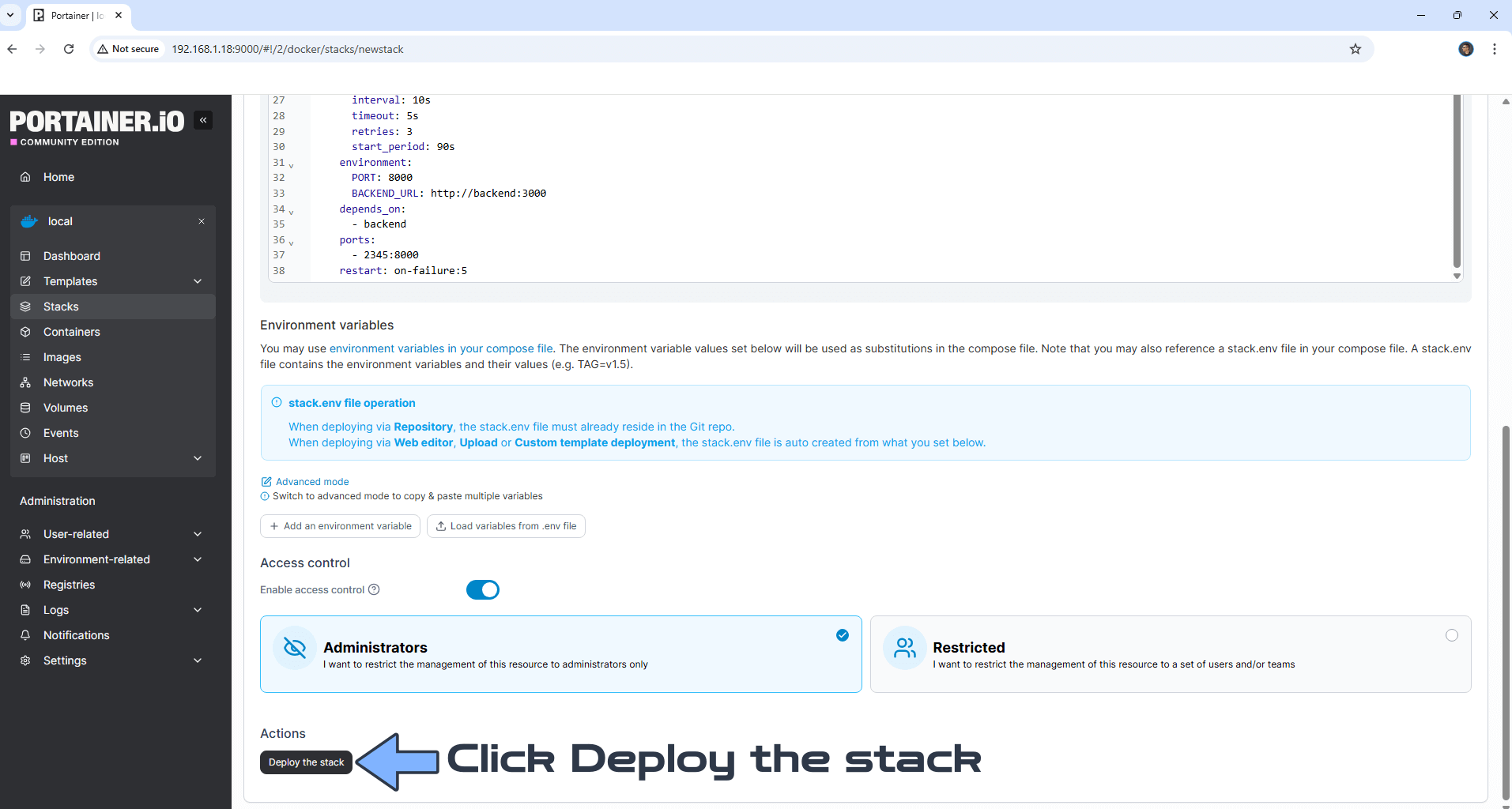

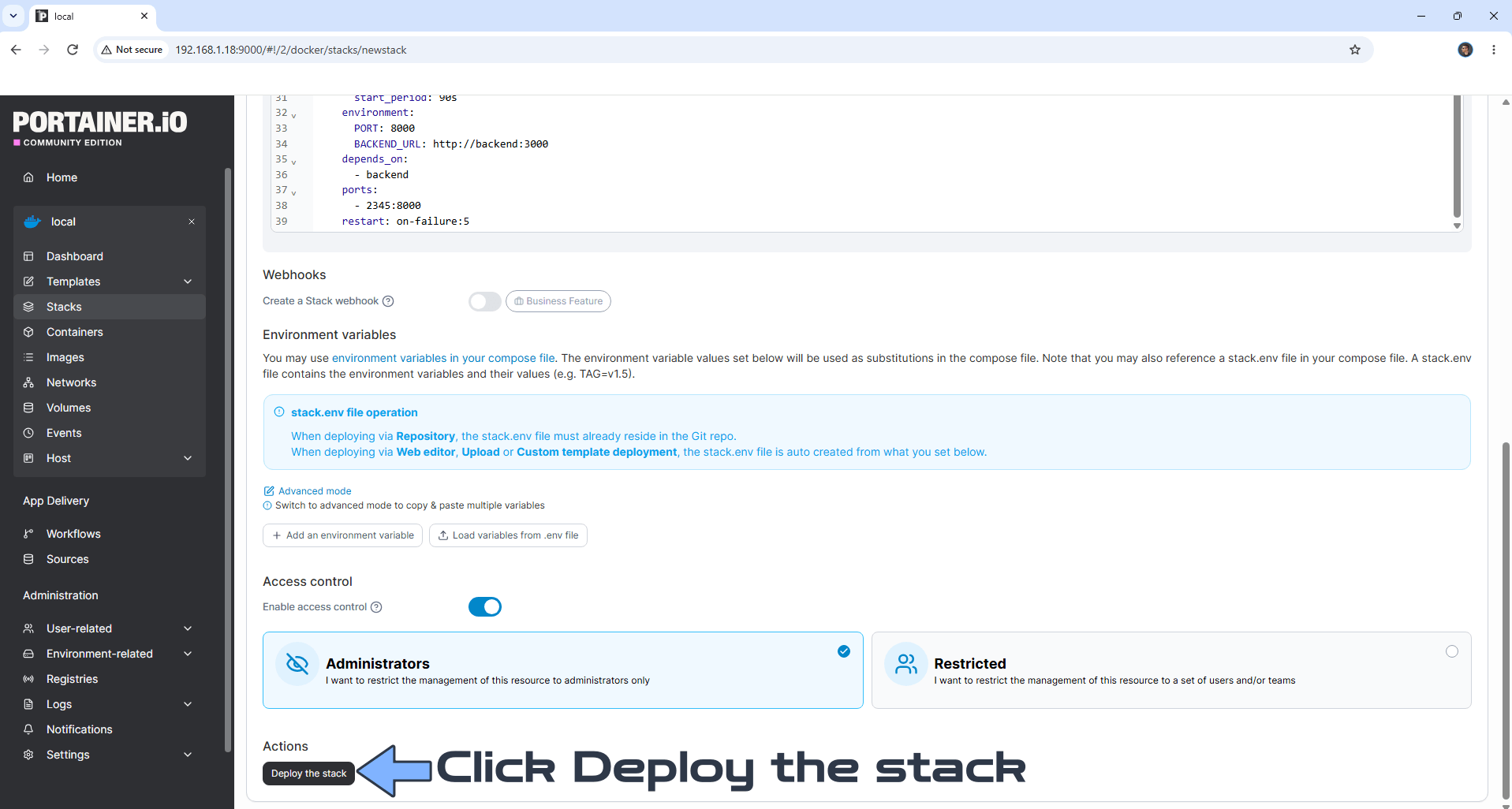

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

STEP 14

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

STEP 15

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

STEP 16

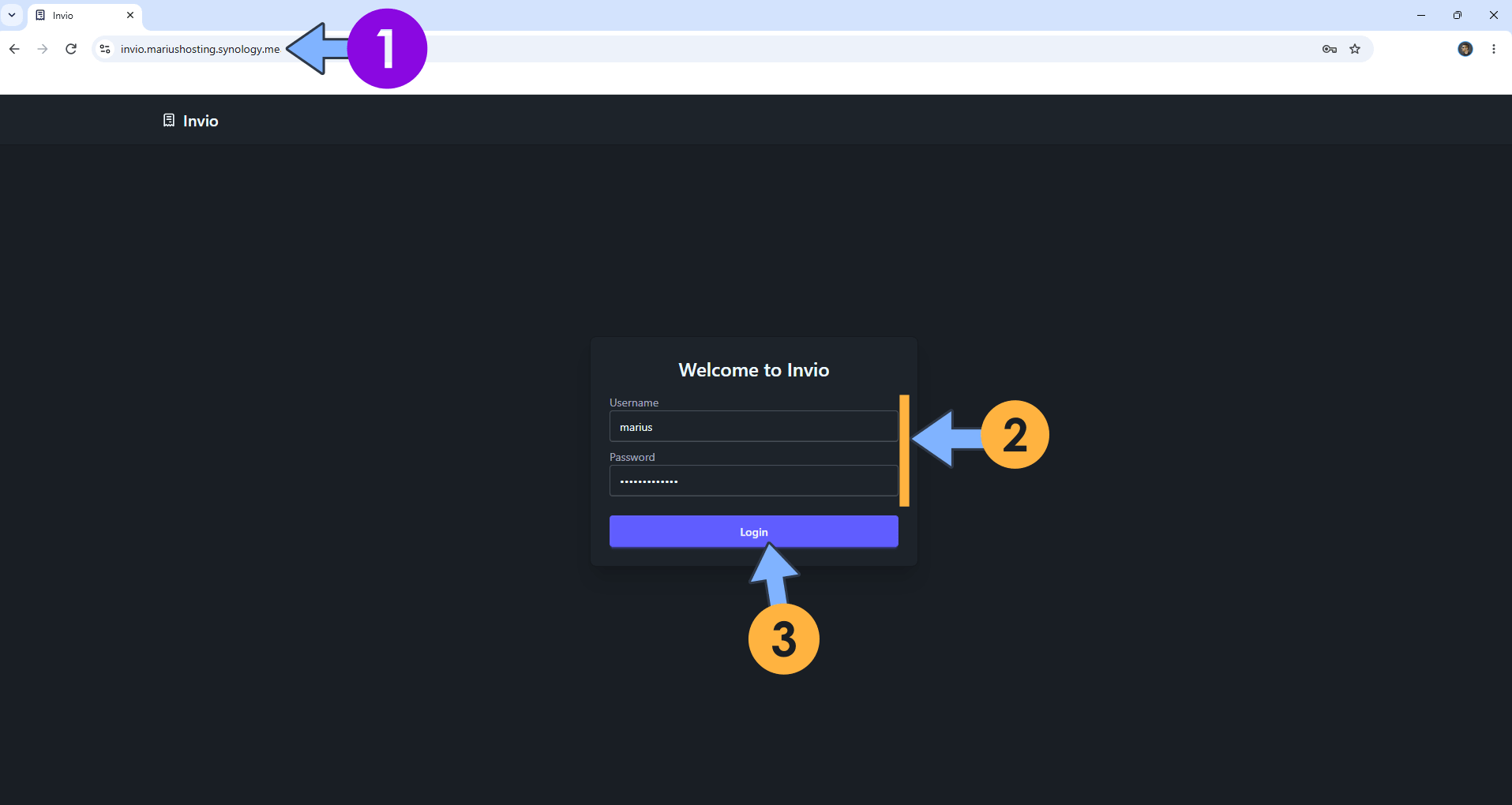

Now open your browser and type in your HTTPS/SSL certificate like this https://akaunting.yourname.synology.me that you have previously created at STEP 6. In my case it’s https://akaunting.mariushosting.synology.me If everything goes right, you will see the Invio login page. Type in your own Username (ADMIN_USER) and Password (ADMIN_PASS) that you have previously added at STEP 12. Click Login. Follow the instructions in the image below.

STEP 17

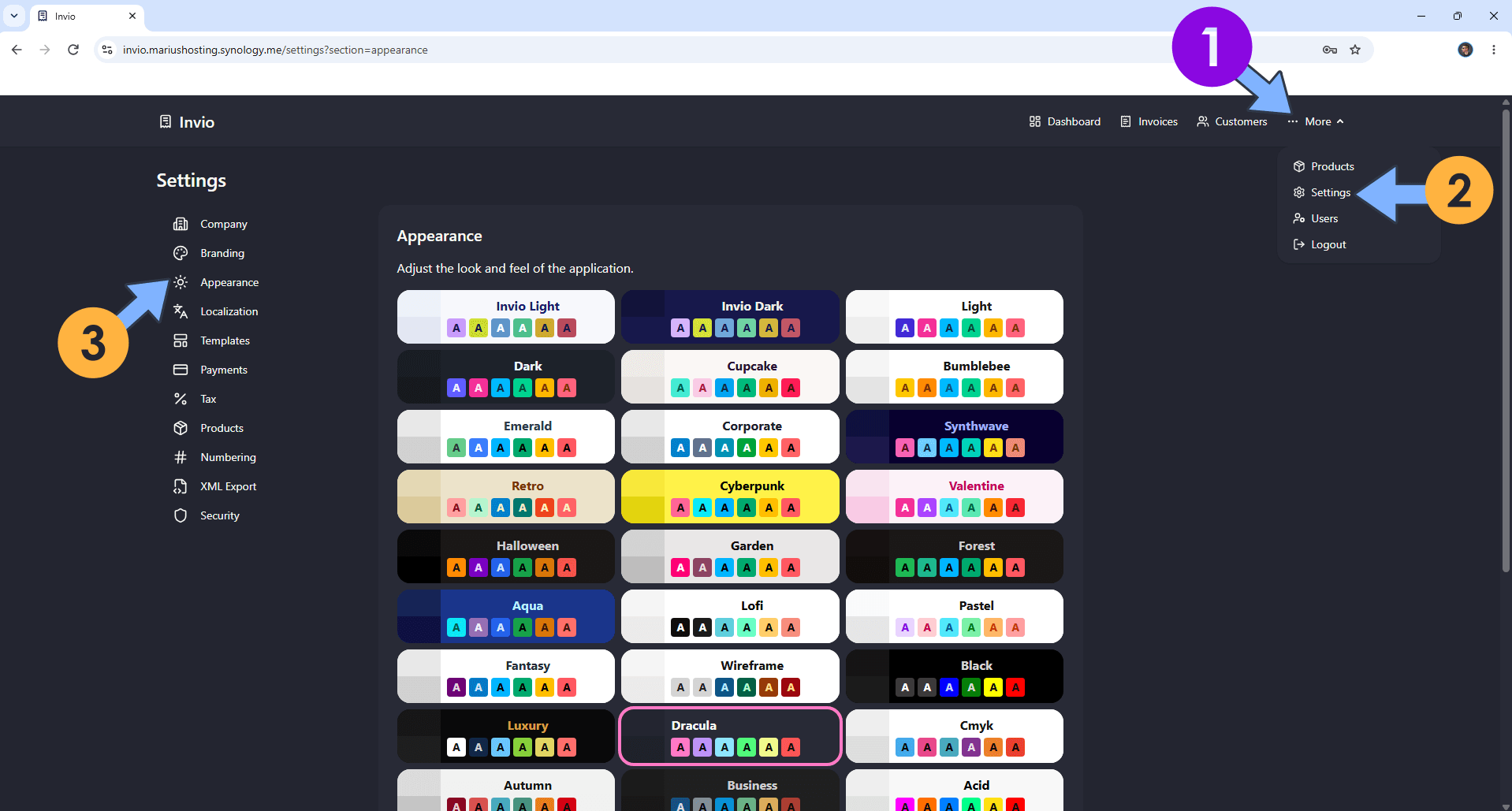

Click the Settings tab to personalize your settings. On the left sidebar, click Appearance. Adjust the look of your Invio app. Follow the instructions in the image below.

STEP 18

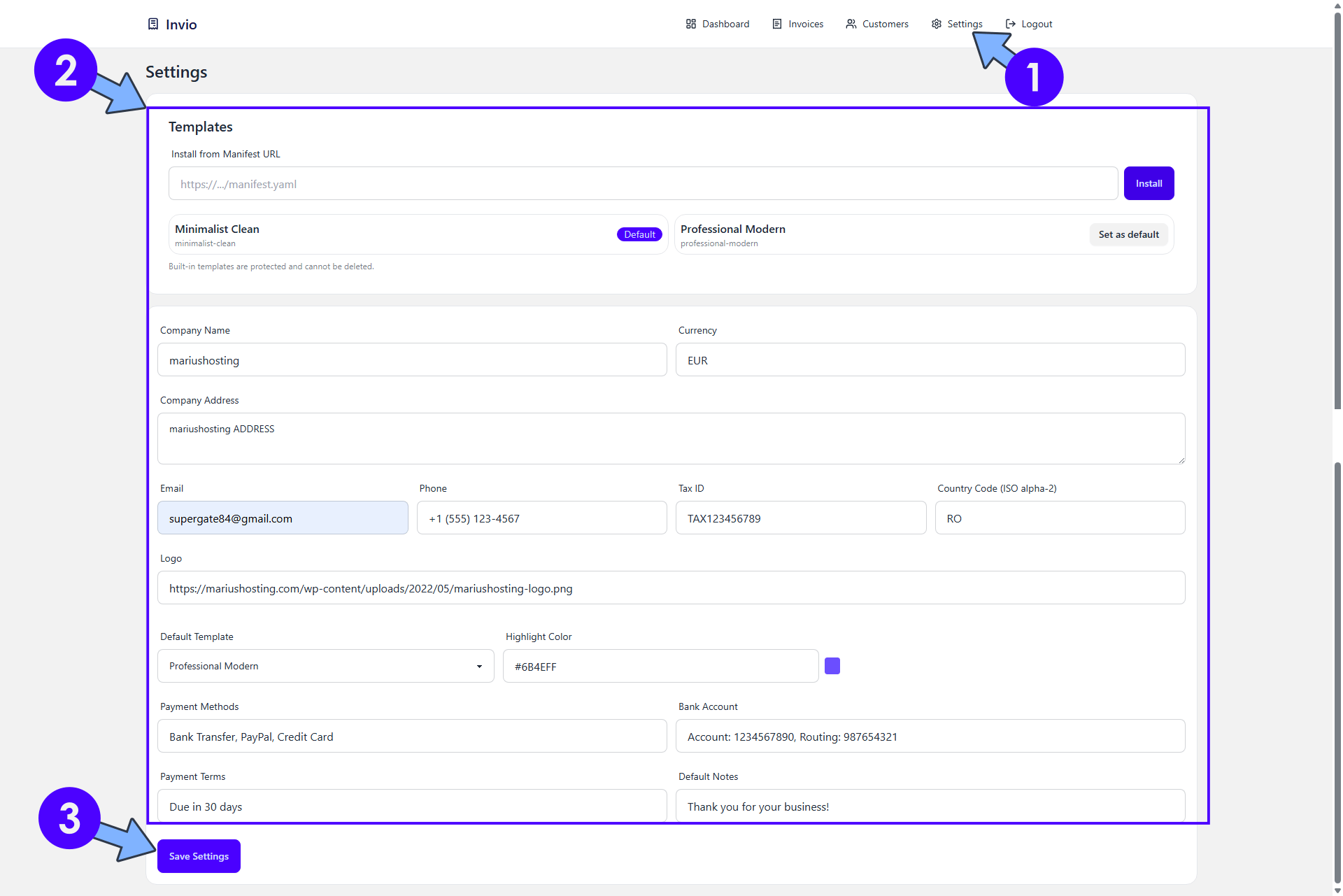

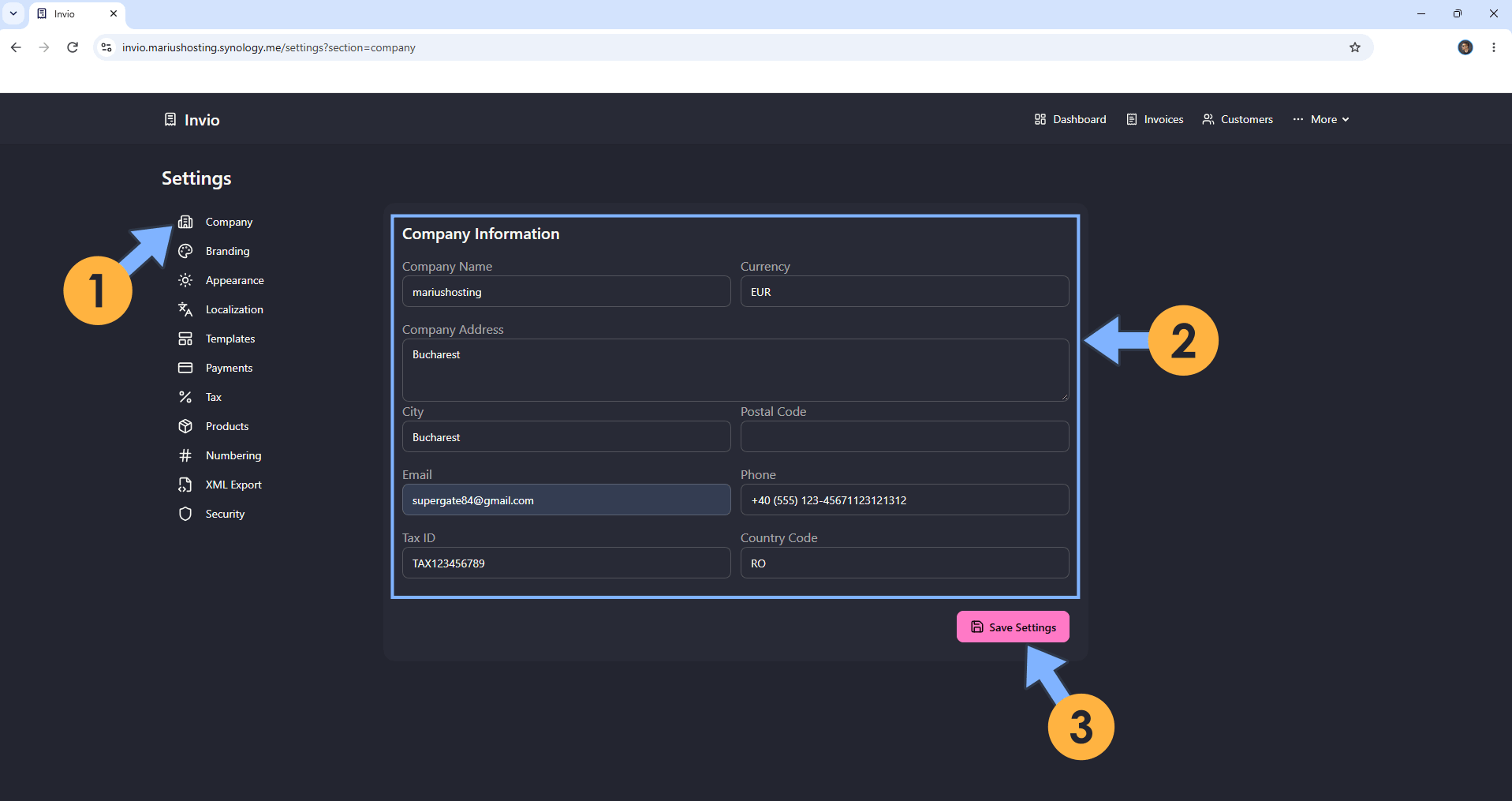

On the left sidebar, click Company and add your company info. Click Save Settings. Follow the instructions in the image below.

STEP 19

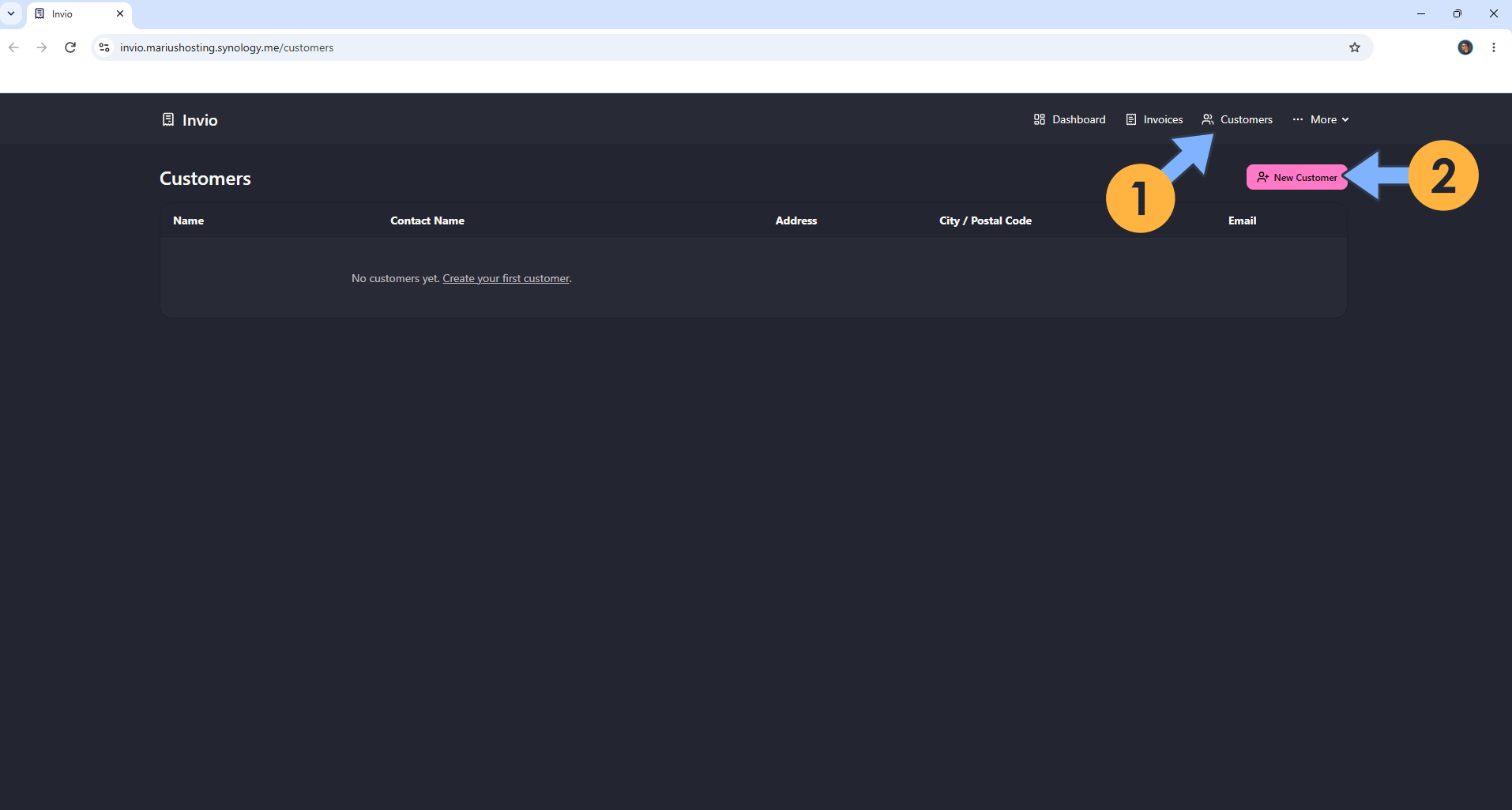

At the top of the page, click Customers then New Customer. Follow the instructions in the image below.

STEP 20

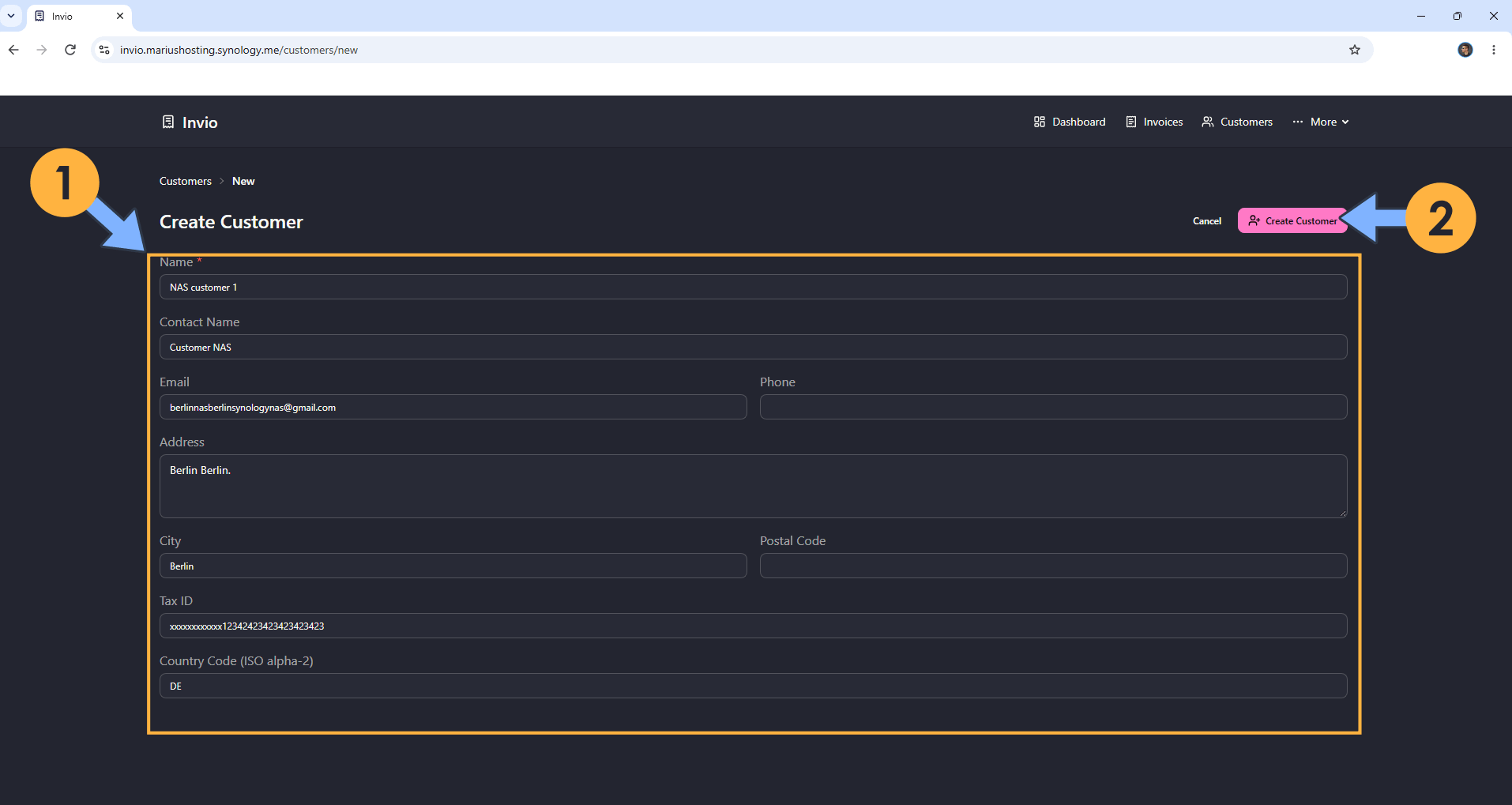

Create your customer then click Create Customer. Follow the instructions in the image below.

STEP 21

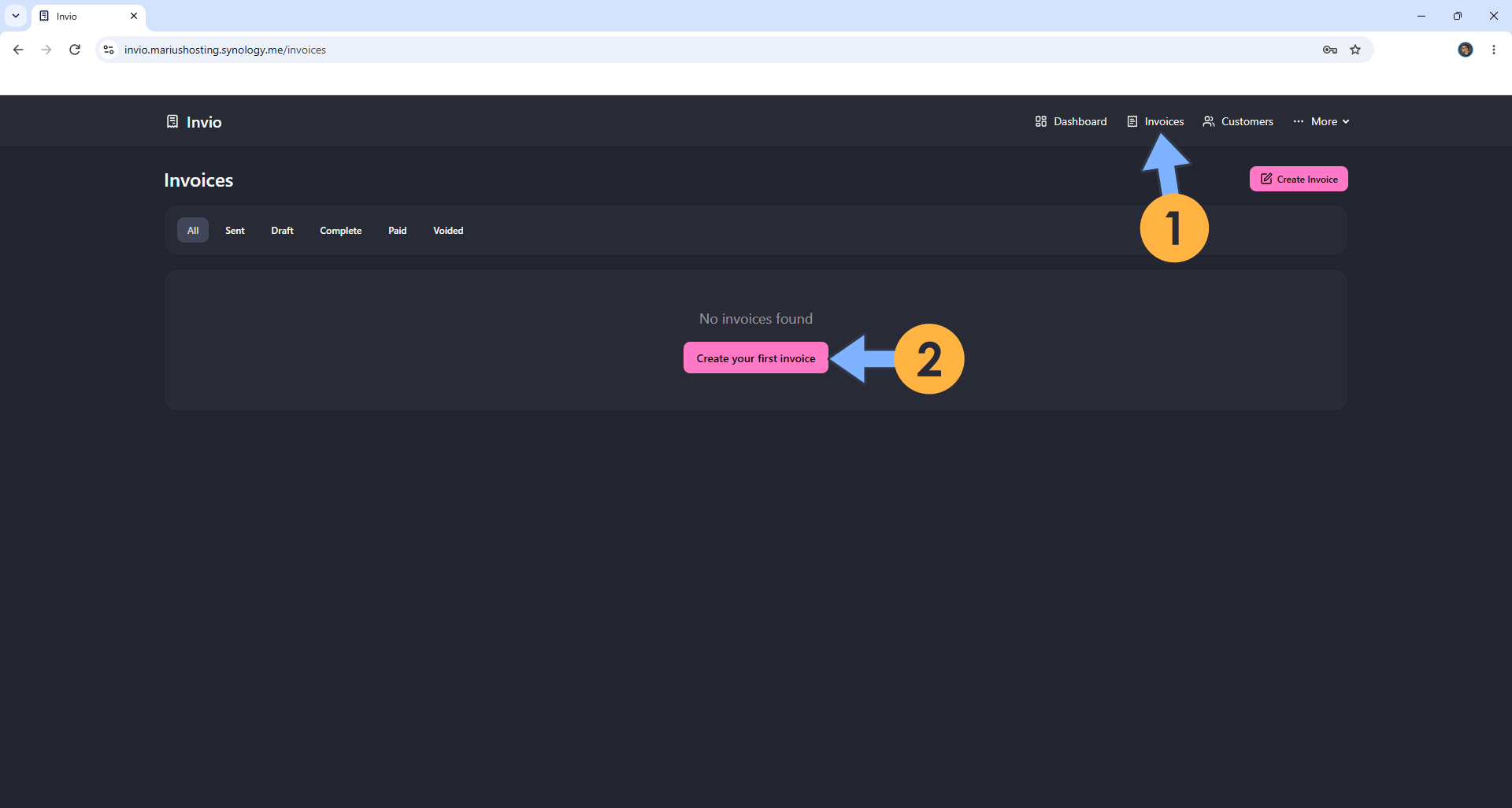

At the top of the page, click Invoices then Create your first invoice. Follow the instructions in the image below.

STEP 22

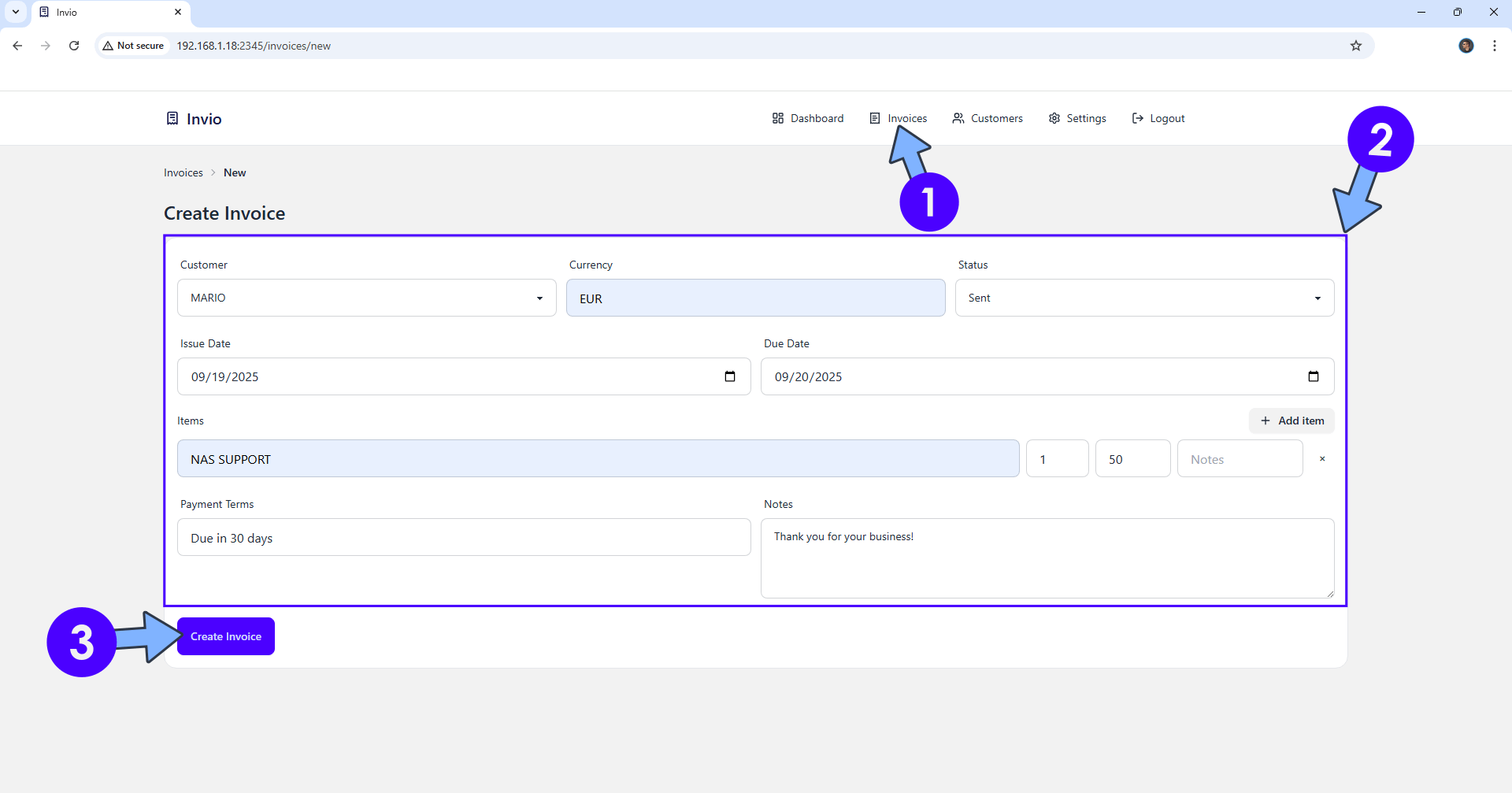

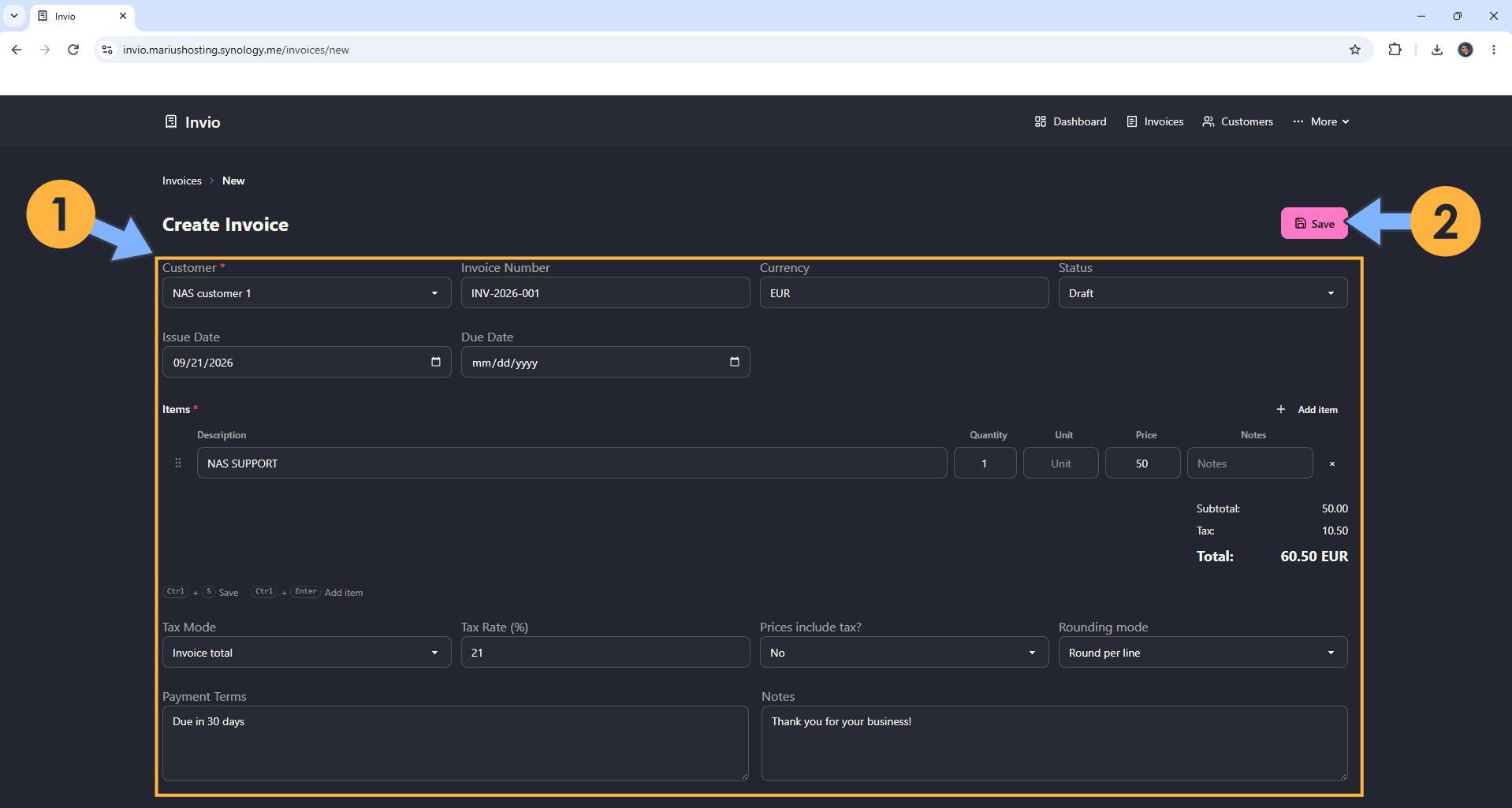

Create the invoice then click Save. Follow the instructions in the image below.

STEP 23

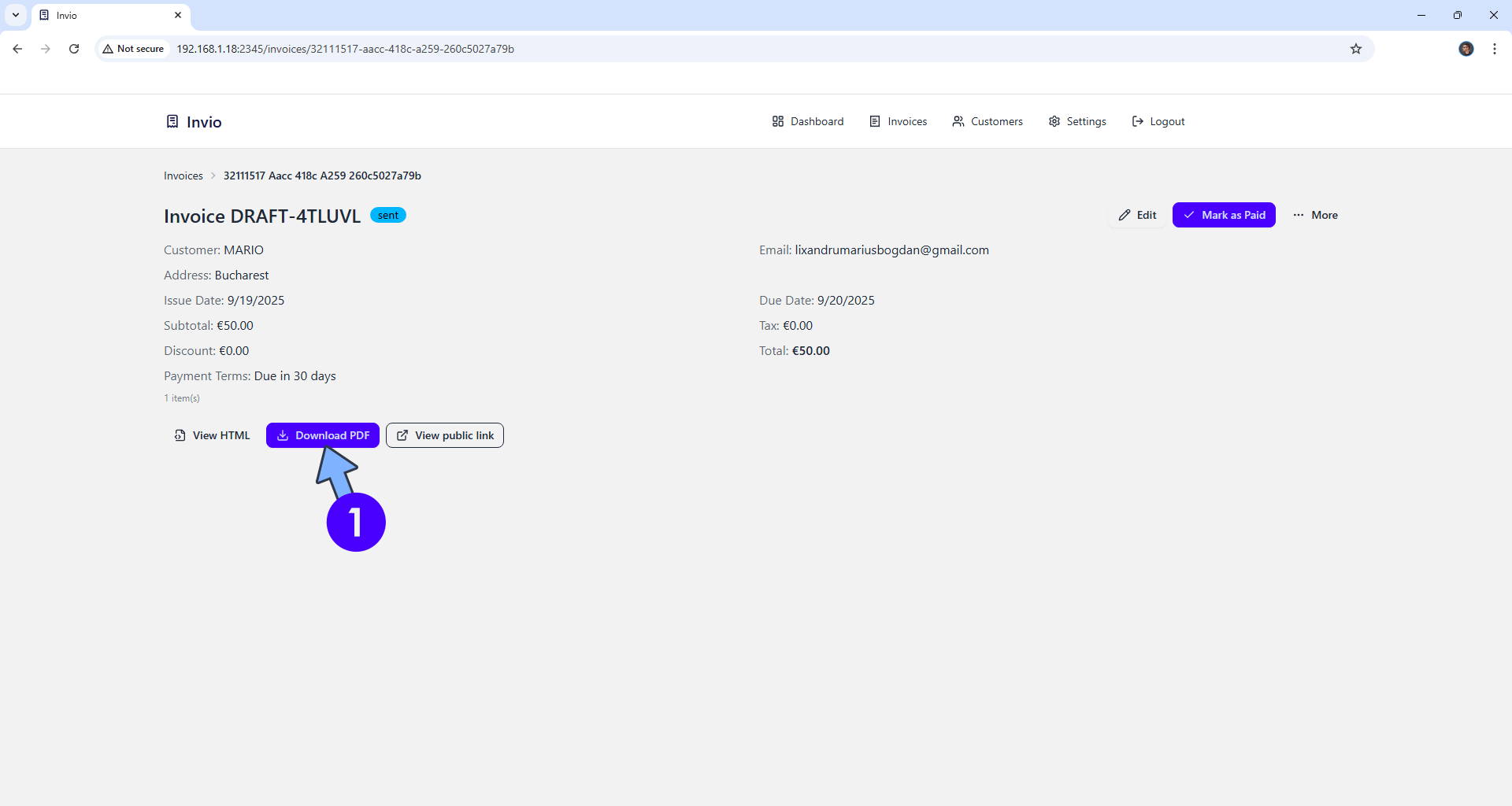

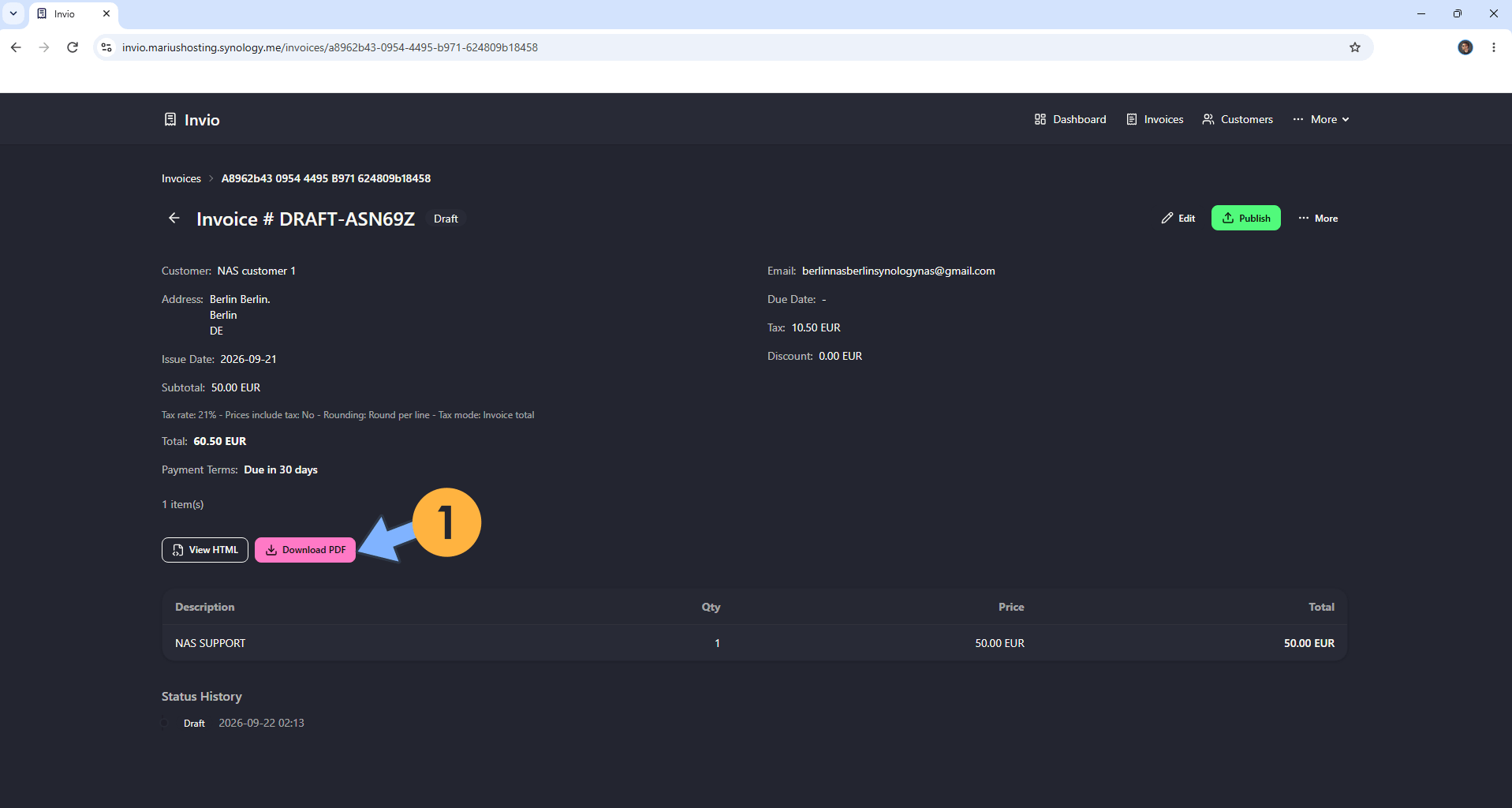

Download your invoice as a PDF file. Follow the instructions in the image below.

STEP 24

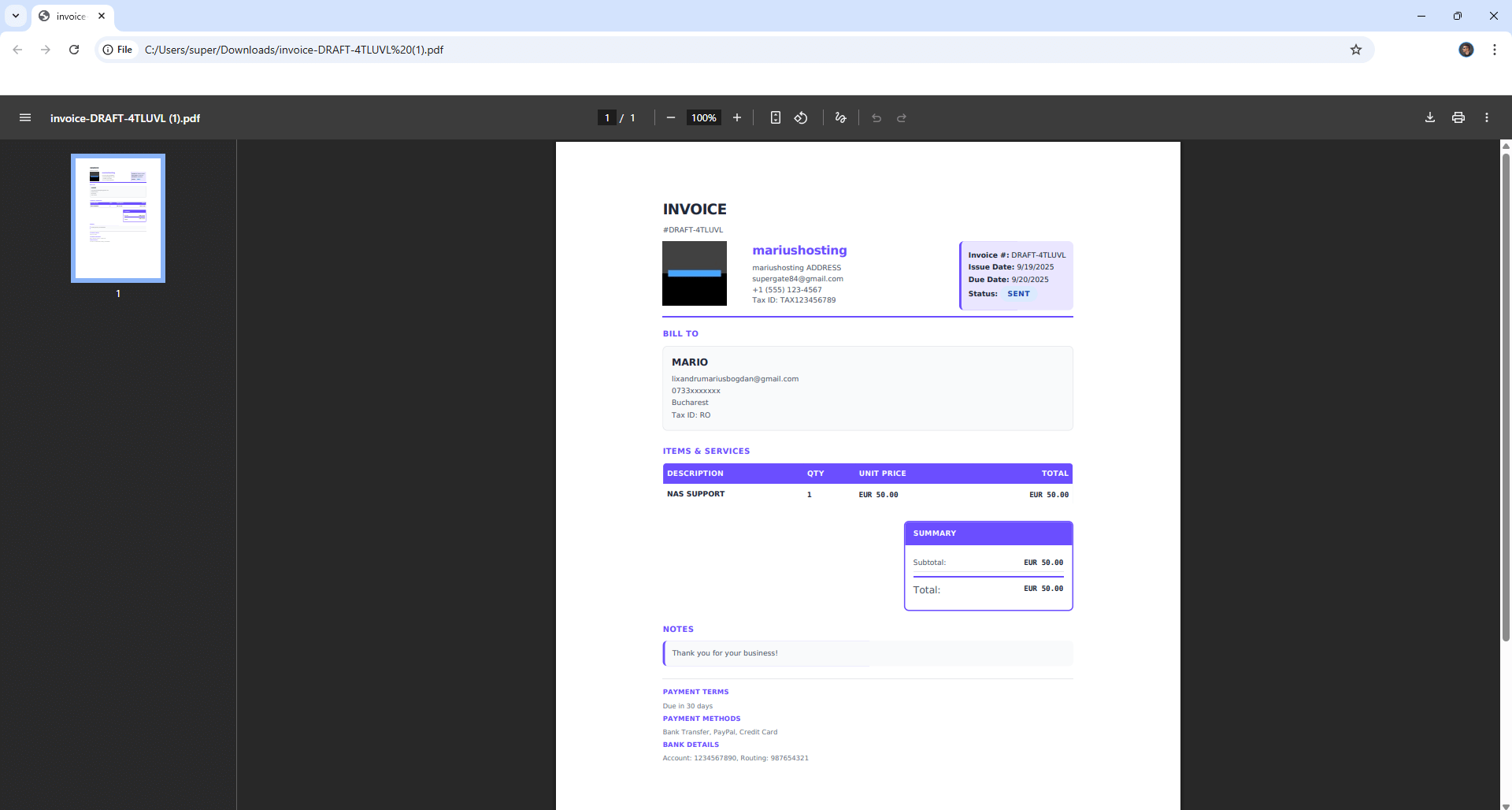

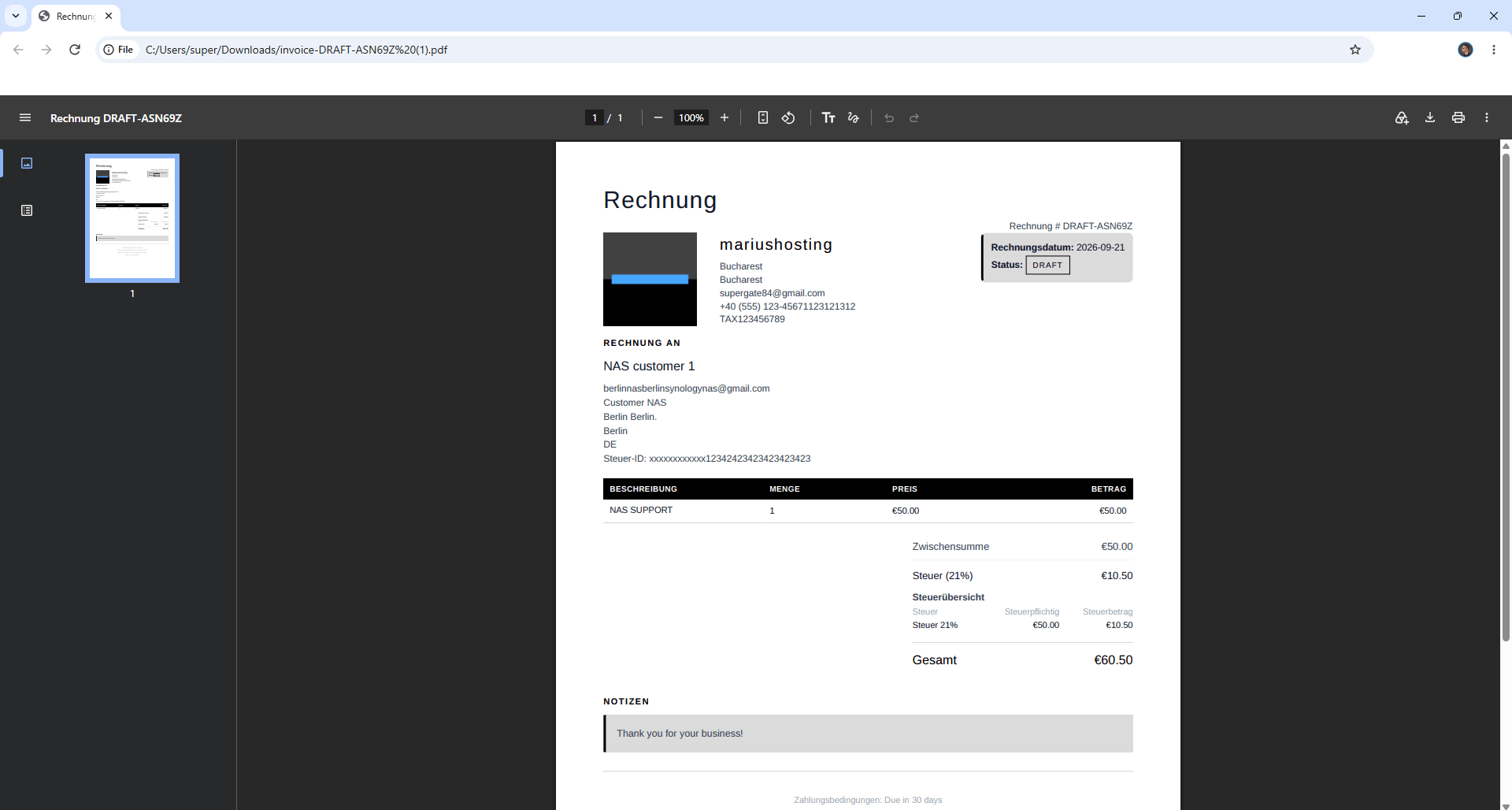

Your PDF invoice at a glance!

Enjoy Invio!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the Invio container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Invio work via HTTPS, it’s mandatory to activate WebSocket.
