How to Install FossFLOW on Your Synology NAS

FossFLOW is an open-source Progressive Web App (PWA) designed for creating visually appealing isometric infrastructure diagrams. Built with React and the Isoflow library, it operates entirely in the browser with full offline support. Key features include drag-and-drop diagram creation, auto-save every 5 seconds, customizable components, and JSON-based import/export for easy sharing. It supports PWA installation on Mac and Linux, stores data locally for privacy, and offers keyboard shortcuts for efficient navigation. Ideal for technical diagramming, it runs on Chrome, Edge, Firefox, Safari, and mobile browsers with PWA support. In this step by step guide I will show you how to install FossFLOWĀ on your Synology NAS using Docker & Portainer.

šŸ’”Note: This guide works perfectly with the latest FossFLOW Main Tag release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go toĀ File Station and open the docker folder. Inside the docker folder, create one new folder and name it fossflow. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

FossFlow Synology NAS Set up 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then Live connect. Follow the instructions in the image below.

Portainer Add Stack NAS 1

On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

Portainer Add Stack NAS 2

  • STEP 5

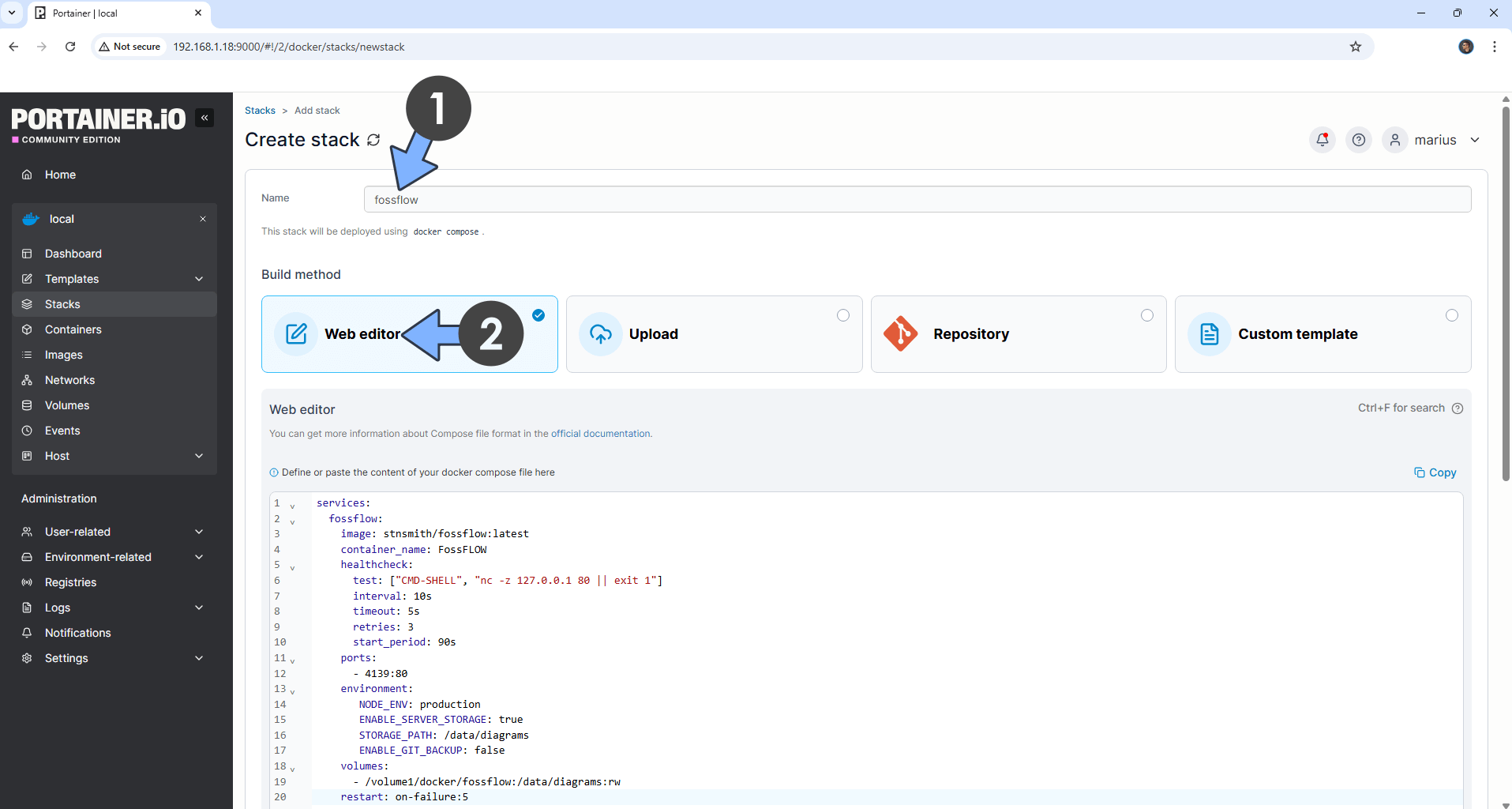

In the Name field type in fossflow. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  fossflow:
    image: stnsmith/fossflow:latest
    container_name: FossFLOW
    healthcheck:
      test: ["CMD-SHELL", "nc -z 127.0.0.1 80 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    ports:
      - 4139:80
    environment:
       NODE_ENV: production
       ENABLE_SERVER_STORAGE: true
       STORAGE_PATH: /data/diagrams
       ENABLE_GIT_BACKUP: false
    volumes:
      - /volume1/docker/fossflow:/data/diagrams:rw
    restart: on-failure:5

FossFlow Synology NAS Set up 2

  • STEP 6

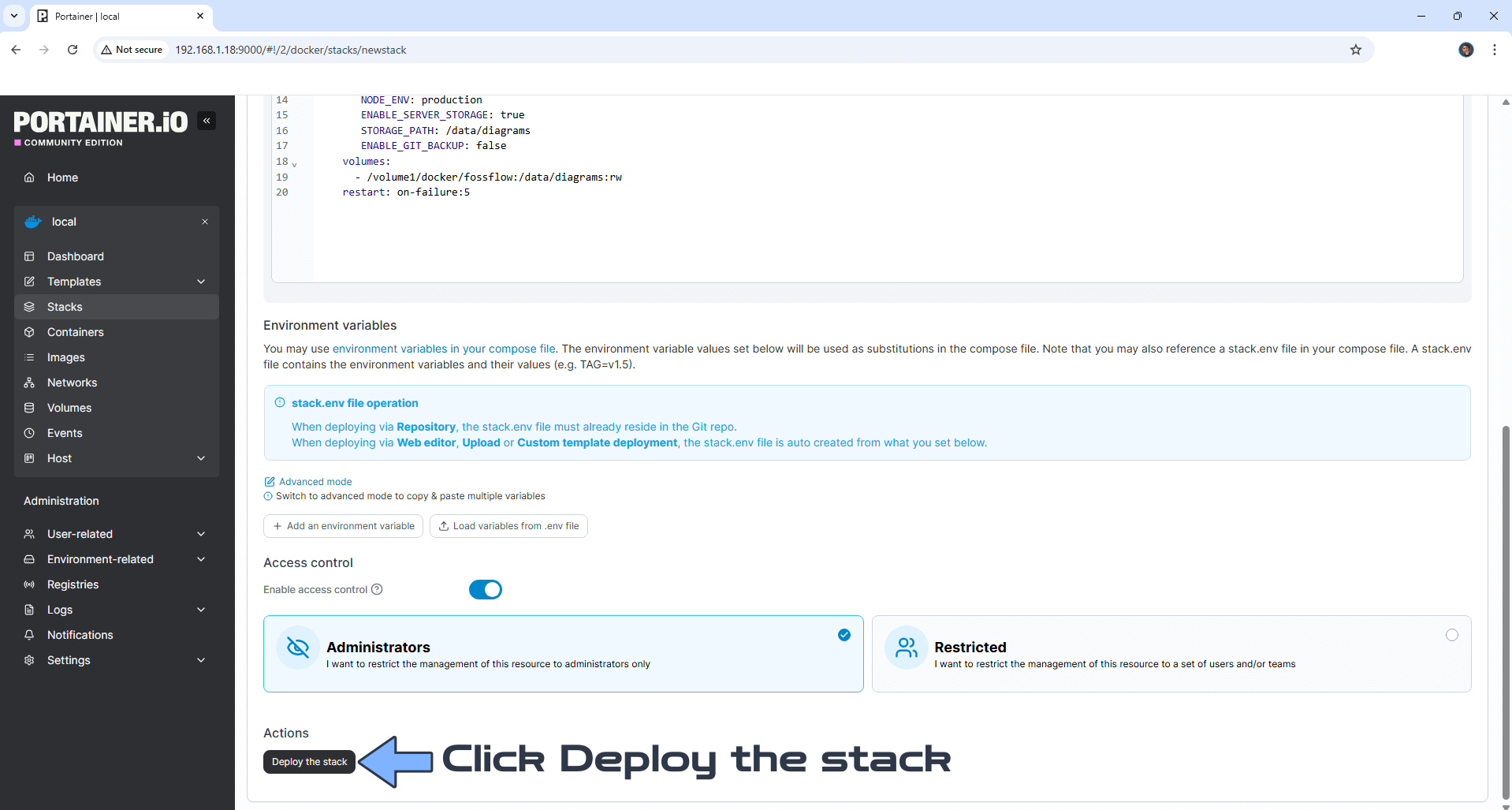

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

FossFlow Synology NAS Set up 3

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Portainer Success Stack NAS

  • STEP 8

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 9

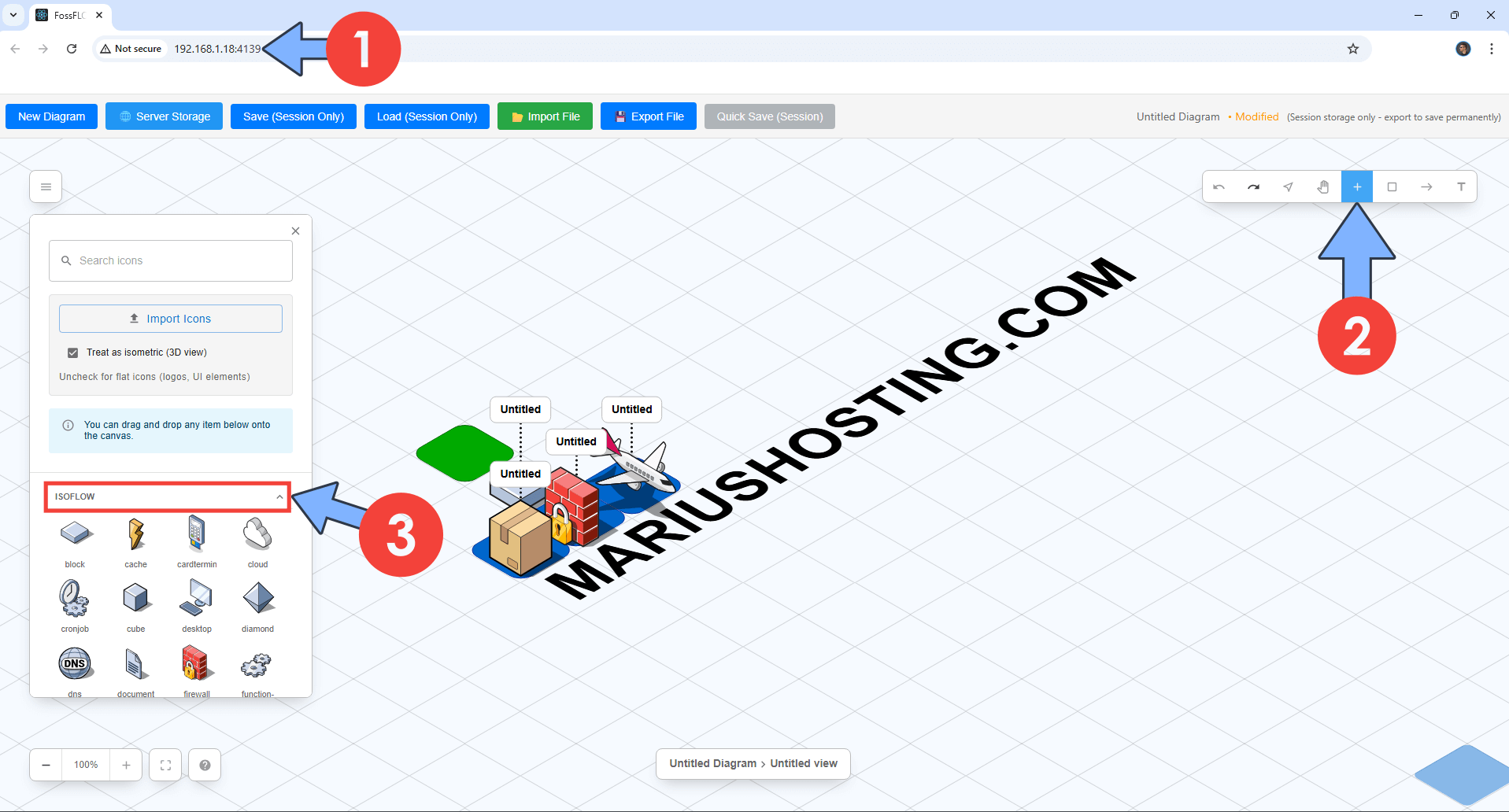

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser andĀ type in http://Synology-ip-address:4139 Click the +plus icon to add images and diagrams.Ā Follow the instructions in the image below.

FossFlow Synology NAS Set up 4

  • STEP 10

At the top left of the page, click Server Storage to save your projects. Follow the instructions in the image below.

FossFlow Synology NAS Set up 5

Enjoy FossFLOW!

šŸ†˜TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issuesĀ article.

Note: If you want to run the FossFLOW container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make FossFLOW work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find outĀ how to update the FossFLOW container with the latest image.
