My previous guide for TiddlyWiki involved the use of Task Scheduler. Today I’m offering a recommended and excellent alternative for installing the latest TiddlyWiki version via Portainer. TiddlyWiki is a personal wiki and a non-linear notebook for organizing and sharing complex information. It is an open-source single page application wiki in the form of a single HTML file that includes CSS, JavaScript, and the content. It is designed to be easy to customize and re-shape depending on application. In this step by step guide I will show you how to install TiddlyWiki on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest version of TiddlyWiki v.5.3.5

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it tiddlywiki. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 5

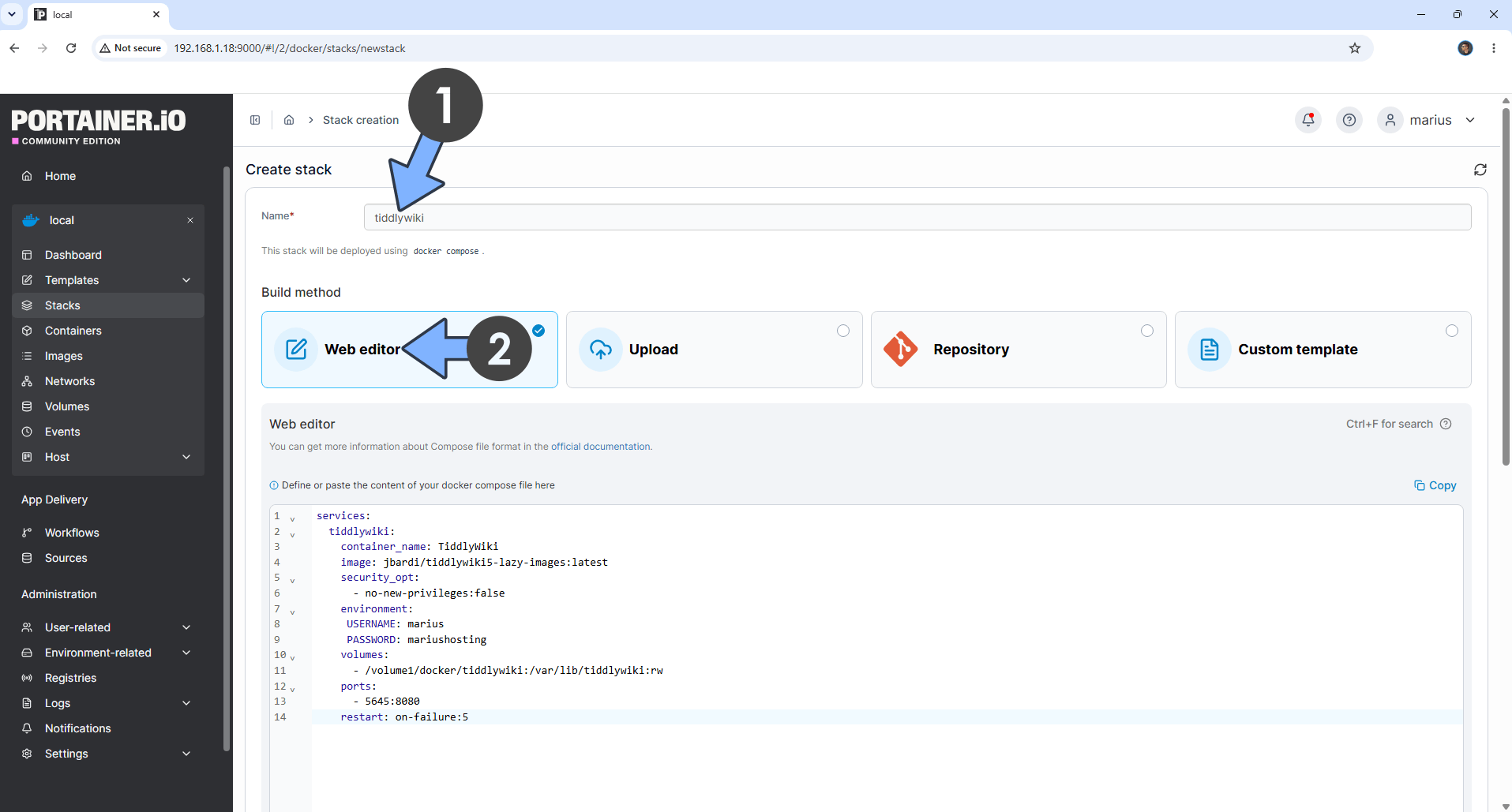

In the Name field type in tiddlywiki. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  tiddlywiki:
    container_name: TiddlyWiki
    image: jbardi/tiddlywiki5-lazy-images:latest
    security_opt:
      - no-new-privileges:false
    environment:
     USERNAME: marius
     PASSWORD: mariushosting
    volumes:
      - /volume1/docker/tiddlywiki:/var/lib/tiddlywiki:rw
    ports:
      - 5645:8080
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for USERNAME. Type in your own username. marius is an example for a username.
Note: Before you paste the code above in the Web editor area below, change the value for PASSWORD. Type in your own password. mariushosting is an example for a password.

• STEP 6

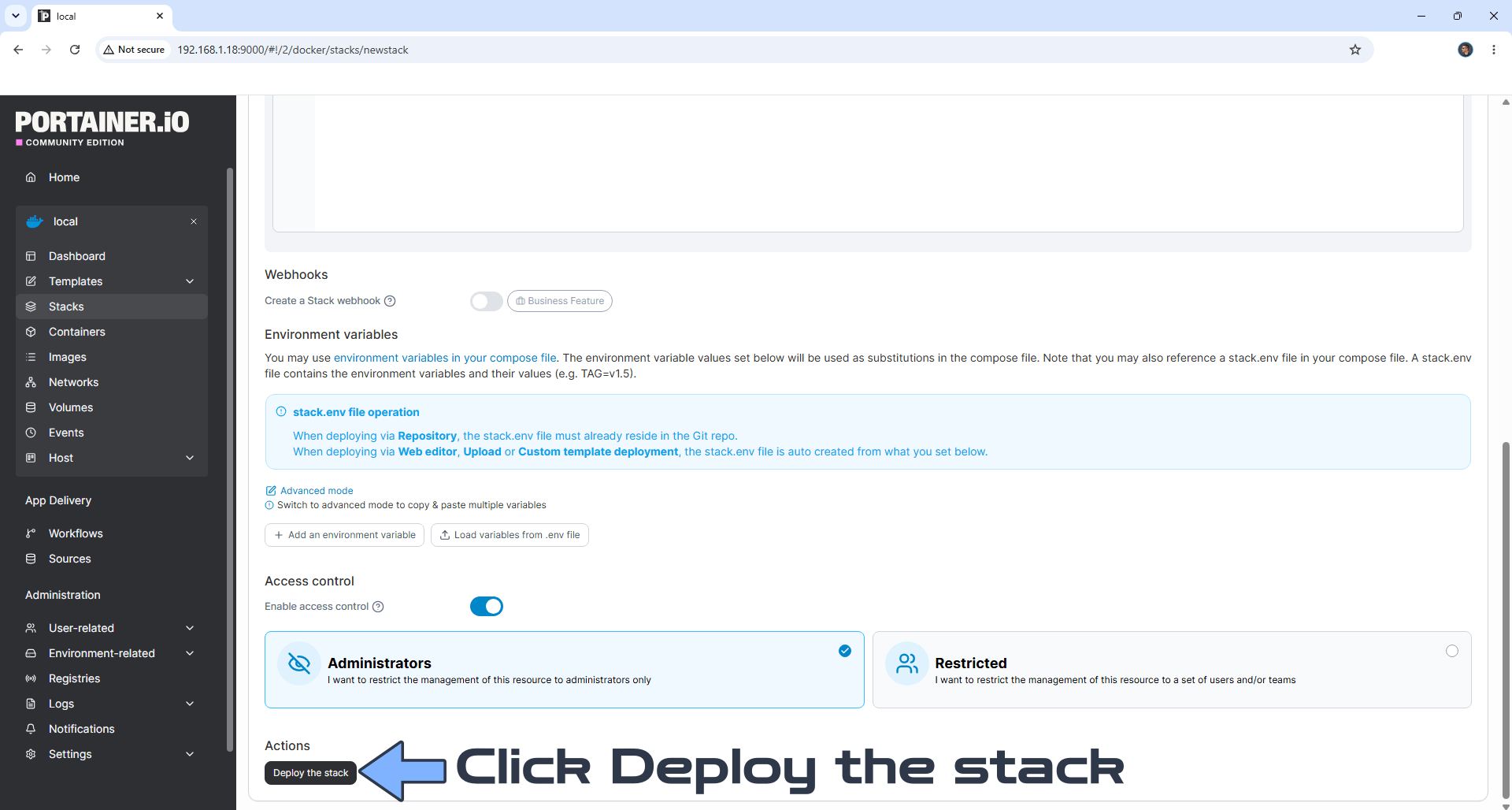

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 8

Go back to STEP 1 or you will deal with karma 🙂

• STEP 9

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:5645 Add your own Username and Password you have previously created at STEP 5. Click Sign In. Follow the instructions in the image below.

• STEP 10

You can start adding your first post. Follow the instructions in the image below.

• STEP 11

After adding your first post, save it. Follow the instructions in the image below.

• STEP 12

You can change your current TiddlyWiki theme by clicking the little gear icon at the top of the page. Click “Palette“. Follow the instructions in the image below.

• STEP 13

Your new TiddlyWiki skin at a glance!

Enjoy TiddlyWiki!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the TiddlyWiki container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make TiddlyWiki work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the TiddlyWiki container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
