Synology Install Plex With Portainer

Synology Install Plex With Portainer

My previous guide for Plex involved the use of Task Scheduler. Today I’m offering a recommended and excellent alternative for installing the latest Plex version via Portainer. Plex is a client-server media player system, plus an ancillary software suite. The Plex Media Server desktop application runs on Windows, macOS, and Linux. Plex gives you one place to find and access all the media that matters to you. From personal media on your own server, to podcasts, web shows, and news, to streaming music, you can enjoy it all in one app, on any device. In this step by step guide I will show you how to install Plex on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest Plex 1.40.2 release.

💡Note: Check out all methods to Install Plex on Your Synology NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Create or Log in to your Plex account. Claim your PLEX code from the link below. You will need this Plex code later at STEP 6. Follow the instructions in the image below.

🚀 PLEX CLAIM CODE

Plex Synology NAS Portainer CLAIM

  • STEP 4

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it plex. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Plex Synology NAS Portainer Set up 1

  • STEP 5

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 6

In the Name field type in plex. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  plex:
    image: ghcr.io/linuxserver/plex:latest
    container_name: Plex
    hostname: plex
    network_mode: host
    mem_limit: 4g
    cpu_shares: 1024
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: wget --no-verbose --tries=1 --spider http://localhost:32400/web
    volumes:
      - /volume1/docker/plex:/config:rw
      - /volume1/movies/media:/movies:ro
    environment:
      TZ: Europe/Bucharest
      PUID: 1026
      PGID: 100
      VERSION: public
      PLEX_CLAIM: YourPLEXClaimCode # STEP 3
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change /volume1/movies/media with your personal path to movies (where your movies are located). For example I have used my personal movies path folder /volume1/movies/media Change it according to your preferences.
Note: Before you paste the code above in the Web editor area below, change the value for TZ. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.1026 is my personal PUID value and 100 is my personal PGID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for PLEX_CLAIM and type in your own Plex Claim code that you have previously generated at STEP 3.

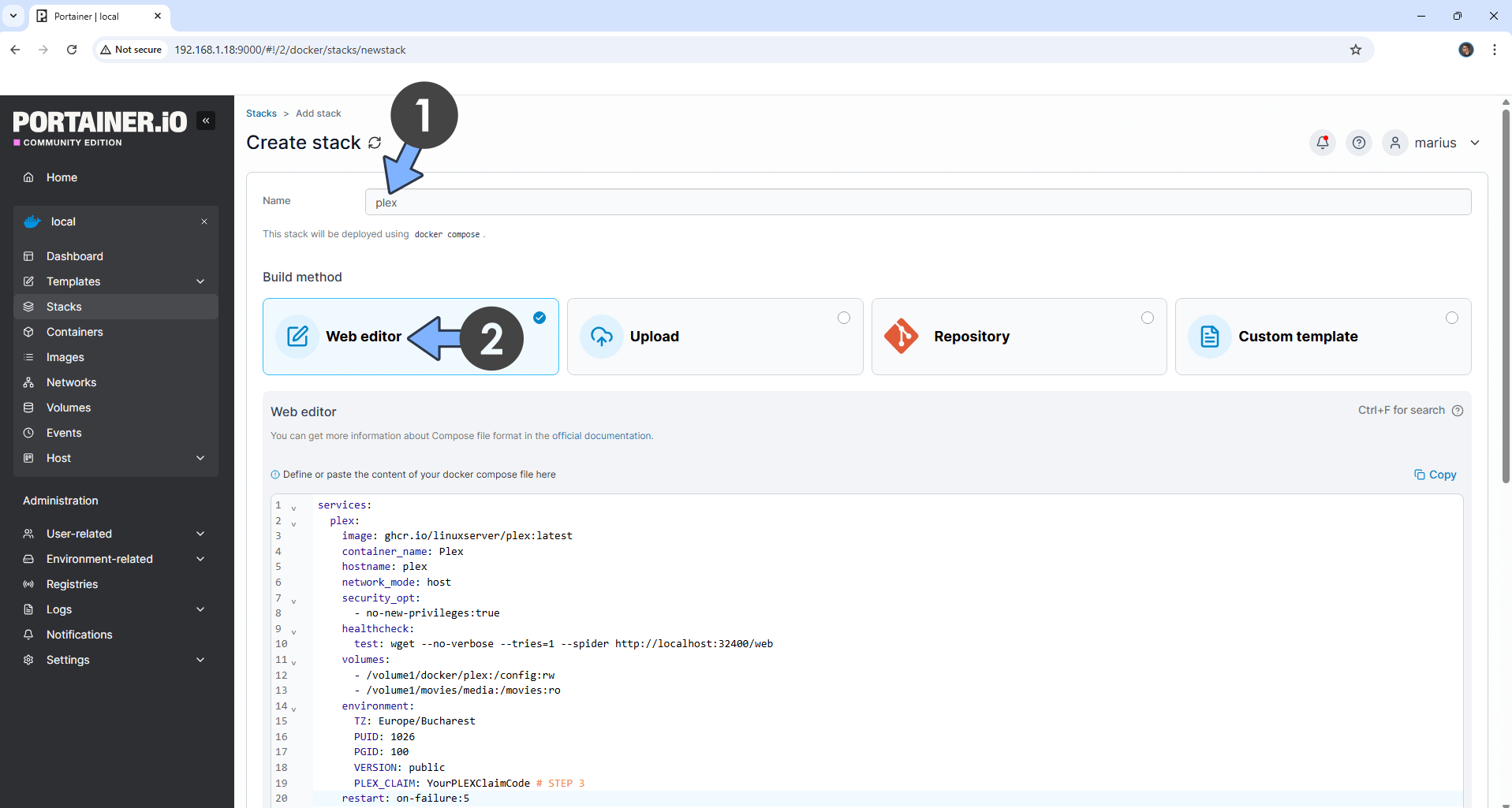

Plex Synology NAS Portainer Set up 2

  • STEP 7

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

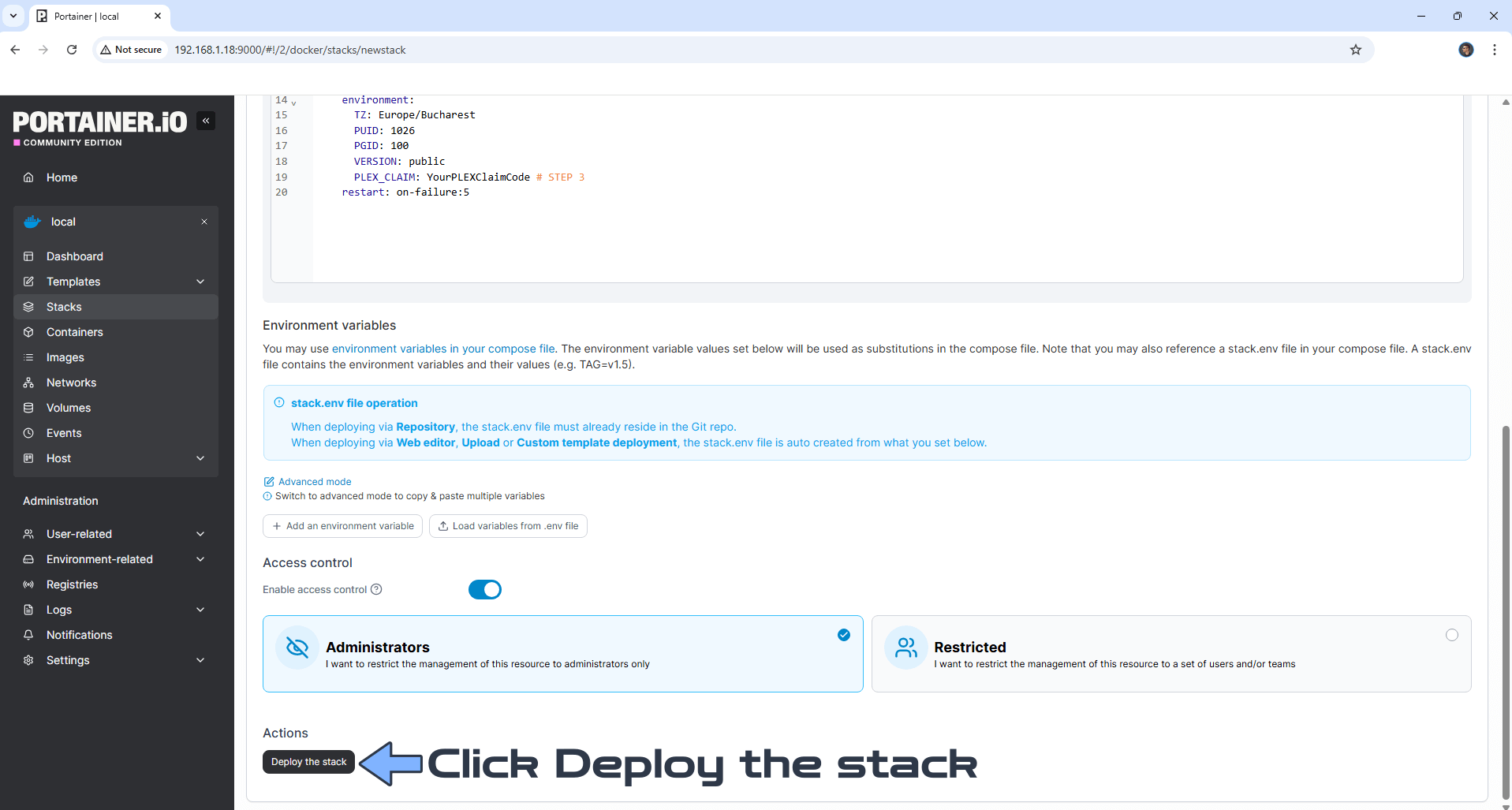

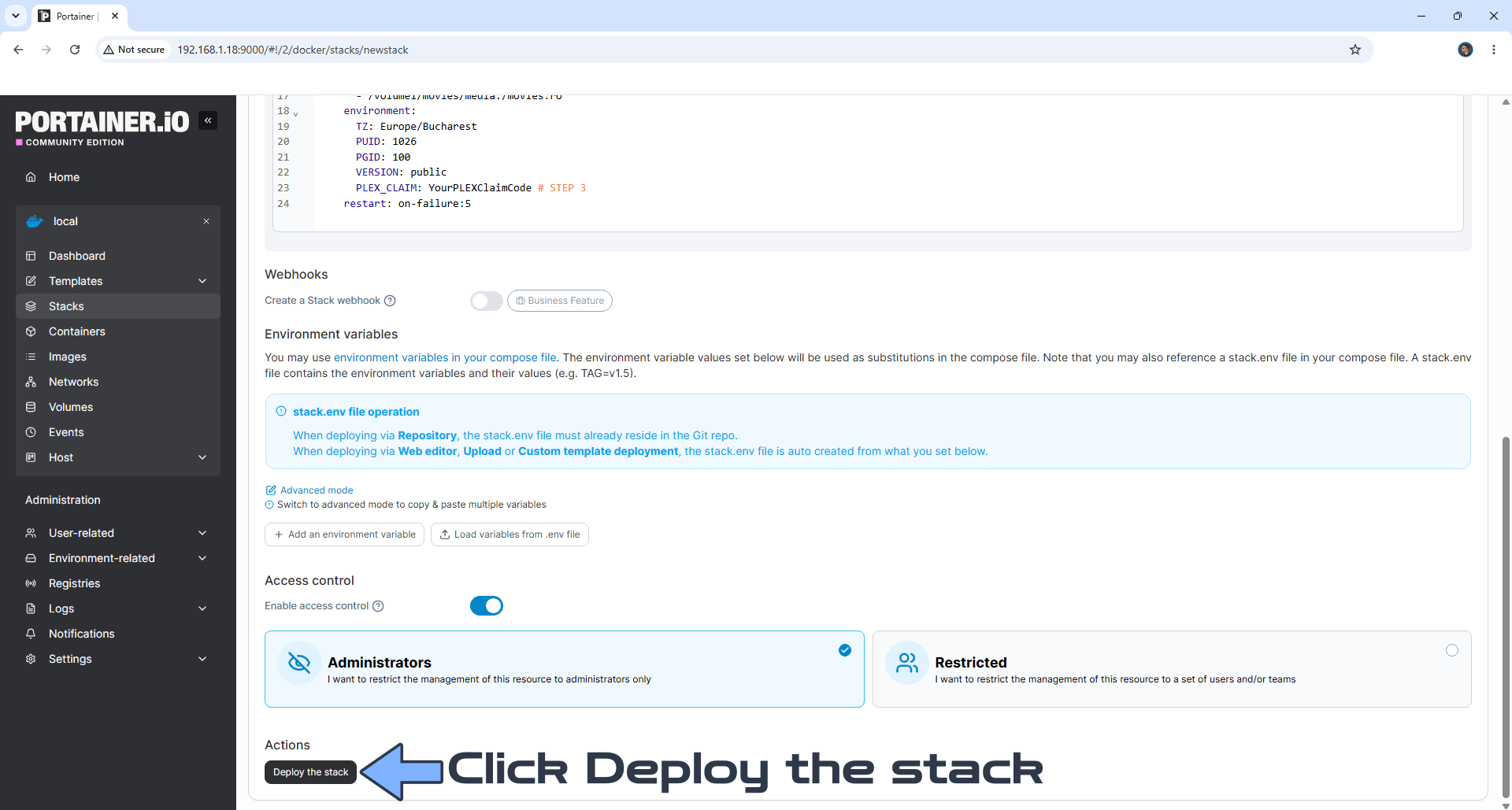

Plex Synology NAS Portainer Set up 3

  • STEP 8

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Plex Synology NAS Portainer Set up 4

  • STEP 9

Go back to STEP 1 or you will deal with karma 🙂.

  • STEP 10

Make sure your folders have the right read/write permissions following STEP 1A and STEP 2B at the end of this guide in the troubleshooting area.

  • STEP 11

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:32400/web Click Sign in. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 5

  • STEP 12

⚠️Warning: If the page is stuck on loading, just refresh the page. Click Got it!. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 6

  • STEP 13

Add a Plex Pass or click close if you have one or don’t want to use a Plex Pass. ⚠️Warning: A Plex Pass is mandatory for running Hardware Transcoding. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 7

  • STEP 14

Give your server a friendly name then click Next. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 8

  • STEP 15

Click Add Library. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 9

  • STEP 16

Click Movies then Next. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 10

  • STEP 17

Click Browse For Media Folder. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 11

  • STEP 18

From the folder choose movies then click Add. follow the instructions in the image below.

Plex Synology NAS Portainer Set up 12

  • STEP 19

Click Add. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 13

  • STEP 20

Click Add Library. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 14

  • STEP 21

Click Next. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 15

  • STEP 22

Click Done. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 16

  • STEP 23

Your Plex Dashboard at a glance!

Plex Synology NAS Portainer Set up 17

Enjoy Plex with Portainer!

Note: If you want to run the Plex container over an HTTPS connection, check my guide on How to Run Docker Containers Over HTTPS. In order to make Plex Hardware Transcoding work over https, it’s also mandatory to set up WebSocket.

Troubleshooting

If you experience some permissions issues like not being able to see your movies inside your movie folder, follow the STEPS below to fix it.

  • STEP 1A

Go to Control Panel / Shared Folder / Select the shared folder where your movies are located, then click the Edit tab. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 18

  • STEP 2B

After you click the Edit tab at STEP 1A, click on the Permissions tab. From the dropdown menu choose “Local groups“. Select users then check the Read/Write permission. Click Save. Follow the instructions in the image below.

Plex Synology NAS Portainer Set up 19
