Synology Install Navidrome With Portainer

My previous guide for Navidrome involved the use of Task Scheduler. Today I’m offering a recommended and excellent alternative for installing the latest Navidrome version via Portainer. Navidrome allows you to enjoy your music collection from anywhere, by making it available through a modern Web UI and through a wide range of third-party compatible mobile apps, for both iOS and Android devices. Navidrome is open source software distributed free of charge under the terms of the GNU GPL v3 license. Navidrome is blazing fast! lightweight, fast and self-contained. Runs well even on resource-limited platform. In this step by step guide I will show you how to install Navidrome on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest Navidrome v0.53.3 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it navidrome. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Navidrome Synology NAS Portainer Set up 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 5

In the Name field type in navidrome. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  navidrome:
    container_name: Navidrome
    image: deluan/navidrome
    mem_limit: 6g
    cpu_shares: 1024
    security_opt:
      - no-new-privileges:true
    restart: on-failure:5
    ports:
      - 4533:4533
    volumes:
      - /volume1/docker/navidrome:/data:rw
      - /volume1/web/music:/music:rw
    environment:
      PUID: 1026
      PGID: 100

Note: Before you paste the code above in the Web editor area below, change /volume1/web/music with your personal path to music (where your music files are located). For example I have used my personal music path folder /volume1/web/music Change it according to your preferences.
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.) 1026 is my personal PUID value and 100 is my personal PGID value. You have to type in your own values.

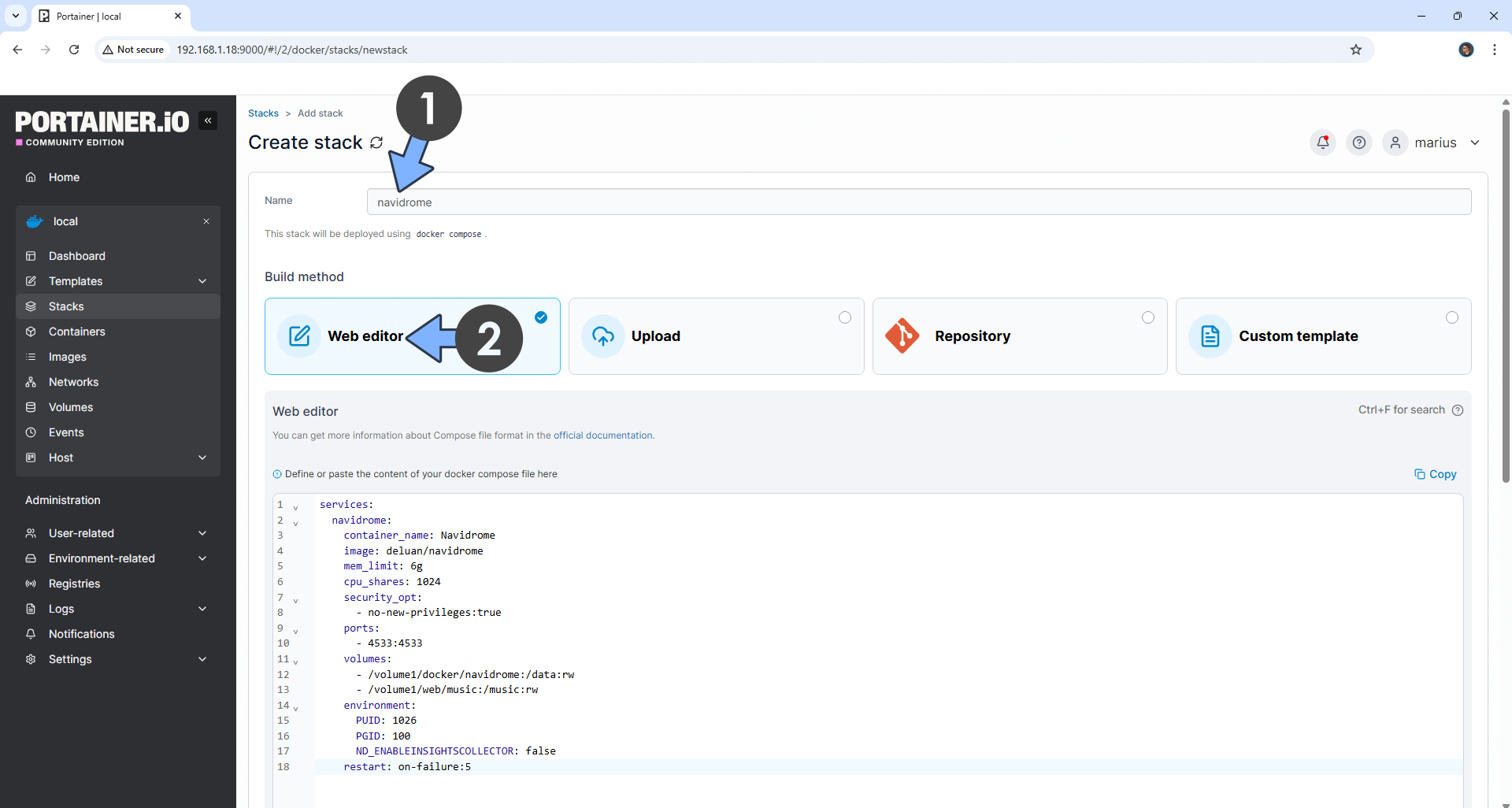

Navidrome Synology NAS Portainer Set up 2

  • STEP 6

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

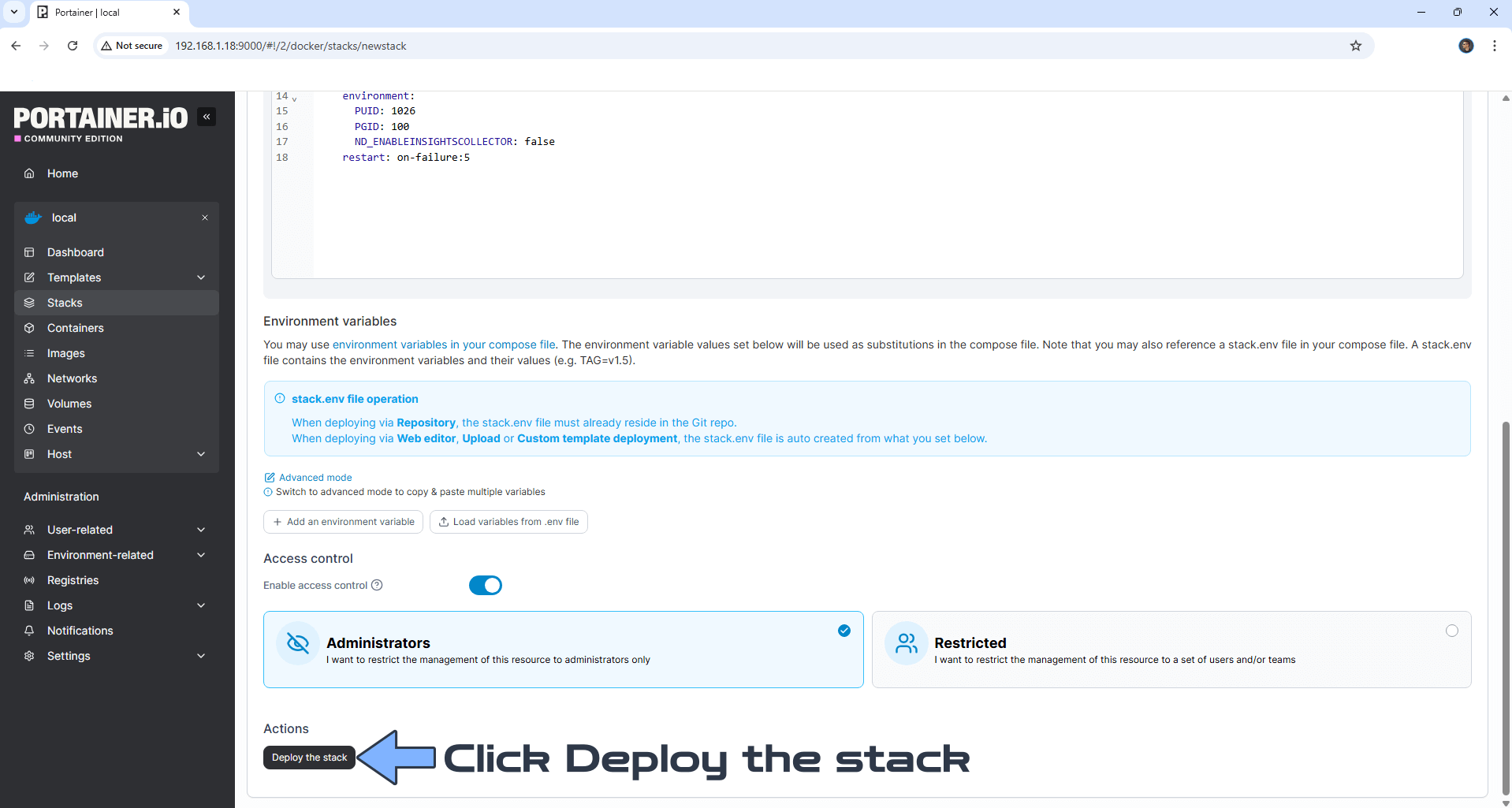

Navidrome Synology NAS Portainer Set up 3

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Navidrome Synology NAS Portainer Set up 4

  • STEP 8

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 9

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:4533 Create a Username and a Password then click the CREATE ADMIN button. Follow the instructions in the image below.

Navidrome Synology NAS Portainer Set up 5

  • STEP 10

Enjoy your music with Navidrome!

Navidrome Synology NAS Portainer Set up 6

  • STEP 11

You can also listen to Radio channels from the web.

Navidrome Synology NAS Portainer Set up 7

Enjoy Navidrome!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the Navidrome container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Navidrome work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the Navidrome container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
