MyĀ previous guide for GravĀ involved the use of Task Scheduler. Today Iā€™m offering a recommended and excellent alternative for installing the latest Grav version via Portainer. Grav is a modern open source flat-file CMS. You can easily create your own website from home like you do with WordPress or Ghost. Grav is fast and flexible. In this step by step guide I will show you how to install Grav on your Synology NAS using Docker & Portainer.

šŸ’”Note:Ā This guide works perfectly with the latest Grav 1.7.46Ā release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go toĀ Control PanelĀ /Ā Login PortalĀ /Ā AdvancedĀ Tab / clickĀ Reverse Proxy. Follow the instructions in the image below.

Grav Synology NAS Portainer Set up 1

  • STEP 5

Now click the ā€œCreateā€ button. Follow the instructions in the image below.

Grav Synology NAS Portainer Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Grav. After that, add the following instructions:

Source:
Protocol:Ā HTTPS
Hostname: grav.yourname.synology.me
Port:Ā 443

Check Enable HSTS

Destination:
Protocol:Ā HTTP
Hostname:Ā localhost
Port:Ā 4550

Grav Synology NAS Portainer Set up 3

  • STEP 7

Go to Control Panel / Login Portal / select your Code Server Reverse Proxy then click the Custom Header tab. Click Create and then, from the drop-down menu, click on WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity / Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Grav Synology NAS Portainer Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP CompressionĀ then click Apply. Follow the instructions in the image below.

Grav Synology NAS Portainer Set up 5

  • STEP 10

Go toĀ File Station and open the docker folder. Inside the docker folder, create one new folders and name it grav. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Grav Synology NAS Portainer Set up 6

  • STEP 11

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 12

In the Name field type in grav. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  grav:
    container_name: Grav
    image:  ghcr.io/linuxserver/grav:latest
    mem_limit: 8g
    cpu_shares: 2048
    security_opt:
      - no-new-privileges:true
    healthcheck:
     test: curl -f http://localhost:80/ || exit 1
    restart: on-failure:5
    ports:
      - 4550:80
    volumes:
      - /volume1/docker/grav:/config:rw
    environment:
     TZ: Europe/Bucharest
     PUID: 1026
     PGID: 100

Note: Before you paste the code above in the Web editor area below, change the value for TZĀ (Select your current Time Zone from this list).
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGIDĀ with your own values. (Follow my step by step guide on how to do this.)Ā 1026 is my personal UID value and 100 is my personal GID value. You have to type in your own values.

Grav Synology NAS Portainer Set up 7

  • STEP 13

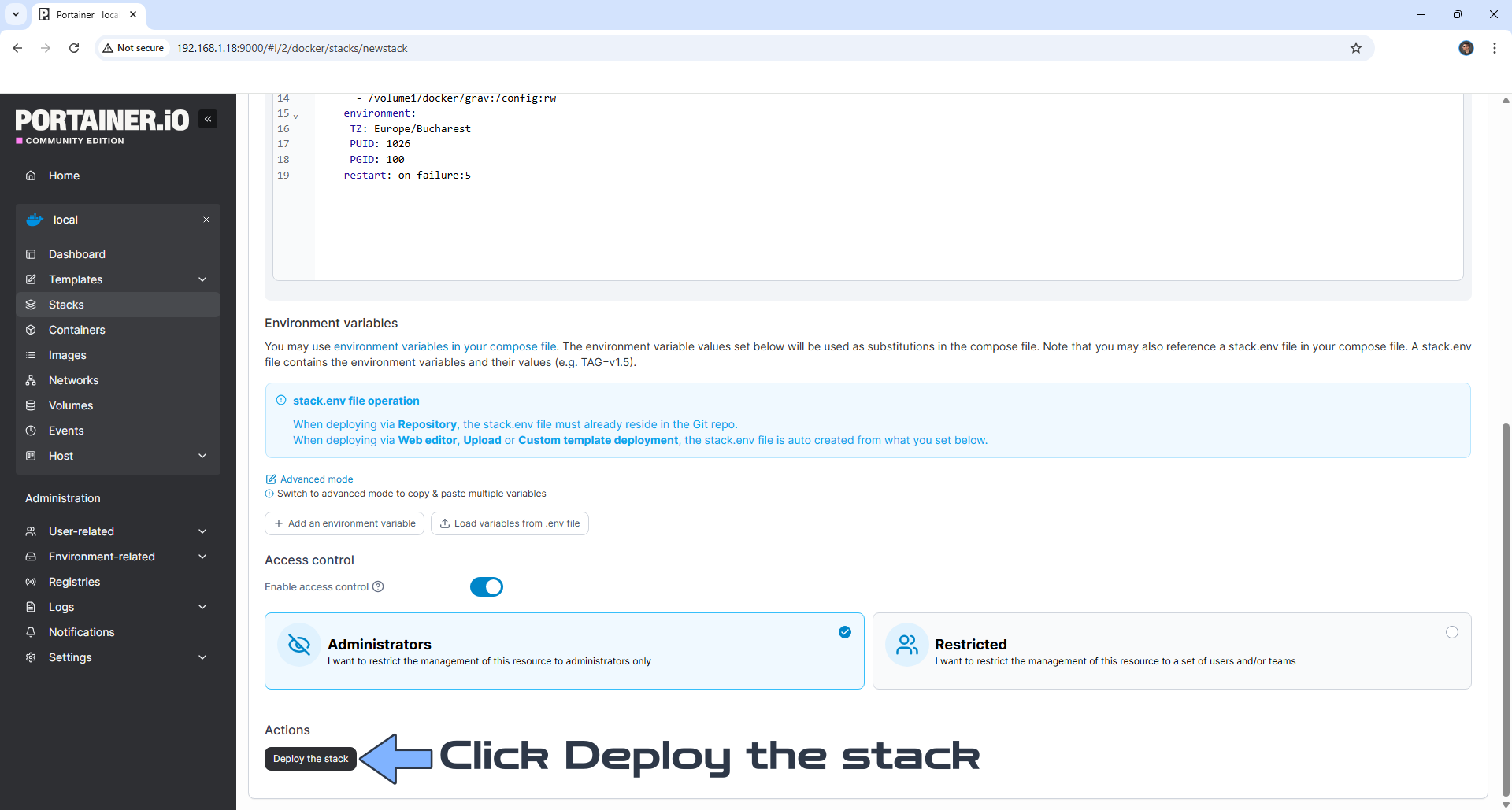

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Grav Synology NAS Portainer Set up 8

  • STEP 14

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Grav Synology NAS Portainer Set up 9

  • STEP 15

Go back toĀ STEP 1Ā or you will deal with karma šŸ™‚.

  • STEP 16

Now open your browser and type in your HTTPS/SSL certificate like this https://grav.yourname.synology.me In my case it’s https://grav.mariushosting.synology.me If everything goes right, you will see the Grav main page. Type in your own Details then click Create User. Note: The Username should be between 3 and 16 characters, include lowercase letters, numbers, underscores and hyphens. Attention: Uppercase letters, spaces, and special characters are not allowed for the Username. Follow the instructions in the image below.

Grav Synology NAS Portainer Set up 10

  • STEP 17

Your Grav dashboard at a glance!

Grav Synology NAS Portainer Set up 11

  • STEP 18

Publish your first page!

Grav Synology NAS Portainer Set up 12

Enjoy Grav!
