Synology Install Draw.io With Portainer

by

Synology Install Draw.io With Portainer

MyĀ previous guide for Draw.ioĀ involved the use of Task Scheduler. Today Iā€™m offering a recommended and excellent alternative for installing the latest Draw.io version via Portainer. Draw.io (formerly Diagramly) is free online diagram software. You can use it as a flowchart maker, network diagram software, to create UML online, as an ER diagram tool, to design database schema, to build BPMN online, as a circuit diagram maker, and more. draw.io can import .vsdx, Gliffyā„¢ and Lucidchartā„¢ files. The software allows you to choose from an automatic layout function, or create a custom layout. They have a large selection of shapes and hundreds of visual elements to make your diagram or chart one-of-a-kind. In this step by step guide I will show you how to install Draw.io on your Synology NAS using Docker & Portainer.

šŸ’”Note:Ā This guide works perfectly with the latest Draw.io v.26.0.7Ā release.

šŸ’”Note: Check out my new guide on how to Install Draw.io on Your UGREEN NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 4

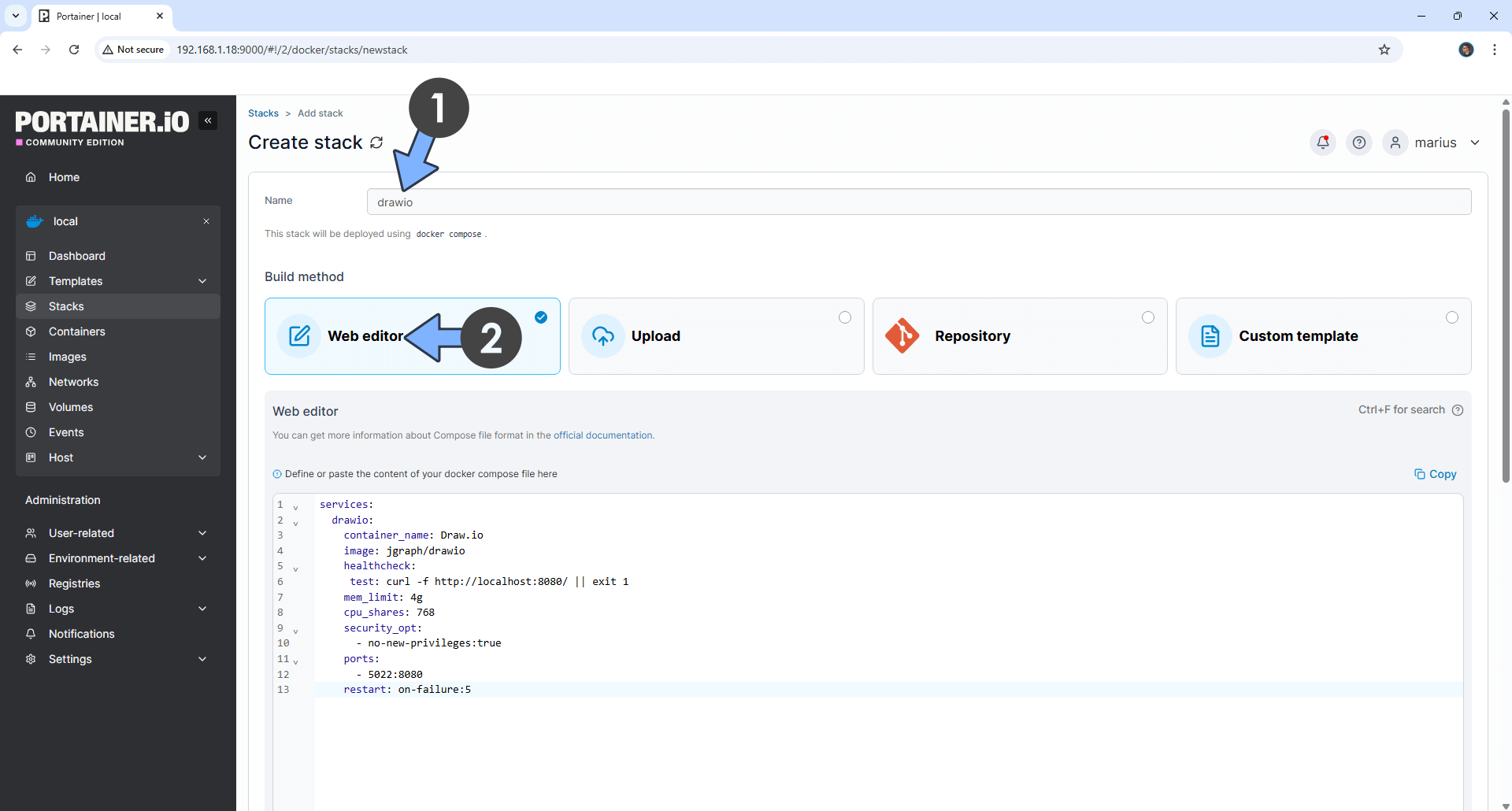

In the Name field type in drawio. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  drawio:
    container_name: Draw.io
    image: jgraph/drawio
    healthcheck:
     test: curl -f http://localhost:8080/ || exit 1
    mem_limit: 4g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    restart: on-failure:5
    ports:
      - 5022:8080

Draw.io Synology NAS Portainer Set up 1

  • STEP 5

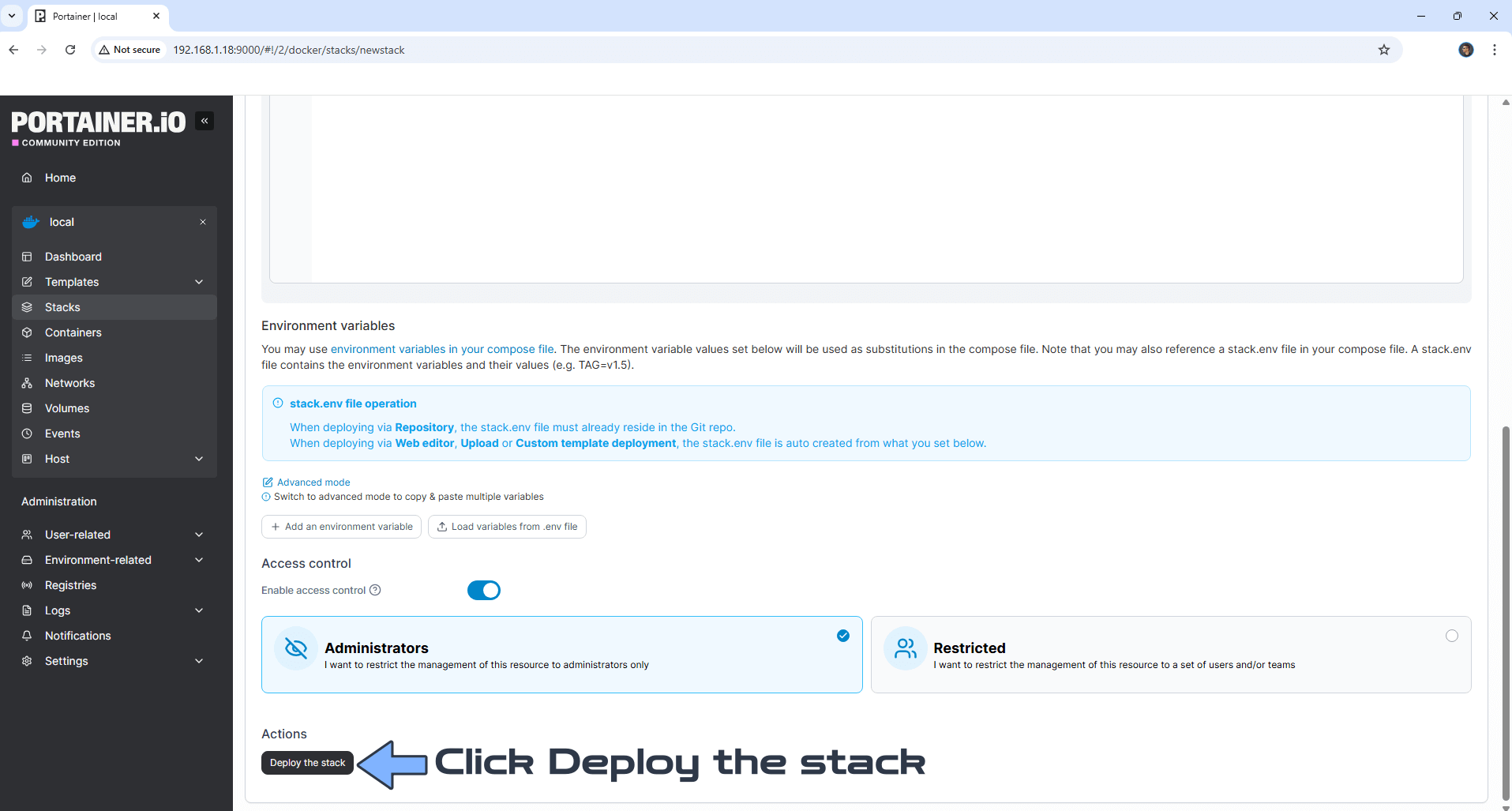

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Draw.io Synology NAS Portainer Set up 2

  • STEP 6

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Draw.io Synology NAS Portainer Set up 3

  • STEP 7

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 8

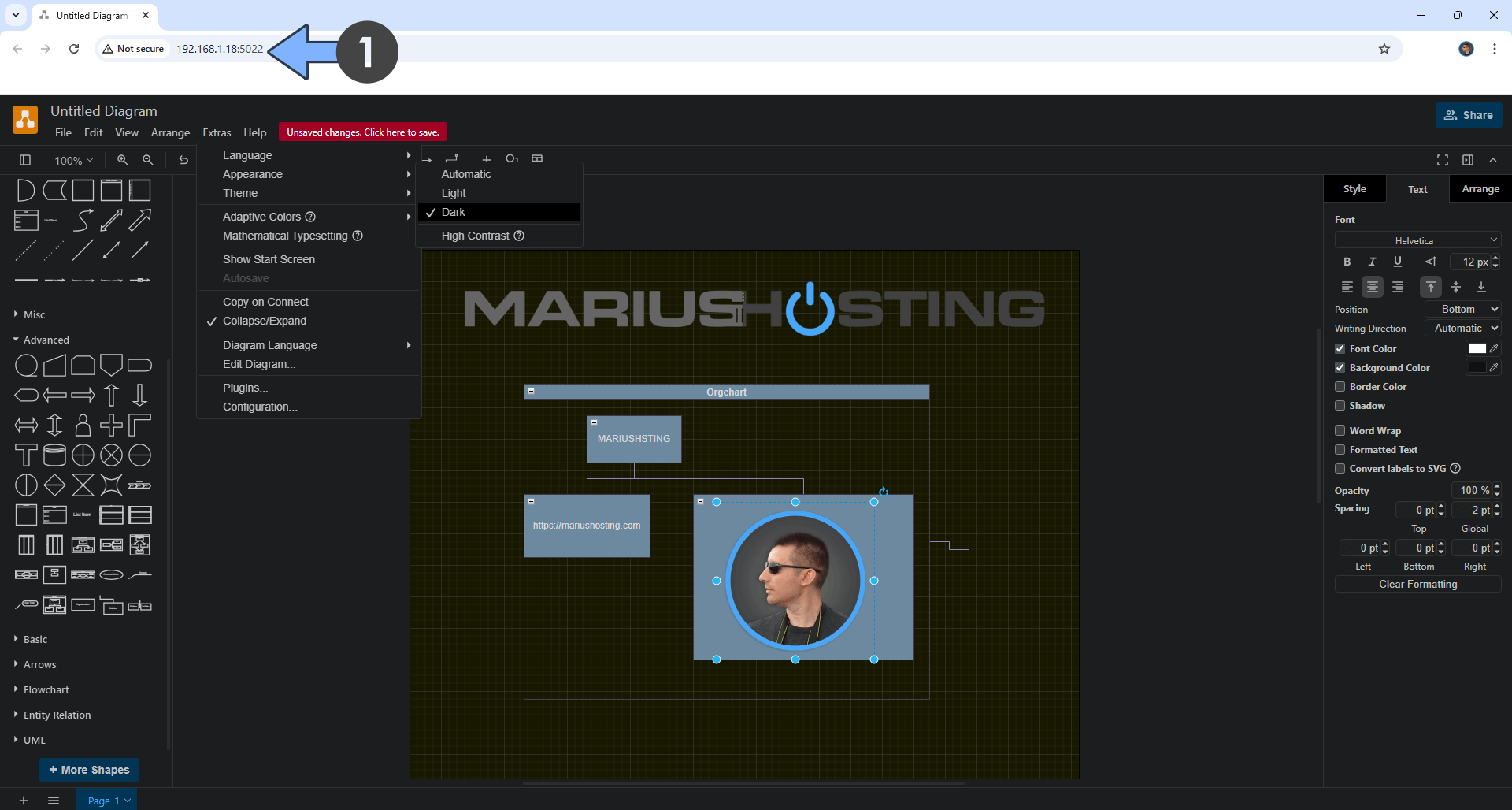

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser andĀ type in http://Synology-ip-address:5022 Click Device to save your diagrams.Ā Follow the instructions in the images below.

Draw.io Synology NAS Portainer Set up 4

  • STEP 9

Click Create a New Diagram or Open an Existing Diagram. Follow the instructions in the image below.

Draw.io Synology NAS Portainer Set up 5

  • STEP 10

Choose your favorite diagram from the list, then click Create. follow the instructions in the image below.

Draw.io Synology NAS Portainer Set up 6

  • STEP 11

Your Diagram at a glance!

Draw.io Synology NAS Portainer Set up 7

Enjoy Draw.io!

šŸ†˜TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issuesĀ article.

Note: If you want to run the Draw.io container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Draw.io work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: Find outĀ how to update the Draw.io container with the latest image.
