How to Install Yopass on Your Synology NAS

Yopass is a project for sharing secrets in a quick and secure manner, similar to Password Pusher and Private Bin. The sole purpose of Yopass is to minimize the amount of passwords floating around in ticket management systems, Slack messages and emails. The message is encrypted/decrypted locally in the browser and then sent to Yopass without the decryption key which is only visible once during encryption; Yopass then returns a one-time URL with a specified expiry date. Yopass is designed to be as simple and “dumb” as possible without compromising on security. In this step by step guide I will show you how to install Yopass on your Synology NAS using Docker and Portainer.

Note: This guide works perfectly with the latest Yopass v11.4.6 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Yopass Synology NAS Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

Yopass Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

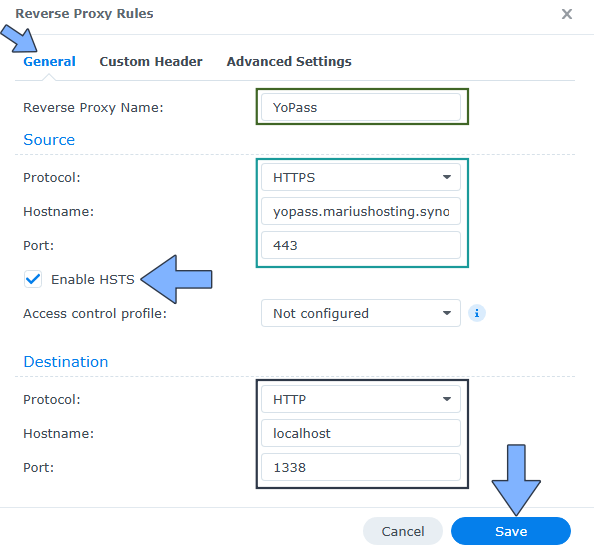

On the General area, set the Reverse Proxy Name description: type in Yopass. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: yopass.yourname.synology.me
Port: 443

Destination:
Protocol: HTTP
Hostname: Add your own NAS IP.
Port: 5110

Yopass Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Yopass Synology NAS Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

Yopass Synology NAS Set up 5

  • STEP 10

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 11

In the Name field type in yopass. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.0"

services:
  memcached:
    image: memcached
    container_name: YoPass-Memcached
    restart: always
    expose:
      - 11211
  yopass:
    image: jhaals/yopass
    container_name: YoPass
    restart: always
    ports:
      - 192.168.1.18:5110:80
    command: --memcached=memcached:11211 --port 80

Note: Before you paste the code above in the Web editor area below, change the value for ports and add your own Synology Local NAS IP. 192.168.1.18 is my own Synology Local NAS IP. You should add your own Synology Local NAS IP.

Yopass Synology NAS Set up 6

STEP 12

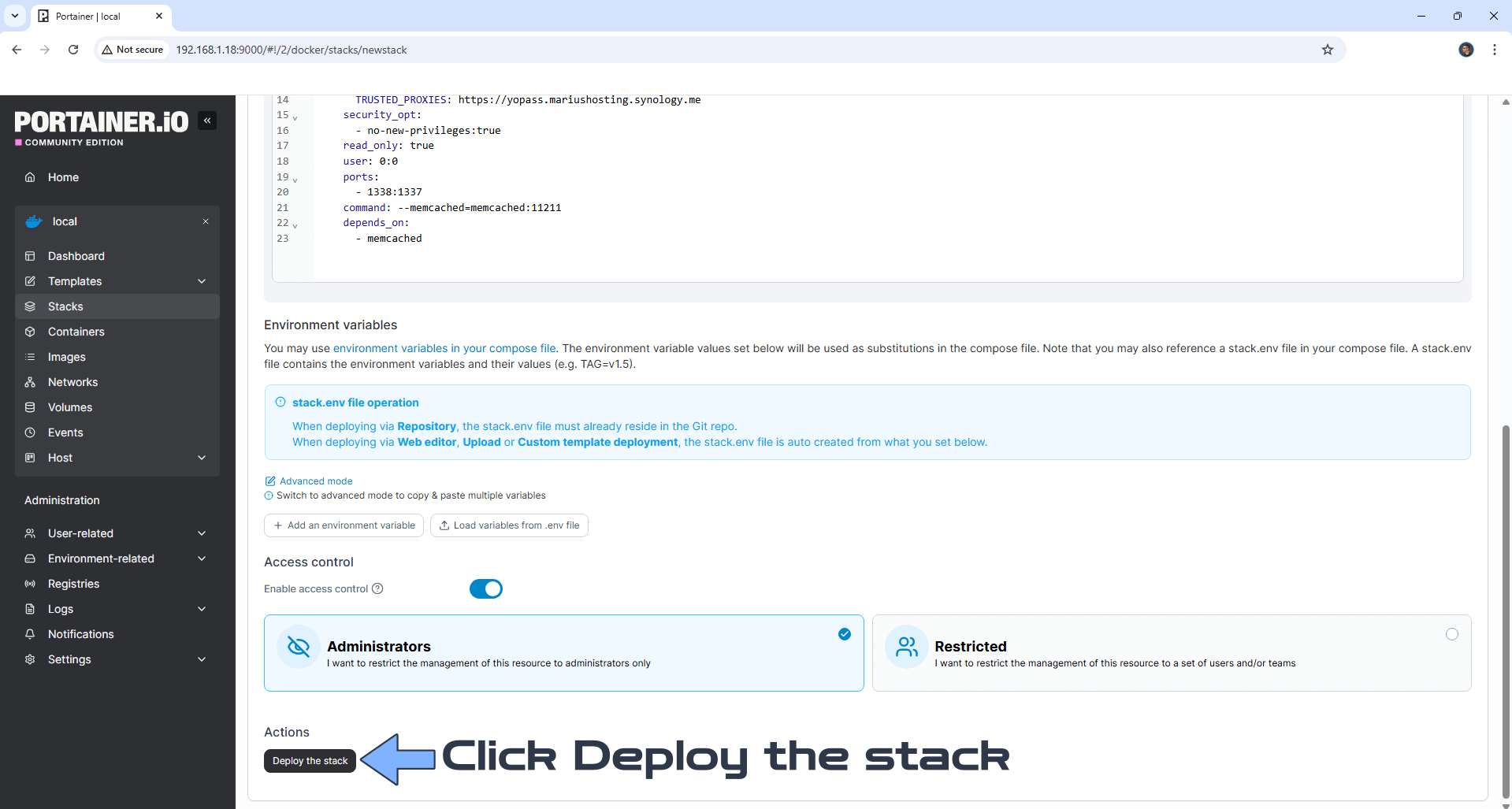

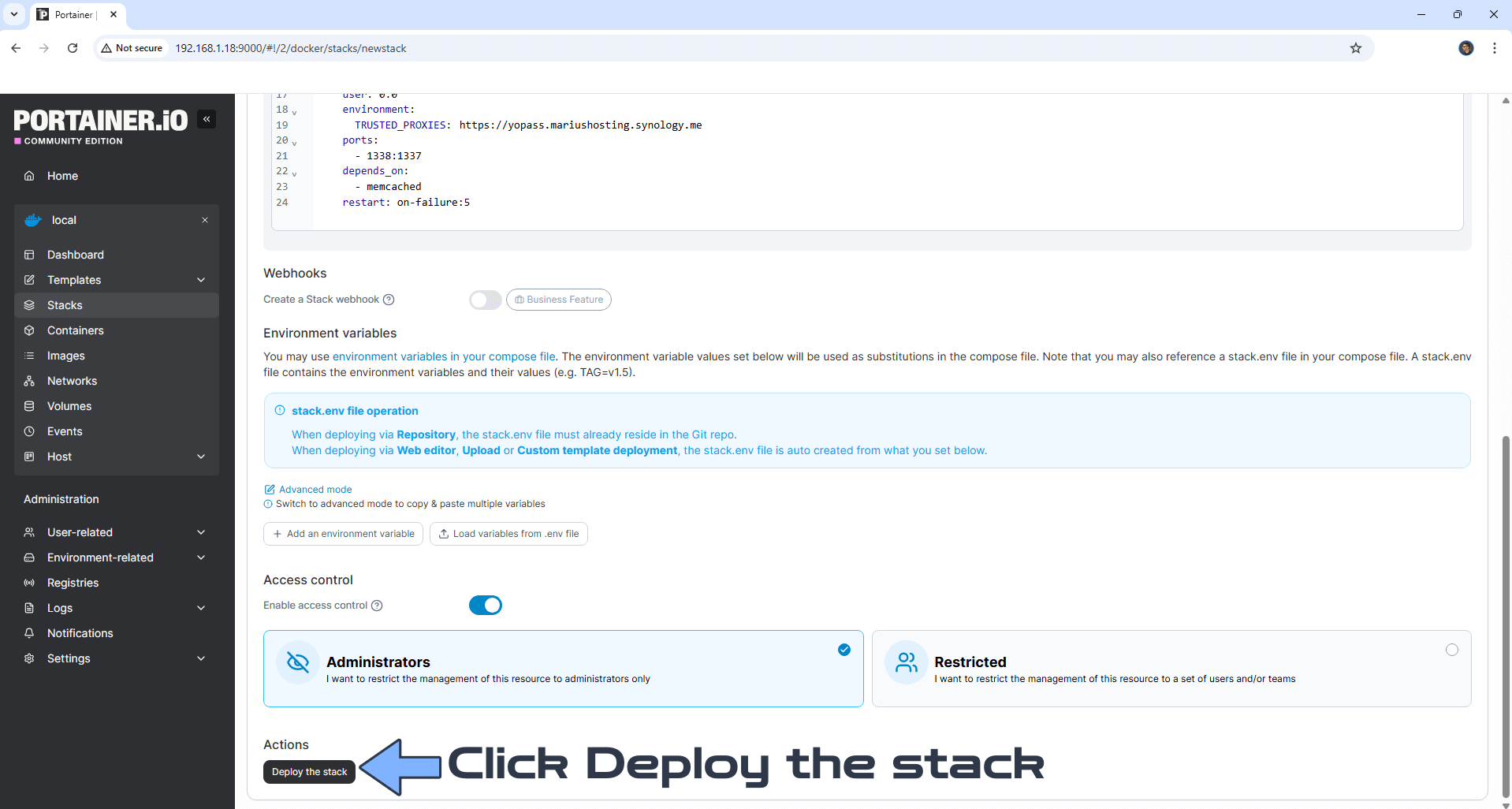

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Yopass Synology NAS Set up 7

  • STEP 13

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Yopass Synology NAS Set up 8

  • STEP 14

Go back to STEP 1 or you will deal with karma 🙂.

  • STEP 15

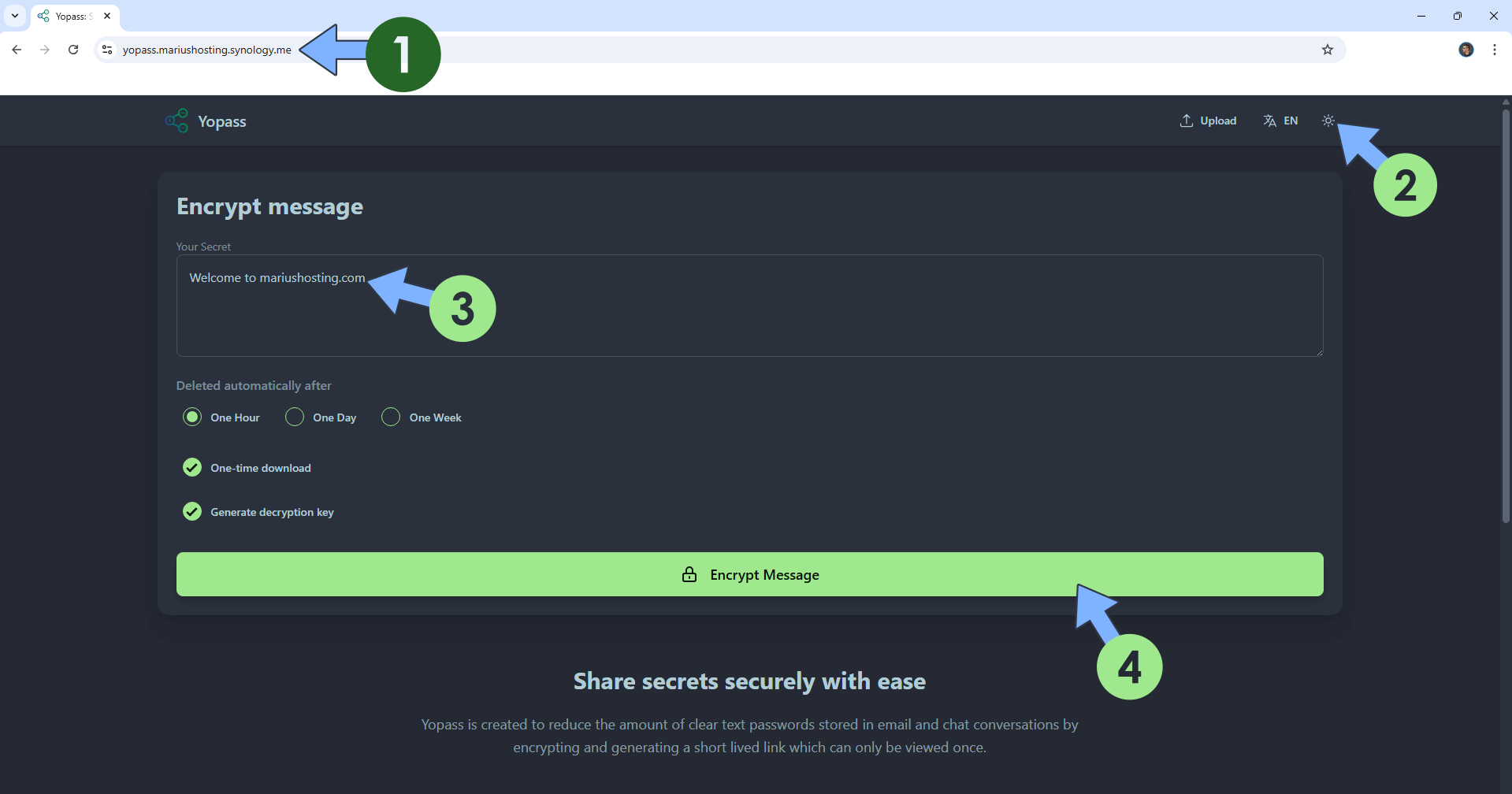

Now open your browser and type in your HTTPS/SSL certificate like this https://yopass.yourname.synology.me In my case it’s https://yopass.mariushosting.synology.me If everything goes right, you will see the Yopass page. Add message / password then click ENCRYPT MESSAGE. You can also upload files. Follow the instructions in the image below.

Yopass Synology NAS Set up 9

  • STEP 16

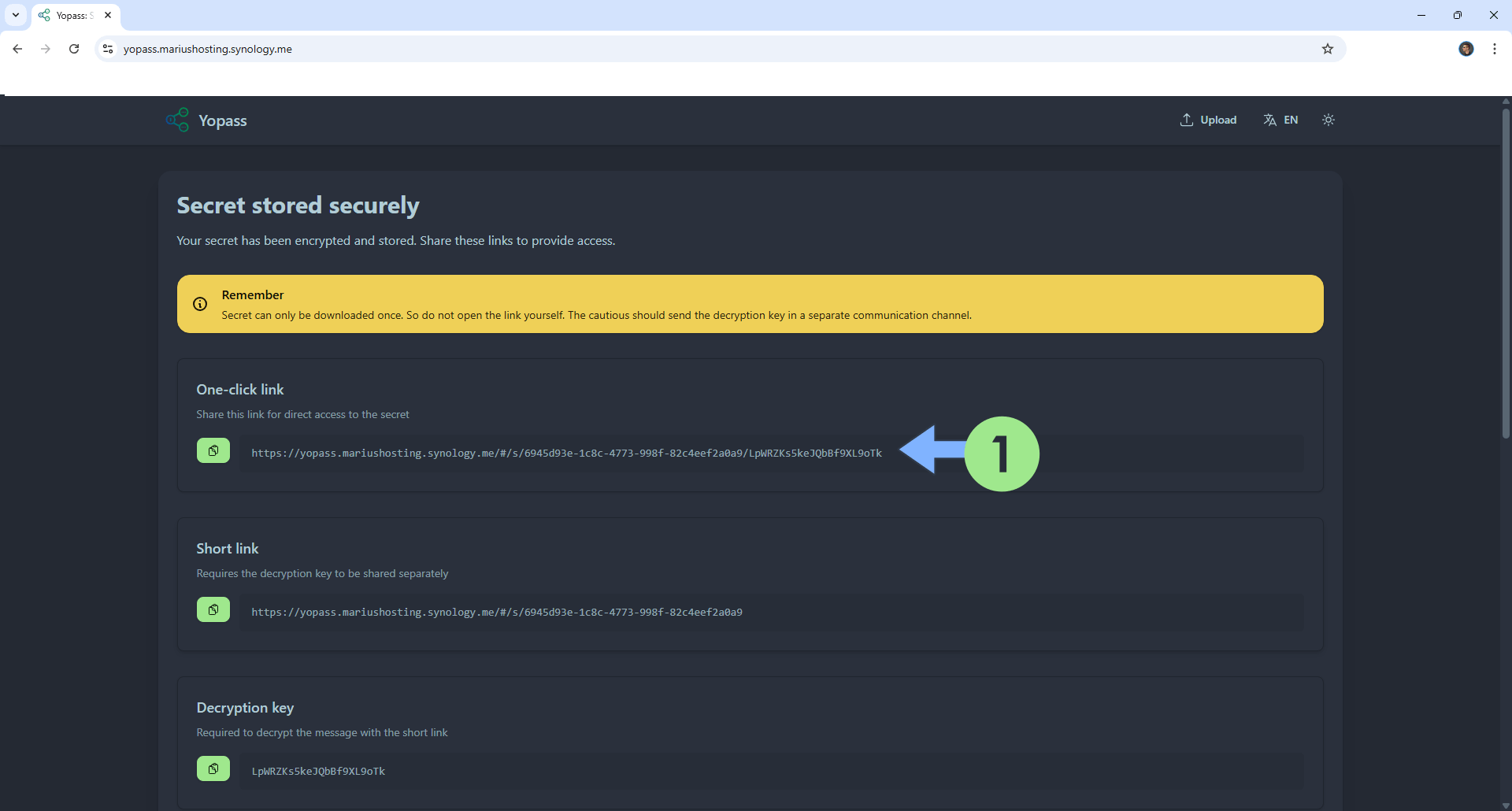

Share the secret link with someone. Follow the instructions in the image below.

Yopass Synology NAS Set up 10

Enjoy Yopass!

Note: Find out how to update the Yopass container with the latest image.
Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
