VSCodium is a community-driven, freely-licensed binary distribution of Microsoftâs editor VS Code. This projectâs sole aim is to provide you with ready to use binaries without Microsoftâs telemetry code. This solves the problem where you want to use VS Code without the proprietary code from Microsoft, but you are not comfortable with building it from the source. In this step by step guide I will show you how to install VSCodium on your Synology NAS with Docker & Portainer.
STEP 1
Please Support My work by Making a Donation.
STEP 2
Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.
STEP 3
Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.
STEP 4
Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.
STEP 5
Now click the âCreateâ button. Follow the instructions in the image below.
STEP 6

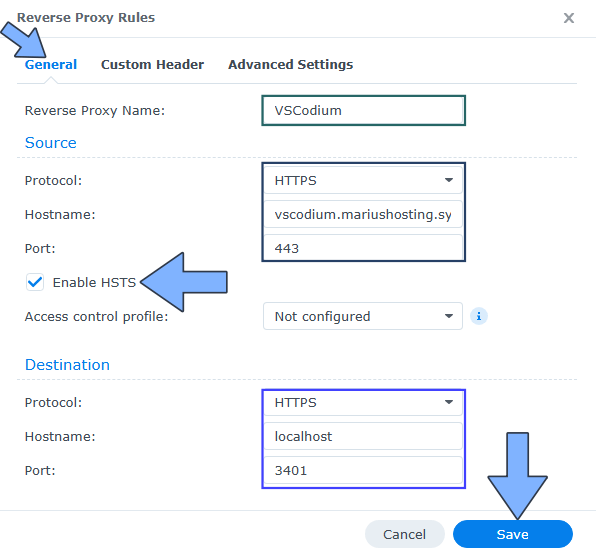

After you click the Create button, the window below will open. Follow the instructions in the image below.
On the General area, set the Reverse Proxy Name description: type in VSCodium. After that, add the following instructions:
Source:
Protocol:Â HTTPS
Hostname: vscodium.yourname.synology.me
Port:Â 443
Check Enable HSTS
Destination:
Protocol:Â HTTP
Hostname:Â localhost
Port:Â 3400
STEP 7
On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.
STEP 8
Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.
STEP 9
Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.
STEP 10
Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it vscodium. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.
STEP 11
Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.
STEP 12

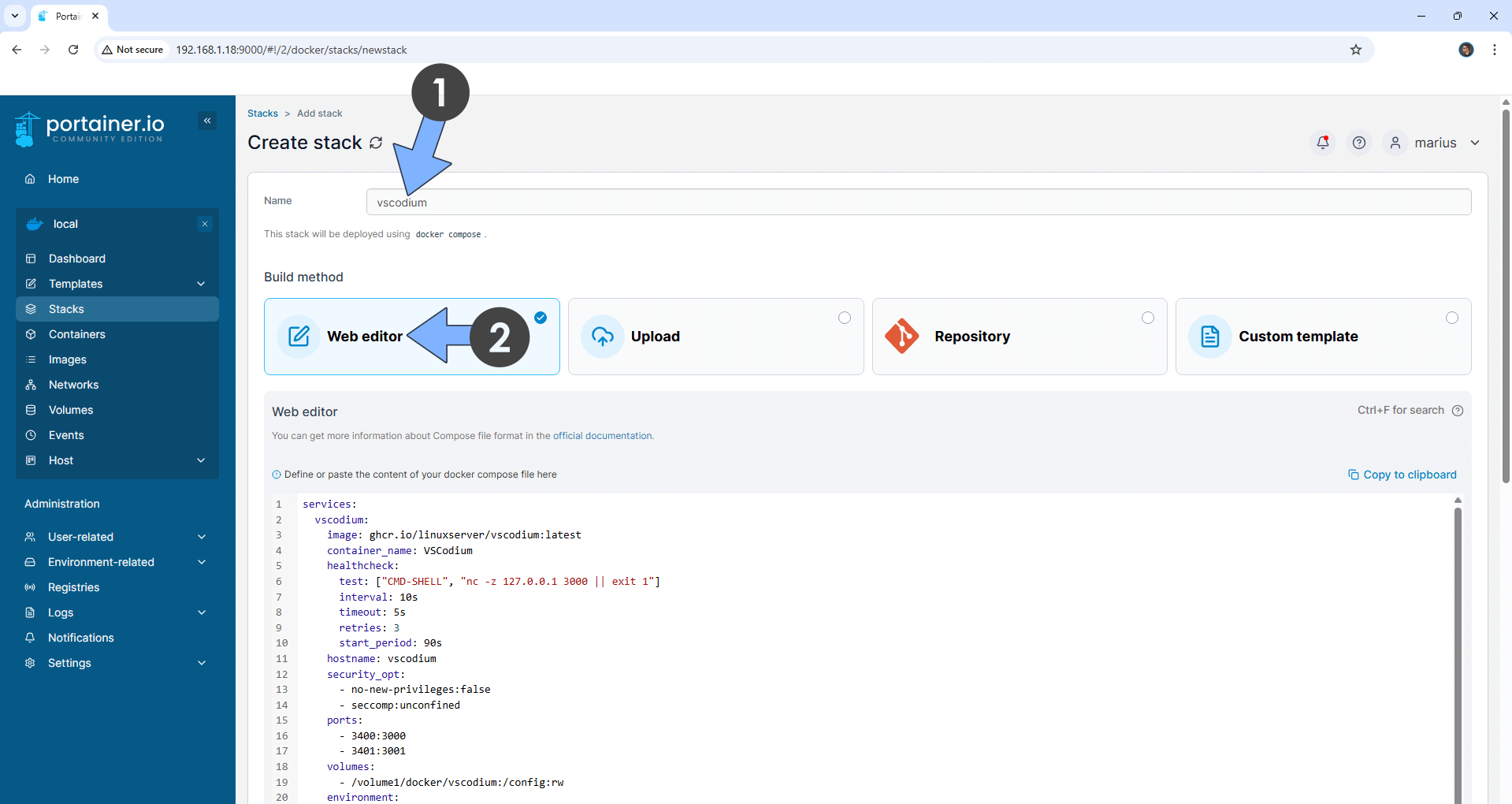

In the Name field type in vscodium. Follow the instructions in the image below.
version: "3.9" services: vscodium: image: ghcr.io/linuxserver/vscodium:latest container_name: VSCodium hostname: vscodium mem_limit: 3g shm_size: 1g cpu_shares: 768 security_opt: - no-new-privileges:true - seccomp:unconfined ports: - 3400:3000 - 3401:3001 volumes: - /volume1/docker/vscodium:/config:rw environment: TZ: Europe/Bucharest PUID: 1026 PGID: 100 CUSTOM_USER: marius PASSWORD: mariushosting restart: on-failure:5
Note: Before you paste the code above in the Web editor area below, change the value for TZ. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.) 1026 is my personal PUID value and 100 is my personal PGID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for CUSTOM_USER. Type in your own username. marius is an example for a username.
Note: Before you paste the code above in the Web editor area below, change the value for PASSWORD. Type in your own password. mariushosting is an example for a password.
STEP 13

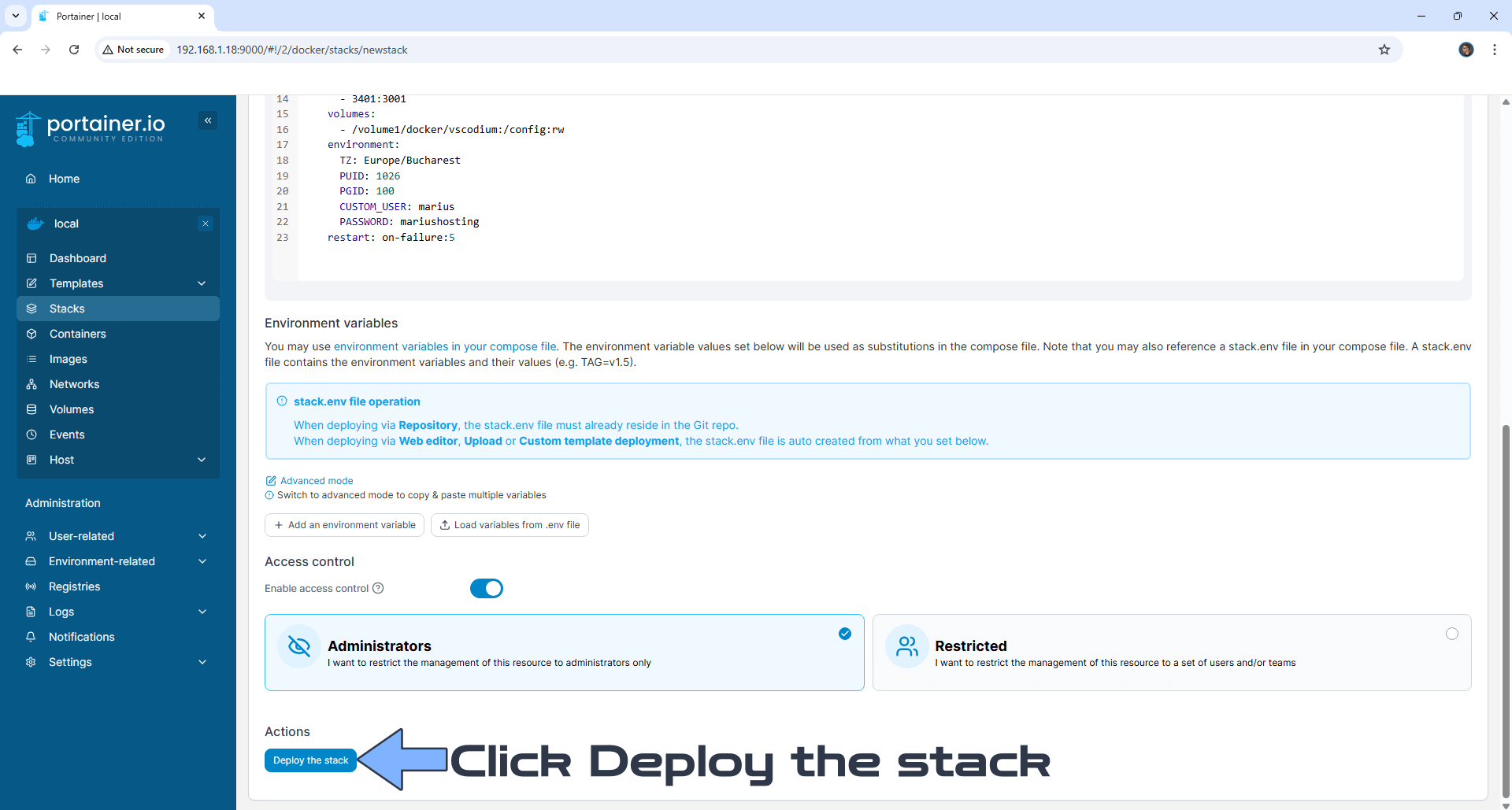

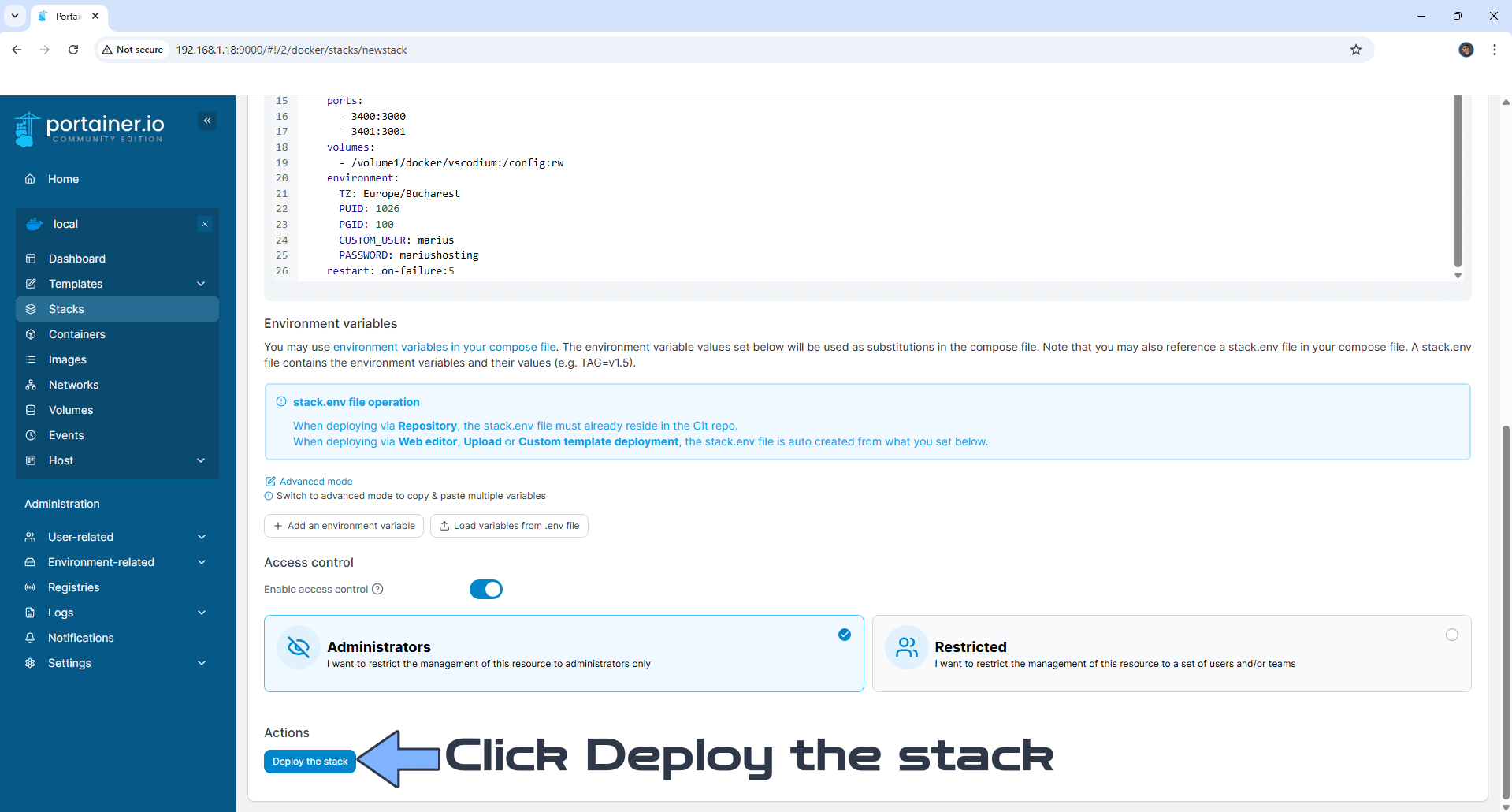

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.
STEP 14
If everything goes right, you will see the following message at the top right of your screen: âSuccess Stack successfully deployedâ.
STEP 15
đ˘Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. Iâve been very honest about this aspect of my work since the beginning: I donât run any ADS, I donât require subscriptions, paid or otherwise, I donât collect IPs, emails, and I donât have any referral links from Amazon or other merchants. I also donât have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itâs something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.
STEP 16

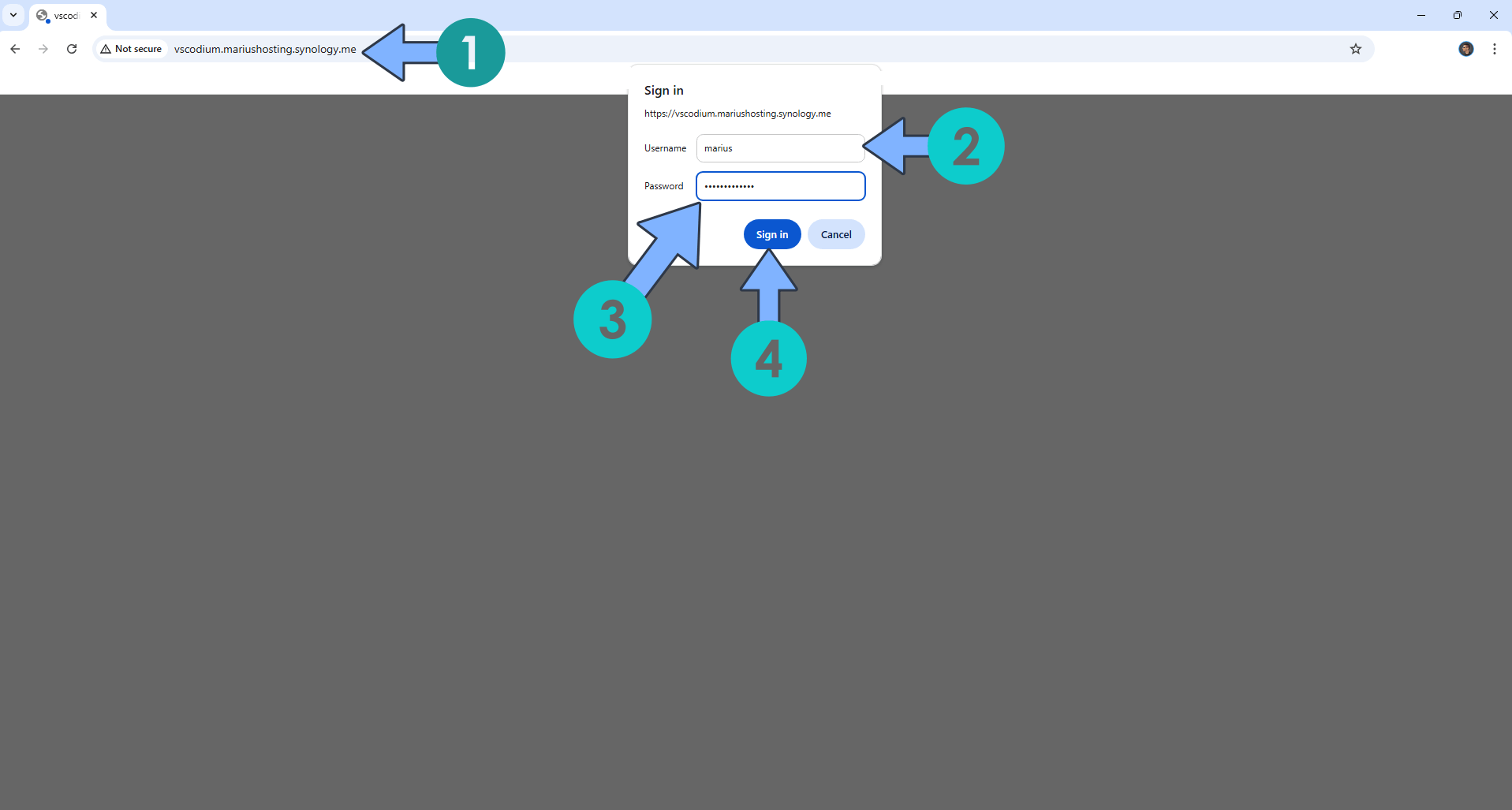

Now open your browser and type in your HTTPS/SSL certificate like this https://vscodium.yourname.synology.me that you have previously created at STEP 6. In my case it’s https://vscodium.mariushosting.synology.me If everything goes right, you will see the VSCodium Login page. Type in your own CUSTOM_USER and PASSWORD that you have previously created at STEP 12 then click Sign In. Follow the instructions in the image below.
STEP 17
Your VSCodium page at a glance!
Enjoy VSCodium!
