How to Install Tududi on Your Synology NAS

Tududi is a task and project management web application that allows users to efficiently manage their tasks and projects, categorize them into different areas, and track due dates. It is designed to be intuitive and easy to use, providing a seamless experience for personal productivity. In this step by step guide I will show you how to install Tududi on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest Tududi v0.3.4 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

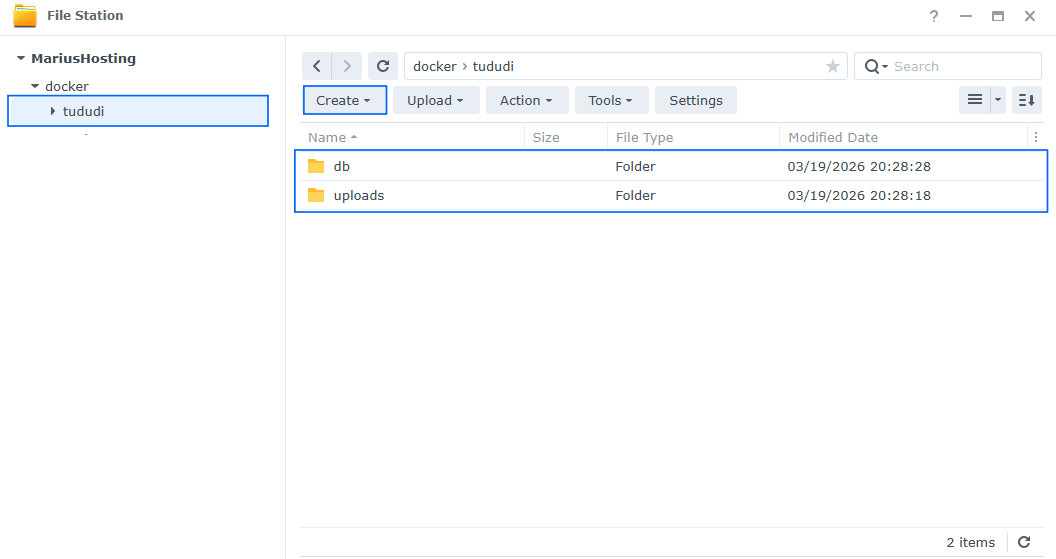

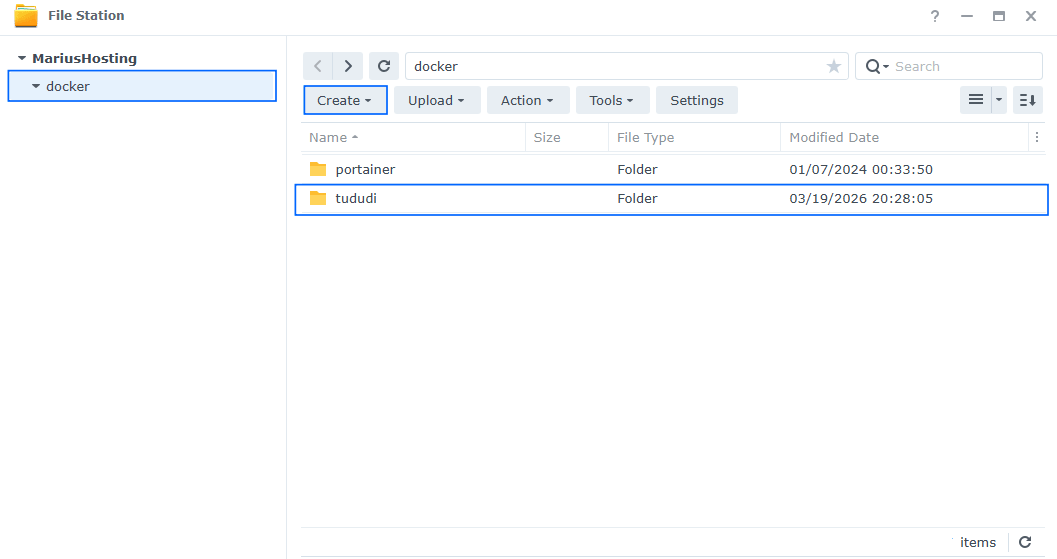

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it tududidb. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Tududi Synology NAS Set up 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 5

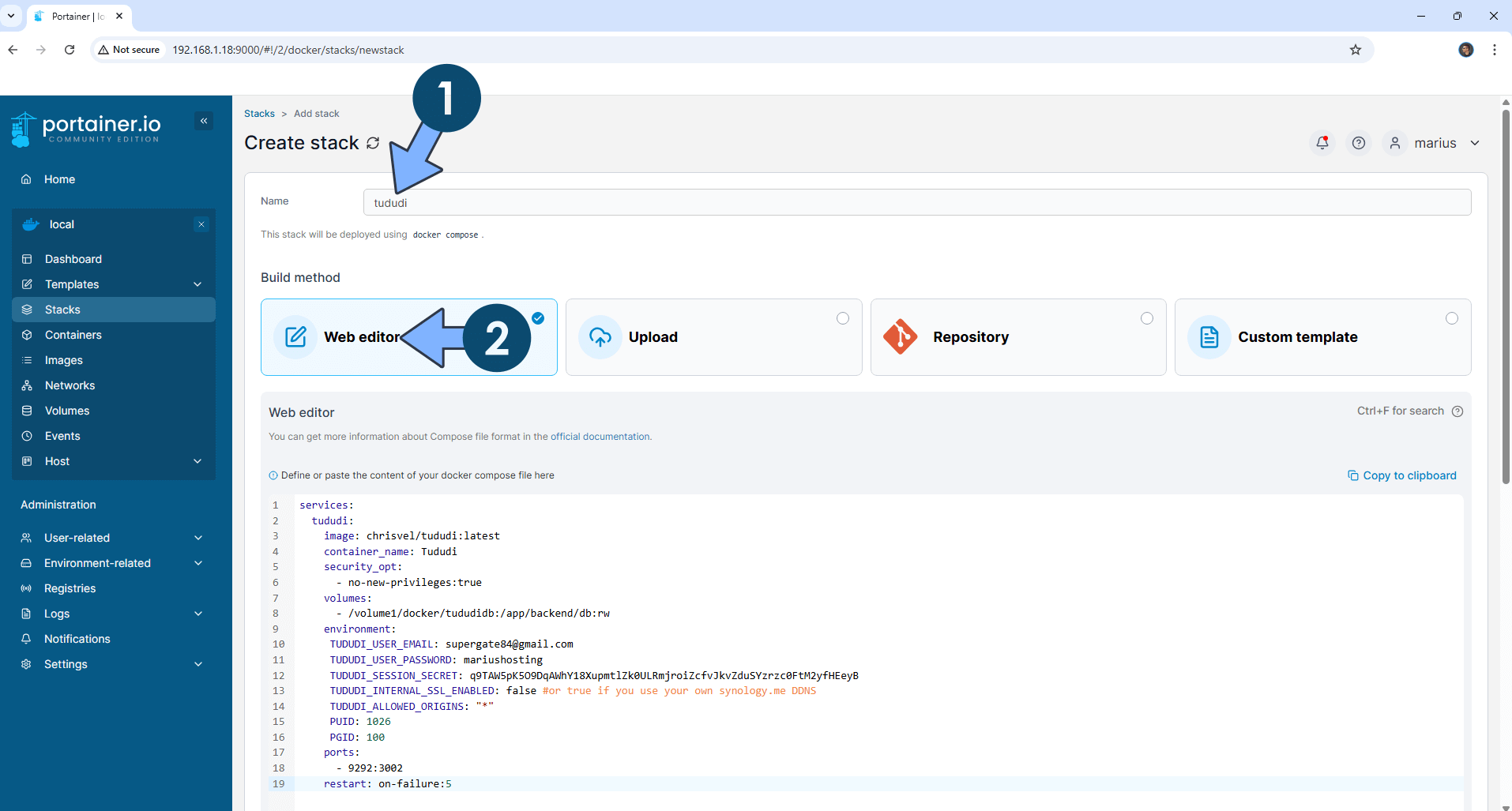

In the Name field type in tududi. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  tududi:
    image: chrisvel/tududi:latest
    container_name: Tududi
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/9292' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    security_opt:
      - no-new-privileges:true
    volumes:
      - /volume1/docker/tududidb:/usr/src/app/tududi_db:rw
    environment:
     TUDUDI_USER_EMAIL: yourown@email
     TUDUDI_USER_PASSWORD: mariushosting
     TUDUDI_SESSION_SECRET: q9TAW5pK5O9DqAWhY18XupmtlZk0ULRmjroiZcfvJkvZduSYzrzc0FtM2yfHEeyB
     TUDUDI_INTERNAL_SSL_ENABLED: false #or true if you use your own synology.me DDNS
    ports:
      - 9292:9292
    restart: on-failure:5

Note: Before you paste the code above in the Run command area below, change the value for TUDUDI_USER_EMAIL. Add your own email address.
Note: Before you paste the code above in the Run command area below, change the value for TUDUDI_USER_PASSWORD. Add your own password. mariushosting is an example for a password. You should use your own password.
Note: Before you paste the code above in the Web editor area below, change the value for TUDUDI_SESSION_SECRET. (Generate your own 64 length TUDUDI_SESSION_SECRET.)

Tududi Synology NAS Set up 2

  • STEP 6

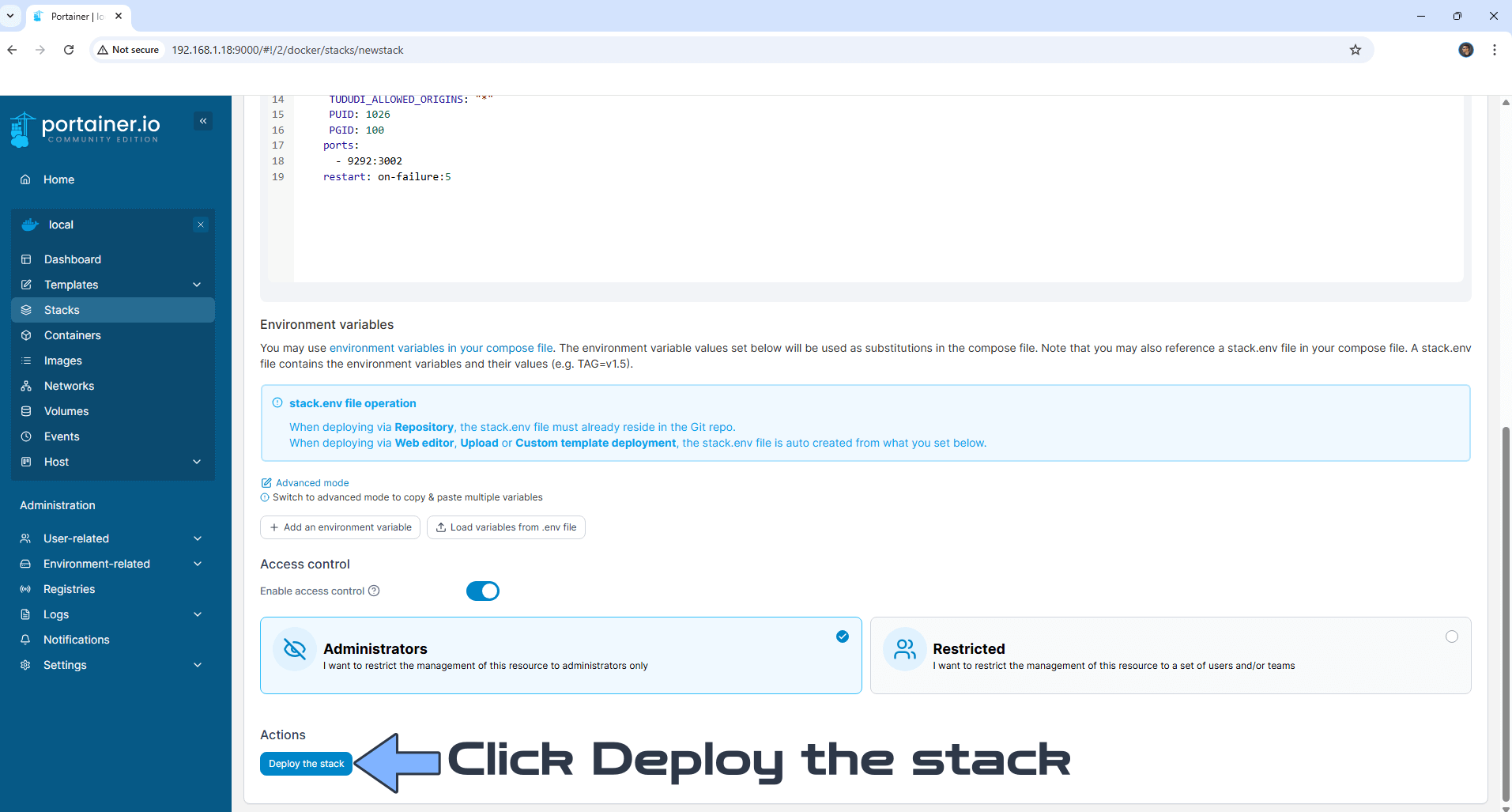

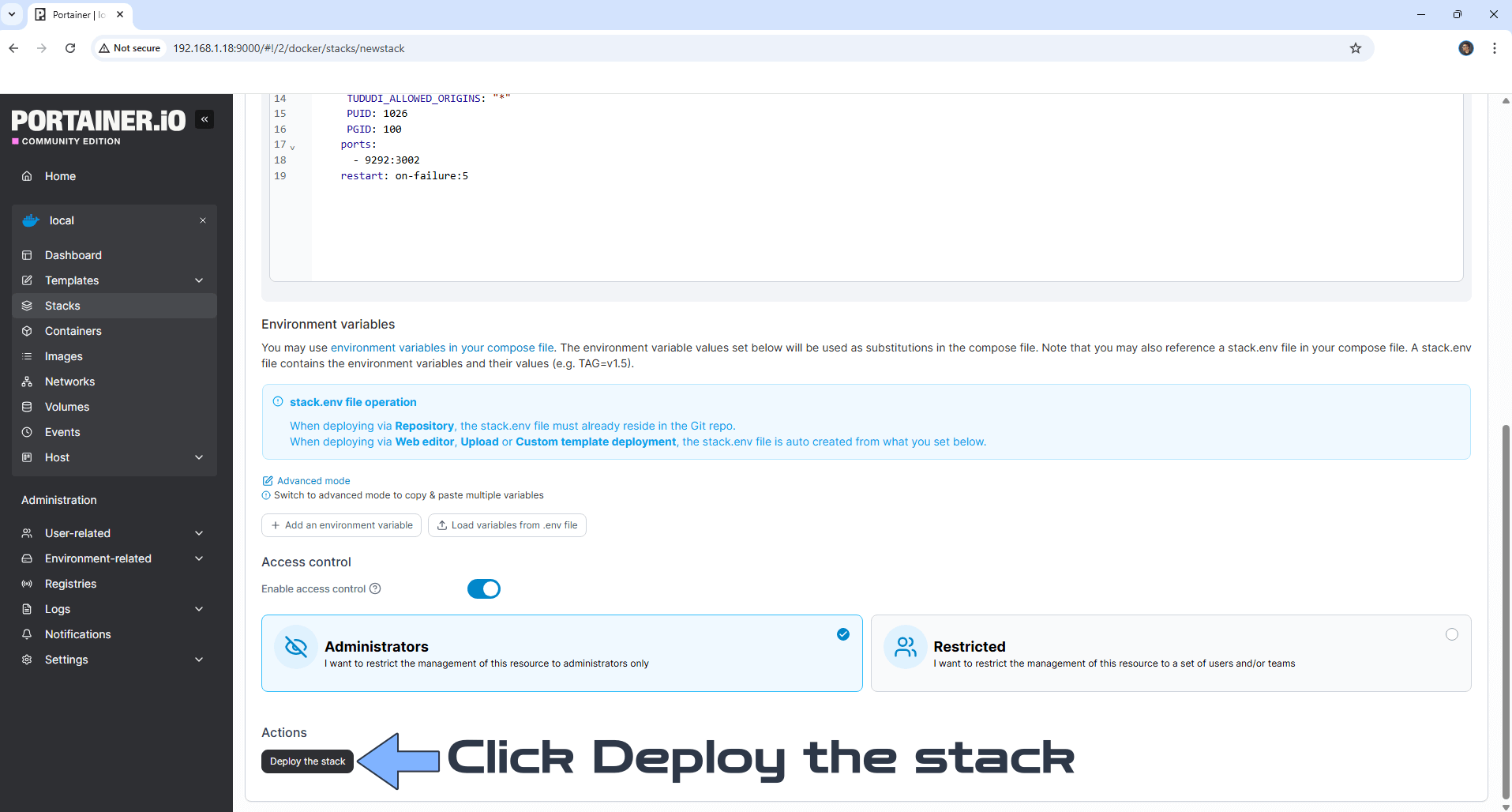

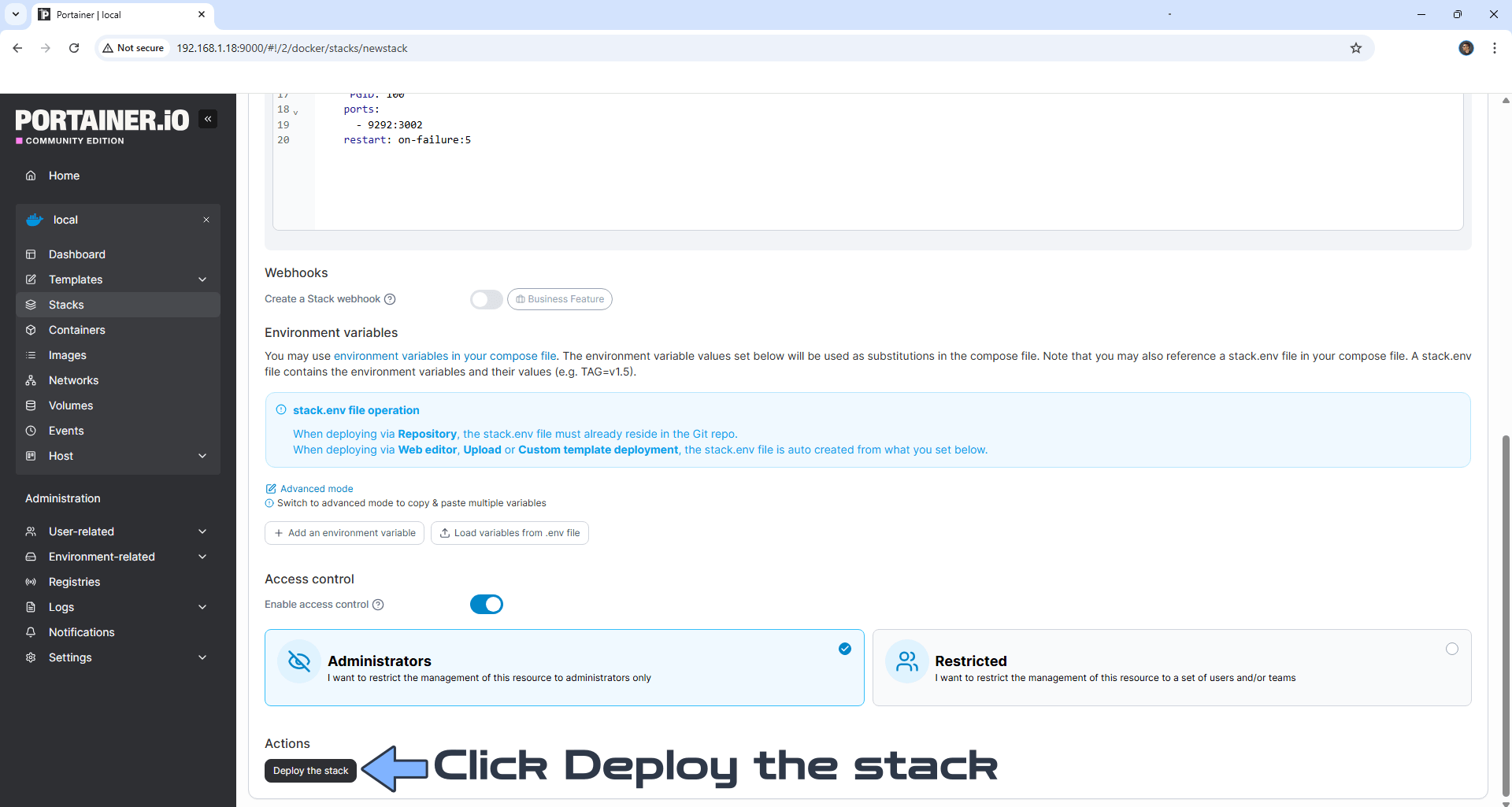

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Tududi Synology NAS Set up 3

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Tududi Synology NAS Set up 4

  • STEP 8

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 9

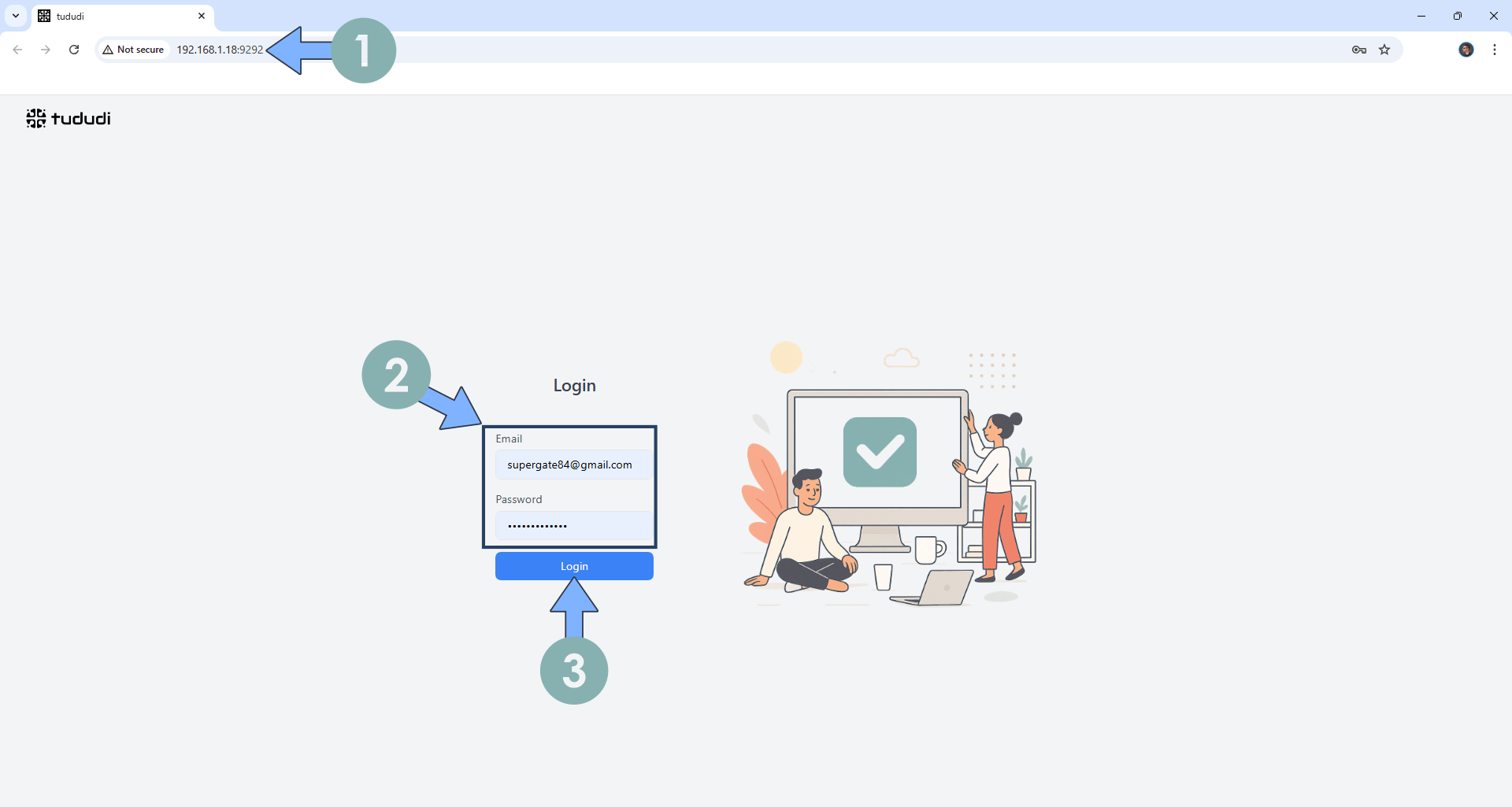

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:9292 Type in your own Email (TUDUDI_USER_EMAIL) and Password (TUDUDI_USER_PASSWORD) that you have previously added at STEP 5, then click Login. Follow the instructions in the image below.

Tududi Synology NAS Set up 5

  • STEP 10

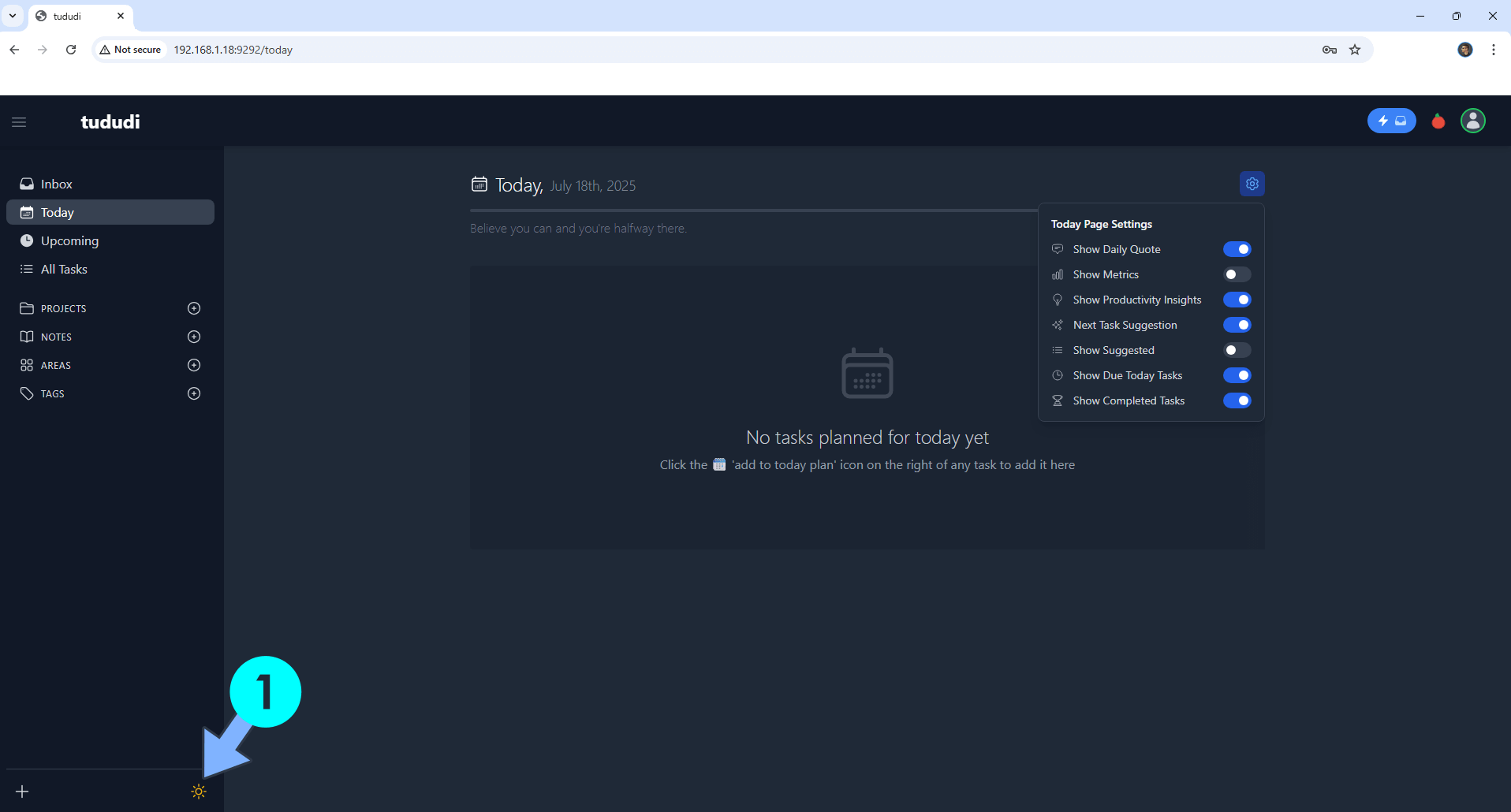

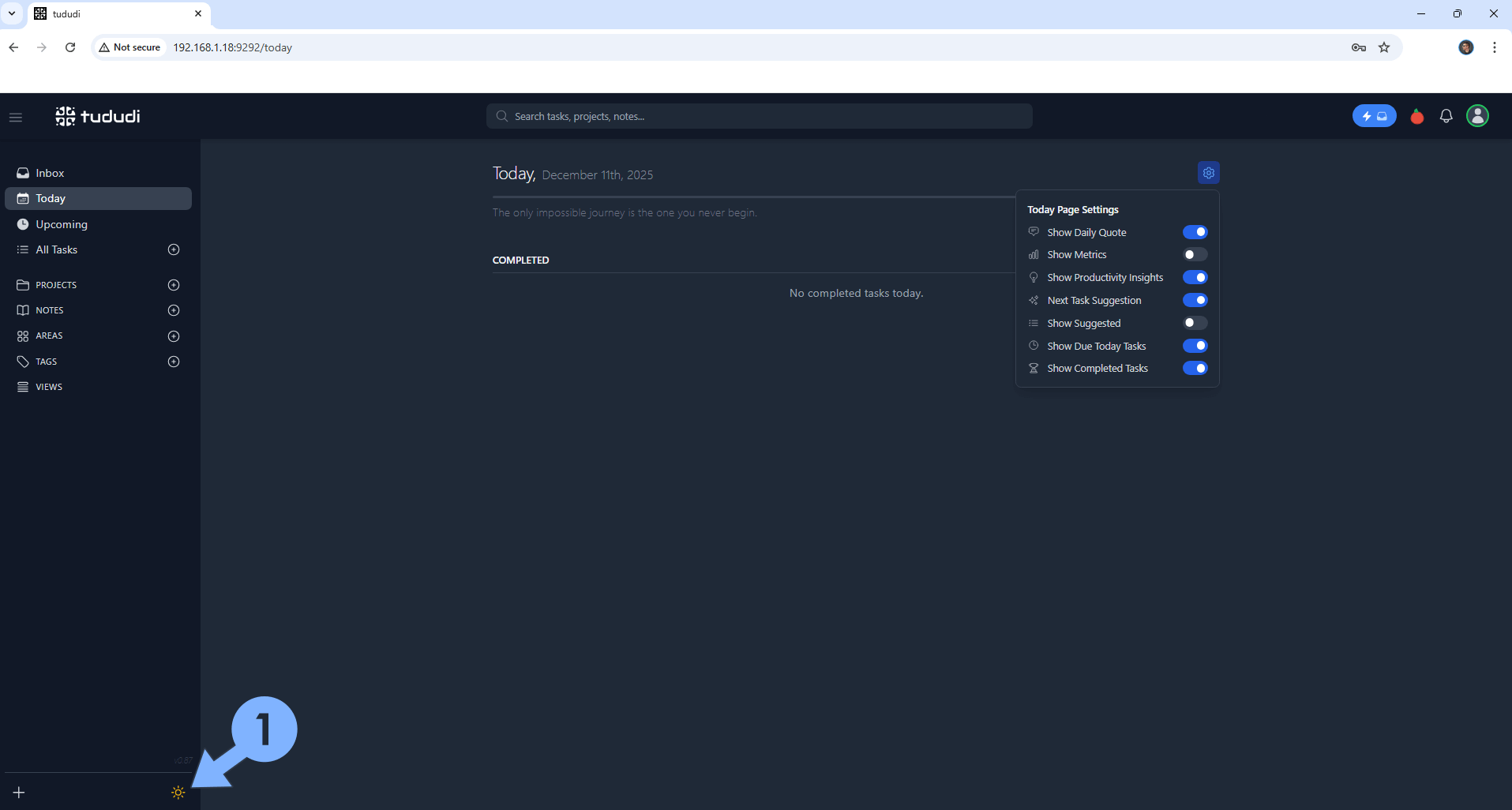

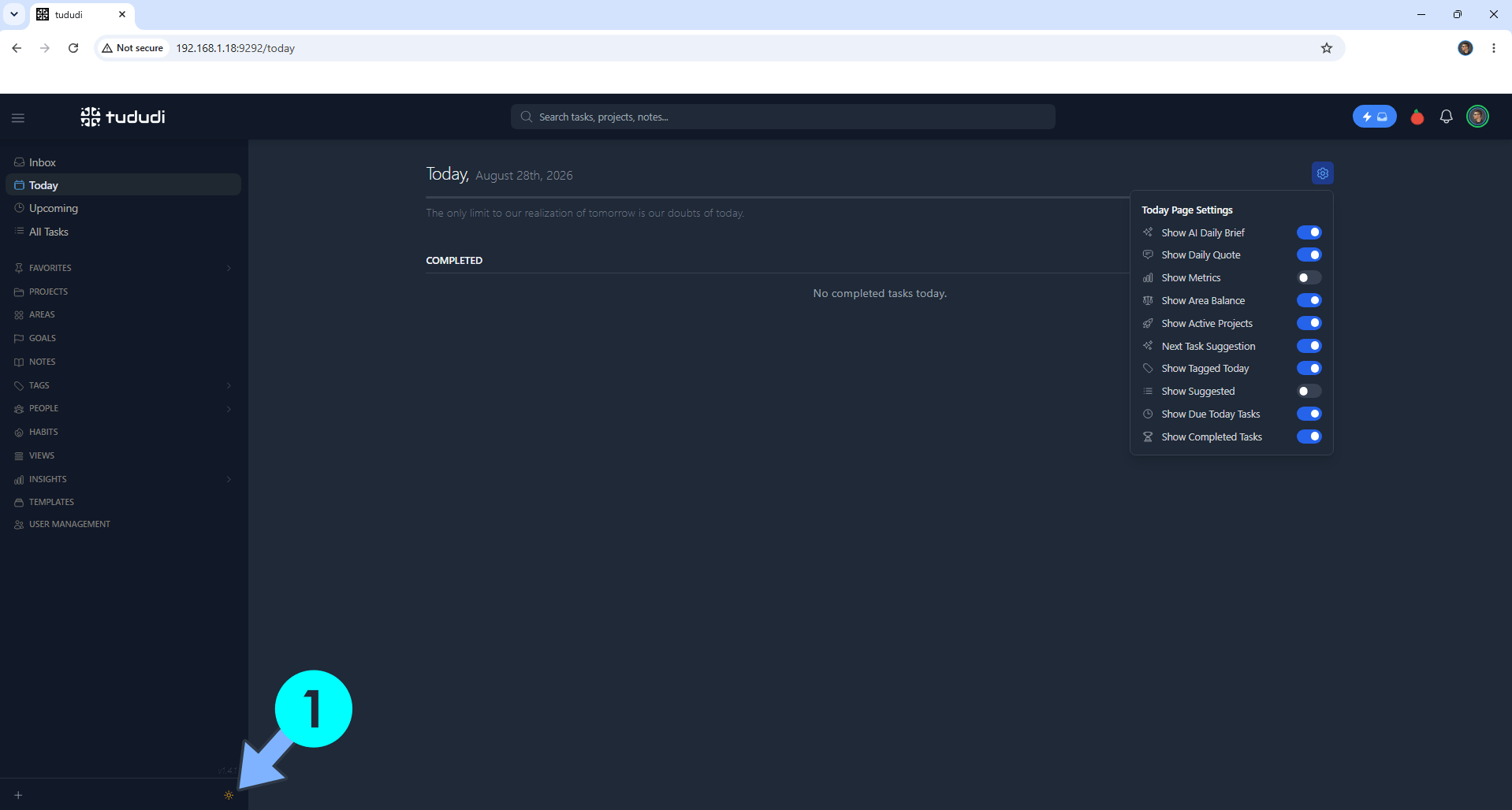

Your Tududi dashboard at a glance!

Tududi Synology NAS Set up 6

Enjoy Tududi!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the Tududi container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Tududi work via HTTPS, it’s mandatory to activate WebSocket. Also, remember to change the following environment variable at STEP 5, TUDUDI_INTERNAL_SSL_ENABLED: false with TUDUDI_INTERNAL_SSL_ENABLED: true then update your stack.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the Tududi container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
