Tracktor is an open-source web application for comprehensive vehicle management, enabling users to track and manage vehicles, fuel consumption, maintenance history, insurance, pollution certificates (PUCC), and other regulatory documents in one place. Tracktor is an alternative to LubeLogger. The app features a user-friendly dashboard for visualizing key metrics and upcoming renewals, along with secure user authentication. It includes interfaces like a login page, charts for data visualization, fuel log, maintenance log, and sections for insurance and PUCC details. Tracktor offers a robust foundation for vehicle management with intuitive tracking and visualization capabilities. In this step by step guide I will show you how to install Tracktor on your Synology NAS using Docker & Portainer.
Tracktor v0.1.1 release.
This guide works perfectly with the latestSTEP 1
Please Support My work by Making a Donation.
STEP 2
InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.
STEP 3

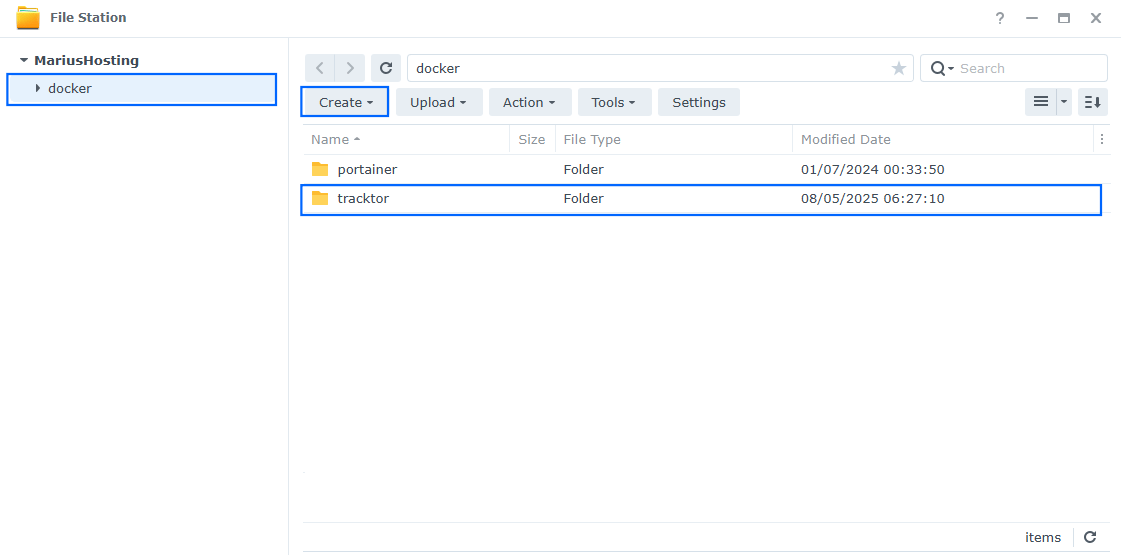

Go toĀ File StationĀ and open the docker folder. Inside the docker folder, create one new folder and name itĀ tracktor. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.
STEP 4
Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.
STEP 5

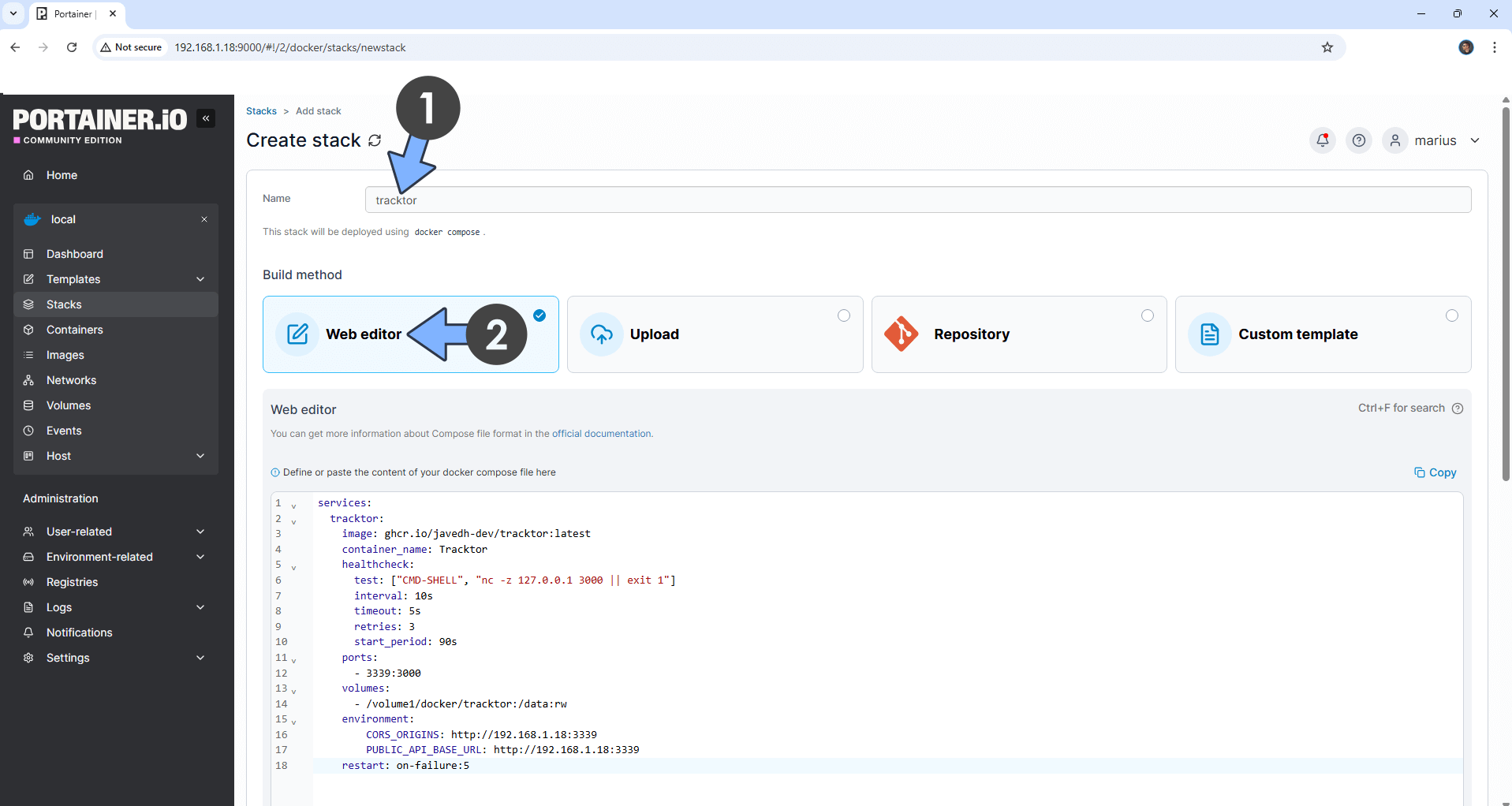

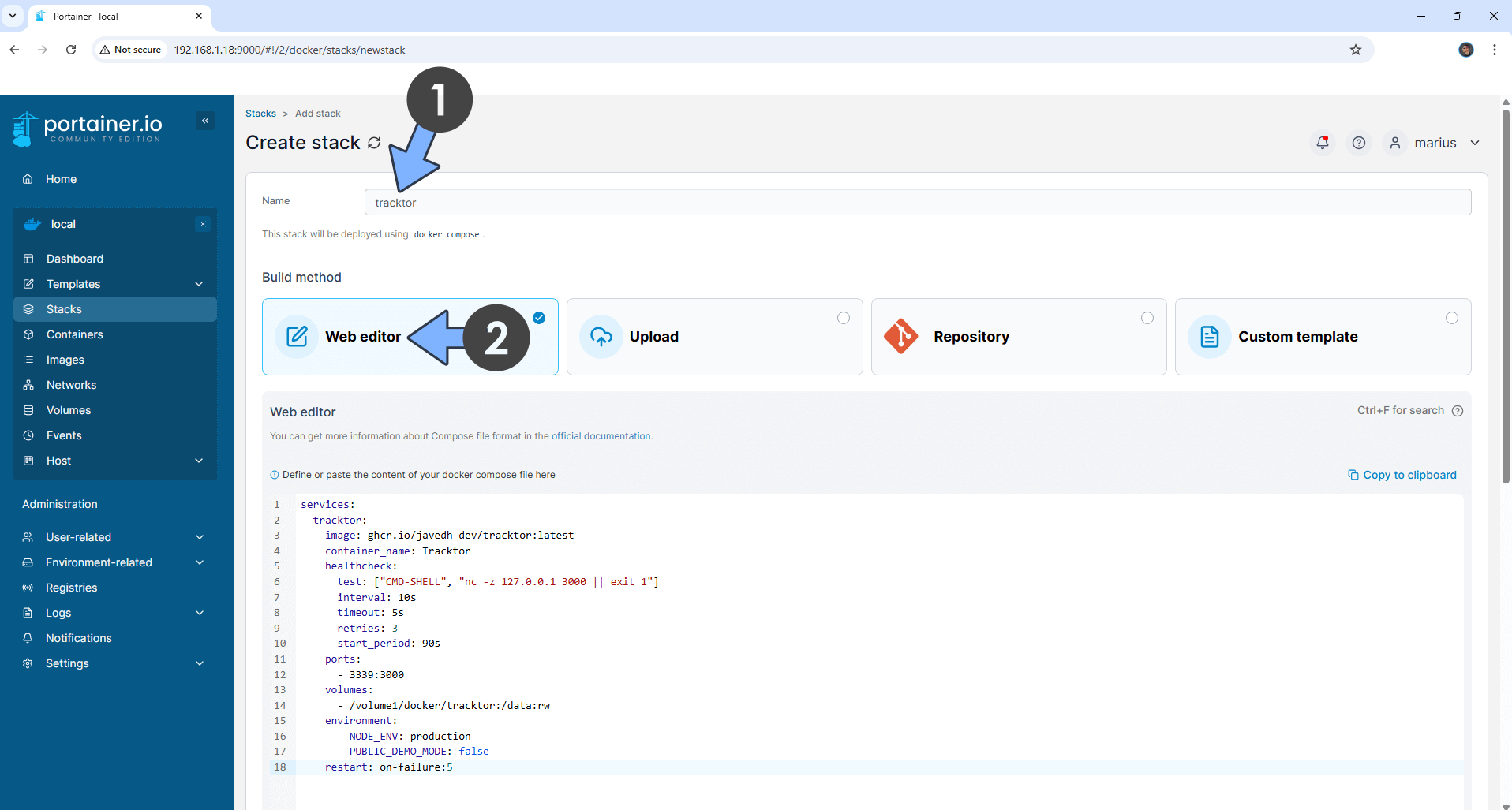

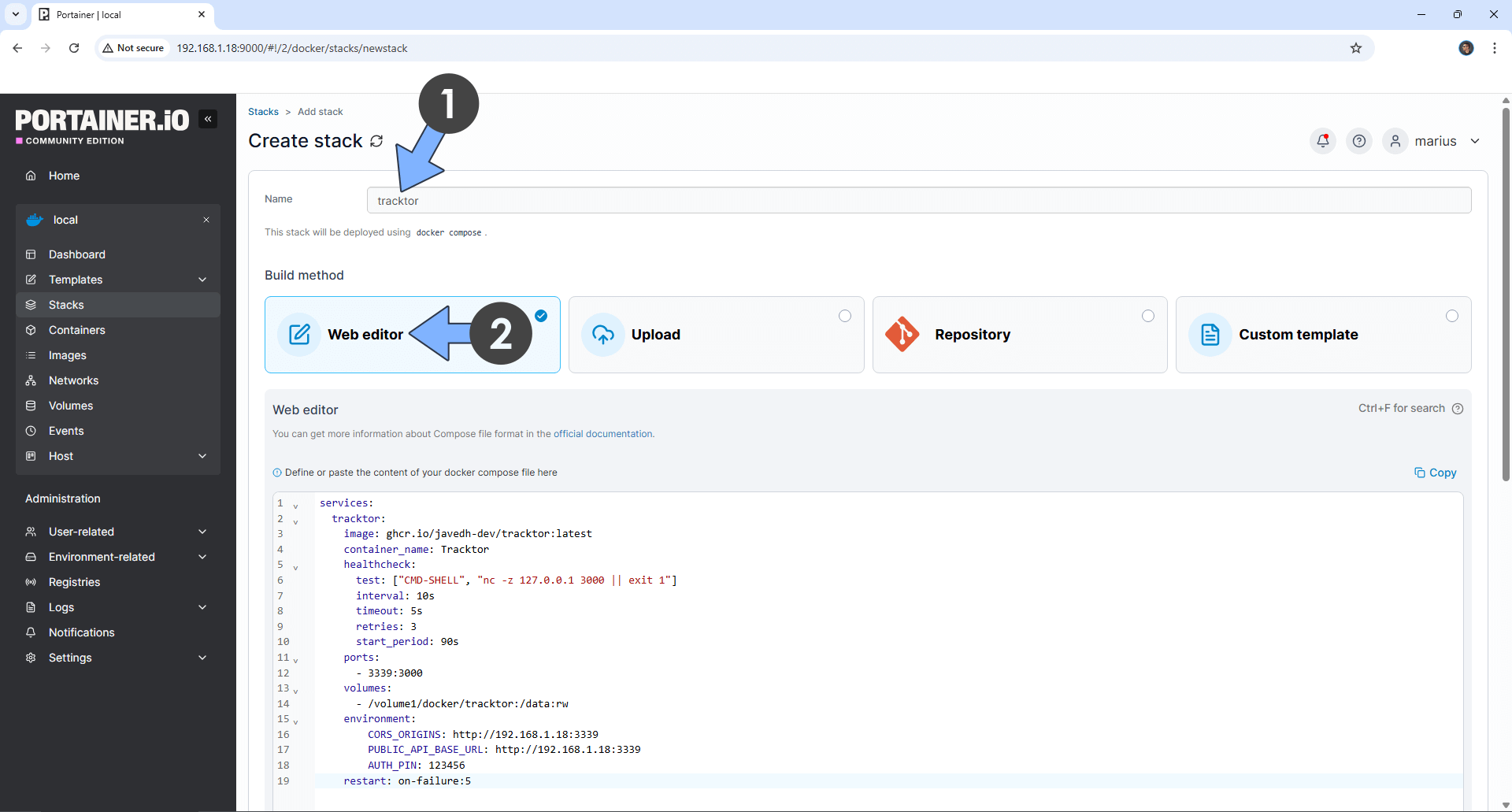

In the Name field type in tracktor. Follow the instructions in the image below.
services: tracktor: image: ghcr.io/javedh-dev/tracktor:latest container_name: Tracktor healthcheck: test: ["CMD-SHELL", "nc -z 127.0.0.1 3000 || exit 1"] interval: 10s timeout: 5s retries: 3 start_period: 90s ports: - 3339:3000 volumes: - /volume1/docker/tracktor:/data:rw environment: NODE_ENV: production PUBLIC_DEMO_MODE: false restart: on-failure:5
STEP 6

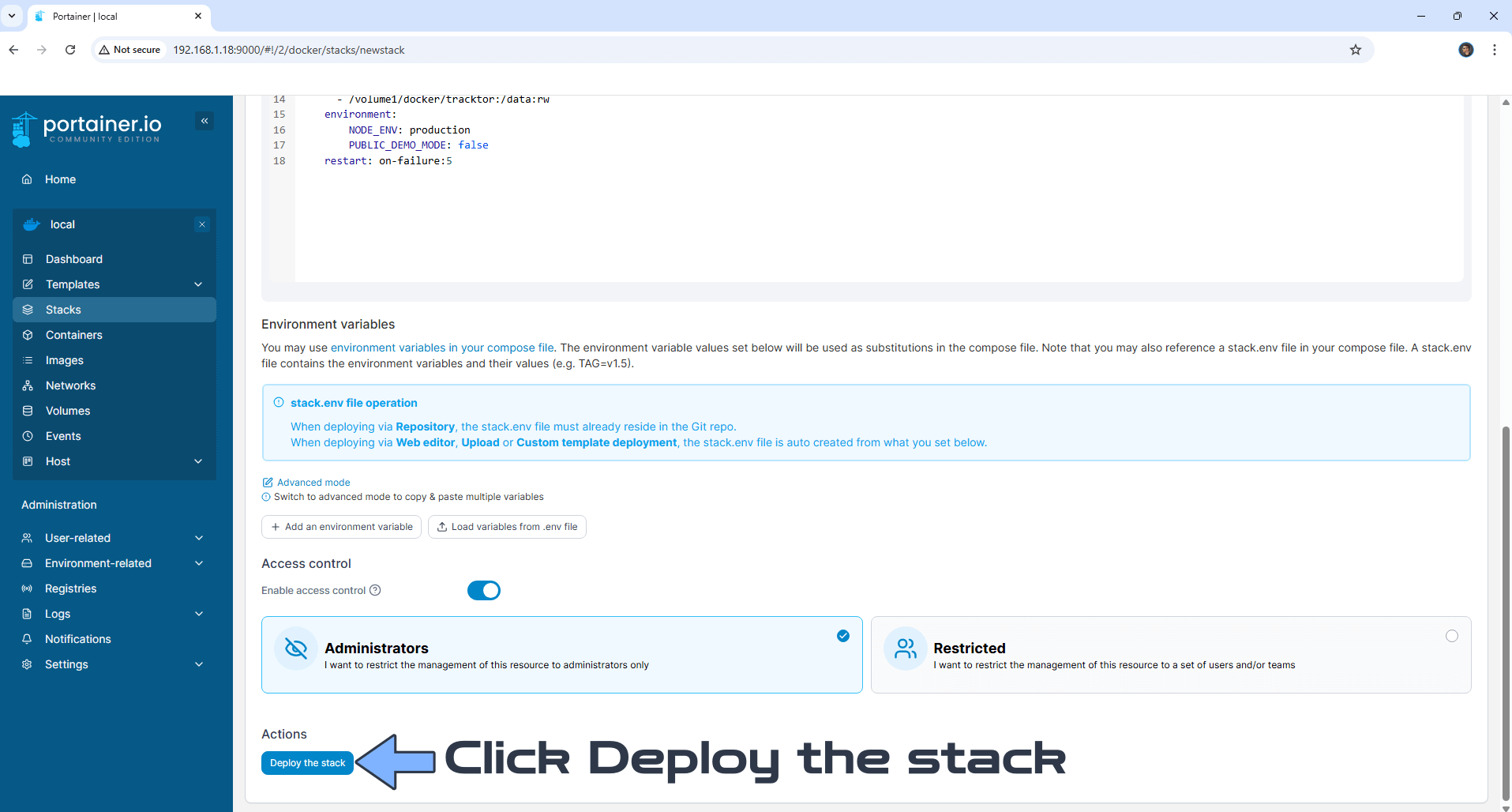

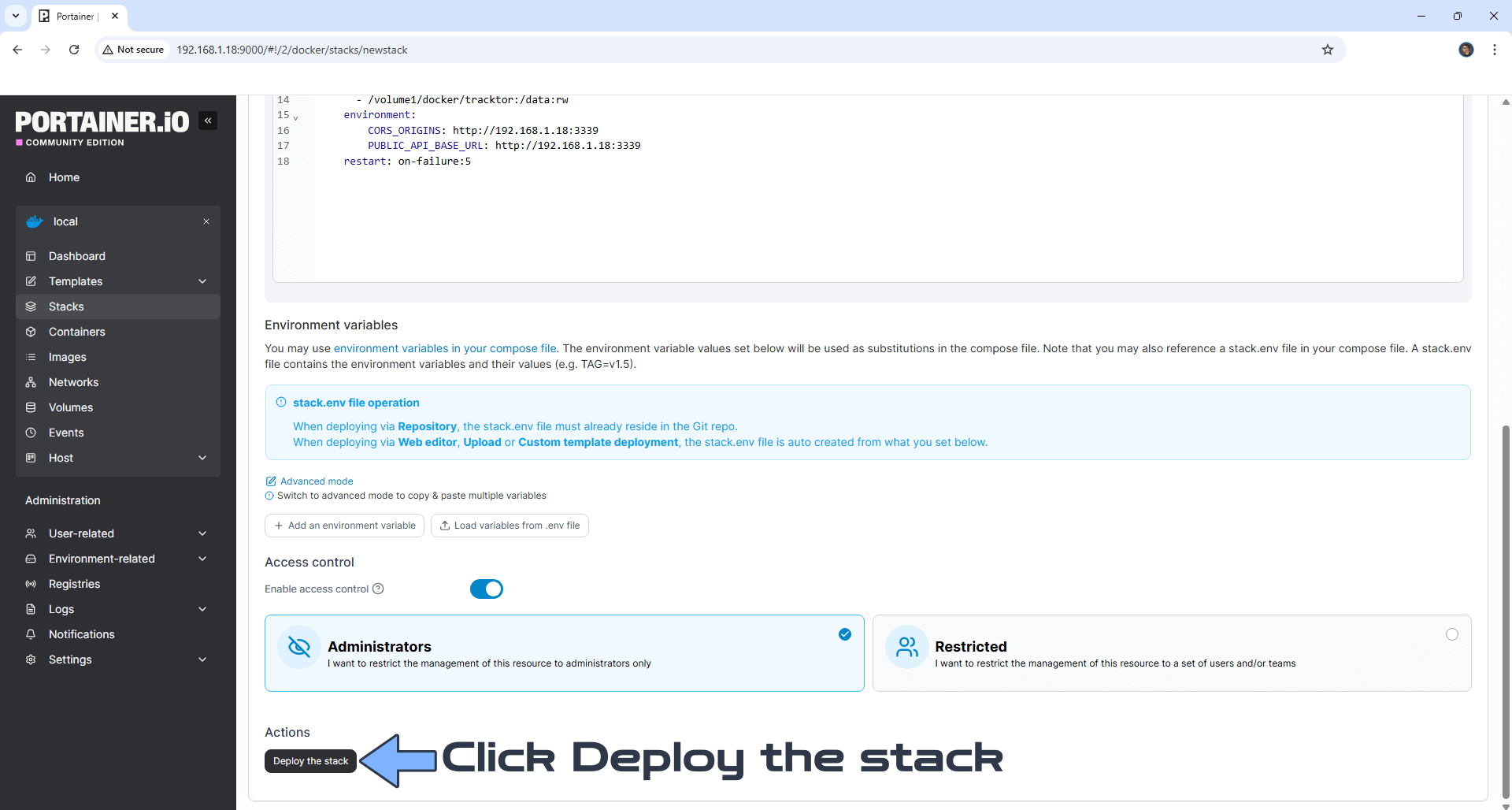

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.
STEP 7

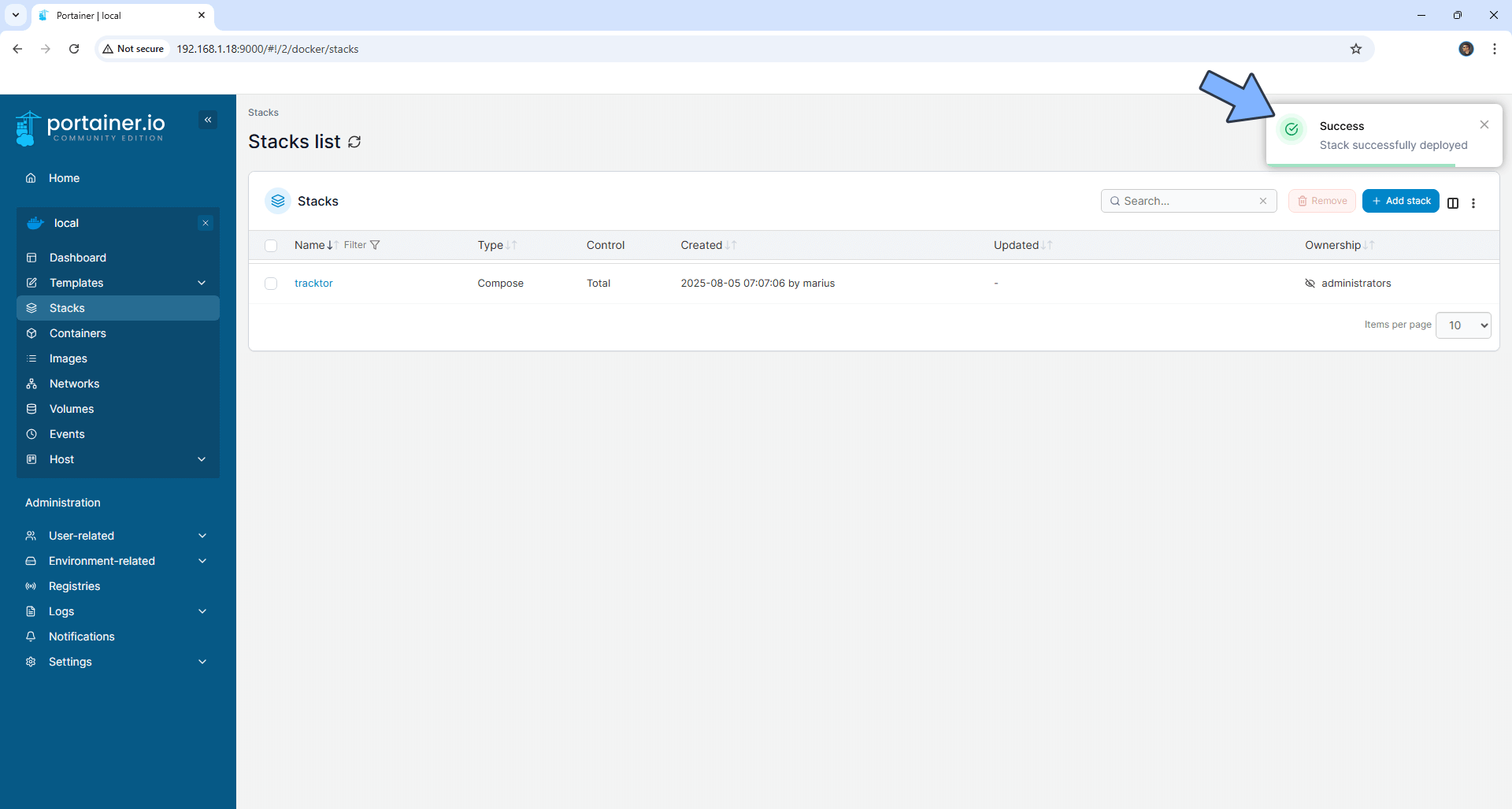

If everything goes right, you will see the following message at the top right of your screen: āSuccess Stack successfully deployedā.
STEP 8
Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iāve been very honest about this aspect of my work since the beginning: I donāt run any ADS, I donāt require subscriptions, paid or otherwise, I donāt collect IPs, emails, and I donāt have any referral links from Amazon or other merchants. I also donāt have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itās something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.
STEP 9

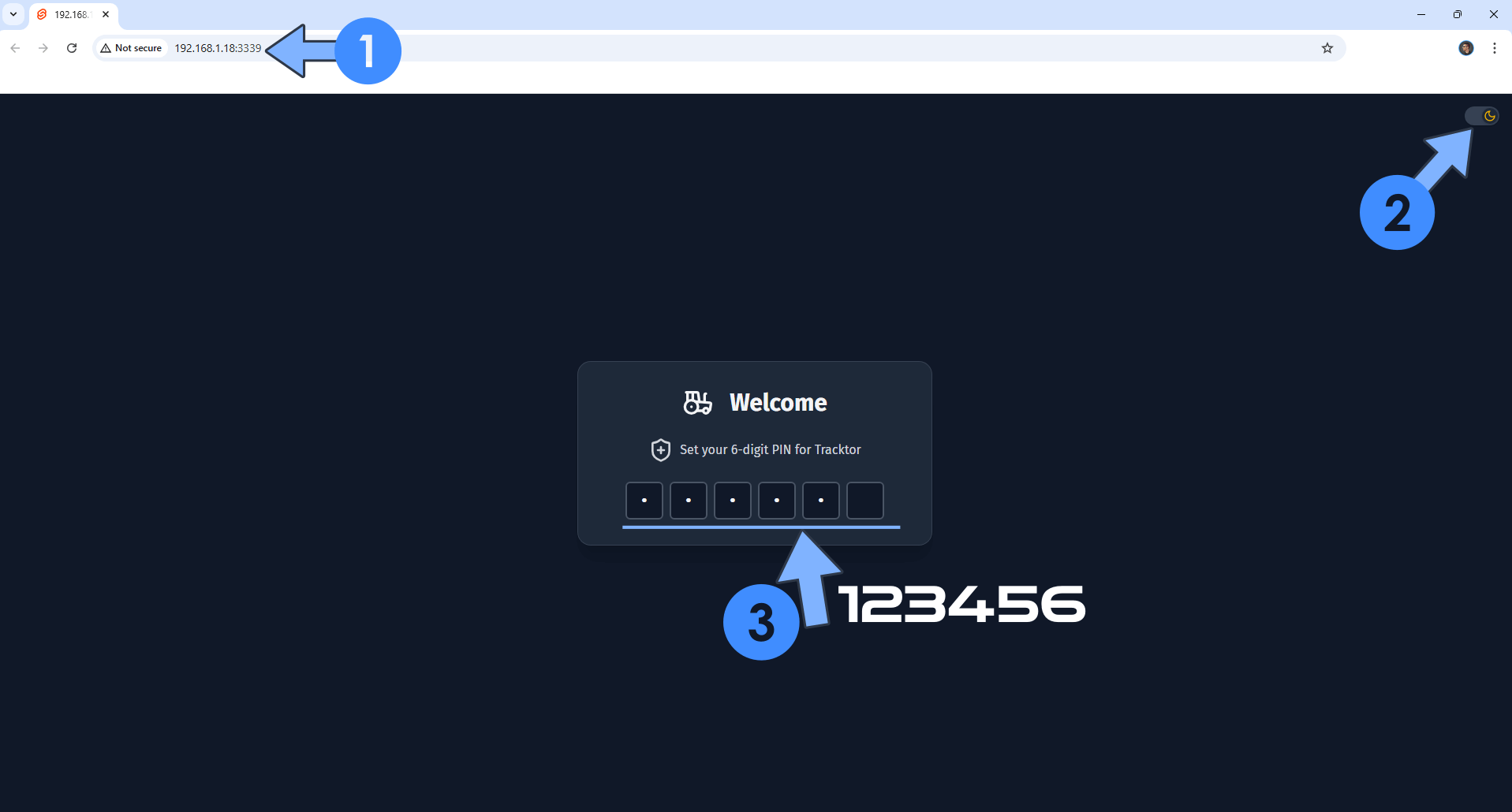

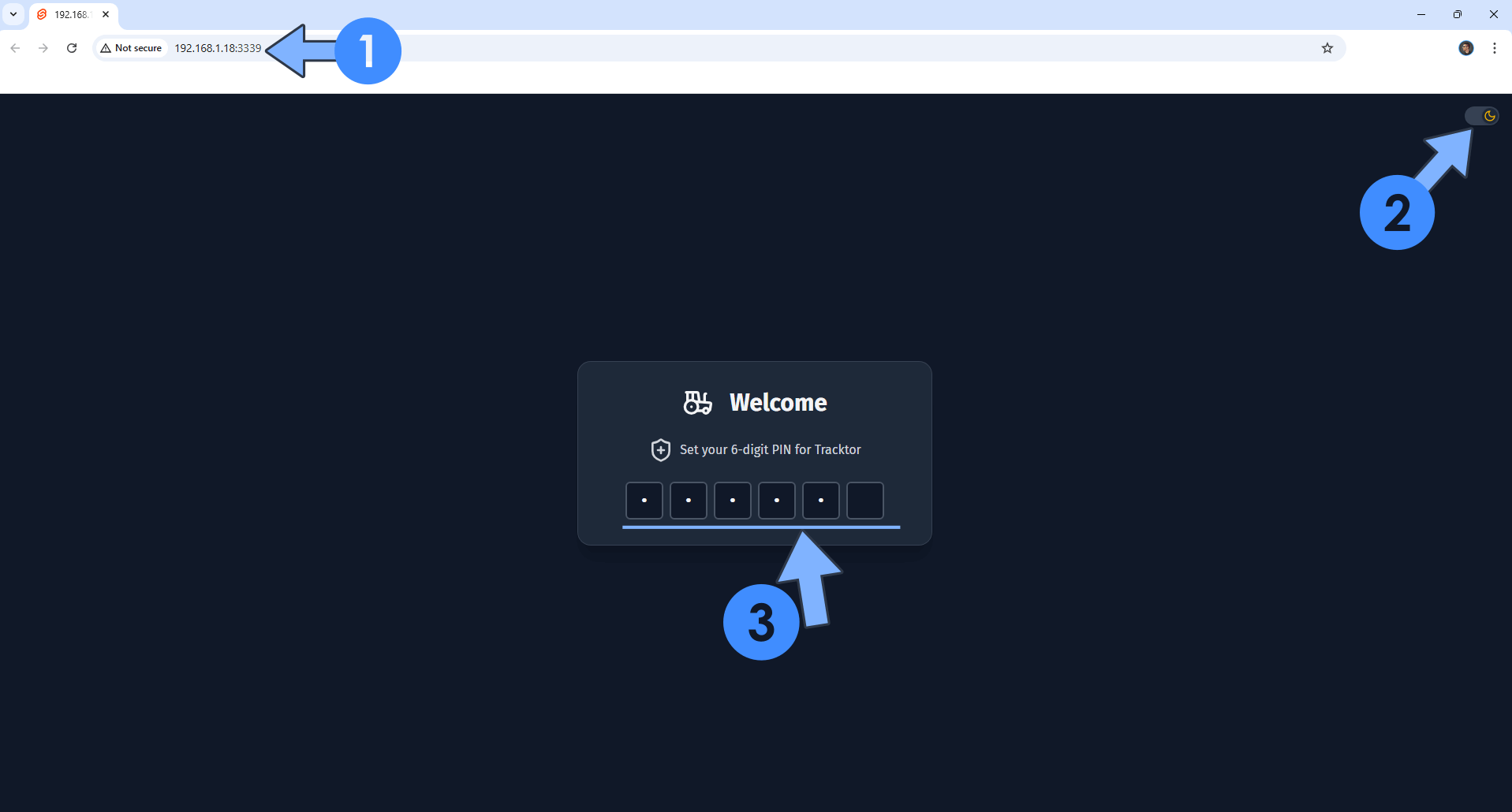

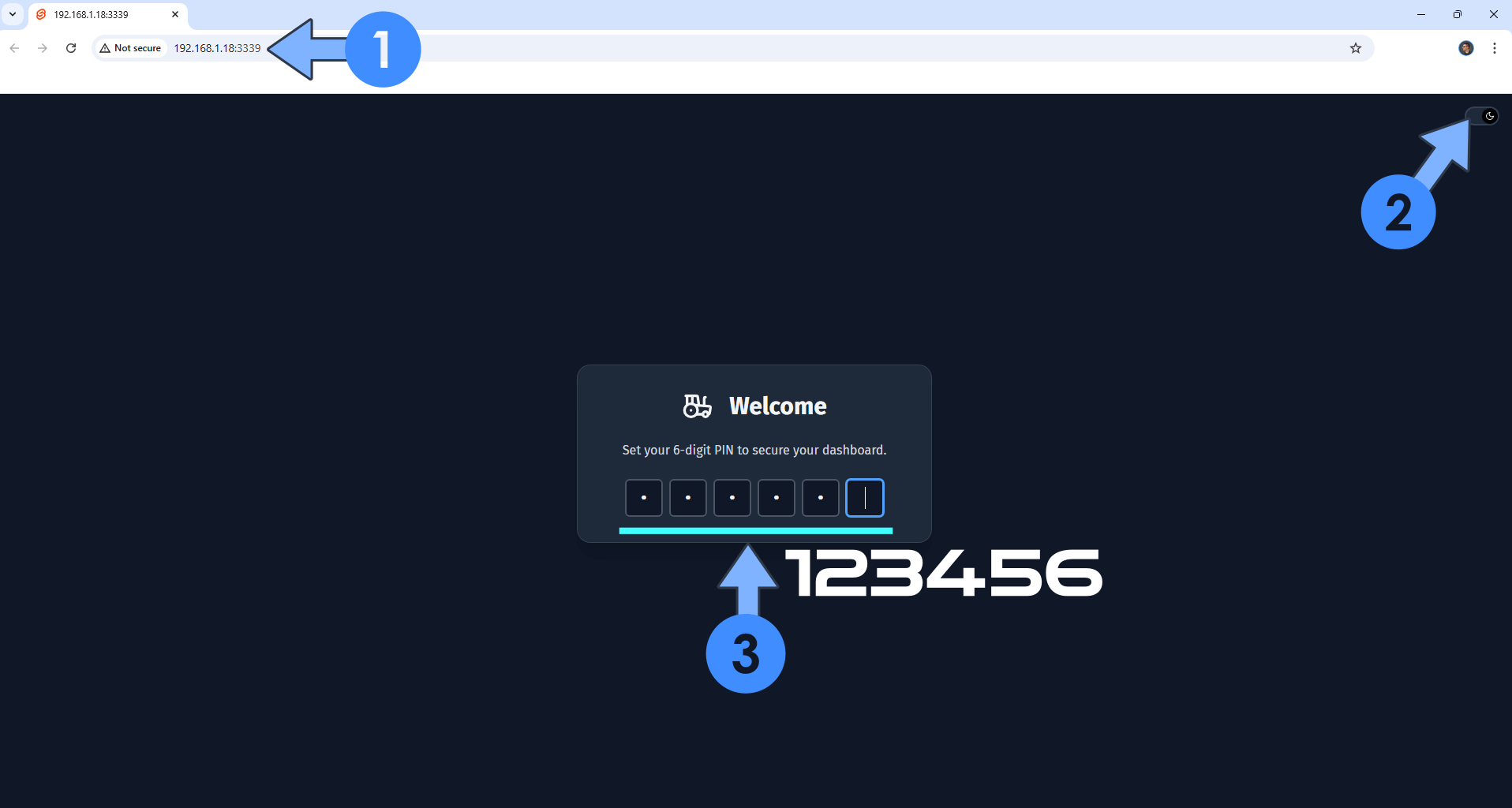

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:3339 At the top right of the page, switch the theme to dark. Type in the default pin number which is 123456. Follow the instructions in the image below.
STEP 10

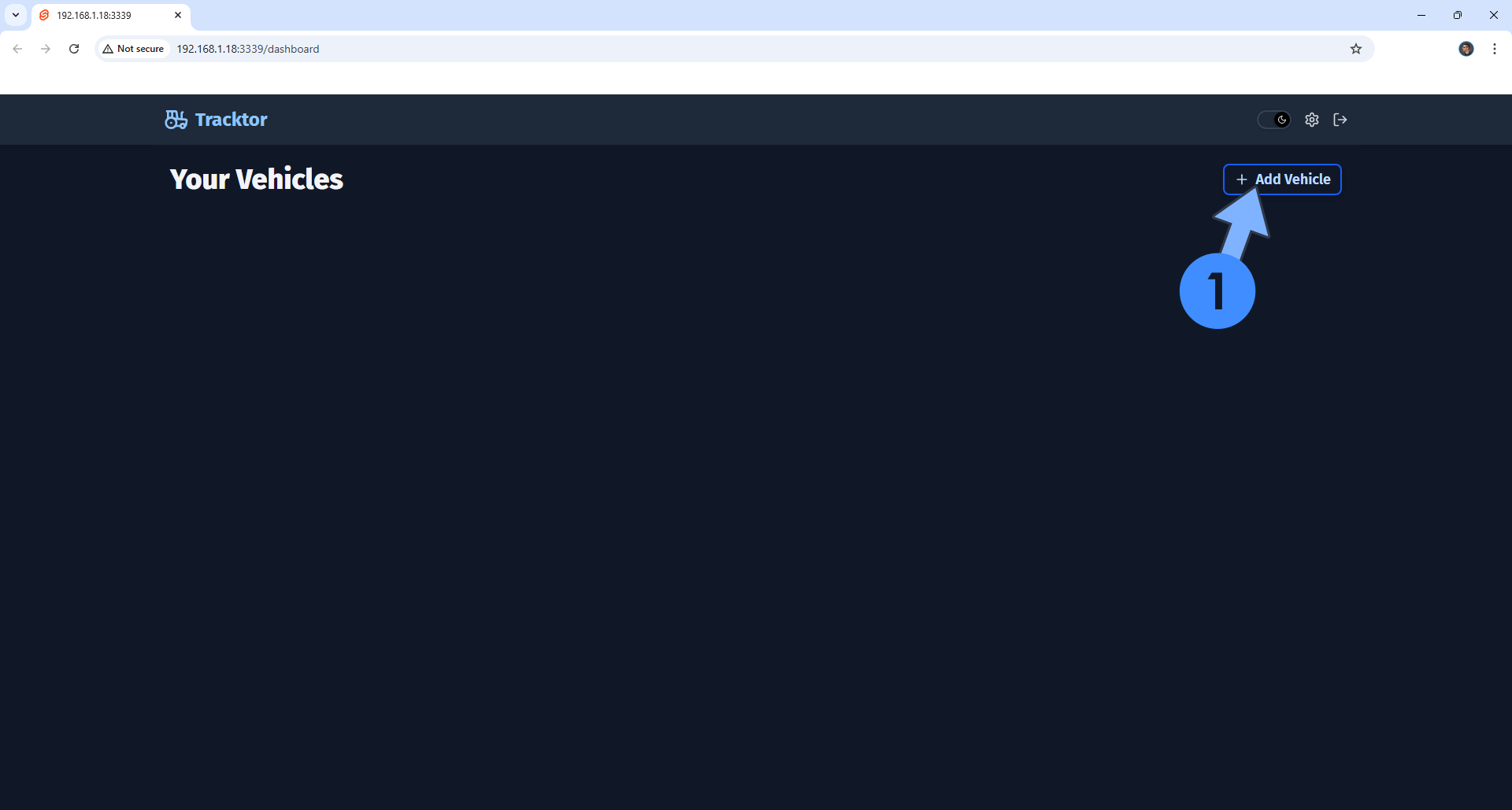

Click +Add Vehicle to add your first vehicle. Follow the instructions in the image below.
STEP 11

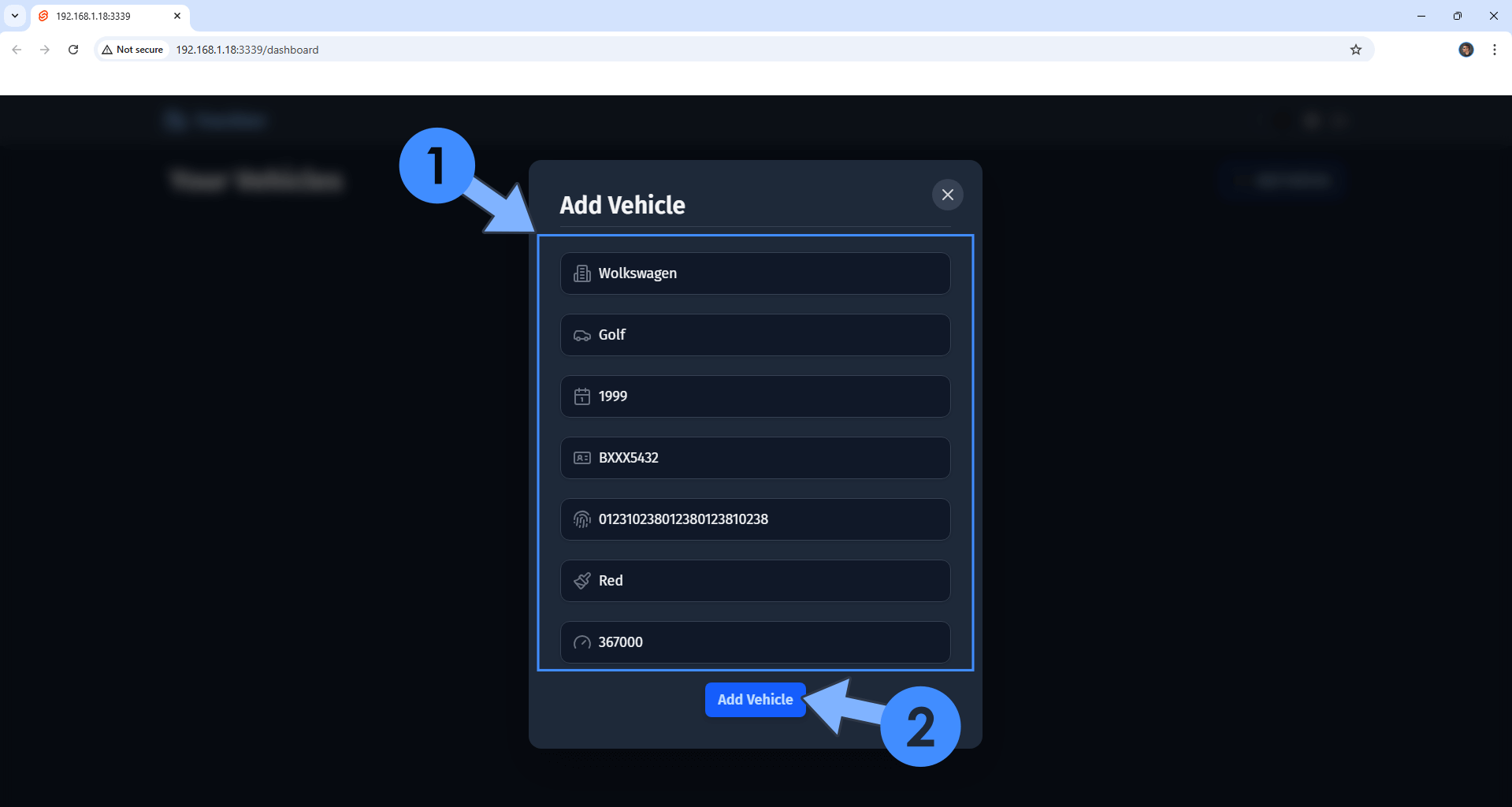

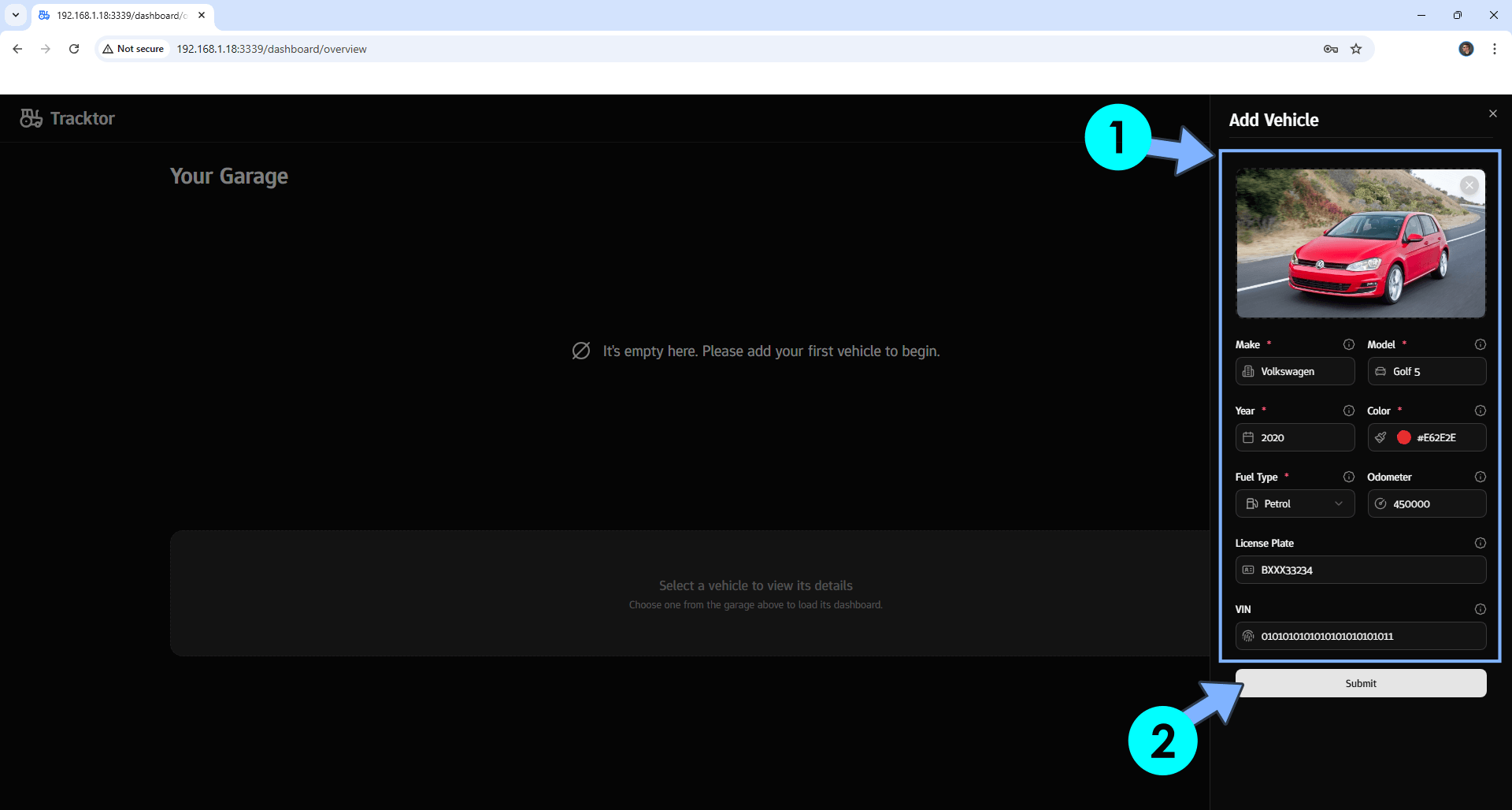

Add your vehicle information, then click Add Vehicle. Follow the instructions in the image below.
STEP 12

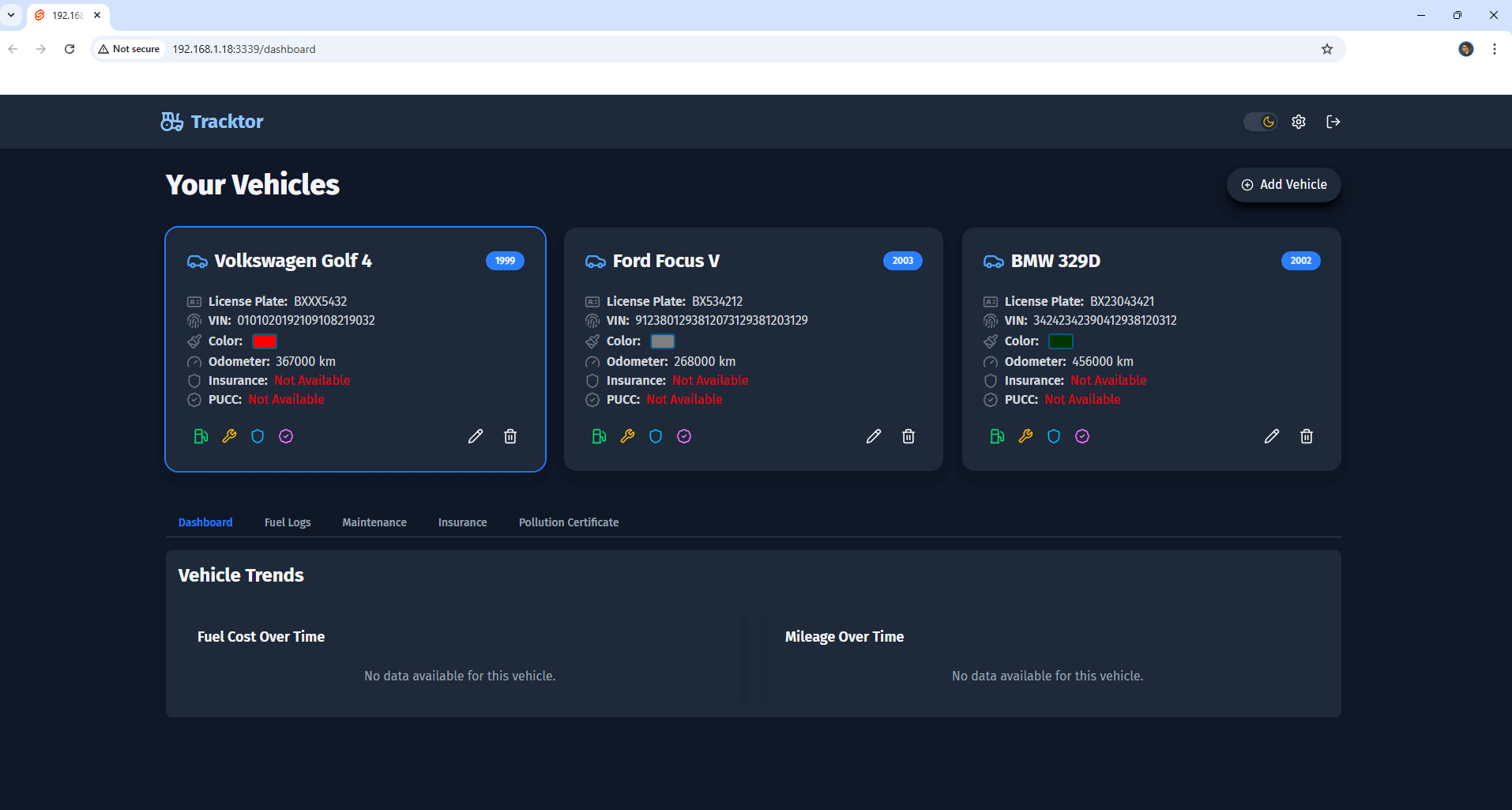

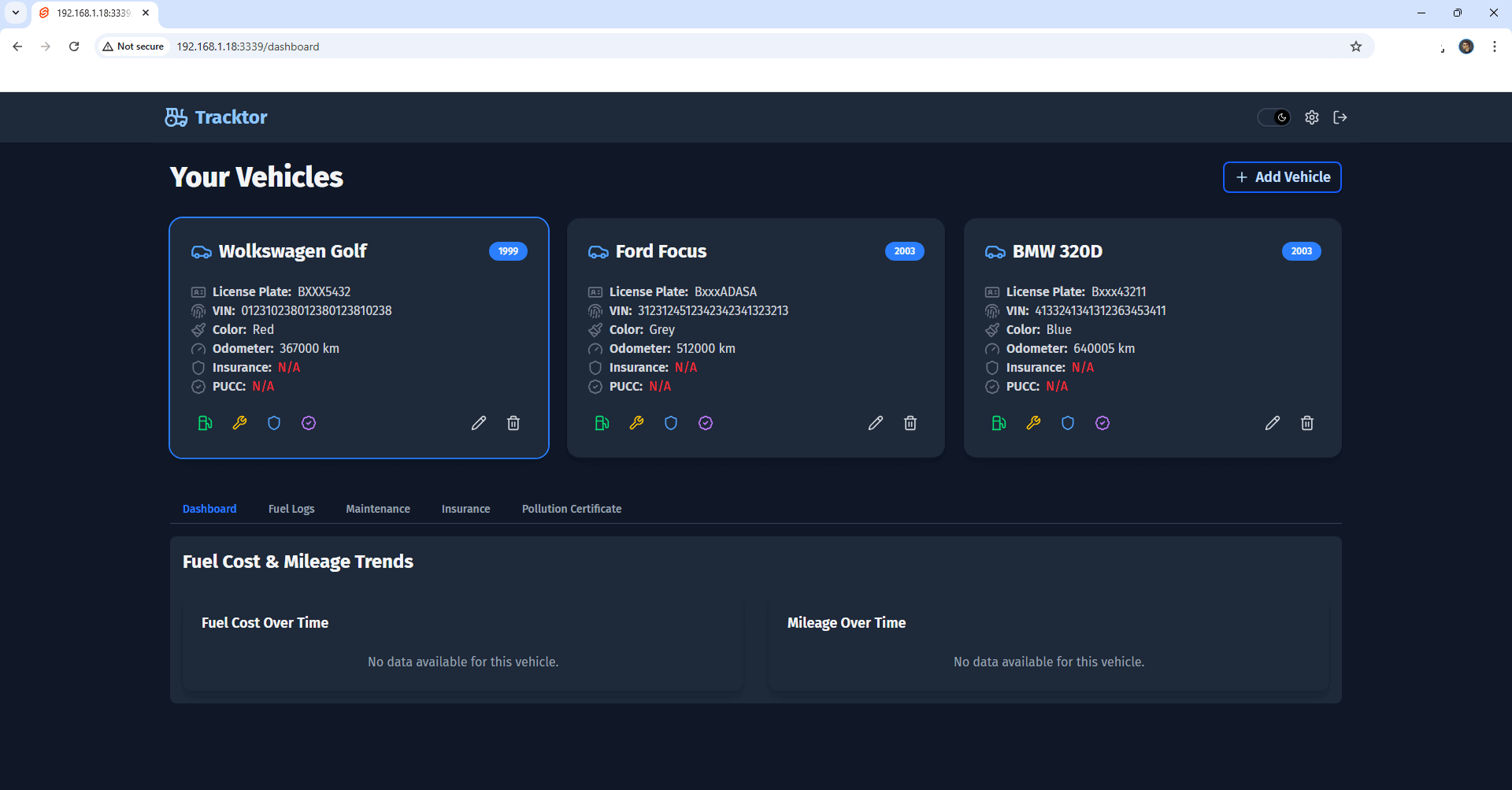

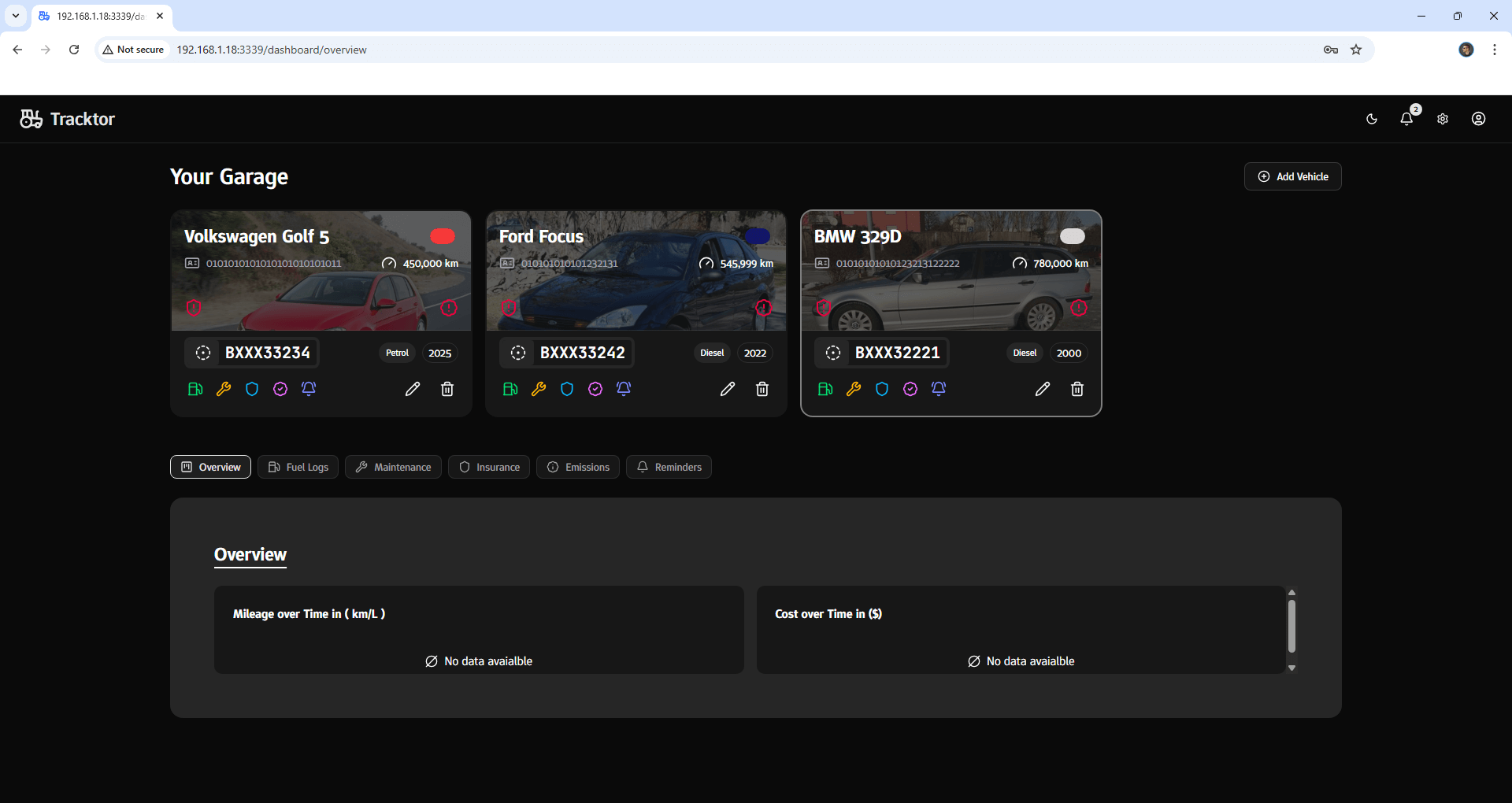

Your vehicles at a glance!
Enjoy Tracktor!
If you encounter issues by using this container, make sure to check out the Common Docker issuesĀ article.
Note: If you want to run the Tracktor container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Tracktor work via HTTPS, it’s mandatory to activate WebSocket.
Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find outĀ how to update the Tracktor container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
