TP-Link Omada Controller gives you the possibility to control your TP-Link Omada Hardware. Omada Controller is a management software for TP-Link EAP devices. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. In this step by step guide I will show you how to install Omada Controller on your Synology NAS using Docker.

💡Note: This guide works perfectly with the latest Omada Controller v5.14.30 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Container Manager via Synology “Package Center”. If you run an older DSM version (under 7.2), search for Docker instead of Container Manager.

Download Container Manager Synology Docker

  • STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it omada. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Omada Controller Synology NAS Set up 1

  • STEP 4

Now create three new folders inside the omada folder that you created at STEP 3 and name them data, logs, work. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Omada Controller Synology NAS Set up 2

  • STEP 5

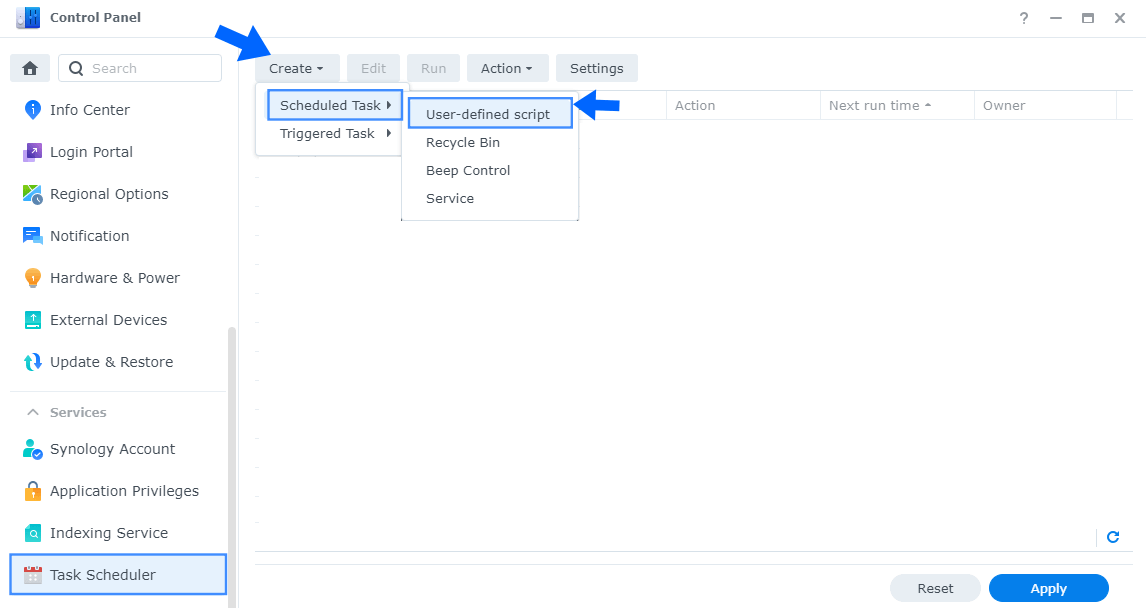

Go to Control Panel / Task Scheduler / Create / Scheduled Task / User-defined script. Follow the instructions in the image below.

Synology User Defined Script

  • STEP 6

Once you click on User-defined script, a new window will open. Follow the instructions below:

  1. General: In the Task field type in Install Tp-Link Omada Controller. Uncheck the “Enabled” option. Select root User.
  2. Schedule: Select Run on the following date then select “Do not repeat“.
  3. Task Settings: Check “Send run details by email“, add your email then copy paste the code below in the Run command area. After that, click OK.
docker run -d --name=omada-controller \
-e PUID=1026 \
-e PGID=100 \
-e TZ=Europe/Bucharest \
-e MANAGE_HTTP_PORT=8088 \
-e MANAGE_HTTPS_PORT=8043 \
-e PORTAL_HTTP_PORT=8088 \
-e PORTAL_HTTPS_PORT=8043 \
-e SHOW_SERVER_LOGS=true \
-e SHOW_MONGODB_LOGS=false \
-e SSL_CERT_NAME="tls.crt" \
-e SSL_KEY_NAME="tls.key" \
-v /volume1/docker/omada/data:/opt/tplink/EAPController/data \
-v /volume1/docker/omada/logs:/opt/tplink/EAPController/logs \
-v /volume1/docker/omada/work:/opt/tplink/EAPController/work \
--net host \
--restart always \
mbentley/omada-controller

Note: Before you paste the code above in the Run command area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.)
Note: Before you paste the code above in the Run command area below, change the value for TZ. (Select your current Time Zone from this list.)

Omada Controller Synology NAS Set up 4 new 2023

⚠️Warning: If you have your docker folder in a different volume, then change /volume1/docker/omada/data according to your settings. For example: /volume2/docker/omada/data or /volume3/docker/omada/data etc.

  • STEP 7

After you click OK on STEP 6 a new warning pop up window will open. Click OK.

Omada Controller Synology NAS Set up 5

After you click OK, type in your DSM Password then click Submit. Follow the instructions in the image below.

Synology Task Scheduler Confirm Admin Password

  • STEP 8

After you click Submit on STEP 7, select your “Install Tp-Link Omada Controller” Task then click the “Run” tab. You will be asked to run Install Install Tp-Link Omada Controller – click OK. Follow the instructions in the image below.

Omada Controller Synology NAS Set up 6

  • STEP 9

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 10

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:8088

Omada Controller Synology NAS Set up 7

  • STEP 11

You will be redirected to an https port. If you are using the chrome browser, click Advanced. Follow the instructions in the image below.

Omada Controller Synology NAS Set up 8

  • STEP 12

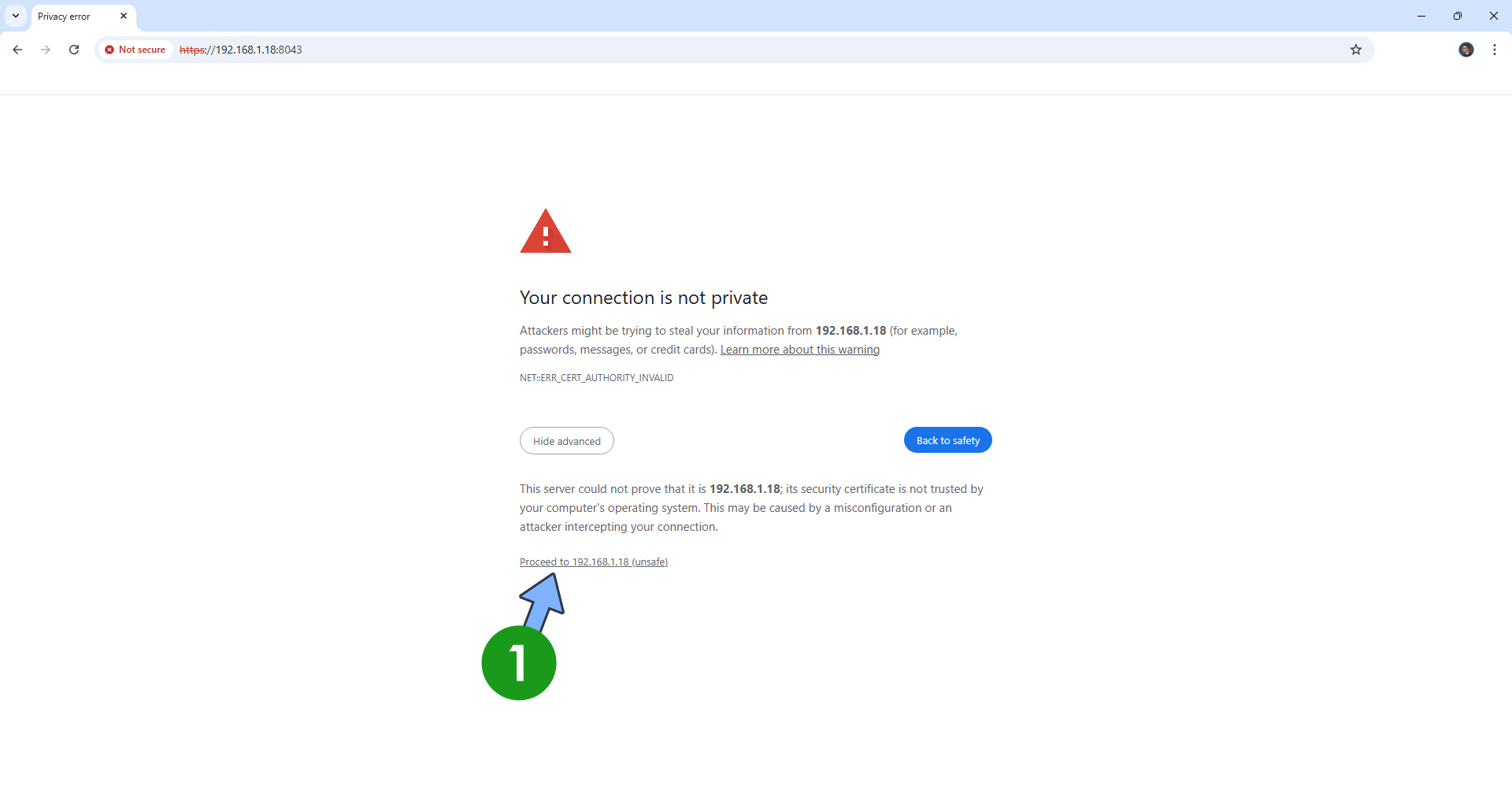

Click to Proceed to your local NAS IP (unsafe). Follow the instructions in the image below.

Omada Controller Synology NAS Set up 9

  • STEP 13

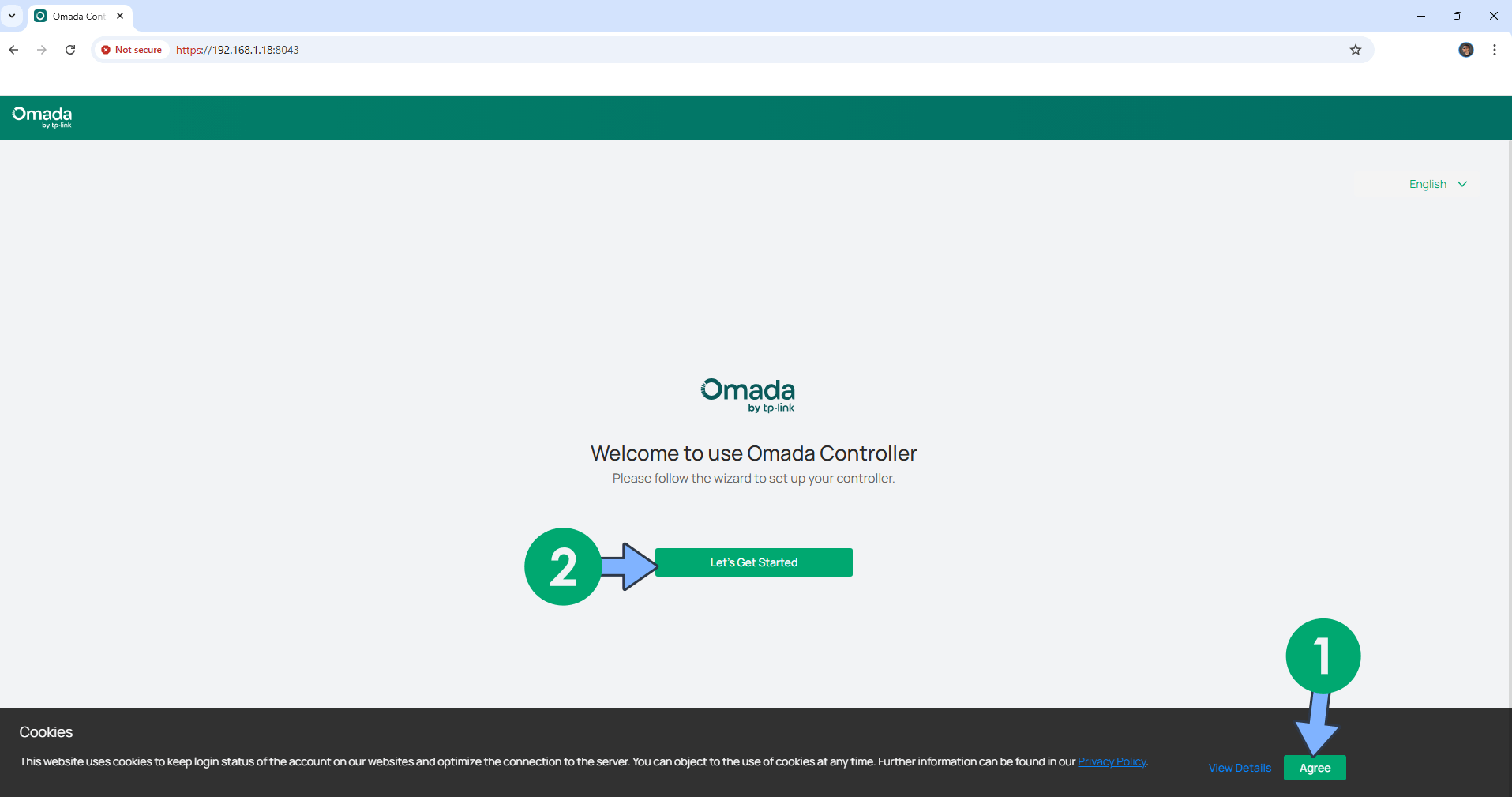

Click Let’s Get Started. Follow the instructions in the image below.

Omada Controller Synology NAS Set up 10

  • STEP 14

Set a name for the controller, select your country and Timezone, then click Next to start the installation wizard.

Omada Controller Synology NAS Set up 11
