TeamMapper is a mind mapping made simple. You can host and create your own mindmaps. Share your mindmap sessions with your team and collaborate on mindmaps. TeamMapper features shared mindmapping sessions for your team based on websockets. In this step by step guide I will show you how to install TeamMapper on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest TeamMapper v0.1.9-2 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it teammapperdb. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 5

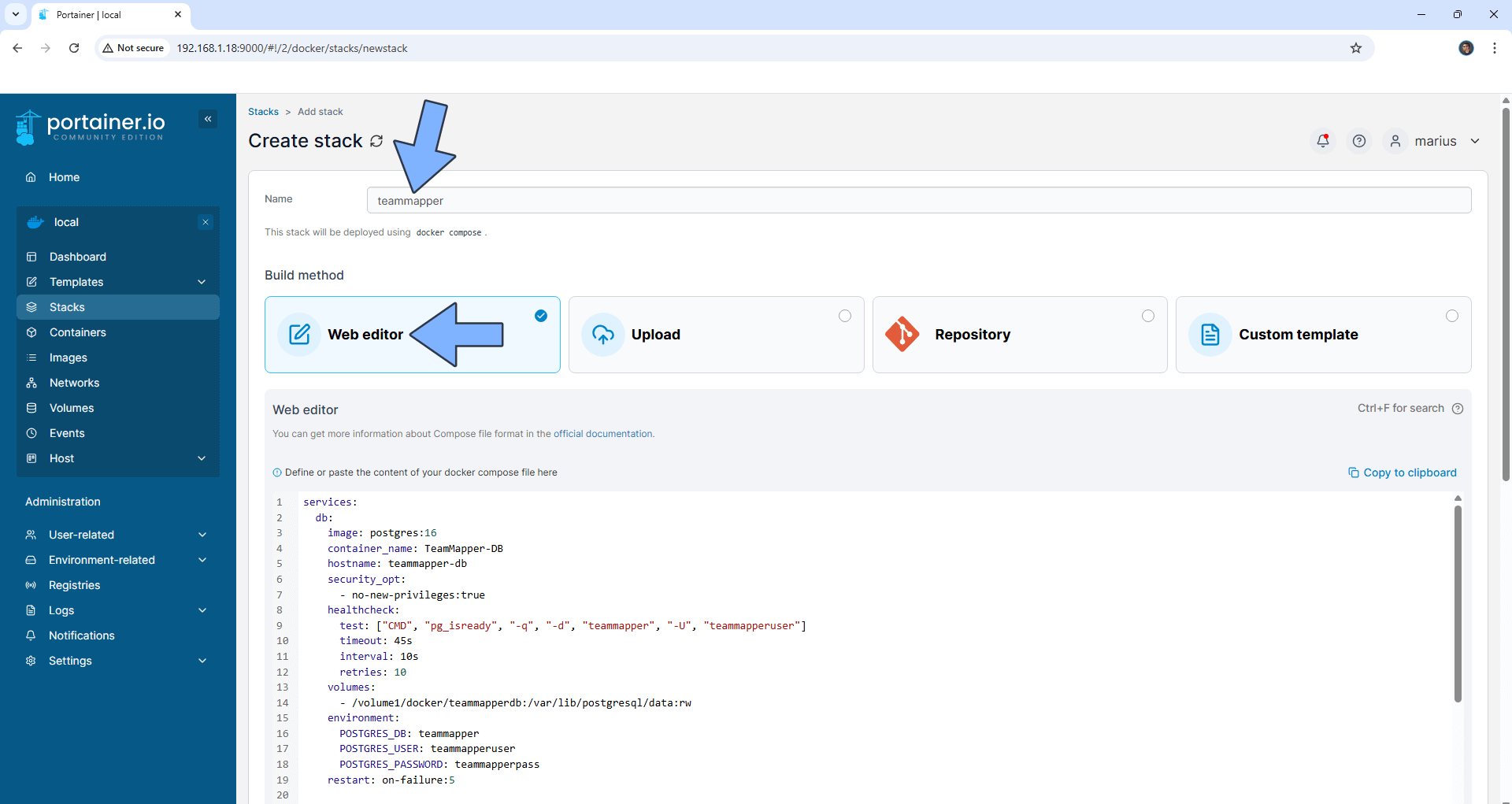

In the Name field type in teammapper. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  db:
    image: postgres:16
    container_name: TeamMapper-DB
    hostname: teammapper-db
    mem_limit: 1g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "teammapper", "-U", "teammapperuser"]
      timeout: 45s
      interval: 10s
      retries: 10
    volumes:
      - /volume1/docker/teammapperdb:/var/lib/postgresql/data:rw
    environment:
      POSTGRES_DB: teammapper
      POSTGRES_USER: teammapperuser
      POSTGRES_PASSWORD: teammapperpass
    restart: on-failure:5

  teammapper:
    image: ghcr.io/b310-digital/teammapper:latest
    container_name: TeamMapper
    hostname: teammapper
    mem_limit: 1g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: wget --no-verbose --tries=1 --spider http://localhost:3000
    ports:
      - 3080:3000
    environment:
      MODE: PROD
      BINDING: "0.0.0.0"
      POSTGRES_HOST: teammapper-db
      POSTGRES_PORT: 5432
      POSTGRES_SSL: false
      POSTGRES_SSL_REJECT_UNAUTHORIZED: false
      POSTGRES_DATABASE: teammapper
      POSTGRES_USER: teammapperuser
      POSTGRES_PASSWORD: teammapperpass
      POSTGRES_QUERY_TIMEOUT: 100000
      POSTGRES_STATEMENT_TIMEOUT: 100000
      DELETE_AFTER_DAYS: 30
    restart: on-failure:5
    depends_on:
      db:
        condition: service_started

• STEP 6

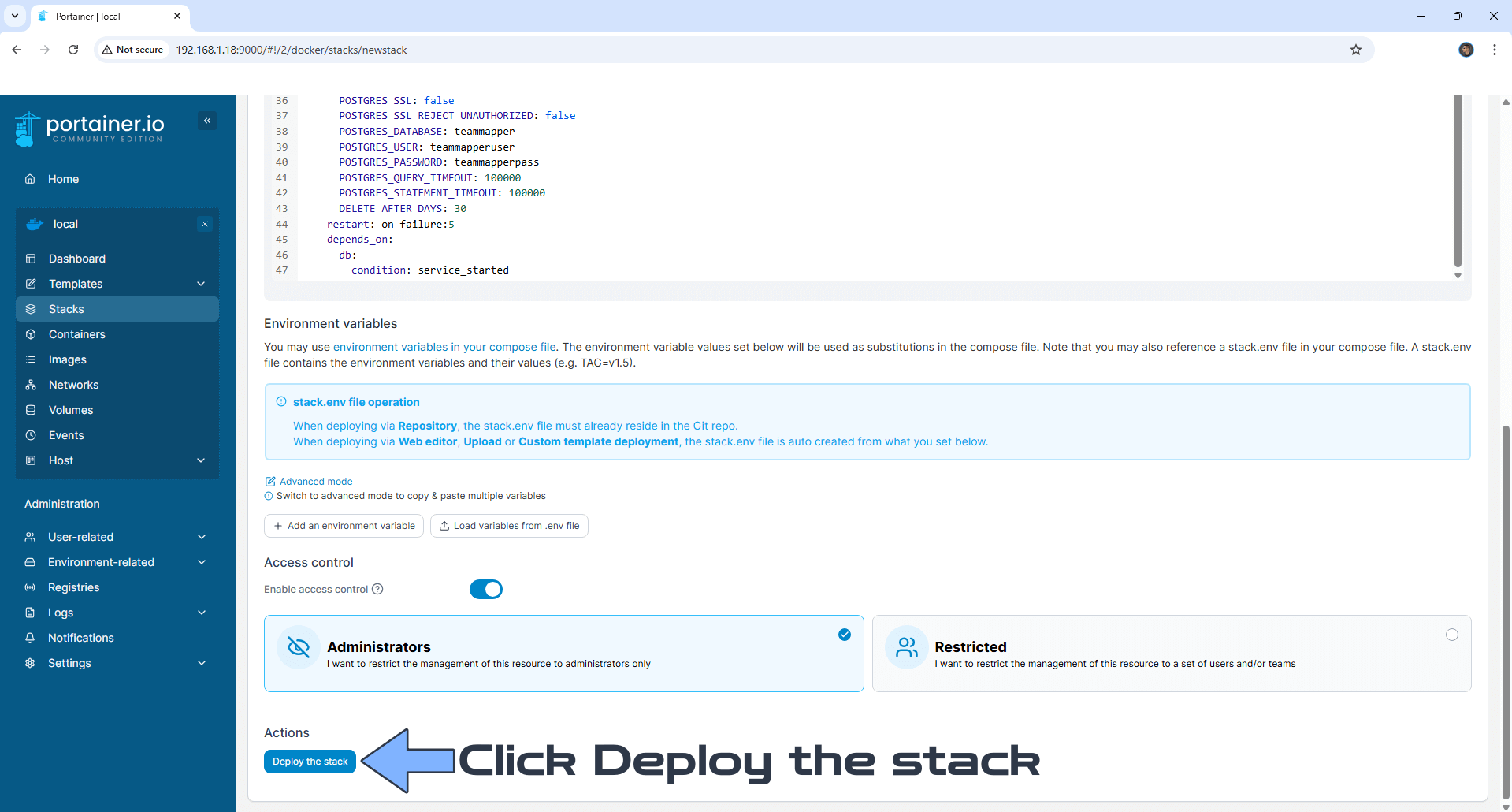

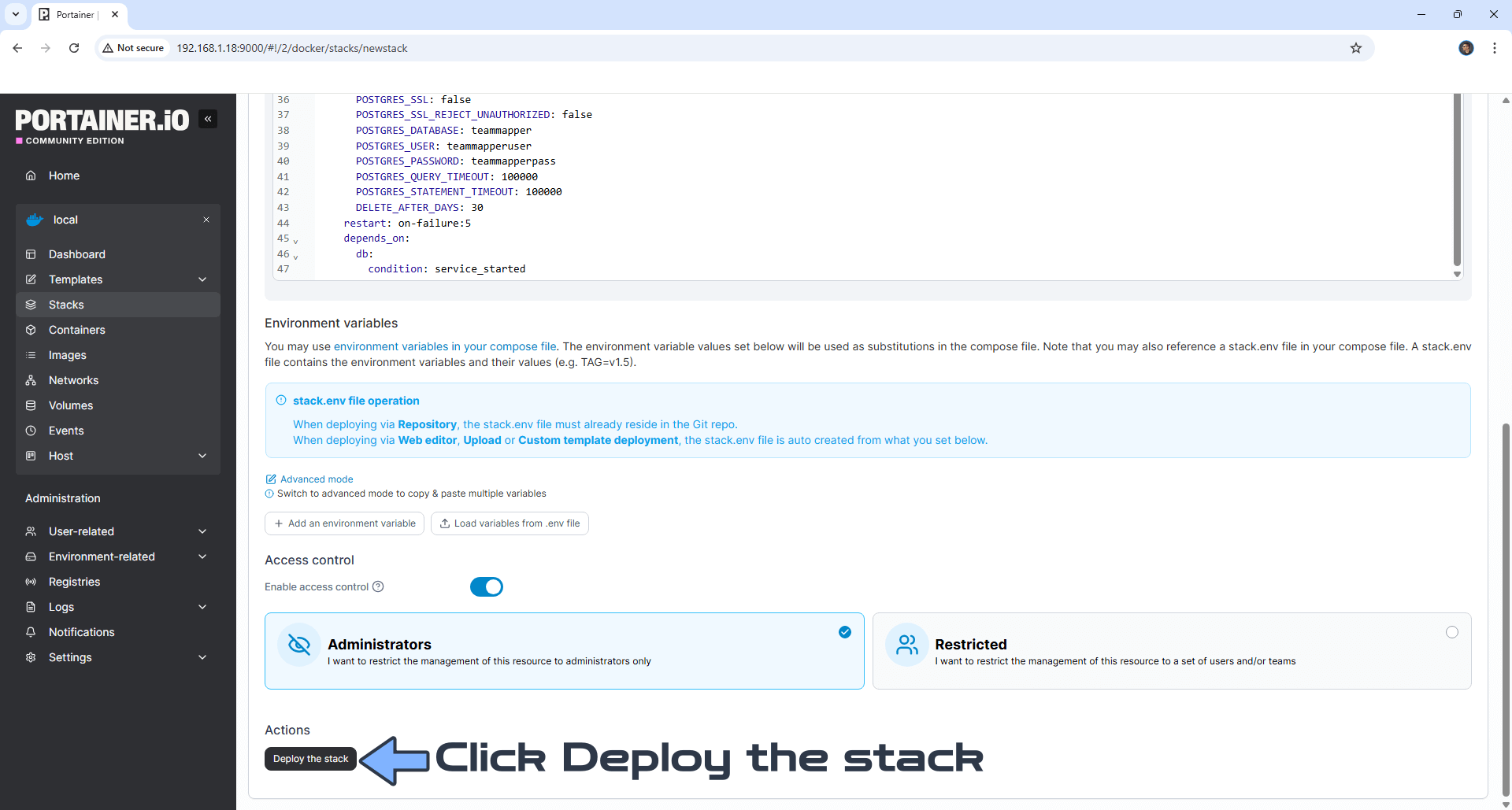

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 8

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

• STEP 9

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:3080 Click Create mind map. Follow the instructions in the image below.

• STEP 10

Your TeamMapper at a glance!

Enjoy TeamMapper!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the TeamMapper container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make TeamMapper work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the TeamMapper container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Container
