How to Install Solidtime on Your Synology NAS

Solidtime is a modern, open-source time-tracking application designed for freelancers and agencies. Built with PHP (Laravel) and Vue.js, it offers features like project and task management, client billing, and seamless data imports from tools like Toggl and Clockify. Available as a hosted cloud service or self-hosted via Docker, Solidtime provides a flexible, user-friendly solution for tracking time and managing work efficiently. In this step by step guide I will show you how to install Solidtime on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest version of Solidtime v0.6.0

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Solidtime Synology NAS Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

Solidtime Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Solidtime. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: solidtime.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 8172

Solidtime Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules, click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

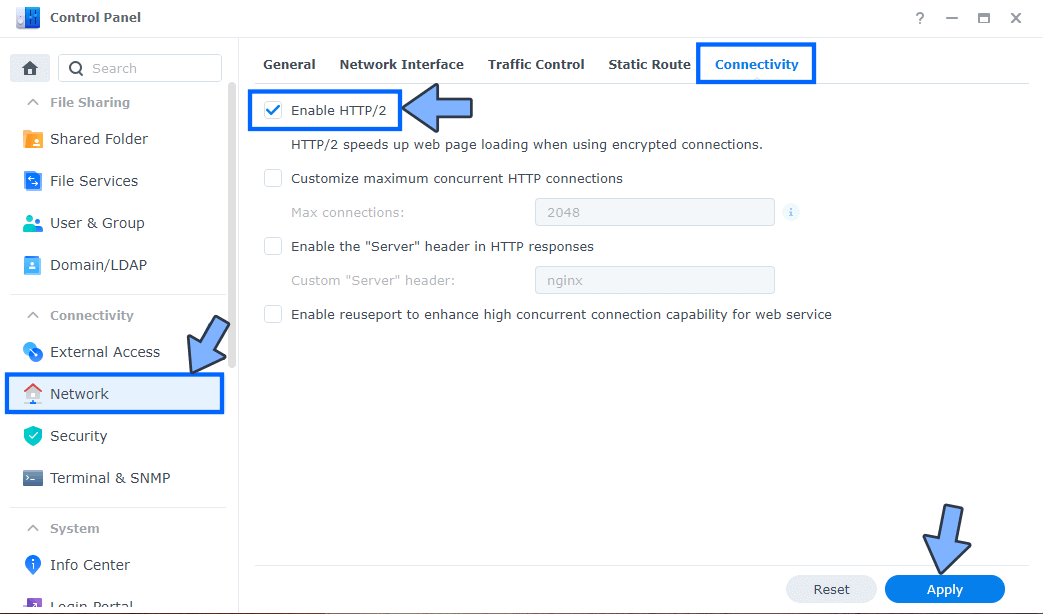

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Solidtime Synology NAS Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

Solidtime Synology NAS Set up 5

  • STEP 10

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it solidtime. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Solidtime Synology NAS Set up 6

  • STEP 11

Now create two new folders inside the solidtime folder that you have previously created at STEP 10 and name them db and storage. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Solidtime Synology NAS Set up 7

  • STEP 12

Now create three new folders inside the storage folder that you have previously created at STEP 11 and name them app, framework, logs. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Solidtime Synology NAS Set up 8

  • STEP 13

Now create two new folders inside the framework folder that you have previously created at STEP 12 and name them cache and views. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Solidtime Synology NAS Set up 9

  • STEP 14

Right click on the solidtime folder that you have previously created at STEP 10 then click Properties. Follow the instructions in the image below.

Solidtime Synology NAS Set up 10

  • STEP 15

Go to the Permission tab then click Advanced options. From the drop-down menu choose “Make inherited permissions explicit“. Follow the instructions in the image below.

Solidtime Synology NAS Set up 11

  • STEP 16

Select Everyone then click the Edit tab. Follow the instructions in the image below.

Solidtime Synology NAS Set up 12

  • STEP 17

Check all Read and Write Permissions. Click Done. Follow the instructions in the image below.

Solidtime Synology NAS Set up 13

  • STEP 18

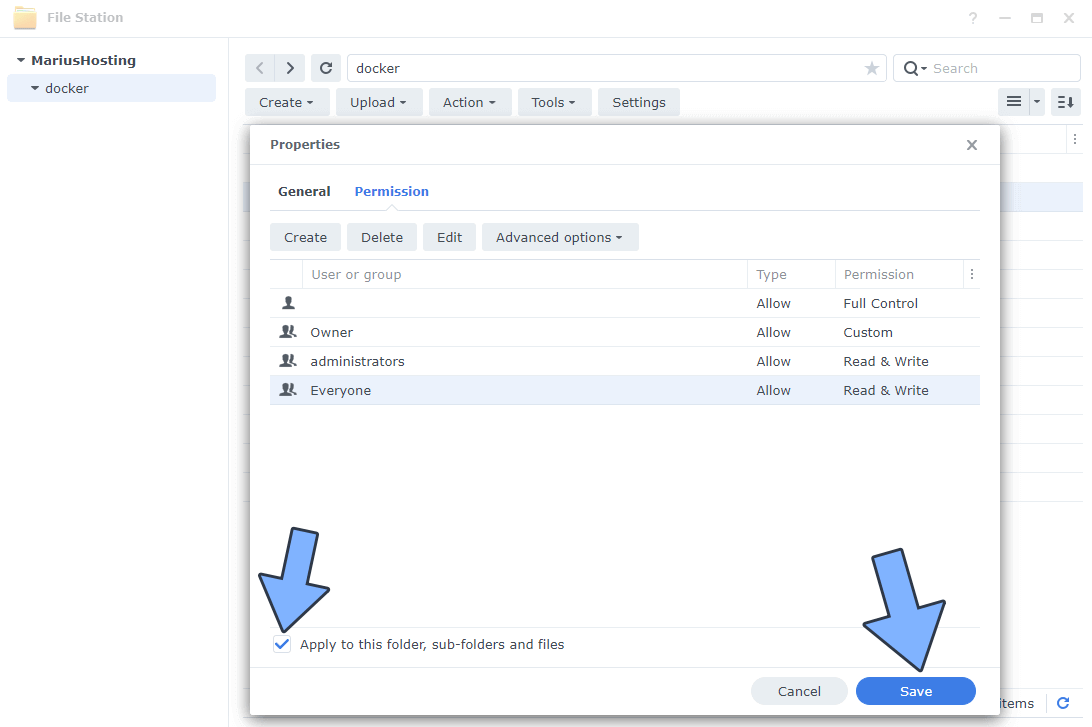

After you click Done on STEP 17, check “Apply to this folder, sub-folders and files“. Click Save. Follow the instructions in the image below.

Solidtime Synology NAS Set up 14

  • STEP 19

Follow my step by step guide on how to activate SMTP for your Gmail account. This step is mandatory. Note: If you don’t want to use the easiest way for SMTP with Google and you already have SMTP details from your own Mail Server, you can just skip this STEP and use your personalized email SMTP details instead.

  • STEP 20

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 21

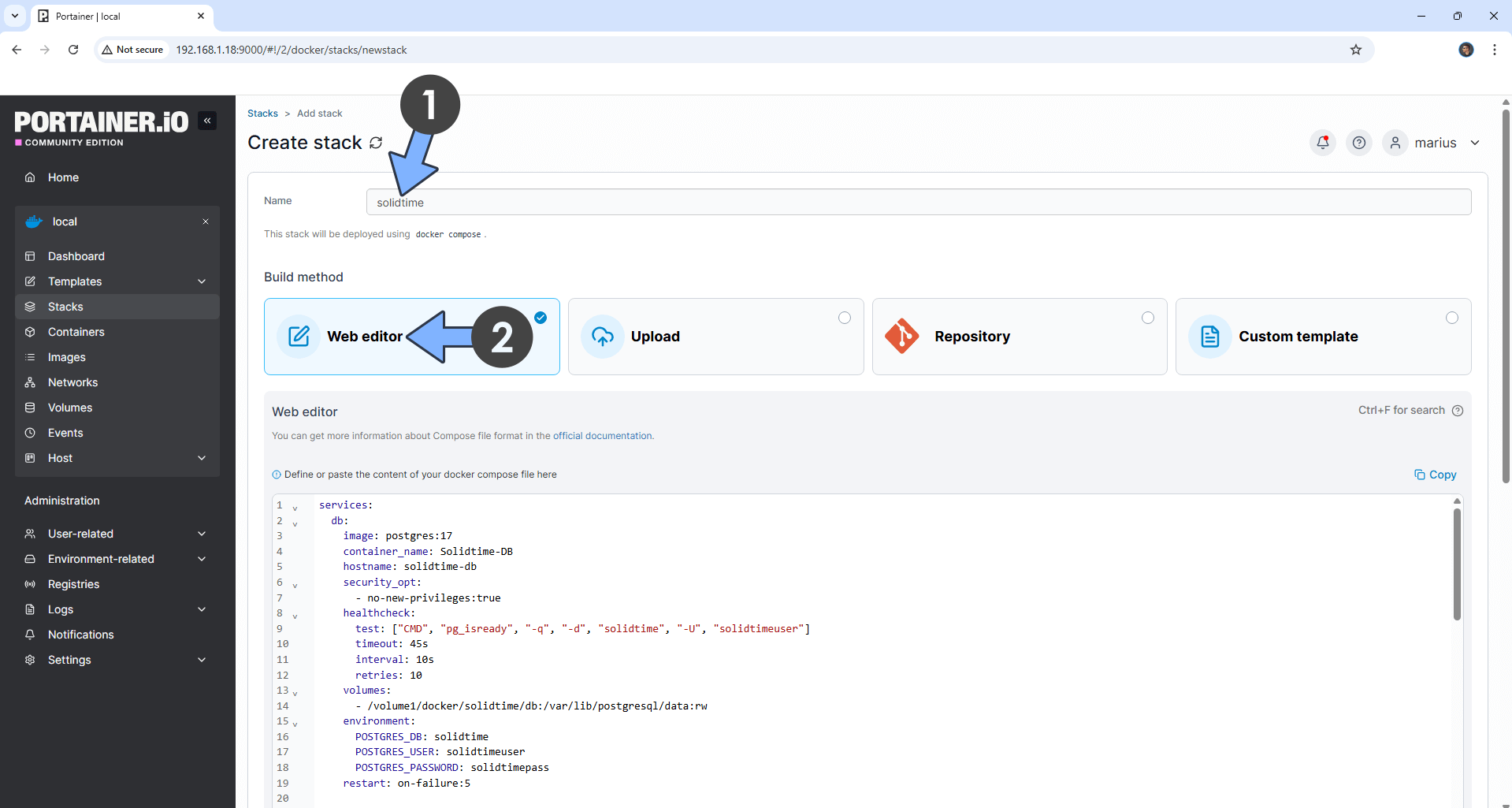

In the Name field type in solidtime. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  db:
    image: postgres:17
    container_name: Solidtime-DB
    hostname: solidtime-db
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "solidtime", "-U", "solidtimeuser"]
      timeout: 45s
      interval: 10s
      retries: 10
    volumes:
      - /volume1/docker/solidtime/db:/var/lib/postgresql/data:rw
    environment:
      POSTGRES_DB: solidtime
      POSTGRES_USER: solidtimeuser
      POSTGRES_PASSWORD: solidtimepass
    restart: on-failure:5

  app:
    container_name: Solidtime-APP
    image: solidtime/solidtime:main
    ports:
      - 8172:8000
    volumes:
      - /volume1/docker/solidtime/storage/logs:/var/www/html/storage/logs:rw
      - /volume1/docker/solidtime/storage:/var/www/html/storage:rw
      - /volume1/docker/solidtime/storage/app:/var/www/html/storage/app:rw
    environment:
      CONTAINER_MODE: http
      AUTO_DB_MIGRATE: true
    healthcheck:
      test: [ "CMD-SHELL", "curl --fail http://localhost:8000/health-check/up || exit 1" ]
    env_file:
      - stack.env
    depends_on:
      - db
    restart: on-failure:5

  scheduler:
    container_name: Solidtime-SCHEDULER
    image: solidtime/solidtime:main
    volumes:
      - /volume1/docker/solidtime/storage/logs:/var/www/html/storage/logs:rw
      - /volume1/docker/solidtime/storage:/var/www/html/storage:rw
      - /volume1/docker/solidtime/storage/app:/var/www/html/storage/app:rw
    environment:
      CONTAINER_MODE: scheduler
    healthcheck:
      test: [ "CMD-SHELL", "supervisorctl status scheduler:scheduler_00" ]
    env_file:
      - stack.env
    depends_on:
      - db
    restart: on-failure:5

  queue:
    container_name: Solidtime-QUEUE
    image: solidtime/solidtime:main
    volumes:
      - /volume1/docker/solidtime/storage/logs:/var/www/html/storage/logs:rw
      - /volume1/docker/solidtime/storage:/var/www/html/storage:rw
      - /volume1/docker/solidtime/storage/app:/var/www/html/storage/app:rw
    environment:
      CONTAINER_MODE: worker
      WORKER_COMMAND: "php /var/www/html/artisan queue:work"
    healthcheck:
      test: [ "CMD-SHELL", "supervisorctl status worker:worker_00" ]
    env_file:
      - stack.env
    depends_on:
      - db
    restart: on-failure:5

Solidtime Synology NAS Set up 15 new 2025

  • STEP 22

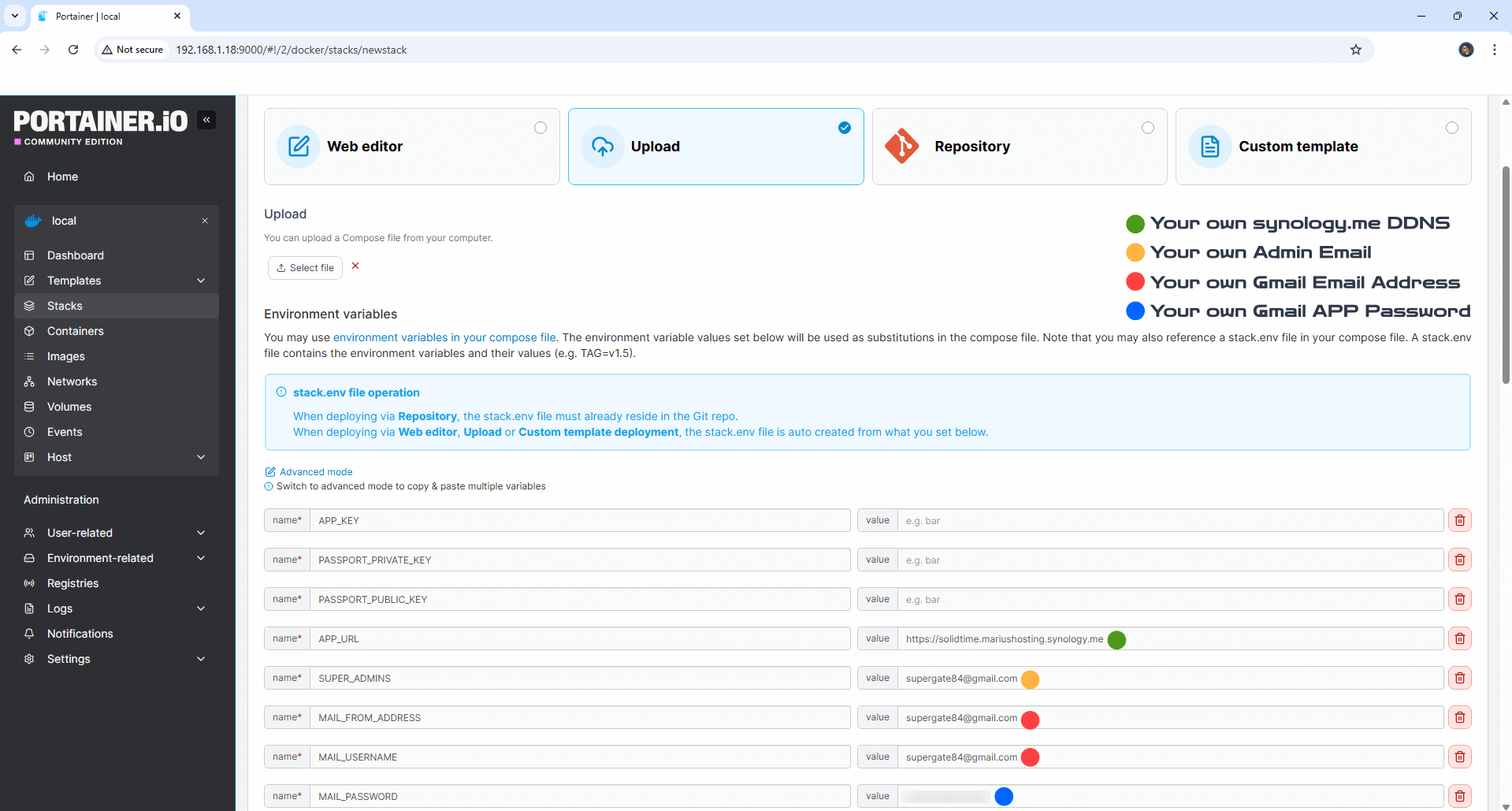

Click the Upload button after Web editor. Download the stack.env file by clicking the blue link below and then upload it from your computer in the “Load variables from .env file“. Follow the instructions in the image below. 🔒Note: Support my work to unlock the password. You can use this password to download any file on mariushosting forever!

👉🏻Download stack.env file

Solidtime Synology NAS Set up 16

  • STEP 23

Note: On the Environment variables change the value for APP_URL. Type in your own synology.me DDNS that you have previously created at STEP 6 with https at the beginning.
Note: On the Environment variables change the value for SUPER_ADMINS. Type in your own admin email address that you want to use for your Solidtime instance. You will need this email later at STEP 37.
Note: On the Environment variables change the value for MAIL_FROM_ADDRESS and type in your own Gmail address. STEP 19.
Note: On the Environment variables change the value for MAIL_USERNAME and type in your own Gmail address. STEP 19.
Note: On the Environment variables change the value for MAIL_PASSWORD and type in your own Gmail APP Password. STEP 19.

Solidtime Synology NAS Set up 17

  • STEP 24

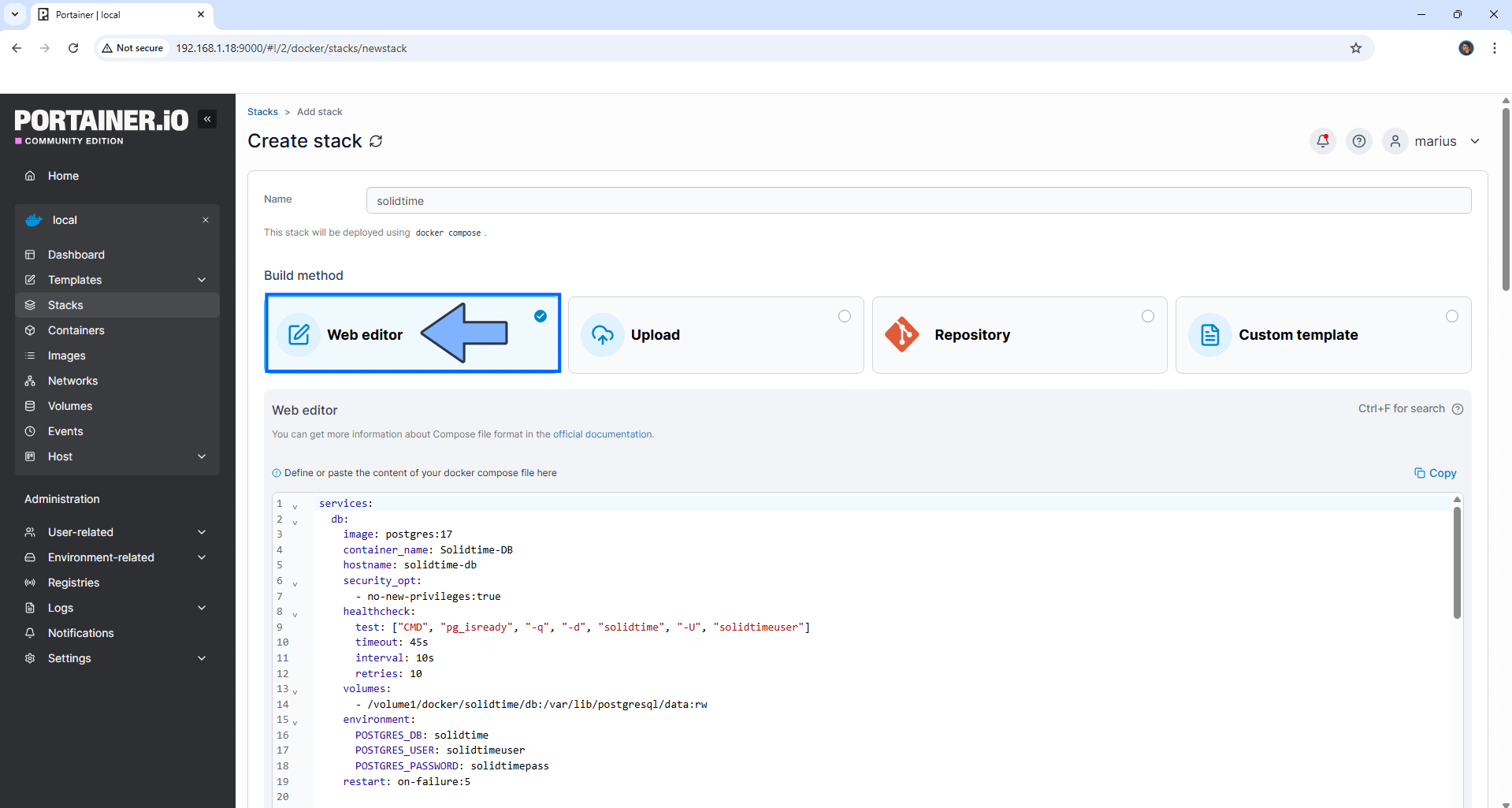

After you make the changes, scroll up the page a little bit, then click the Web editor button. Follow the instructions in the image below.

Solidtime Synology NAS Set up 18

  • STEP 25

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Solidtime Synology NAS Set up 19

  • STEP 26

If everything goes right, you will see this message at the top right of your screen: “Success Stack successfully deployed“.

Solidtime Synology NAS Set up Stack Portainer

  • STEP 27

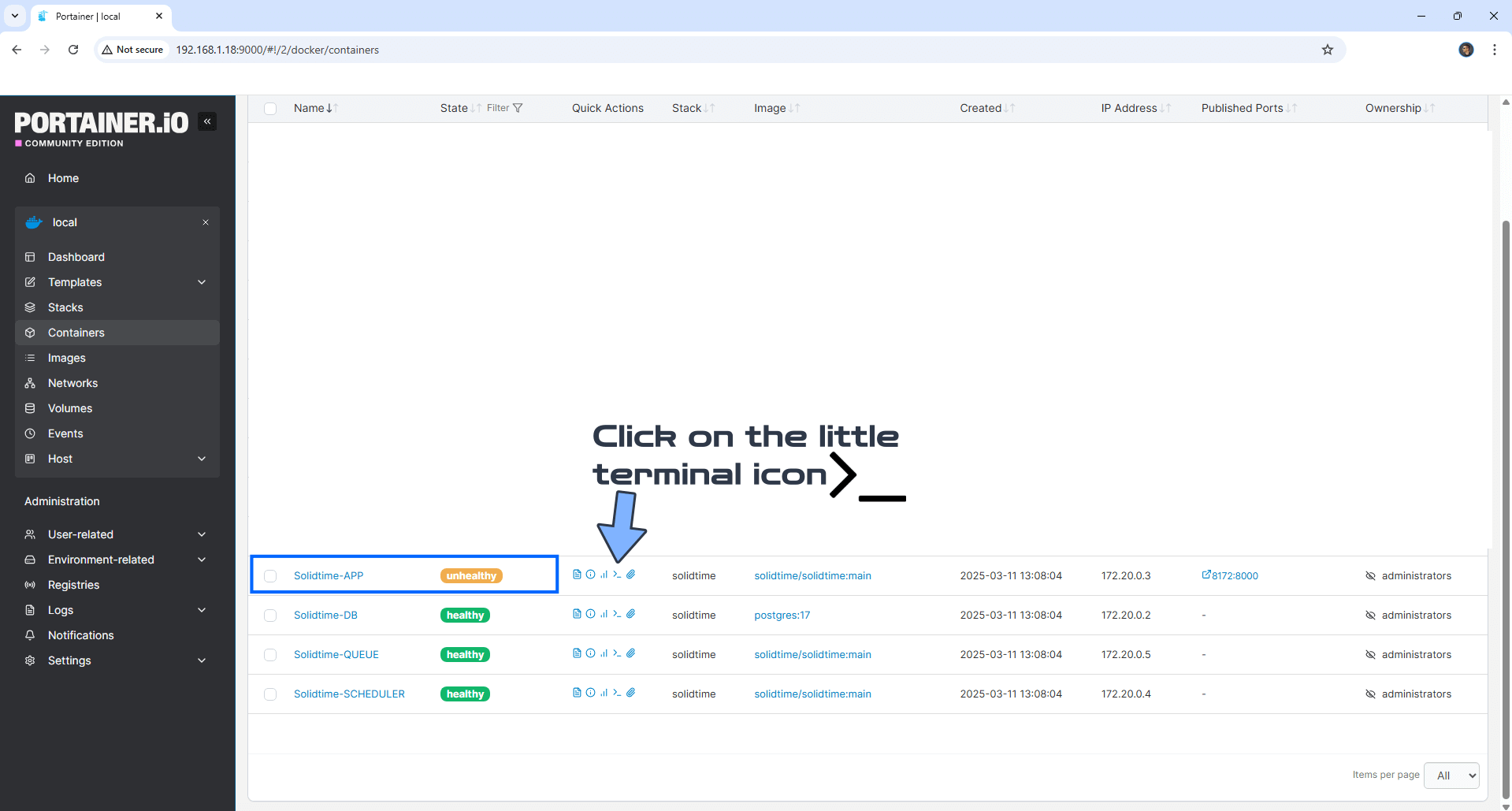

On the left sidebar in Portainer, click Containers. Identify your Solidtime-APP instance and make sure it’s marked as unhealthy. Click on the little terminal icon. Follow the instructions in the image below.

Solidtime Synology NAS Set up 20

  • STEP 28

After you click on the little terminal icon at STEP 27, a new page will open. Click Connect. Follow the instructions in the image below.

Solidtime Synology NAS Set up 21

  • STEP 29

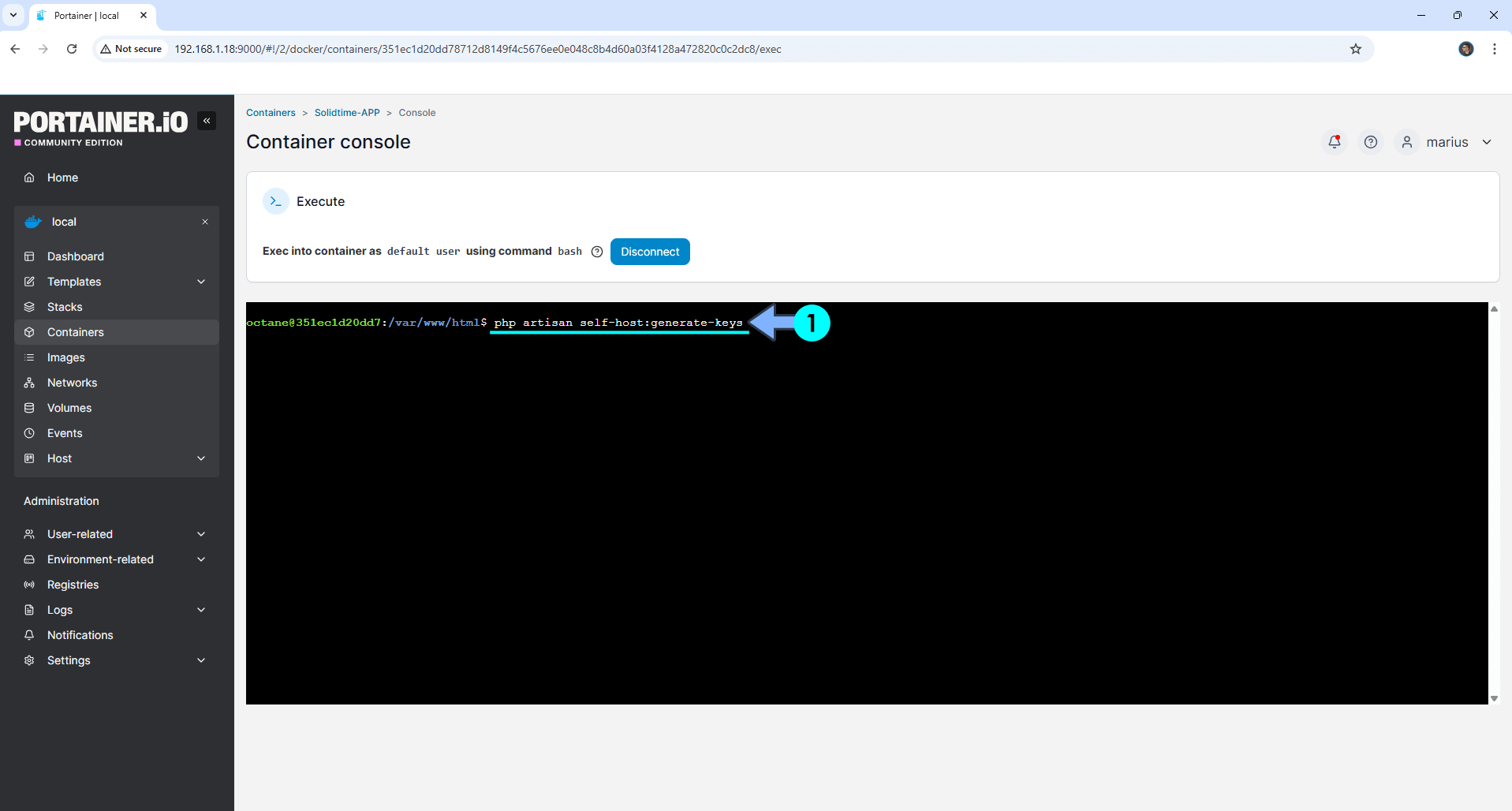

After you click Connect at STEP 28, a Console will open. Copy Paste the code below and follow the instructions in the image.

php artisan self-host:generate-keys

Solidtime Synology NAS Set up 22

  • STEP 30

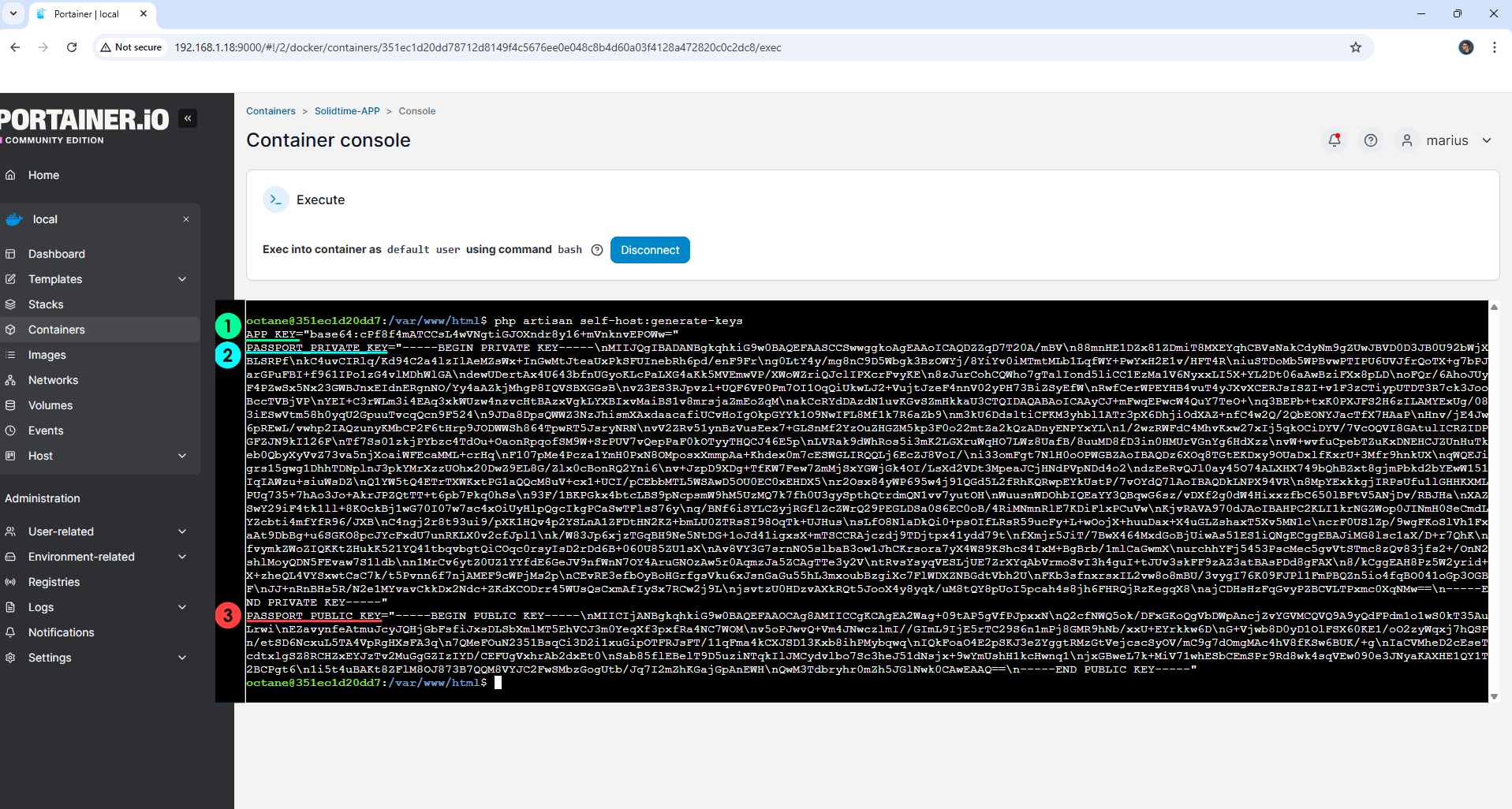

Once the code is inserted, confirm by pressing Enter on your keyboard to start the key generation process. After some seconds, you will get 3 different Keys. APP_KEY, PASSPORT_PRIVATE_KEY and PASSPORT_PUBLIC_KEY. Copy the autogenerated keys and save them in a safe place like notepad – you will need them later at STEP 33. ⚠️Note: Make sure you copy the keys after the = and make sure you include the colons “”.

Solidtime Synology NAS Set up 23

  • STEP 31

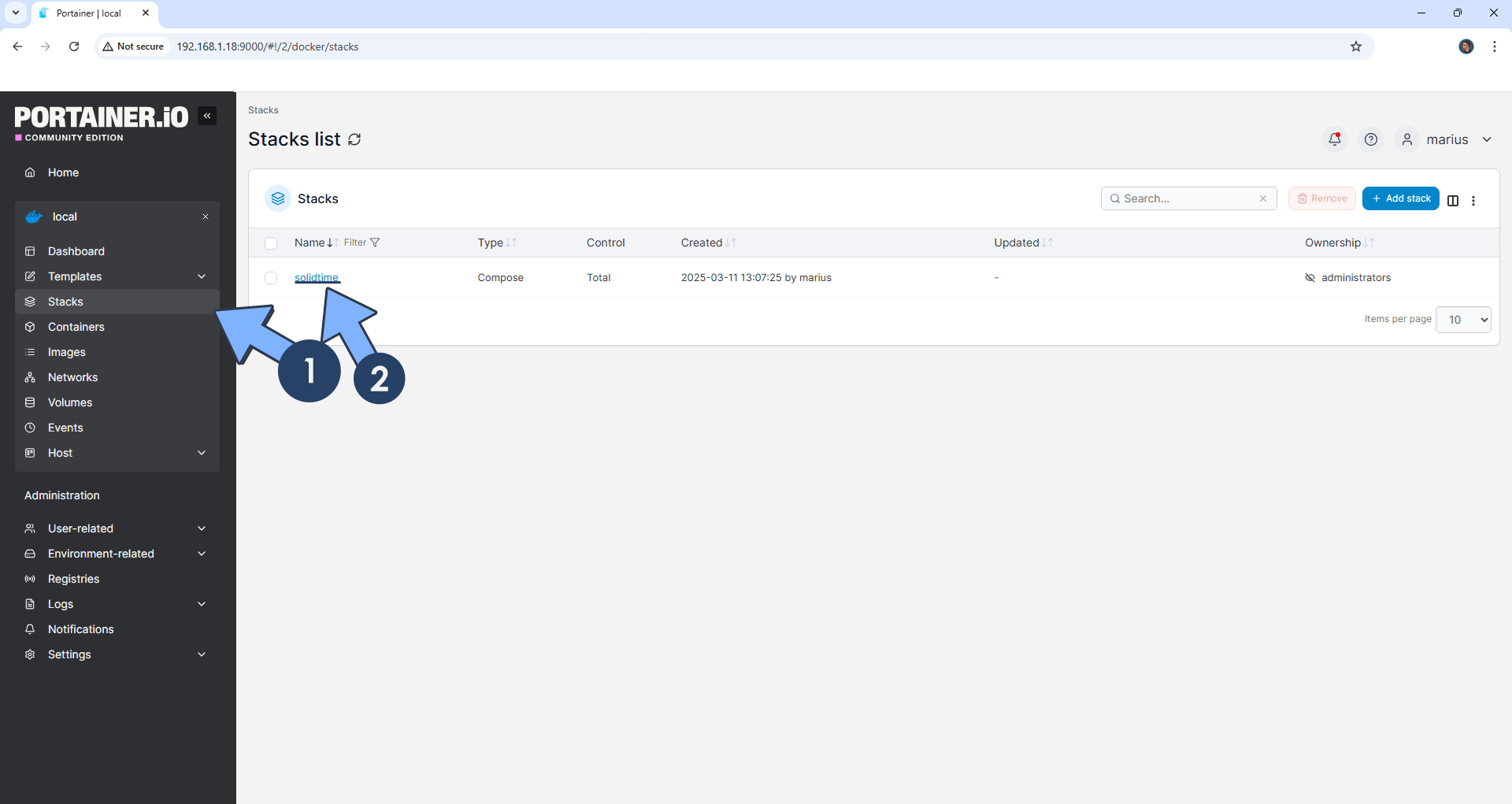

On the left Sidebar in Portainer, click Stacks then solidtime. Follow the instructions in the image below.

Solidtime Synology NAS Set up 24

  • STEP 32

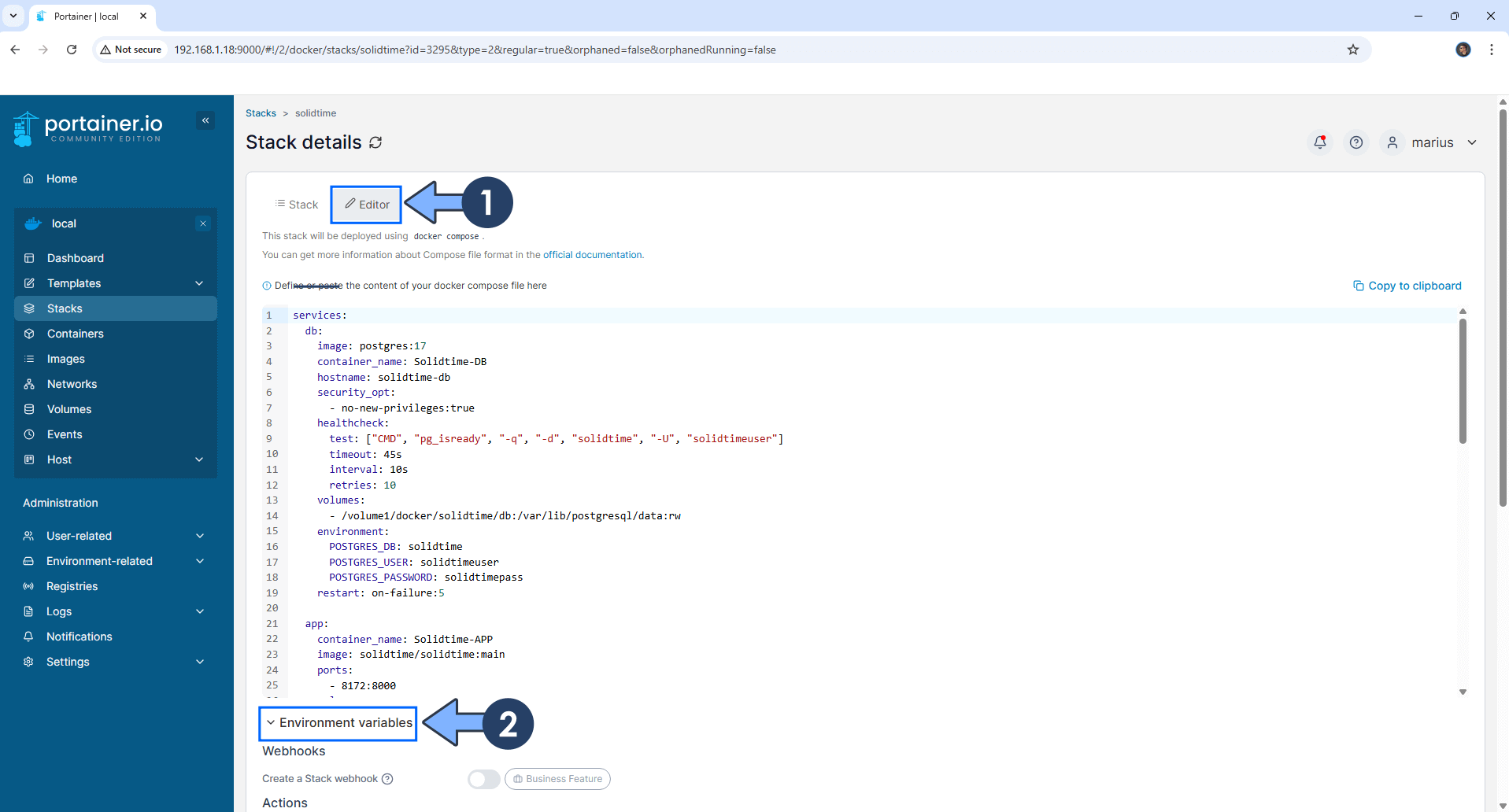

Click the Editor tab, then Environment variables. Follow the instructions in the image below.

Solidtime Synology NAS Set up 25

  • STEP 33

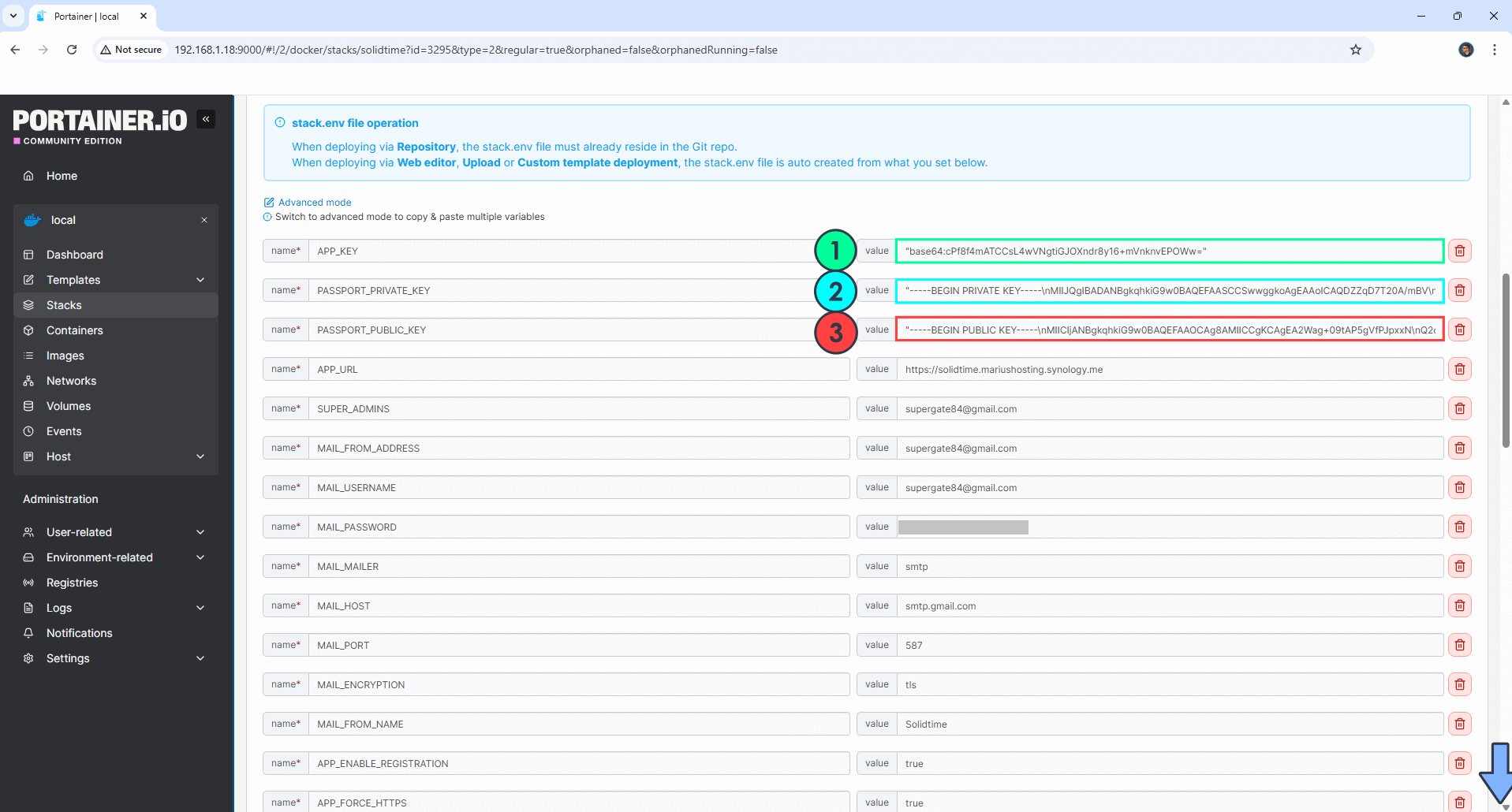

Note: On the Environment variables change the value for APP_KEY and type in the APP_KEY value that you have previously generated at STEP 30, with the “” included.
Note: On the Environment variables change the value for PASSPORT_PRIVATE_KEY and type in the PASSPORT_PRIVATE_KEY value that you have previously generated at STEP 30, with the “” included.
Note: On the Environment variables change the value for PASSPORT_PUBLIC_KEY and type in the PASSPORT_PUBLIC_KEY value that you have previously generated at STEP 30, with the “” included.

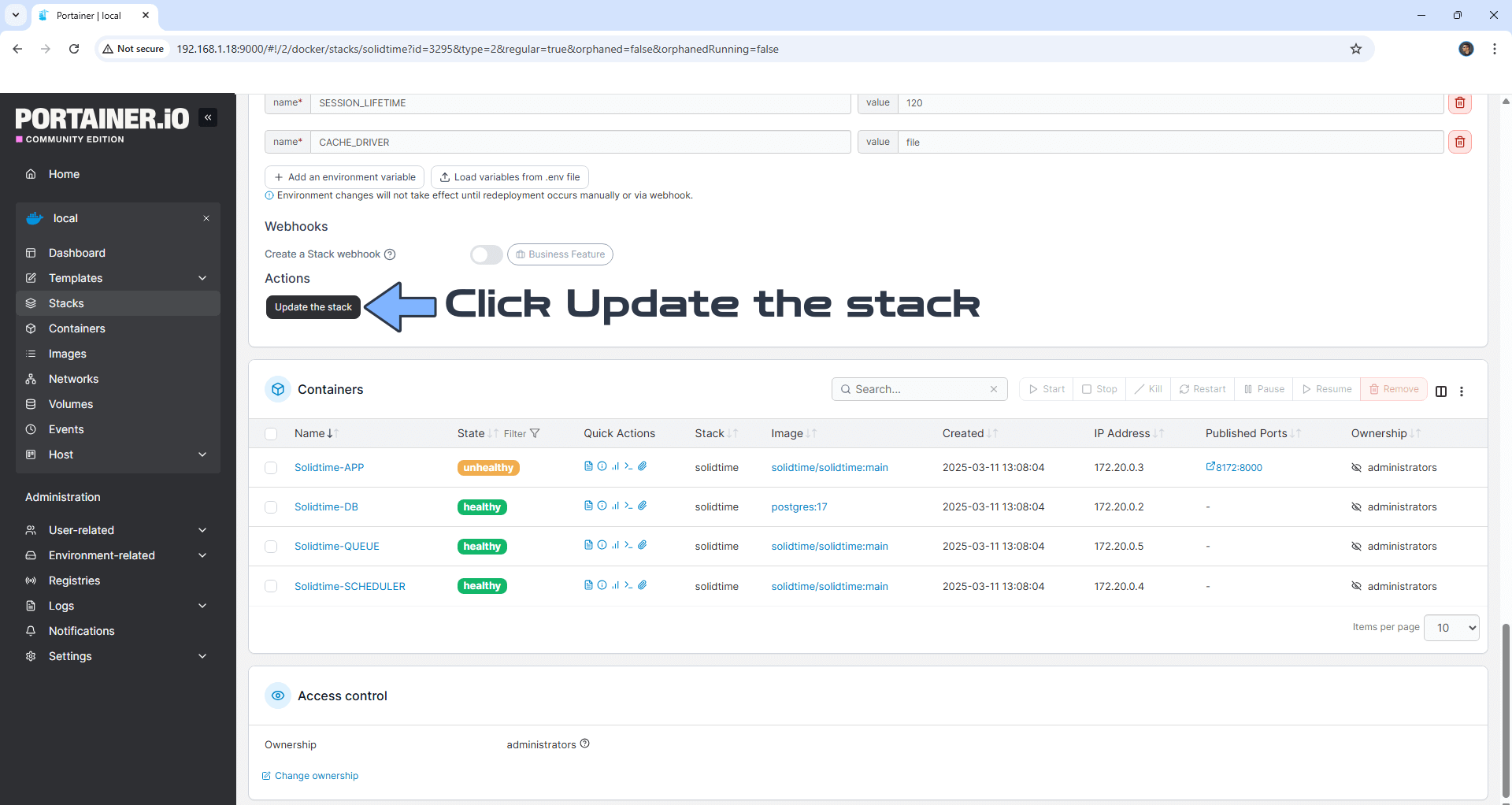

Scroll down the page until you’ll find the Update the stack button. Follow the instructions in the image below.

Solidtime Synology NAS Set up 26

  • STEP 34

Click Update the stack. Follow the instructions in the image below.

Solidtime Synology NAS Set up 27

  • STEP 35

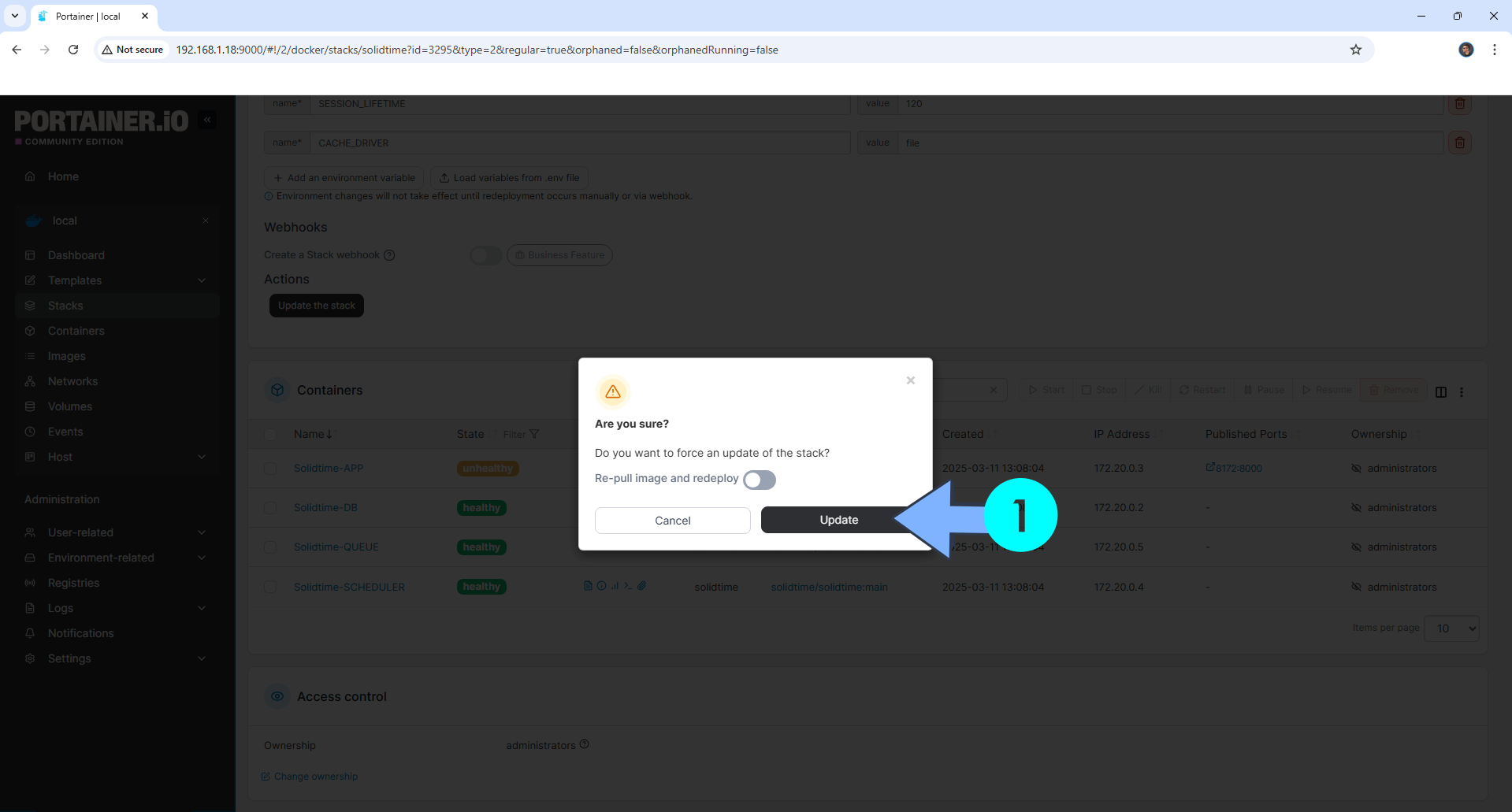

A new pop up window will open. Click Update. Follow the instructions in the image below.

Solidtime Synology NAS Set up 28

  • STEP 36

Now open your browser and type in your HTTPS/SSL certificate like this https://solidtime.yourname.synology.me that you have previously created at STEP 6. In my case it’s https://solidtime.mariushosting.synology.me If everything goes right, you will see the Solidtime login page. Click Register here!. Follow the instructions in the image below.

Solidtime Synology NAS Set up 29

  • STEP 37

Type in your own details. Check the agree button, then click Register. ⚠️Note: Make sure to type in the Email that you have previously added at STEP 23 for the (SUPER_ADMINS). Follow the instructions in the image below.

Solidtime Synology NAS Set up 30

  • STEP 38

Check your Gmail Email. You should receive the Solidtime email. Click Verify Email Address. Follow the instructions in the image below. ⚠️Note: If the email does not come, this means your SMTP details that you have previously added at STEP 23 are not correct.

Solidtime Synology NAS Set up 31

  • STEP 39

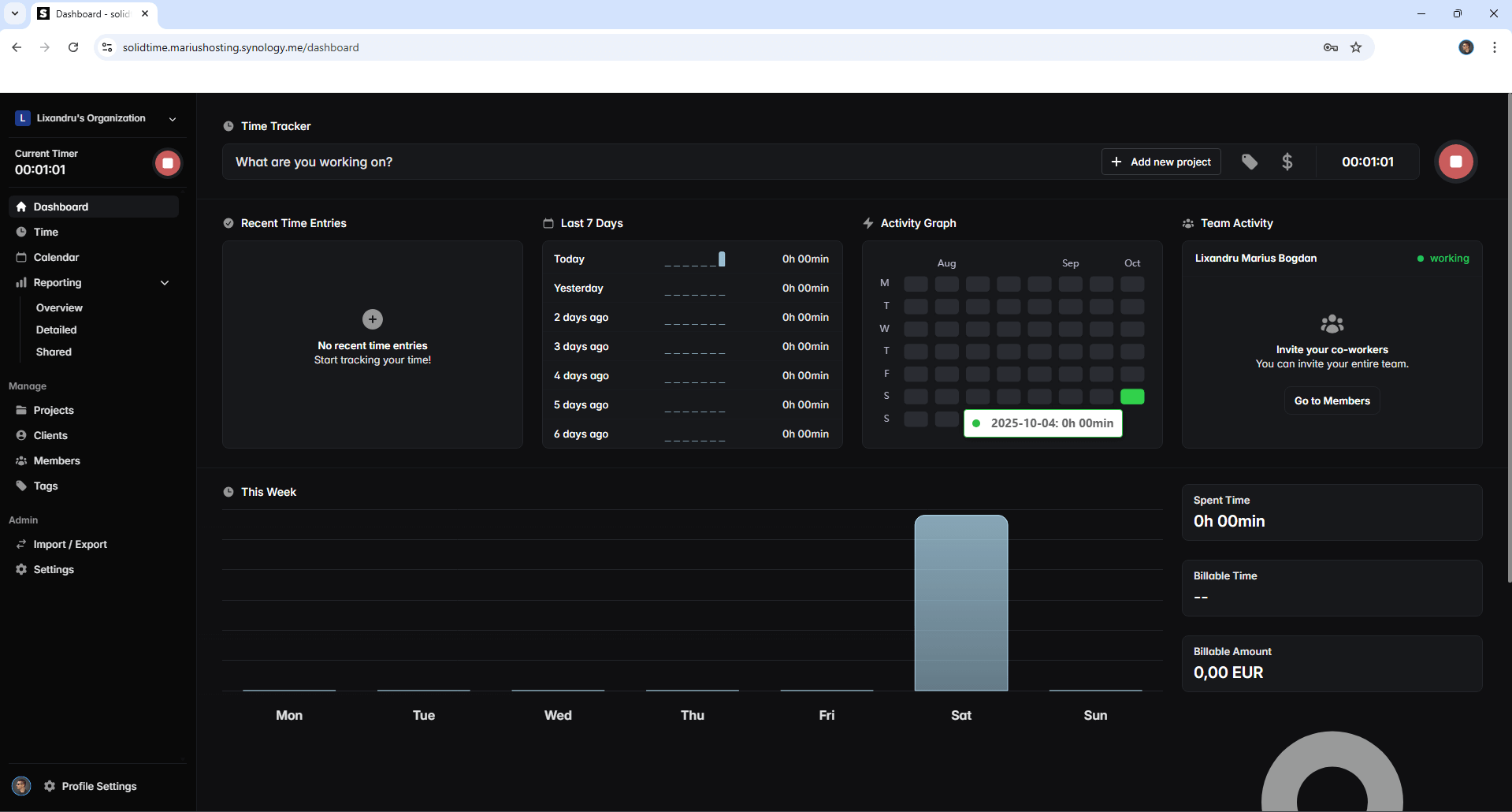

Your Solidtime dashboard at a glance!

Solidtime Synology NAS Set up 32

Enjoy Solidtime!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

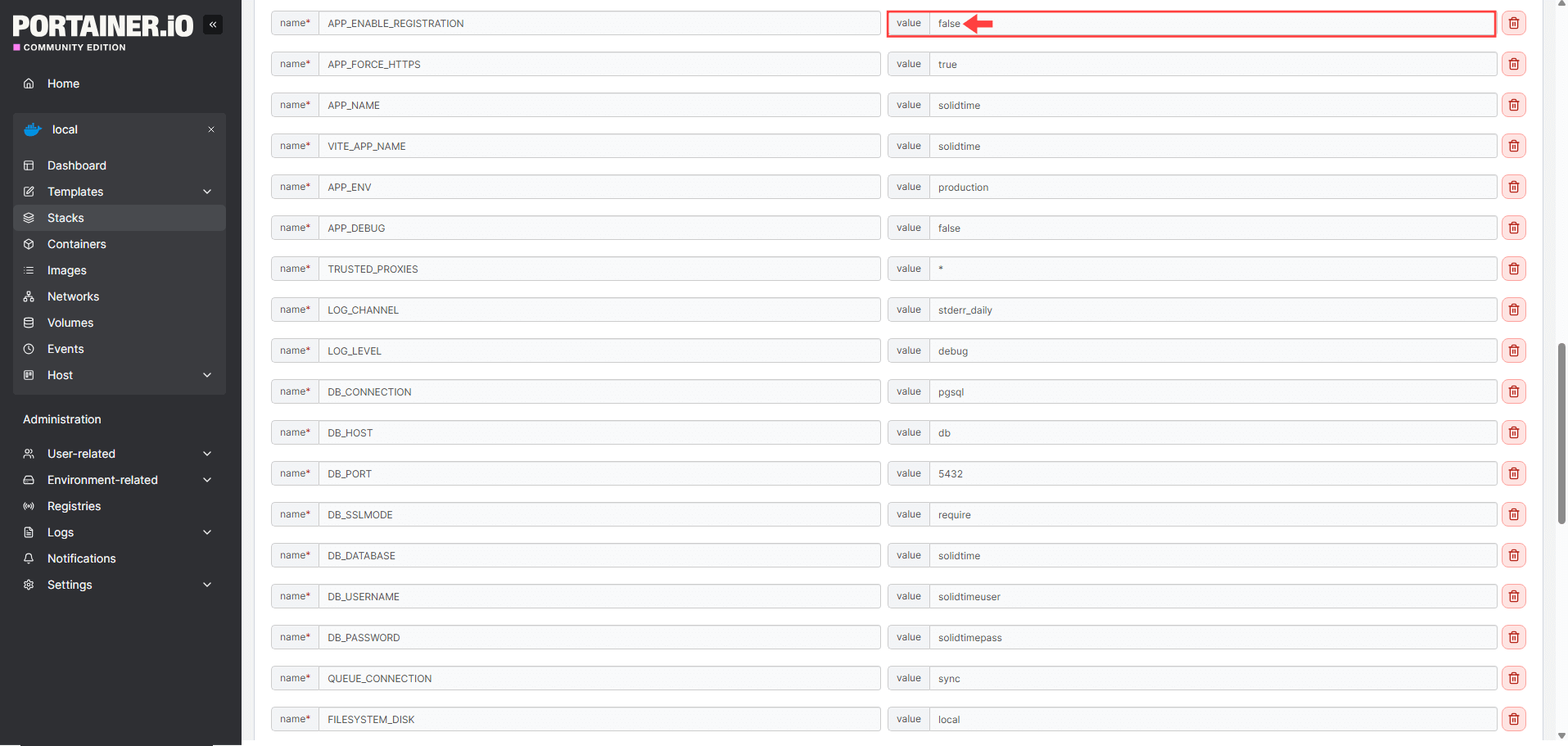

One of the most important things you need to know about Solidtime is that anyone can register for a new account. Follow my step by step guide below to disable registration of new users in Solidtime. Go to Portainer then click Stacks. Edit your environment variables. Change the value for APP_ENABLE_REGISTRATION from true to false then scroll down the page until you find the Update the stack button. Click Update the stack. Follow the instructions in the image below.

Synology Disable user registration Solidtime

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the Solidtime container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
