How to Install Series Troxide on Your Synology NAS

by

How to Install Series Troxide on Your Synology NAS

Series Troxide is a simple and Modern Series Tracker. It comes with multiple features that help you track all your favorite TV shows and discover what’s new globally and locally. You can use it to see series based on Networks, web channels and genres, and search for your favourite TV shows. Series Troxide helps you learn when your tracked series are being aired and provides general information of any series (summary, genres, casts, other suggestions based on the series). You can see which of your series are running, which have ended and which are untracked. With Series Troxide you can better follow your TV shows – what season and episode to continue from, how many episodes are unwatched and how much time is required to complete watching all of them. You can also see how many series, seasons and episodes you have watched and how much time you’ve spent watching them in an ordered way. Series Troxide makes it possible for you to carry your series tracking data anywhere. In this step by step guide I will show you how to Install Series Troxide on your Synology NAS with Docker & Portainer.

💡Note: This guide works perfectly with the latest Series Troxide v.0.5.0 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it troxide. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Series Troxide Synology NAS Set up 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 5

In the Name field type in troxide. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  troxide:
    image: ghcr.io/linuxserver/series-troxide:latest
    container_name: Series-Troxide
    hostname: series-troxide
    shm_size: 1gb
    mem_limit: 3g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    ports:
      - 9428:3000
    volumes:
      - /volume1/docker/troxide:/config:rw
    environment:
      TZ: Europe/Bucharest
      PUID: 1026
      PGID: 100
      TITLE: Series-Troxide
      CUSTOM_USER: marius
      PASSWORD: mariushosting
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for TZ (Select your current Time Zone from this list).
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.)
Note: Before you paste the code above in the Web editor area below, change the value for CUSTOM_USER. Type in your own username. marius is an example for a username.
Note: Before you paste the code above in the Web editor area below, change the value for PASSWORD. Type in your own password. mariushosting is an example for a password.

Series Troxide Synology NAS Set up 2

  • STEP 6

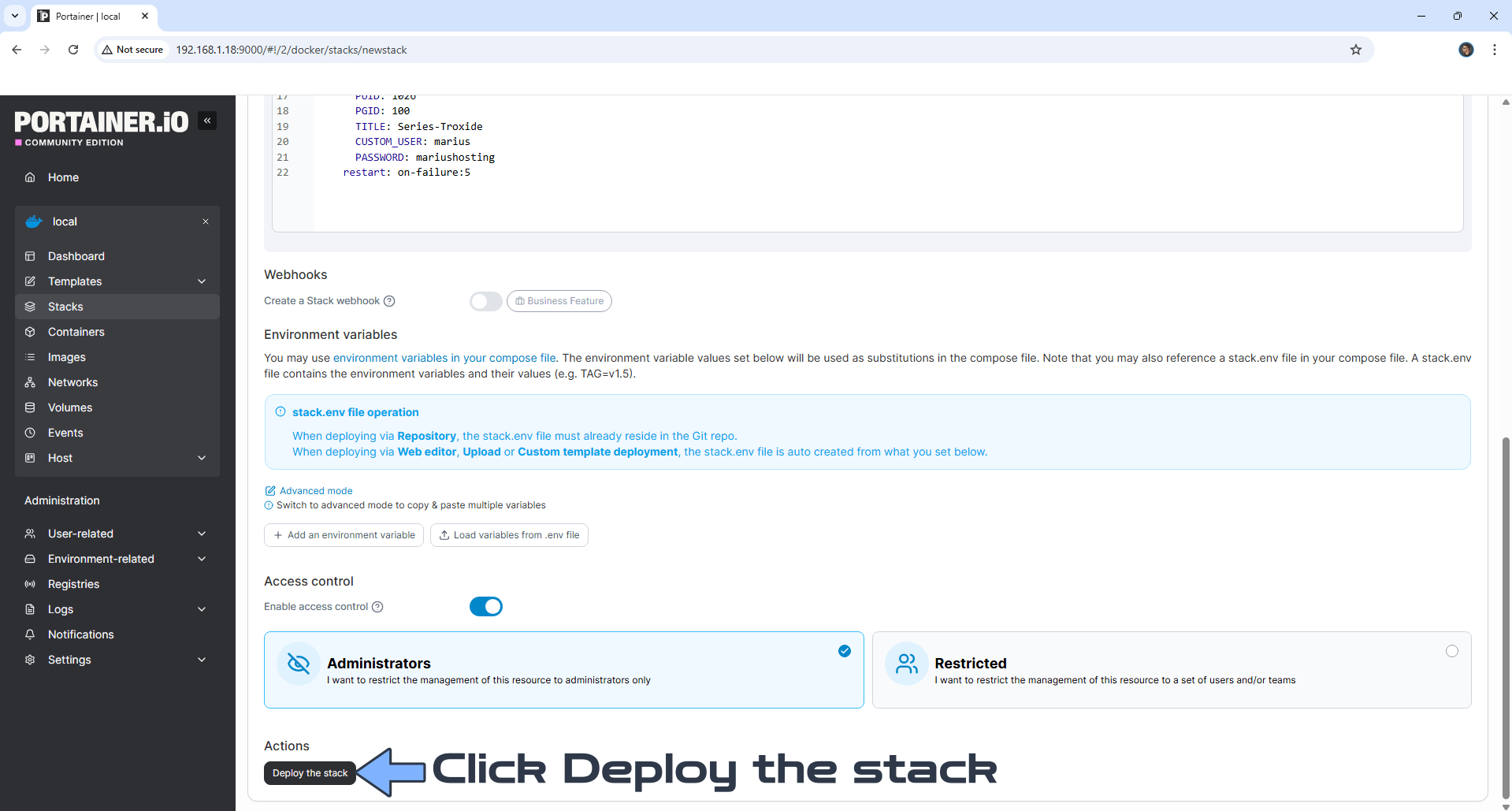

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Series Troxide Synology NAS Set up 3

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Series Troxide Synology NAS Set up 4

  • STEP 8

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 9

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:9428 If everything goes right, you will see the Series Troxide Login page. Type in your own CUSTOM_USER and PASSWORD that you have previously created at STEP 5 then click Sign In. Follow the instructions in the image below.

Series Troxide Synology NAS Set up 5

  • STEP 10

Search for your favorite movie.

Series Troxide Synology NAS Set up 6

  • STEP 11

Enjoy Series Troxide!

Series Troxide Synology NAS Set up 7

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the Series Troxide container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Series Troxide work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: Find out how to update the Series Troxide container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
