For those of you that love to travel, a visual of the places you have been too is always fun to see. This project was inspired by the simple idea of a world scratch-off map. Everything in the project is self-contained, requiring no online or offline mapping libraries – only the map SVGs included in the repository. In this step by step guide I will show you how to install Scratch Map on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest Scratch Map v1.2.3 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it scratchmap. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 5

In the Name field type in scratchmap. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  scratch-map:
    container_name: Scratch-Map
    image: ad3m3r5/scratch-map:latest
    restart: on-failure:5
    healthcheck:
      test: ["CMD-SHELL", "nc -z 127.0.0.1 8080 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    user: 0:0
    ports:
      - 8352:8080
    environment:
      ADDRESS: 0.0.0.0
      PORT: 8080
      DATA_DIR: /volume1/docker/scratchmap
      LOG_LEVEL: INFO
      ENABLE_SHARE: false #or true if you use synology.me DDNS
      NODE_ENV: production
    volumes:
      - /volume1/docker/scratchmap:/volume1/docker/scratchmap:rw

• STEP 6

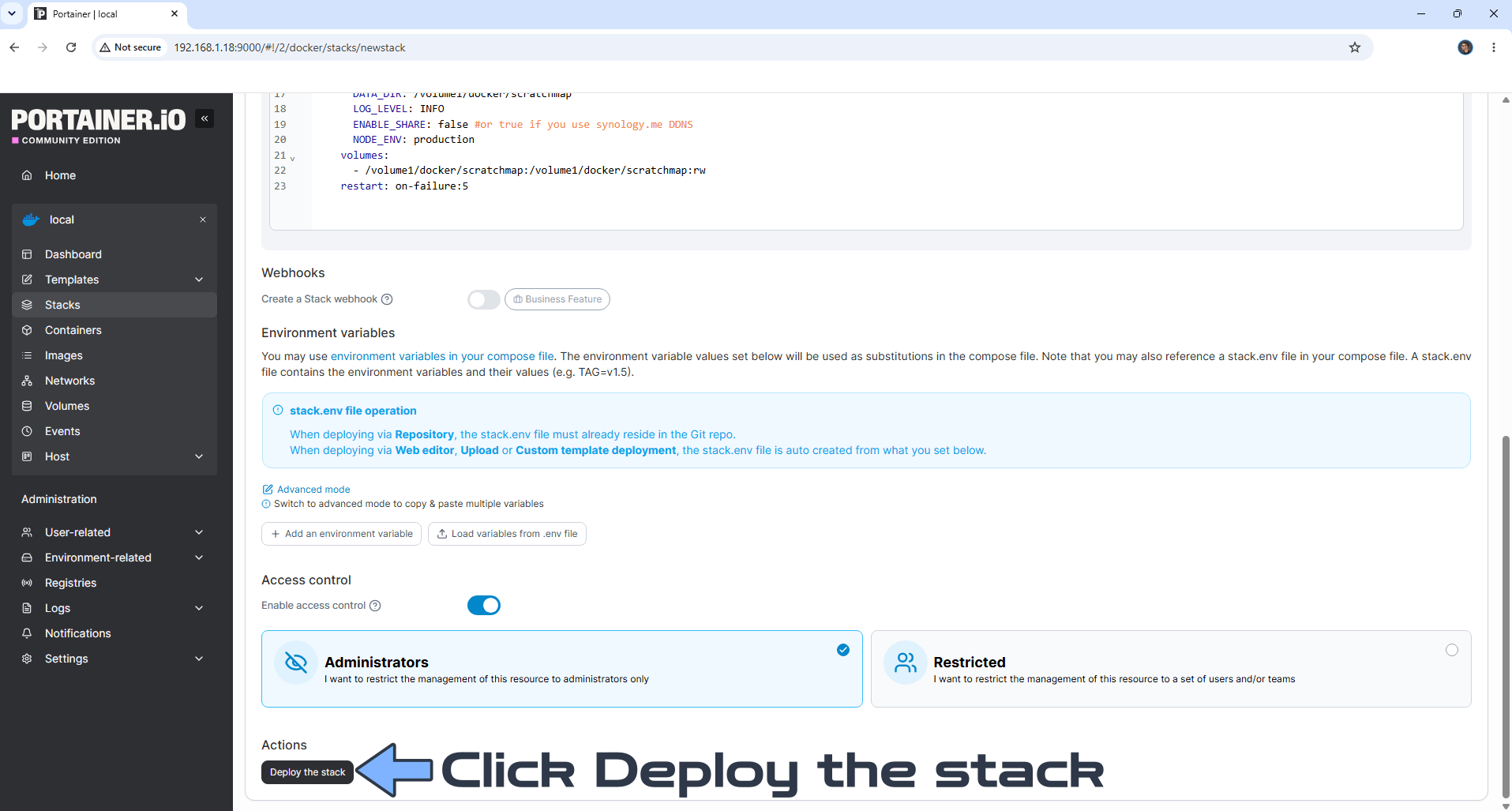

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 8

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

• STEP 9

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:8352 Choose a map from the list. Follow the instructions in the image below.

• STEP 10

Click on a country on the map. Follow the instructions in the image below.

• STEP 11

Type in the year of your visit and the URL that points to your photo album. Click Yes. Follow the instructions in the image below.

Enjoy Scratch Map!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the Scratch Map container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Scratch Map work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the Scratch Map container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
