RustFS is a high-performance distributed object storage software built using Rust, one of the most popular languages worldwide. Along with MinIO, it shares a range of advantages such as simplicity, S3 compatibility, open-source nature, support for data lakes, AI, and big data. Furthermore, it has a better and more user-friendly open-source license in comparison to other storage systems, being constructed under the Apache license. As Rust serves as its foundation, RustFS provides faster speed and safer distributed features for high-performance object storage. In this step by step guide I will show you how to install RustFS on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest RustFS v1.0.0 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

• STEP 4

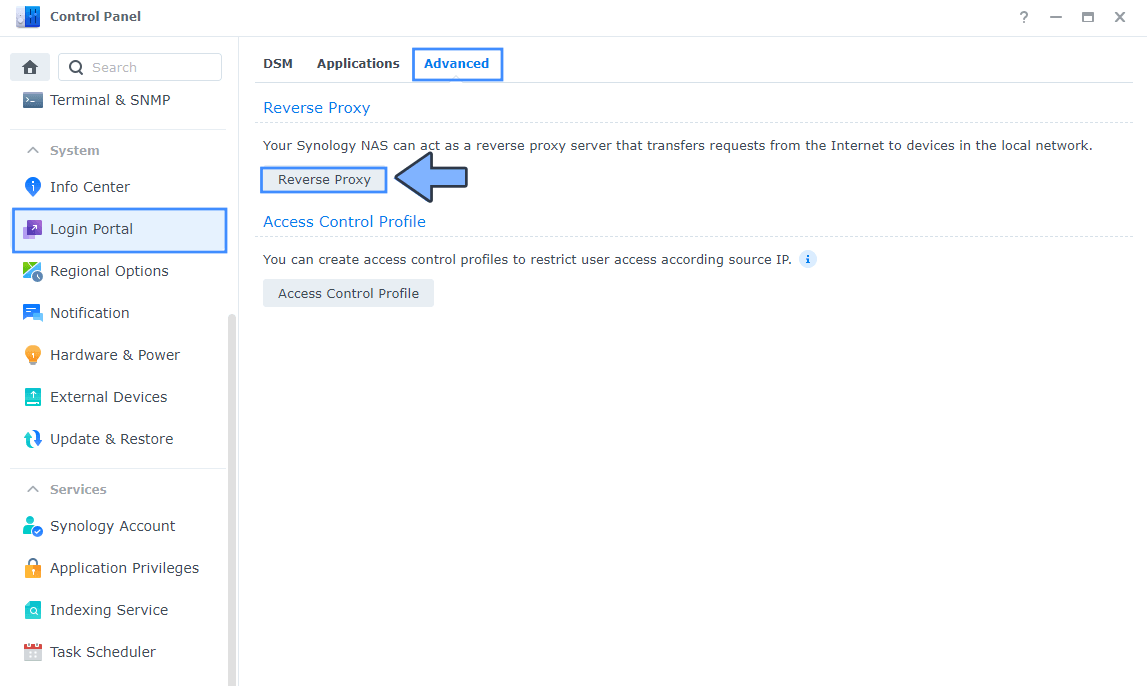

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

• STEP 5

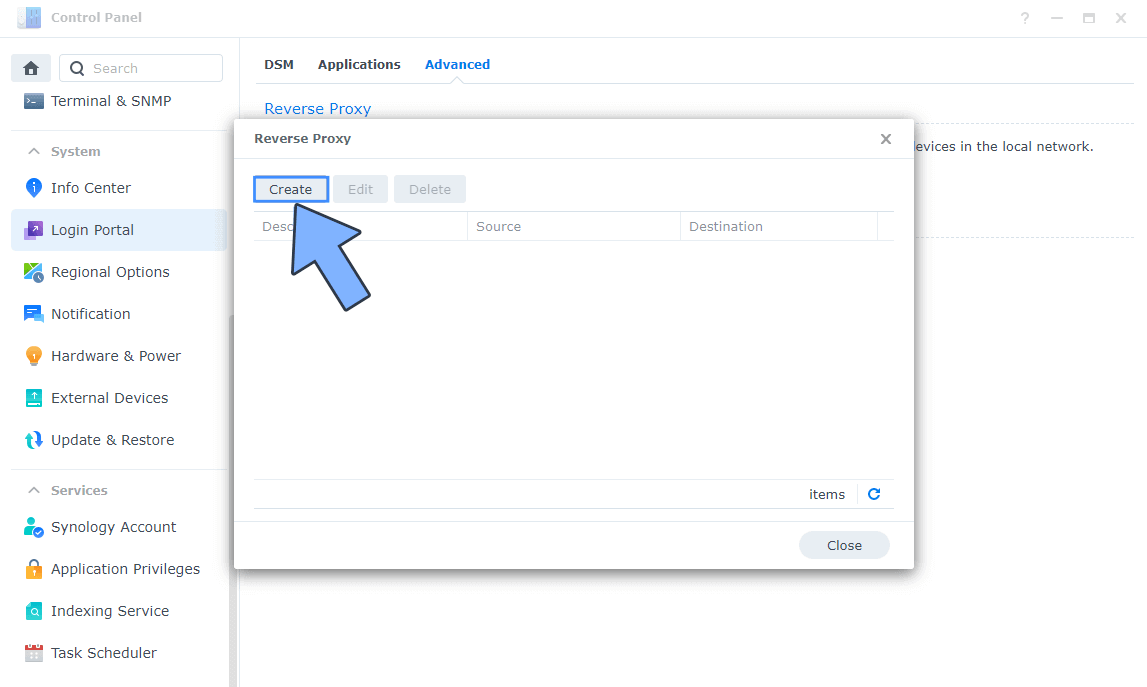

Now click the “Create” button. Follow the instructions in the image below.

• STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

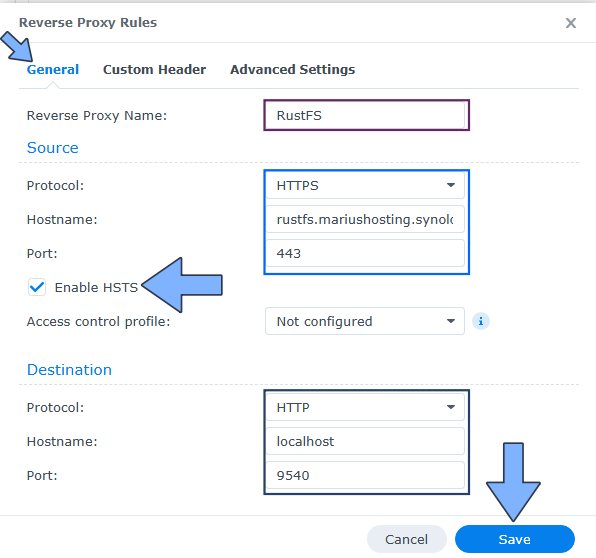

On the General area, set the Reverse Proxy Name description: type in RustFS. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: rustfs.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 9540

• STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

• STEP 8

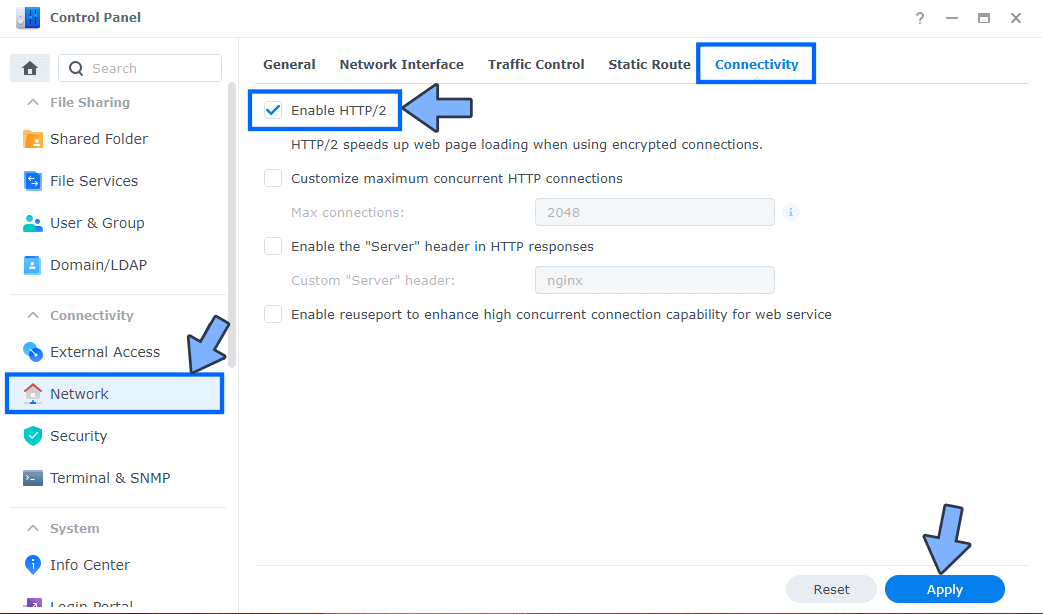

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

• STEP 9

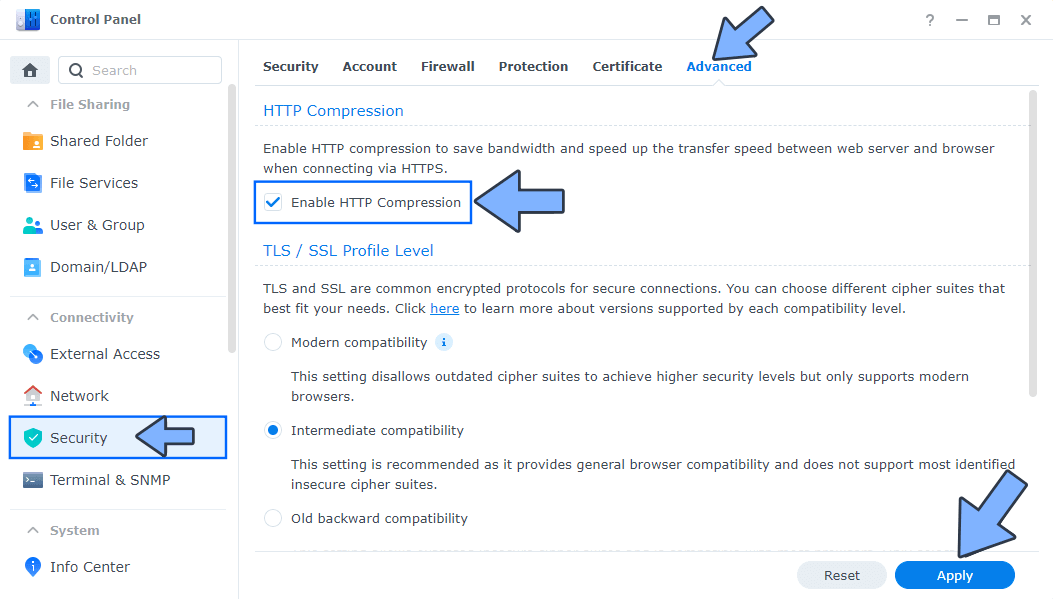

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

• STEP 10

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it rustfs. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 11

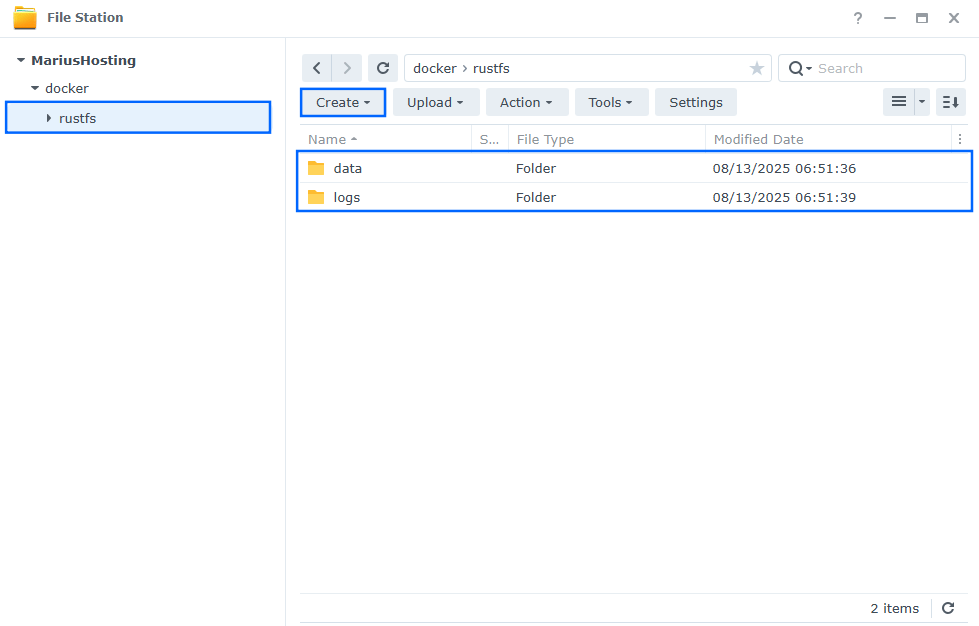

Now create two new folders inside the rustfs folder that you have previously created at STEP 10 and name them data and logs. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 12

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 13

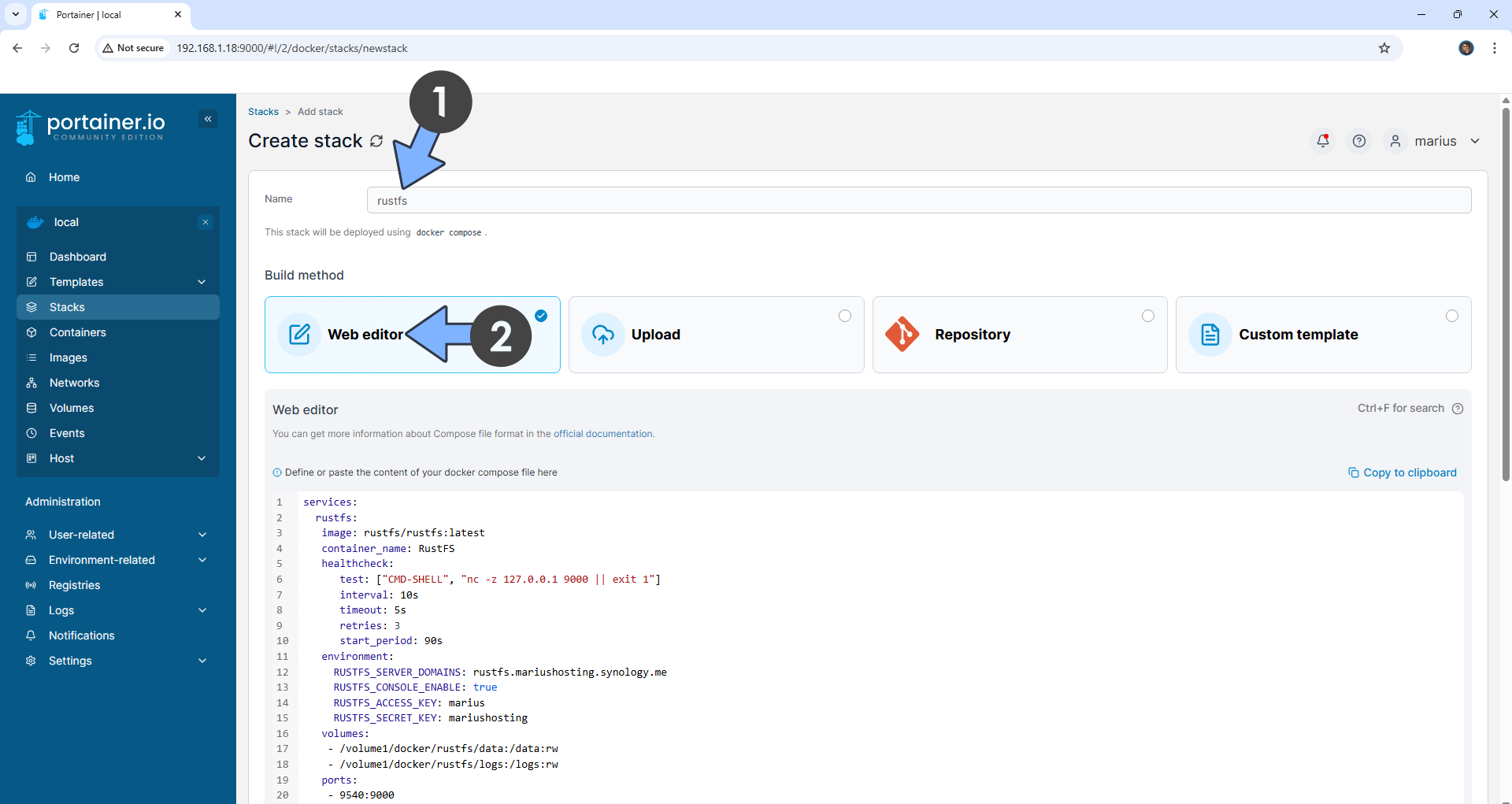

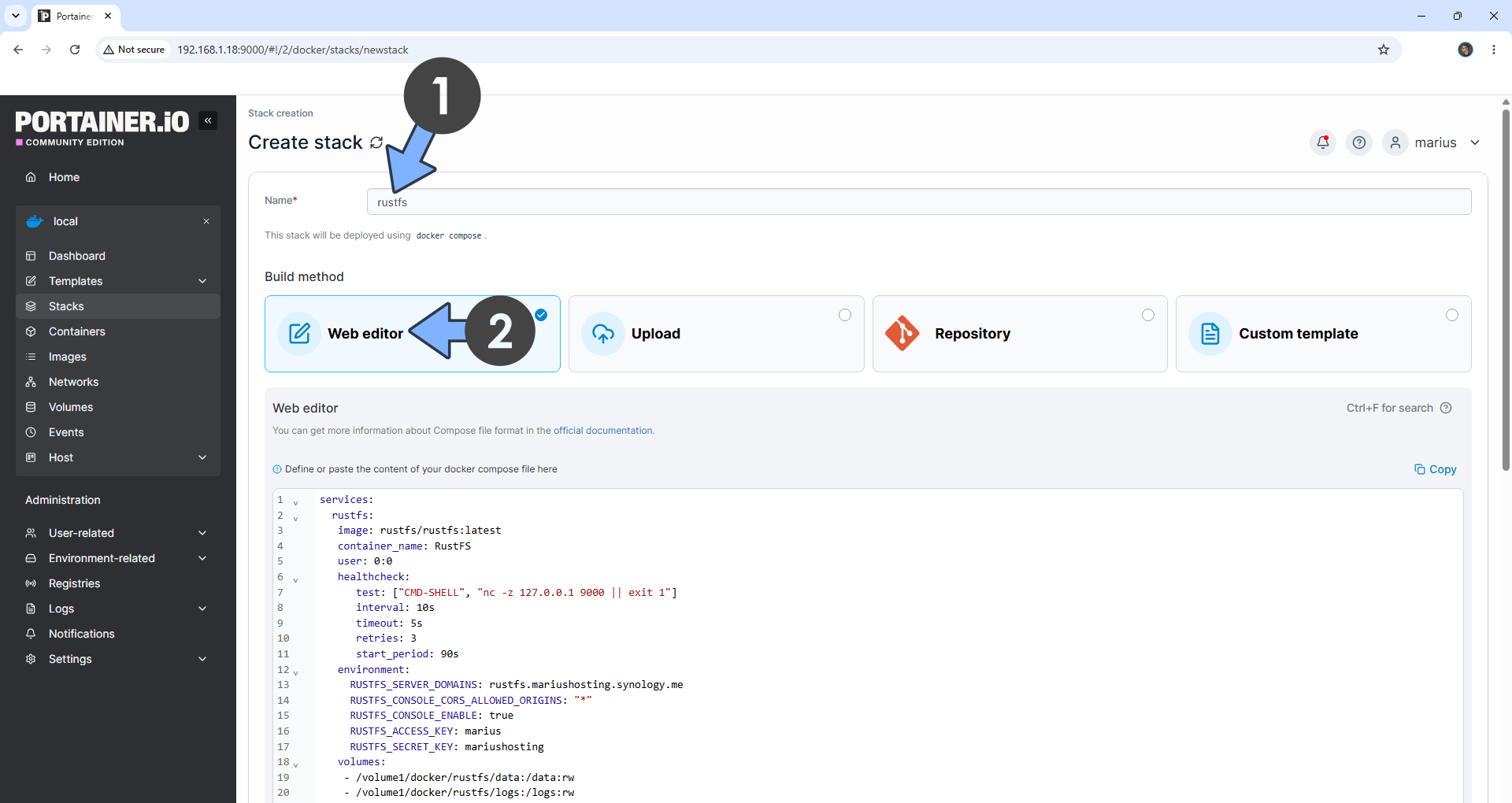

In the Name field type in rustfs. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  rustfs:
   image: rustfs/rustfs:latest
   container_name: RustFS
   healthcheck:
      test: ["CMD-SHELL", "nc -z 127.0.0.1 9000 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
   environment:
     RUSTFS_SERVER_DOMAINS: rustfs.yourname.synology.me
     RUSTFS_CONSOLE_ENABLE: true
     RUSTFS_ACCESS_KEY: marius
     RUSTFS_SECRET_KEY: mariushosting
   volumes:
    - /volume1/docker/rustfs/data:/data:rw
    - /volume1/docker/rustfs/logs:/logs:rw
   ports:
    - 9540:9000
   restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for RUSTFS_SERVER_DOMAINS and type in your own synology.me DDNS with https:// at the beginning that you have previously created at STEP 6.
Note: Before you paste the code above in the Web editor area below, change the value for RUSTFS_ACCESS_KEY. Type in your own username. marius is an example for a username.
Note: Before you paste the code above in the Web editor area below, change the value for RUSTFS_SECRET_KEY. Type in your own password. mariushosting is an example for a password.

• STEP 14

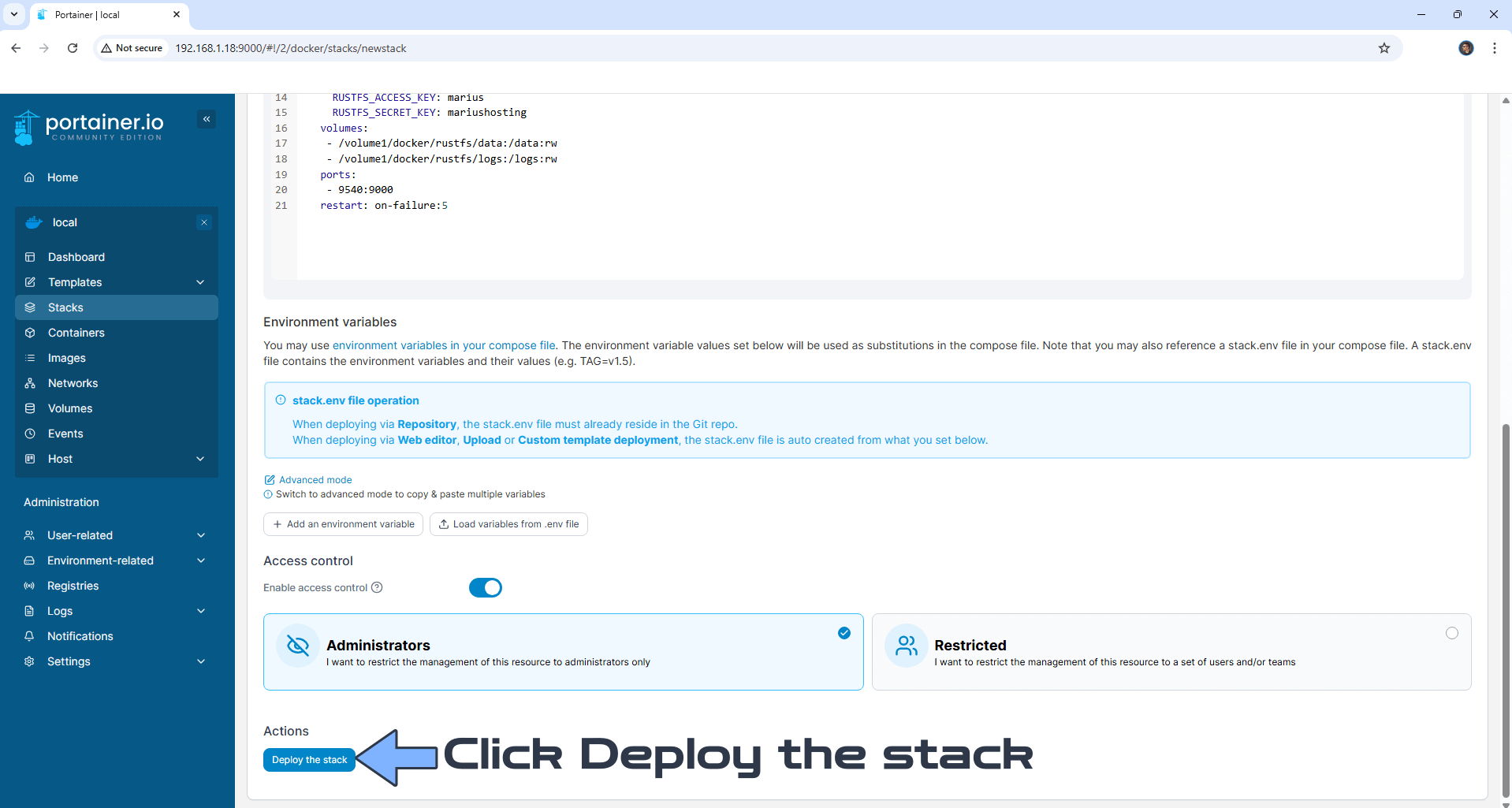

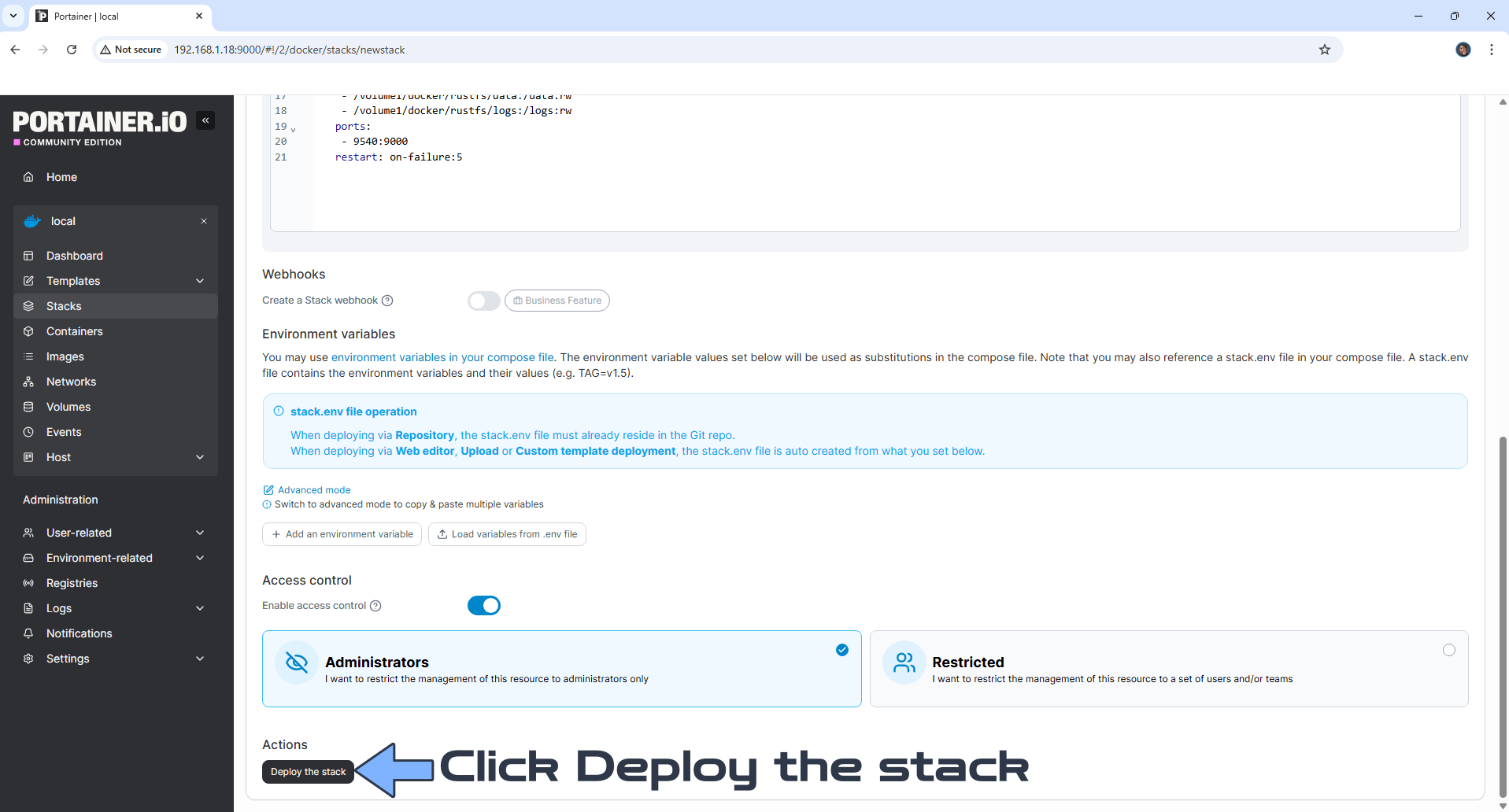

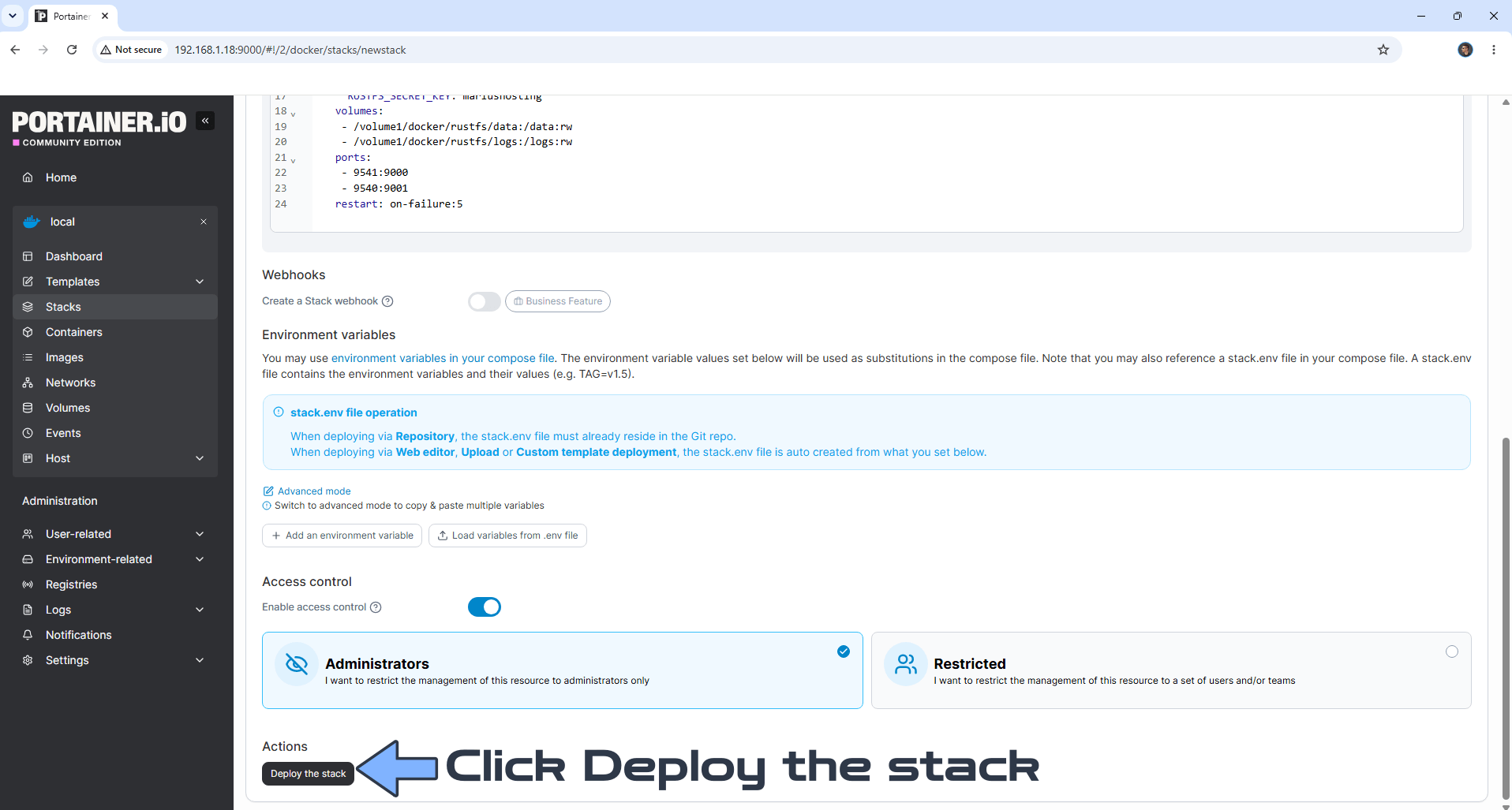

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 15

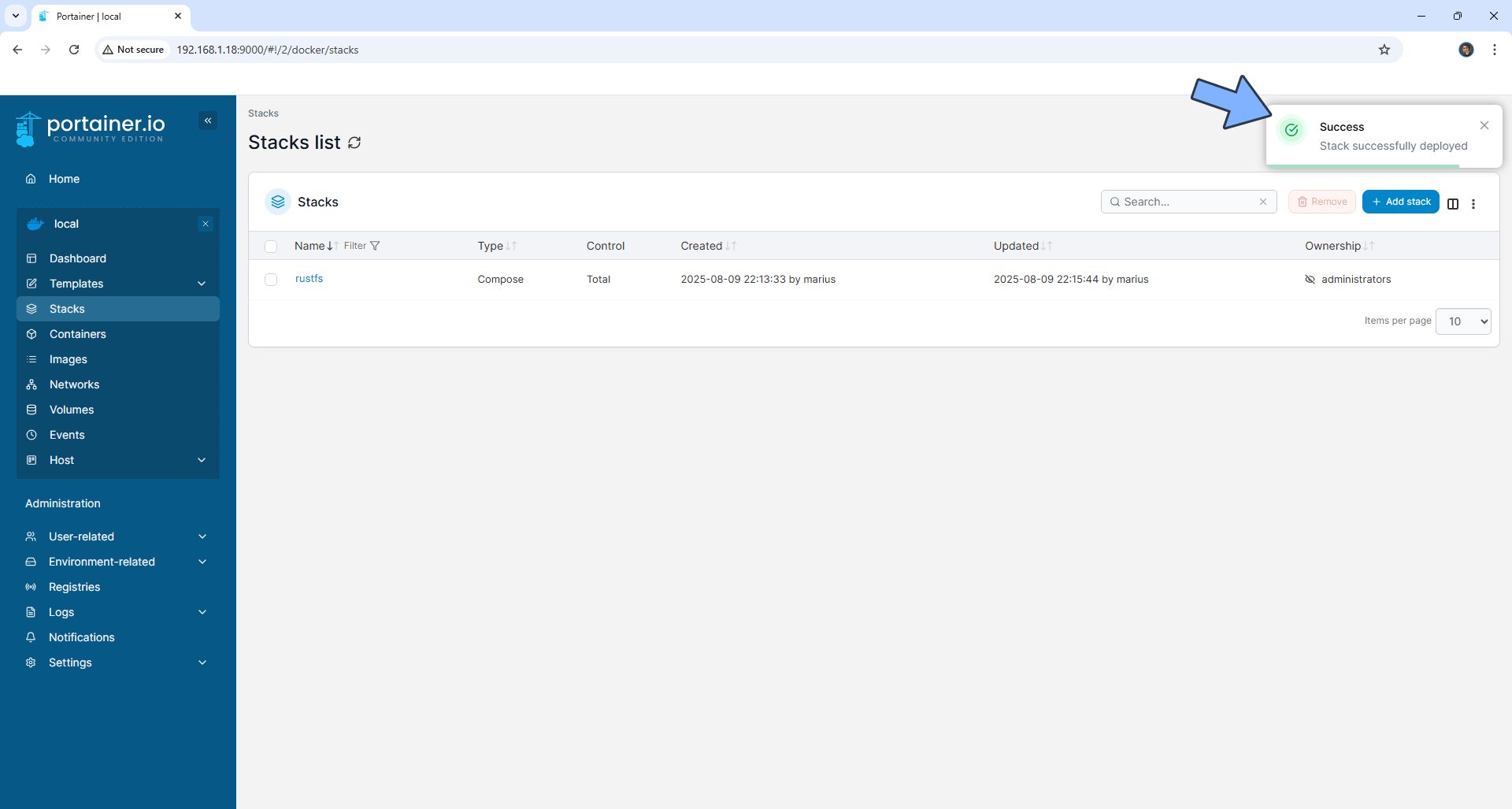

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 16

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

• STEP 17

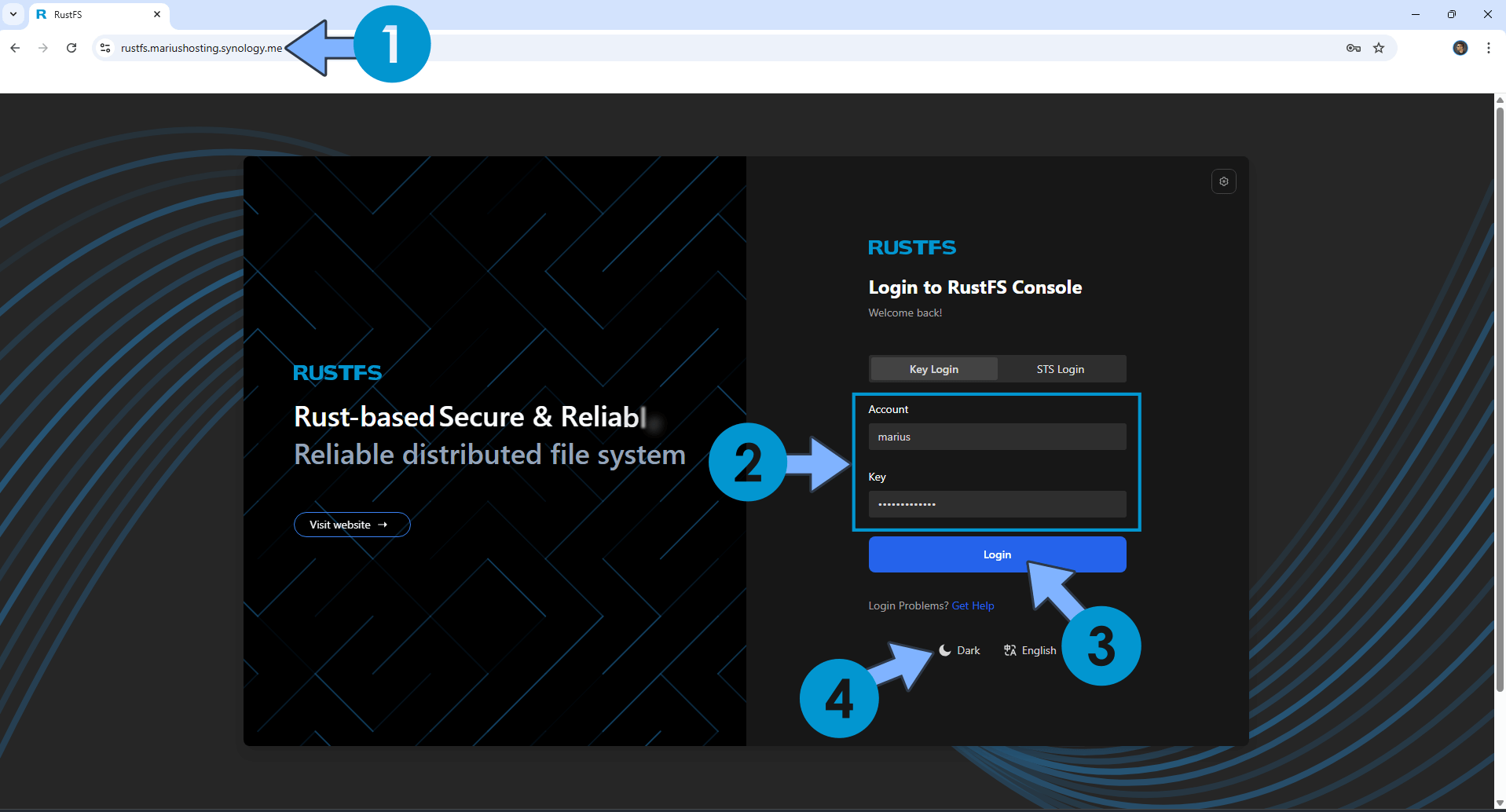

Now open your browser and type in your HTTPS/SSL certificate like this https://rustfs.yourname.synology.me In my case it’s https://rustfs.mariushosting.synology.me If everything goes right, you will see the RustFS Login page. In the Account area, type in your own Username (RUSTFS_ACCESS_KEY) that you have previously added at STEP 13. In the Key area, type in your own Password (RUSTFS_SECRET_KEY) that you have previously added at STEP 13. Switch the theme to Dark. Click Login. Follow the instructions in the image below.

• STEP 18

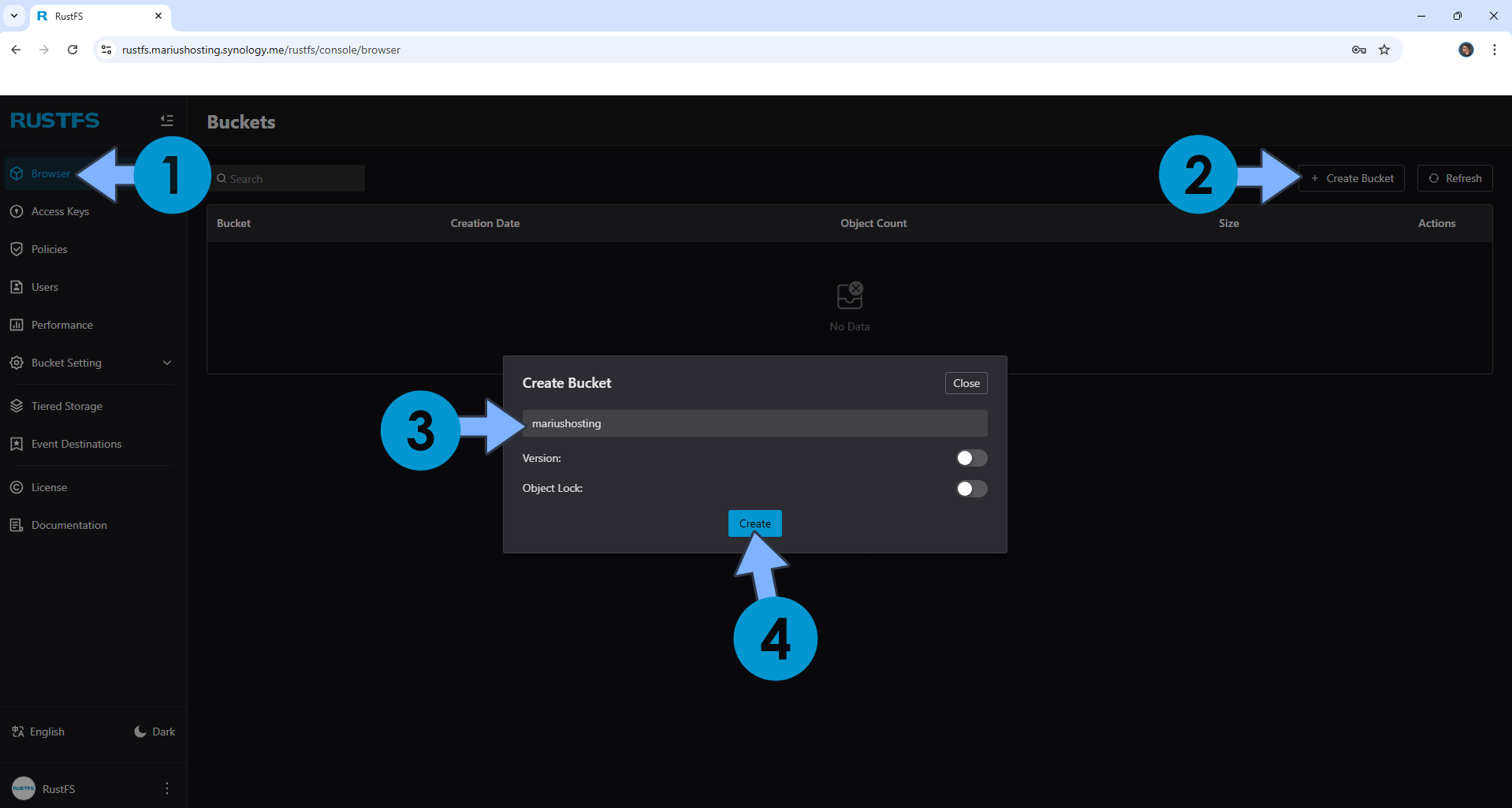

On the left sidebar, click Browser. Click + Create Bucket. Type in a name for the Bucket. Click Create. Follow the instructions in the image below.

• STEP 19

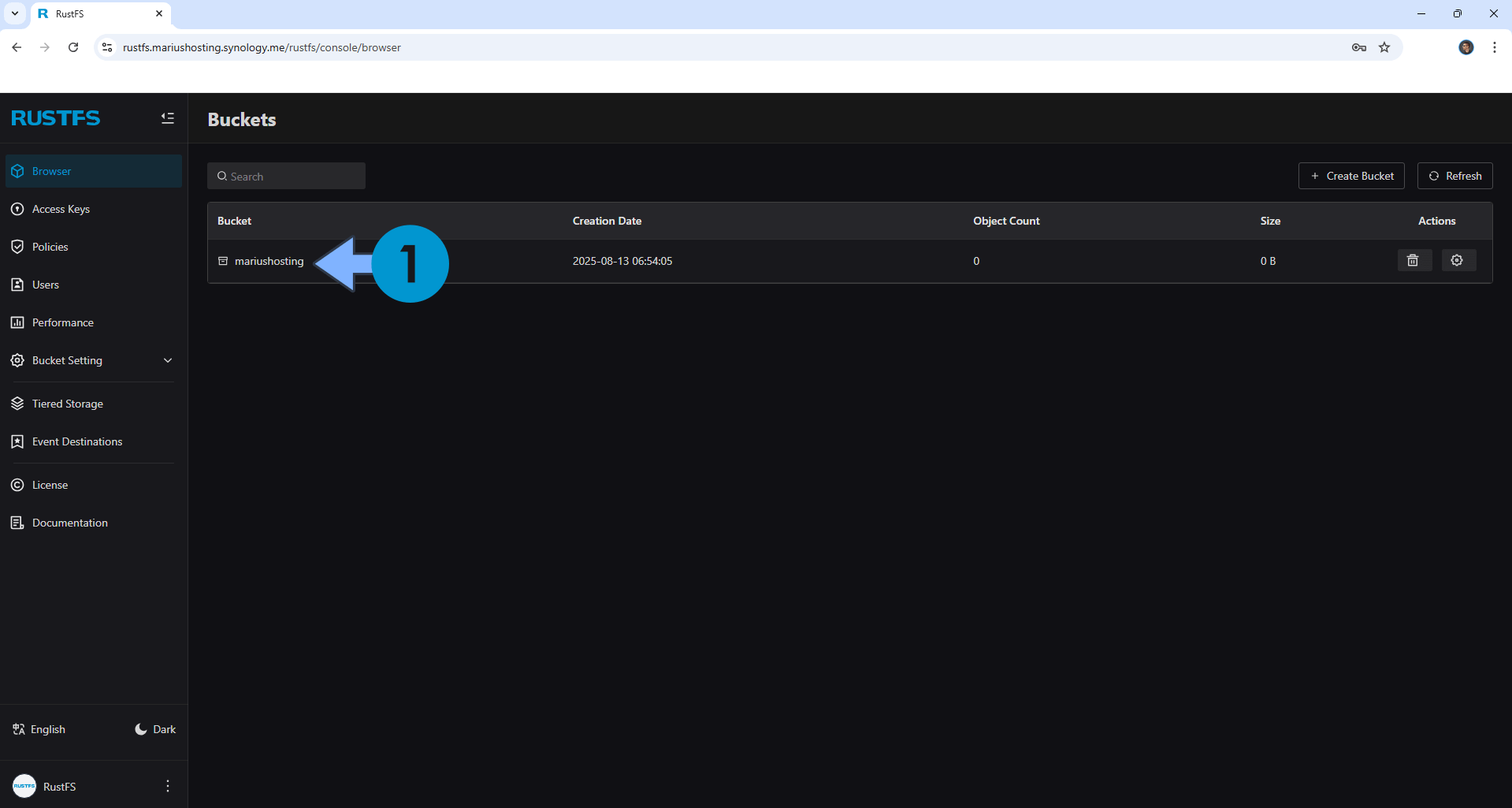

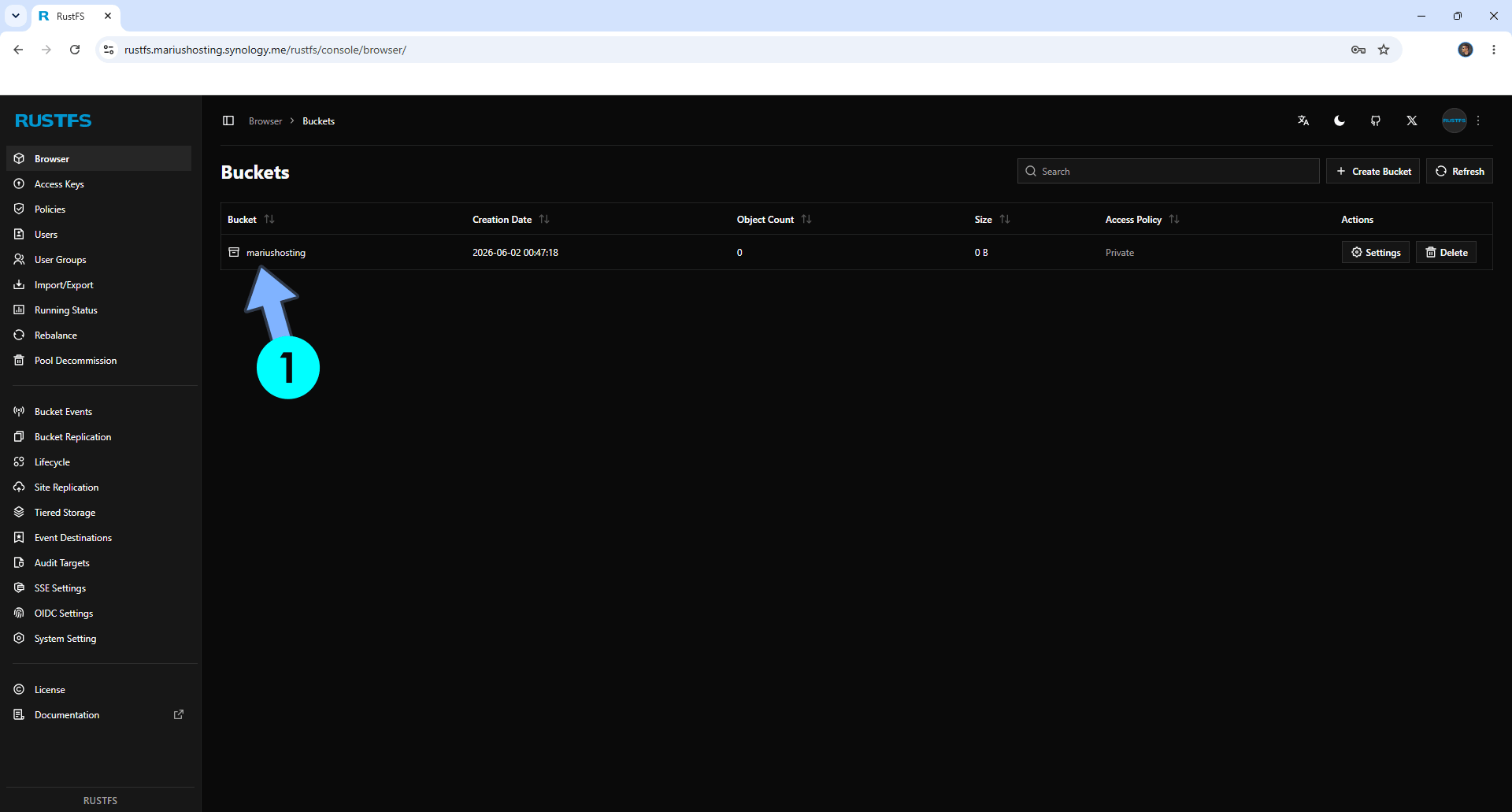

Click on your Bucket that you have previously created at STEP 18. Follow the instructions in the image below.

• STEP 20

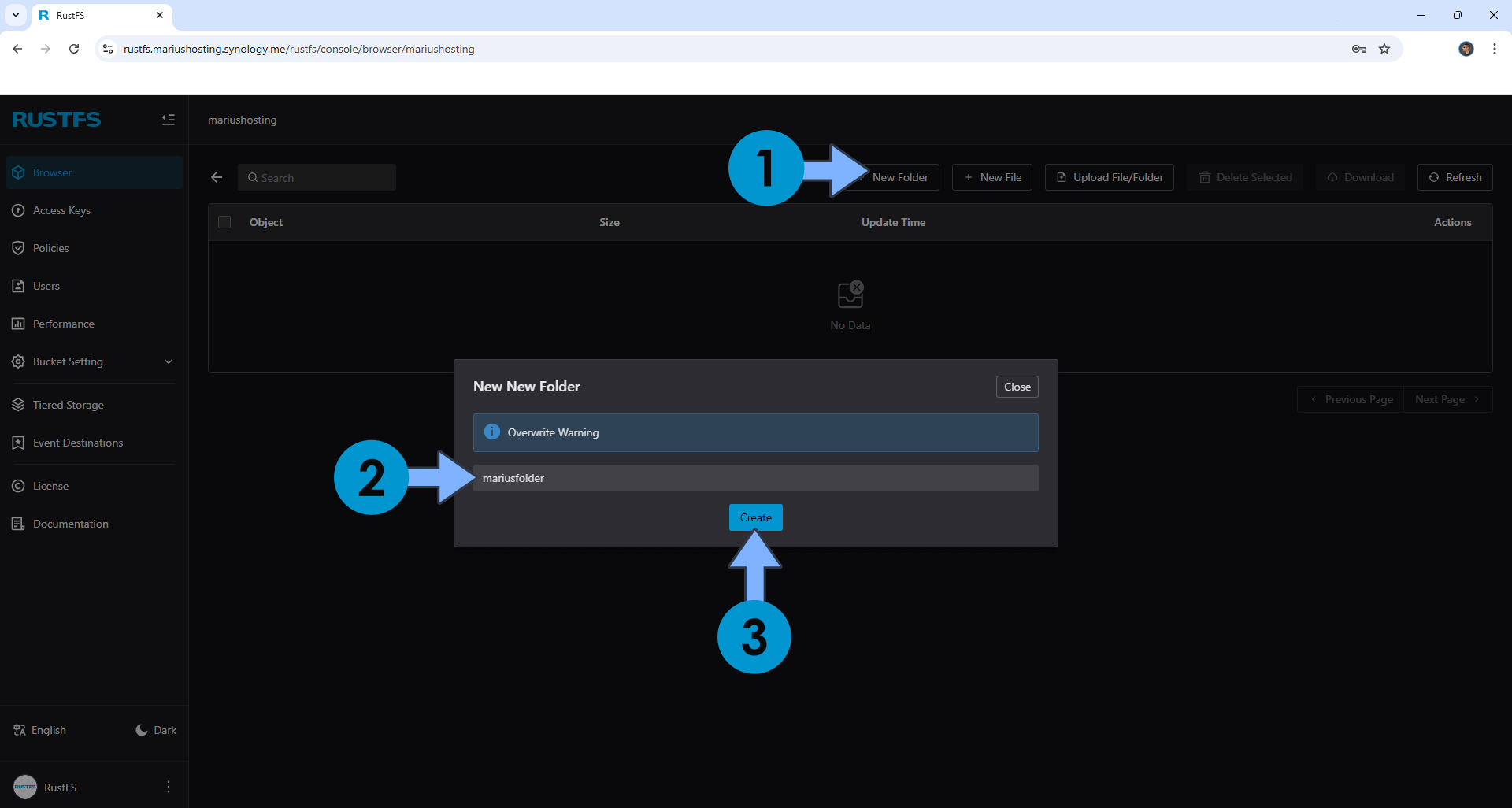

Create a new folder inside the Bucket. Click + New Folder. Type in a name for the folder. Click Create. Follow the instructions in the image below.

• STEP 21

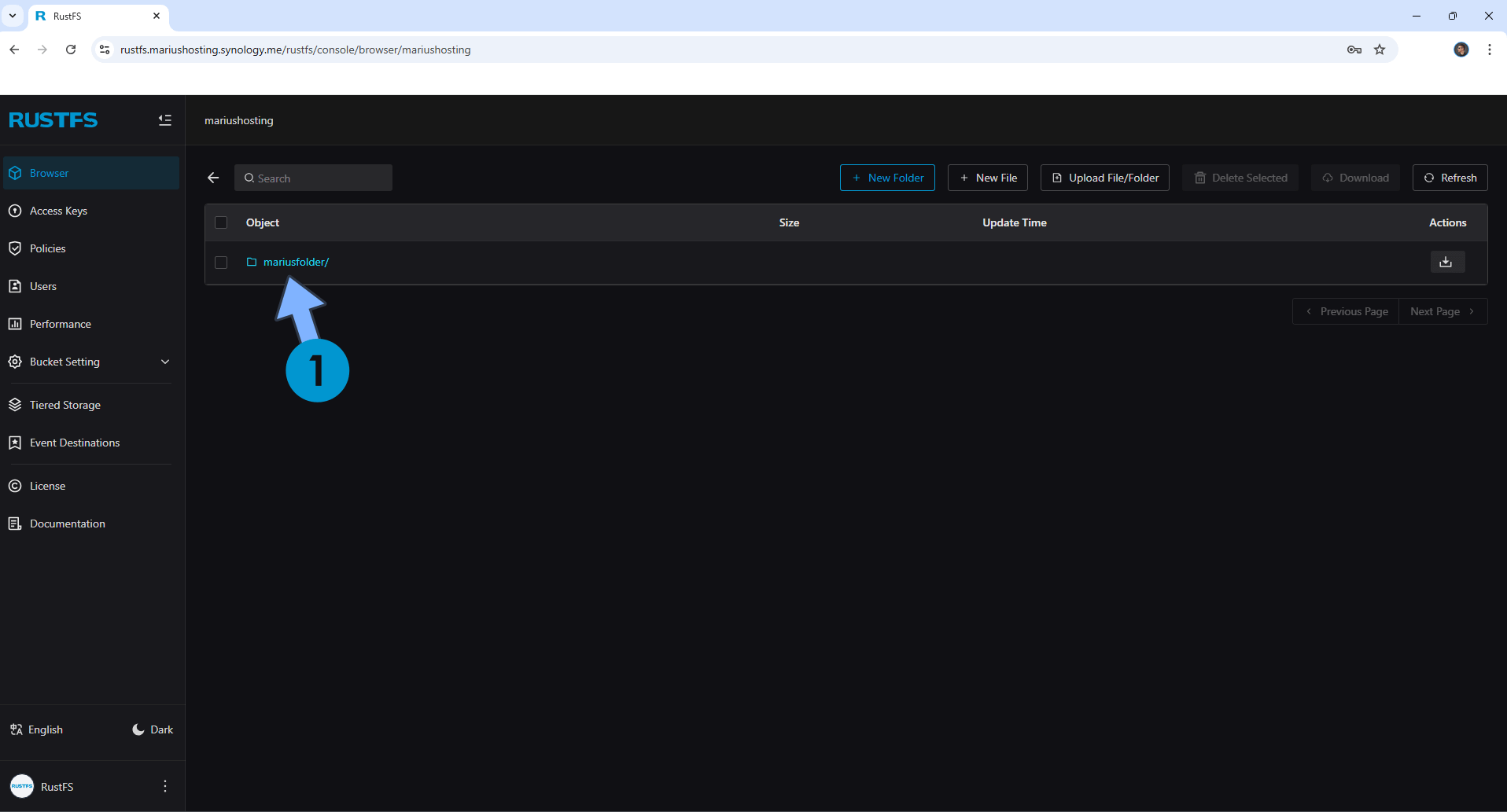

Click on your folder that you have previously created at STEP 20. Follow the instructions in the image below.

• STEP 22

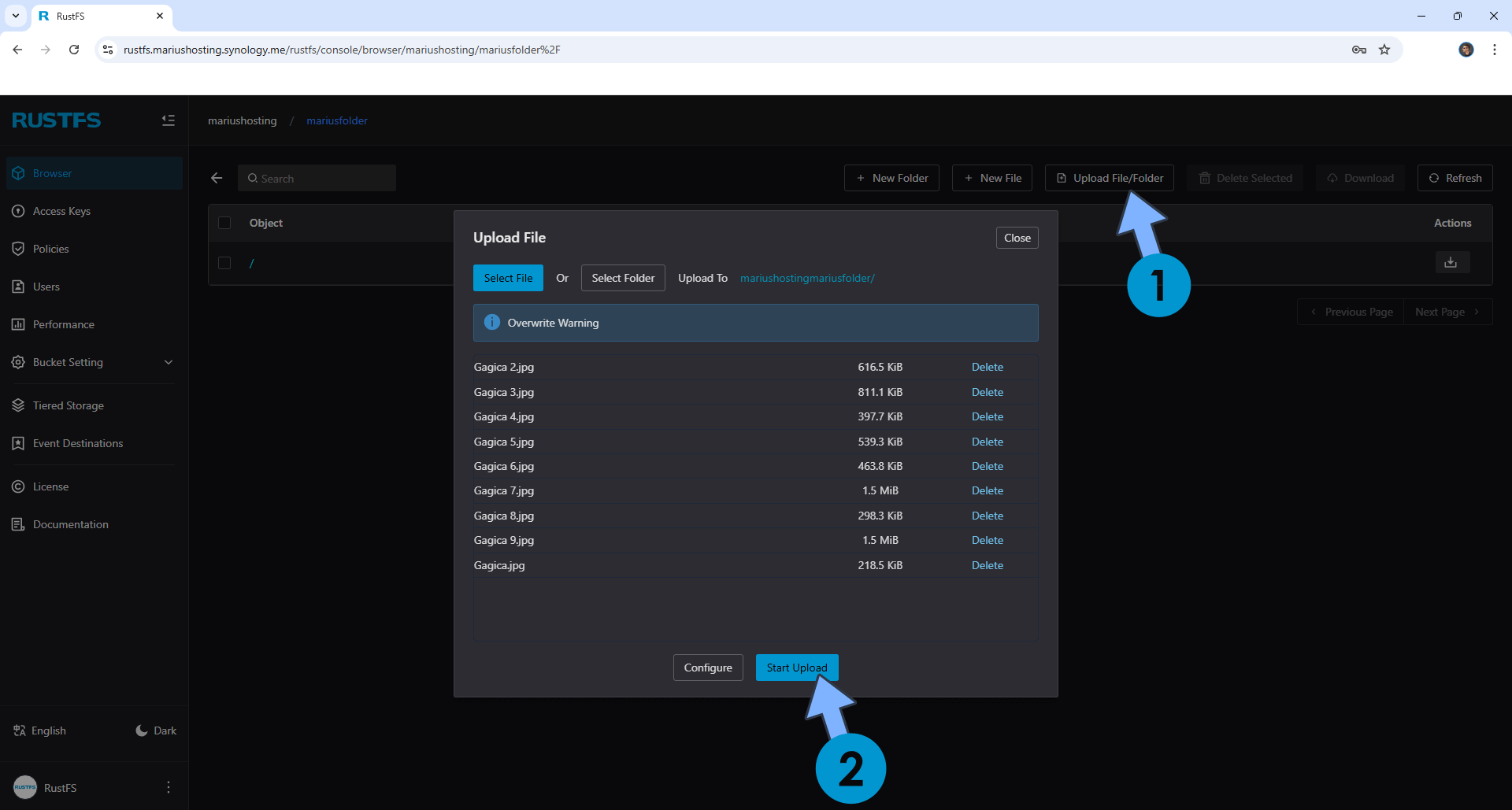

Click Upload File/Folder to upload your own files, then click Start Upload. Follow the instructions in the image below.

• STEP 23

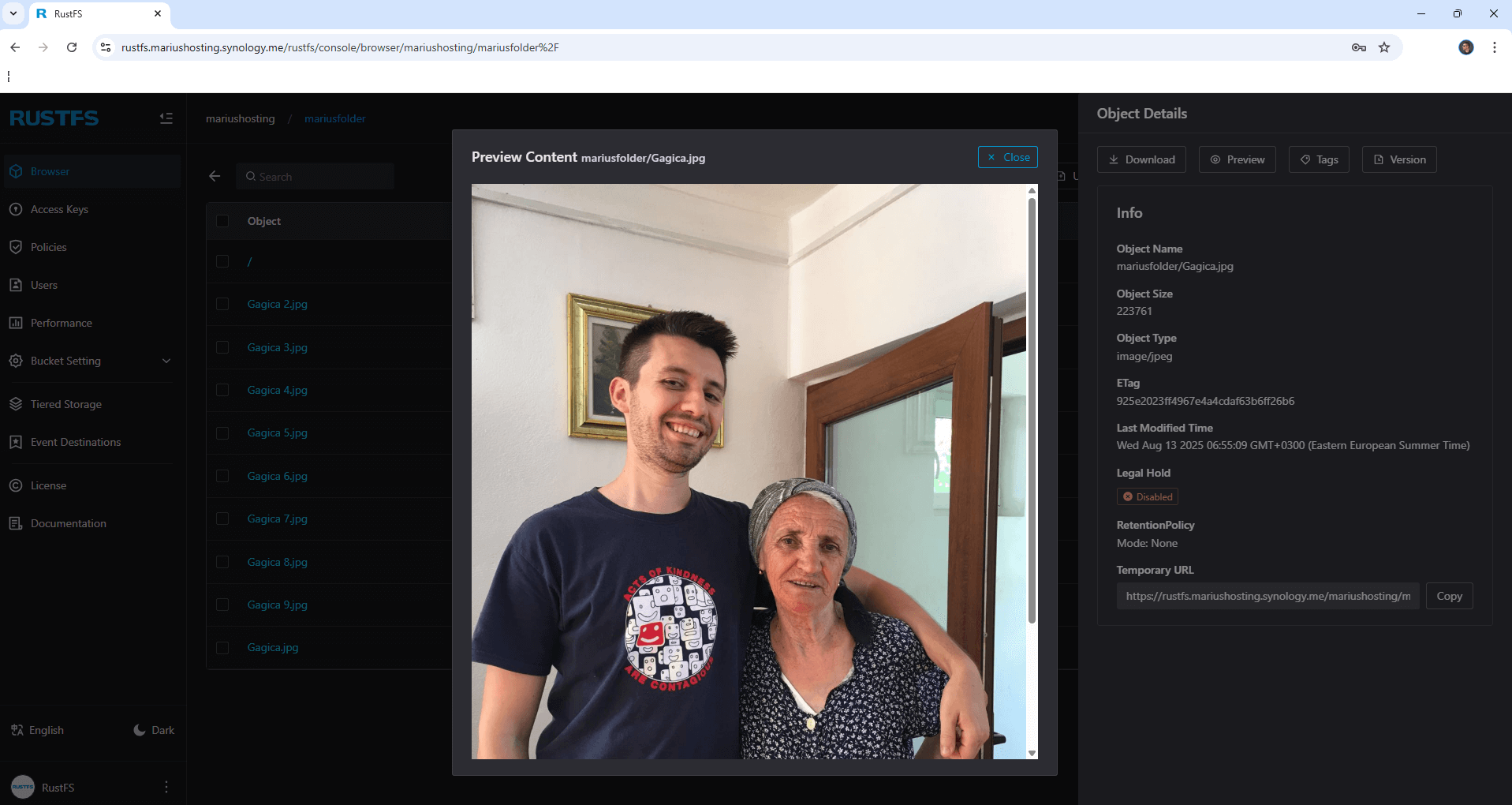

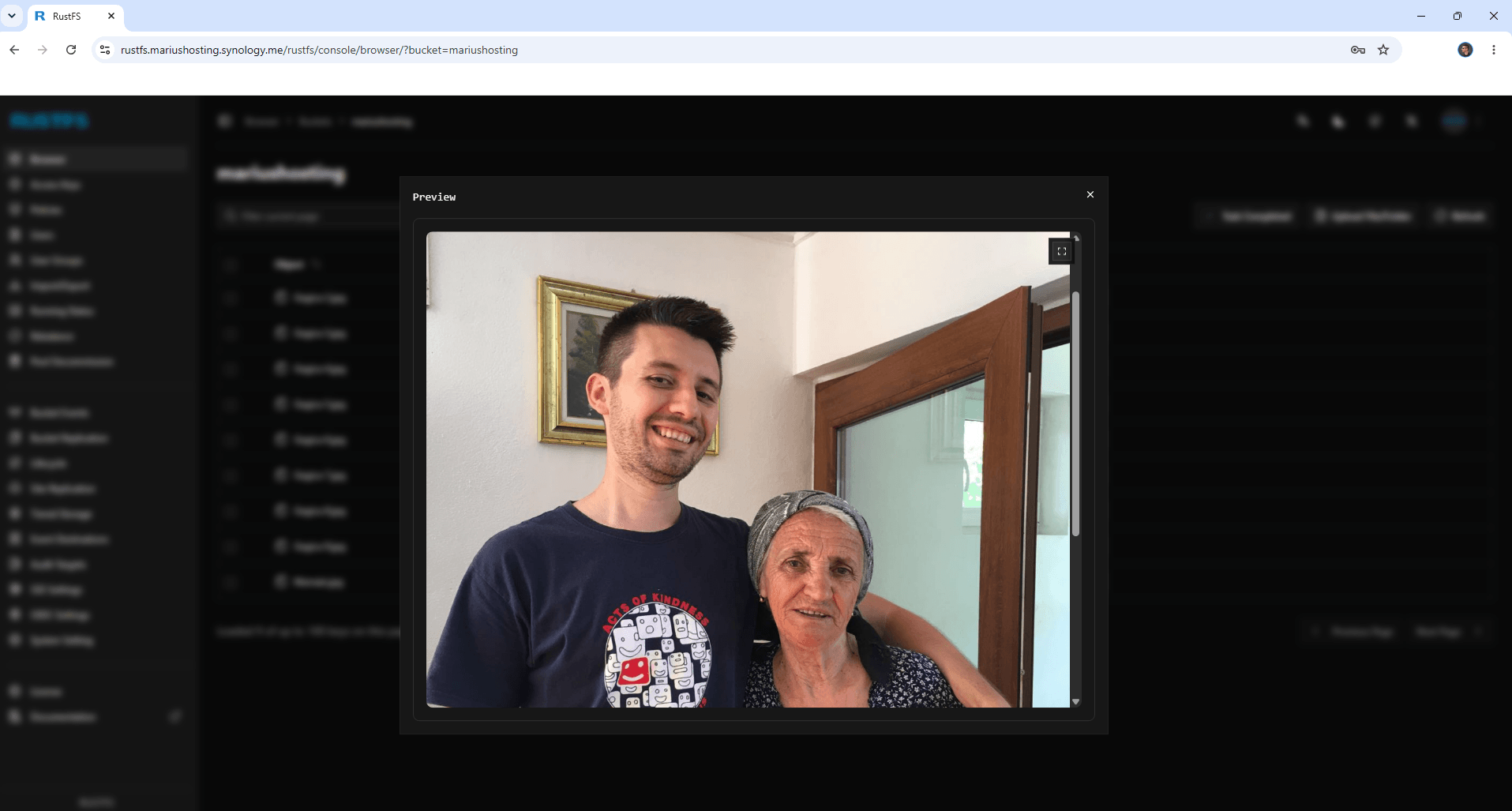

Your files at a glance!

• STEP 24

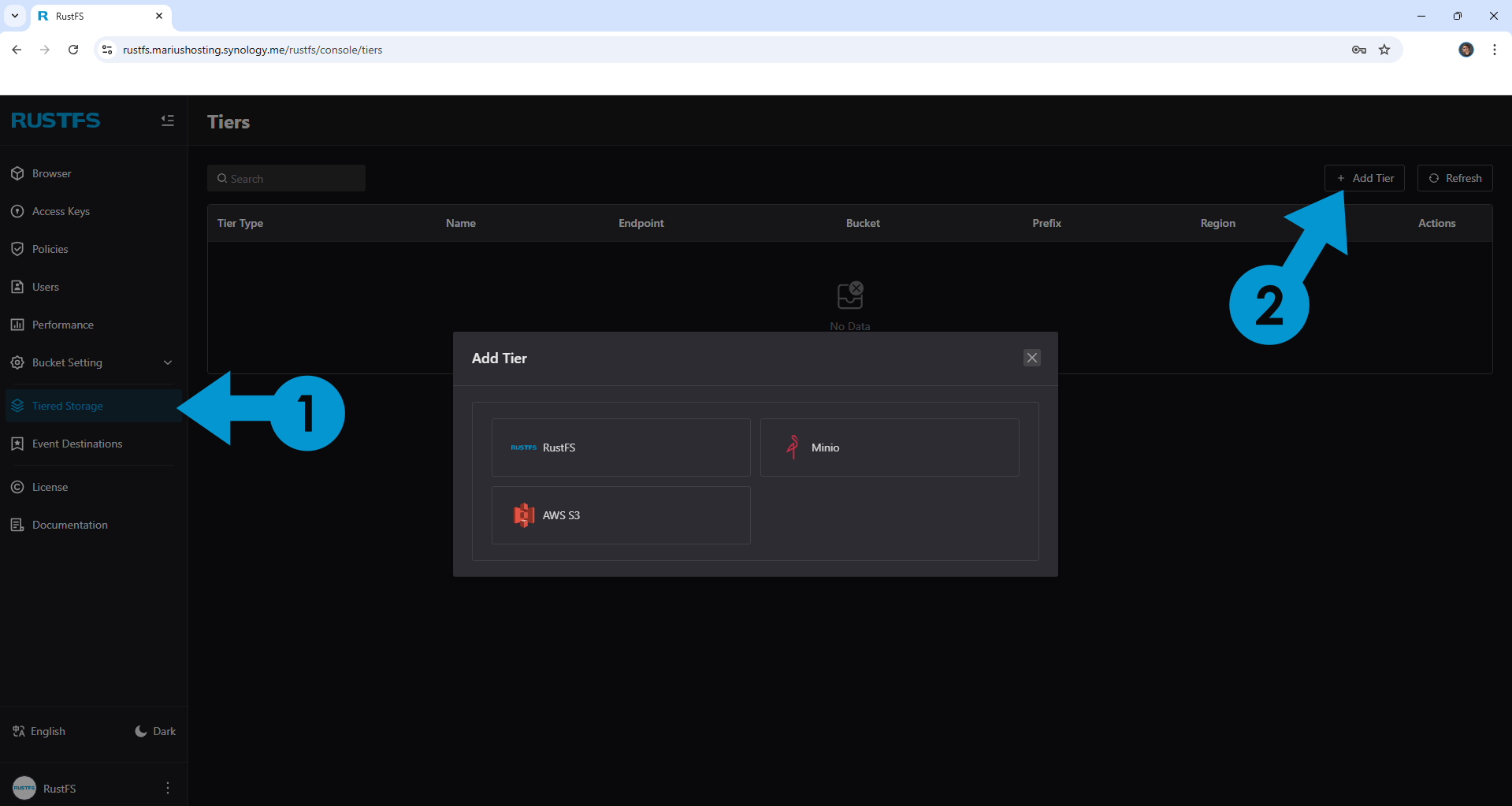

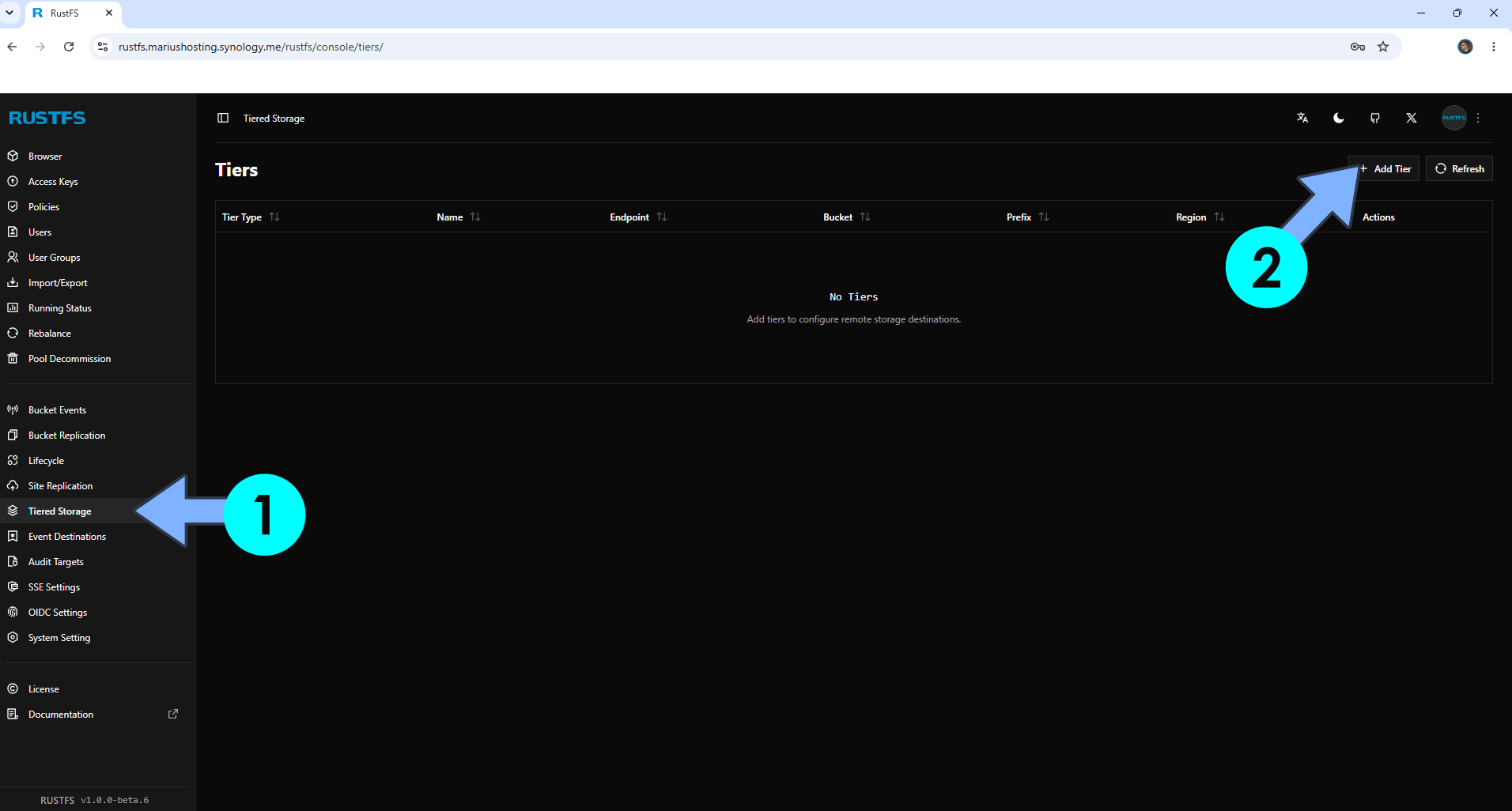

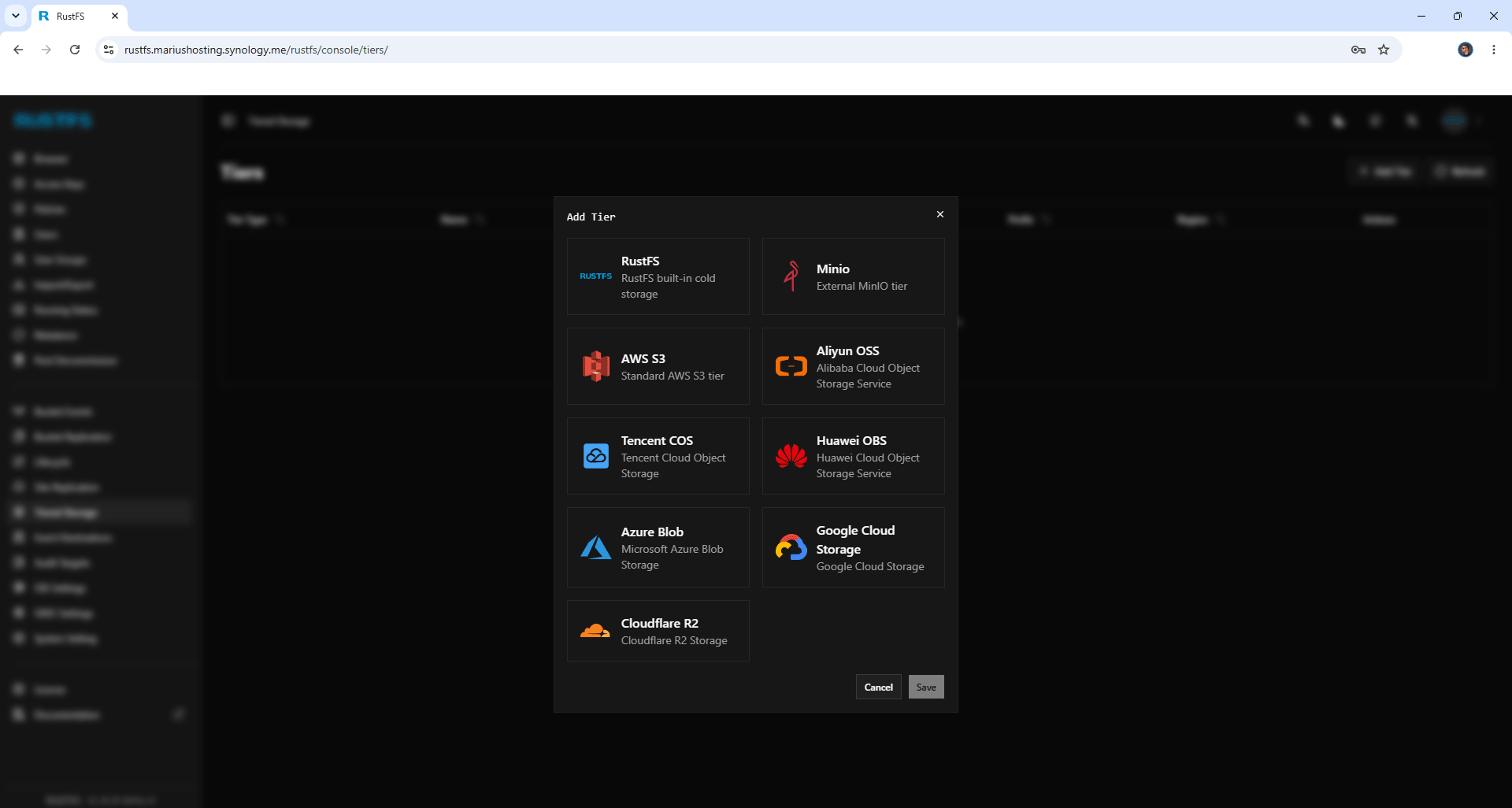

Add Multiple Storage. On the left sidebar, click Tiered Storage then + Add Tier. Follow the instructions in the image below.

• STEP 25

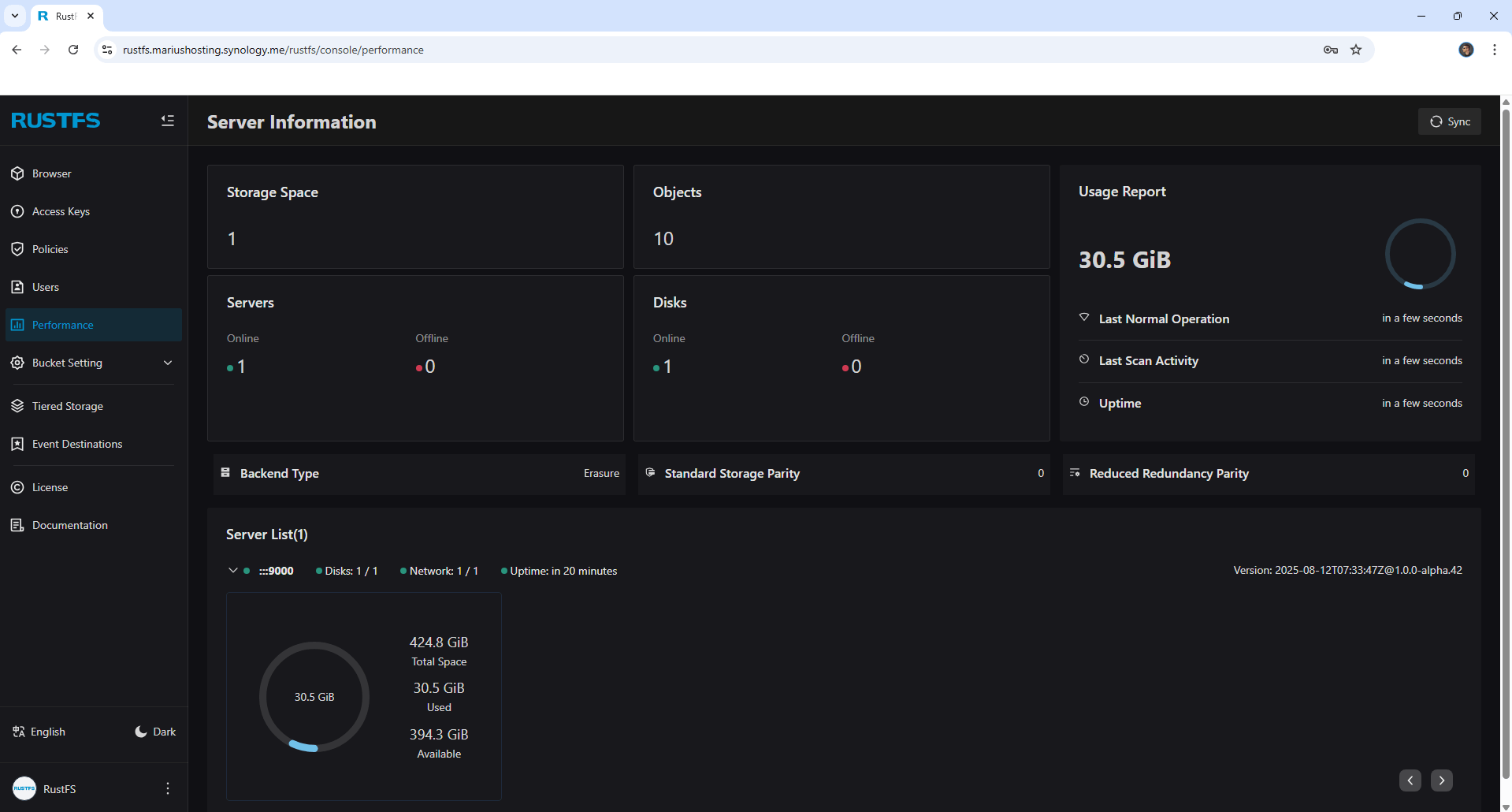

Your RustFS dashboard at a glance!

Enjoy RustFS!
