Peppermint is a ticket management system that helps helpdesks and service desks manage internal staff and customer requests. In this step by step guide I will show you how to install Peppermint on your Synology NAS using Docker & Portainer.
This guide works perfectly with the latest Peppermint 0.4.6 release.
STEP 1
Please Support My work by Making a Donation.
STEP 2
Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.
STEP 3
Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.
STEP 4
Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.
STEP 5
Now click the “Create” button. Follow the instructions in the image below.
STEP 6
After you click the Create button, the window below will open. Follow the instructions in the image below.
On the General area, set the Reverse Proxy Name description: type in Peppermint. After that, add the following instructions:
Source:
Protocol: HTTPS
Hostname: peppermint.yourname.synology.me
Port: 443
Check Enable HSTS
Destination:
Protocol: HTTP
Hostname: localhost
Port: 3560
STEP 7
On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.
STEP 8
Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.
STEP 9
Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.
STEP 10
Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it peppermint. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.
STEP 11
Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.
STEP 12
In the Name field type in peppermint. Follow the instructions in the image below.
version: "3.9"
services:
peppermint:
container_name: Peppermint
image: pepperlabs/peppermint:latest
ports:
- 3560:3000
- 5006:5003
restart: on-failure:5
depends_on:
- db
healthcheck:
test: curl -f http://localhost:3000/ || exit 1
interval: 30s
timeout: 10s
retries: 3
environment:
DB_USERNAME: peppermintuser
DB_PASSWORD: peppermintpass
DB_HOST: db
SECRET: mariushosting
BASE_URL: https://peppermint.yourname.synology.me
db:
image: postgres:16
container_name: Peppermint-DB
hostname: db
mem_limit: 512m
cpu_shares: 768
security_opt:
- no-new-privileges:true
healthcheck:
test: ["CMD", "pg_isready", "-q", "-d", "peppermint", "-U", "peppermintuser"]
timeout: 45s
interval: 10s
retries: 10
volumes:
- /volume1/docker/peppermint:/var/lib/postgresql/data:rw
environment:
POSTGRES_DB: peppermint
POSTGRES_USER: peppermintuser
POSTGRES_PASSWORD: peppermintpass
restart: on-failure:5
Note: Before you paste the code above in the Web editor area, change the value for SECRET and add your own password. mariushosting is an example for a secret password.
Note: Before you paste the code above in the Web editor area, change the value for BASE_URL and add your own synology.me DDNS that you have previously created at STEP 6 with https:// at the beginning.
STEP 13

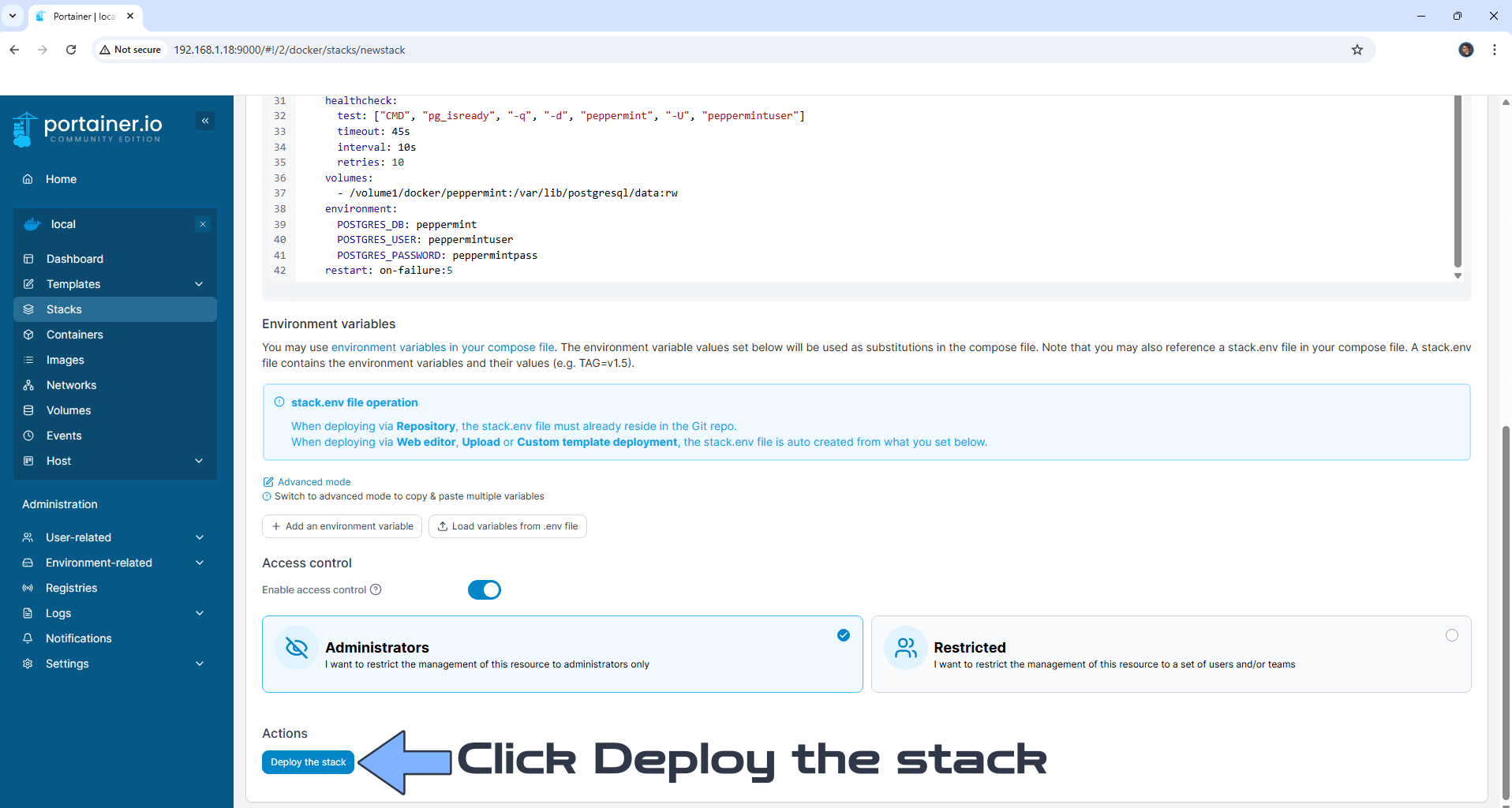

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.
STEP 14
If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.
STEP 15
Go back to STEP 1 or you will deal with karma 🙂.
STEP 16
Now open your browser and type in your HTTPS/SSL certificate like this https://peppermint.yourname.synology.me In my case it’s https://peppermint.mariushosting.synology.me If everything goes right, you will see the Peppermint Login page. Type in the default Email address, then click Sign in. Follow the instructions in the image below.
STEP 17
Type in the default default Password, then click Sign in. Follow the instructions in the image below.
STEP 18
Click To dashboard. Follow the instructions in the image below.
STEP 19
At the top right of the page click on your profile icon then change the Profile data with your own data. Click Save and Reload. Follow the instructions in the image below.
STEP 20
Change the default password with your own password. Click Update Password. Follow the instructions in the image below.
STEP 21
Follow the instructions on how to set up email notifications on Peppermint.
STEP 22
Create your first ticket. Follow the instructions in the image below.
Enjoy Peppermint!
