Obsidian is a personal knowledge base and note-taking software application that operates on Markdown files. It allows users to make internal links for notes and then to visualize the connections as a graph. It is designed to help users organize and structure their thoughts and knowledge in a flexible, non-linear way. On April 7, 2024, LinuxServer released a new Obsidian image in their repository. In this step by step guide I will show you how to install Obsidian using LinuxServer ImageĀ on yourĀ Synology NASĀ usingĀ DockerĀ &Ā Portainer.

šŸ’”Note: This guide works perfectly with the latest version of Obsidian v1.8.4

šŸ’”Note: Check out my previous Obsidian v1.8.4 guide with the official Obsidian Image.

šŸ’”Note: Check out my new guide on how to Install Obsidian on Your UGREEN NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go toĀ File StationĀ and open the docker folder. Inside the docker folder, create one new folder and name itĀ obsidian. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

How to Install Obsidian Using LinuxServer Image on Your Synology NAS 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 5

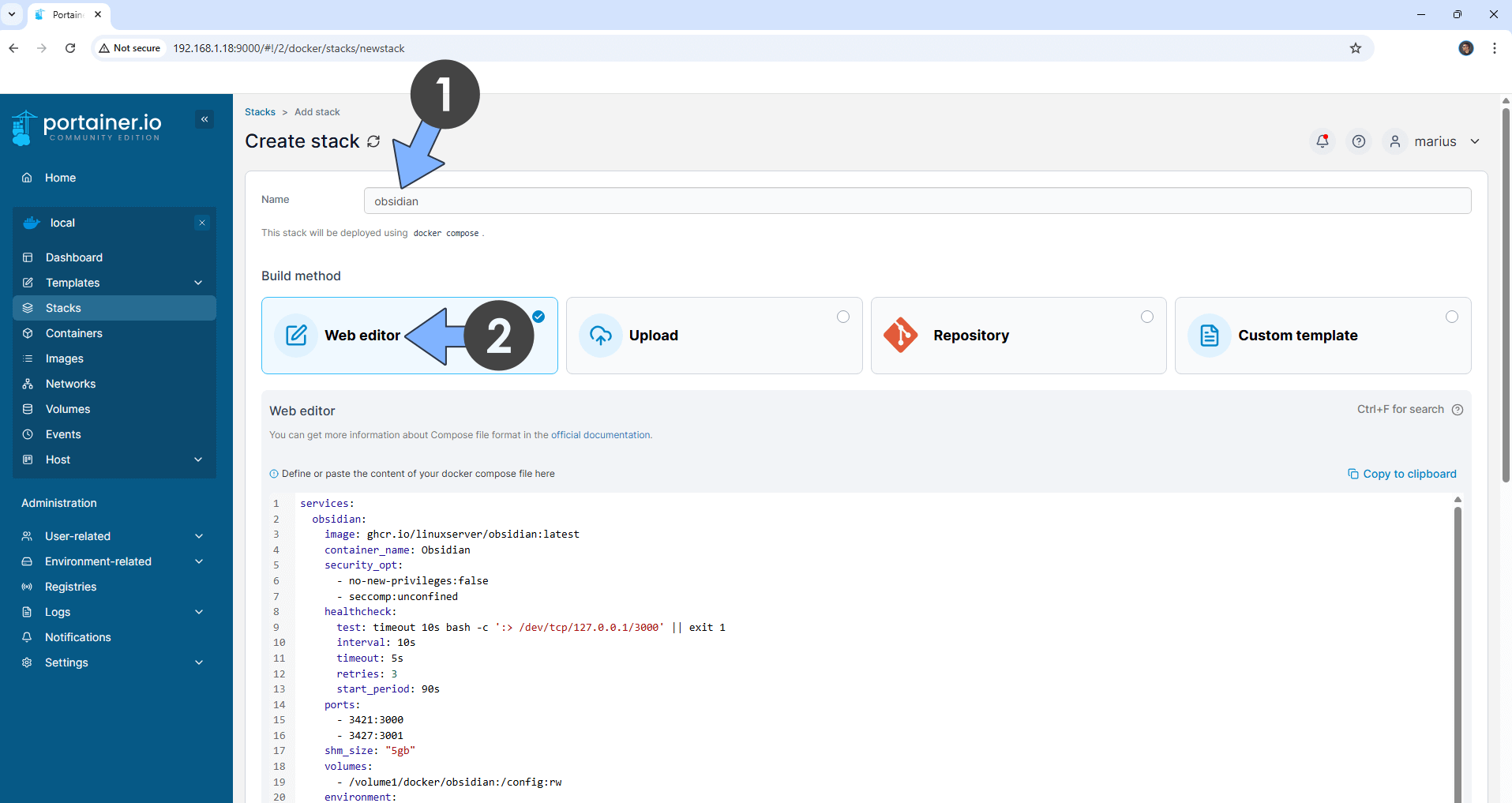

In the Name field type in obsidian. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  obsidian:
    image: ghcr.io/linuxserver/obsidian:latest
    container_name: Obsidian
    security_opt:
      - no-new-privileges:false
      - seccomp:unconfined
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/3000' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    ports:
      - 3421:3000
    shm_size: "5gb"
    volumes:
      - /volume1/docker/obsidian:/config:rw
    environment:
      CUSTOM_USER: marius
      PASSWORD: mariushosting
      PUID: 1026
      PGID: 100
      TZ: Europe/Bucharest
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for CUSTOM_USER. Type in your own username. marius is an example for a username.
Note: Before you paste the code above in the Web editor area below, change the value for PASSWORD. Type in your own password. mariushosting is an example for a password.
Note: Before you paste the code above in the Web editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUIDĀ andĀ PGIDĀ with your own values. (Follow my step by step guide on how to do this.)

How to Install Obsidian on Your Synology Linuxserver NAS 1 new 2025

  • STEP 6

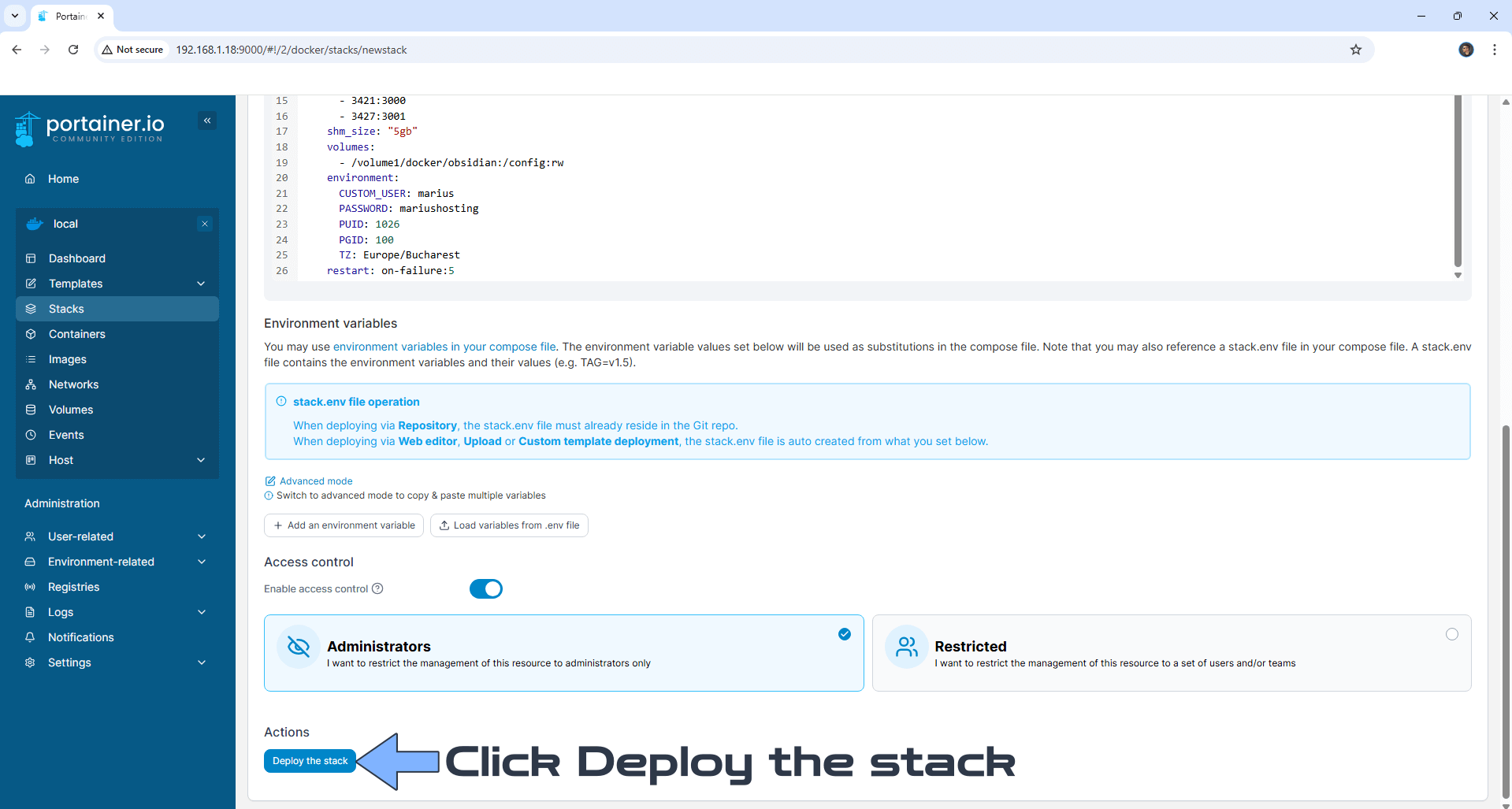

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

How to Install Obsidian on Your Synology Linuxserver NAS 2 new 2025

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

How to Install Obsidian on Your Synology Linuxserver NAS 3 new 2025

  • STEP 8

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 9

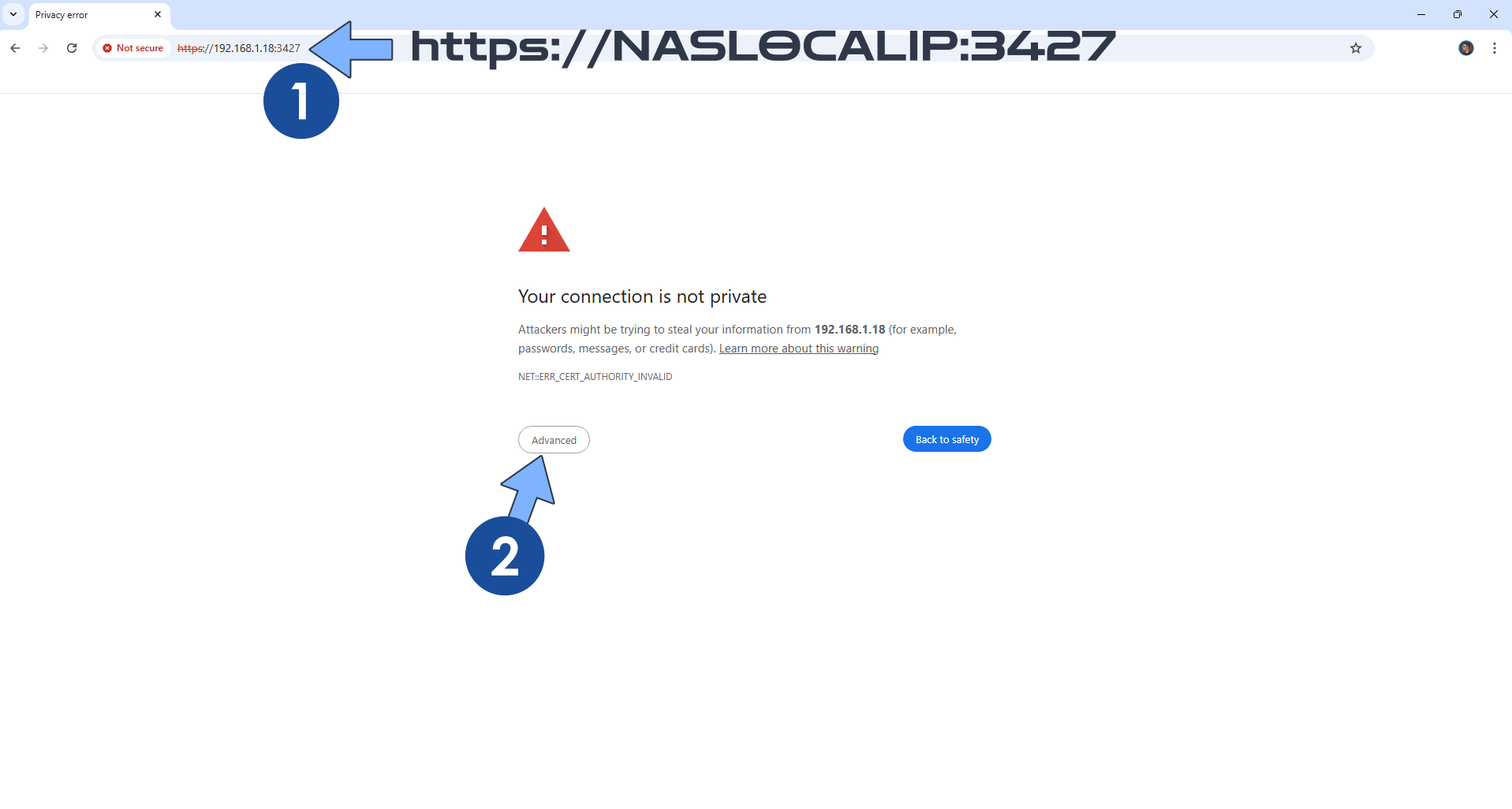

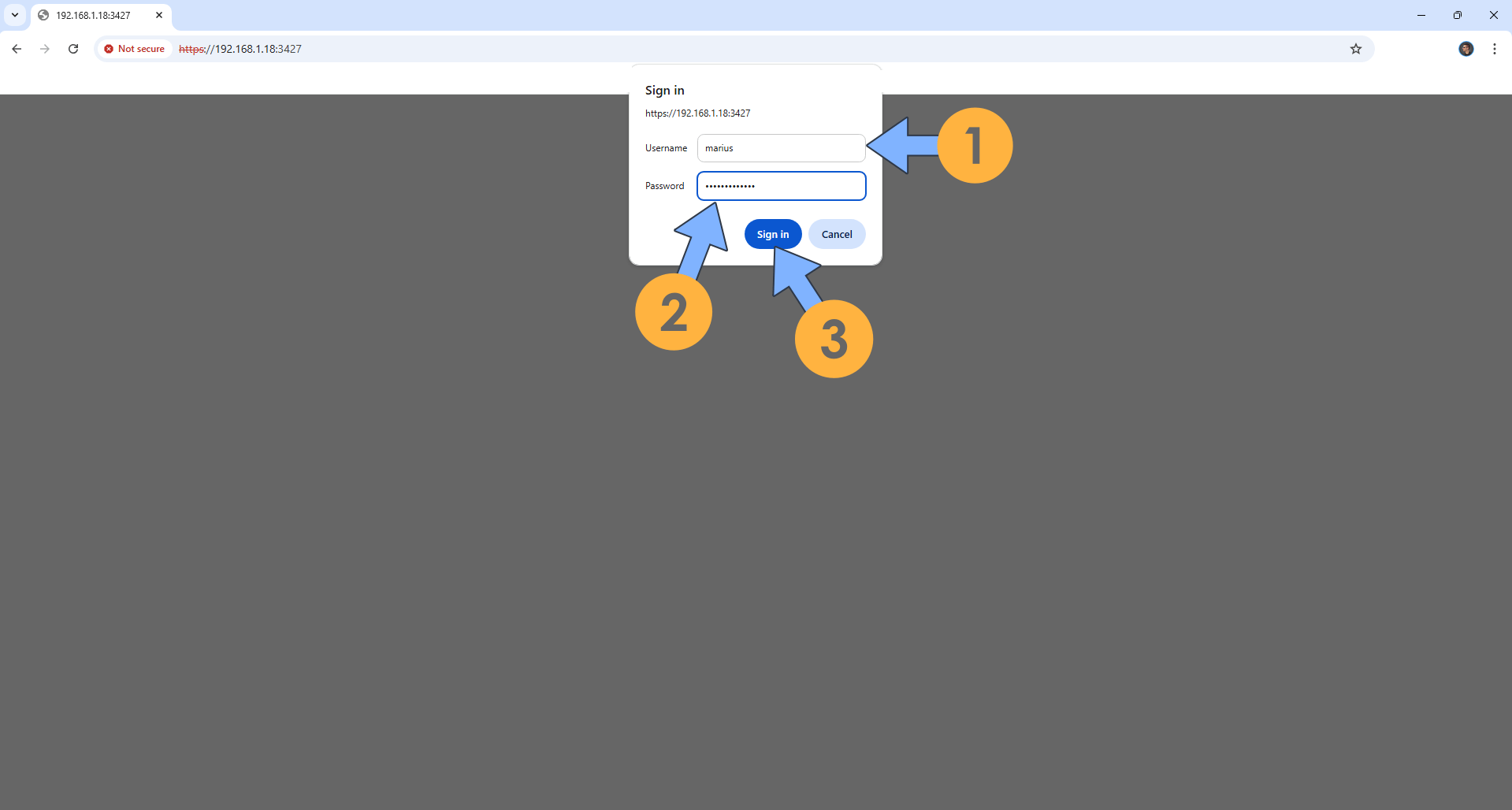

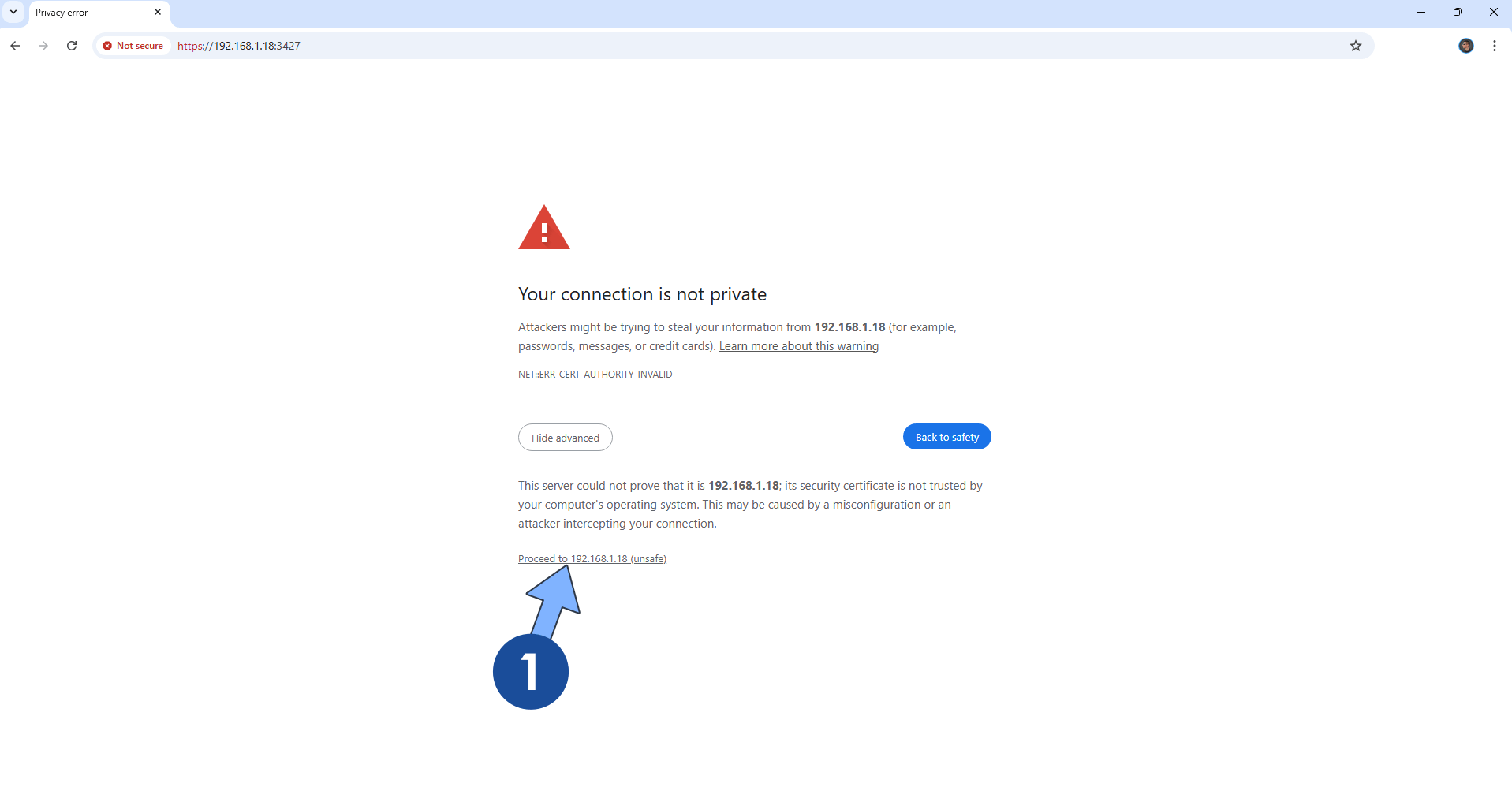

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type inĀ http://Synology-ip-address:3421 If everything goes right, you will see the Obsidian Login page. Type in your own CUSTOM_USER and PASSWORD that you have previously created at STEP 5 then click Sign In. Follow the instructions in the image below.

How to Install Obsidian on Your Synology Linuxserver NAS 4 new 2025

  • STEP 10

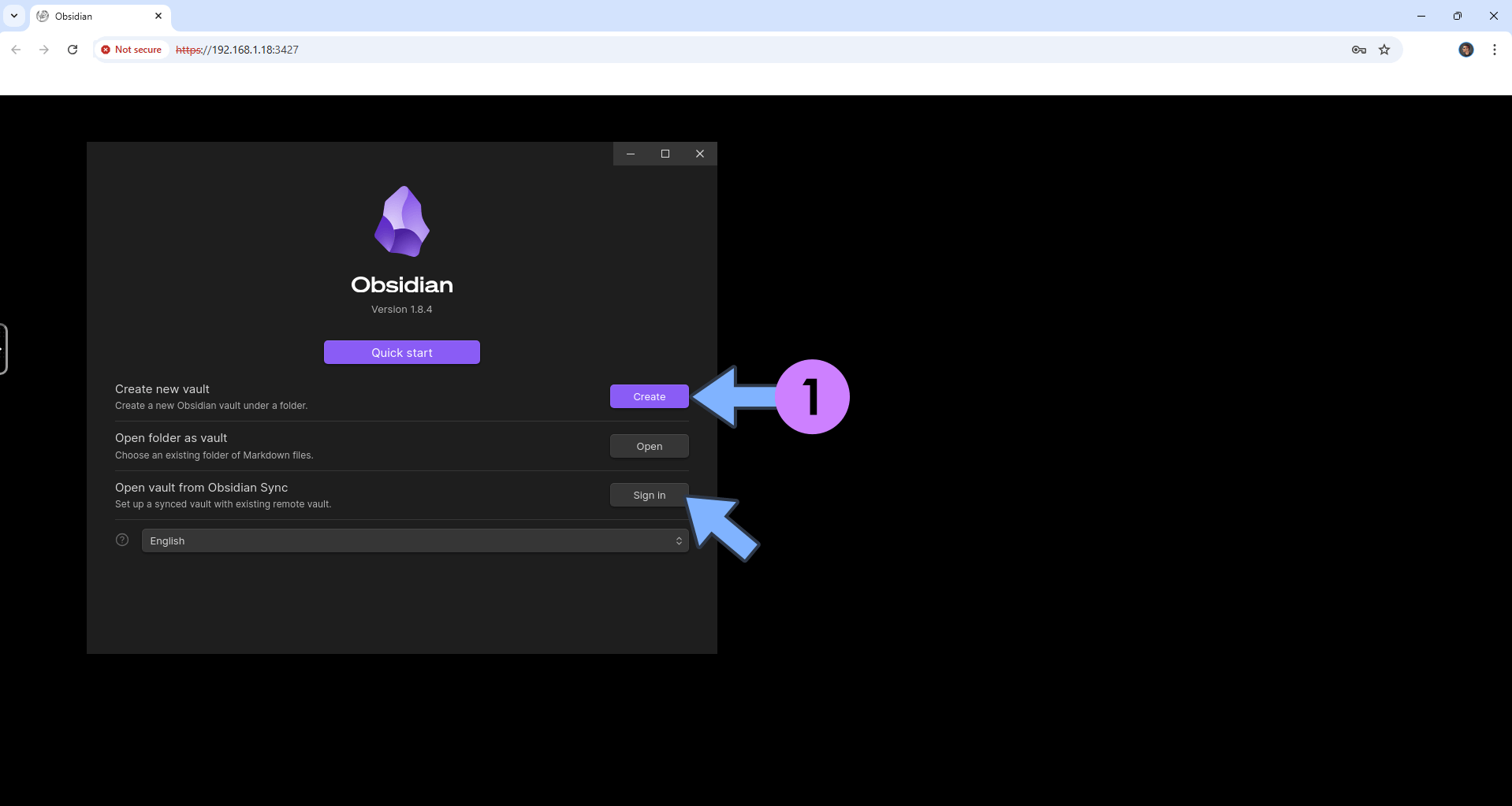

Create a new vault, choose an existing vault or Markdown file or Open vault from Obsidian Sync. In the example below I chose to Create a new Vault. Follow the instructions in the image below.

How to Install Obsidian on Your Synology Linuxserver NAS 5 new 2025

  • STEP 11

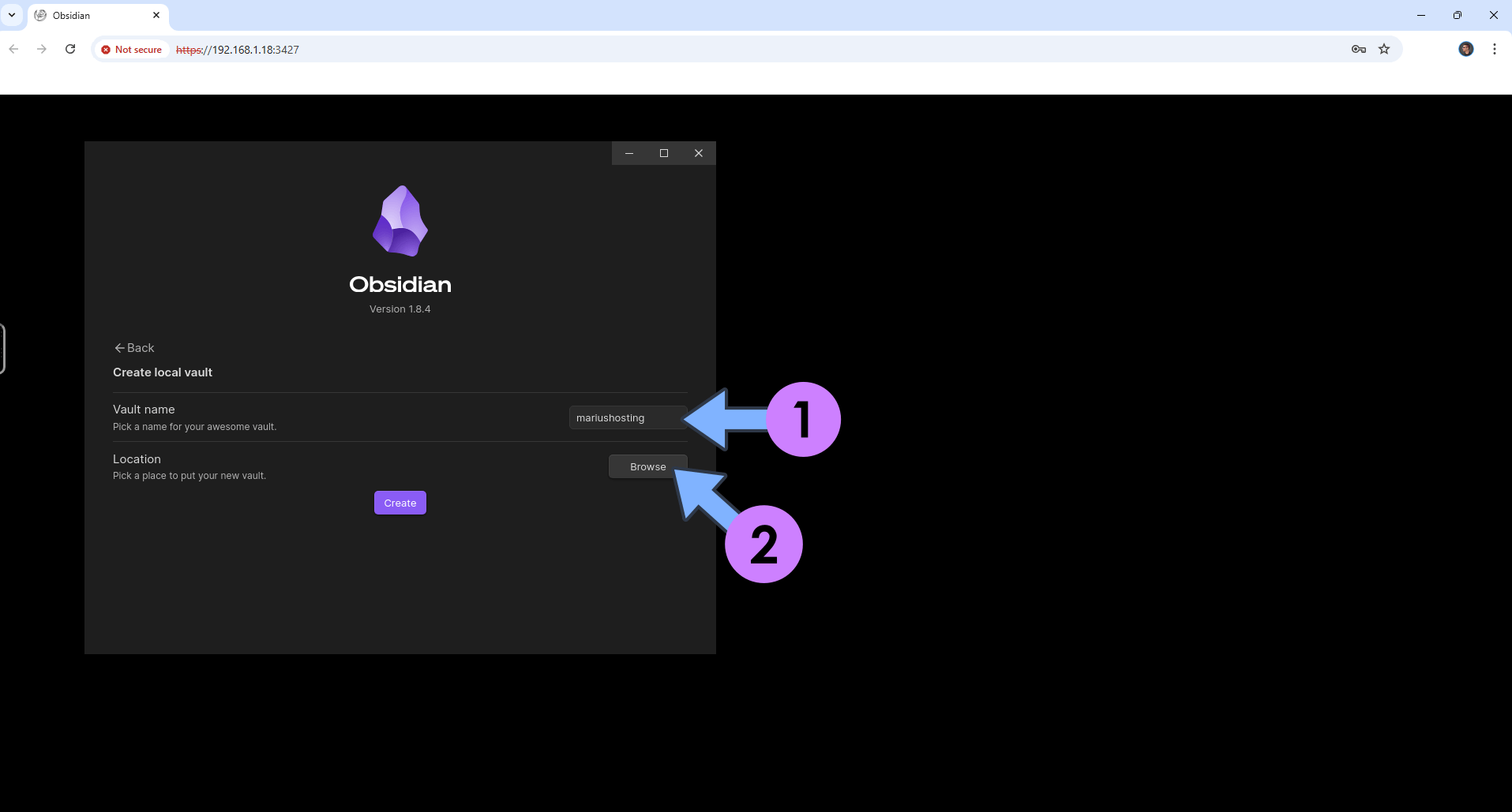

Give a name to the Vault, then click Browse. Follow the instructions in the image below.

How to Install Obsidian on Your Synology Linuxserver NAS 6new 2025

  • STEP 12

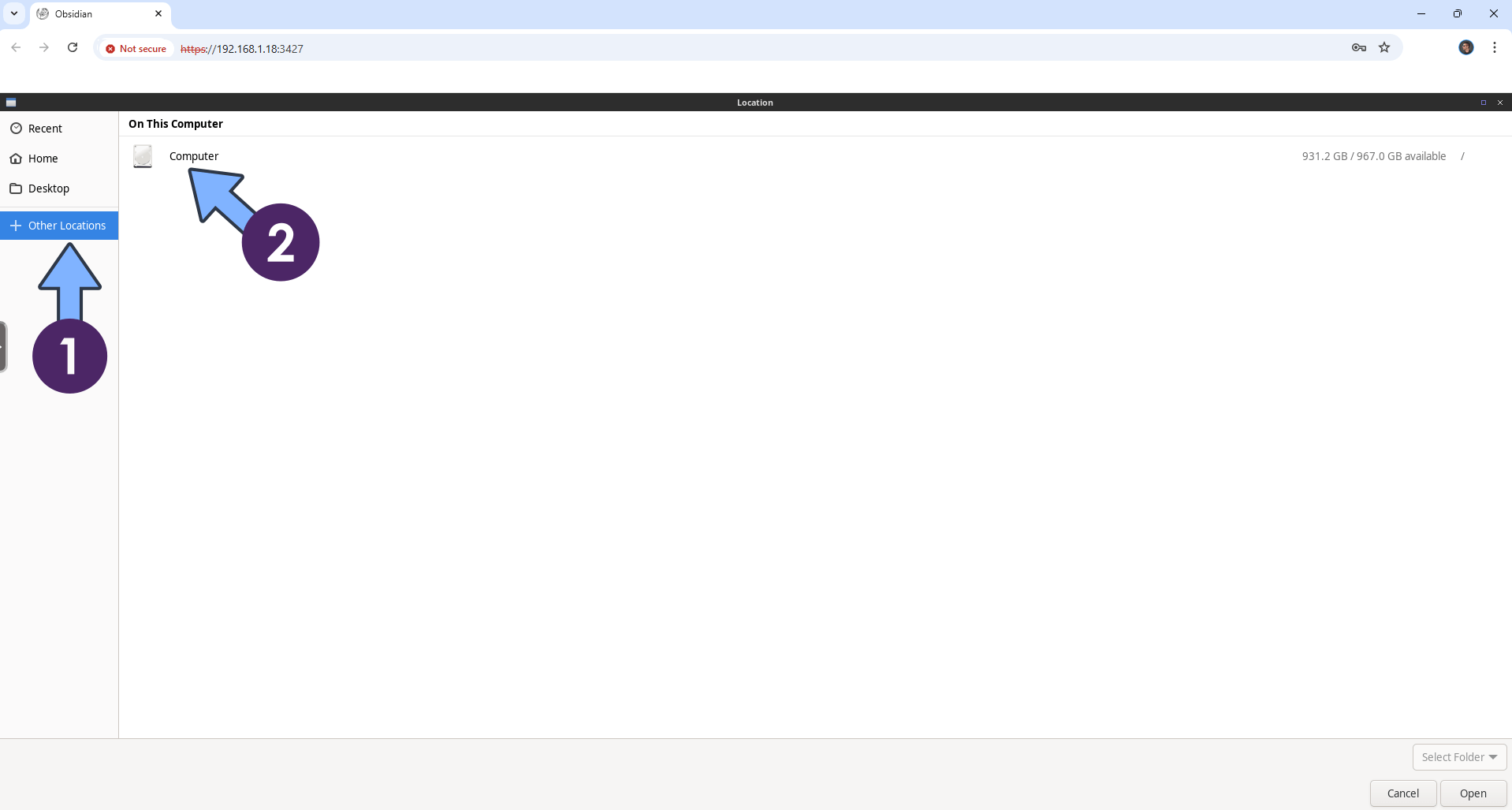

On the left sidebar, click Other Locations, then Computer. Follow the instructions in the image below.

How to Install Obsidian on Your Synology Linuxserver NAS 7 new 2025

  • STEP 13

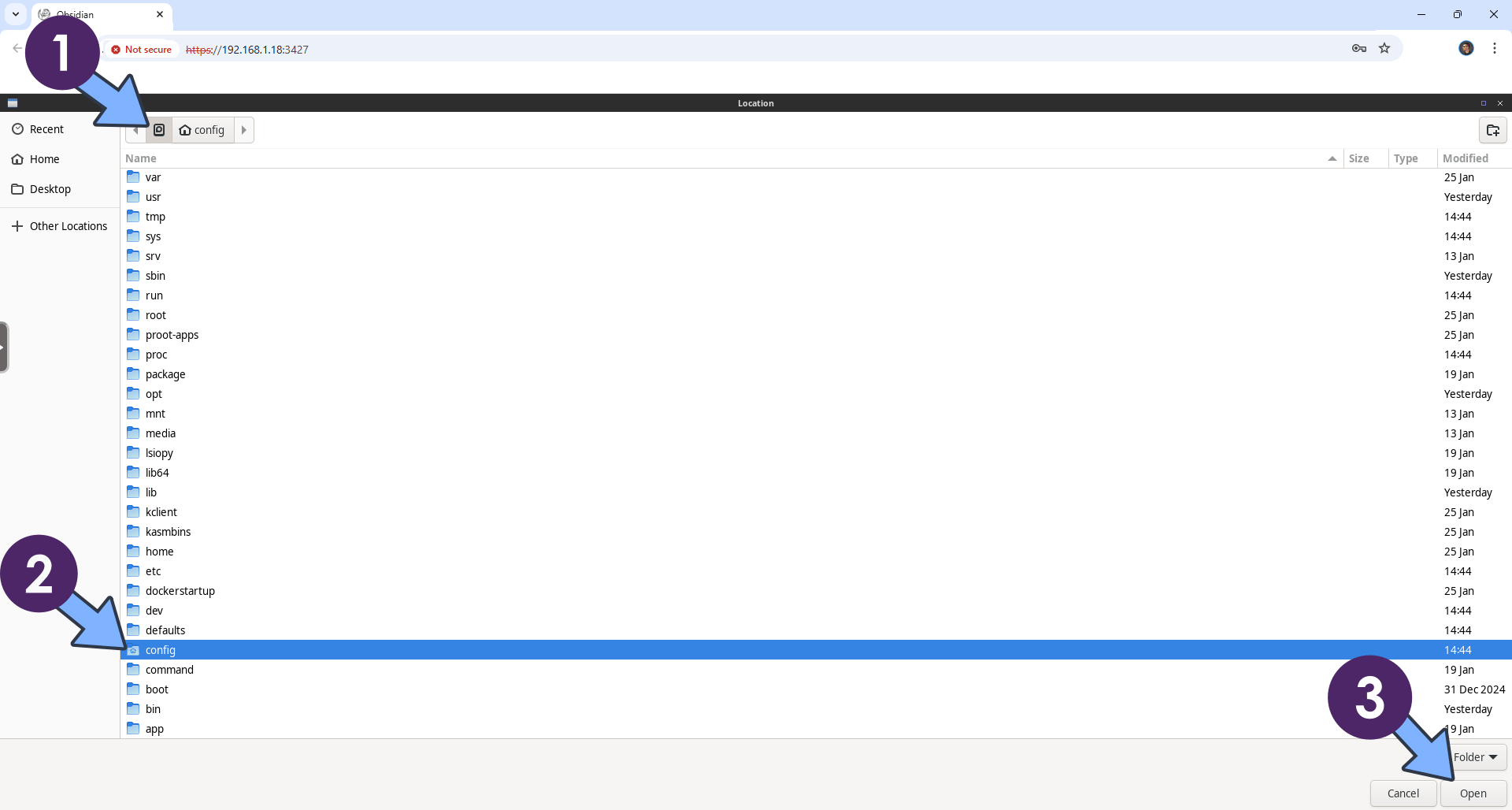

Click the little home icon. Select the config folder, then click Open.Ā Follow the instructions in the image below.

How to Install Obsidian on Your Synology Linuxserver NAS 8 new 2025

  • STEP 14

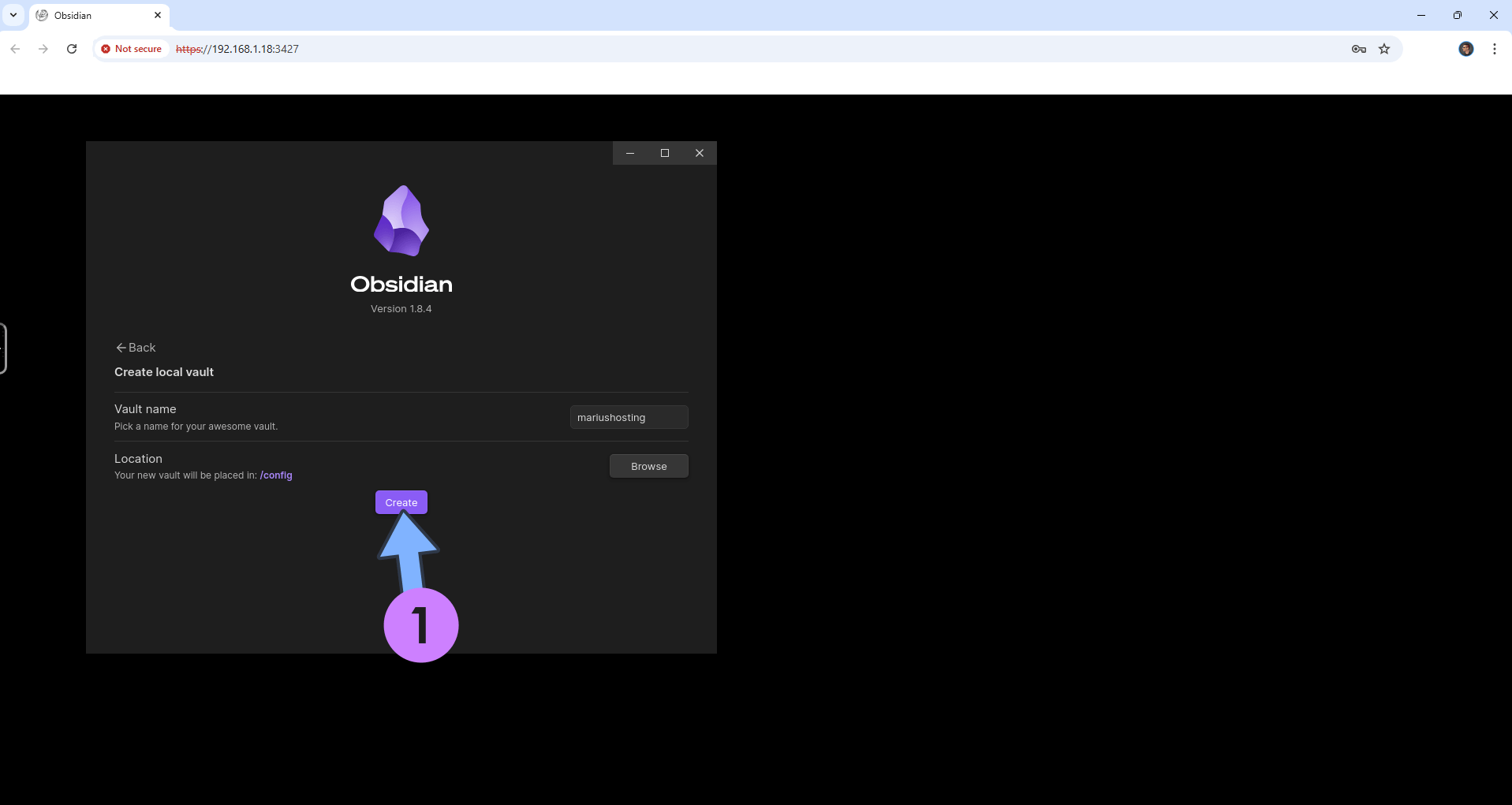

Click Create. Follow the instructions in the image below.

How to Install Obsidian on Your Synology Linuxserver NAS 9 new 2025

  • STEP 15

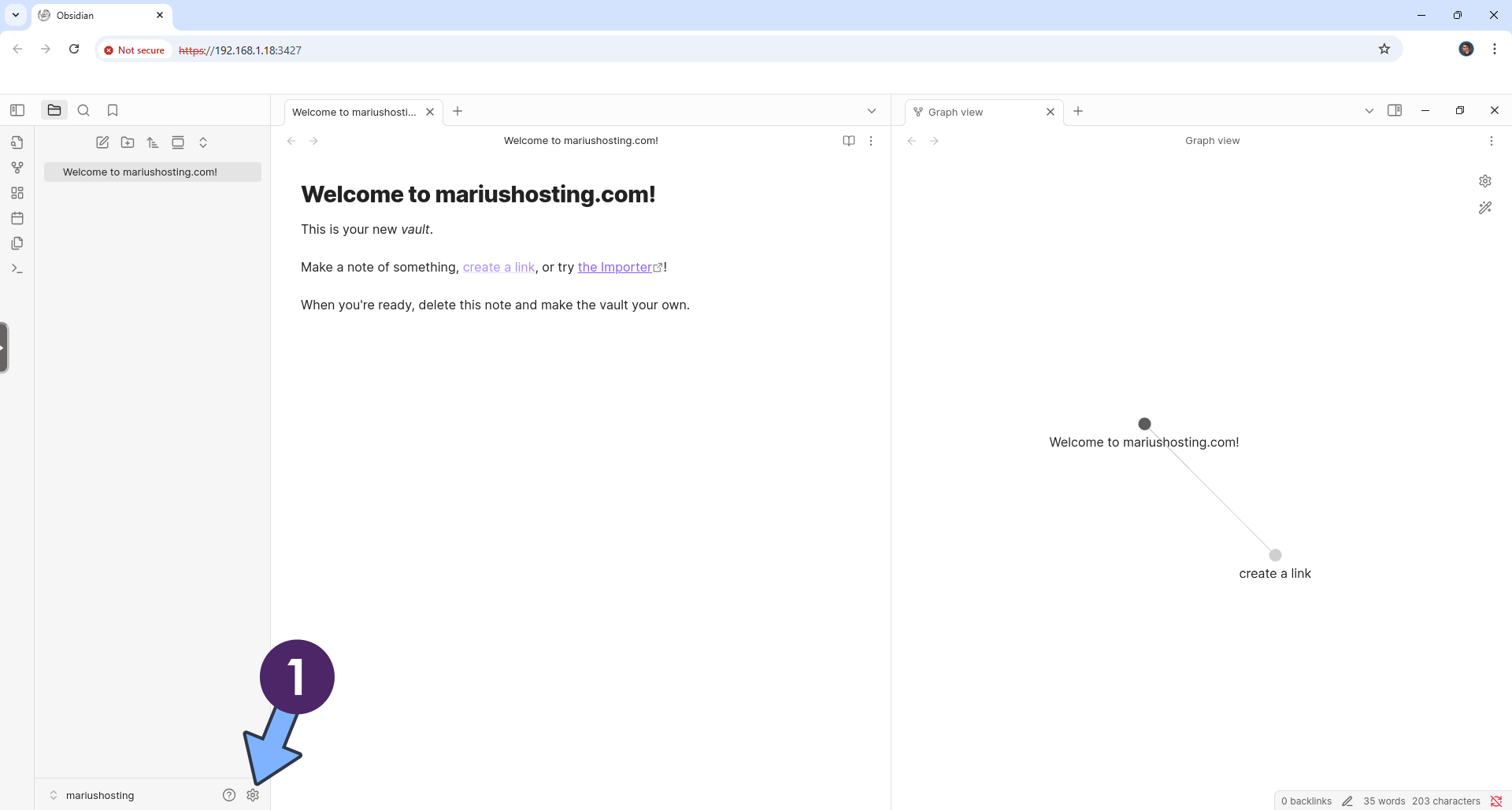

Your Obsidian dashboard at a glance! Click the settings icon. Follow the instructions in the image below.

How to Install Obsidian on Your Synology Linuxserver NAS 10 new 2025

  • STEP 16

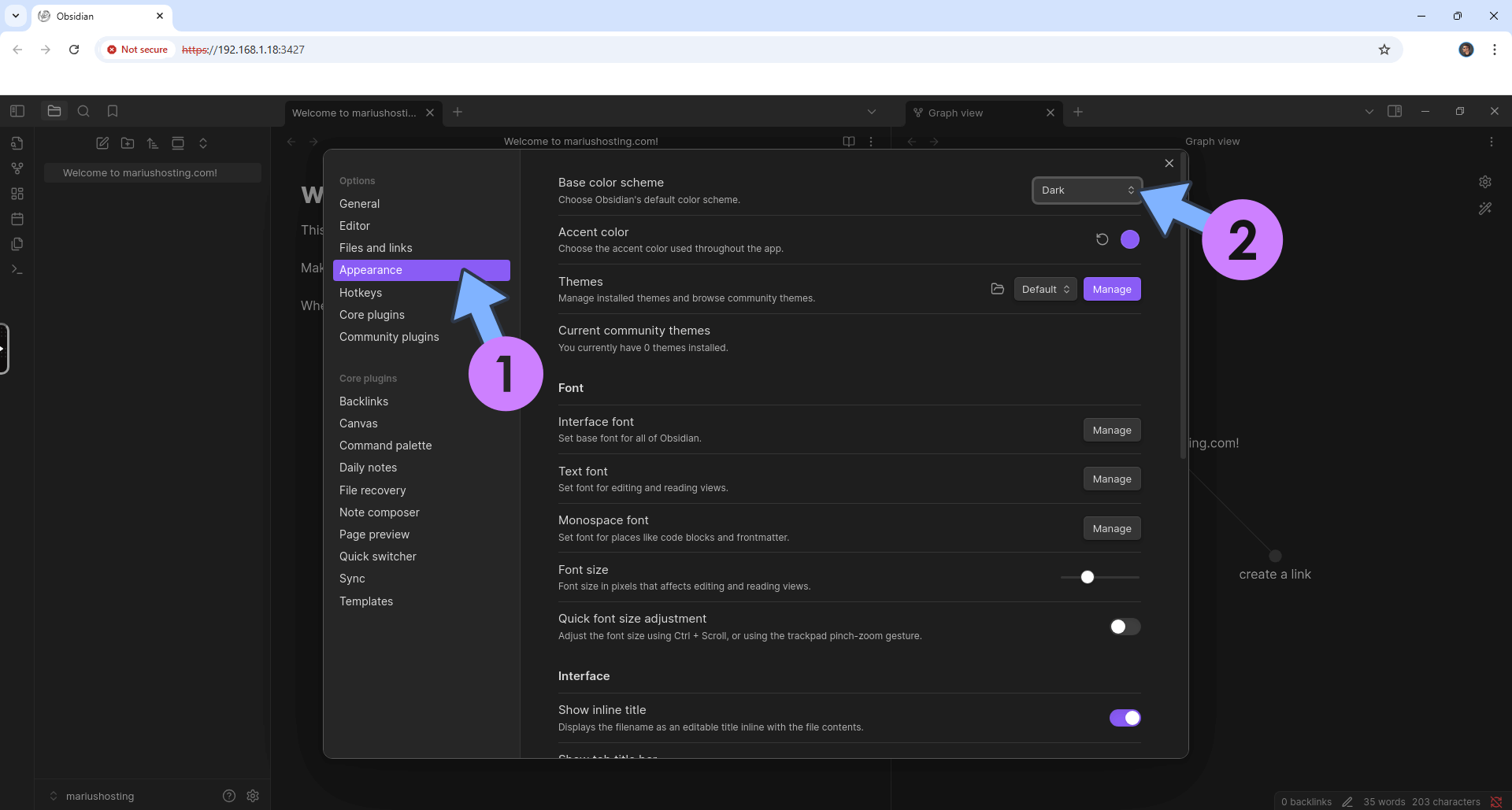

On the left sidebar, click Appearance, then switch the theme to Dark. Follow the instructions in the image below.

How to Install Obsidian on Your Synology Linuxserver NAS 11 new 2025

Enjoy Obsidian!

šŸ†˜TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issuesĀ article.

Note: If you want to run the Obsidian container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Obsidian work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find outĀ how to update the Obsidian container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
