How to Install Nexterm on Your Synology NAS

by

How to Install Nexterm on Your Synology NAS

Nexterm is an open source server management software for SSH, VNC & RDP. It’s similar to Sshwifty and Shellngn. In this step by step guide I will show you how to install Nexterm on your Synology NAS using Docker and Portainer.

💡Note: This guide works perfectly with the latest Nexterm v1.0.1 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it nexterm. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Nexterm Synology NAS Set up 1

  • STEP 4

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 5

In the Name field type in nexterm. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  nexterm:
    container_name: Nexterm
    image: germannewsmaker/nexterm:latest
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/6989' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    ports:
      - 6989:6989
    volumes:
      - /volume1/docker/nexterm:/app/data:rw
    restart: on-failure:5

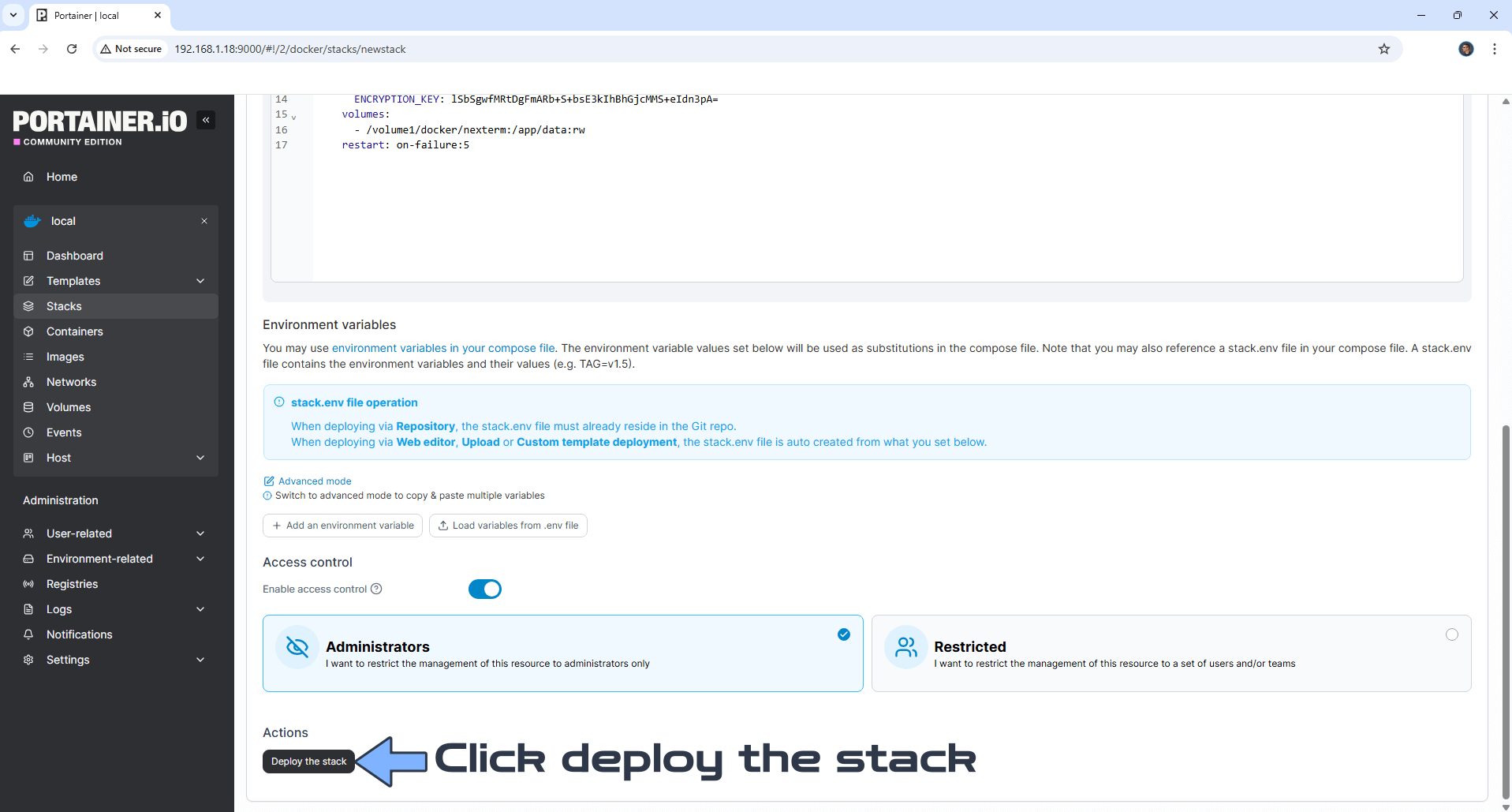

Nexterm Synology NAS Set up 3

  • STEP 6

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Nexterm Synology NAS Set up 4

  • STEP 7

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Nexterm Synology NAS Set up 5

  • STEP 8

Enable SSH service on port 22 then click Apply. Follow the instructions in the image below.

Nexterm Synology NAS Set up 2

  • STEP 9

Adjust your Synology NAS Firewall. Go to Control Panel / Security / Firewall Tab / Click Edit Rules. In your current Firewall rules, create a new rule for the Encrypted terminal app. Follow the instructions in the image below. ⚠️Remember: your Encrypted terminal rule should be ABOVE the latest deny rule. Move it from the last position to first position.

Synology SSH port 22 Firewall Rule

  • STEP 10

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 11

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:6989 You will be prompted to create an administrator account. Type in your own details. Click Register. ⚠️Warning: Your password needs to be at least 8 characters long and contain at least one uppercase letter, one lowercase letter, one number and one special character. Follow the instructions in the image below.

Nexterm Synology NAS Set up 6

  • STEP 12

On the left sidebar, click the server icon, then Right-click to Create Folder. Click Create Folder. Name your folder. Follow the instructions in the image below.

Nexterm Synology NAS Set up 7

  • STEP 13

Once the folder is created, right click on the folder name, then Create Server. Follow the instructions in the image below.

Nexterm Synology NAS Set up 8

  • STEP 14

Click the Details tab, then type in your NAS Name and your local NAS IP. Go straight to the next STEP. Follow the instructions in the image below.

Nexterm Synology NAS Set up 9

  • STEP 15

Click the Identities tab. Type in your own NAS admin Username and Password. For the authentication method, select Password. Click Create. Follow the instructions in the image below.

Nexterm Synology NAS Set up 10

  • STEP 16

You are now connected to your NAS via SSH!

Nexterm Synology NAS Set up 11

Enjoy Nexterm!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the Nexterm container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Nexterm work via HTTPS, it’s mandatory to activate WebSocket. After you have added your own Reverse proxy for DDNS like nexterm.yourname.synology.me you should add only your DDNS without nexterm on Server-IP area (screenshot below). Example: yourname.synology.me
nexterm.yourname.synology.me will be used only to connect to the Nexterm web interface. Then the yourname.synology.me address should be used as a Server-IP. (Screenshot below). Do NOT use https:// in front of your DDNS on the Server-IP area.

Nexterm Synology NAS Set up 12

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the Nexterm container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
