MRBS (Meeting Room Booking System) is an open-source, PHP-based web application for efficiently booking and managing meeting rooms online, replacing outdated methods like physical logbooks. Administrators can create areas and rooms, while users enjoy a simple interface with support for multiple authentication options, customizable themes, and JavaScript enhancements. Meeting Room Booking System is ideal for offices or organizations needing streamlined scheduling. In this step by step guide I will show you how to install Meeting Room Booking System on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest version of MRBS v1.12.1

STEP 1

Please Support My work by Making a Donation.

STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

STEP 3

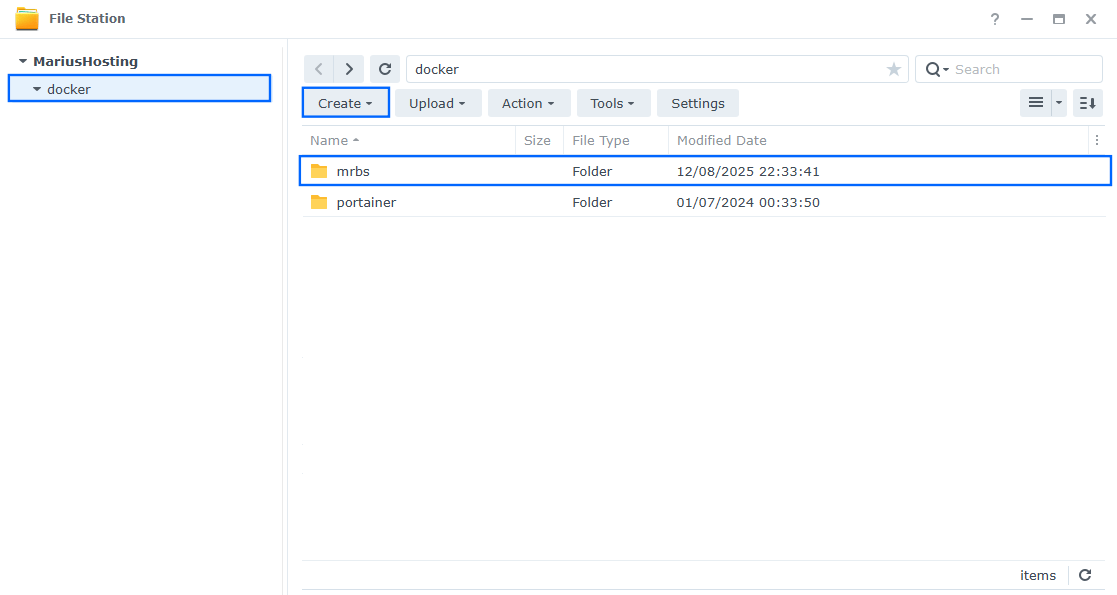

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it mrbs. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

STEP 4

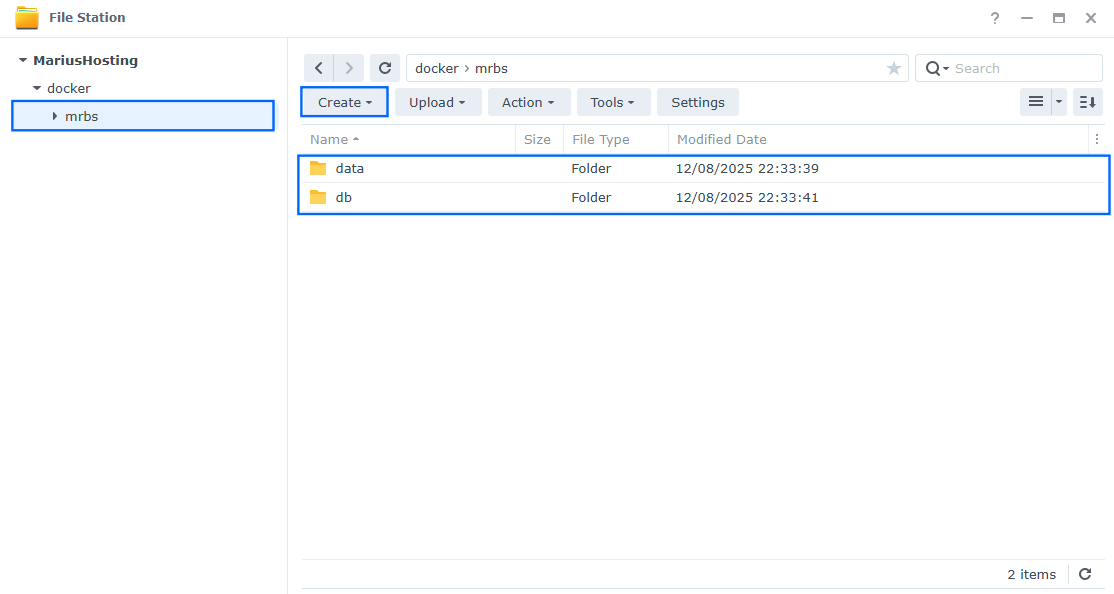

Now create two new folders inside the mrbs folder that you have previously created at STEP 3 and name them data and db. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

STEP 5

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then Live connect. Follow the instructions in the image below.

On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

STEP 6

In the Name field type in mrbs. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  mrbs:
    image: dorianim/mrbs
    container_name: MRBS
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/80' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    environment:
      PUID: 1026
      PGID: 100
      DB_HOST: mrbs-db
      DB_USER: mrbs-user
      DB_PASS: mrbs-pass
      DB_DATABASE: mrbs
    volumes:
     - /volume1/docker/mrbs/data:/config:rw
    ports:
     - 8888:80
    depends_on:
     - mrbs-db
    restart: on-failure:5

  mrbs-db:
    image: mariadb:11.4-noble #LTS Long Time Support Until May 29, 2029.
    container_name: MRBS-DB
    security_opt:
      - no-new-privileges:true
    environment:
      MYSQL_ROOT_PASSWORD: mrbs-root-pass
      MYSQL_DATABASE: mrbs
      MYSQL_USER: mrbs-user
      MYSQL_PASSWORD: mrbs-pass
      TZ: Europe/Bucharest
    volumes:
        - /volume1/docker/mrbs/db:/var/lib/mysql:rw
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.)
Note: Before you paste the code above in the Web editor area below, change the value for TZ. (Select your current Time Zone from this list.)

STEP 7

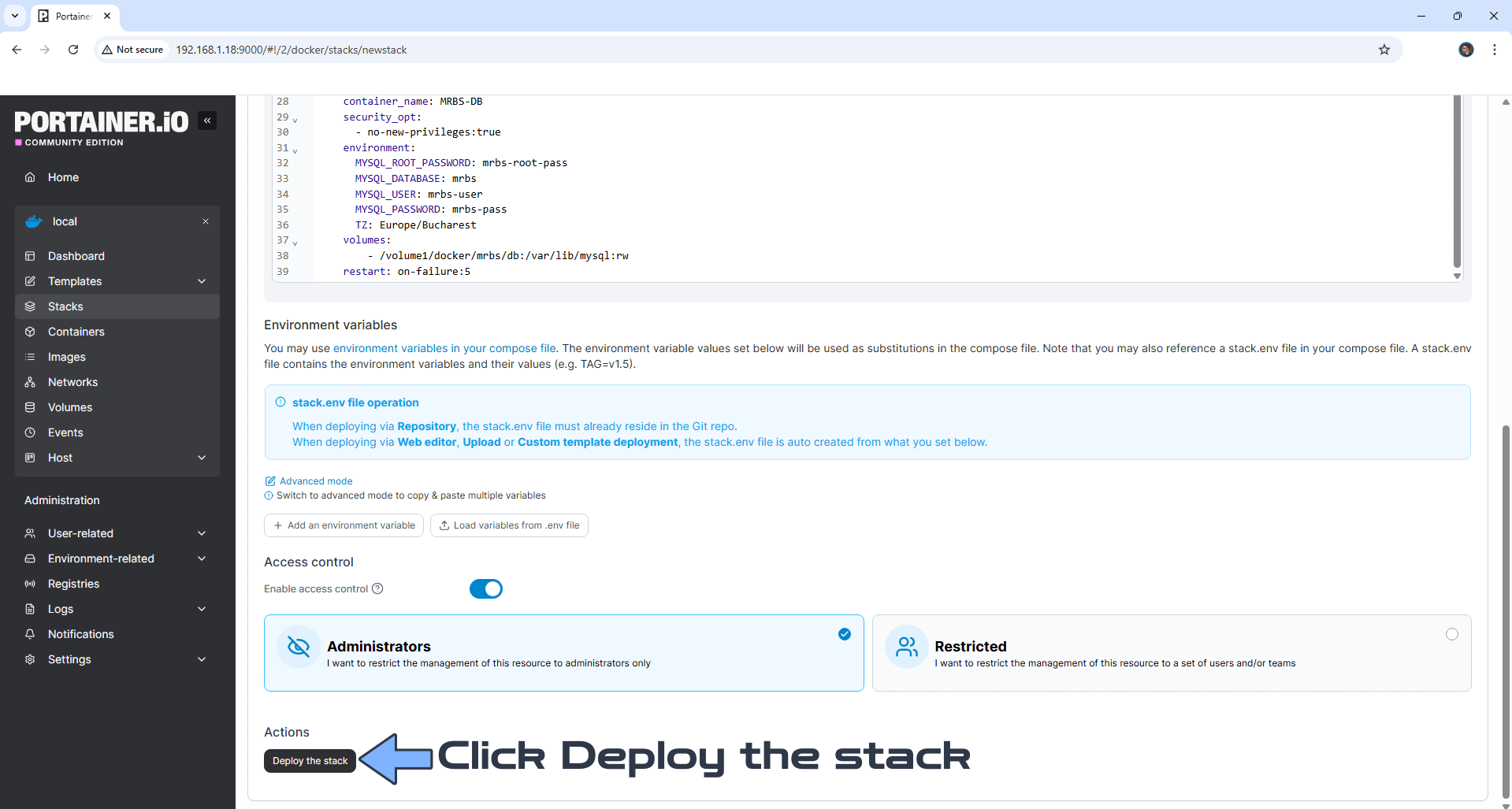

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

STEP 8

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

STEP 9

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

STEP 10

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://synology-ip-address:8888 If everything goes right, you will see the Meeting Room Booking System registration page. Type in your admin details such as Username, Name, Email address, Password. Click Save. Follow the instructions in the image below.

STEP 11

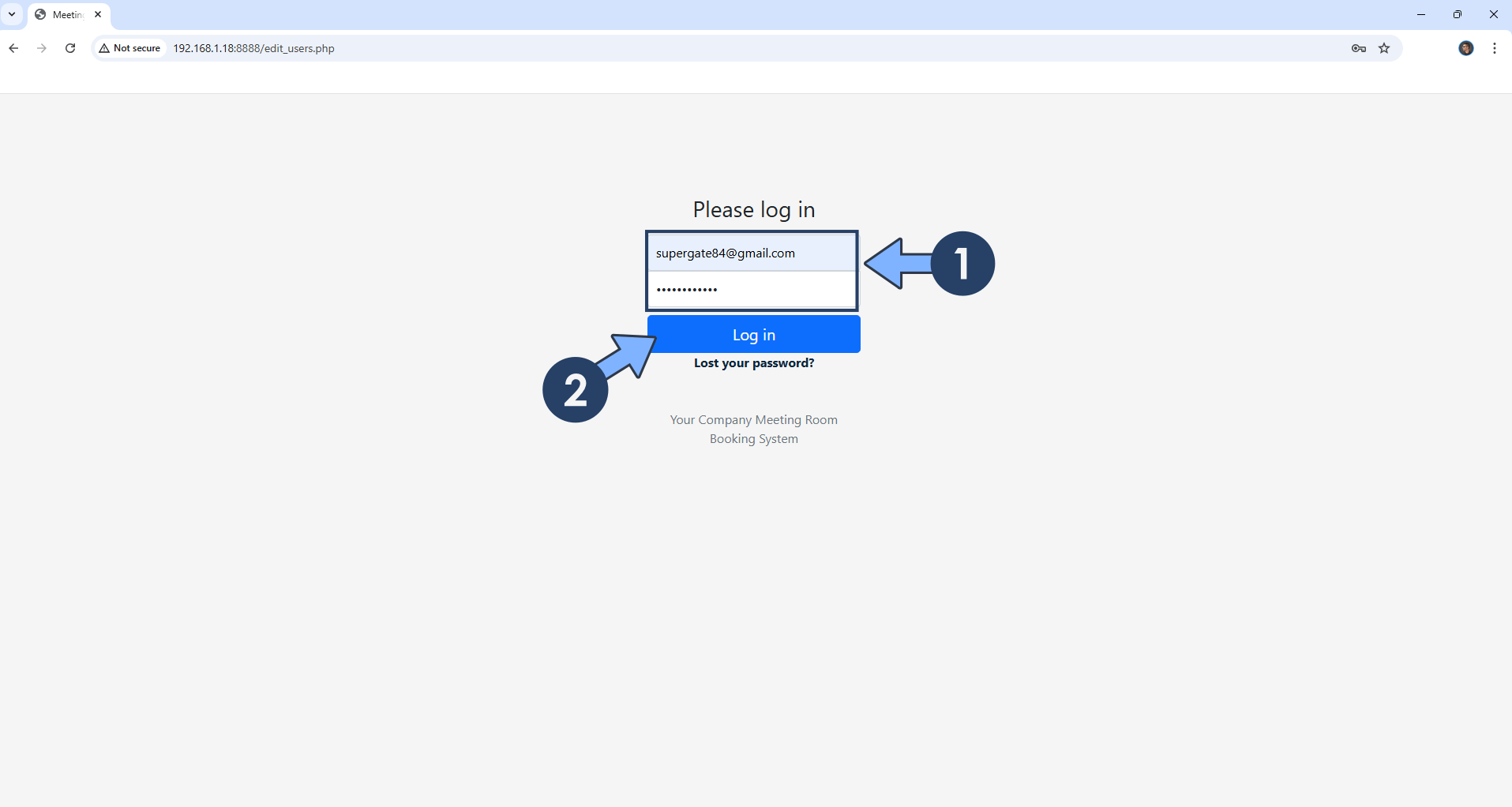

Type in your own Email address and Password that you have previously added at STEP 10, then click Log in. Follow the instructions in the image below.

STEP 12

Create Rooms or go straight to the next STEP. Follow the instructions in the image below.

STEP 13

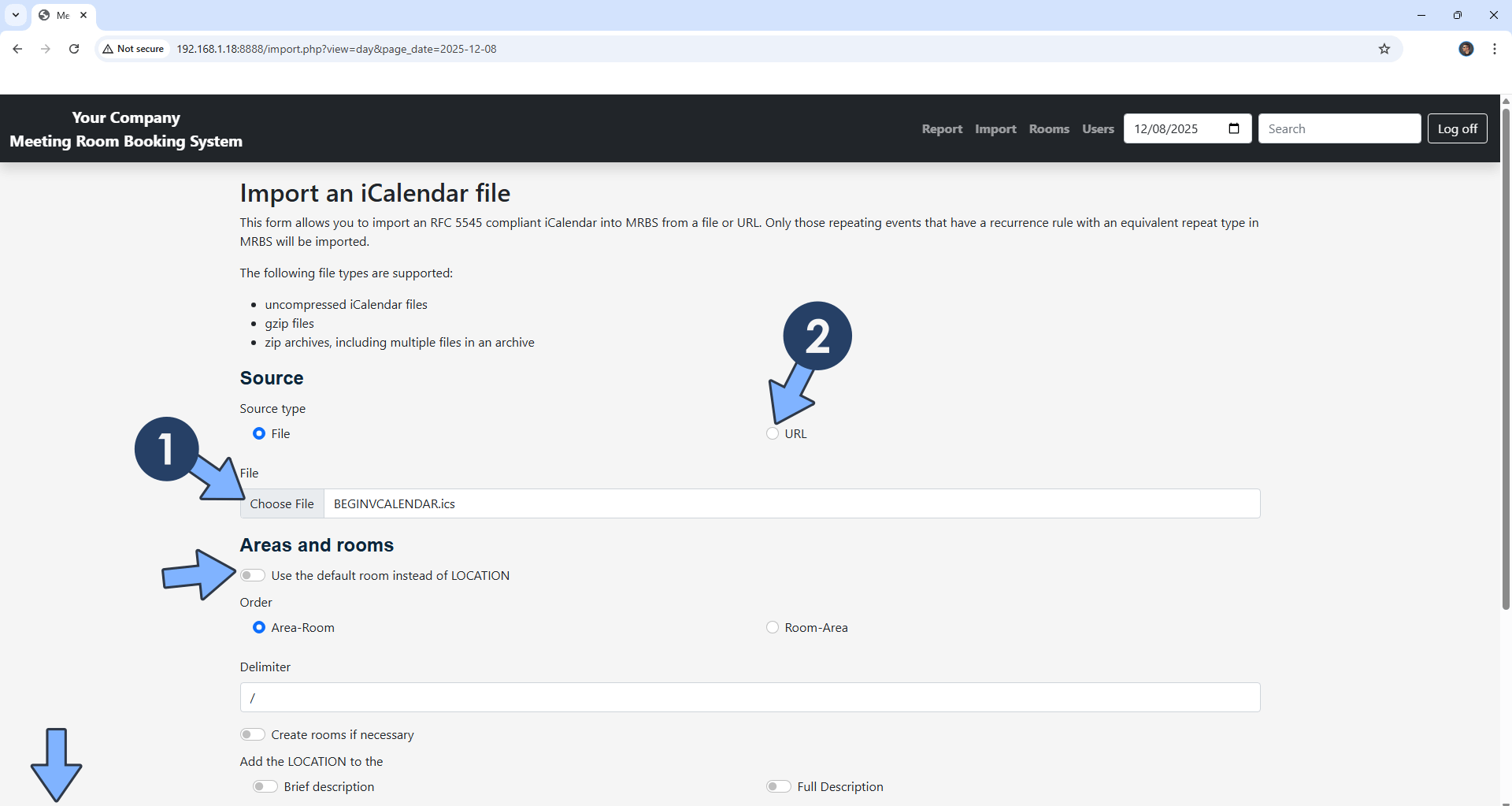

Click the Import tab, then Choose an .ics file from local machine or URL. You can use Areas and rooms or use the default room. Scroll down the page. Follow the instructions in the image below.

STEP 14

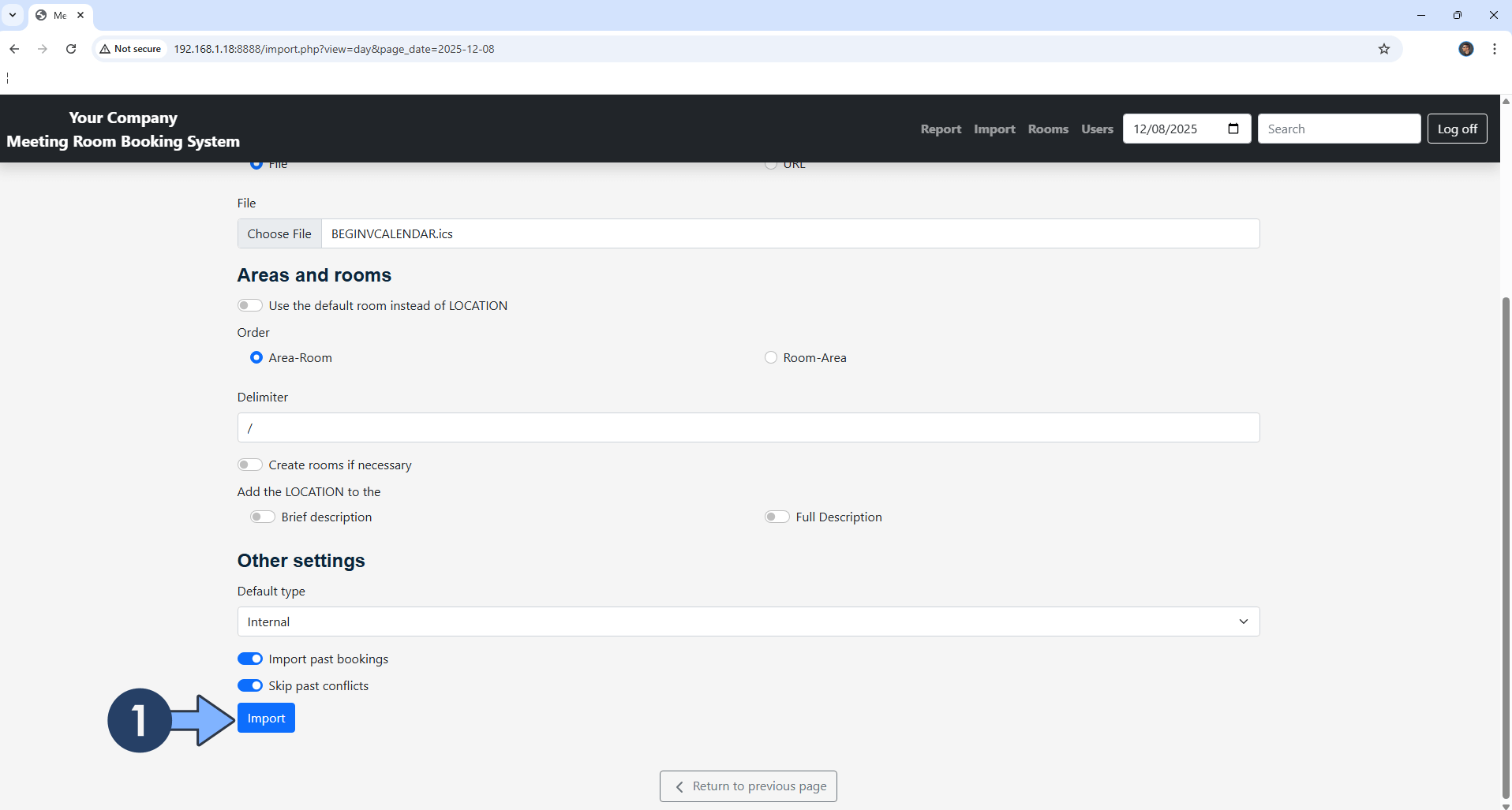

Click Import. Follow the instructions in the image below.

STEP 15

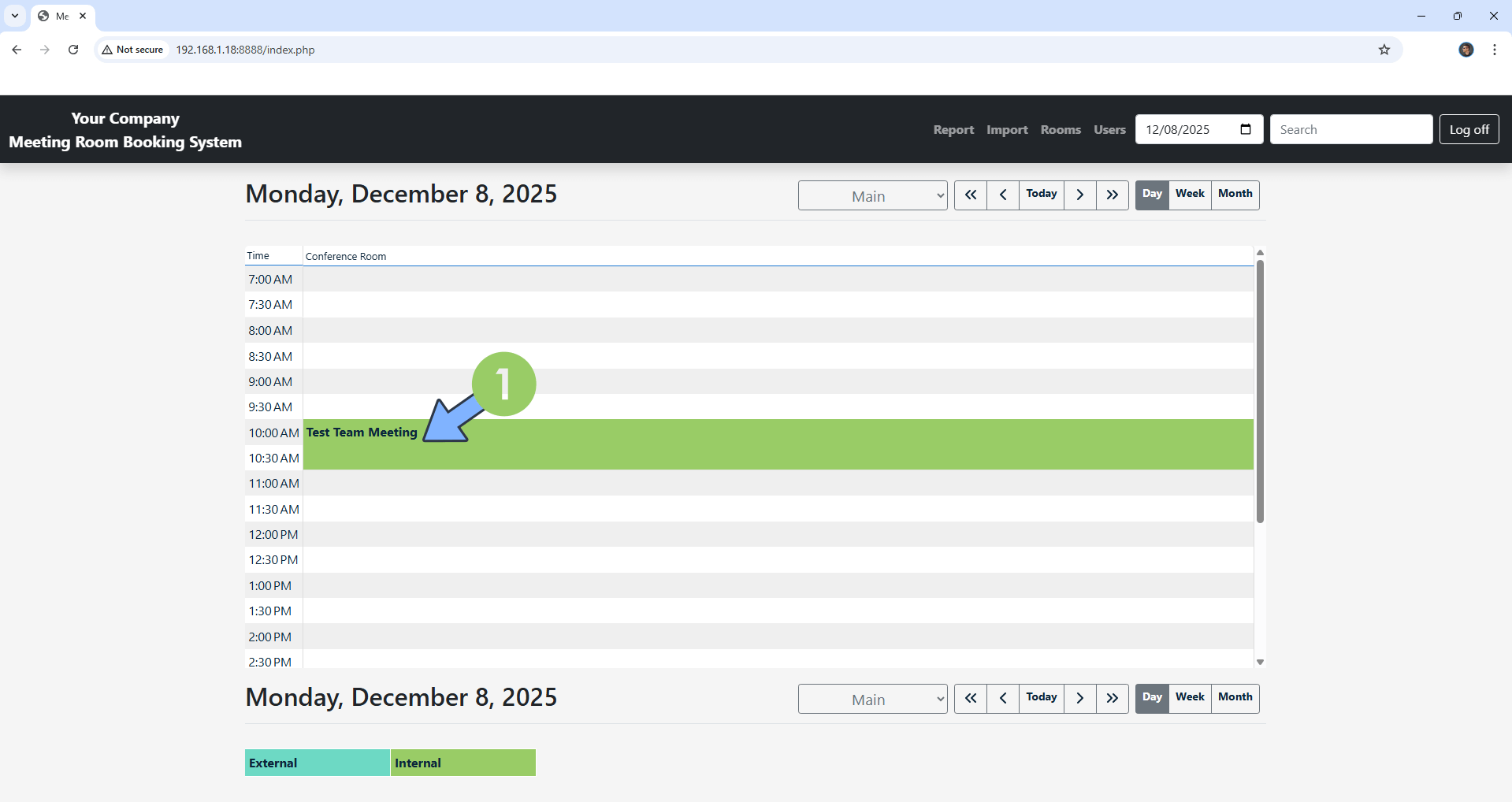

Click on your Calendar Meeting. Follow the instructions in the image below.

STEP 16

Your Event Details at a glance!

Enjoy Meeting Room Booking System!

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the Meeting Room Booking System container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Meeting Room Booking System work via HTTPS, it’s mandatory to activate WebSocket.
