How to Install Kimai on Your Synology NAS

Kimai is a free, open source and online time-tracking software designed for small businesses and freelancers. It is built with modern technologies such as Symfony, Bootstrap, RESTful API, Doctrine, AdminLTE, Webpack, ES6 and many more. In this step by step guide I will show you how to install KimaiĀ on yourĀ Synology NASĀ using Docker and Portainer.

šŸ’”Note: This guide works perfectly with the latest Kimai v2.27.0Ā release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go toĀ Control PanelĀ /Ā Login PortalĀ /Ā AdvancedĀ Tab / clickĀ Reverse Proxy. Follow the instructions in the image below.

Kimai Synology NAS Set up 1

  • STEP 5

Now click the ā€œCreateā€ button. Follow the instructions in the image below.

Kimai Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Kimai. After that, add the following instructions:

Source:
Protocol:Ā HTTPS
Hostname: kimai.yourname.synology.me
Port:Ā 443

Check Enable HSTS

Destination:
Protocol:Ā HTTP
Hostname:Ā localhost
Port: 9805

Kimai Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom HeaderĀ tab. ClickĀ CreateĀ and then, from the drop-down menu, clickĀ WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. ClickĀ Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Kimai Synology NAS Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP CompressionĀ then click Apply. Follow the instructions in the image below.

Kimai Synology NAS Set up 5

  • STEP 10

Go toĀ File Station and open the docker folder. Inside the docker folder, create one new folder and name it kimai. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Kimai Synology NAS Set up 6

  • STEP 11

Now create three new folders inside the kimaiĀ folder that you created at STEP 10 and name them db, public, var. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Kimai Synology NAS Set up 7

  • STEP 12

Download (click on the blue link below) and upload the my.cnf file below in the db folder that you have previously created at STEP 11. Follow the instructions in the image below. šŸ”’Note: Support my work to unlock the password. You can use this password to download any file on mariushosting forever!

šŸ‘‰šŸ»Download my.cnf

Kimai Synology NAS database configuration

  • STEP 13

Follow my step by step guide on how to activate SMTP for your Gmail account. This step is mandatory. Note: If you don’t want to use the easiest way for SMTP with Google and you already have SMTP details from your own Mail Server, you can just skip this STEP and use your personalized email SMTP details instead.

  • STEP 14

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 15

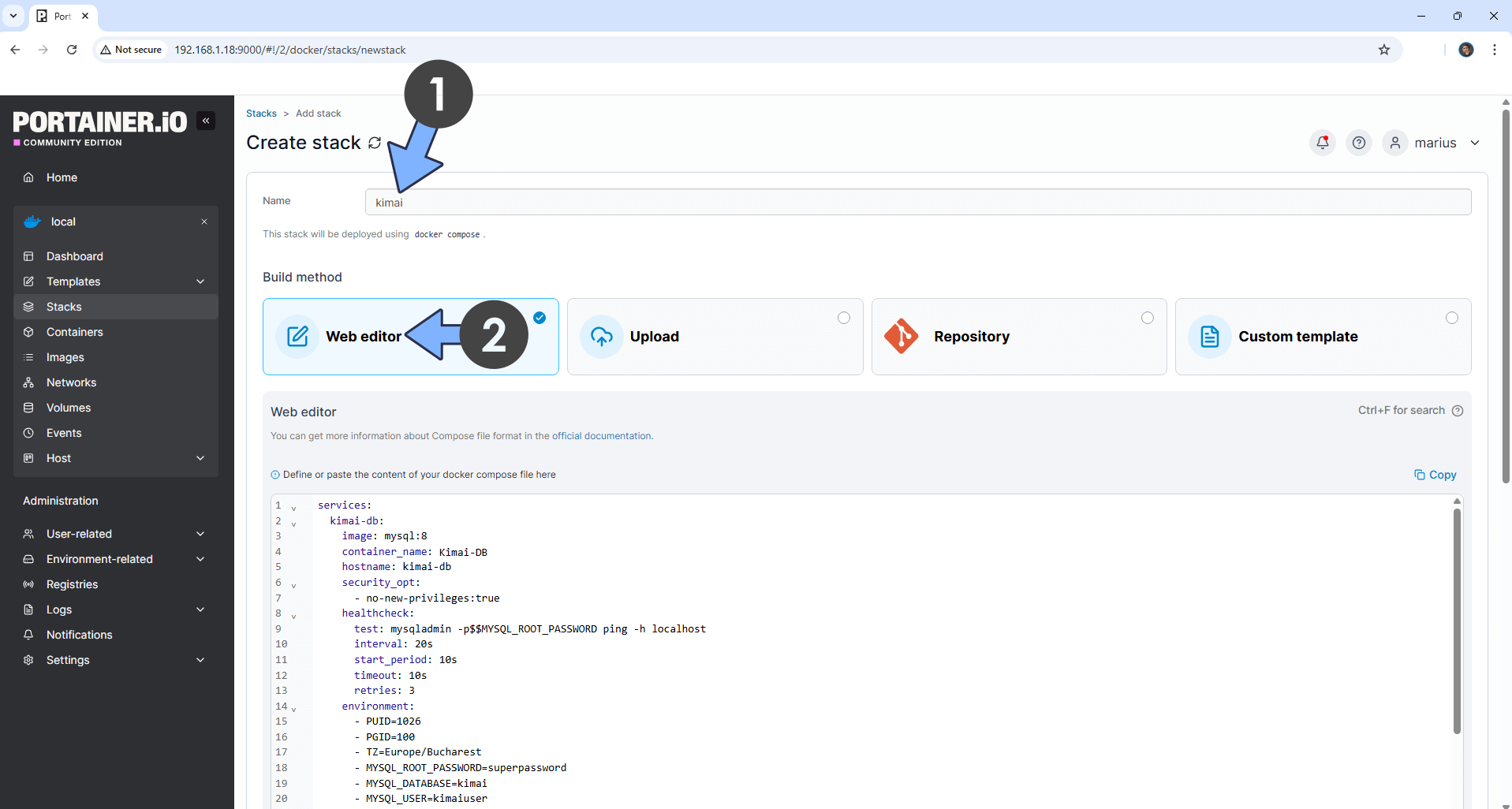

In the Name field type in kimai. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  db:
    image: mariadb:11.4-noble #LTS Long Time Support Until May 29, 2029.
    container_name: Kimai-DB
    hostname: kimai-db
    security_opt:
      - no-new-privileges:false
    healthcheck:
         test: [ "CMD", "healthcheck.sh", "--connect", "--innodb_initialized" ]
    environment:
      - TZ=Europe/Bucharest
      - MYSQL_ROOT_PASSWORD=rootpass
      - MYSQL_DATABASE=kimai
      - MYSQL_USER=kimaiuser
      - MYSQL_PASSWORD=kimaipass
    volumes:
      - /volume1/docker/kimai/db:/var/lib/mysql:rw
    restart: on-failure:5

  kimai:
    image: kimai/kimai2:fpm-latest
    container_name: Kimai
    hostname: kimai
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: stat /etc/passwd || exit 1
      start_period: 45s
    volumes:
      - /volume1/docker/kimai/var:/opt/kimai/var:rw
      - /volume1/docker/kimai/public:/opt/kimai/public:rw
    environment:
      - DATABASE_URL=mysql://kimaiuser:kimaipass@kimai-db/kimai?charset=utf8&serverVersion=11.4.4
      - ADMINMAIL=yourown@email
      - ADMINPASS=mariushosting
      - MAILER_FROM=yourownGmailaddress
      - MAILER_URL=smtp://yourownGmailaddress:appassword@smtp.gmail.com:587?encryption=tls&auth_mode=plain
    restart: on-failure:5
    depends_on:
      db:
        condition: service_started

  nginx:
    image: tobybatch/nginx-fpm-reverse-proxy
    container_name: Kimai-NGINX
    hostname: kimai-nginx
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: wget --spider http://nginx/health || exit 1
      interval: 20s
      start_period: 10s
      timeout: 10s
      retries: 3
    ports:
      - 9805:80
    volumes:
      - /volume1/docker/kimai/public:/opt/kimai/public:ro
    restart: on-failure:5
    depends_on:
      kimai:
        condition: service_healthy

Note: Before you paste the code above in the Web editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Web editor area below, change the value for ADMINMAIL and type in your own email. You will need this email later at STEP 19.
Note: Before you paste the code above in the Web editor area below, change the value for ADMINPASS and type in your own password. You will need this password later at STEP 19. Note: Do NOT use special characters for password.
Note: On the MAILER_URL area, type in your own Gmail address. STEP 13.
Note: On the MAILER_URL area, type in your own Gmail App Password. STEP 13.

Kimai Synology NAS Set up 8 new3 2028

  • STEP 16

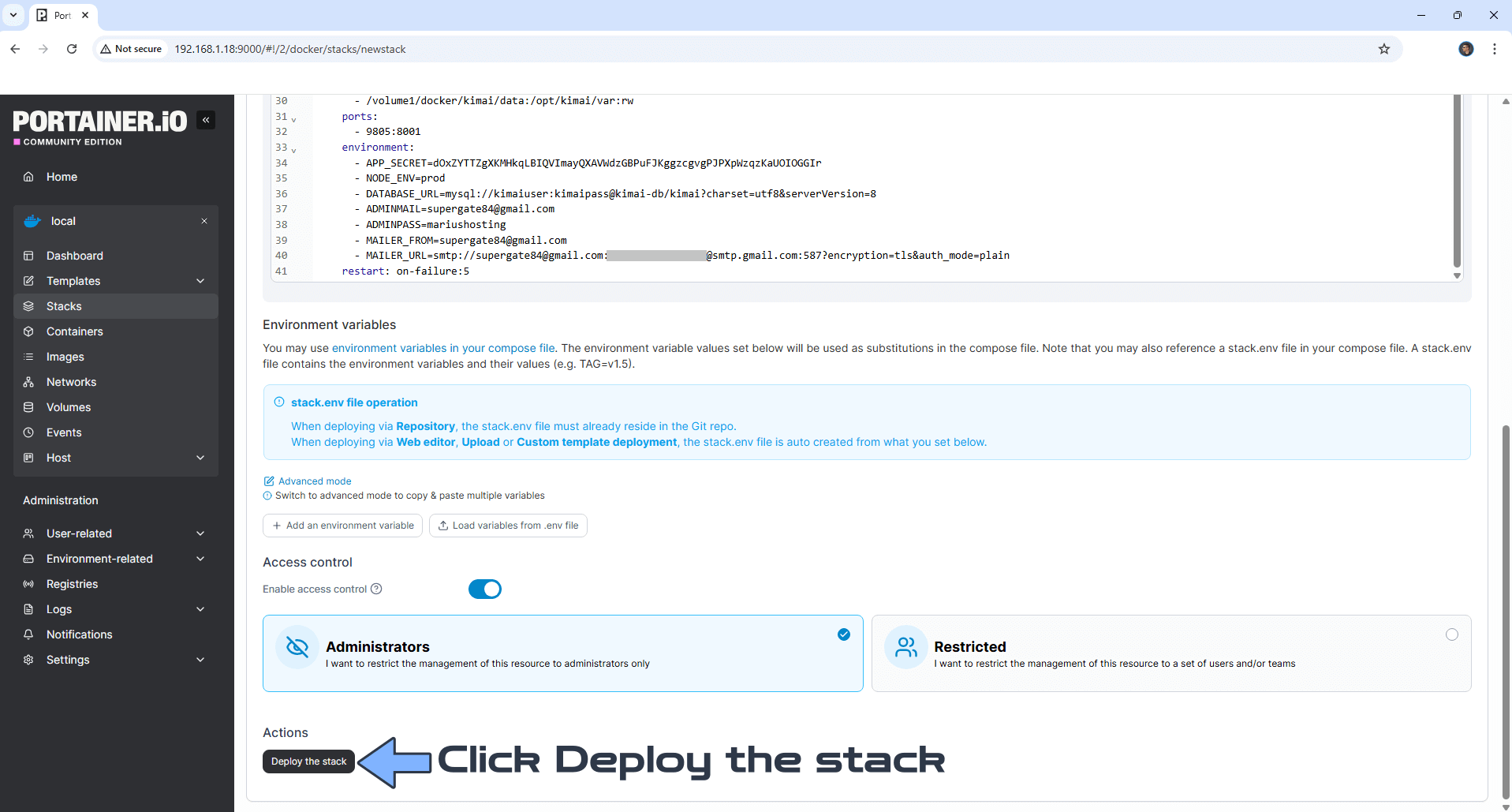

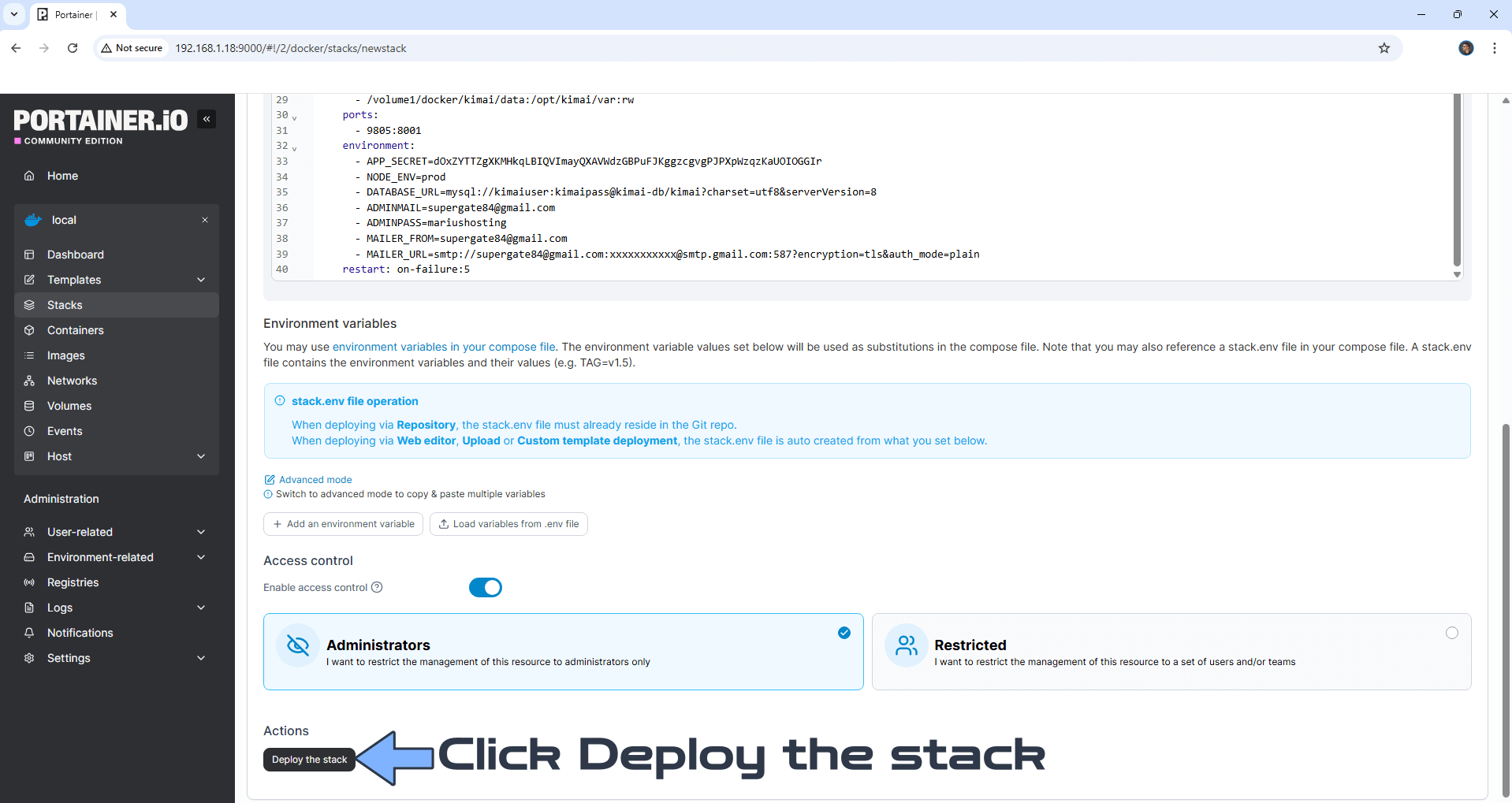

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Kimai Synology NAS Set up 9 new3 2028

  • STEP 17

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Kimai Synology NAS Set up 10 new 2024

  • STEP 18

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 19

Please waitĀ approximately 2-3 minutes for the installation to be completed or you will get a 502 blank bad gateway error page if you try to connect too soon. Now open your browser and type in your HTTPS/SSL certificate like this https://kimai.yourname.synology.me that you have previously created at STEP 6. In my case it’s https://kimai.mariushosting.synology.me If everything goes right, you will see the main Kimai login page. Type in your own Username and Password that you have previously created at STEP 14. Click Log in. Follow the instructions in the image below.

Kimai Synology NAS Set up 11 new 2024

  • STEP 20

Click Next. Follow the instructions in the image below.

Kimai Synology NAS Set up 12 new 2024

  • STEP 21

Choose your Language, Time, Timezone and Theme then click Next. Follow the instructions in the image below.

Kimai Synology NAS Set up 12 new3 2027

  • STEP 22

Click Next. Follow the instructions in the image below.

Kimai Synology NAS Set up 13 new3 2027

  • STEP 23

Your Kimai Dashboard at a glance!

Kimai Synology NAS Set up 14 new3 2027

Enjoy Kimai – Time Tracking Dashboard!

šŸ†˜TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issuesĀ article.

Note: Find outĀ how to update the Kimai containerĀ with the latest image.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.
