How to Install Kavita on Your Synology NAS

How to Install Kavita on Your Synology NAS

Kavita is a fast, feature rich, cross platform reading server. Built with a focus for manga, and the goal of being a full solution for all your reading needs. Set up your own server and share your reading collection with your friends and family! Serve up Manga/Webtoons/Comics (cbr, cbz, zip/rar, 7zip, raw images) and Books (epub, pdf) with Kavita. In this step by step guide I will show you how to install Kavita on your Synology NAS using Docker.

💡Note: This guide works perfectly with the latest Kavita v.0.8.1 release.

💡Note: Check out my new guide on how to Install Kavita Using Portainer.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Container Manager via Synology “Package Center”. If you run an older DSM version (under 7.2), search for Docker instead of Container Manager.

Download Container Manager Synology Docker

  • STEP 3

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it kavita. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Kavita Synology NAS Set up 1 new 2024

  • STEP 4

Now create two new folders inside the kavita folder that you created at STEP 3 and them config and data. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Kavita Synology NAS Set up 2 new 2024

  • STEP 5

Now create one new folder inside the data folder that you created at STEP 4 and it library. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Kavita Synology NAS Set up 3 new 2024

  • STEP 6

Populate the library folder with your CBR, PDF, EPUB files etc.

Kavita Synology NAS Set up 4 new 2024

  • STEP 7

Go to Control Panel / Task Scheduler / Create / Scheduled Task / User-defined script. Follow the instructions in the image below.

Synology User Defined Script

  • STEP 8

Once you click on User-defined script, a new window will open. Follow the instructions below:

  1. General: In the Task field type in Install Kavita. Uncheck the “Enabled” option. Select root User.
  2. Schedule: Select Run on the following date then select “Do not repeat“.
  3. Task Settings: Check “Send run details by email“, add your email then copy paste the code below in the Run command area. After that, click OK.
docker run -d --name=kavita \
-p 5471:5000 \
-v /volume1/docker/kavita/config:/kavita/config \
-v /volume1/docker/kavita/data:/manga \
--restart always \
jvmilazz0/kavita

Kavita Synology NAS Set up 5 new2 2024

  • STEP 9

After you click OK on STEP 8 a new warning pop up window will open. Click OK.

Kavita Synology NAS Set up 6 new2 2024

After you click OK, type in your DSM Password then click Submit. Follow the instructions in the image below.

Synology Task Scheduler Confirm Admin Password

  • STEP 10

After you click Submit on STEP 9, select your “Install Kavita” Task then click the “Run” tab. You will be asked to run Install Kavita – click OK. Follow the instructions in the image below.

Kavita Synology NAS Set up 7 new 2024

  • STEP 11

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 12

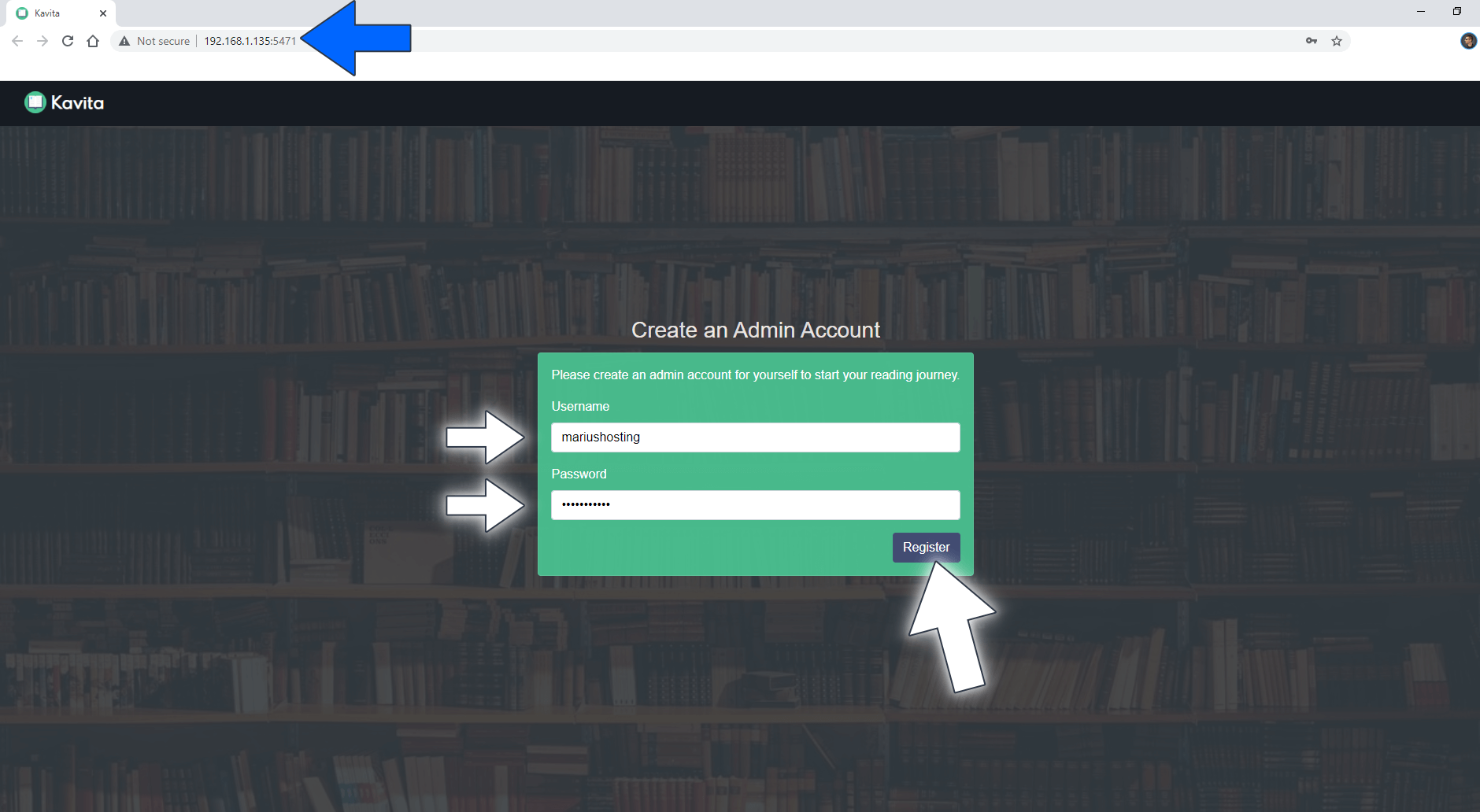

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:5471 Create your administrator account. Type in your own Username, Email and Password. Click Register. Follow the instructions in the image below.

Kavita Synology NAS Set up 8 new 2024

  • STEP 13

Type in your own Username and Password that you have previously added at STEP 12 then click Submit. Follow the instructions in the image below.

Kavita Synology NAS Set up 9 new 2024

  • STEP 14

Click on Server settings. Follow the instructions in the image below.

Kavita Synology NAS Set up 10 new 2024

  • STEP 15

At the top right of the page click +Add Library. Follow the instructions in the image below.

Kavita Synology NAS Set up 11 new 2024

  • STEP 16

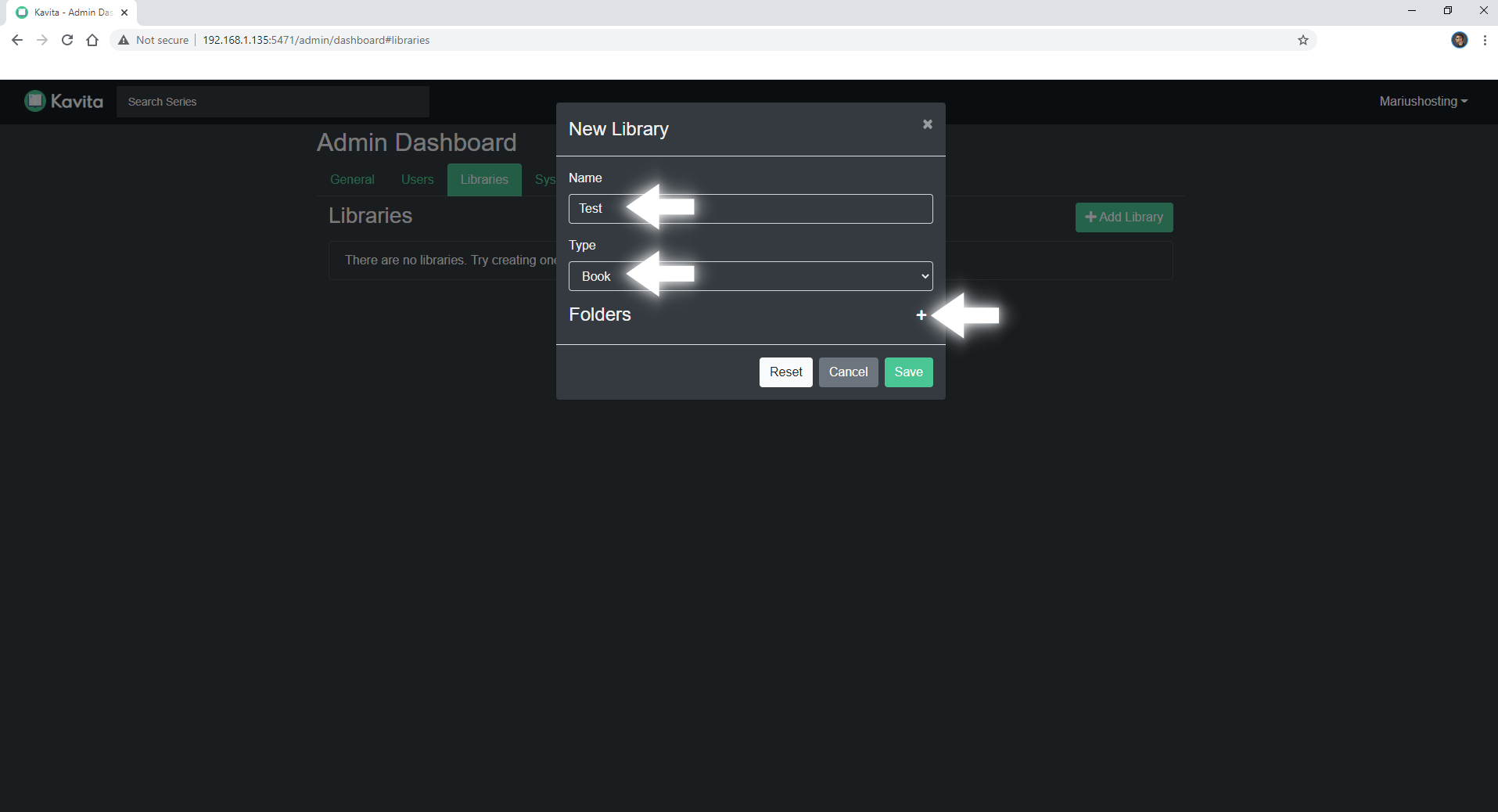

Name your Library, select your library Type, then click Next. Follow the instructions in the image below.

Kavita Synology NAS Set up 12 new 2024

  • STEP 17

Click + Browse for Media Folders. Follow the instructions in the image below.

Kavita Synology NAS Set up 13 new 2024

  • STEP 18

Click on the first folder marked with the / name. Follow the instructions in the image below.

Kavita Synology NAS Set up 14 new 2024

  • STEP 19

Click manga. Follow the instructions in the image below.

Kavita Synology NAS Set up 15 new 2024

  • STEP 20

Click Share. Follow the instructions in the image below. ⚠️Warning: do not click on the library folder.

Kavita Synology NAS Set up 16 new 2024

  • STEP 21

Click Next. Follow the instructions in the image below.

Kavita Synology NAS Set up 17 new 2024

  • STEP 22

Click Next. Follow the instructions in the image below.

Kavita Synology NAS Set up 18 new 2024

  • STEP 23

Click Save. Follow the instructions in the image below.

Kavita Synology NAS Set up 19 new 2024

  • STEP 24

You will see your entire Library under your library name.

Kavita Synology NAS Set up 20 new 2024

  • STEP 25

Now you can start reading your favorite comics!

Kavita Synology NAS Set up 21 new 2024

You have different options, including Dark theme mode and White theme mode.

Kavita Synology NAS Set up 22 new 2024

Now you can start reading your favorite eBooks!

Kavita Synology NAS Set up 23 new 2024

Everything will be fast and clean.

Kavita Synology NAS Set up 24 new 2024

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the Kavita container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make Kavita work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS? See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find out how to update the Kavita container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.

This post was updated on Saturday / May 4th, 2024 at 9:10 PM
