Homebranch is a self-hosted web application for managing and reading your E-Book collection. It provides a user-friendly interface to organize, search, and read your eBooks across devices. In this step by step guide I will show you how to install Homebranch on your Synology NAS using Docker and Portainer.

💡Note: This guide works perfectly with the latest Homebranch v1.2.0 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

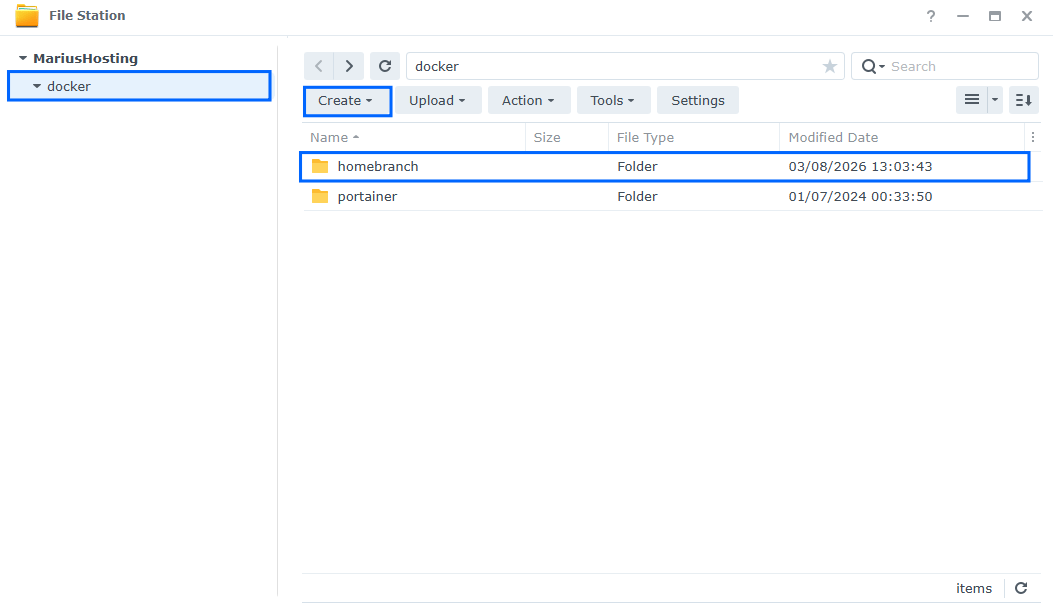

Go to Files and open the docker folder. Inside the docker folder, create one new folder and name it homebranch. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 4

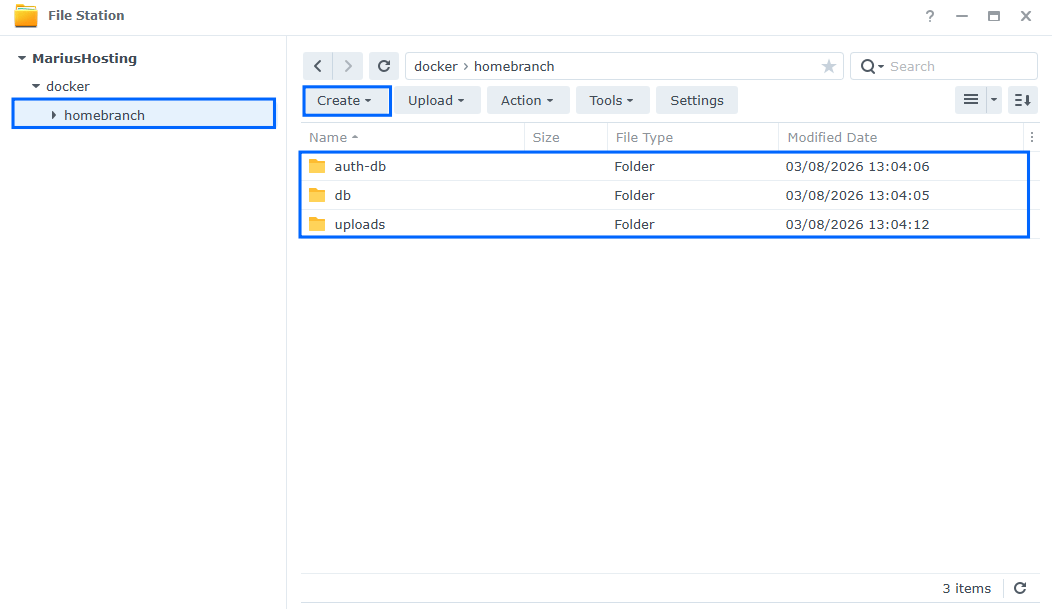

Now create three new folders inside the homebranch folder that you have previously created at STEP 3 and name them auth-db, db, uploads. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 5

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then Live connect. Follow the instructions in the image below.

On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 6

In the Name field type in homebranch. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  db:
    image: postgres:18
    container_name: Homebranch-DB
    hostname: homebranch-db
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "homebranch", "-U", "homebranchuser"]
      timeout: 45s
      interval: 10s
      retries: 10
    environment:
      POSTGRES_USER: homebranchuser
      POSTGRES_PASSWORD: homebranchpass
      POSTGRES_DB: homebranch
    volumes:
      - /volume1/docker/homebranch/db:/var/lib/postgresql:rw
    restart: on-failure:5

  auth-db:
    image: postgres:18
    container_name: Homebranch-Auth-DB
    hostname: auth-db
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "authentication", "-U", "auth"]
      timeout: 45s
      interval: 10s
      retries: 10
    environment:
      POSTGRES_USER: auth
      POSTGRES_PASSWORD: authpass
      POSTGRES_DB: authentication
    volumes:
      - /volume1/docker/homebranch/auth-db:/var/lib/postgresql:rw
    restart: on-failure:5

  auth:
    image: ghcr.io/oghamark/authentication:latest
    container_name: Homebranch-Auth
    depends_on:
      - auth-db
    environment:
      DATABASE_HOST: auth-db
      DATABASE_PORT: 5432
      DATABASE_USERNAME: auth
      DATABASE_PASSWORD: authpass
      JWT_ACCESS_SECRET: dOxZYTTZgXKMHkqLBIQVImayQXAVWdzGBPuFJKggzcgvgPJPXpWzqzKaUOIOGGIr
      JWT_REFRESH_SECRET: pmICEExxFXUqJmajpigWoVkRbTlUmcELClUOvmJqcWzRWACkmuxtbKUbRTsSlGjh
      CORS_ORIGIN: http://localhost
      PORT: 3000
    restart: on-failure:5

  homebranch:
    image: ghcr.io/oghamark/homebranch:latest
    container_name: Homebranch
    depends_on:
      - db
      - auth
    environment:
      DATABASE_HOST: homebranch-db
      DATABASE_PORT: 5432
      DATABASE_USERNAME: homebranchuser
      DATABASE_PASSWORD: homebranchpass
      DATABASE_NAME: homebranch
      JWT_ACCESS_SECRET: dOxZYTTZgXKMHkqLBIQVImayQXAVWdzGBPuFJKggzcgvgPJPXpWzqzKaUOIOGGIr
      CORS_ORIGIN: http://localhost
      UPLOADS_DIRECTORY: /data/uploads
    volumes:
      - /volume1/docker/homebranch/uploads:/data/uploads:rw
    restart: on-failure:5

  homebranch-web:
    image: ghcr.io/oghamark/homebranch-web:latest
    container_name: Homebranch-WEB
    ports:
      - 1240:80
    depends_on:
      - homebranch
      - auth
    environment:
      API_BACKEND: http://homebranch:3000
      AUTH_BACKEND: http://auth:3000
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the values for JWT_ACCESS_SECRET. Both values (in orange color) in the compose stack above should have the same identical code. (Generate your own Random 64 length JWT_ACCESS_SECRET.)
Note: Before you paste the code above in the Web editor area below, change the value for JWT_REFRESH_SECRET. (Generate your own Random 64 length JWT_REFRESH_SECRET.)

• STEP 7

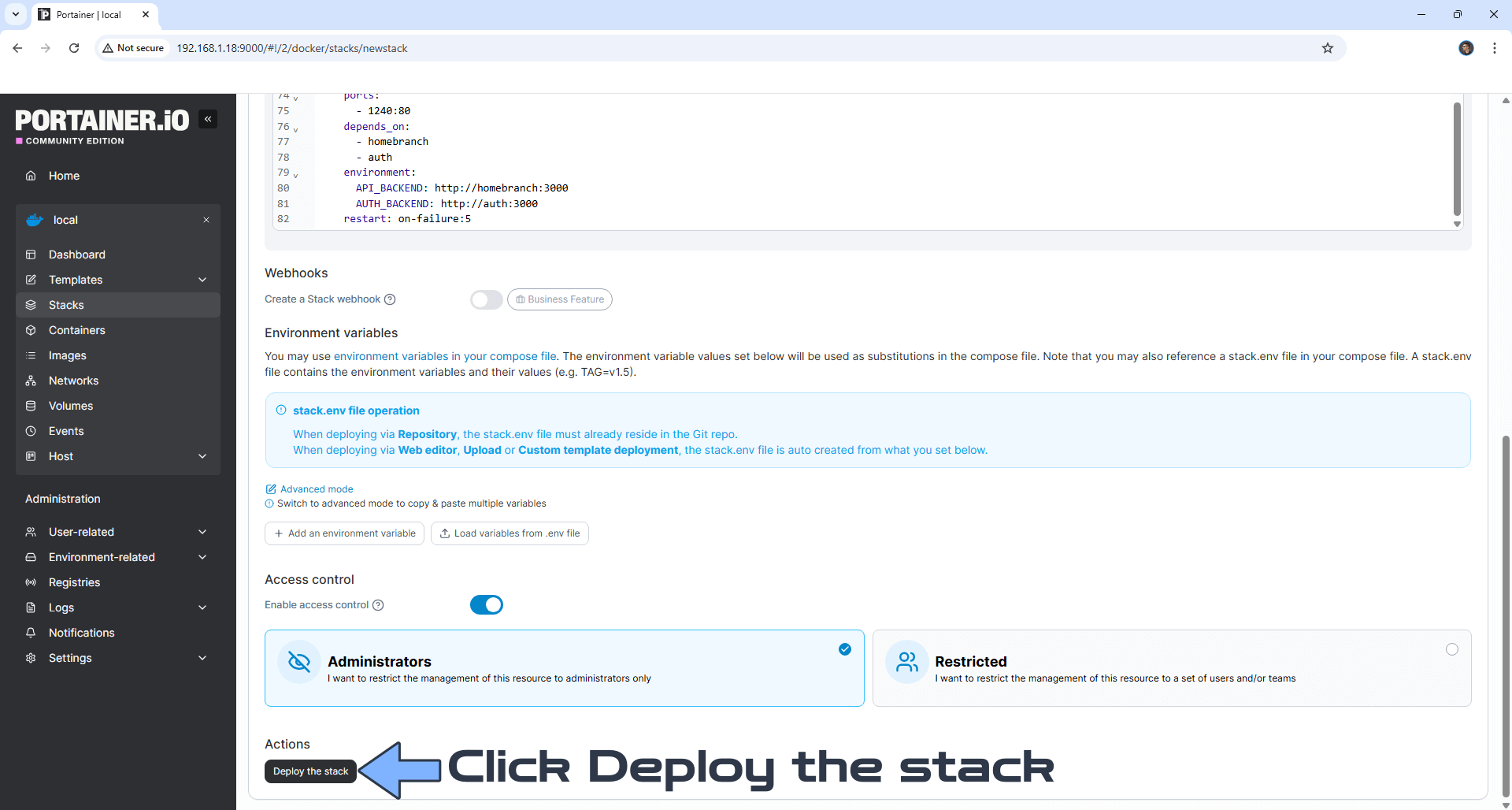

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 8

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 9

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

• STEP 10

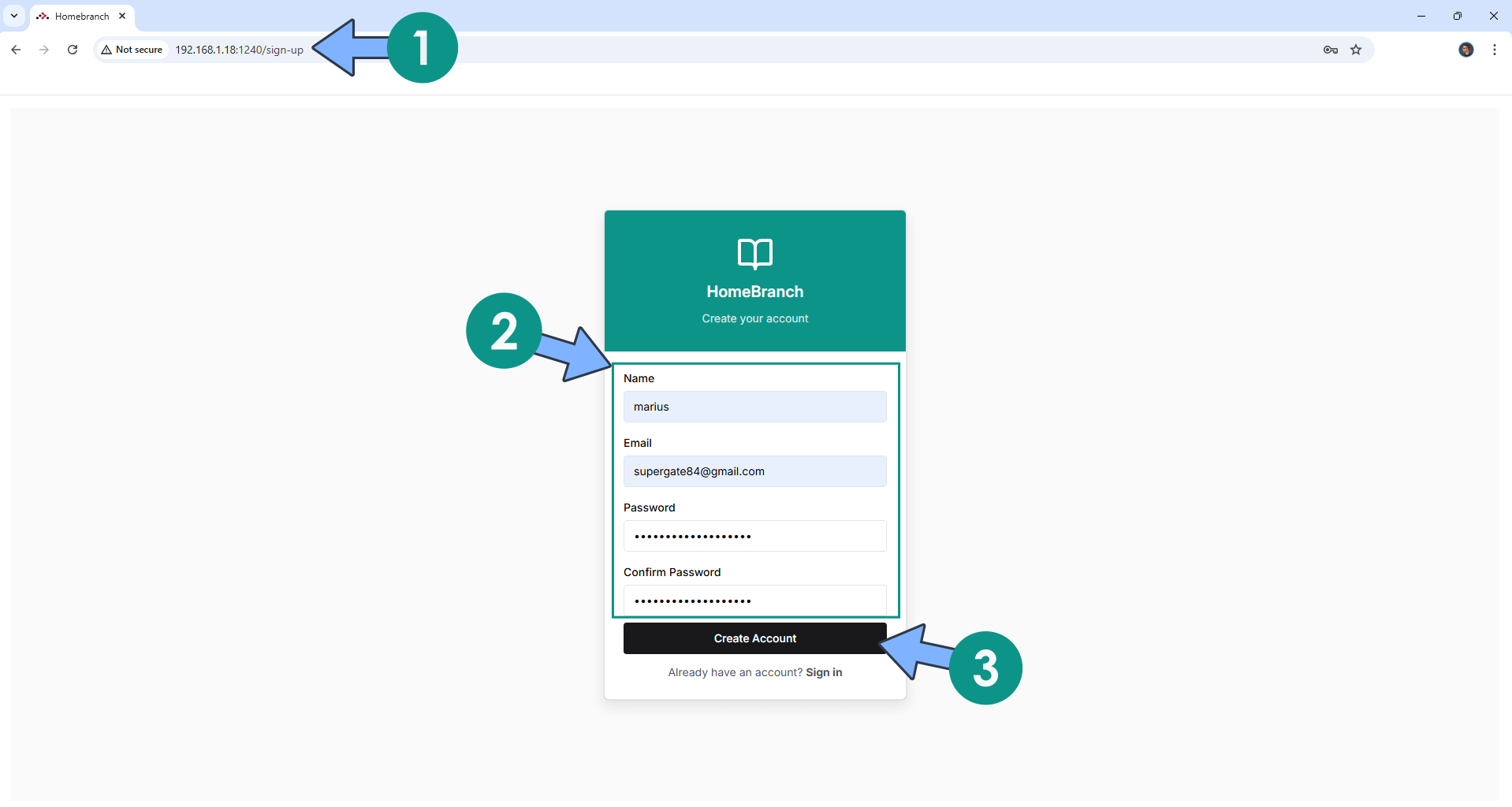

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:1240/sign-up Type in your own details, then click Create Account. Follow the instructions in the image below.

• STEP 11

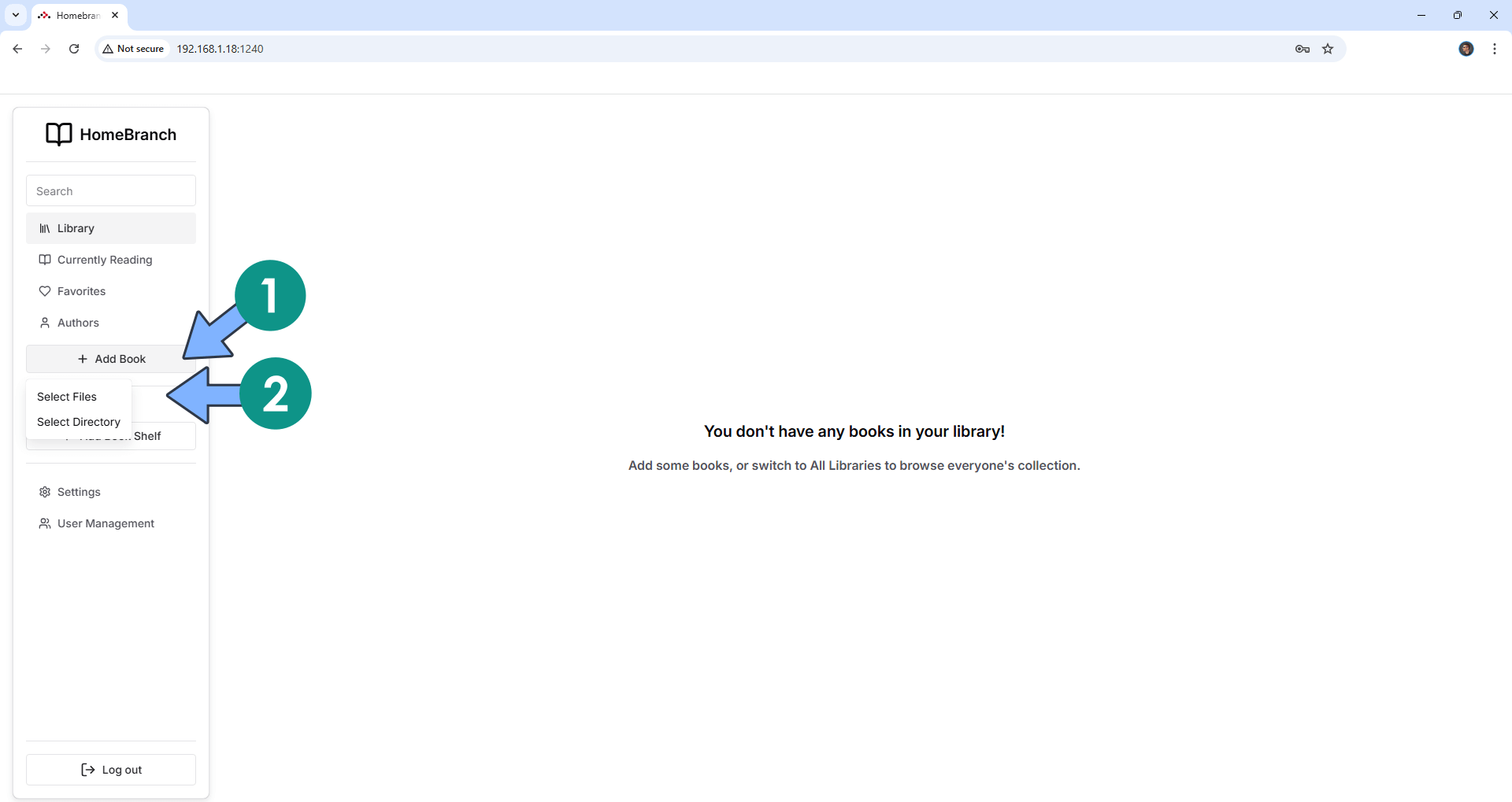

On the left sidebar, click + Add Book. Click Select Files to upload an eBook with the .epub extension from your computer. Follow the instructions in the image below.

• STEP 12

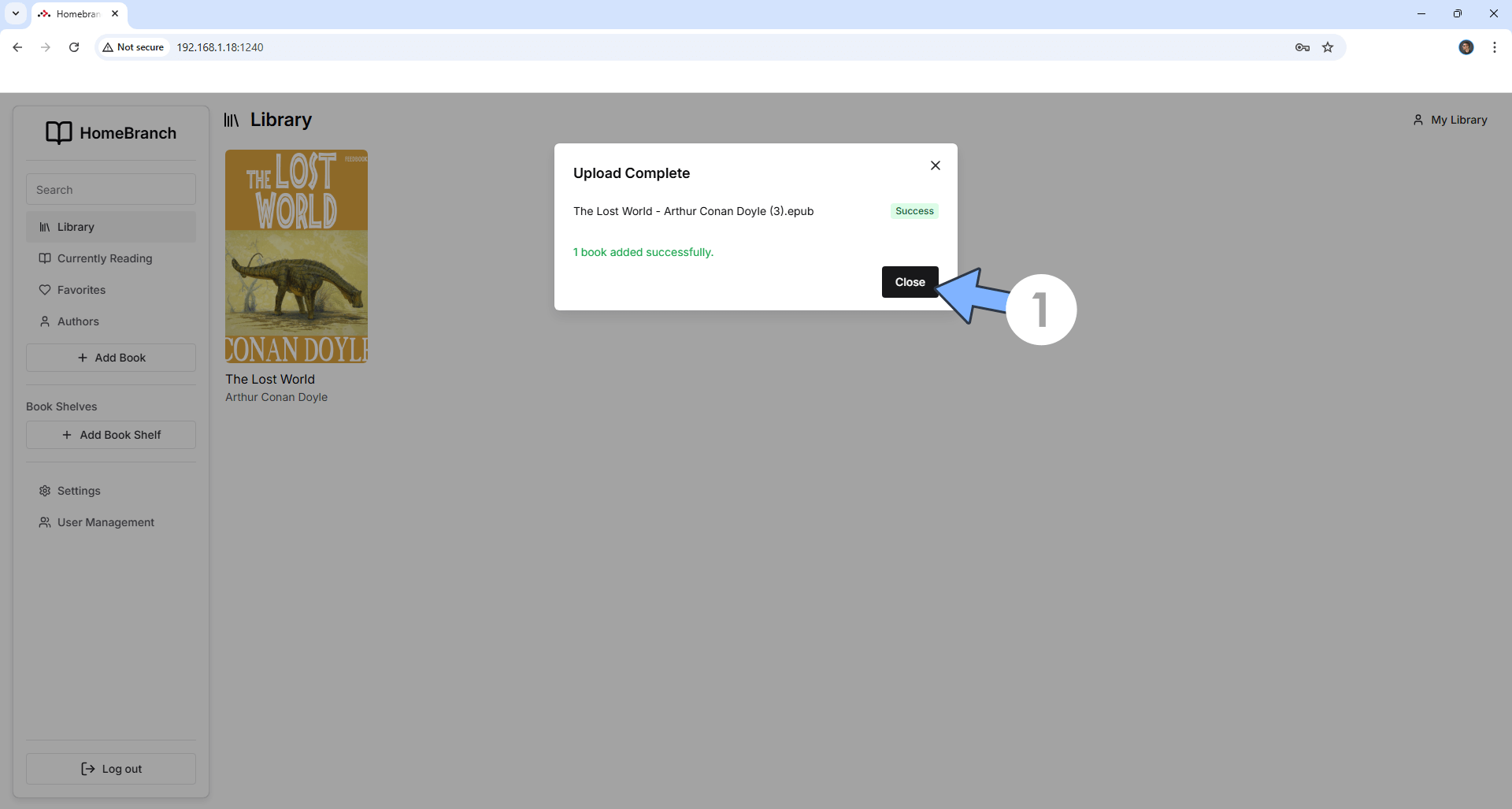

Click Close. Follow the instructions in the image below.

• STEP 13

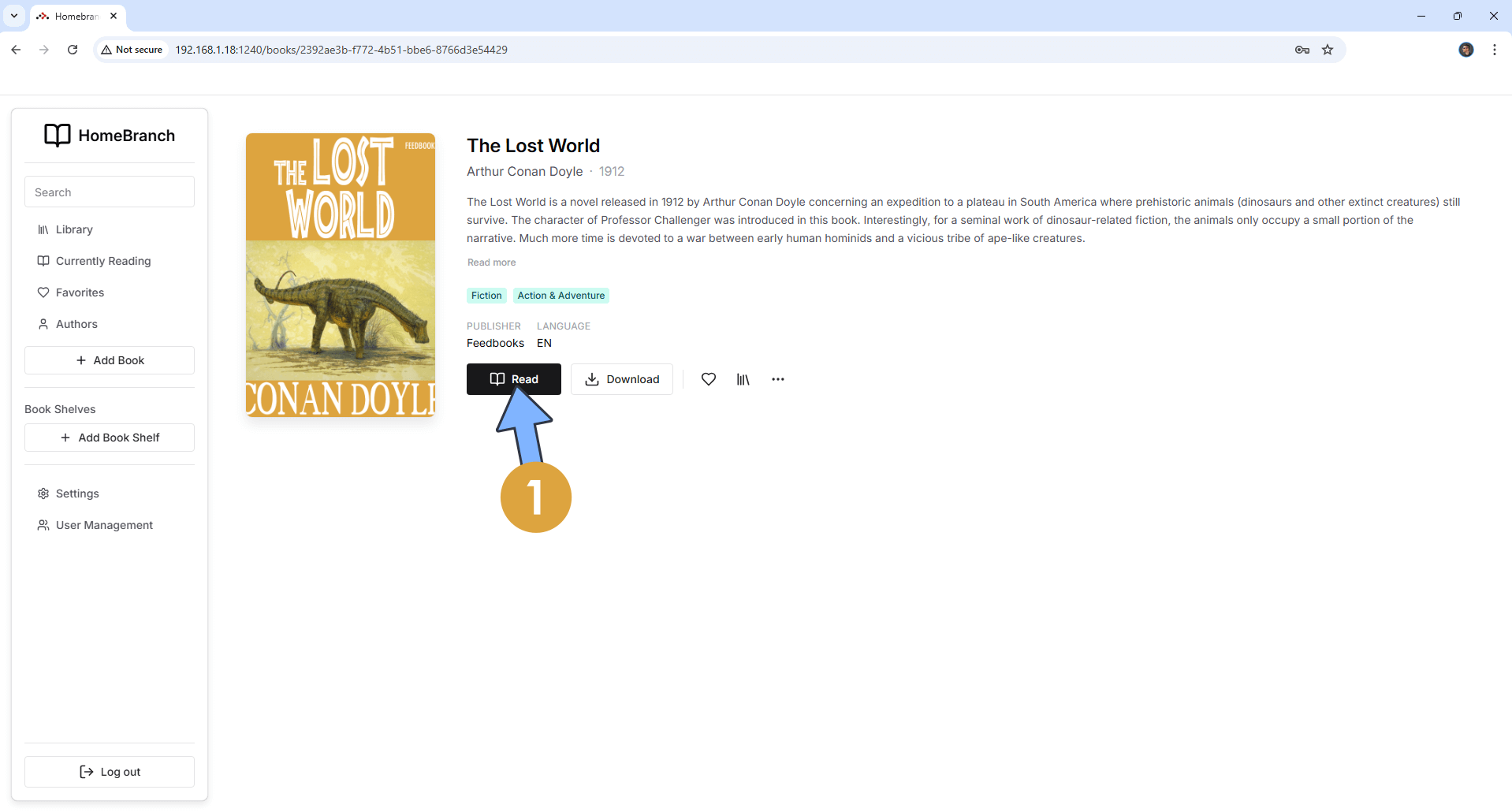

Click Read to read your eBook. Follow the instructions in the image below.

• STEP 14

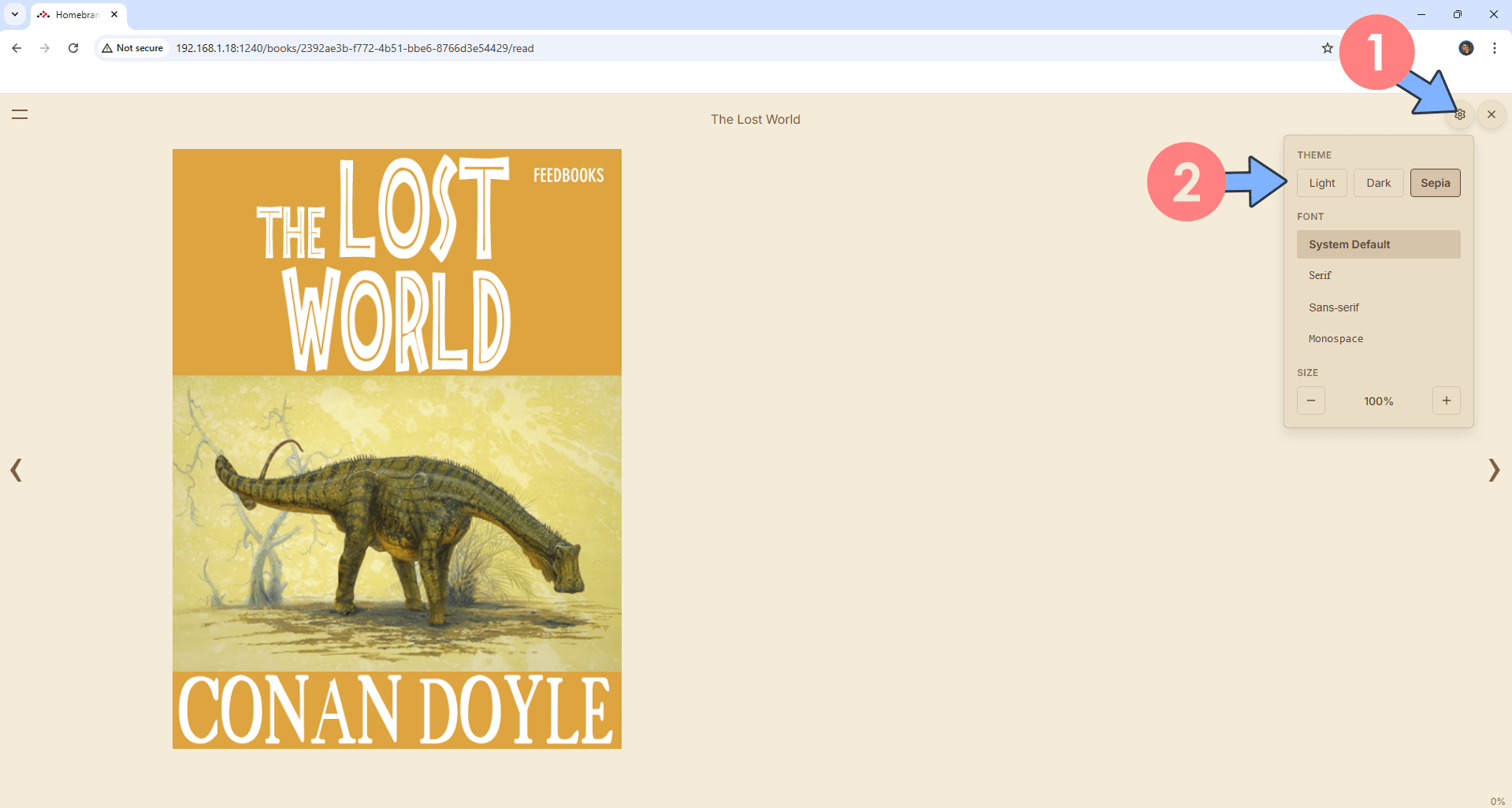

Start reading your book. Adjust the settings according to your preferences. Follow the instructions in the image below.

• STEP 14

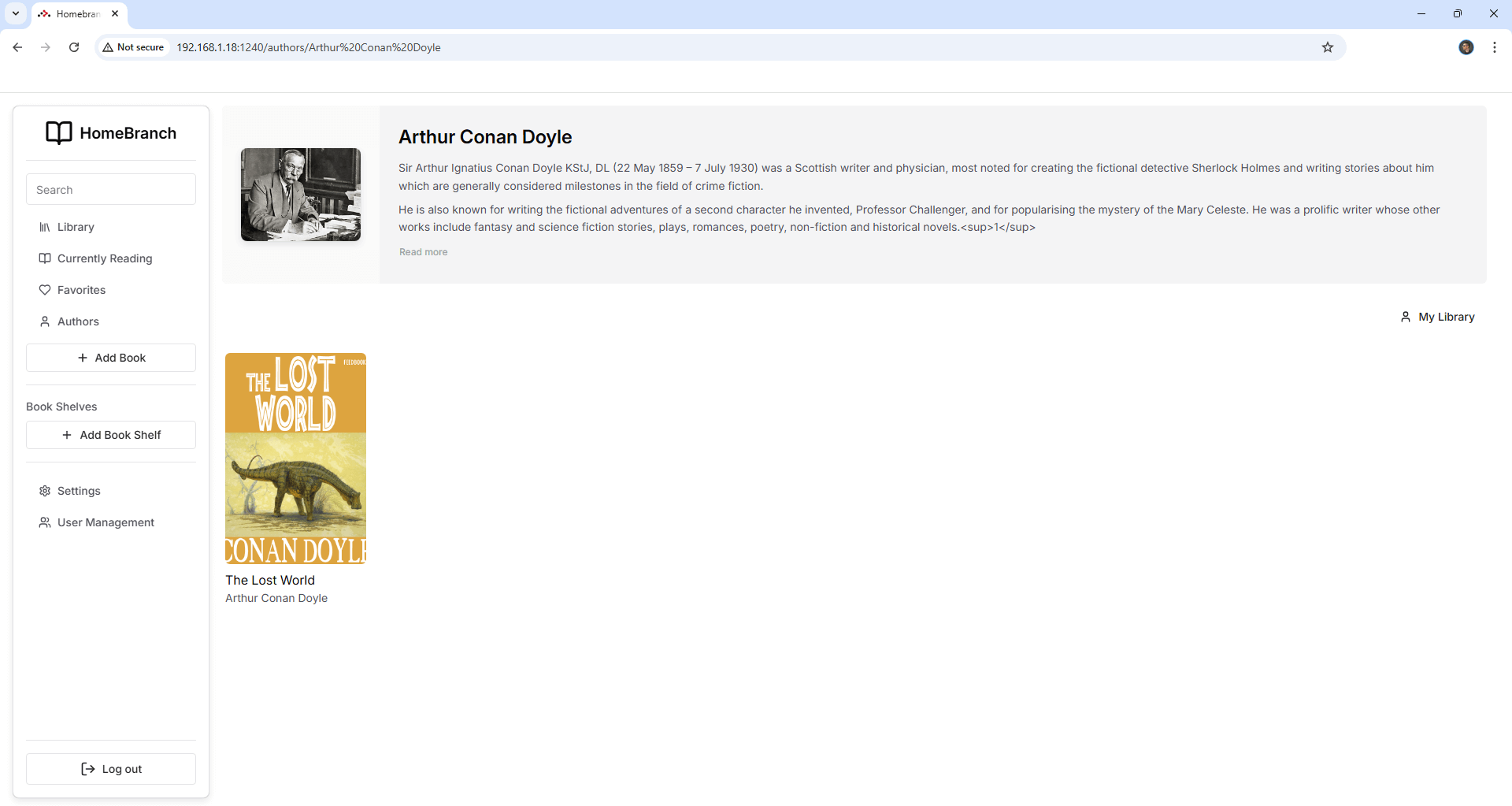

Your Authors at a glance!

Enjoy Homebranch!
