How to Install HandBrake on Your Synology NAS

How to Install HandBrake on Your Synology NAS

HandBrake is a open source transcoder for digital video files tool, built by volunteers, for converting video from nearly any format to a selection of modern, widely supported codecs. In this step by step guide I will show you how to installĀ HandBrakeĀ on yourĀ Synology NASĀ using Docker and Portainer.

šŸ’”Note: This guide works perfectly with the latest HandBrake v1.8.2Ā release.

šŸ’”Note: Check out my new guide on how to Install HandBrake on Your UGREEN NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go toĀ File StationĀ and open the docker folder. Inside the docker folder, create one new folder and name itĀ handbrake. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

HandBrake Synology NAS Set up 1

  • STEP 4

Now create four new folders inside the handbrakeĀ folder that you created atĀ STEP 3 and name them config, output, storage, watch. Follow the instructions in the image below.
Note: Be careful enter only lowercase, not uppercase letters.

HandBrake Synology NAS Set up 2

  • STEP 5

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 6

In the Name field type in handbrake. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  handbrake:
    image: jlesage/handbrake:latest
    container_name: HandBrake
    hostname: handbrake
    mem_limit: 4g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: wget --no-verbose --tries=1 --spider http://localhost:5800
    ports:
      - 5821:5800
    volumes:
      - /volume1/docker/handbrake/config:/config:rw
      - /volume1/docker/handbrake/storage:/storage:ro
      - /volume1/docker/handbrake/watch:/watch:rw
      - /volume1/docker/handbrake/output:/output:rw
    environment:
      USER_ID: 1026
      GROUP_ID: 100
      TZ: Europe/Bucharest
      DARK_MODE: 1
      VNC_LISTENING_PORT: -1
      AUTOMATED_CONVERSION: 0 # Info under: https://github.com/jlesage/docker-handbrake#automatic-video-conversion
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value numbers for USER_ID and GROUP_IDĀ with your own values. (Follow my step by step guide on how to do this.)Ā 1026 is my personal PUID value andĀ 100 is my personal PGID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)

HandBrake Synology NAS Set up 3

  • STEP 7

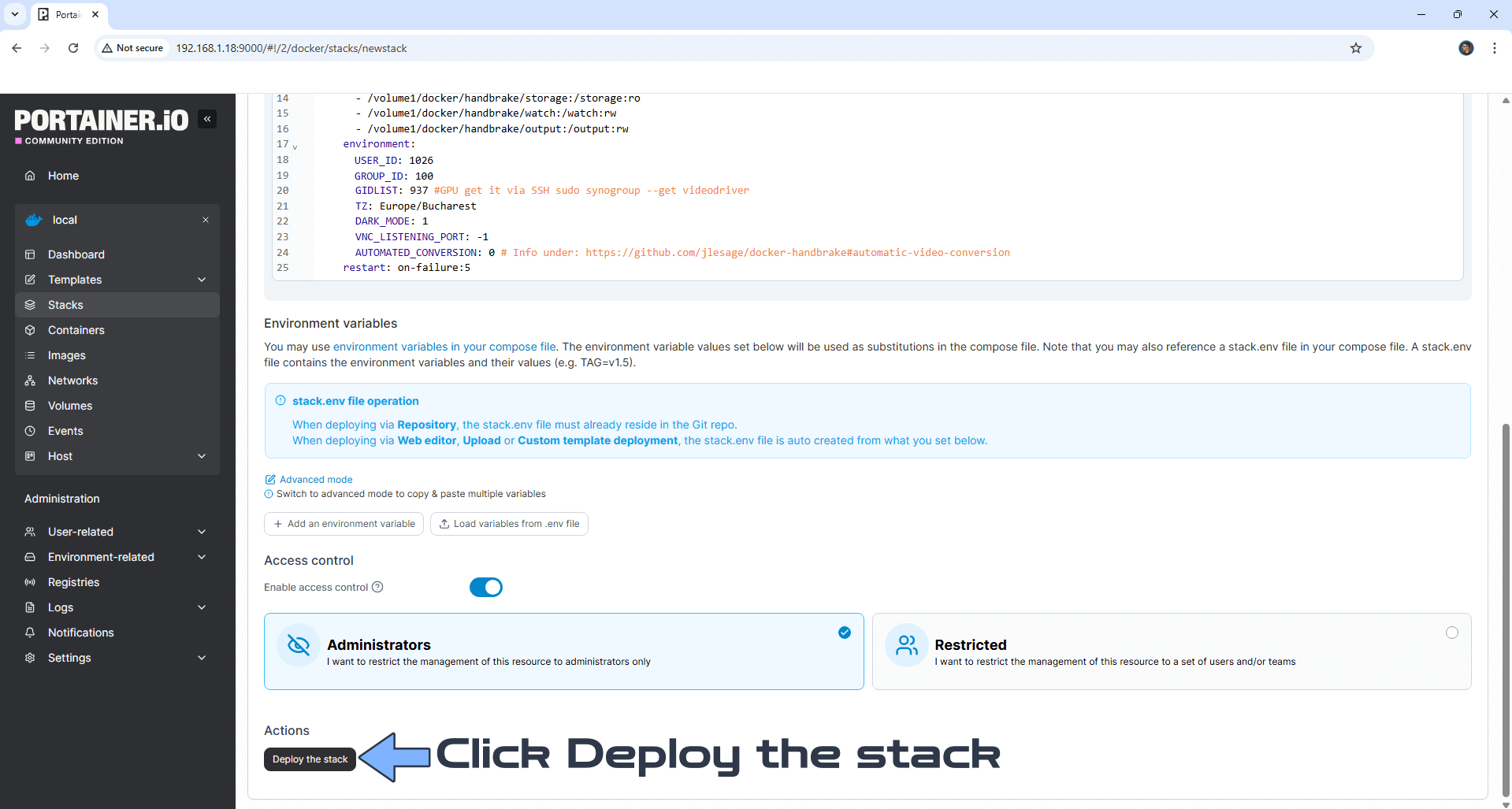

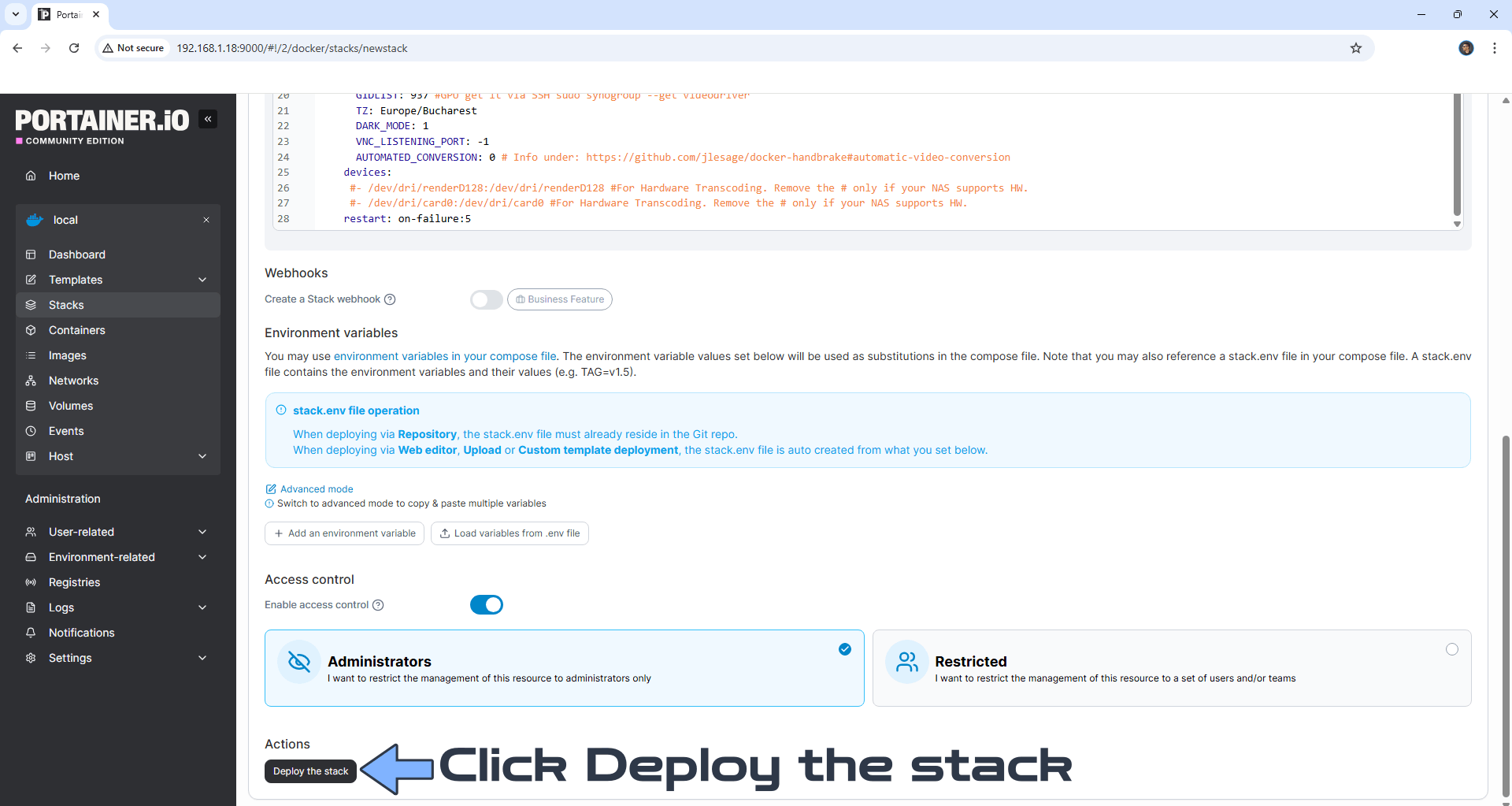

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

HandBrake Synology NAS Set up 4

  • STEP 8

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

HandBrake Synology NAS Set up 5

  • STEP 9

Go back toĀ STEP 1Ā or you will deal with karma šŸ™‚

  • STEP 10

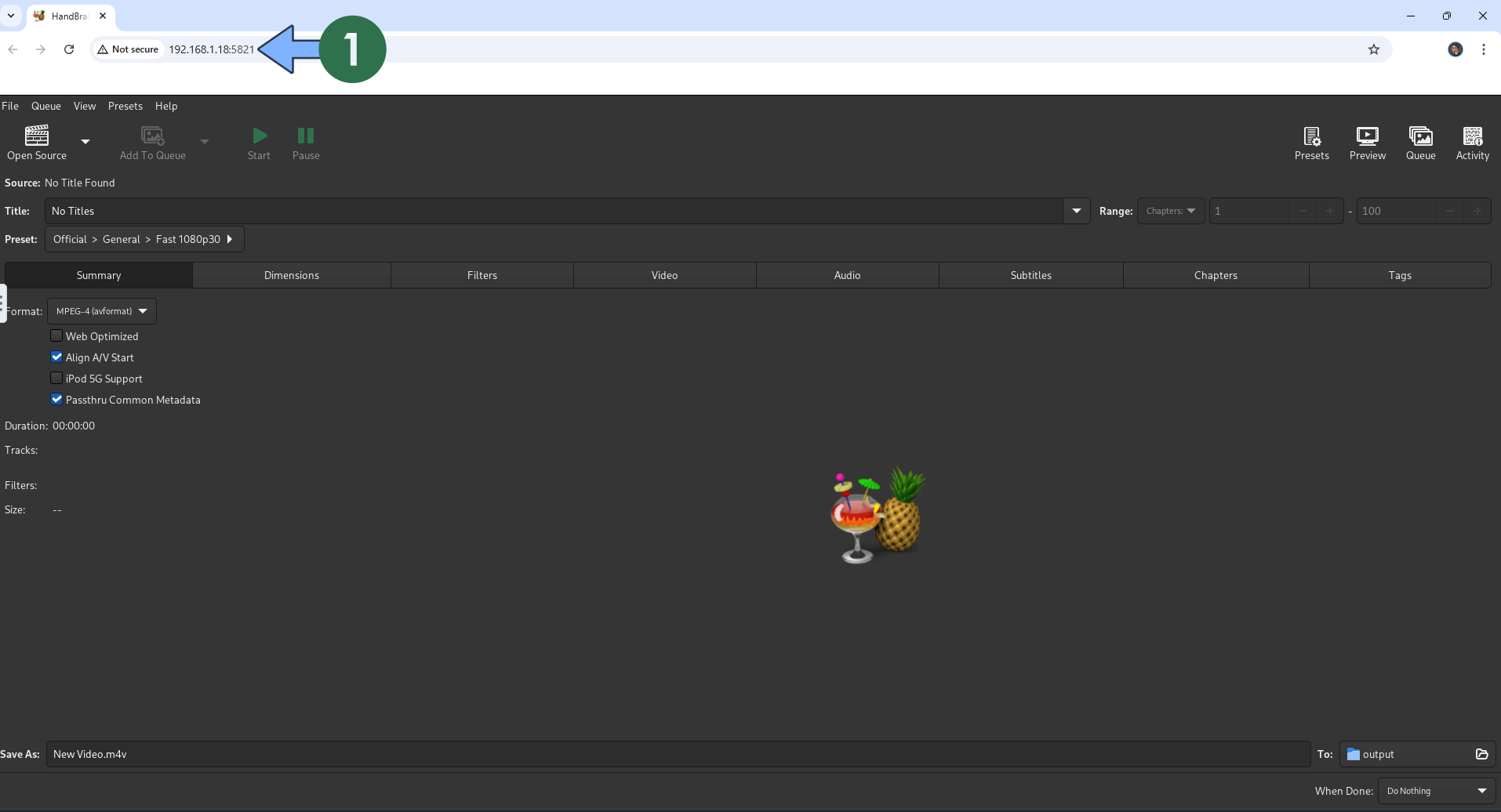

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:5821

HandBrake Synology NAS Set up 6

Enjoy HandBrake!

šŸ†˜TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issuesĀ article.

Note: If you want to run the HandBrake container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make HandBrake work via HTTPS, it’s mandatory to activate WebSocket.

Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: Find outĀ how to update the HandBrake container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.

This post was updated on Friday / August 23rd, 2024 at 6:01 PM
