With Fireshare you can easily share your game clips, videos, or other media via unique links. The goal of Fireshare is to provide a very simple and easy way for you to share any videos you have through a unique link. All you have to do is put your videos in a folder and Fireshare will take care of the rest. In this step by step guide I will show you how to install Fireshare on your Synology NAS using Docker.

💡Note: This guide works perfectly with the latest Fireshare v1.2.20 release.

💡Note: Check out my new guide on how to Install Fireshare Using Portainer.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Container Manager via Synology “Package Center”. If you run an older DSM version (under 7.2), search for Docker instead of Container Manager.

Download Container Manager Synology Docker

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Fireshare Synology NAS Set up 1 new 2024

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

Fireshare Synology NAS Set up 2 new 2024

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Fireshare. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: fireshare.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 5738

Fireshare Synology NAS Set up 3 new 2024

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Fireshare Synology NAS Set up 4 new 2024

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

Fireshare Synology NAS Set up 5 new 2024

  • STEP 10

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it fireshare. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Fireshare Synology NAS Set up 7

  • STEP 11

Now create two new folders inside the fireshare folder that you created at STEP 10 and name them processing and video. Follow the instructions in the image below.
Note: Be careful enter only lowercase, not uppercase letters.

Fireshare Synology NAS Set up 7 new 2024

  • STEP 12

Populate the video folder with your own videos.

  • STEP 13

Go to Control Panel / Task Scheduler / Create / Scheduled Task / User-defined script. Follow the instructions in the image below.

Synology User Defined Script

  • STEP 14

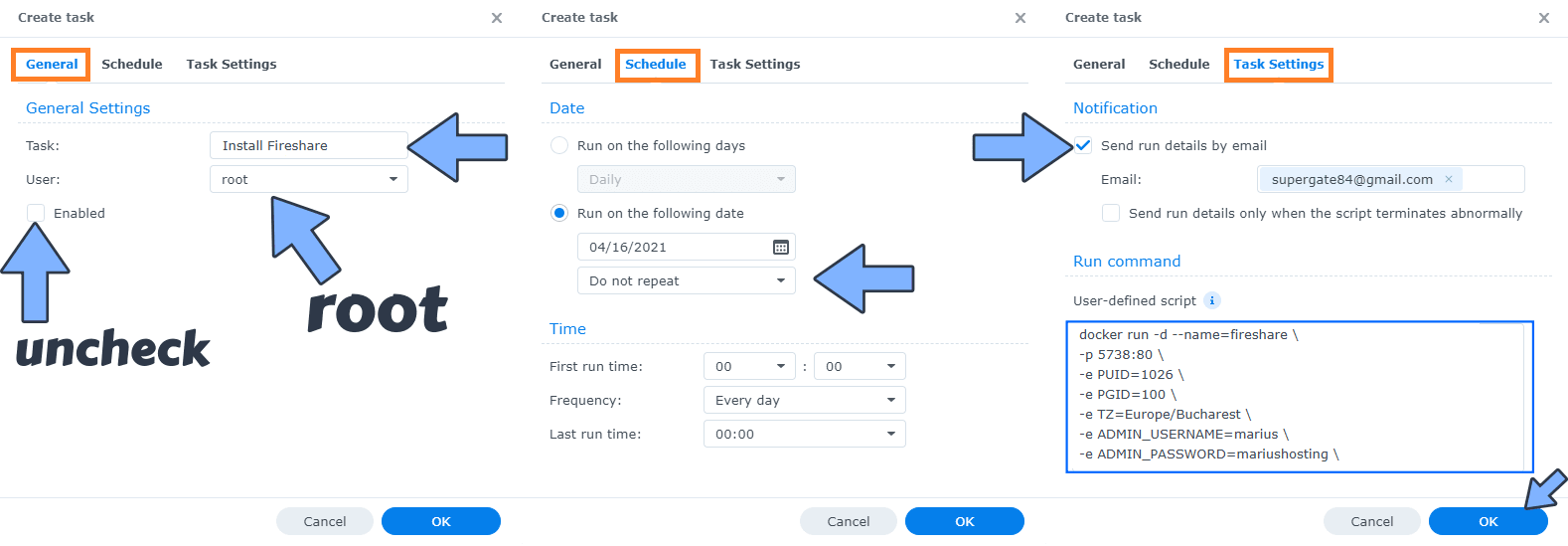

Once you click on User-defined script, a new window will open. Follow the instructions below:

  1. General: In the Task field type in Install Fireshare. Uncheck the “Enabled” option. Select root User.
  2. Schedule: Select Run on the following date then select “Do not repeat“.
  3. Task Settings: Check “Send run details by email“, add your email then copy paste the code below in the Run command area. After that, click OK.
docker run -d --name=fireshare \
-p 5738:80 \
-e PUID=1026 \
-e PGID=100 \
-e TZ=Europe/Bucharest \
-e ADMIN_PASSWORD=mariushosting \
-v /volume1/docker/fireshare:/data \
-v /volume1/docker/fireshare/processing:/processed \
-v /volume1/docker/fireshare/video:/videos \
--restart always \
shaneisrael/fireshare

Note: Before you paste the code above in the Run command area below, change the value numbers for PUID and PGID with your own values. (Follow my step by step guide on how to do this.)
Note: Before you paste the code above in the Run command area below, change the value for TZ. (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Run command area, change the value for ADMIN_PASSWORD and add your own password. mariushosting is an example for a password. You have to insert your own password.

Fireshare Synology NAS Set up 1 new 2023

  • STEP 15

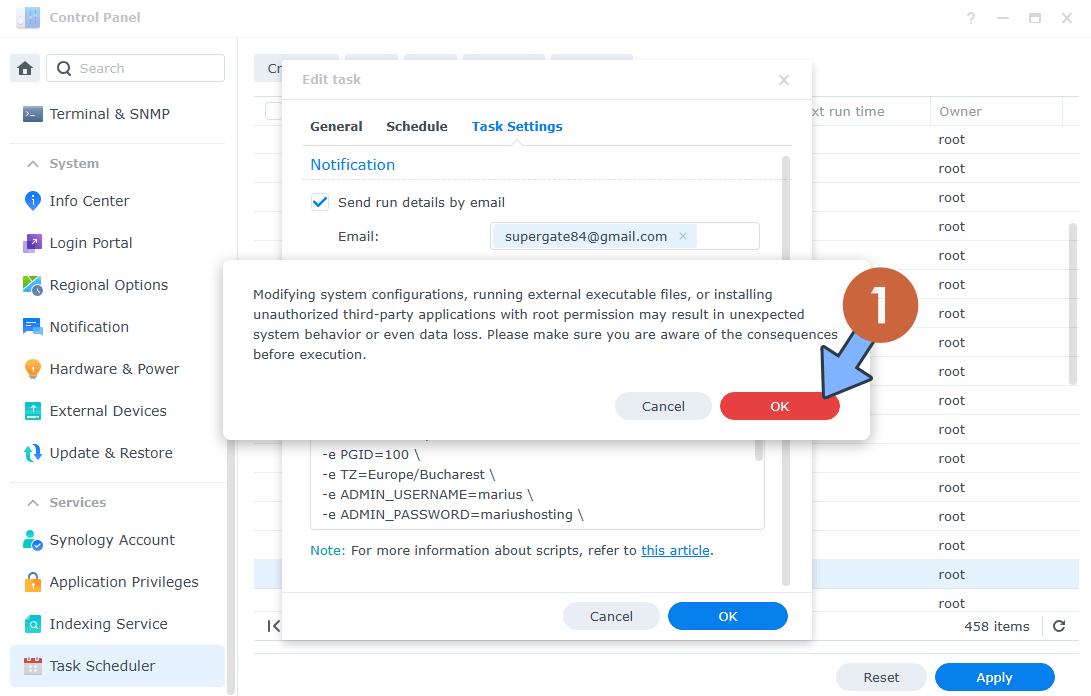

After you click OK on STEP 14 a new warning pop up window will open. Click OK.

Fireshare Synology NAS Set up 11

After you click OK, type in your DSM Password then click Submit. Follow the instructions in the image below.

Synology Task Scheduler Confirm Admin Password

  • STEP 16

After you click Submit on STEP 15, select your “Install Fireshare” Task then click the “Run” tab. You will be asked to run Install Fireshare – click OK. Follow the instructions in the image below.

Fireshare Synology NAS Set up 12

  • STEP 17

Go back to STEP 1 or you will deal with karma 🙂.

  • STEP 18

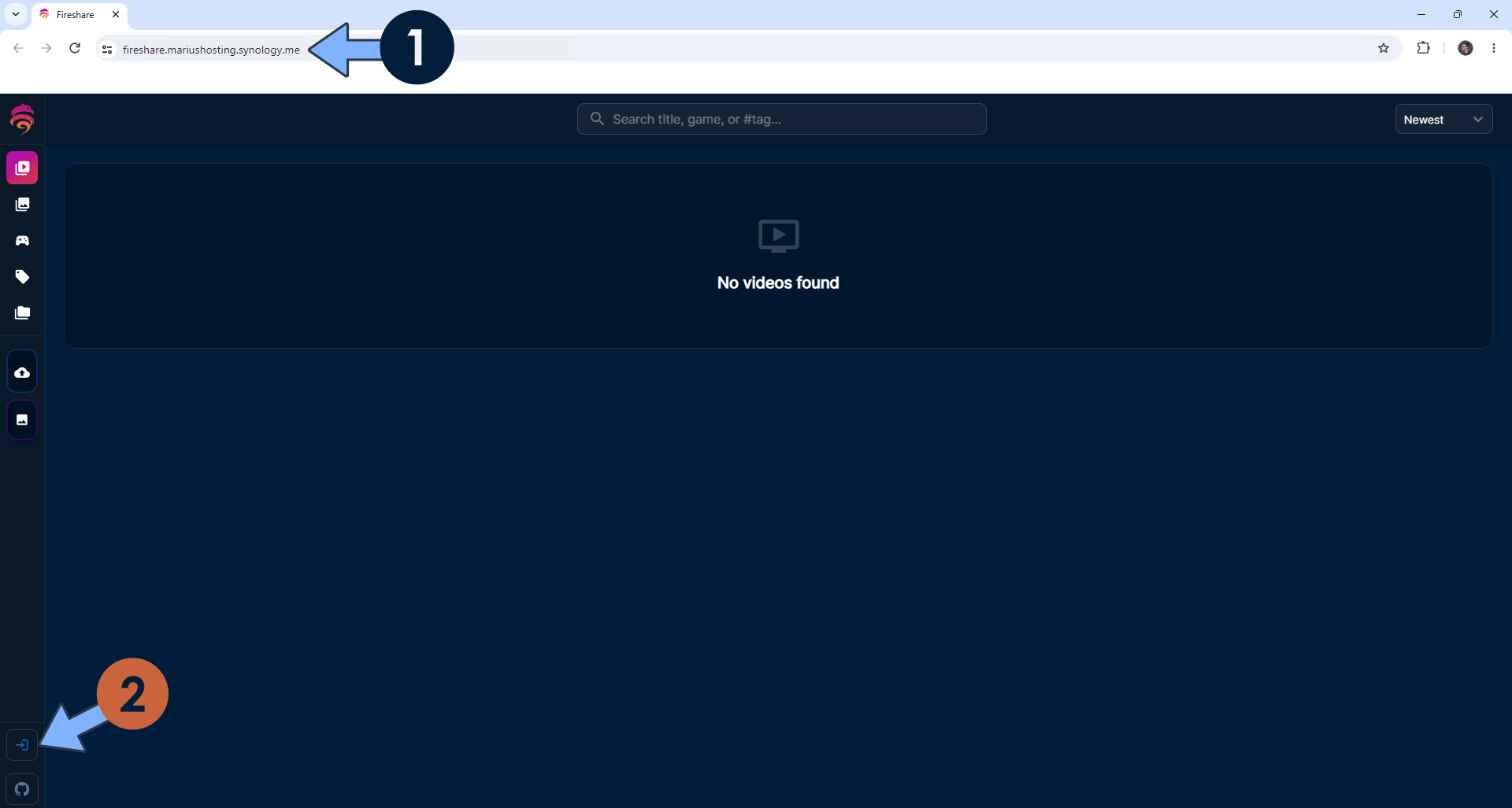

Now open your browser and type in your HTTPS/SSL certificate like this https://fireshare.yourname.synology.me In my case it’s https://fireshare.mariushosting.synology.me Click Login at the bottom left of the page. Follow the instructions in the image below.

Fireshare Synology NAS Set up 11 new 2024

  • STEP 19

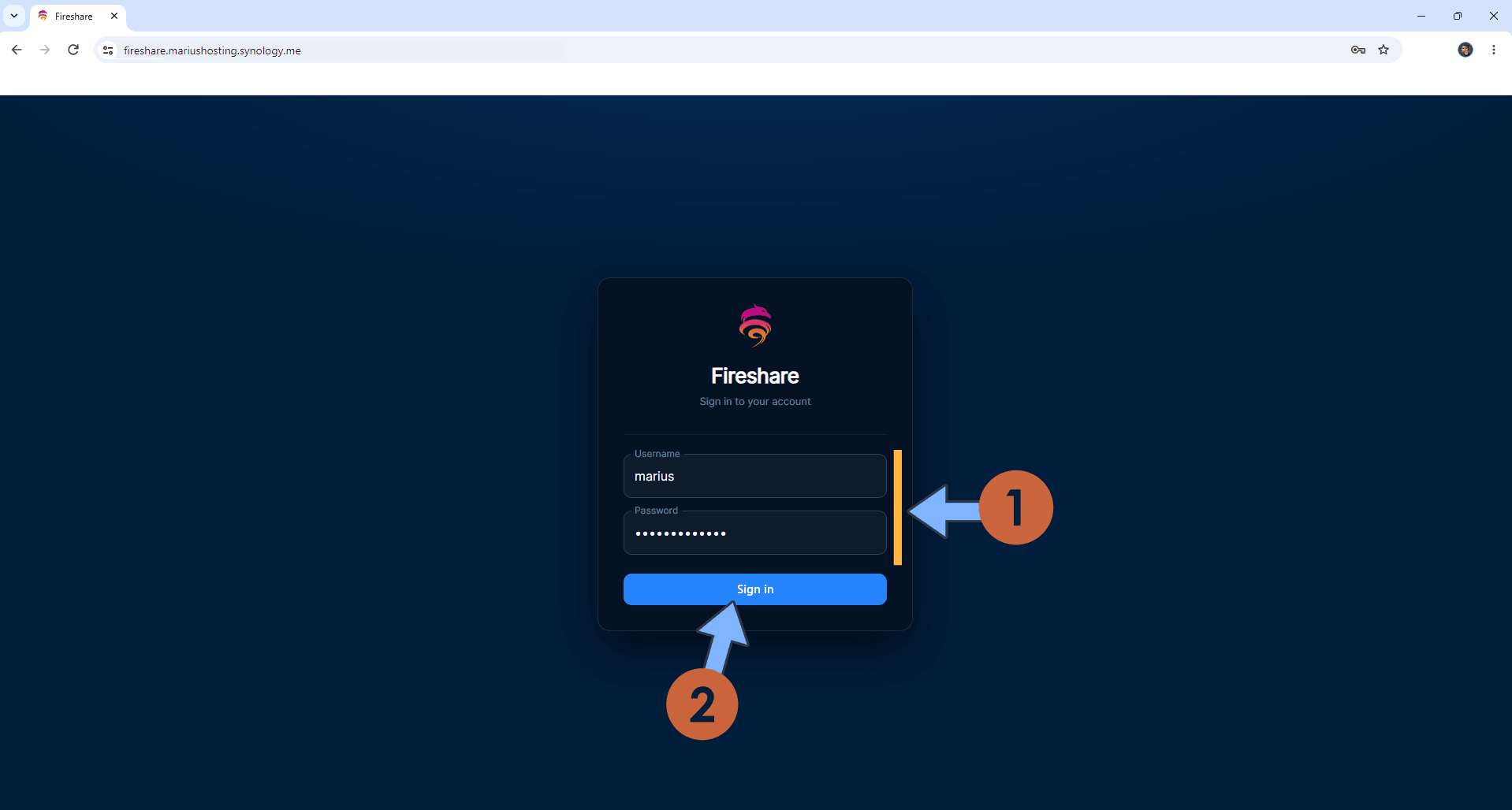

After you click Login at STEP 18, you will be asked to add your Username and Password. The default username is admin and the password is your own password you have previously chosen at STEP 14. Click Sign in. Follow the instructions in the image below.

Fireshare Synology NAS Set up 12 new 2024

  • STEP 20

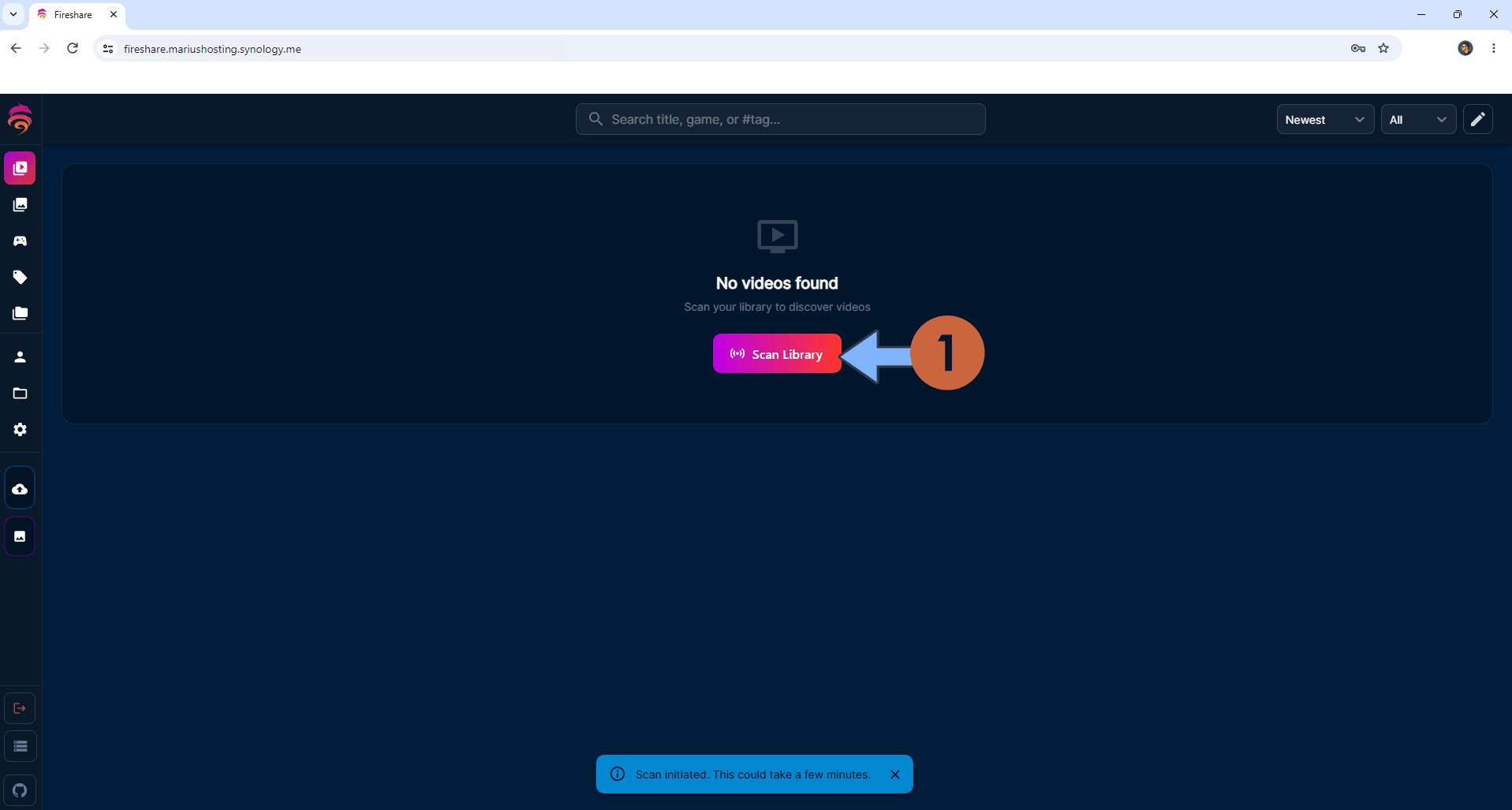

Click Scan Library. Wait some minutes. Your video library will be scanned. Follow the instructions in the image below.

Fireshare Synology NAS Set up 13 new 2024

  • STEP 21

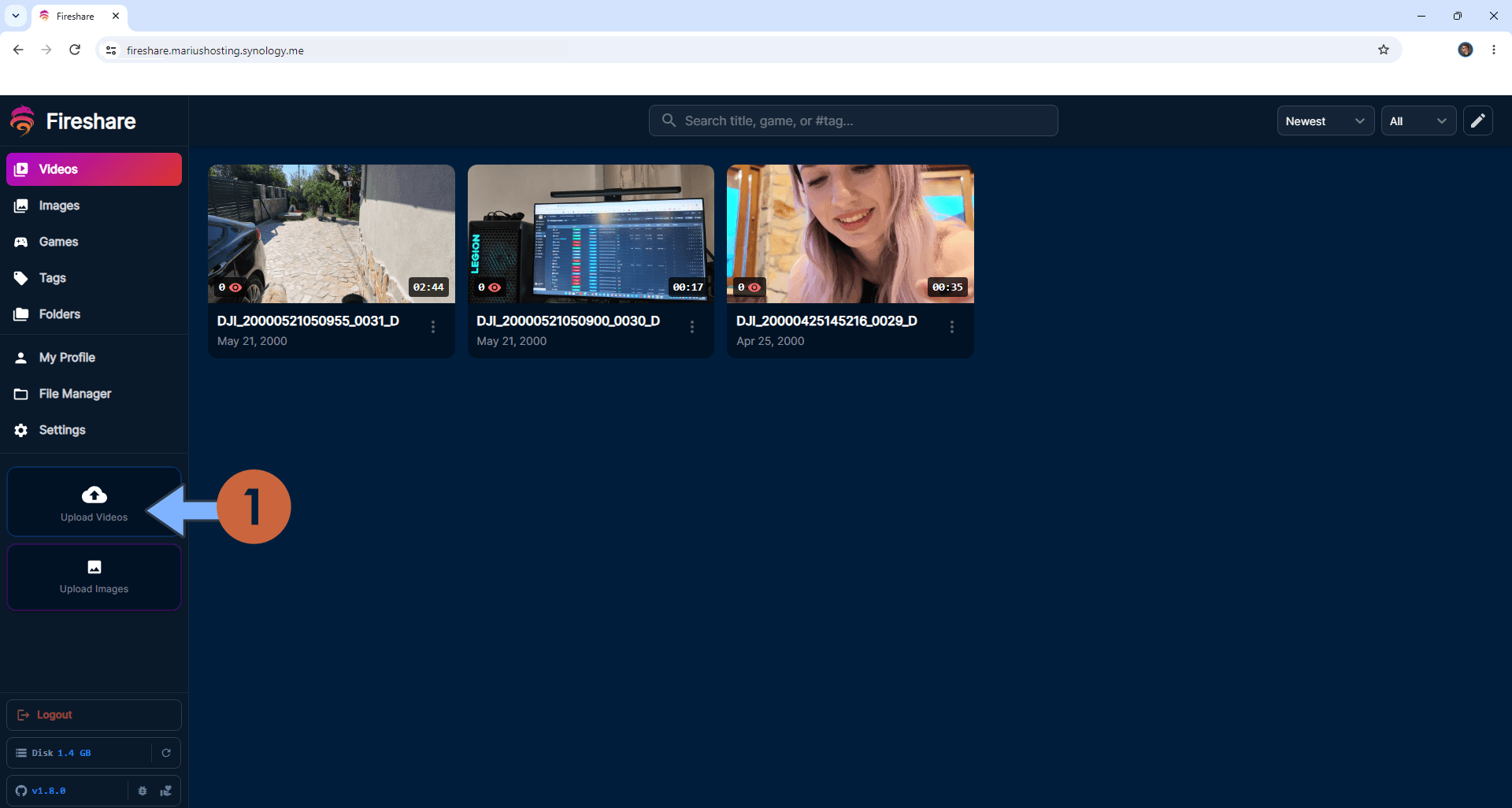

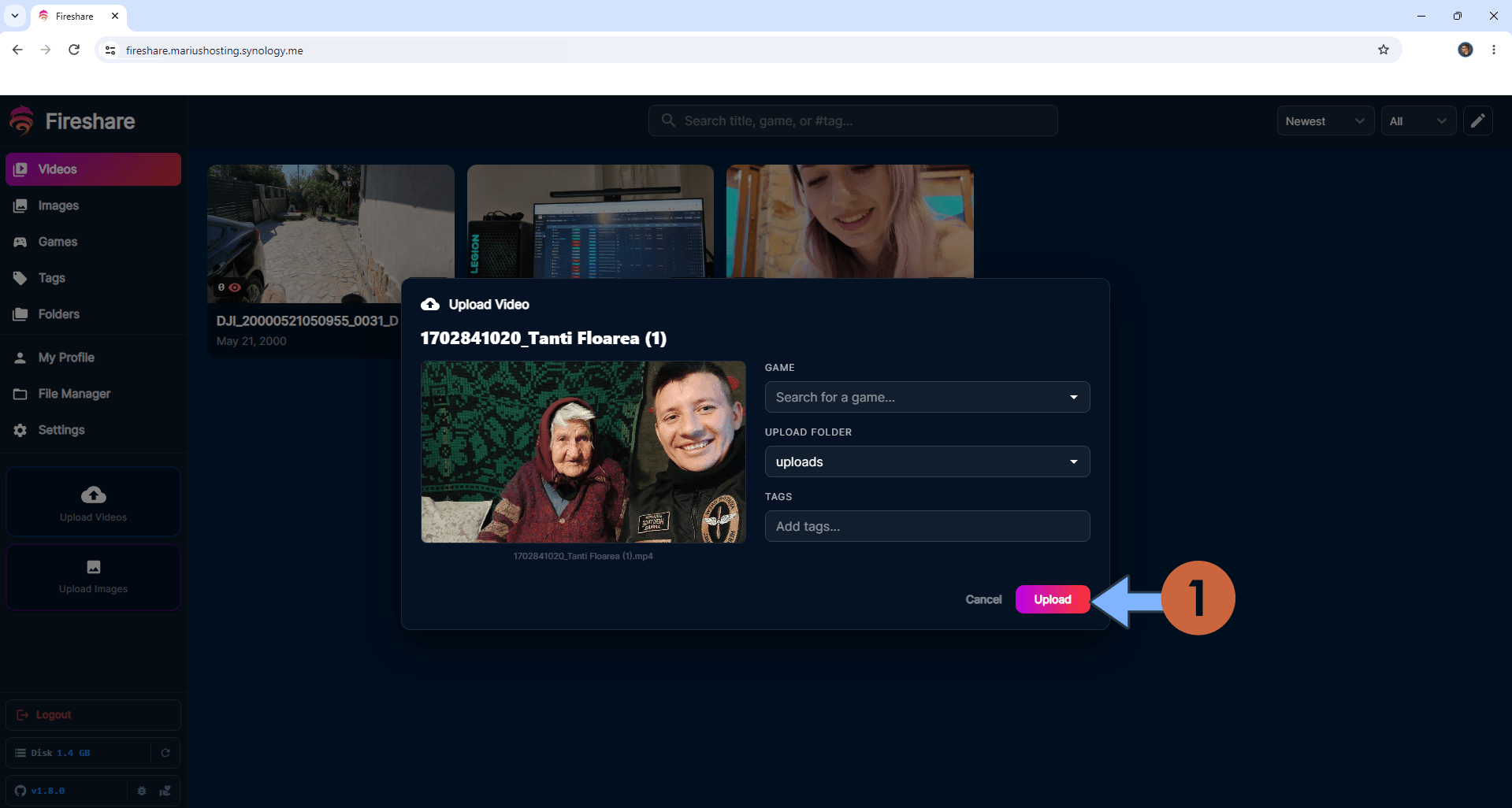

Refresh the page after a couple of minutes to see your videos listed. You can also upload videos from your own computer. Follow the instructions in the image below.

Fireshare Synology NAS Set up 14 new 2024

  • STEP 22

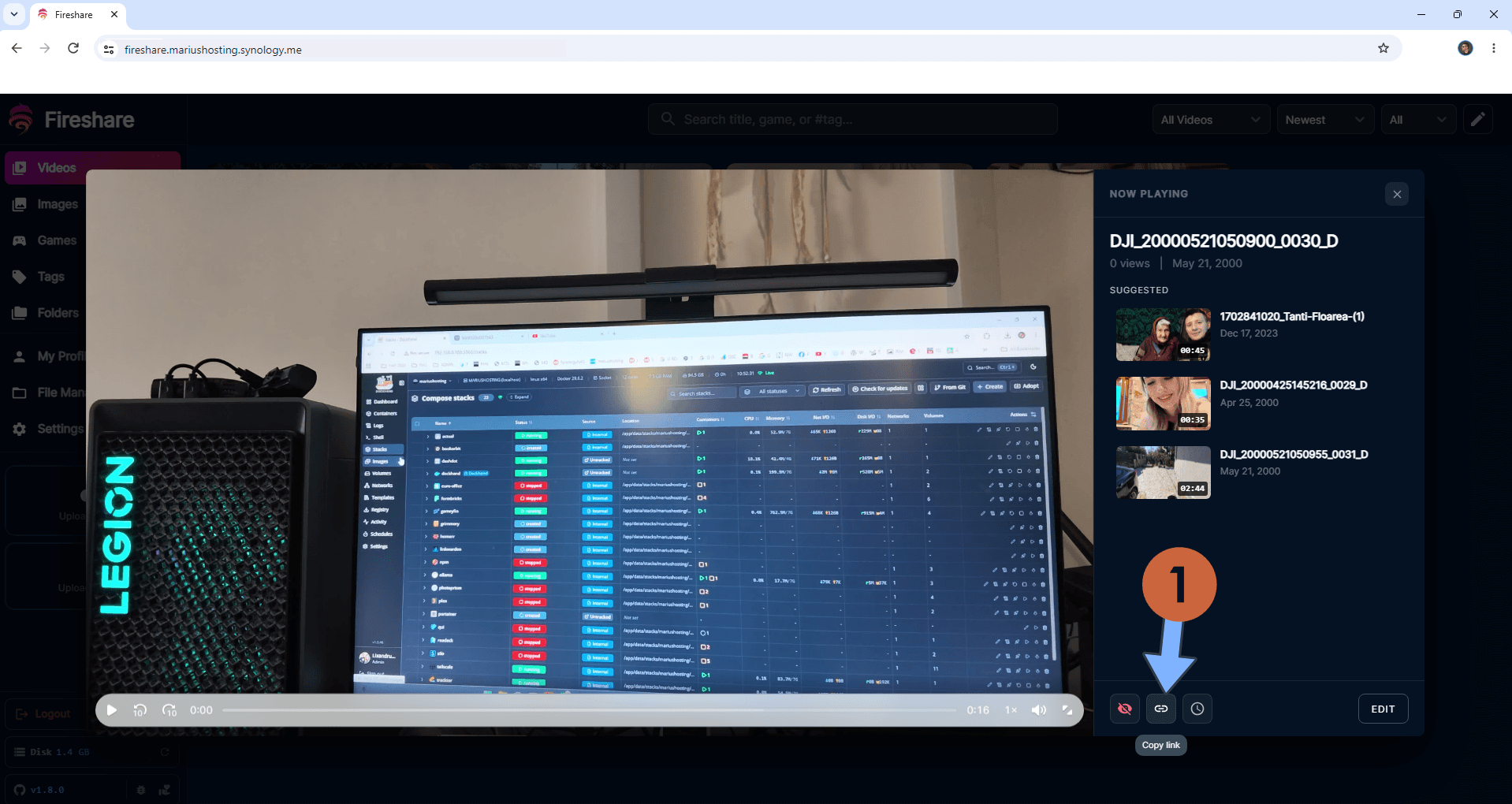

Click the share link present in your videos after you click to view it. Follow the instructions in the image below.

Fireshare Synology NAS Set up 15 new 2024

  • STEP 23

Paste the link you have previously copied at STEP 22 in a new browser window. Follow the instructions in the image below.

Fireshare Synology NAS Set up 16 new 2024

Enjoy Fireshare!
