F1 Replay Timing is a self-hosted web application that overlays synchronized real-time Formula 1 track positions, timing data, driver telemetry, and race control information onto live sessions or video replays. It features an interactive track map, detailed leaderboard with gaps and tyre status, telemetry graphs, pit-stop predictions, lap analysis, and broadcast sync tools, all built with Next.js, FastAPI, and FastF1 for an enhanced viewing and analysis experience. In this step by step guide I will show you how to install F1 Replay Timing on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest F1 Replay Timing v2.0.0 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

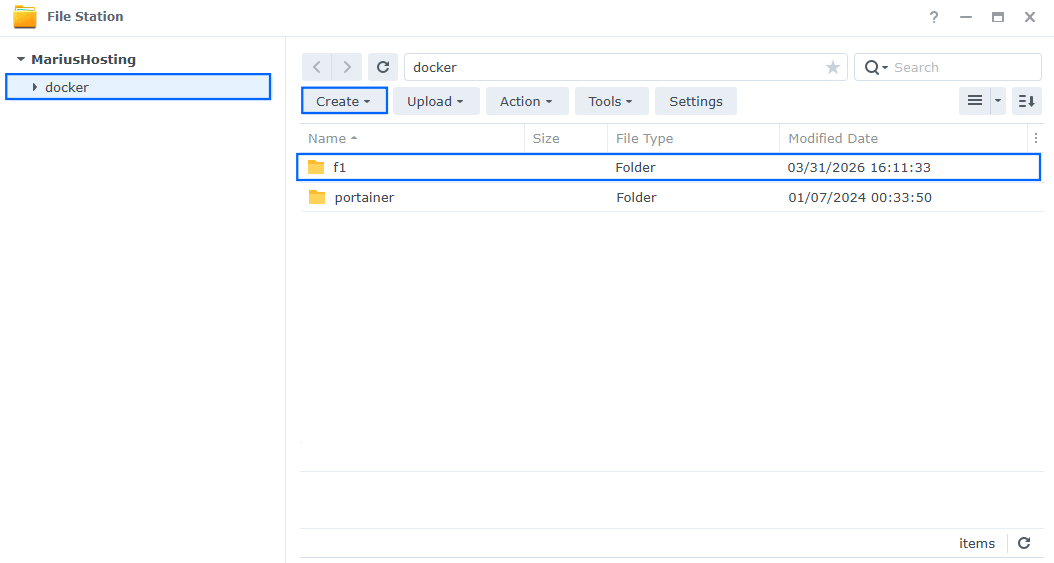

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it f1. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 4

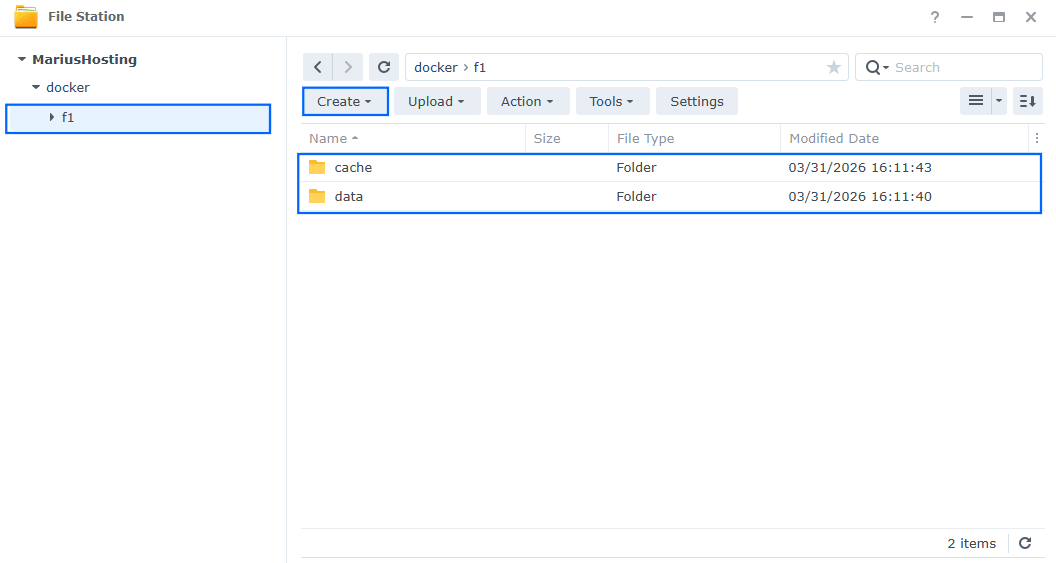

Now create two new folder inside the f1 folder that you have previously created at STEP 3 and name them cache and data. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 5

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then Live connect. Follow the instructions in the image below.

On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 6

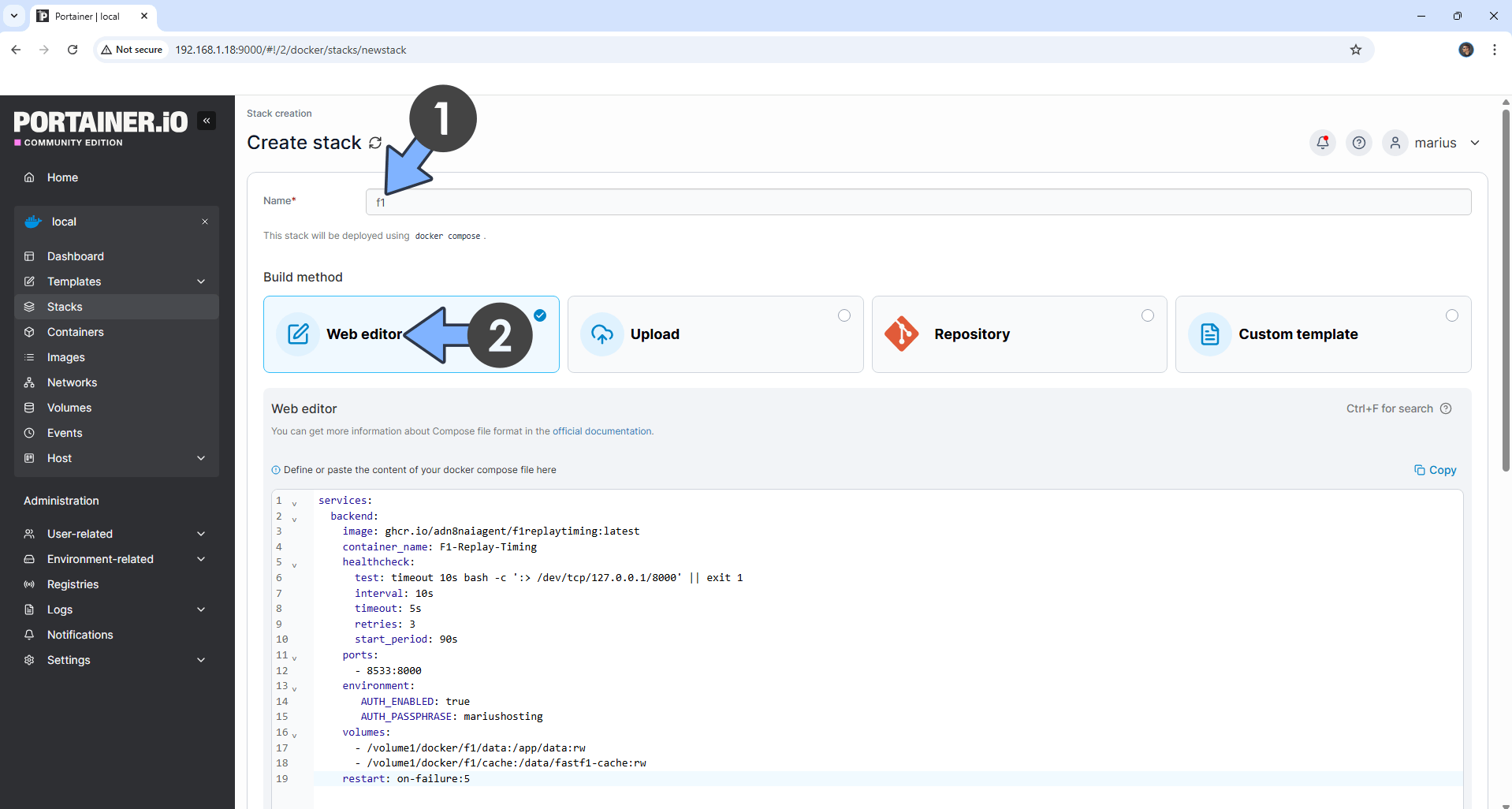

In the Name field type in f1. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  backend:
    image: ghcr.io/adn8naiagent/f1replaytiming:latest
    container_name: F1-Replay-Timing
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/8000' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    ports:
      - 8533:8000
    environment:
       AUTH_ENABLED: true
       AUTH_PASSPHRASE: mariushosting
    volumes:
      - /volume1/docker/f1/data:/data:rw
      - /volume1/docker/f1/cache:/data/fastf1-cache:rw
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for AUTH_PASSPHRASE. Type in your own password. mariushosting is an example for a password. You will need this password later at STEP 10.

• STEP 7

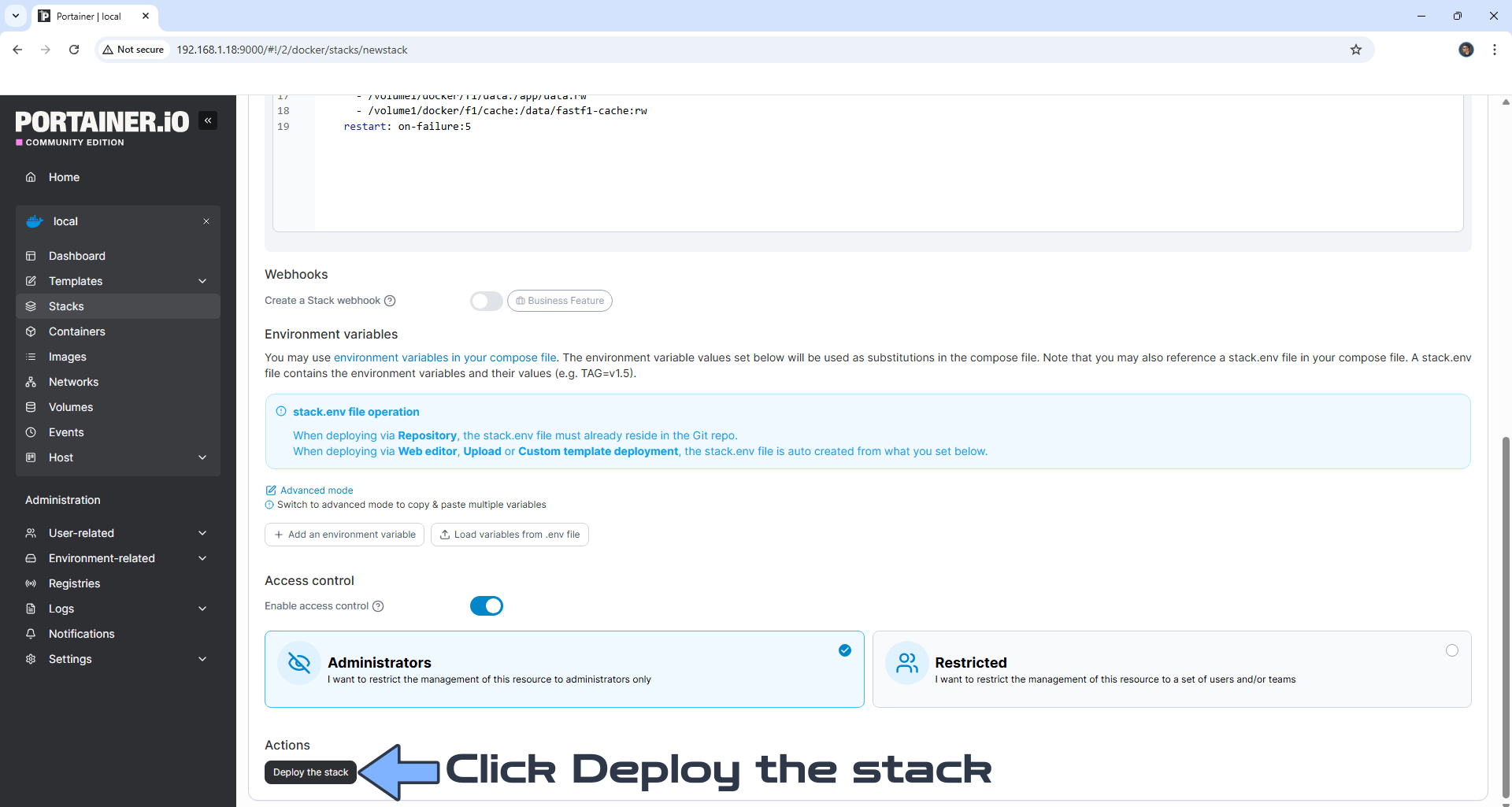

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 8

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 9

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

• STEP 10

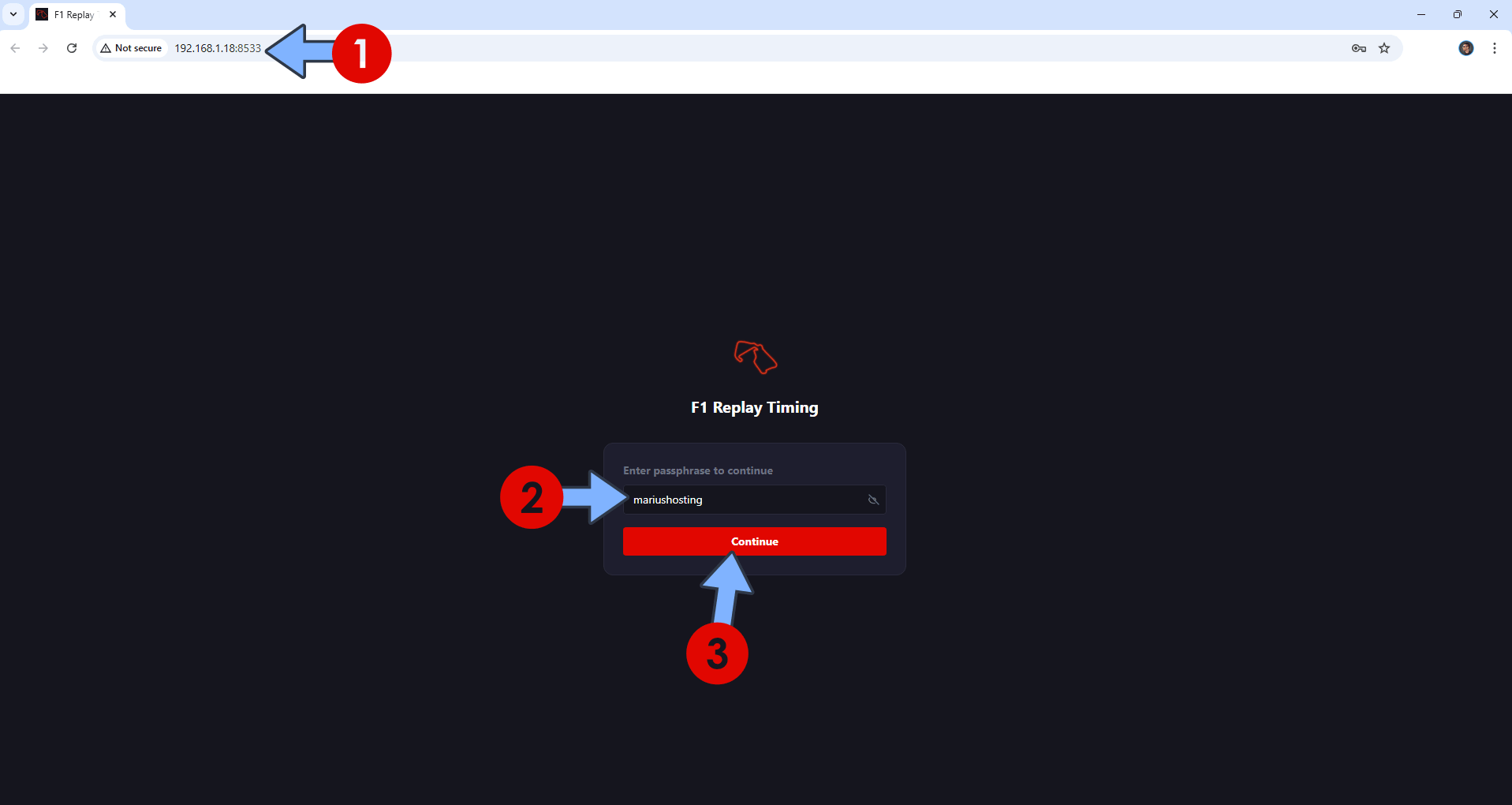

The installation process can take up to a few minutes or less, seconds. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:8533 If everything goes right, you will see the F1 Replay Timing homepage. Type in your own Password (AUTH_PASSPHRASE) that you have previously added at STEP 6. Click Continue. Follow the instructions in the image below.

• STEP 11

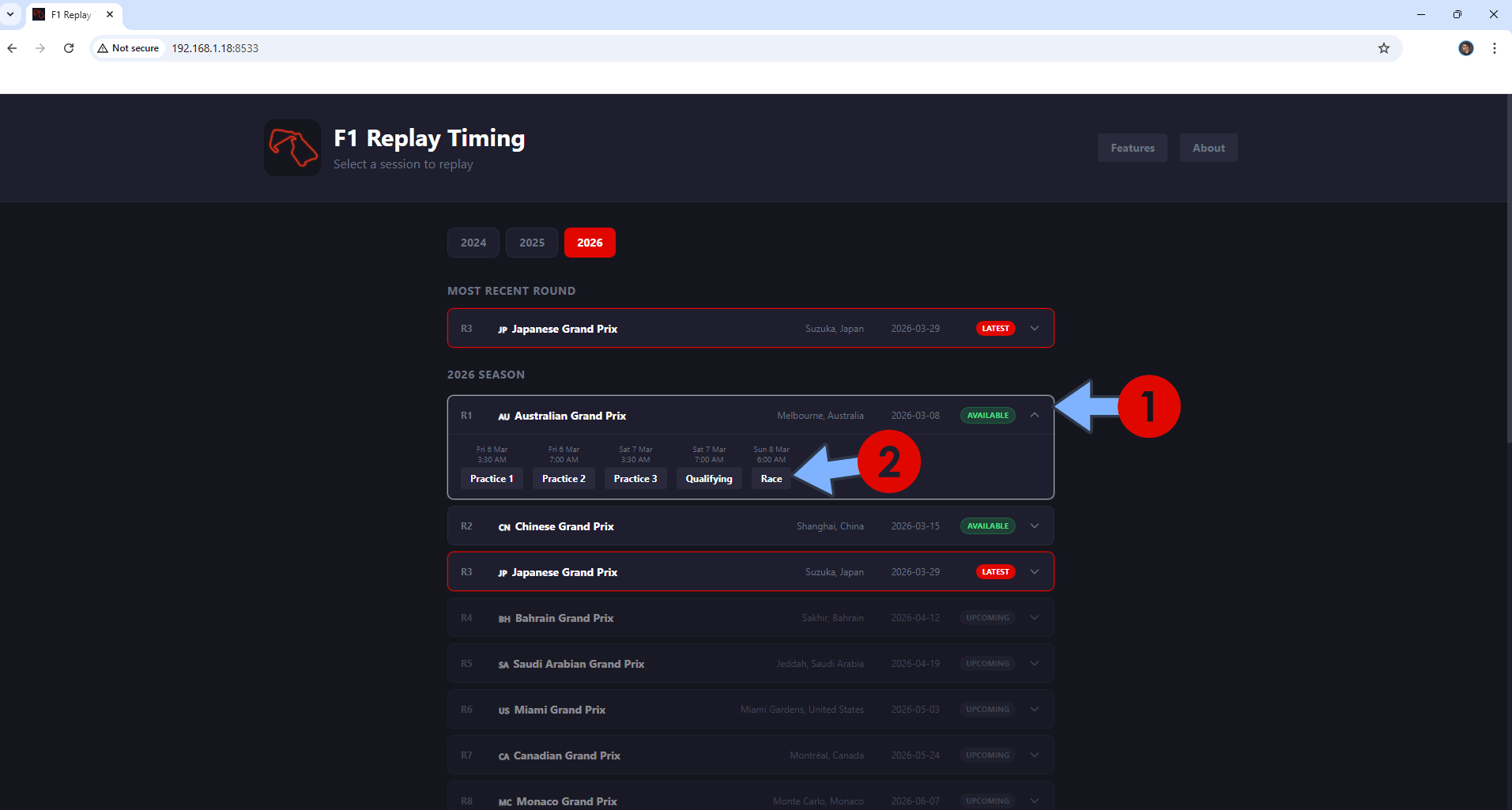

From the Season list, select a Session to Replay. For example, you can click Race. Follow the instructions in the image below.

• STEP 12

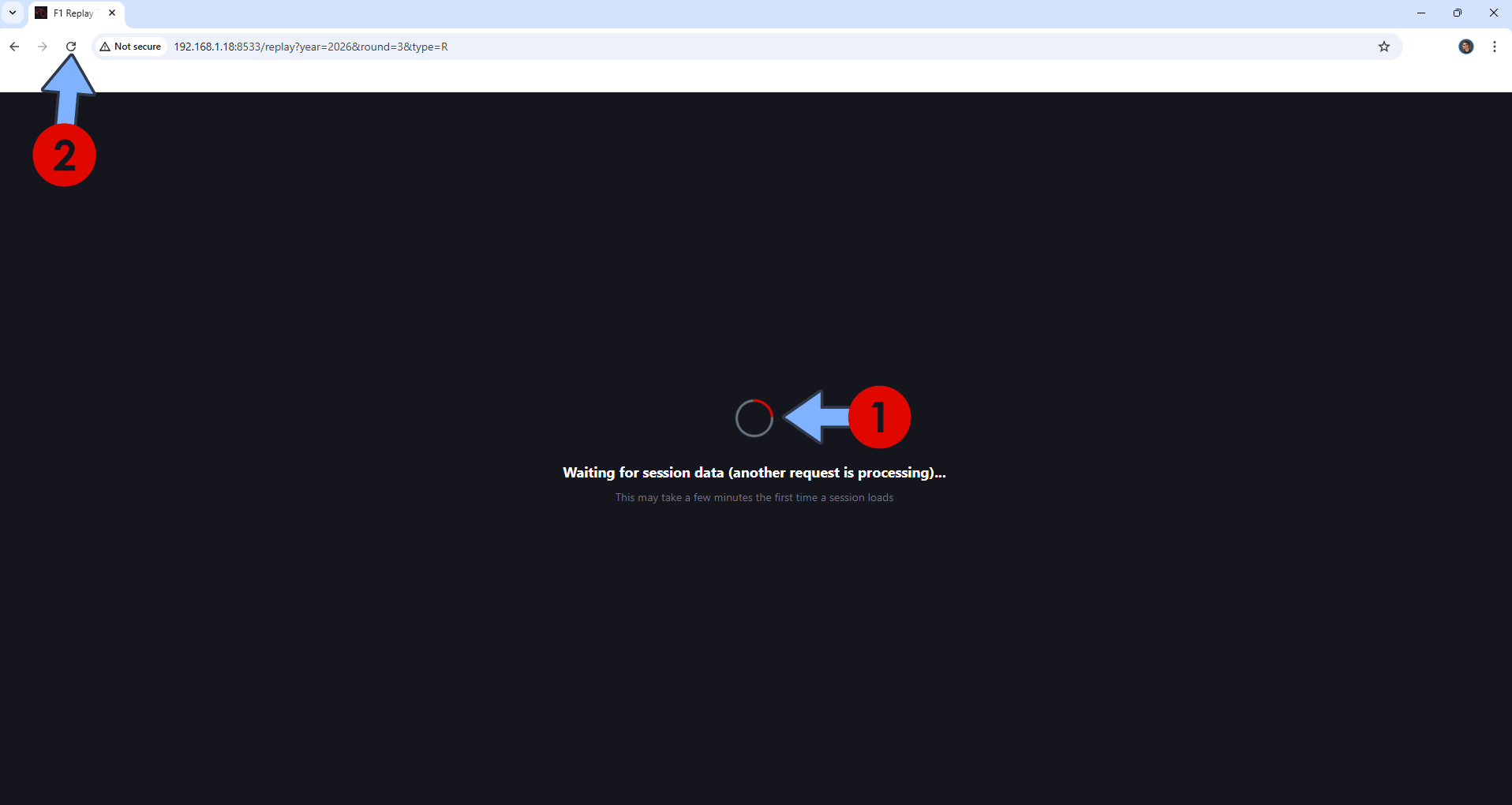

Wait approximately 1-2 minutes then refresh the page. Follow the instructions in the image below. Go straight to the next STEP.

• STEP 13

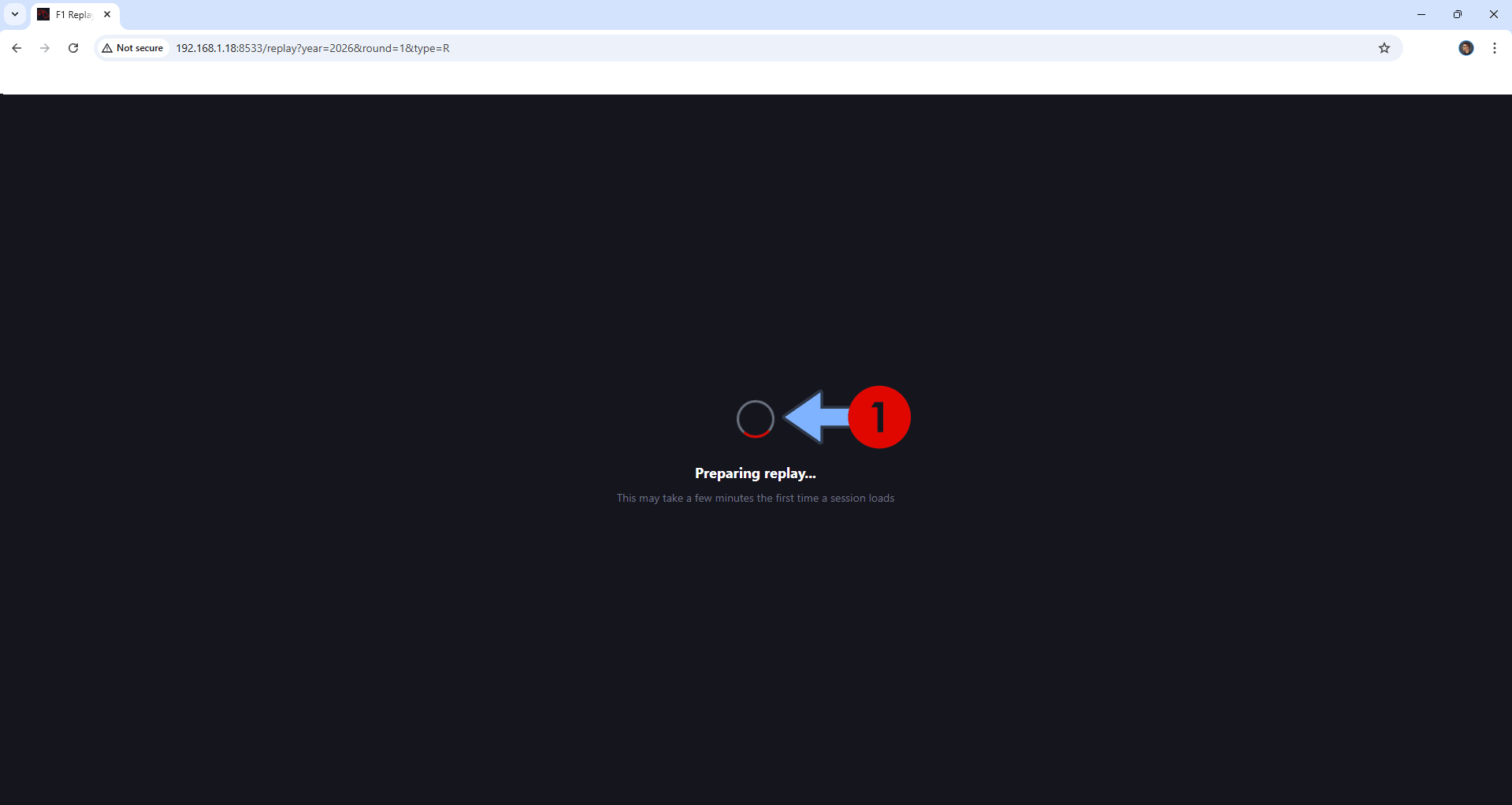

Wait approximately 2 minutes for the session to load. Follow the instructions in the image below. Go straight to the next STEP.

• STEP 14

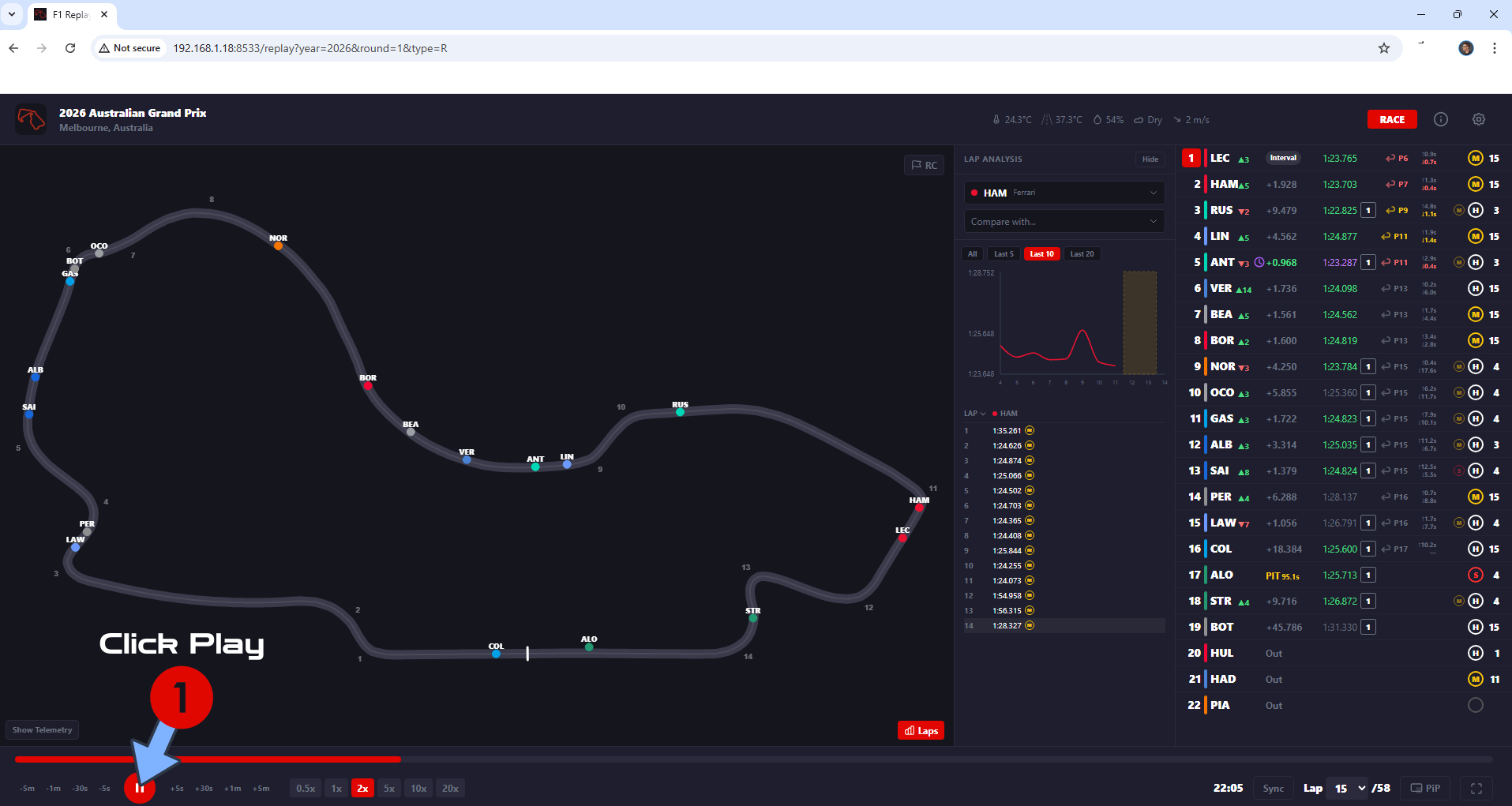

Click the Play button icon to start the F1 Replay. Follow the instructions in the image below.

Enjoy F1 Replay Timing

🆘TROUBLESHOOTING

If you encounter issues by using this container, make sure to check out the Common Docker issues article.

Note: If you want to run the F1 Replay Timing container over HTTPS, check How to Run Docker Containers Over HTTPS. In order to make F1 Replay Timing work via HTTPS, it’s mandatory to activate WebSocket.
