How to Install DrawDB on Your Synology NAS

DrawDB is a robust and user-friendly database entity relationship (DBER) editor right in your browser. Build diagrams with a few clicks, export sql scripts, customize your editor, and more without creating an account. In this step by step guide I will show you how to install DrawDB on your Synology NAS using Docker.

💡Note: This guide works perfectly with the latest DrawDB v1.2.1 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 4

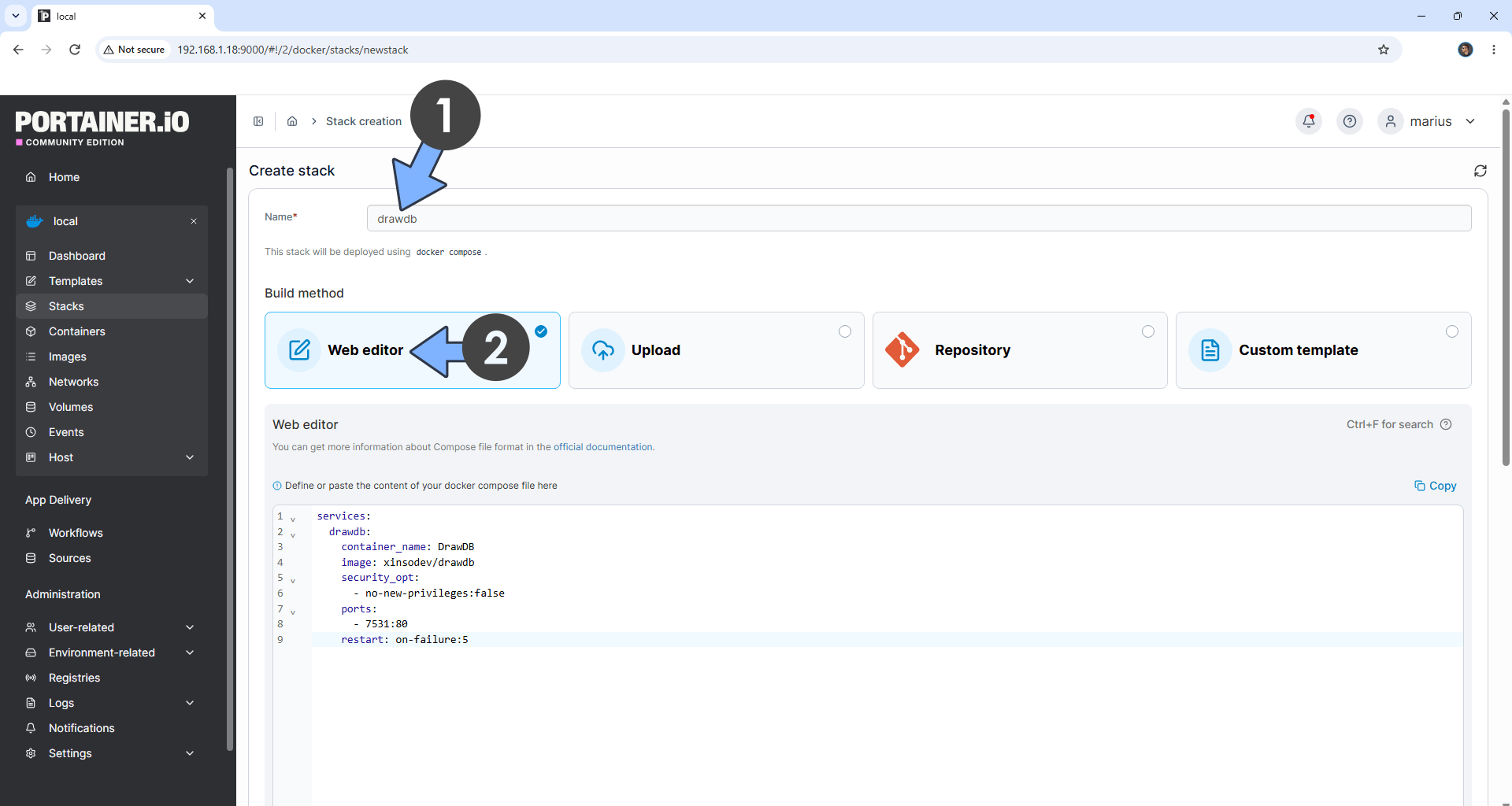

In the Name field type in drawb. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  drawdb:
    container_name: DrawDB
    image: xinsodev/drawdb
    security_opt:
      - no-new-privileges:false
    ports:
      - 7531:80
    restart: on-failure:5

DrawDB Synology NAS Set up 1

  • STEP 5

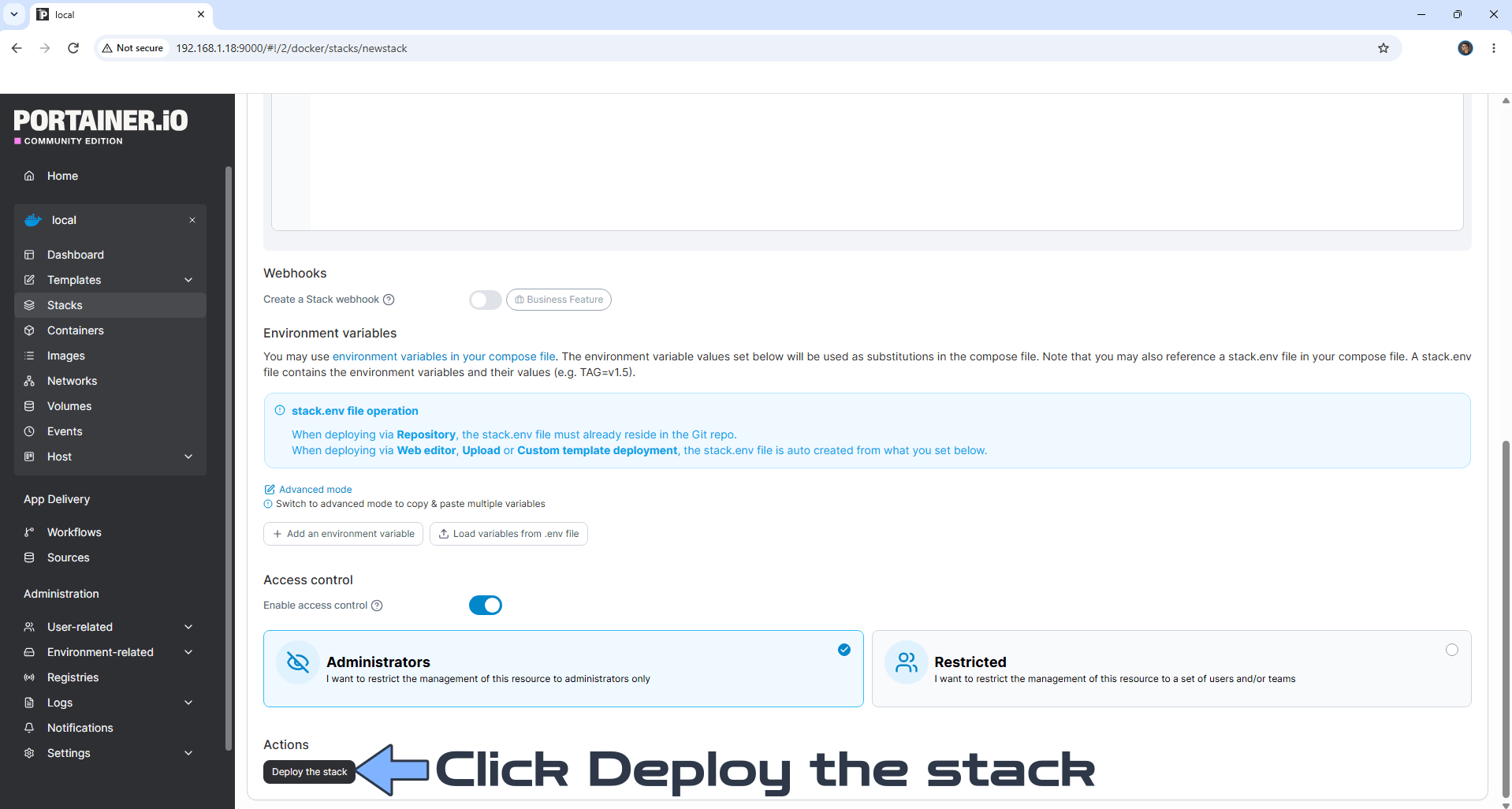

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

DrawDB Synology NAS Set up 2

  • STEP 6

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

DrawDB Synology NAS Set up 3

  • STEP 7

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 8

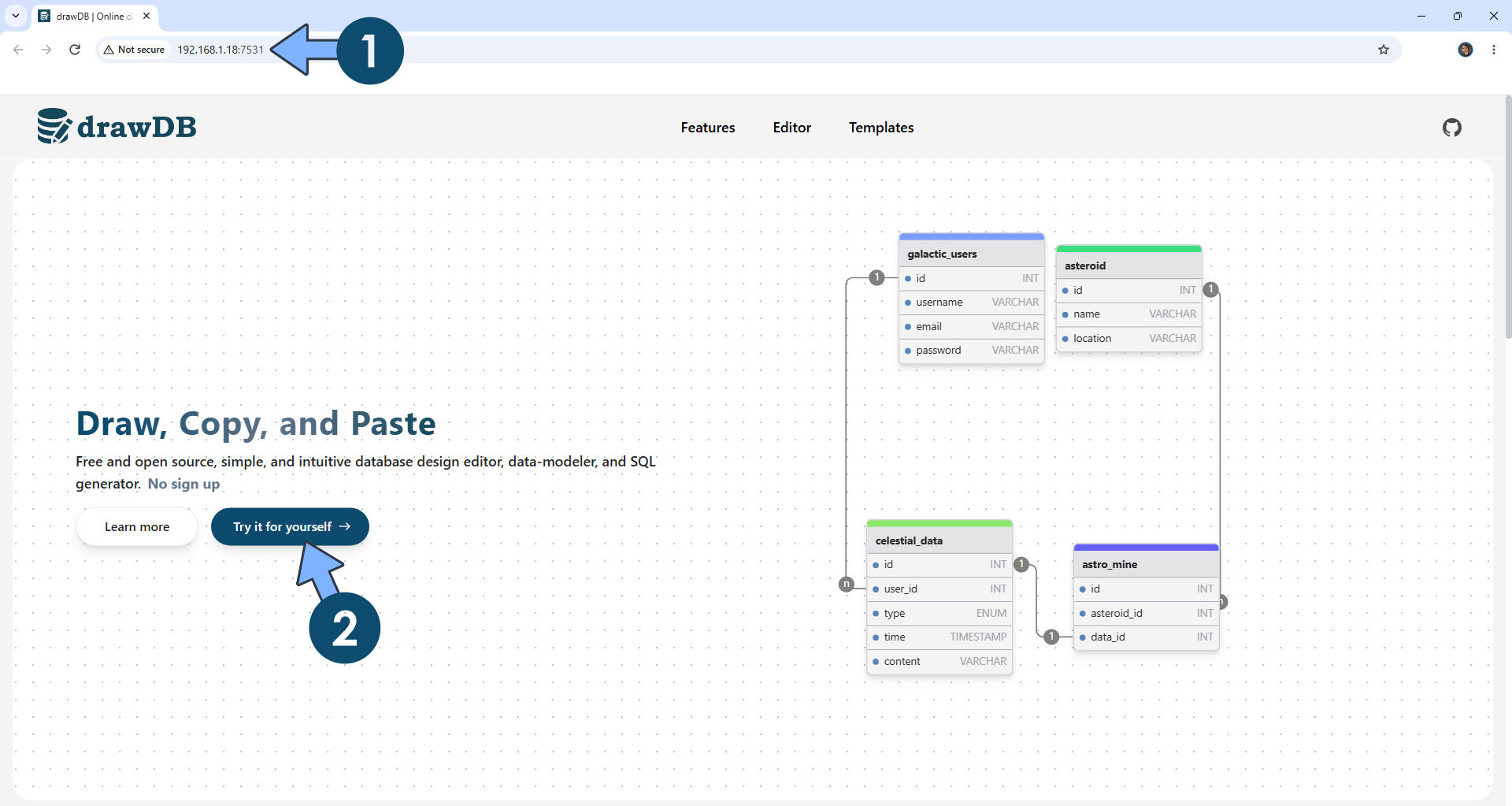

The installation process can take up to a few minutes or less, seconds. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:7531 If everything goes right, you will see the DrawDB dashboard. Click the Try it for yourself button. Follow the instructions in the image below.

DrawDB Synology NAS Set up 4

  • STEP 9

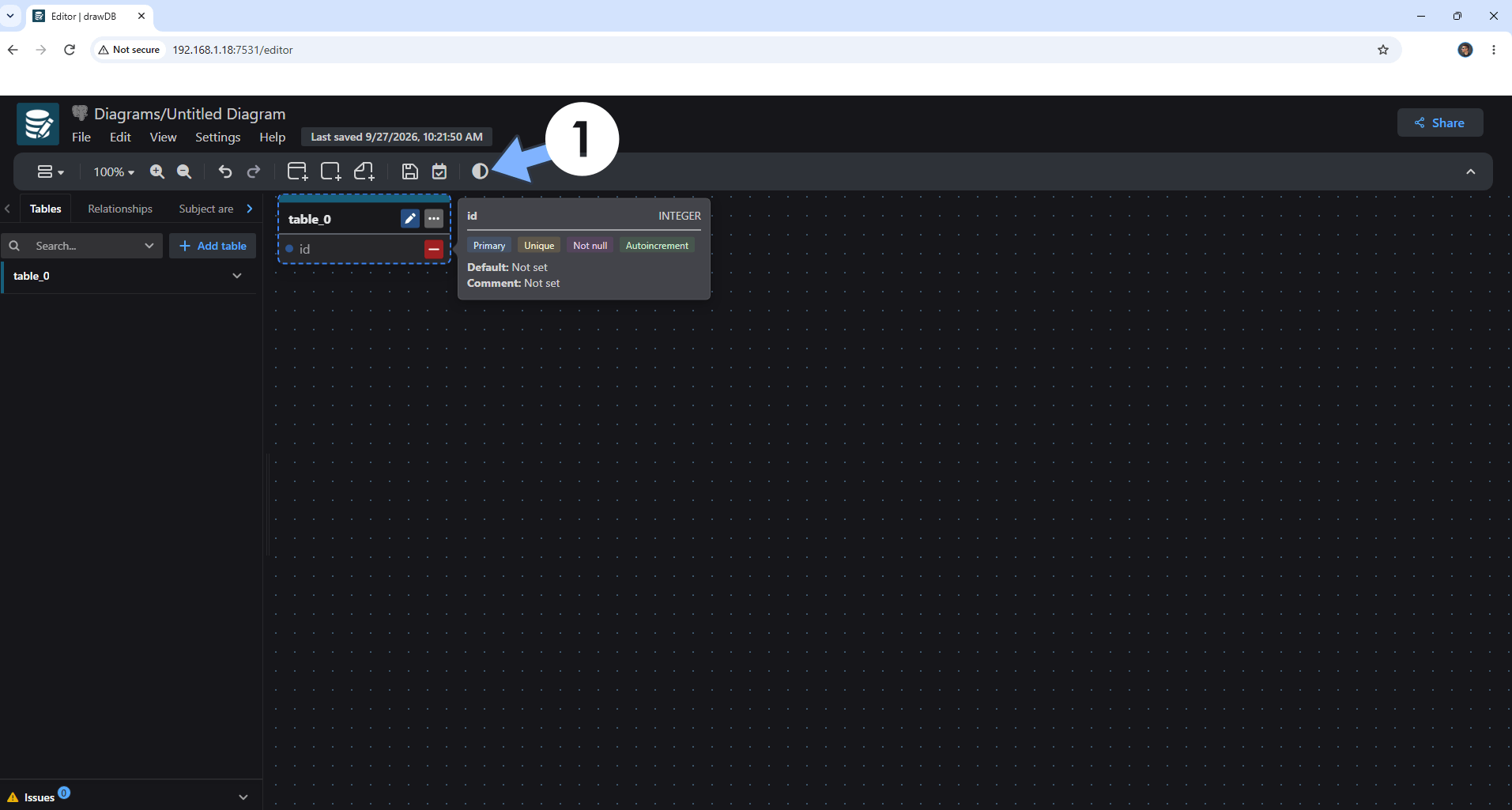

After you click the Try it for yourself button, you can change the theme to Dark.

DrawDB Synology NAS Set up 5

Enjoy DrawDB!
