How to Install Cloudreve on Your Synology NAS

Cloudreve is an open-source, self-hosted file management and sharing system alternative to Nextcloud designed for building private or public cloud storage. It supports multiple storage providers, including local storage, Qiniu, Alibaba Cloud OSS, Tencent Cloud COS, and OneDrive, enabling flexible file management. With features like drag-and-drop uploads, online preview/editing, WebDAV support, and Aria2 integration for offline downloads, Cloudreve is ideal for personal cloud setups, team file sharing, or public cloud systems. In this step by step guide I will show you how to install CloudreveĀ on yourĀ Synology NAS using Docker & Portainer.

šŸ’”Note: This guide works perfectly with the latest Cloudreve v4.0.0Ā release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

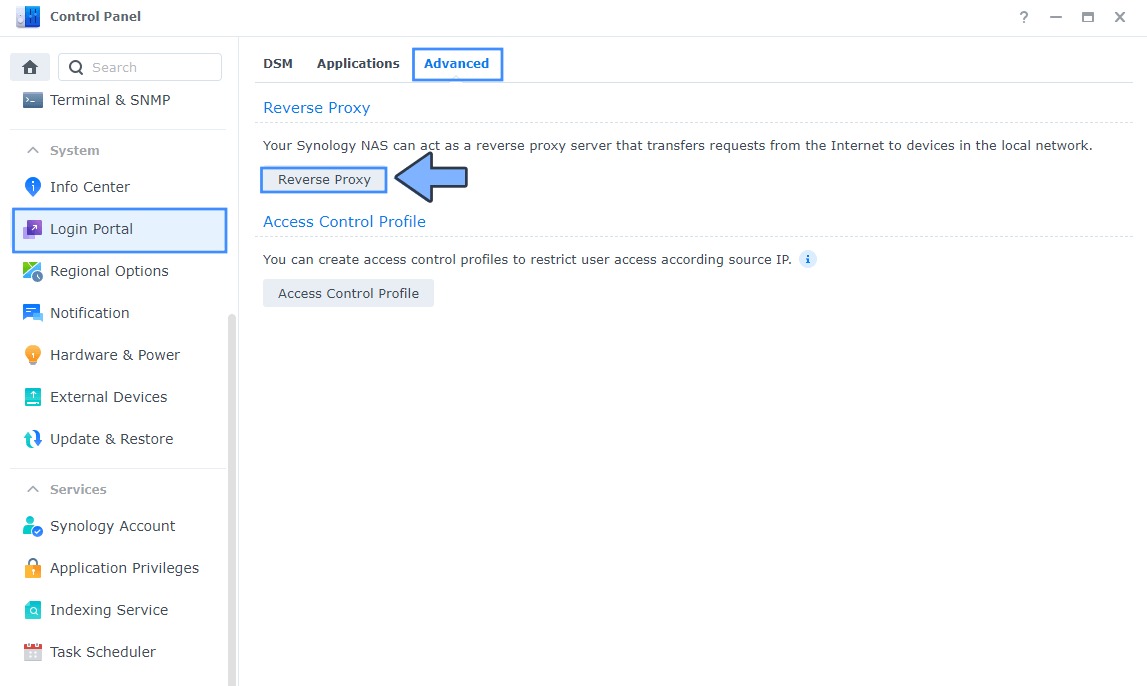

Go toĀ Control PanelĀ /Ā Login PortalĀ /Ā AdvancedĀ Tab / clickĀ Reverse Proxy. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 1

  • STEP 5

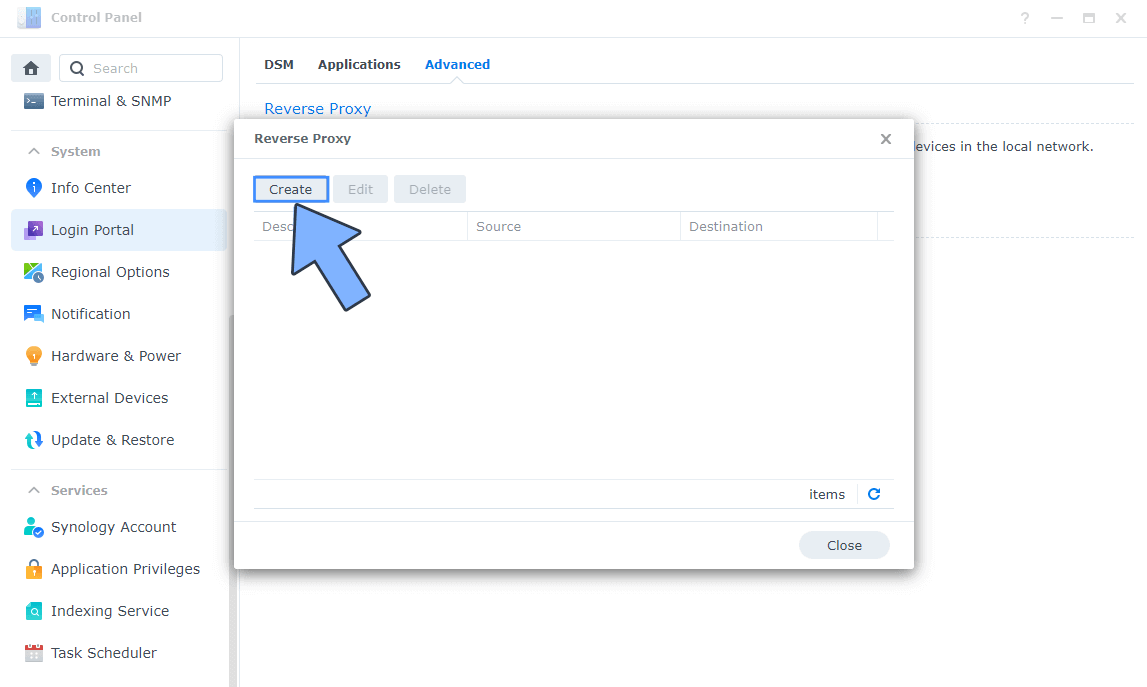

Now click the ā€œCreateā€ button. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 2

  • STEP 6

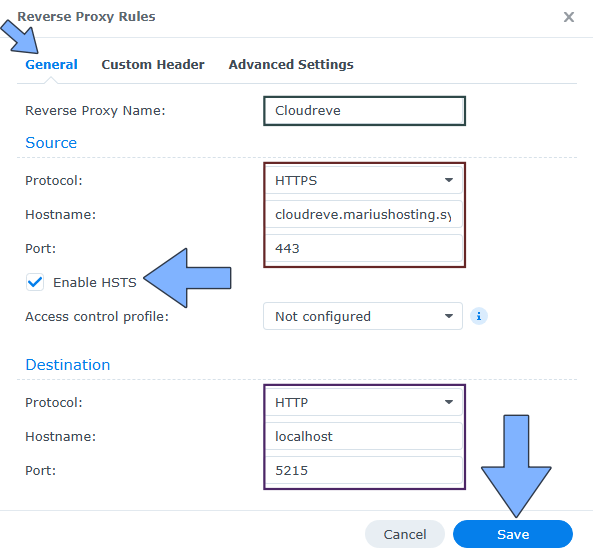

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Cloudreve. After that, add the following instructions:

Source:
Protocol:Ā HTTPS
Hostname: cloudreve.yourname.synology.me
Port:Ā 443

Check Enable HSTS

Destination:
Protocol:Ā HTTP
Hostname: localhost
Port:Ā 5215

Cloudreve Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom HeaderĀ tab. ClickĀ CreateĀ and then, from the drop-down menu, clickĀ WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. ClickĀ Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

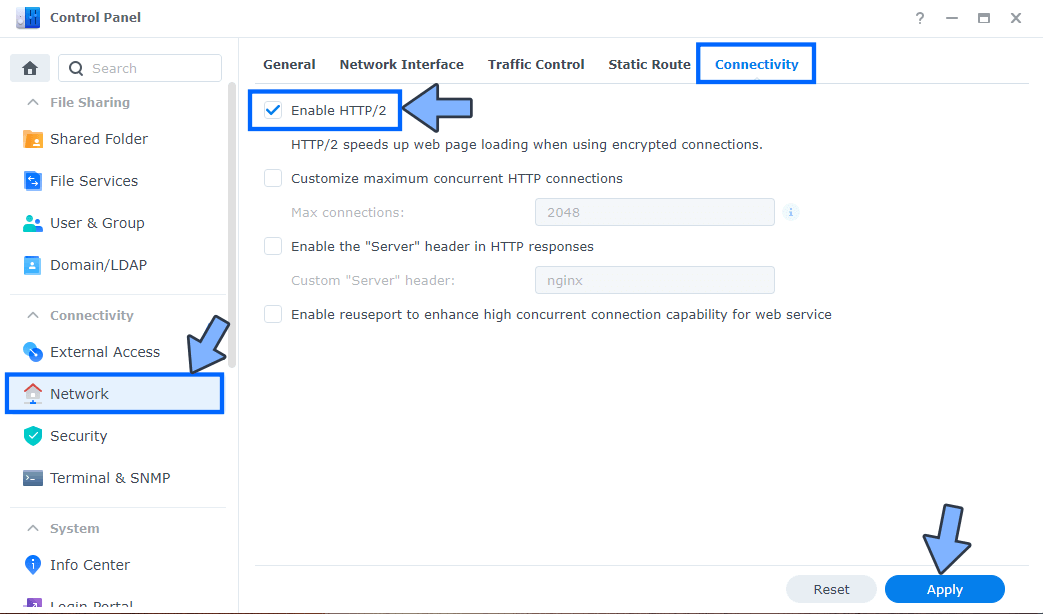

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 4

  • STEP 9

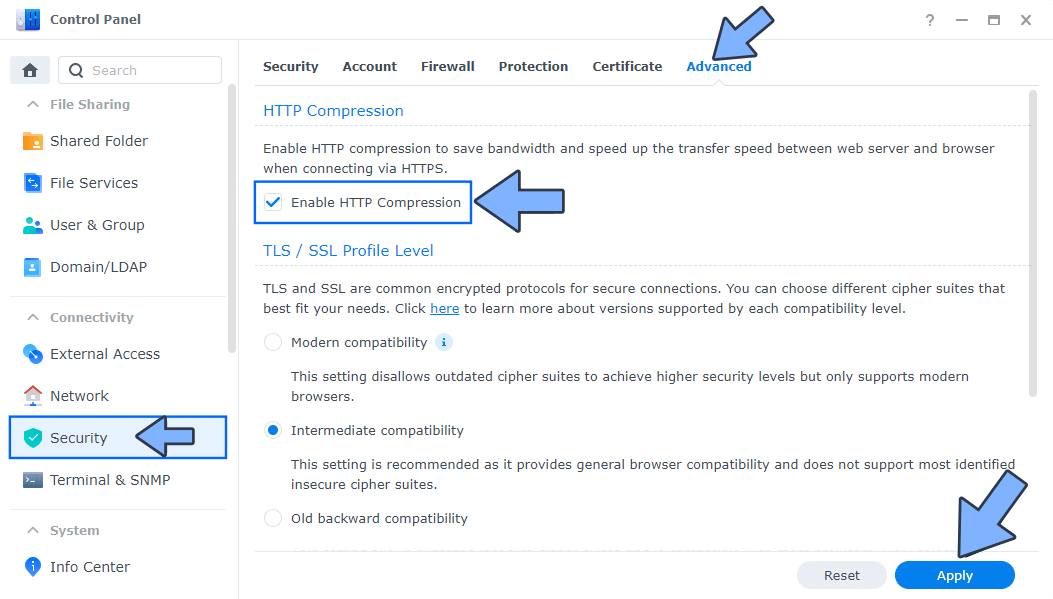

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP CompressionĀ then click Apply. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 5

  • STEP 10

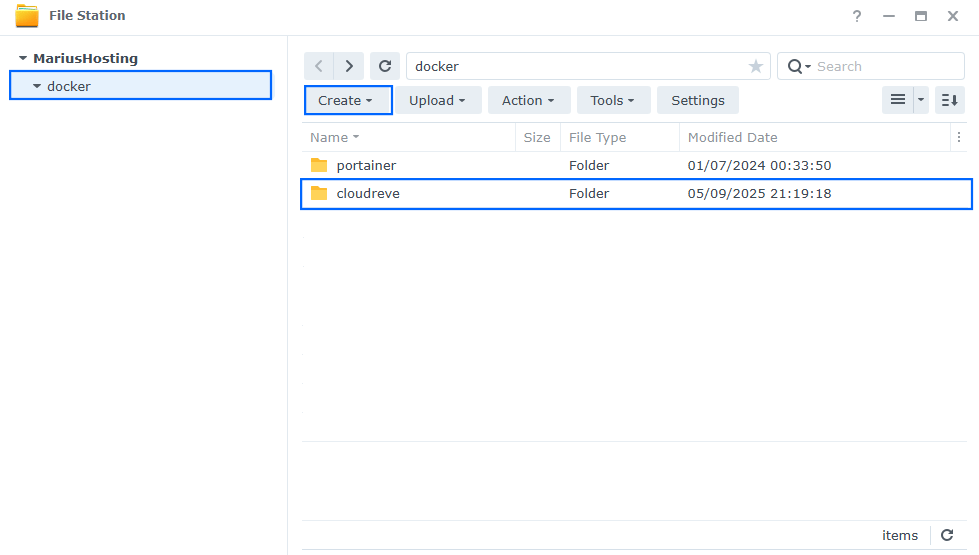

Go toĀ File StationĀ and open the docker folder. Inside the docker folder, create one new folder and name itĀ cloudreve. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Cloudreve Synology NAS Set up 6

  • STEP 11

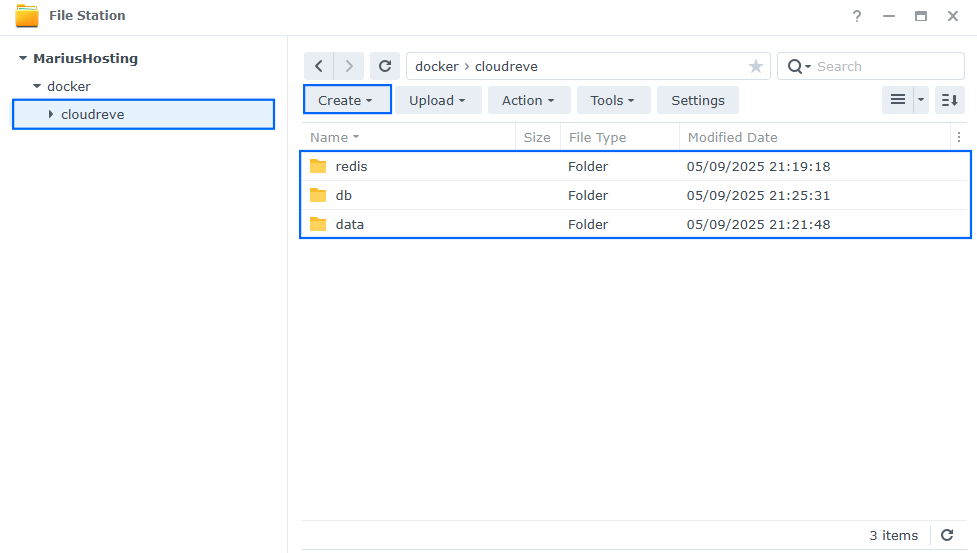

Now create three new folders inside the cloudreve folder that you have previously created at STEP 10. Name them redis, db, data. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Cloudreve Synology NAS Set up 7

  • STEP 12

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 13

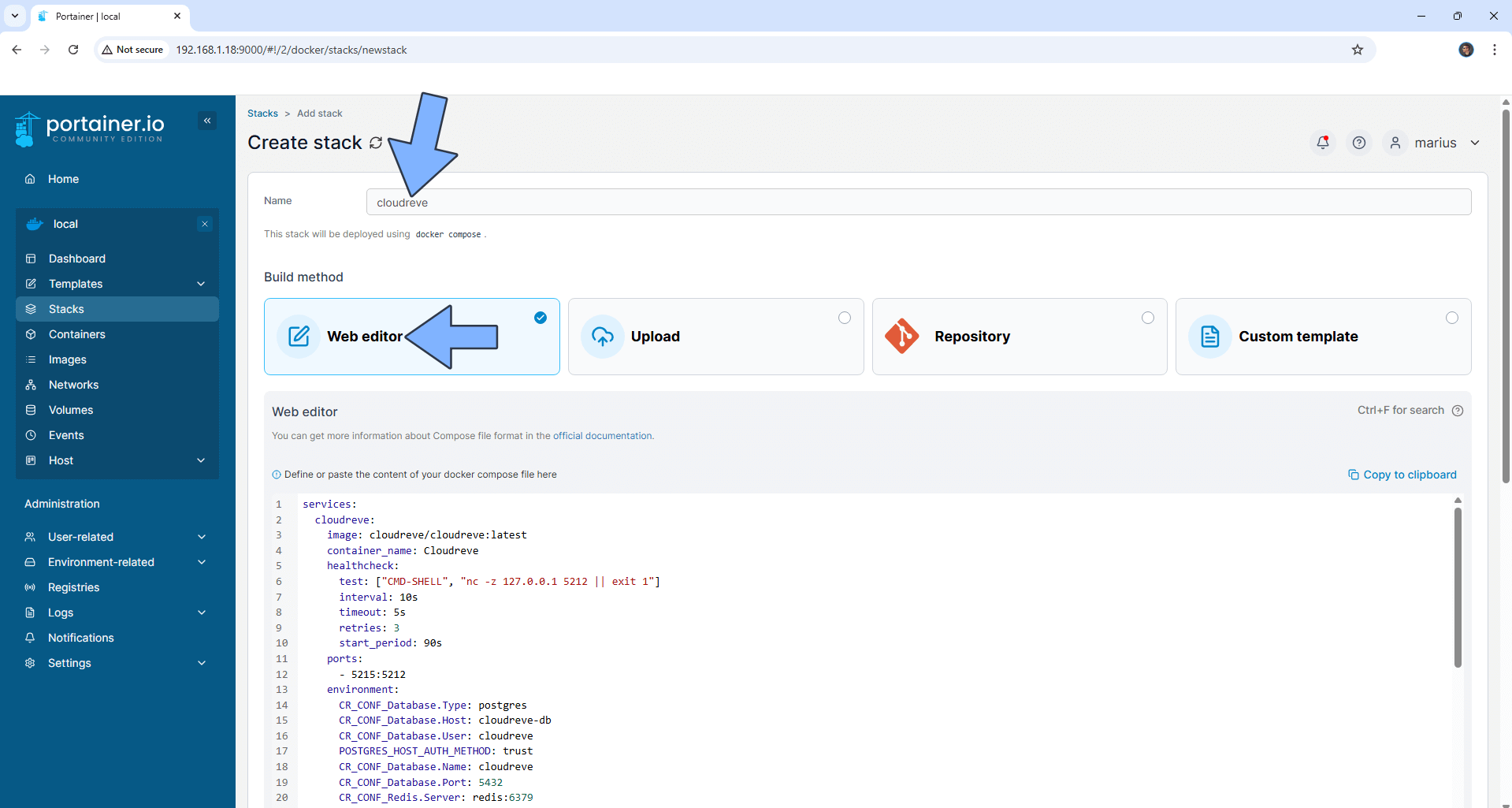

In the Name field type in cloudreve. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  cloudreve:
    image: cloudreve/cloudreve:latest
    container_name: Cloudreve
    healthcheck:
      test: ["CMD-SHELL", "nc -z 127.0.0.1 5212 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    ports:
      - 5215:5212
    environment:
      CR_CONF_Database.Type: postgres
      CR_CONF_Database.Host: cloudreve-db
      CR_CONF_Database.User: cloudreve
      POSTGRES_HOST_AUTH_METHOD: trust
      CR_CONF_Database.Name: cloudreve
      CR_CONF_Database.Port: 5432
      CR_CONF_Redis.Server: redis:6379
    volumes:
      - /volume1/docker/cloudreve/data:/cloudreve/data:rw
    depends_on:
      - db
      - redis
    restart: on-failure:5

  db:
    image: postgres:17
    container_name: Cloudreve-DB
    hostname: cloudreve-db
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "cloudreve", "-U", "cloudreve"]
      timeout: 45s
      interval: 10s
      retries: 10
    volumes:
      - /volume1/docker/cloudreve/db:/var/lib/postgresql/data:rw
    environment:
      POSTGRES_DB: cloudreve
      POSTGRES_USER: cloudreve
      POSTGRES_HOST_AUTH_METHOD: trust
    restart: on-failure:5

  redis:
    image: redis
    hostname: cloudreve-redis
    container_name: Cloudreve-REDIS
    user: 1026:100
    healthcheck:
      test: ["CMD-SHELL", "redis-cli ping || exit 1"]
    volumes:
      - /volume1/docker/cloudreve/redis:/data:rw
    environment:
      TZ: Europe/Bucharest
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value numbers for user with your own UID and GID values. (Follow my step by step guide on how to do this.) 1026 is my personal UID value and 100 is my personal GID value. You have to type in your own values.
Note: Before you paste the code above in the Web editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)

Cloudreve Synology NAS Set up 8

  • STEP 14

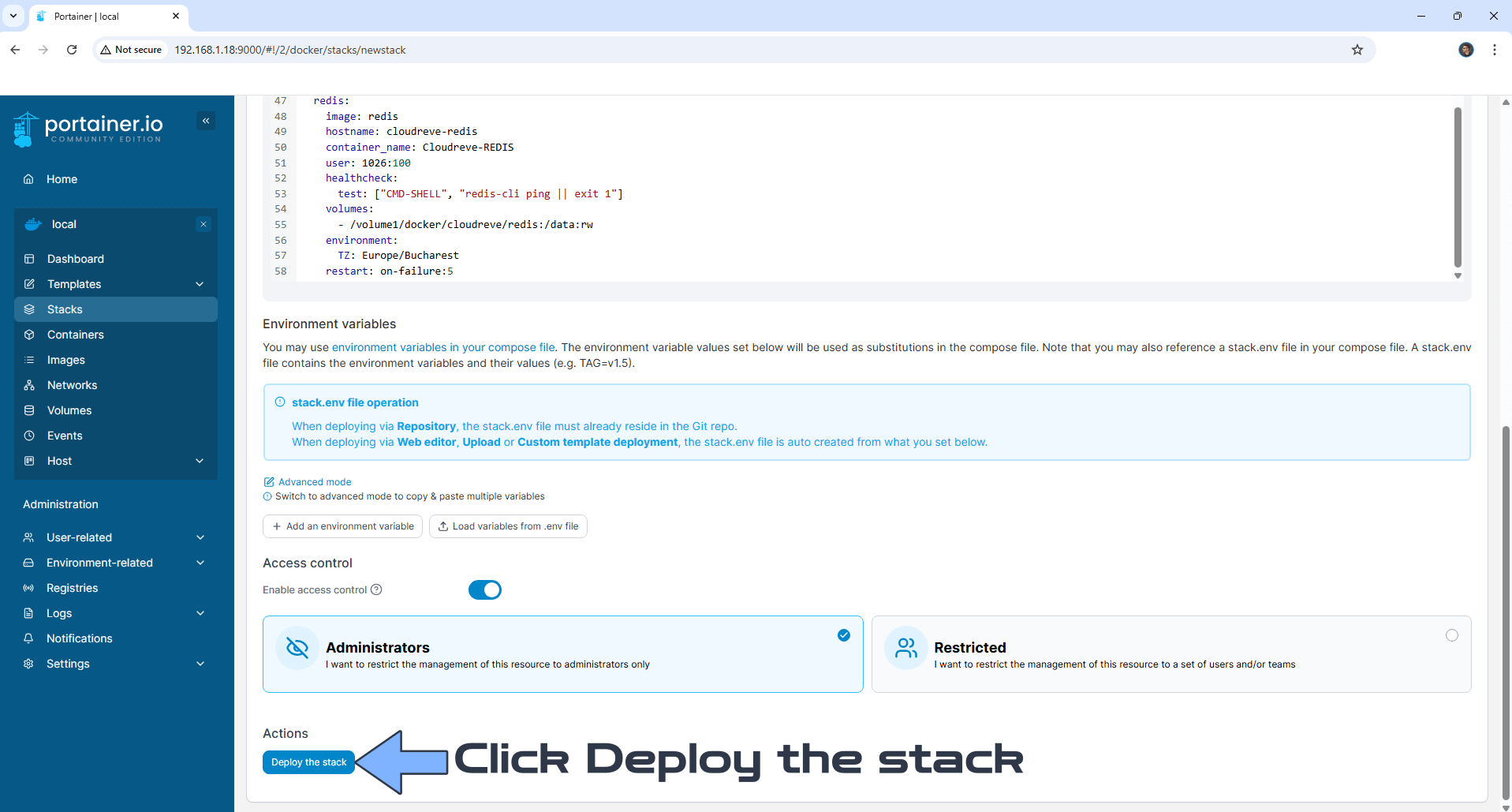

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Cloudreve Synology NAS Set up 9

  • STEP 15

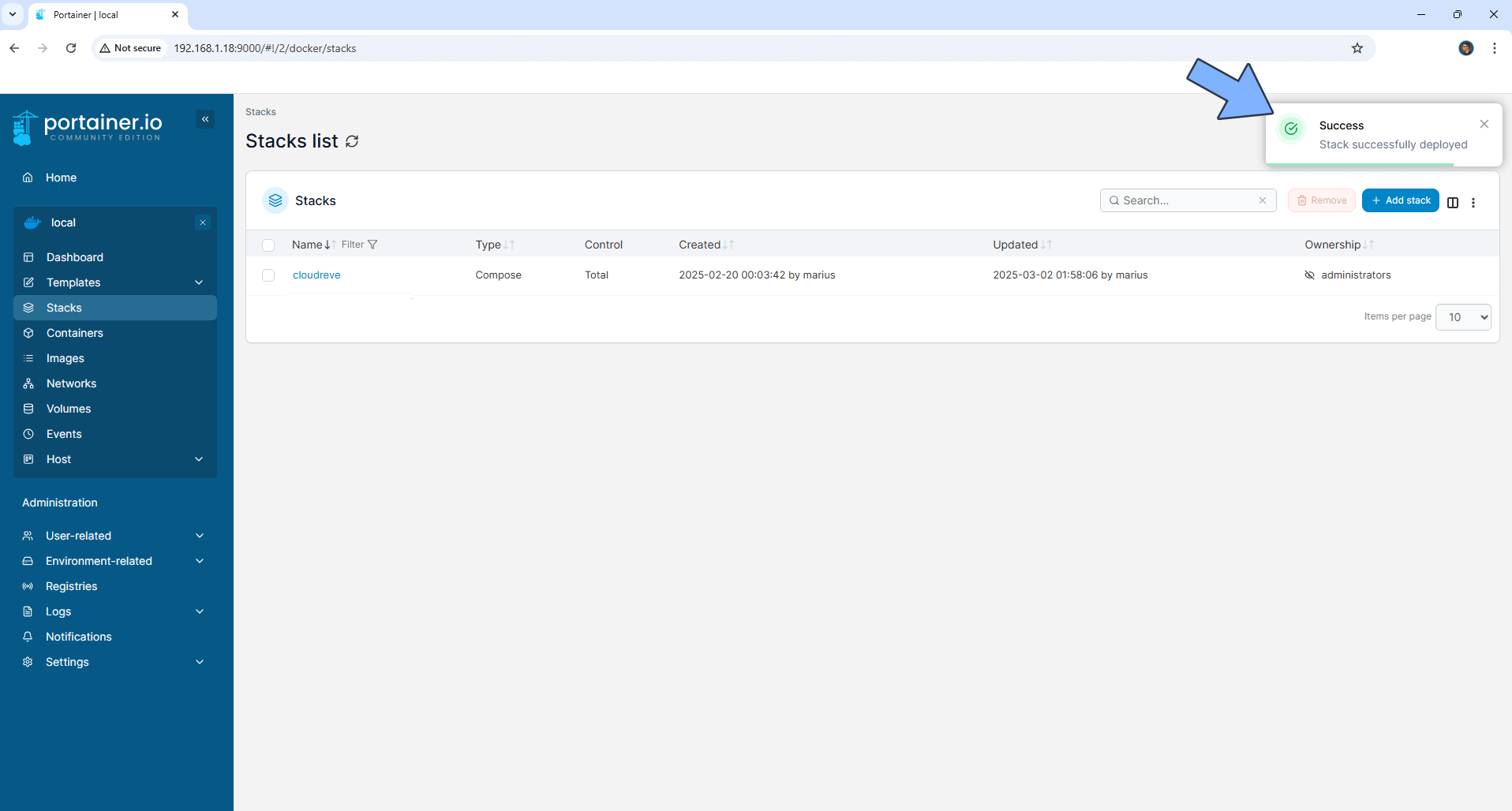

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

Cloudreve Synology NAS Set up 10

  • STEP 16

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 17

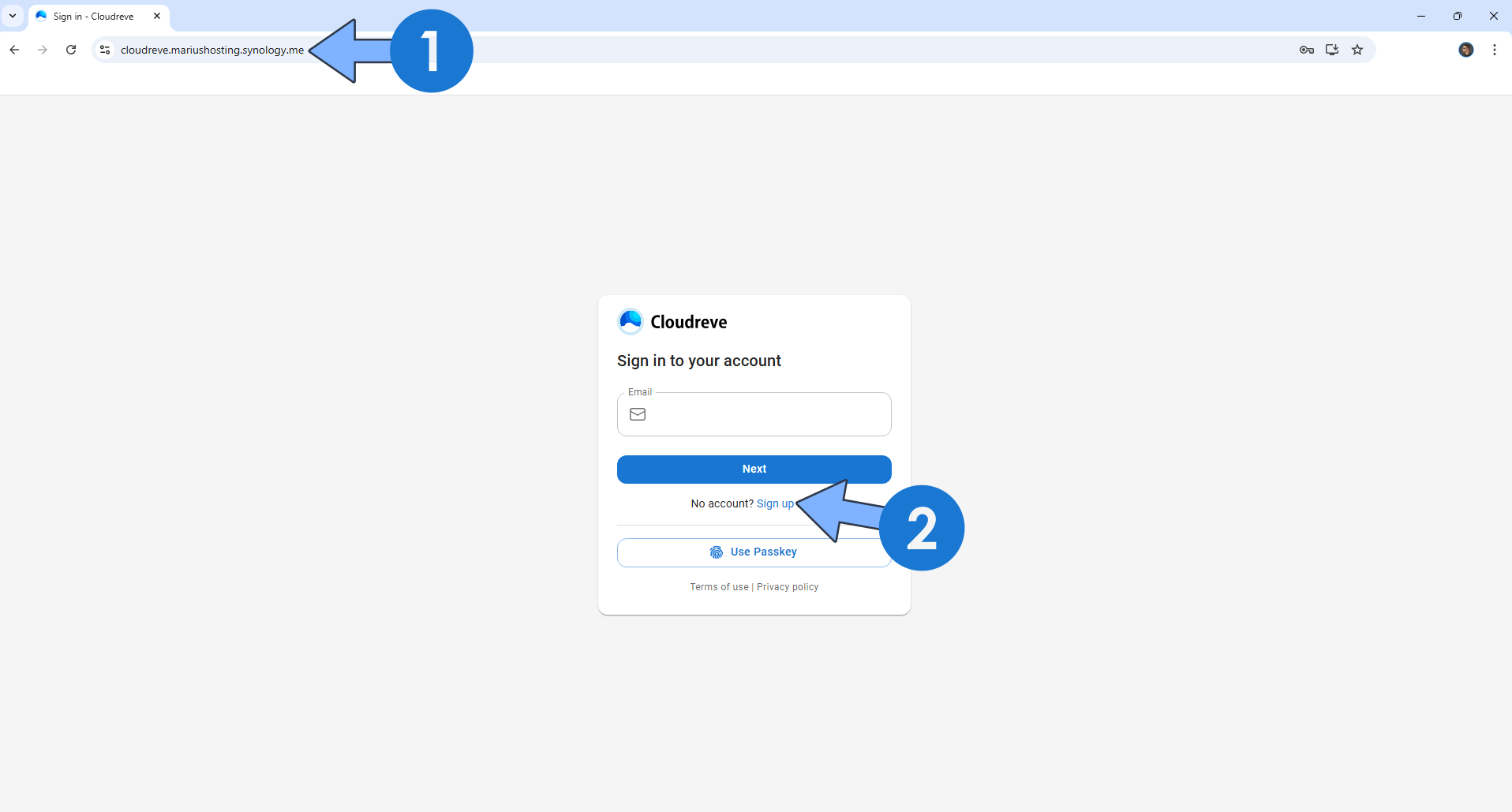

Now open your browser and type in your HTTPS/SSL certificate like this https://cloudreve.yourname.synology.me In my case it’s https://cloudreve.mariushosting.synology.me If everything goes right, you will see the Cloudreve setup page. Click Sign up. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 11

  • STEP 18

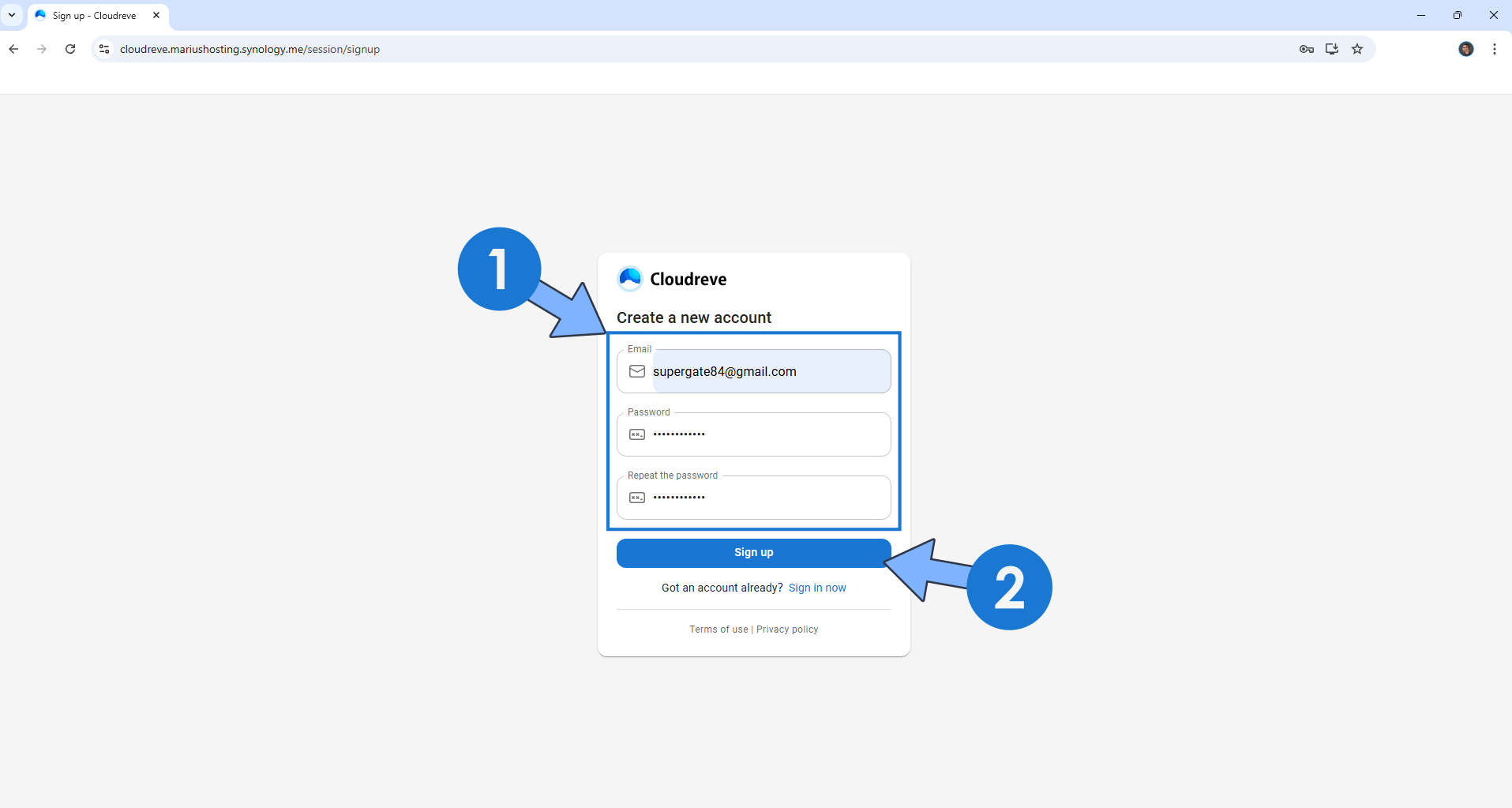

Type in your own Email address and Password, then click Sign up. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 12

  • STEP 19

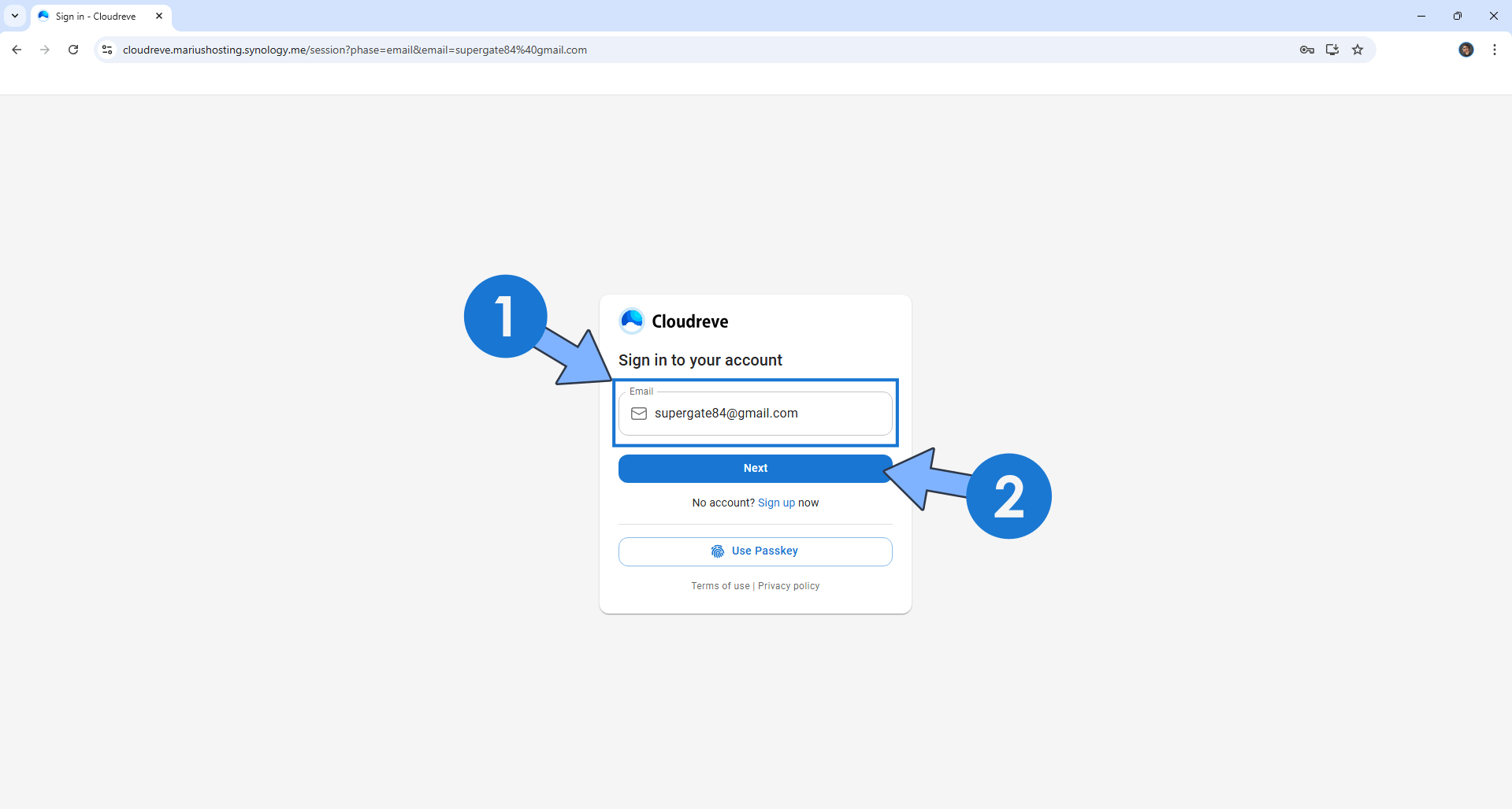

Type in your own Email address that you have previously added at STEP 18, then click Next. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 13

  • STEP 20

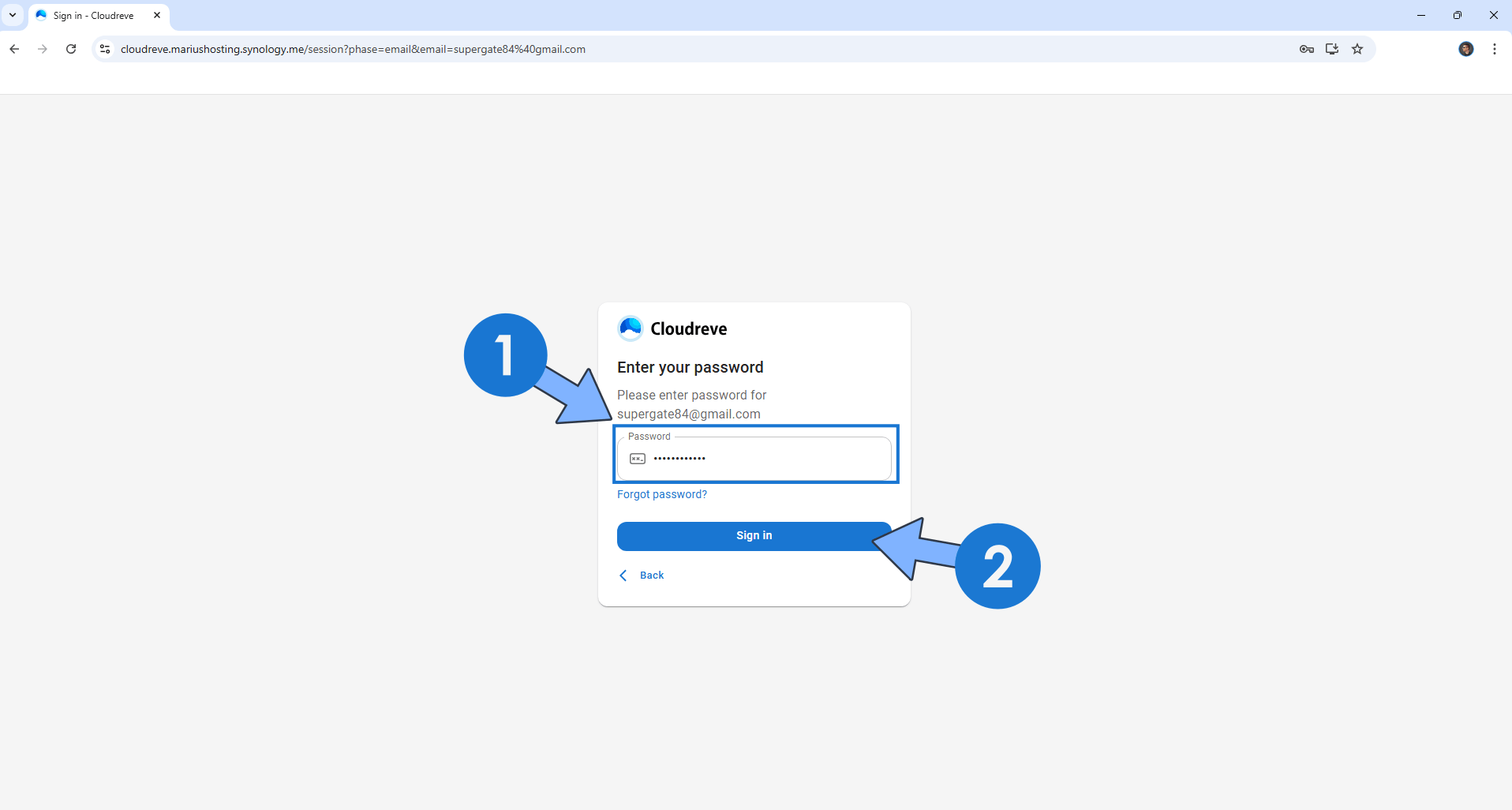

Type in your own Password that you have previously added at STEP 18, then click Sign in. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 14

  • STEP 21

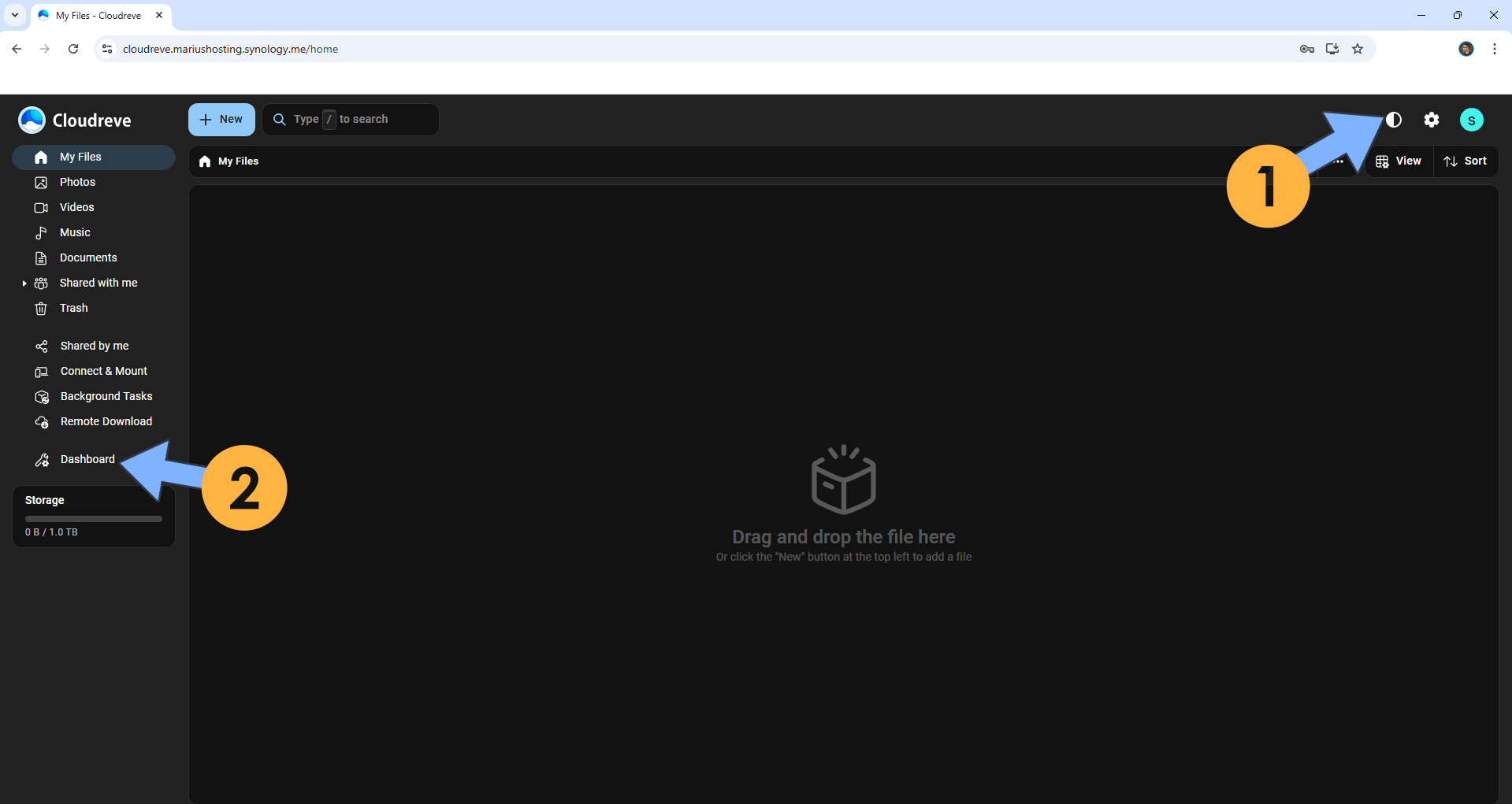

At the top right of the page, switch the theme to Dark. On the left sidebar, click Dashboard. Follow the instructions in the image below.

Cloudreve Synology NAS Set up 15

  • STEP 22

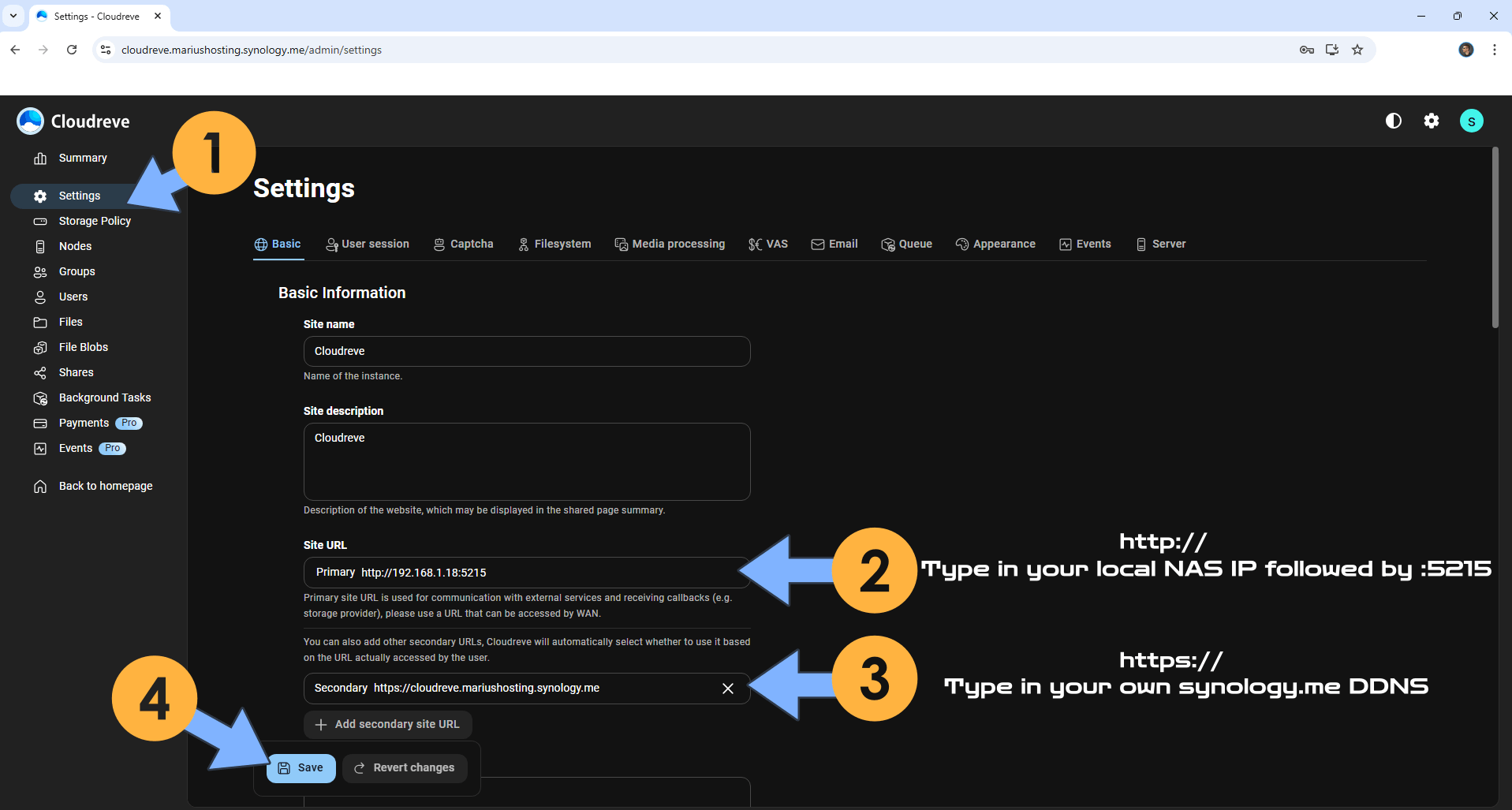

Click Settings, then the Basic tab.
In the Primary Site URL, type in your local NAS IP followed by :5215
In the Secondary Site URL, type in your own synology.me DDNS that you have previously created at STEP 6.
Click Save to apply the settings.

Cloudreve Synology NAS Set up 16

  • STEP 23

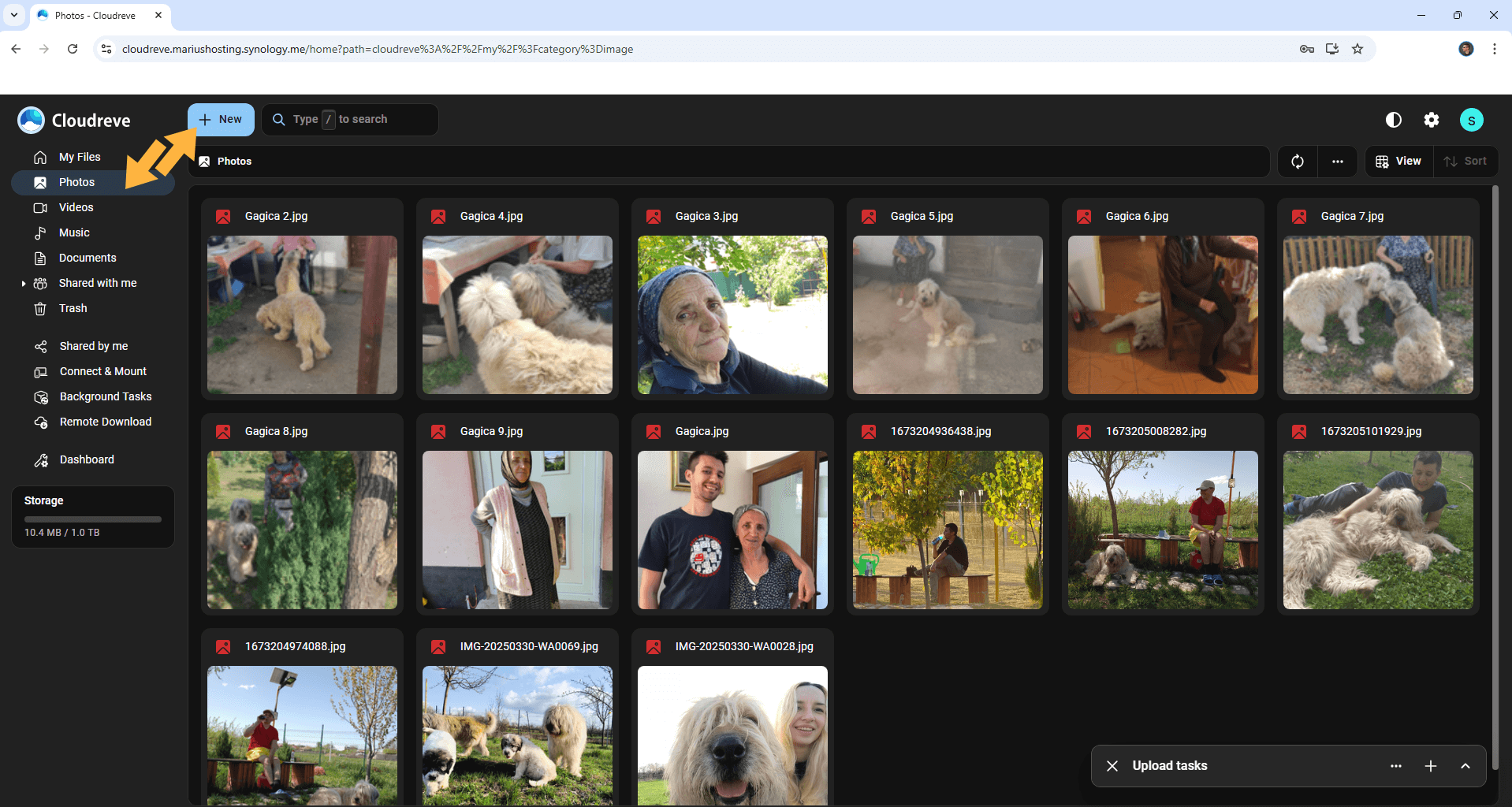

Upload your Photos!

Cloudreve Synology NAS Set up 17

  • STEP 24

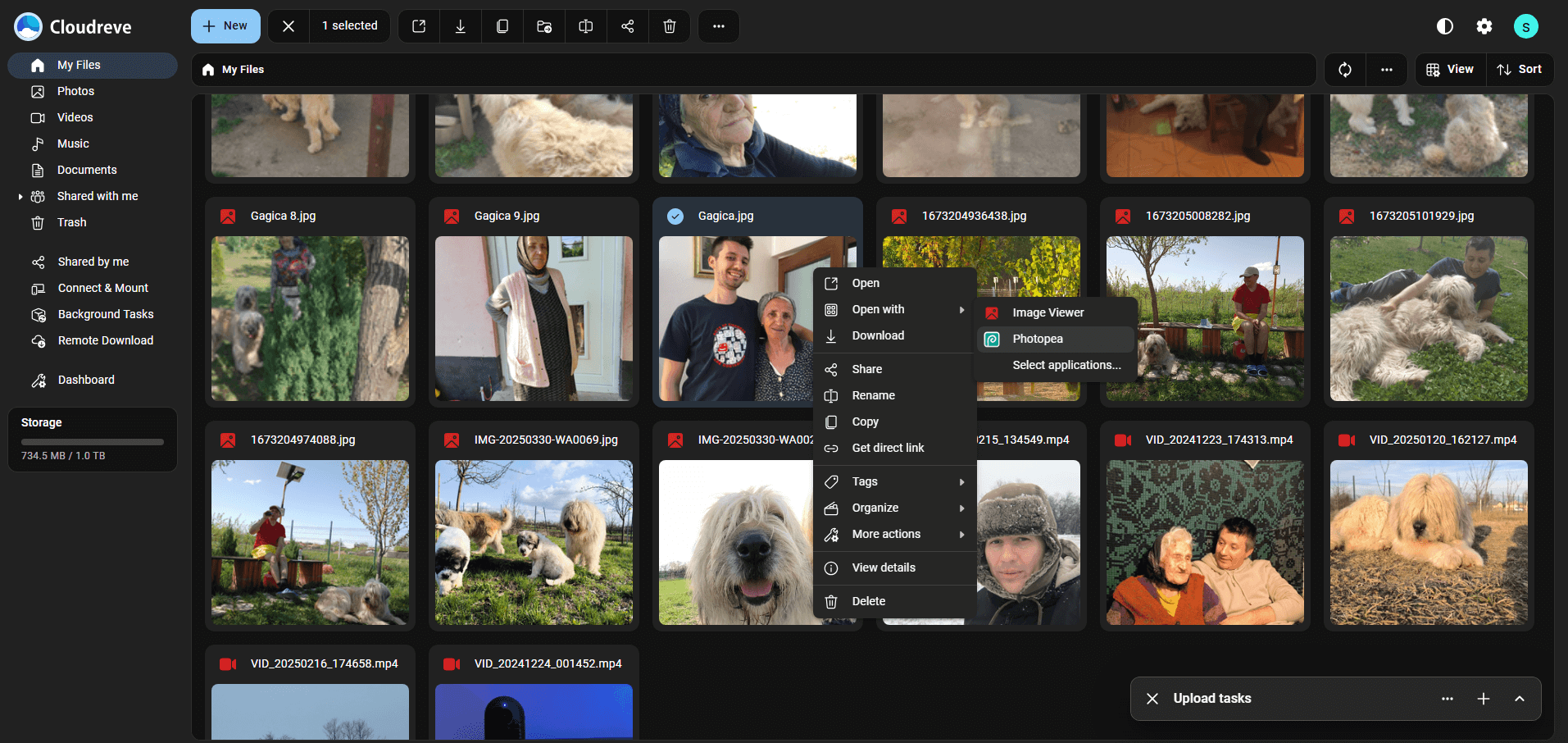

If you right click on a photo, you can also open it with Photopea, not just Image Viewer.

Cloudreve Synology NAS Set up 19

  • STEP 25

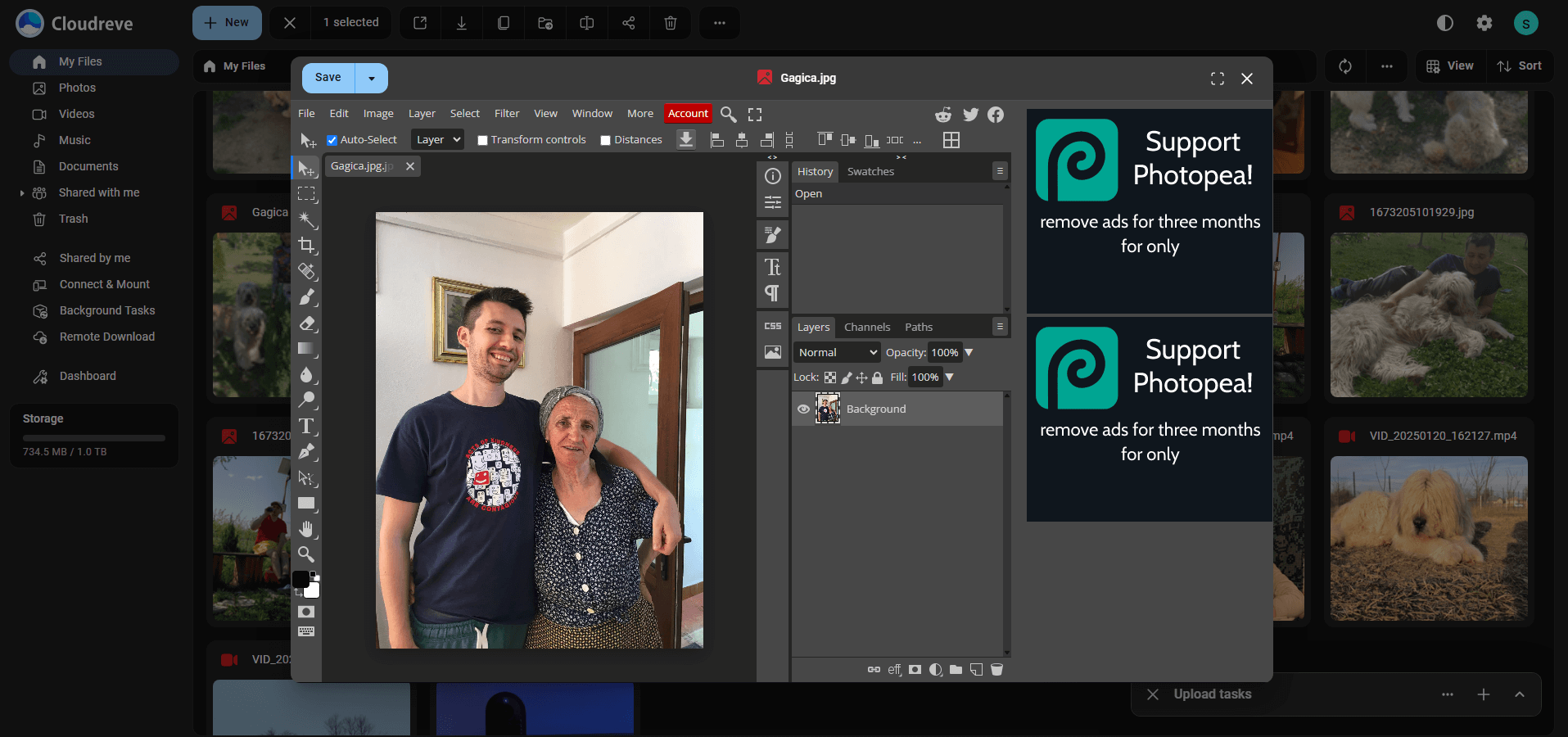

You can easily edit your photo with Photopea.

Cloudreve Synology NAS Set up 20

  • STEP 26

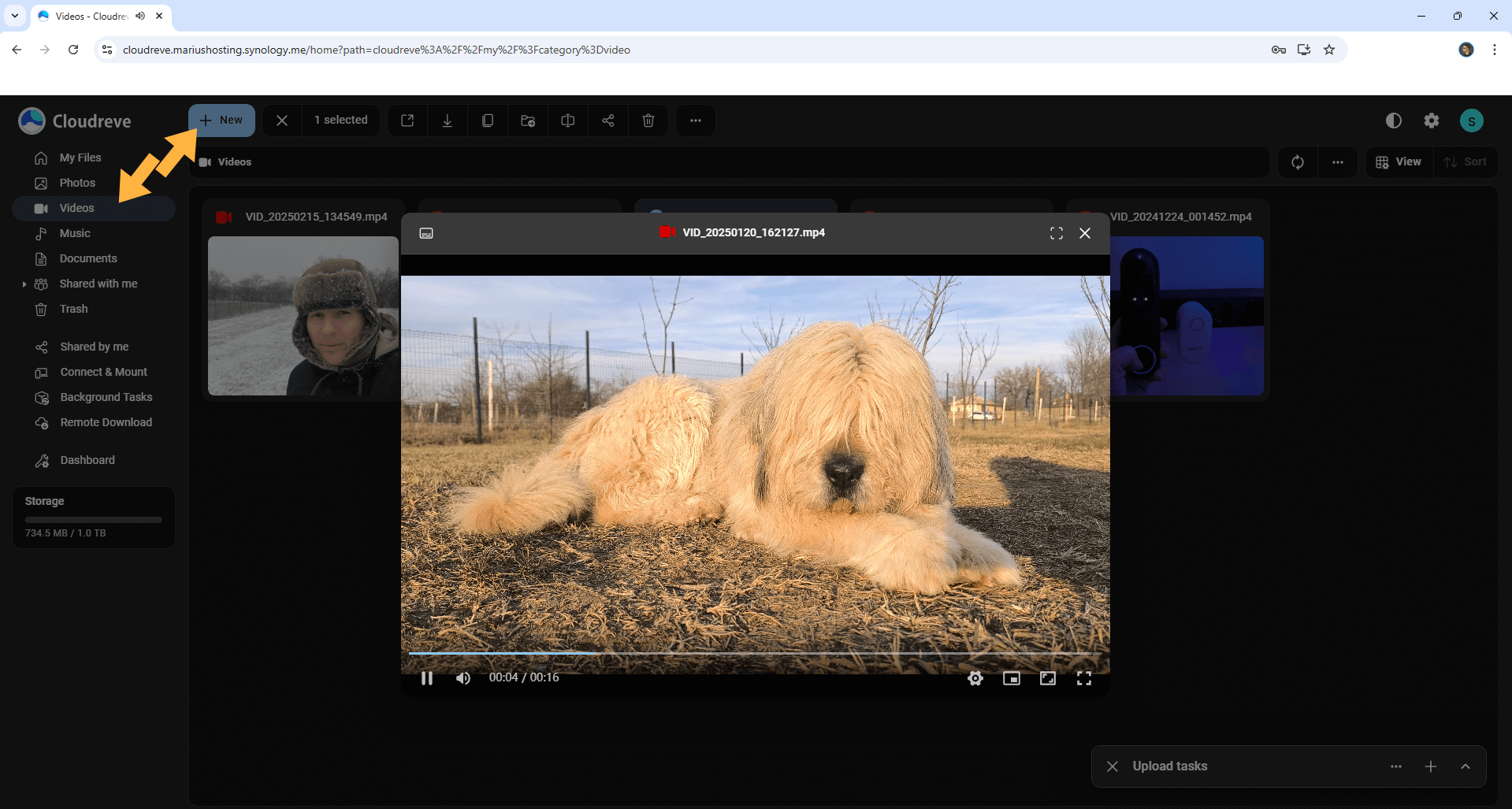

Upload your videos!

Cloudreve Synology NAS Set up 18

  • STEP 27

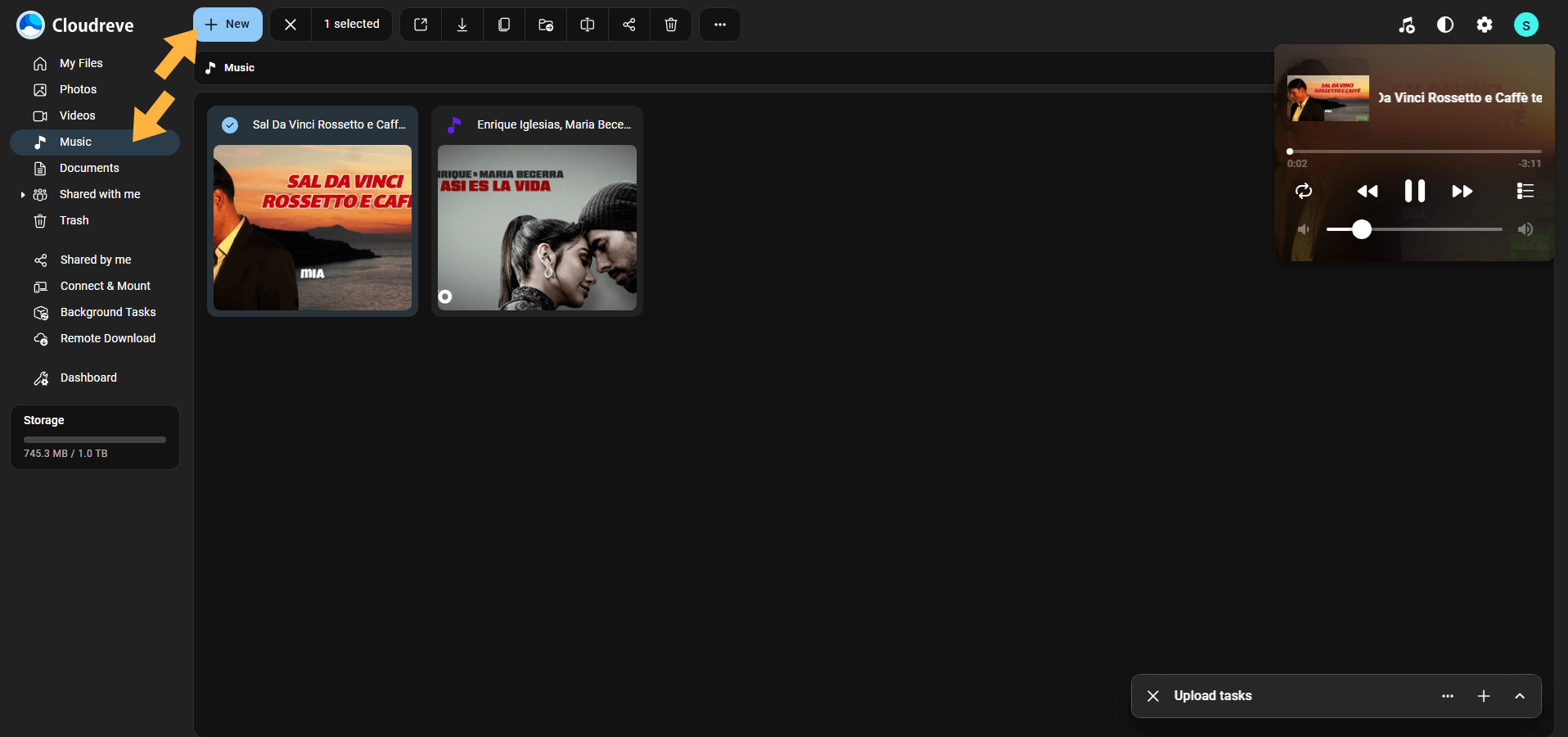

Upload your music!

Cloudreve Synology NAS Set up 21

  • STEP 28

Set Up Email Notifications on Cloudreve.

Enjoy Cloudreve!
