BluFiles is a lightweight and modern self-hosted file management and sharing system that enables users to easily upload, manage, and share files, folders, text pastes with syntax highlighting, and collections through a clean web UI and REST API, complete with an admin panel and ShareX integration for quick deployment via Docker. In this step by step guide I will show you how to install BlueFiles on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest BlueFiles v1.1.0 release.

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

• STEP 4

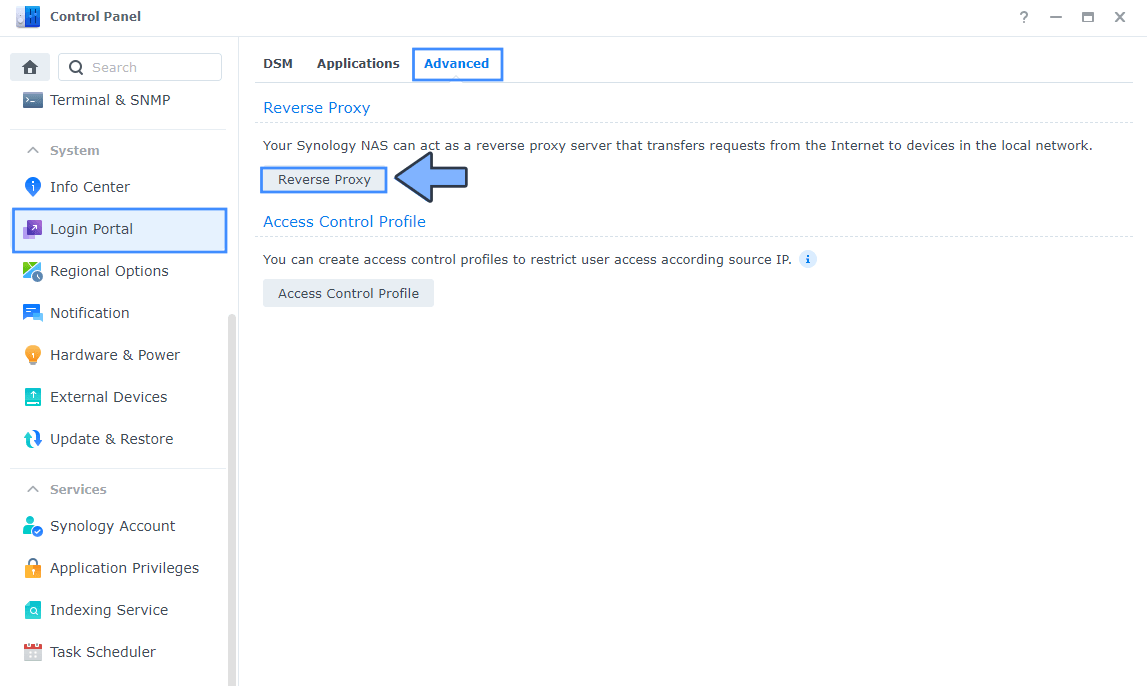

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

• STEP 5

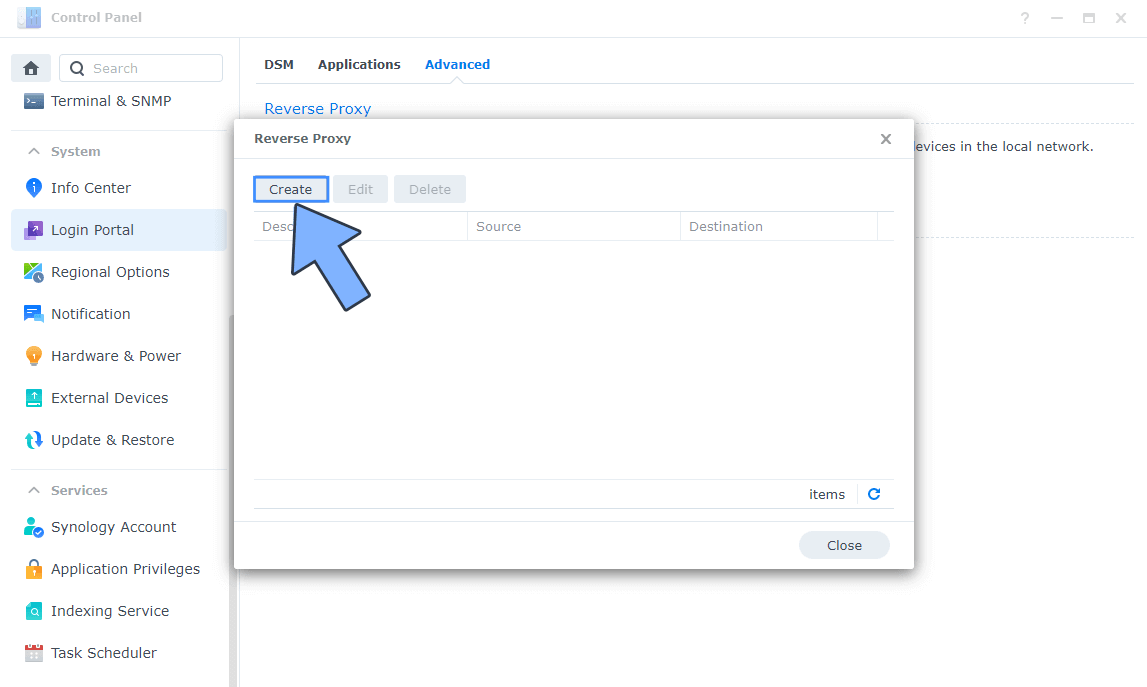

Now click the “Create” button. Follow the instructions in the image below.

• STEP 6

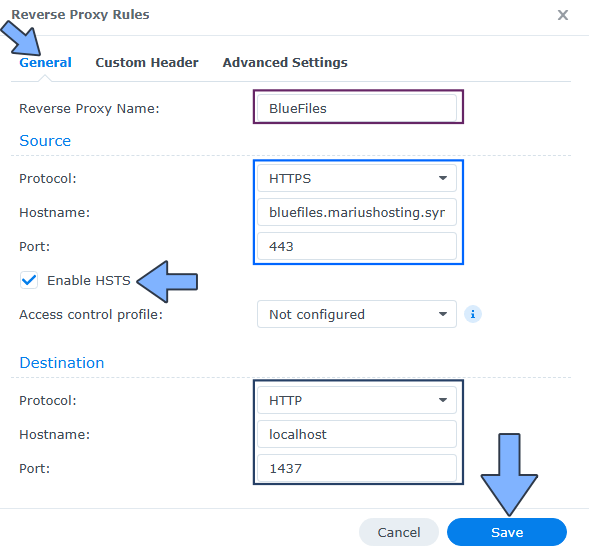

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in BlueFiles. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: bluefiles.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 1437

• STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

• STEP 8

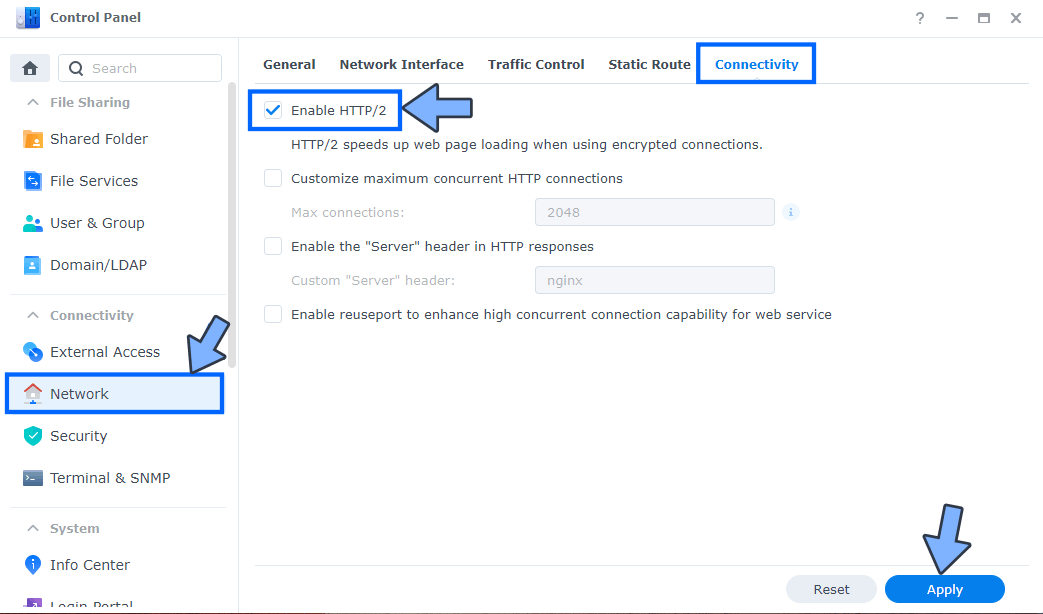

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

• STEP 9

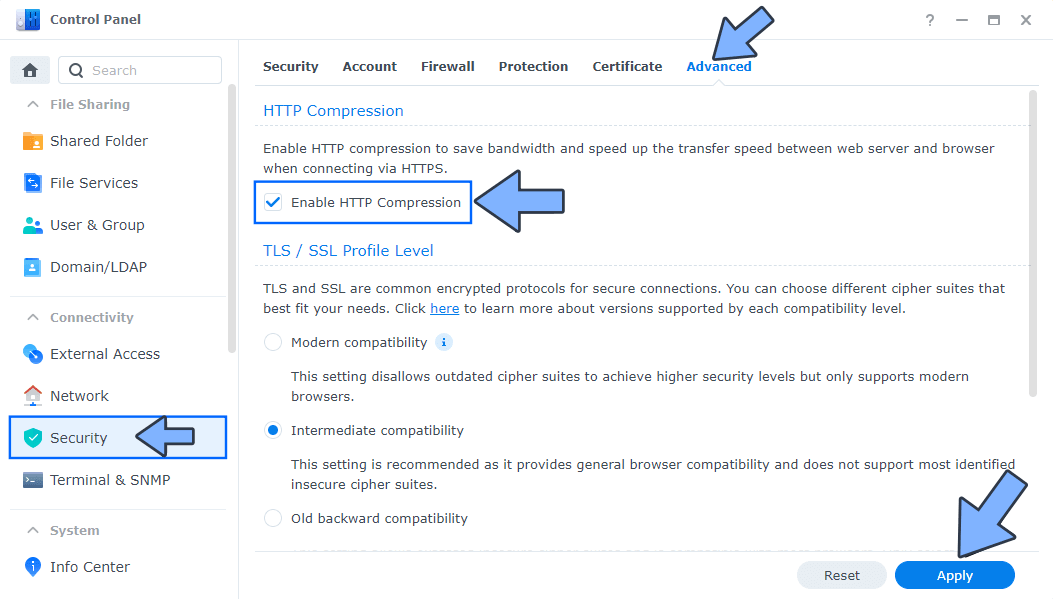

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

• STEP 10

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Home then Live connect. Follow the instructions in the image below.

On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 11

In the Name field type in bluefiles. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  db:
    image: postgres:18
    container_name: BlueFiles-DB
    hostname: bluefiles-db
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "bluefiles", "-U", "bluefilesuser"]
      timeout: 45s
      interval: 10s
      retries: 10
    volumes:
      - /volume1/docker/bluefiles/db:/var/lib/postgresql:rw
    environment:
      POSTGRES_DB: bluefiles
      POSTGRES_USER: bluefilesuser
      POSTGRES_PASSWORD: bluefilespass
    restart: on-failure:5

  blufiles:
    image: ghcr.io/bludood/files:latest
    container_name: BlueFiles
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/1337' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    ports:
      - 1437:1337
    volumes:
      - /volume1/docker/bluefiles/data:/data:rw
    environment:
       DATABASE_URL: postgresql://bluefilesuser:bluefilespass@bluefiles-db:5432/bluefiles
       STORAGE_DIR: /data
       TRUST_PROXY: true
    depends_on:
      db:
        condition: service_healthy
    restart: on-failure:5

• STEP 12

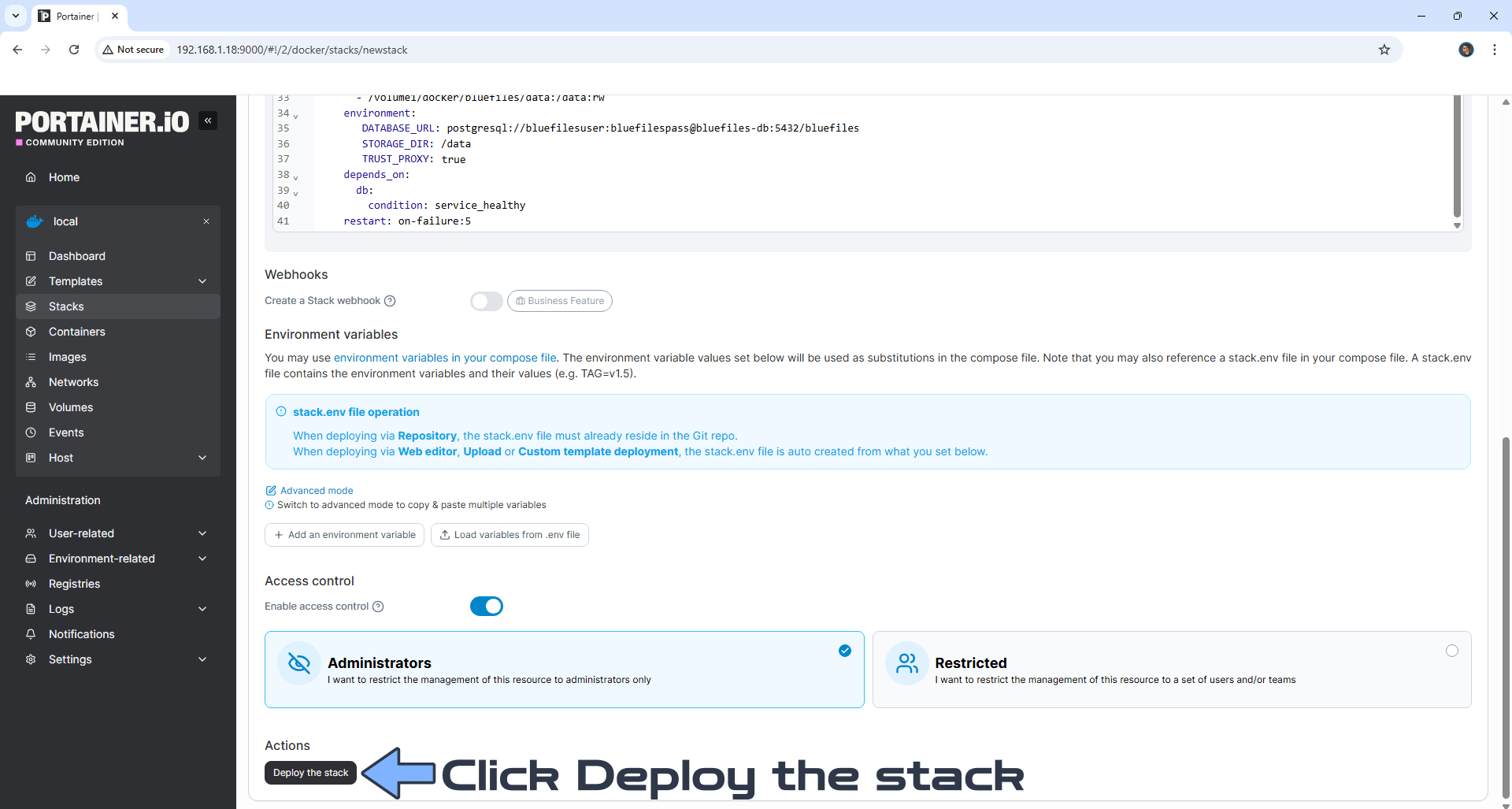

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 13

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 14

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

• STEP 15

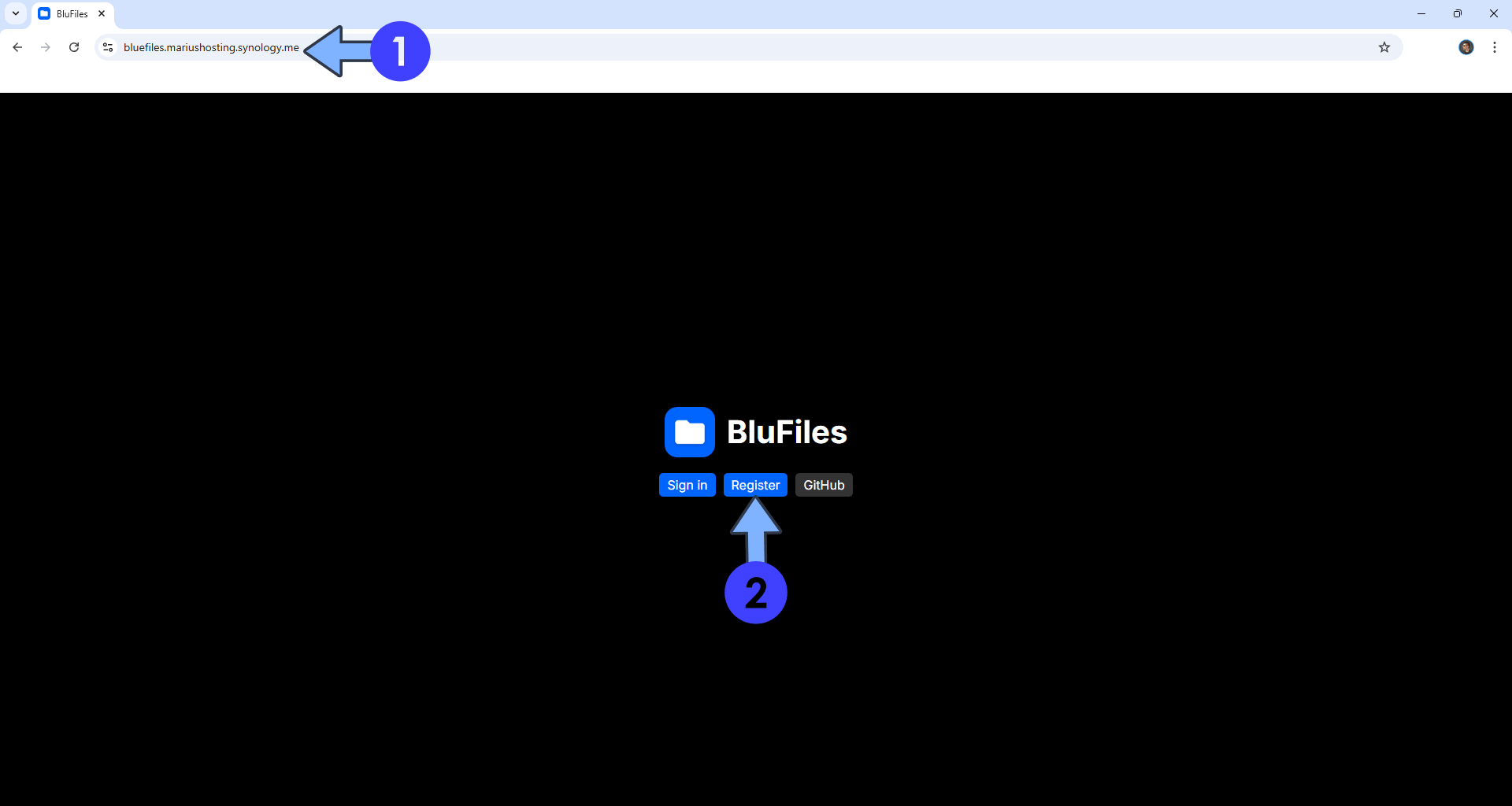

Now open your browser and type in your HTTPS/SSL certificate like this https://bluefiles.yourname.synology.me that you have previously created at STEP 6. In my case it’s https://bluefiles.mariushosting.synology.me Click Register. Follow the instructions in the image below.

• STEP 16

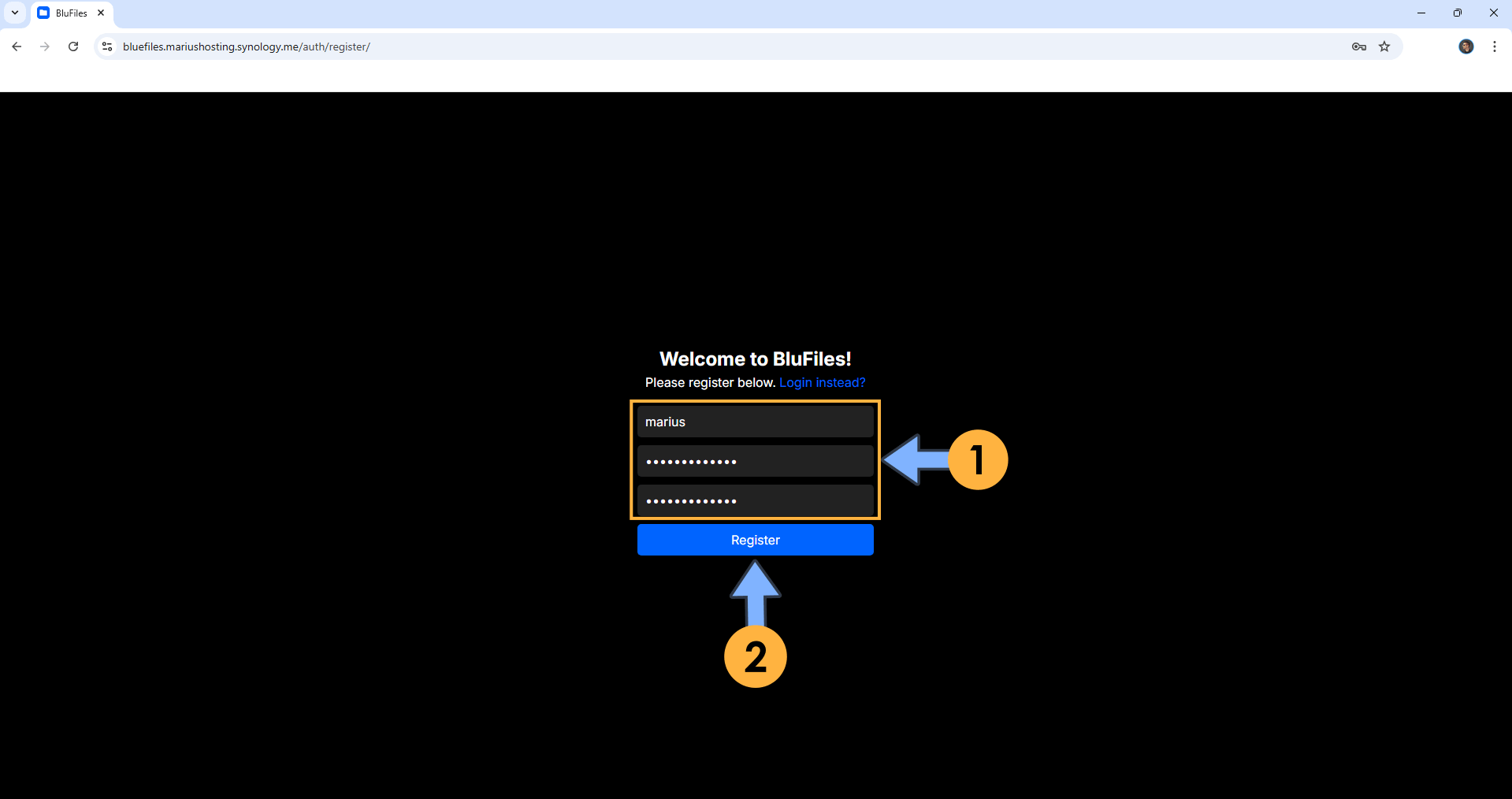

Create your Administrator account. Type in your own Username and Password. Click Register. Follow the instructions in the image below.

• STEP 17

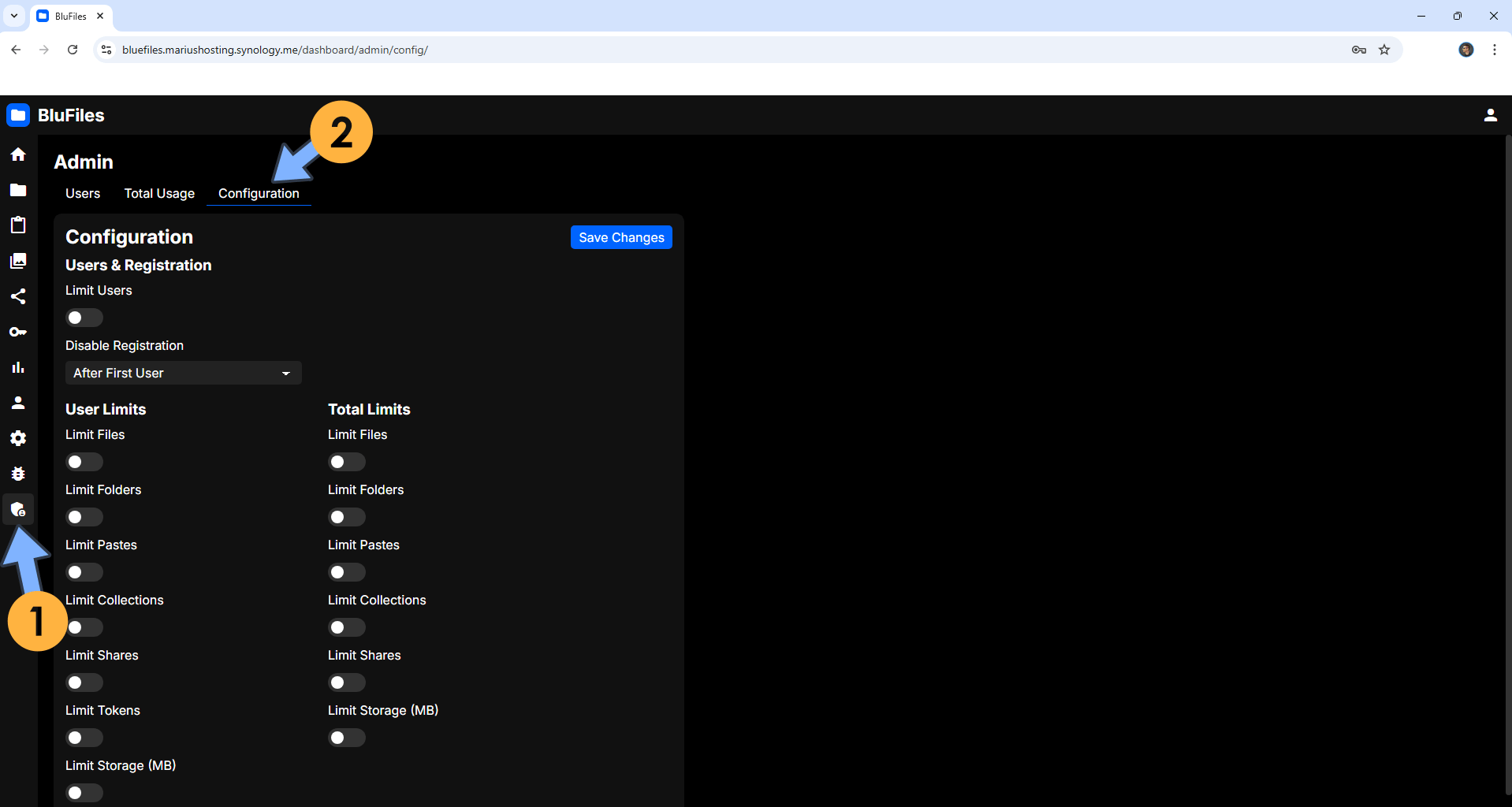

On the left sidebar, click the Admin icon then the Configuration tab to access your Administrator configurations. Follow the instructions in the image below.

• STEP 18

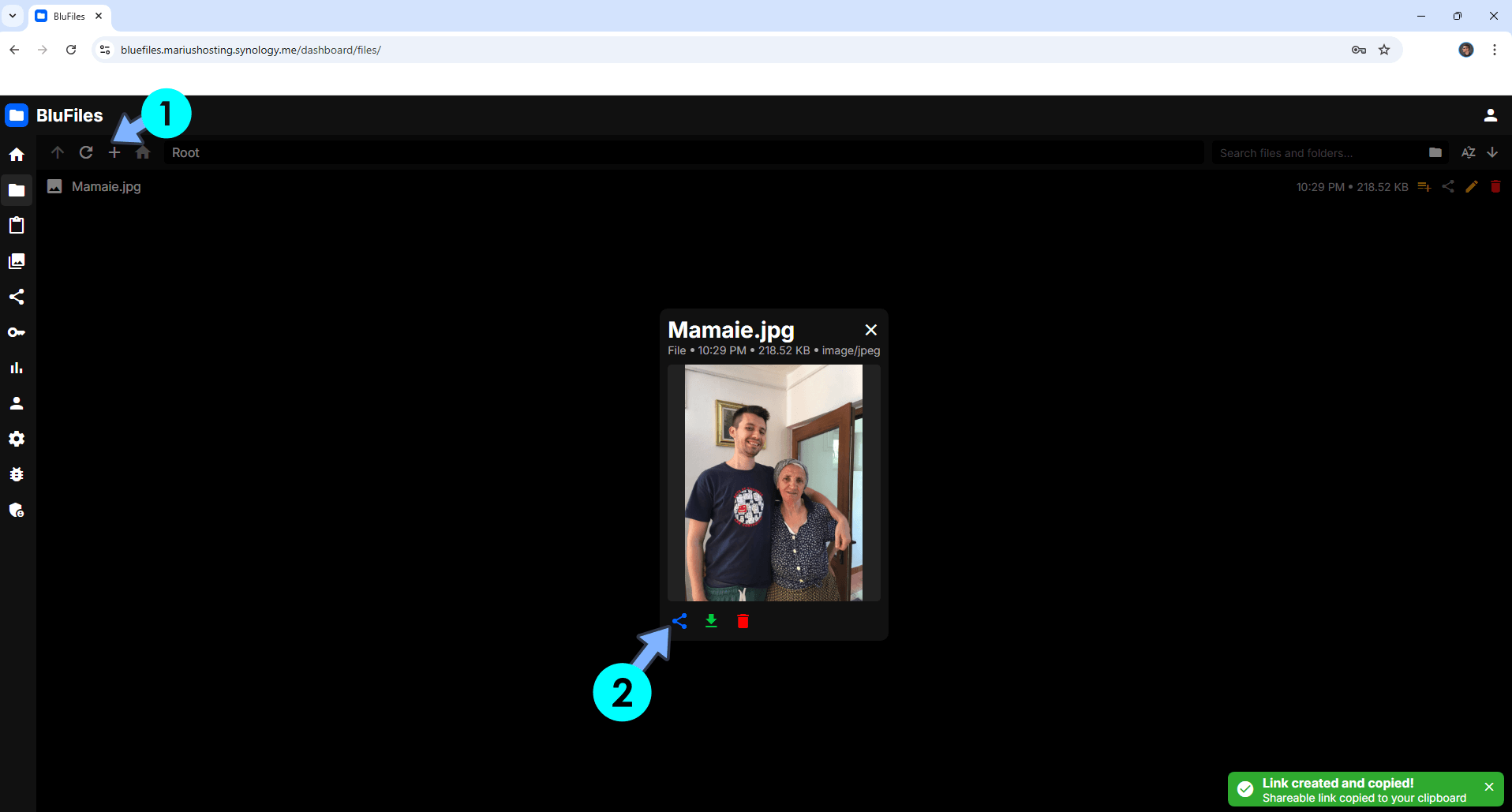

On the left sidebar, click the Files icon then the + icon to start uploading your files. You can easily share your uploaded file by clicking the share icon. Follow the instructions in the image below.

• STEP 19

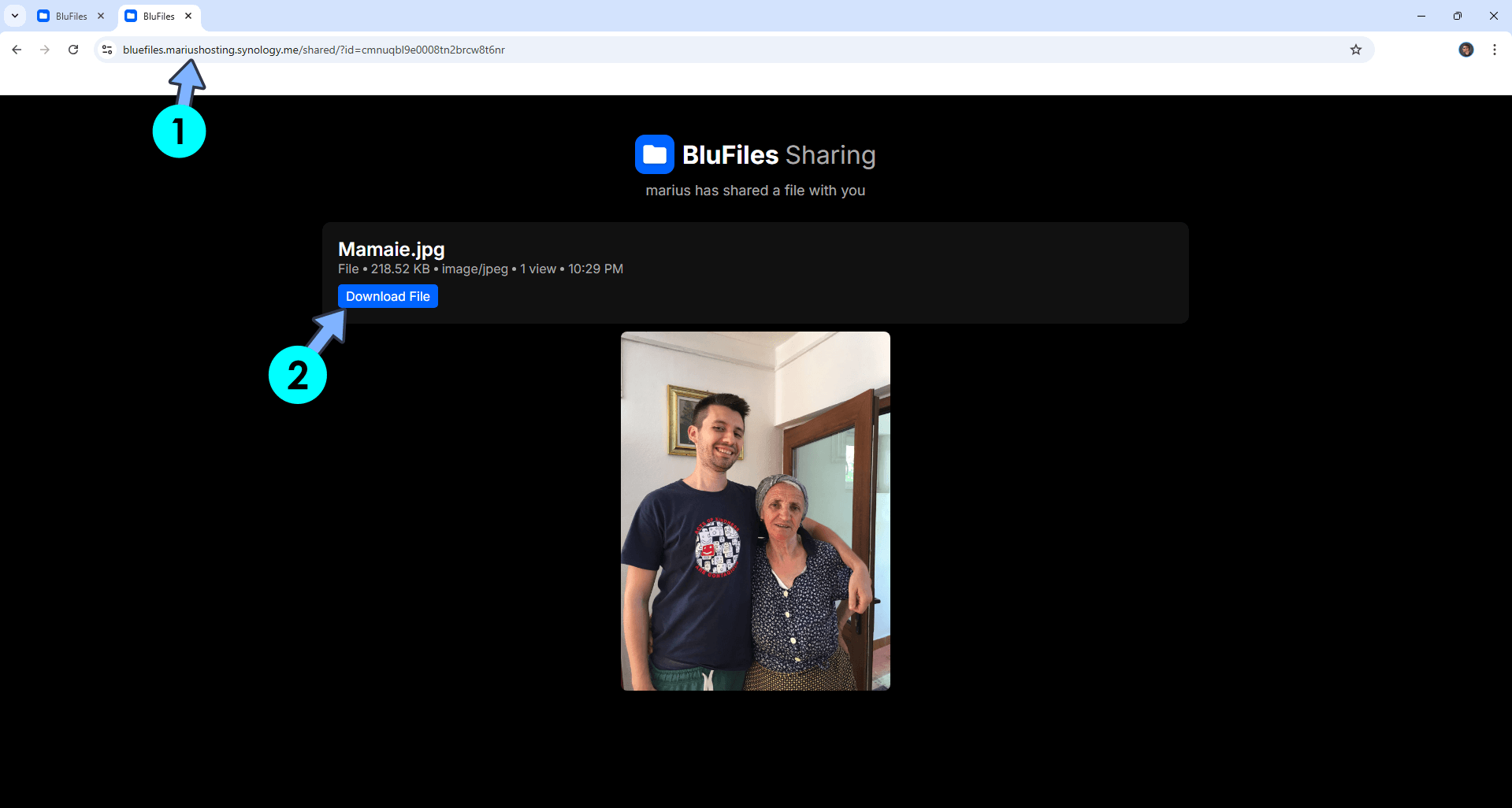

Share the link to your files! Your file at a glance!

Enjoy BlueFiles!
