How to Install Blinko on Your Synology NAS

How to Install Blinko on Your Synology NAS

Blinko is an innovative, open-source project designed for individuals who want to quickly capture and organize their fleeting thoughts. Blinko allows users to seamlessly jot down ideas the moment they strike, ensuring that no spark of creativity is lost. In this step by step guide I will show you how to install Blinko on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest Blinko v0.21.2 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

Blinko Synology NAS Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

Blinko Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Blinko. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: blinko.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 1112

Blinko Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Blinko Synology NAS Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

Blinko Synology NAS Set up 5

  • STEP 10

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it blinko. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Blinko Synology NAS Set up 6

  • STEP 11

Now create two new folders inside the blinko folder that you have previously created at STEP 10 and name them data and db. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Blinko Synology NAS Set up 7

  • STEP 12

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 13

In the Name field type in blinko. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

services:
  db:
    image: postgres:17
    container_name: Blinko-DB
    hostname: blinko-db
    mem_limit: 1g
    cpu_shares: 1024
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: ["CMD", "pg_isready", "-q", "-d", "blinko", "-U", "blinkouser"]
      timeout: 45s
      interval: 10s
      retries: 10
    volumes:
      - /volume1/docker/blinko/db:/var/lib/postgresql/data:rw
    environment:
      POSTGRES_DB: blinko
      POSTGRES_USER: blinkouser
      POSTGRES_PASSWORD: blinkopass
    restart: on-failure:5


  blinko:
    image: blinkospace/blinko:latest
    container_name: Blinko
    healthcheck:
      test: ["CMD", "curl", "-f", "https://blinko.yourname.synology.me"]
      interval: 30s
      timeout: 10s
      retries: 5
      start_period: 30s
    environment:
      NODE_ENV: production
      NEXTAUTH_URL: https://blinko.yourname.synology.me
      NEXT_PUBLIC_BASE_URL: https://blinko.yourname.synology.me
      NEXTAUTH_SECRET: 3VZEVZ8vC8gjvRChDW8QRtQysSErPwqkR7vyMjIt3PiE3Xhf4Z5rTruf9YU6HxAf
      DATABASE_URL: postgresql://blinkouser:blinkopass@blinko-db:5432/blinko
    volumes:
      - /volume1/docker/blinko/data:/app/.blinko:rw
    logging:
      options:
        max-size: "10m"
        max-file: "3"
    ports:
      - 1112:1111
    depends_on:
      db:
        condition: service_healthy
    restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for the healthcheck and type in your own synology.me DDNS with https:// at the beginning that you have previously created at STEP 6.
Note: Before you paste the code above in the Web editor area below, change the value for NEXTAUTH_URL and type in your own synology.me DDNS with https:// at the beginning that you have previously created at STEP 6.
Note: Before you paste the code above in the Web editor area below, change the value for NEXT_PUBLIC_BASE_URL and type in your own synology.me DDNS with https:// at the beginning that you have previously created at STEP 6.
Note: Before you paste the code above in the Web editor area below, change the value for NEXTAUTH_SECRET. (Generate your own 64 length NEXTAUTH_SECRET.)

Blinko Synology NAS Set up 8

  • STEP 14

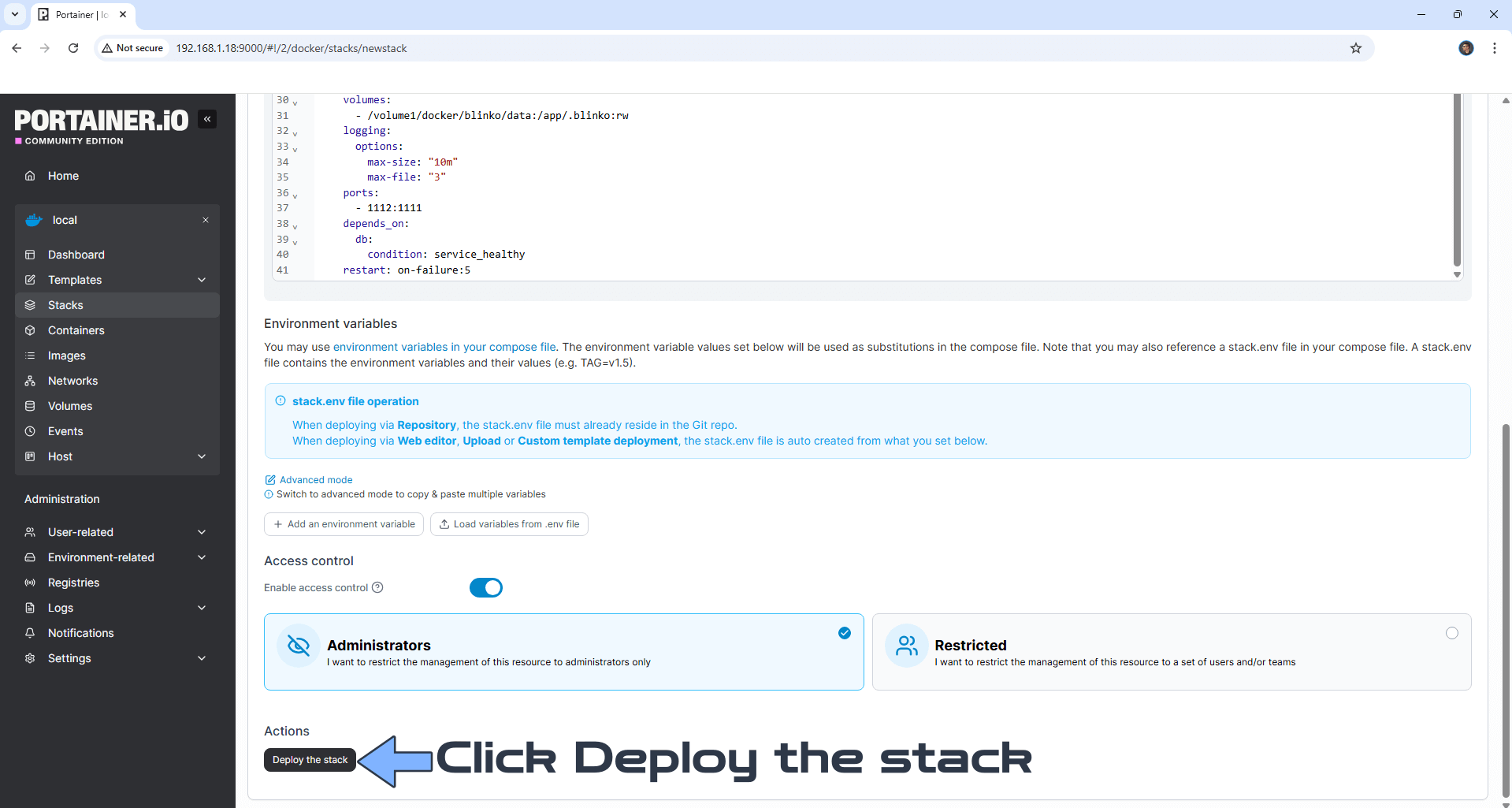

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

Blinko Synology NAS Set up 9

  • STEP 15

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

Blinko Synology NAS Set up 10

  • STEP 16

Go back to STEP 1 or you will deal with karma 🙂.

  • STEP 17

Now open your browser and type in your HTTPS/SSL certificate like this https://blinko.yourname.synology.me/signup that you have previously created at STEP 6. In my case it’s https://blinko.mariushosting.synology.me/signup Type in your own Username and Password, then click Sign Up. Follow the instructions in the image below.

Blinko Synology NAS Set up 11

  • STEP 18

Type in your own Username and Password that you have previously created at STEP 17, then click Sign in. Follow the instructions in the image below.

Blinko Synology NAS Set up 12

  • STEP 19

Your Blinko dashboard at a glance!

Blinko Synology NAS Set up 13

Enjoy Blinko!
