ArchiveBox is a powerful, self-hosted internet archiving solution to collect, save, and view sites you want to preserve offline. You can feed it URLs one at a time, or schedule regular imports from browser bookmarks or history, feeds like RSS, bookmark services like Pocket/Pinboard, and more. It saves snapshots of the URLs you feed it in several formats: HTML, PDF, PNG screenshots, WARC, and more out-of-the-box, with a wide variety of content extracted and preserved automatically (article text, audio/video, git repos, etc.). The goal of ArchiveBox is to sleep soundly knowing the part of the internet you care about will be automatically preserved in durable, easily accessible formats for decades after it goes down. In this step by step guide I will show you how to install ArchiveBox on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest version of ArchiveBox v.0.7.2

• STEP 1

Please Support My work by Making a Donation.

• STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

• STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

• STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

• STEP 5

Now click the “Create” button. Follow the instructions in the image below.

• STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in ArchiveBox. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: archivebox.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 8460

• STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

• STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

• STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

• STEP 10

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it archivebox. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

• STEP 11

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

• STEP 12

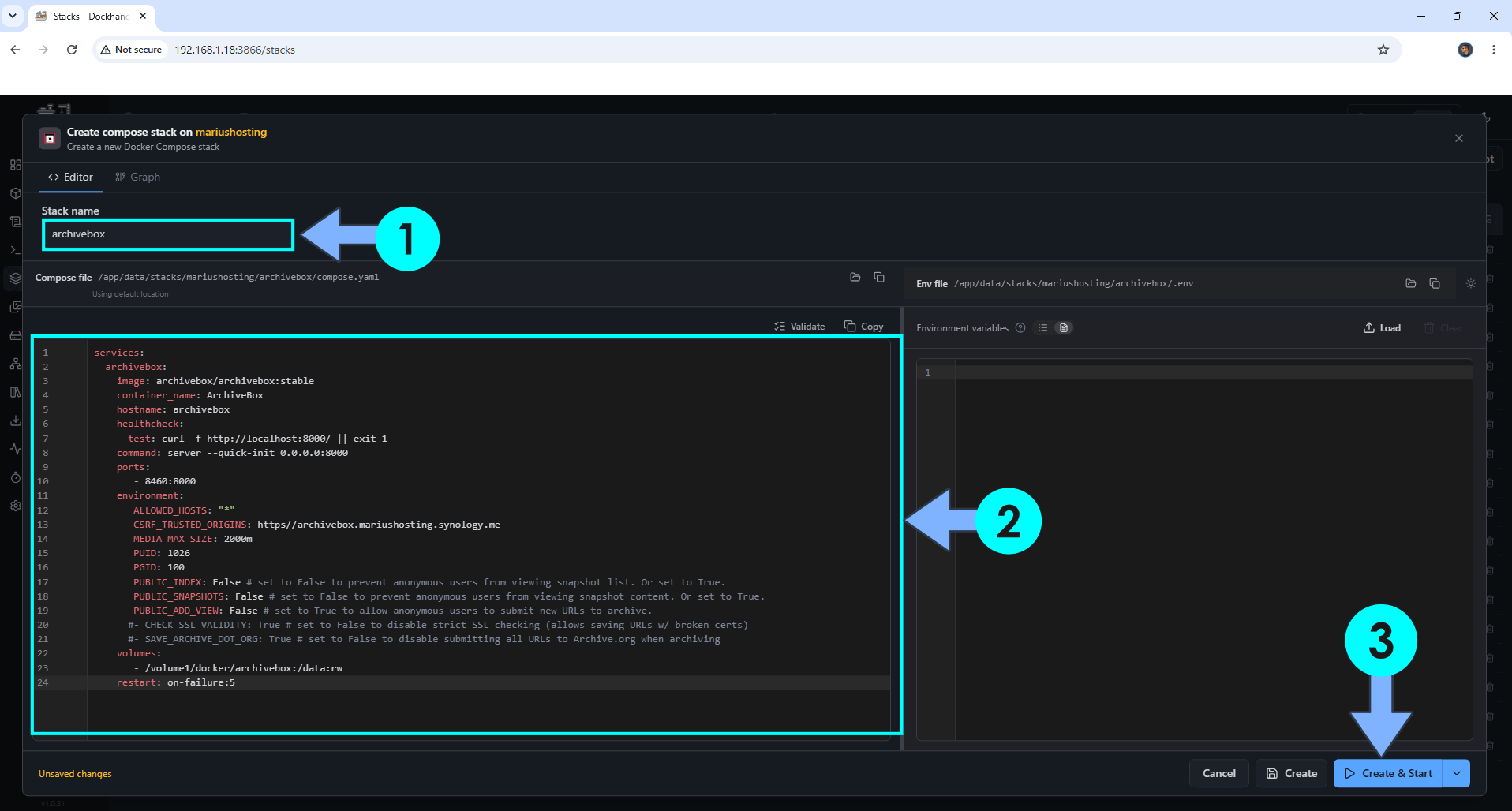

In the Name field type in archivebox. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: '3.9'
services:
    archivebox:
        image: archivebox/archivebox:stable
        container_name: ArchiveBox
        hostname: archivebox
        healthcheck:
         test: curl -f http://localhost:8000/ || exit 1
        command: server --quick-init 0.0.0.0:8000
        ports:
           - 8460:8000
        environment:
           - ALLOWED_HOSTS=*
           - CSRF_TRUSTED_ORIGINS=https//archivebox.yourname.synology.me
           - MEDIA_MAX_SIZE=2000m
           - PUID=1026
           - PGID=100
           - PUBLIC_INDEX=False             # set to False to prevent anonymous users from viewing snapshot list. Or set to True.
           - PUBLIC_SNAPSHOTS=False         # set to False to prevent anonymous users from viewing snapshot content. Or set to True.
           - PUBLIC_ADD_VIEW=False           # set to True to allow anonymous users to submit new URLs to archive.
          # - CHECK_SSL_VALIDITY=True         # set to False to disable strict SSL checking (allows saving URLs w/ broken certs)
          # - SAVE_ARCHIVE_DOT_ORG=True       # set to False to disable submitting all URLs to Archive.org when archiving
        volumes:
            - /volume1/docker/archivebox:/data:rw
        restart: on-failure:5

Note: Before you paste the code above in the Web editor area below, change the value for CSRF_TRUSTED_ORIGINS and type in your own synology.me DDNS with https:// at the beginning that you have previously created at STEP 6.
Note: Before you paste the code above in the Web editor area below, change the value numbers for PUID and PGID with your own PUID and PGID values. (Follow my step by step guide on how to do this.) 1026 is my personal PUID value and 100 is my personal PGID value. You have to type in your own values.

• STEP 13

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

• STEP 14

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

• STEP 15

On the left sidebar in Portainer, click Containers. Identify your ArchiveBox instance, then click on the little terminal icon. Follow the instructions in the image below.

• STEP 16

After you click on the little terminal icon at STEP 15, a new page will open. Click Connect. Follow the instructions in the image below.

• STEP 17

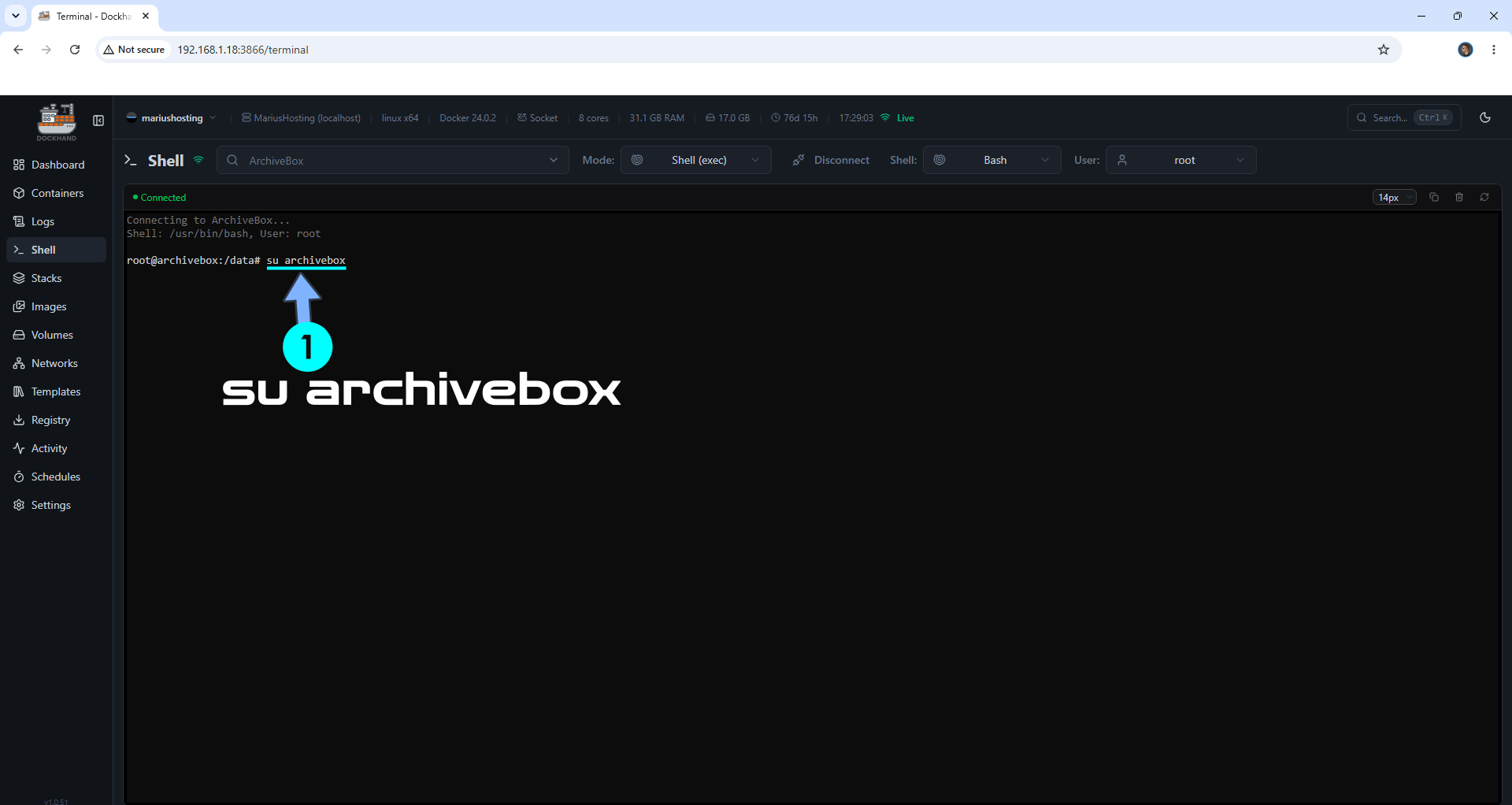

After you click Connect at STEP 16, a Console will open. Copy paste the code below and confirm by pressing Enter on your keyboard. Follow the instructions in the image below.

su archivebox

• STEP 18

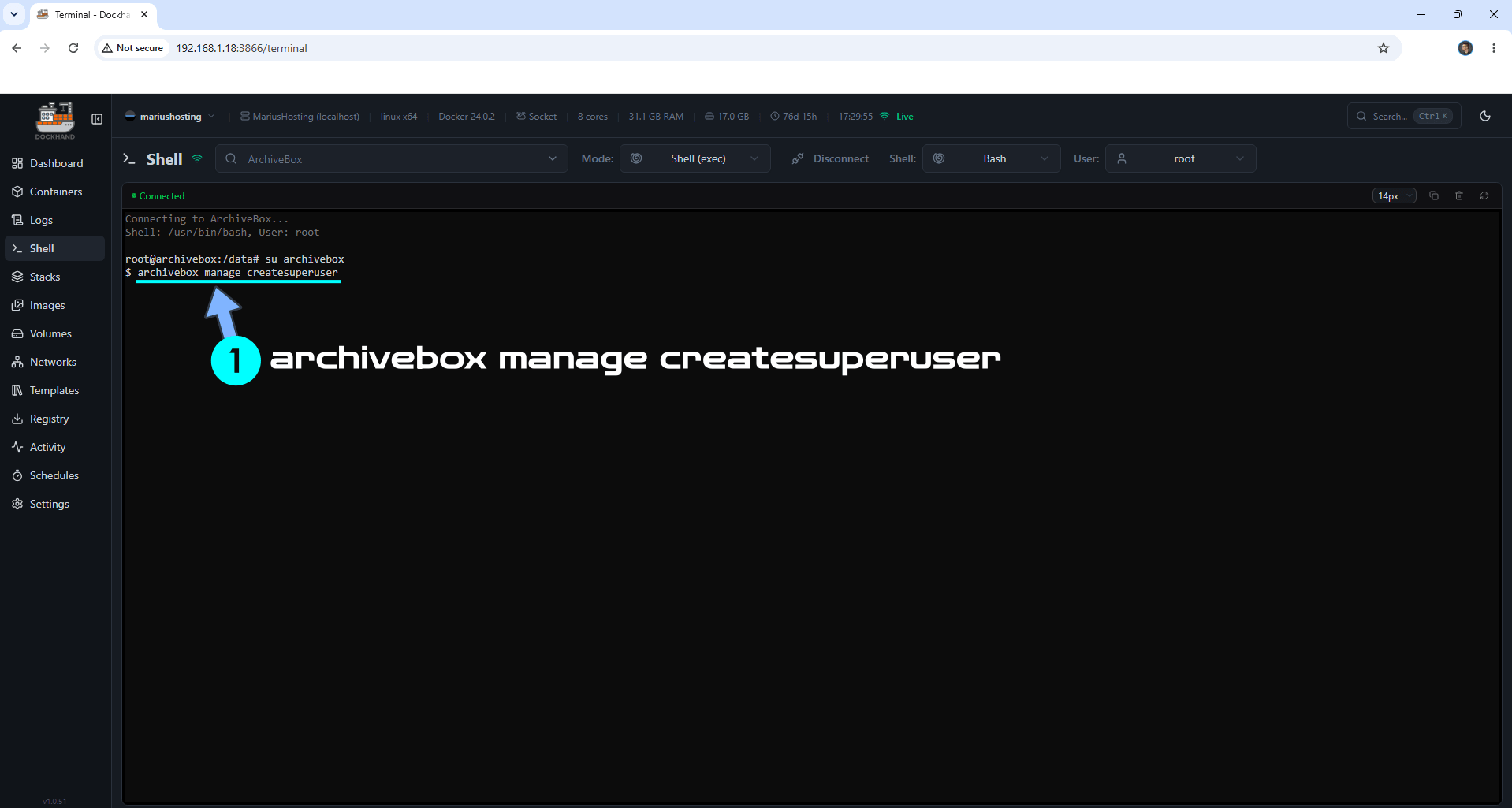

After you press Enter on your Keyboard at STEP 17, copy paste the code below and confirm by pressing Enter on your keyboard. Follow the instructions in the image below.

archivebox manage createsuperuser

• STEP 19

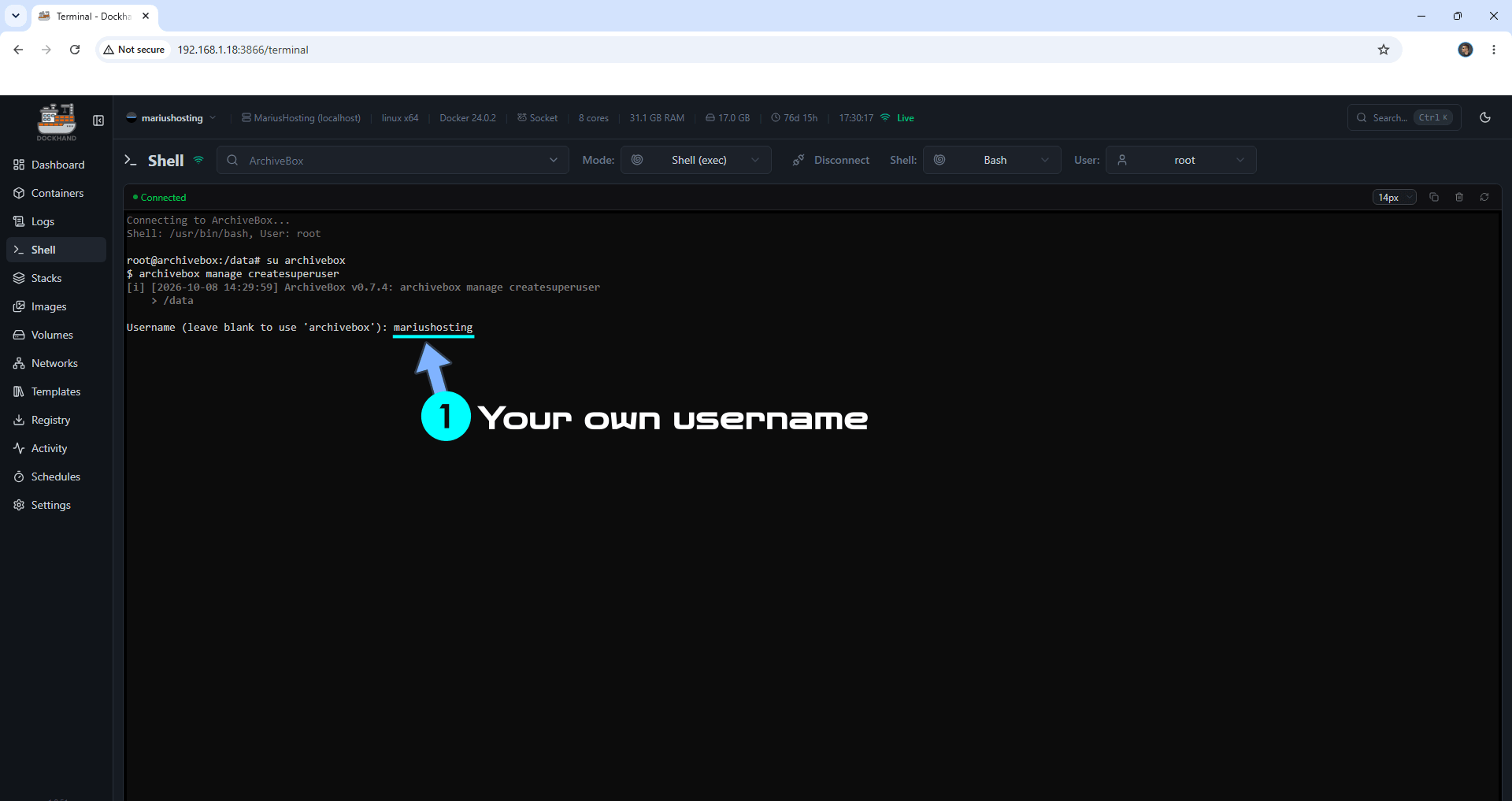

After you press Enter on your Keyboard at STEP 18, you will be asked to type in your own Username. Type in your own username and confirm by pressing Enter on your keyboard. Follow the instructions in the image below.

• STEP 20

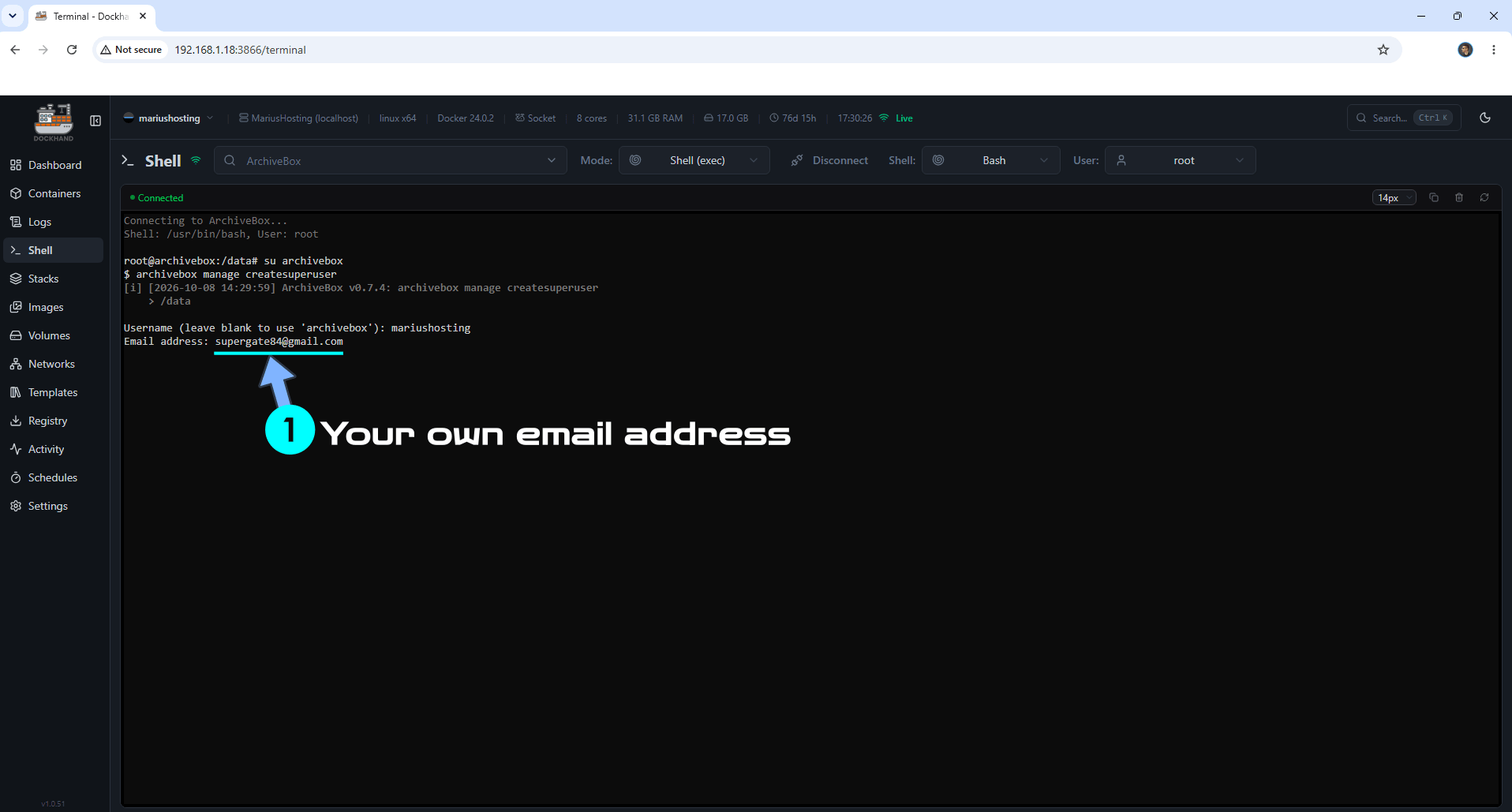

After you press Enter on your Keyboard at STEP 19, you will be asked to type in your own Email Address. Type in your own Email Address and confirm by pressing Enter on your keyboard. Follow the instructions in the image below.

• STEP 21

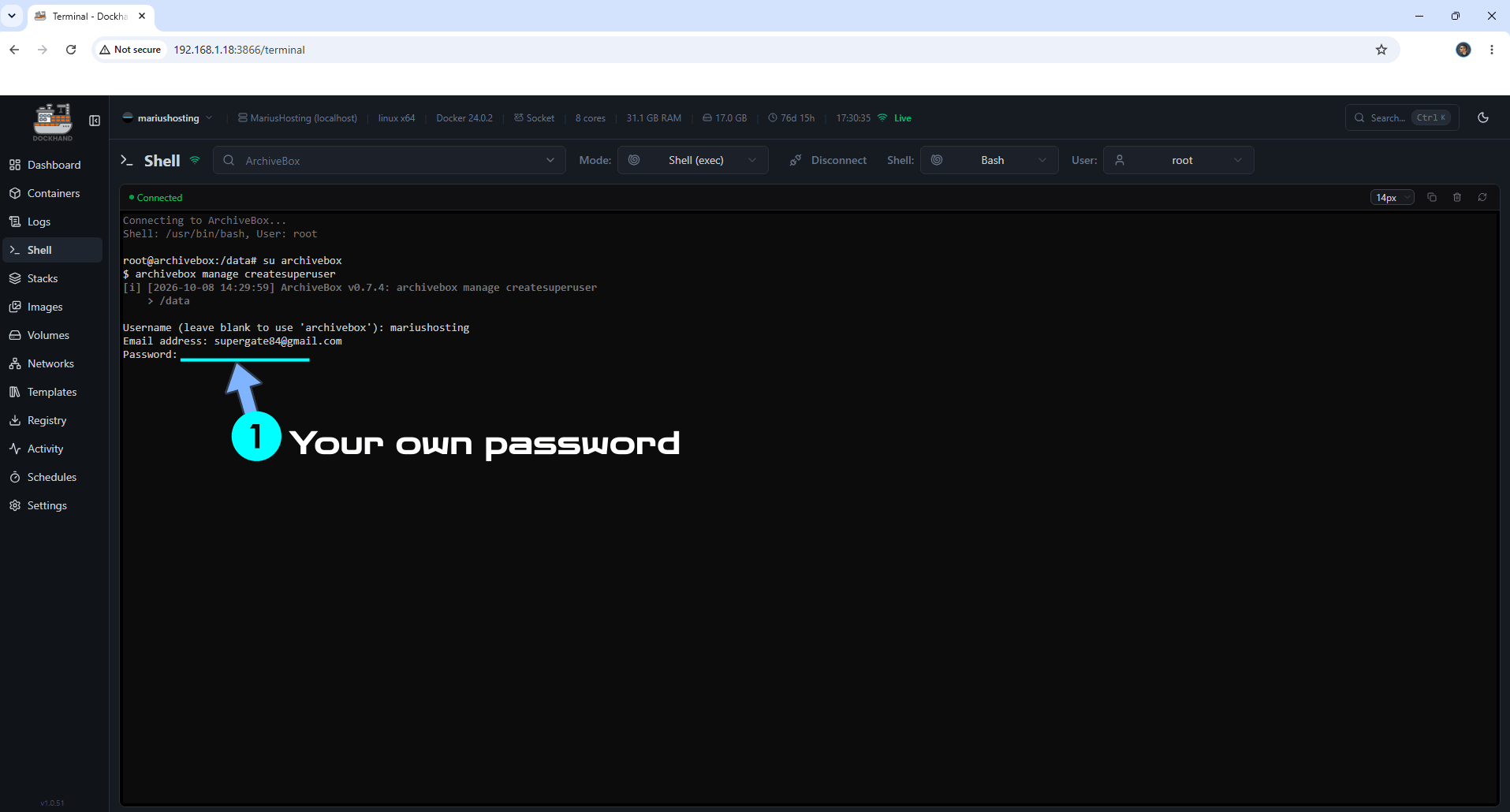

After you press Enter on your Keyboard at STEP 20, you will be asked to type in your own Password. Type in your own Password and confirm by pressing Enter on your keyboard. Follow the instructions in the image below.

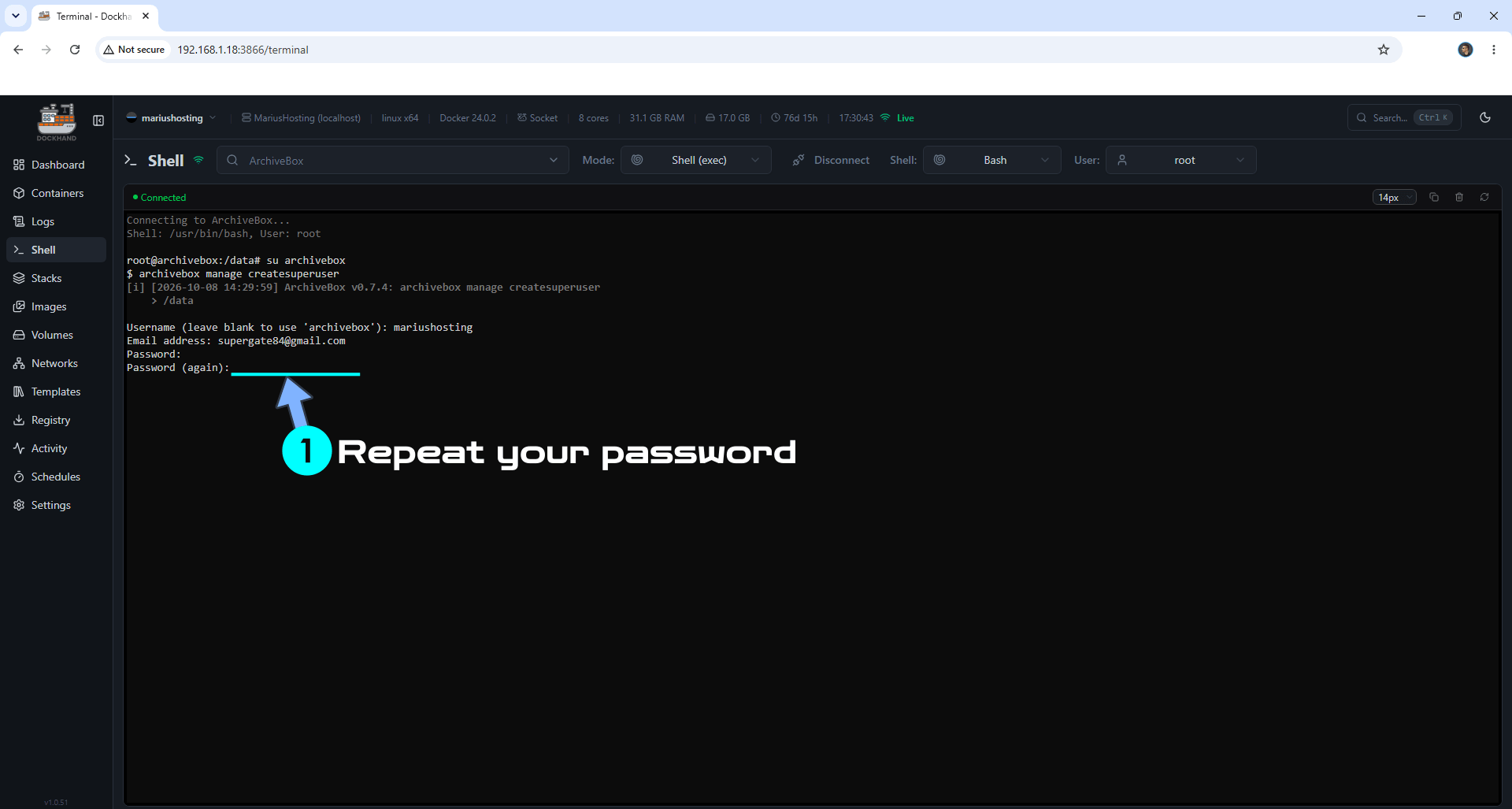

• STEP 22

After you press Enter on your Keyboard at STEP 21, you will be asked to type in your Password again. Type in your Password again and confirm by pressing Enter on your keyboard. Follow the instructions in the image below.

• STEP 23

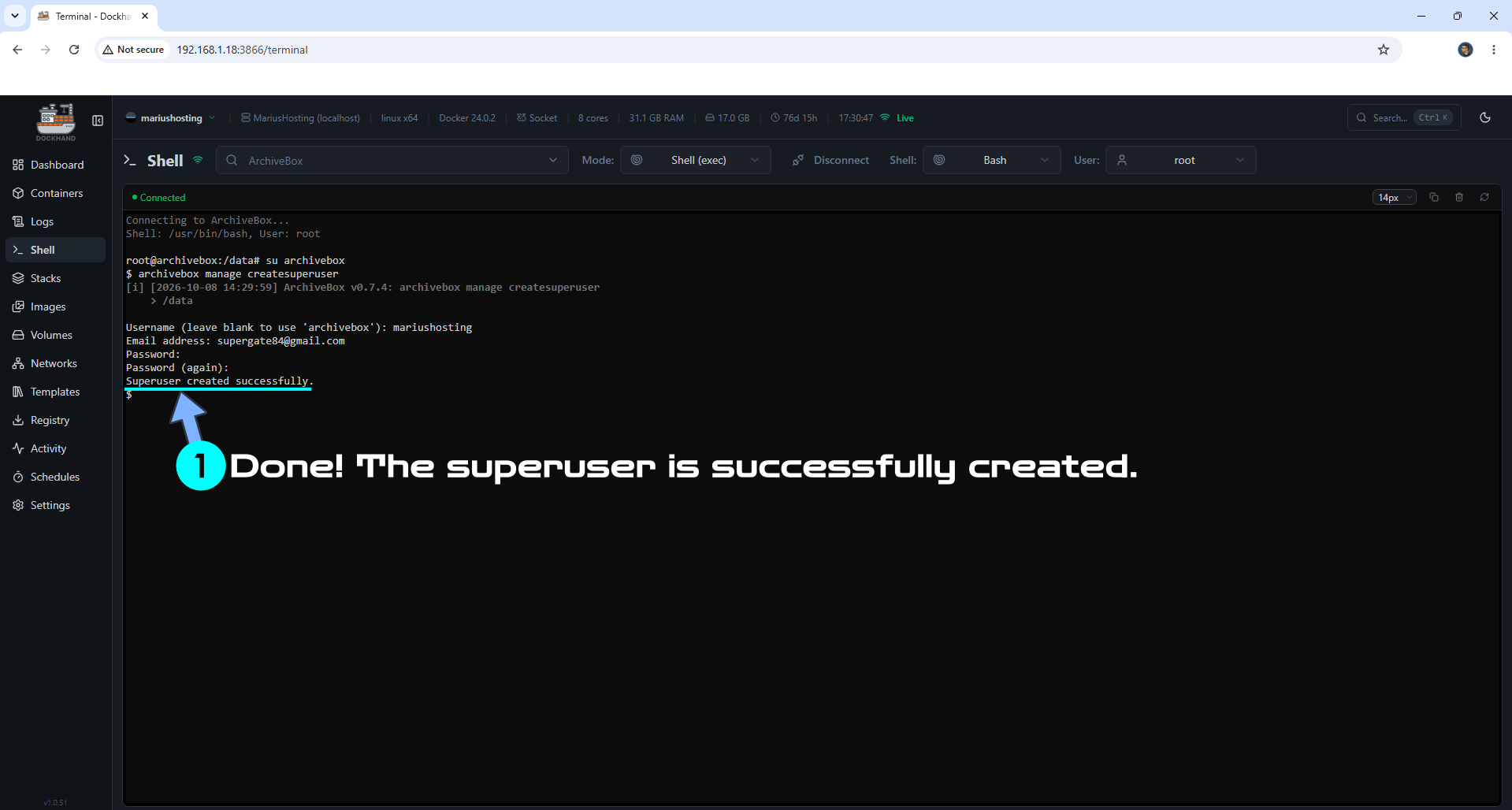

After a few seconds you will get a message in the terminal that says: “Superuser created successfully.“.

• STEP 24

🟢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guides forget to support my work, or just ignore STEP 1. I’ve been very honest about this aspect of my work since the beginning: I don’t run any ADS, I don’t require subscriptions, paid or otherwise, I don’t collect IPs, emails, and I don’t have any referral links from Amazon or other merchants. I also don’t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. It’s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

• STEP 25

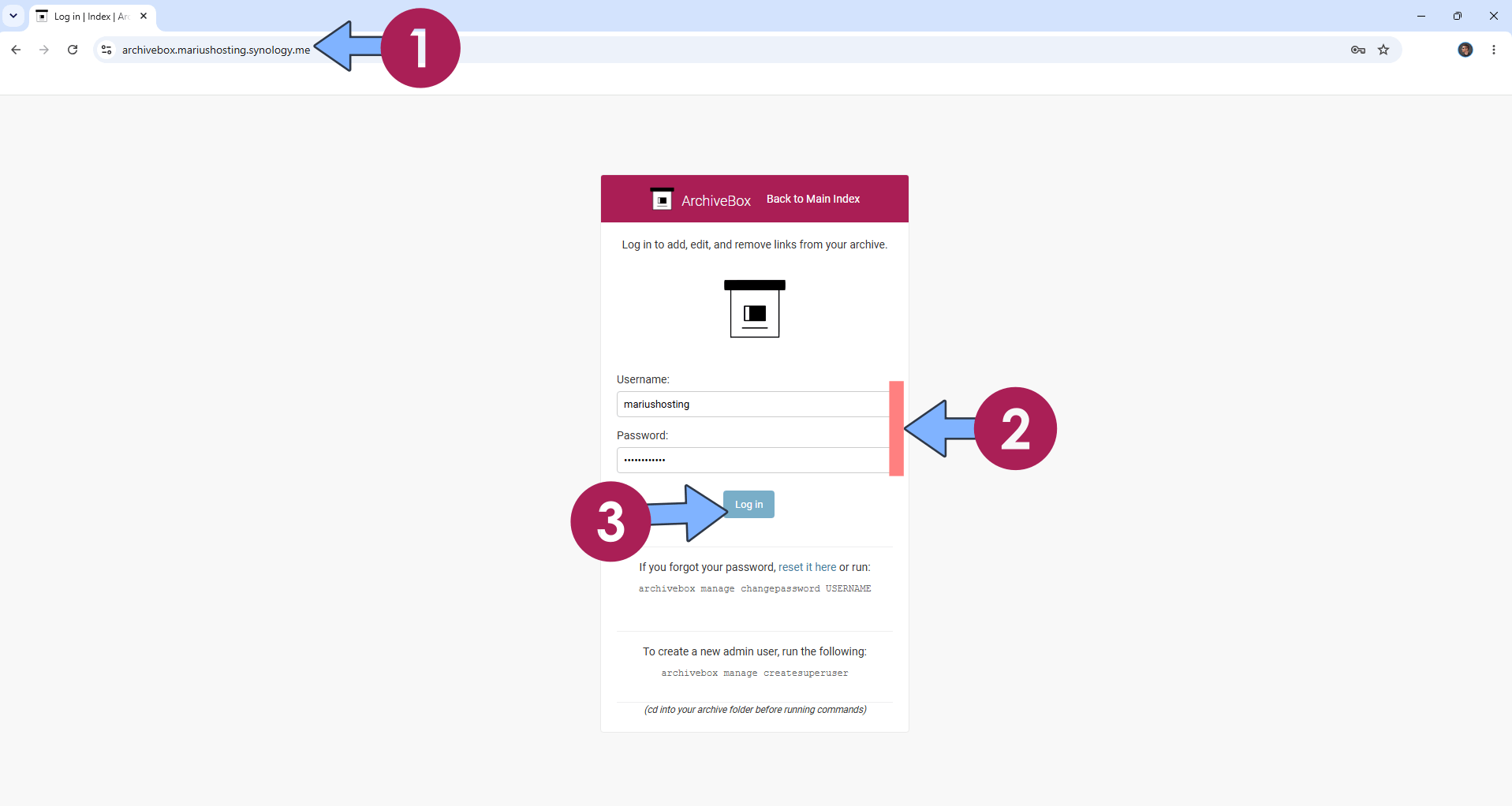

Now open your browser and type in your HTTPS/SSL certificate like this https://archivebox.yourname.synology.me that you have previously created at STEP 6. In my case it’s https://archivebox.mariushosting.synology.me If everything goes right, you will see the ArchiveBox Login page. Type in your own Username and Password that you have previously created at STEP 19 and STEP 21, respectively. Click Log in. Follow the instructions in the image below.

• STEP 26

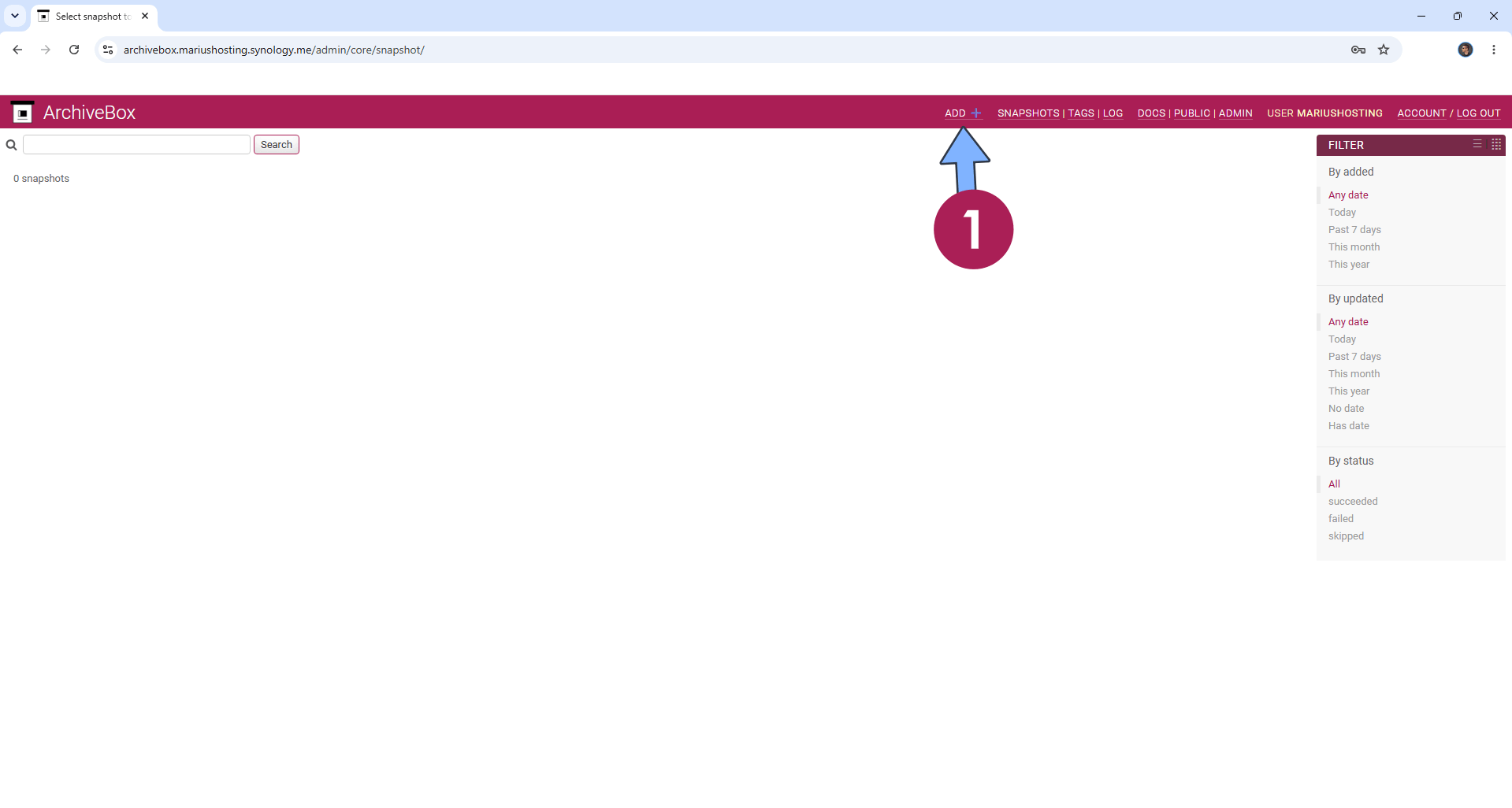

Click ADD+ to add your first website. Follow the instructions in the image below.

• STEP 27

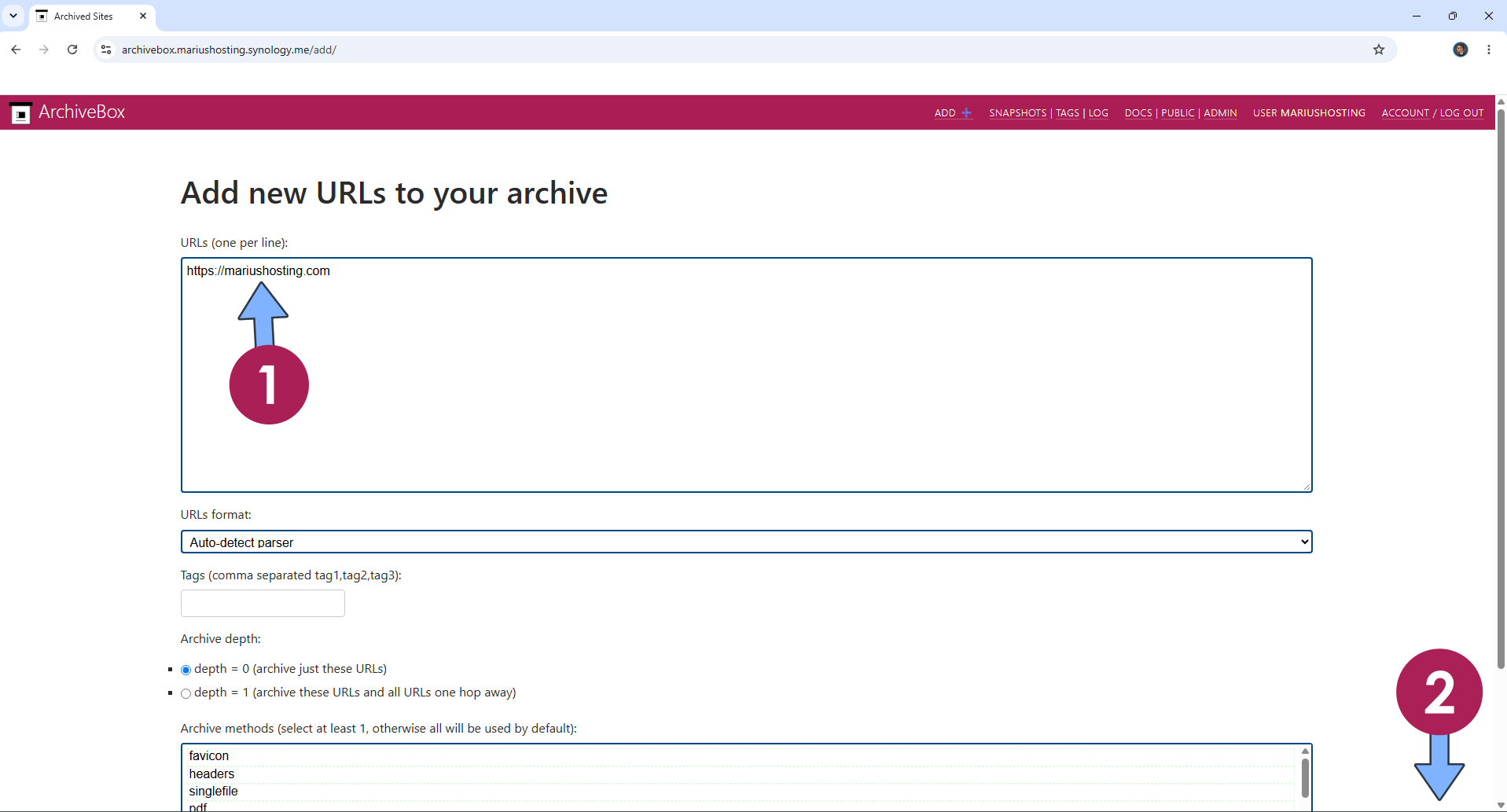

Add new URLs to your archive. Follow the instructions in the image below.

• STEP 28

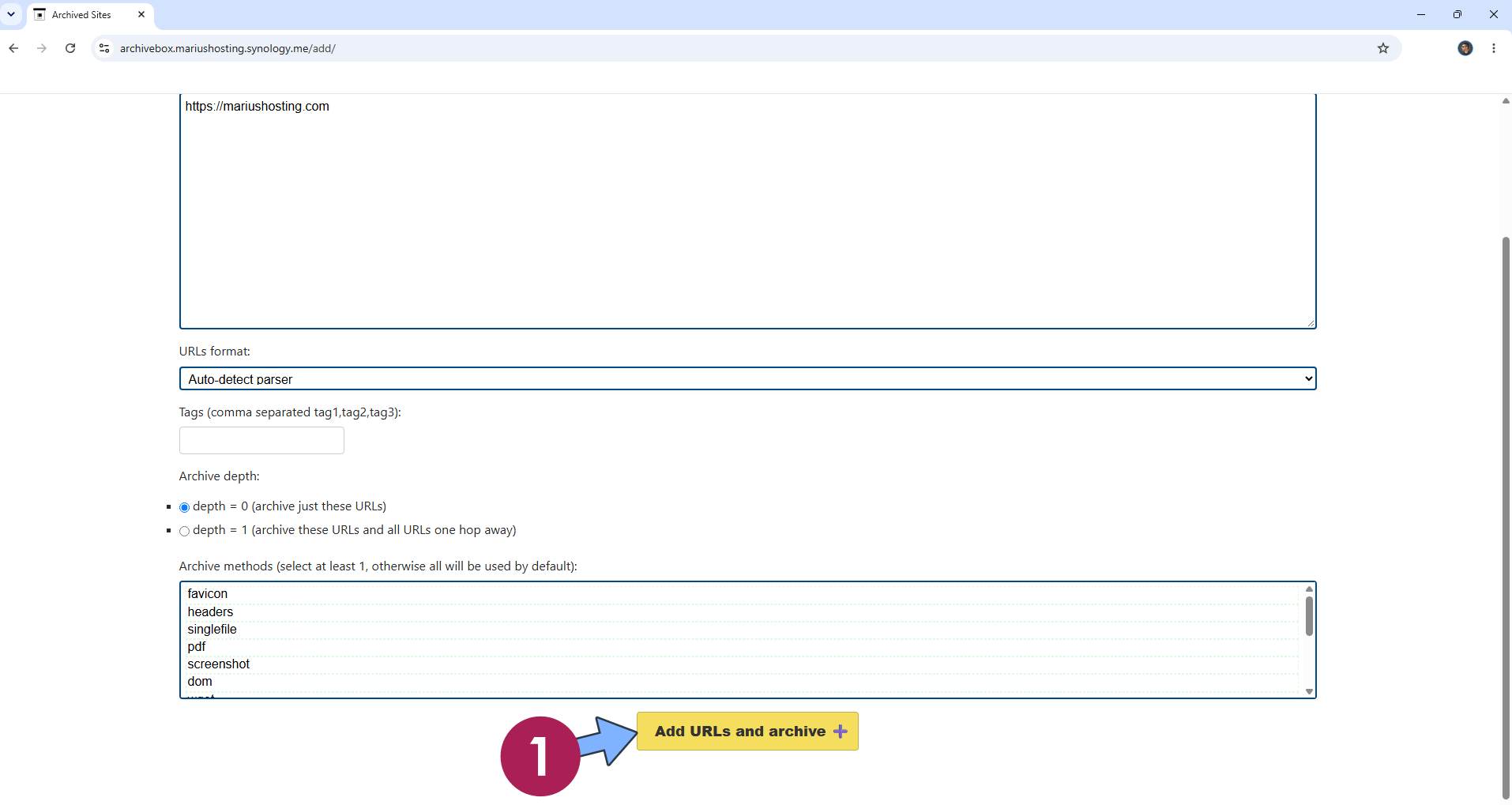

Scroll down the page then click Add URLs and archive +. Follow the instructions in the image below.

• STEP 29

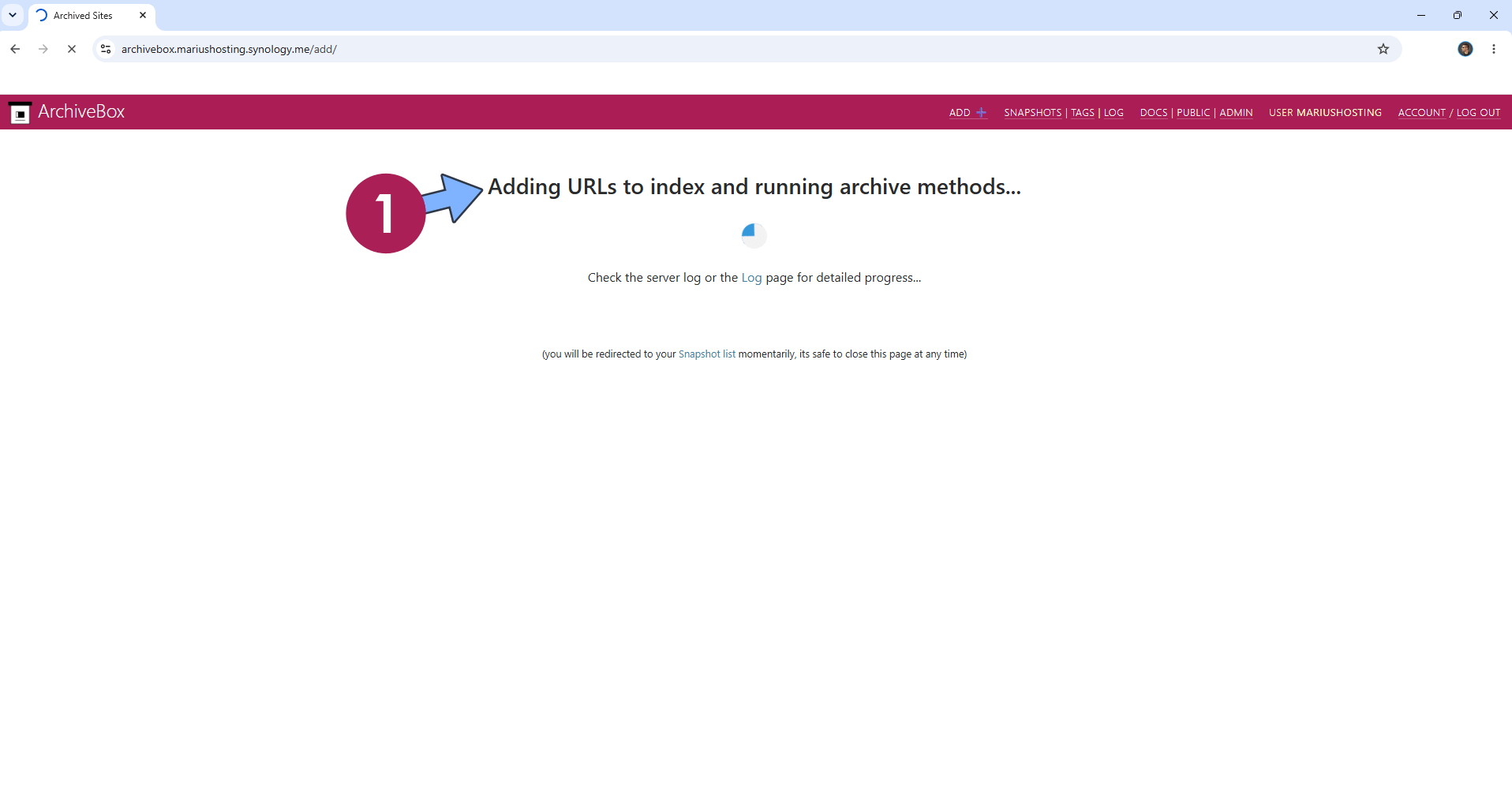

Wait a few minutes.

• STEP 30

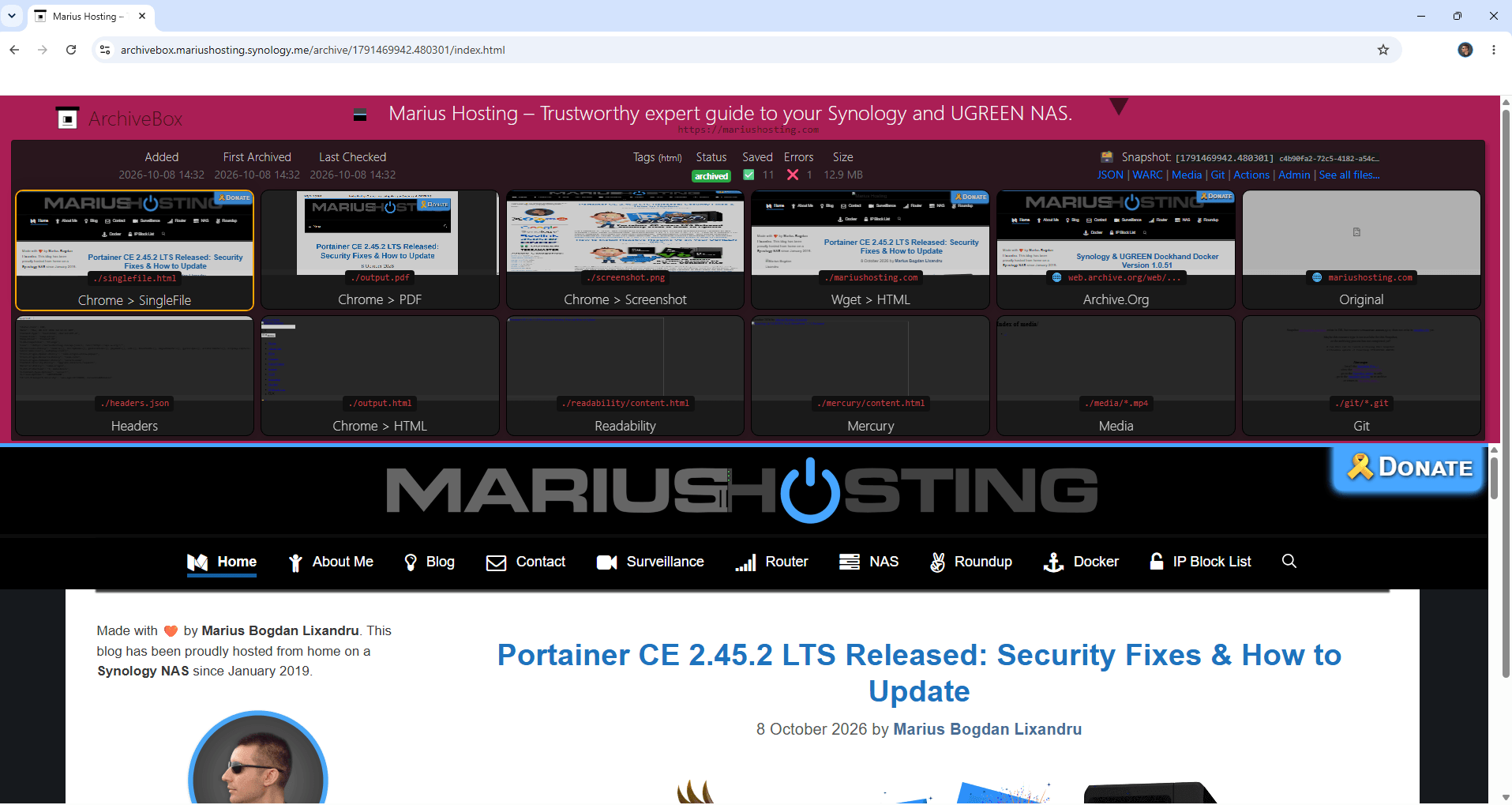

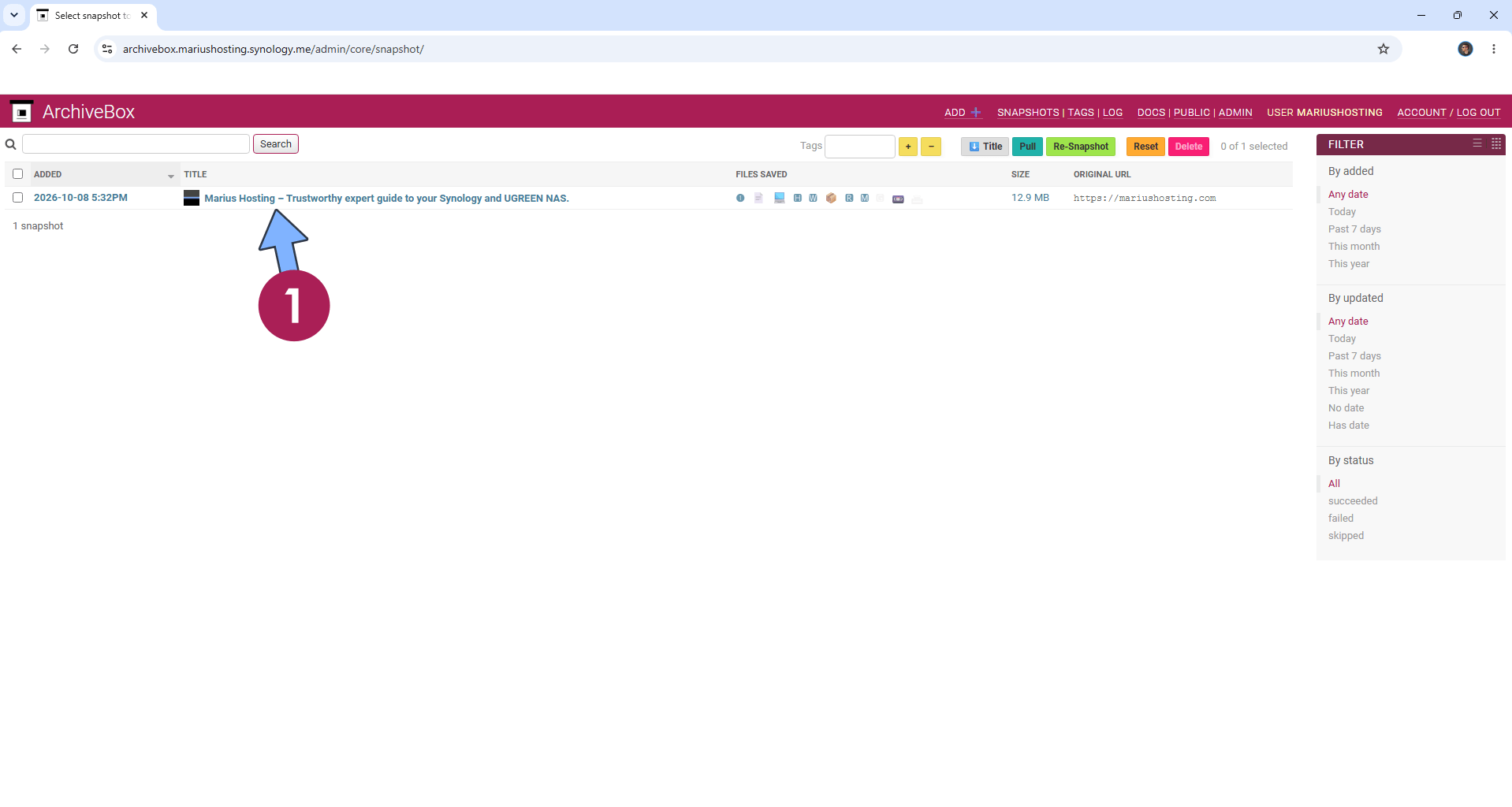

Your ArchiveBox at a glance!

Enjoy ArchiveBox!
