Synology: Install AdGuard With Portainer

Synology Install AdGuard With Portainer

MyĀ previous guide for AdGuard involved the use of Task Scheduler. Today Iā€™m offering a recommended and excellent alternative for installing the latest AdGuard version via Portainer. AdGuard is DNS ad blocking similar to Pi-Hole. It’s a privacy protection software which comprises open-source and shareware products that protect Microsoft Windows, Linux, OS X, Android and iOS users from unwanted ads, pop-ups, banners, as well as from tracking, obscene content, malware and phishing. Over 5 million people are reported to be using the software in 2018 and 7 million in 2019 with very fast growth. AdGuard is not only an ad blocker, but a whole ad blocking and privacy protection suite, a must-have product if you have a Synology NAS device. AdGuard Home intercepts and filters DNS requests. It works as a DNS server and prevents all the devices in a home network from connecting to the servers that track user browsing. In this step by step guide I will teach you how to install AdGuard on your Synology NAS device using Docker & Portainer.

šŸ’”Note:Ā This guide works perfectly with the latest AdGuard Home v0.107.53 release.

šŸ’”Note: Check out my new guide on how to Install AdGuard on Your UGREEN NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Go toĀ File Station and open the docker folder. Inside the docker folder, create one new folder and name it adguard. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

AdGuard Synology NAS Portainer Set up 1

  • STEP 4

Now create two new foldersĀ inside the adguard folder that you previously created at STEP 3 and name them config and data. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

AdGuard Synology NAS Portainer Set up 2

  • STEP 5

Log into Portainer using your username and password. On the left sidebar in Portainer, click on StacksĀ thenĀ + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 6

In the Name field type in adguard. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  adguard:
    image: adguard/adguardhome
    container_name: AdGuard
    mem_limit: 2g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    restart: on-failure:5
    network_mode: host
    volumes:
      - /volume1/docker/adguard/config:/opt/adguardhome/conf:rw
      - /volume1/docker/adguard/data:/opt/adguardhome/work:rw
    environment:
      TZ: Europe/Bucharest

Note: Before you paste the code above in the Web editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)

AdGuard Synology NAS Portainer Set up 3 2024

  • STEP 7

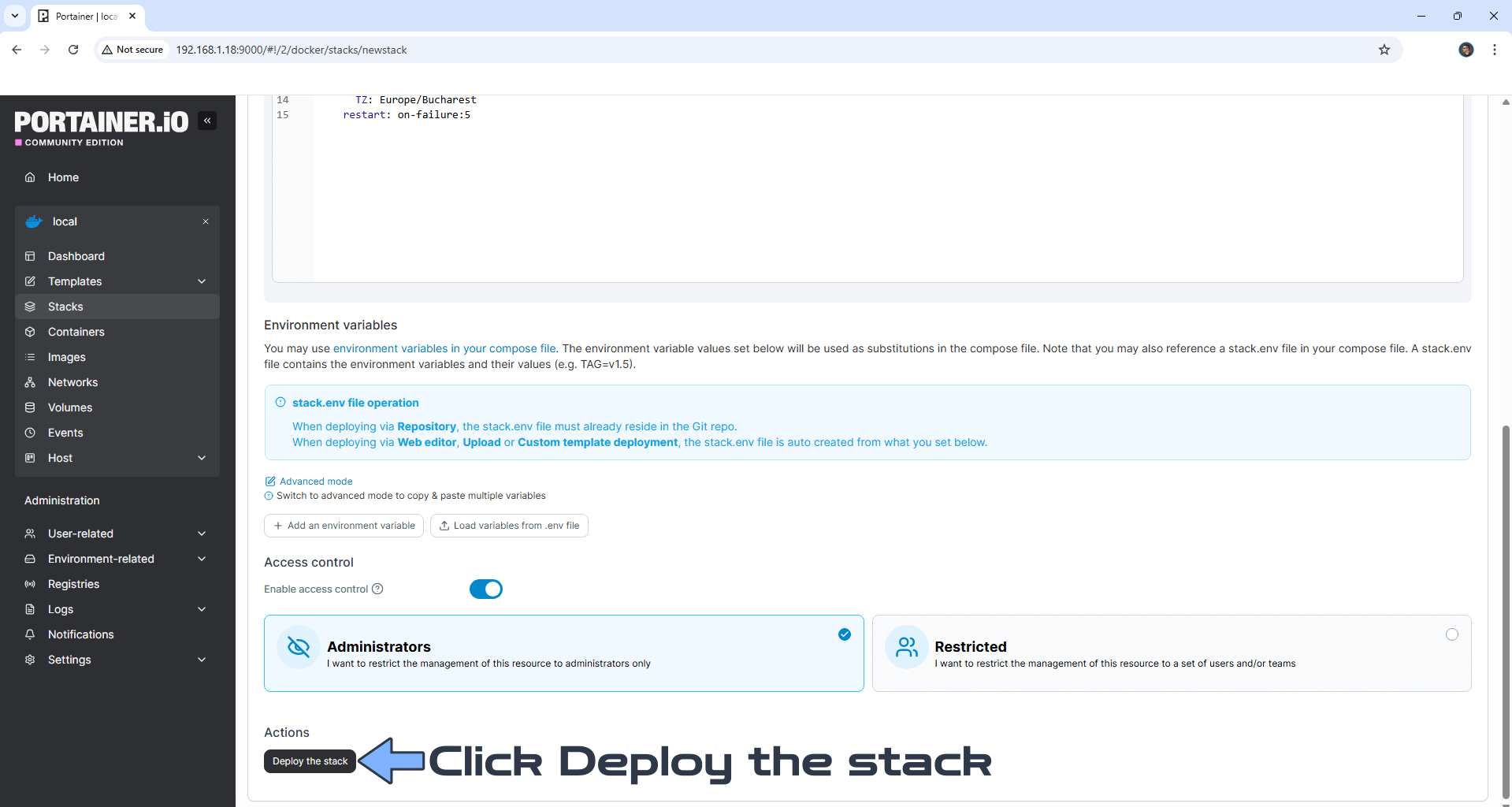

Scroll down on the page until you see a button namedĀ Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

AdGuard Synology NAS Portainer Set up 4 2024

  • STEP 8

If everything goes right, you will see the following message at the top right of your screen: ā€œSuccess Stack successfully deployedā€œ.

AdGuard Synology NAS Portainer Set up 5

  • STEP 9

Go back toĀ STEP 1Ā or you will deal with karma šŸ™‚

  • STEP 10

The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Now open your browser and type in http://Synology-ip-address:3000 Click Get Started. Follow the instructions in the image below.

AdGuard Synology NAS Portainer Set up 6

  • STEP 11

Change the default port 80 to 9080 then click Next. Follow the instructions in the image below.

AdGuard Synology NAS Portainer Set up 7

Note: DNS Server Error message: listen udp 0.0.0.0:53: bind: address already in use. In this scenario something else is listening on the local DNS port 53 or AdGuard Home doesn’t have privileges. Uninstall or stop Pi-Hole if you have Docker Pi-Hole installed on your Synology NAS. Disable DHCP on your Synology NAS with DSM 6.2.4 in Control Panel / DHCP Server then select “Disable DHCP Server” or if you are running DSM 7.1 or DSM 7.2 uninstall the DHCP Server package or the DNS Server through Package Center. If this works, don’t forget to go back to STEP 1.

AdGuard Synology NAS Portainer Set up 7B

  • STEP 12

Add your own Username and Password then click Next. Follow the instructions in the image below.

AdGuard Synology NAS Portainer Set up 8

  • STEP 13

Click Next. Follow the instructions in the image below.

AdGuard Synology NAS Portainer Set up 9

  • STEP 14

Click Open Dashboard. Follow the instructions in the image below.

AdGuard Synology NAS Portainer Set up 10

  • STEP 15

Type in your own Username and Password that you have previously created at STEP 12. Click Sign in. Follow the instructions in the image below.

AdGuard Synology NAS Portainer Set up 11

Your AdGuard Dashboard at a glance!

AdGuard Synology NAS Portainer Set up 12

Stop ADS from the web with AdGuard!

AdGuard Synology NAS Portainer Set up 13

You can also activate Dark Mode on AdGuard. At the end of the page click the Dark icon to switch the theme to Dark Mode. Follow the instructions in the image below.

AdGuard Synology NAS Portainer Set up 14

šŸ”„Troubleshoot

Note: Admin Web Interface Error message: listen tcp 0.0.0.0:80 bind: address already in use. This means that something on your system, probably a web server like Apache, is already listening on port 80. Follow the instructions at STEP 11 and change the current port from 80 to 9080.

AdGuard Synology NAS Portainer Set up 15
