How to Install VoucherVault on Your Synology NAS

How to Install VoucherVault on Your Synology NAS

VoucherVault is a web application that allows you to manage coupons, vouchers and gift cards digitally. It provides a web portal that is mobile friendly and easy to use. Additionally, it supports expiry notifications via Apprise URLs that will frequently remind you to redeem your stuff. In this step by step guide I will show you how to install VoucherVault on your Synology NAS using Docker & Portainer.

💡Note: This guide works perfectly with the latest VoucherVault v1.6.13 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Voucher. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: voucher.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 8864

VoucherVault Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 5

  • STEP 10

Go to File Station and open the docker folder. Inside the docker folder, create one new folder and name it vouchervault. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

VoucherVault Synology NAS Set up 6

  • STEP 11

Now create two new folders inside the vouchervault folder that you created at STEP 10 and name them db and redis. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

VoucherVault Synology NAS Set up 7

  • STEP 12

Right click on the vouchervault folder that you have previously created at STEP 10 then click Properties. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 8

  • STEP 13

Go to the Permission tab then click Advanced options. From the drop-down menu choose “Make inherited permissions explicit“. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 9

  • STEP 14

Select Everyone then click the Edit tab. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 10

  • STEP 15

Check all Read and Write Permissions. Click Done. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 11

  • STEP 16

After you click Done on STEP 15, check “Apply to this folder, sub-folders and files“. Click Save. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 12

  • STEP 17

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 18

In the Name field type in vouchervault. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: '3.9'
services:
  vouchervault:
    image: l4rm4nd/vouchervault:latest
    container_name: VoucherVault
    healthcheck:
      test: timeout 10s bash -c ':> /dev/tcp/127.0.0.1/8000' || exit 1
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    environment:
      - DOMAIN=voucher.yourname.synology.me
      - ALLOWED_HOSTS=voucher.yourname.synology.me
      - SECRET_KEY=MariushostingMariushostingMari13
      - REDIS_HOST=redis
      - EXPIRY_THRESHOLD_DAYS=90 # Send notifications xx days prior expiry; default is 30.
    restart: on-failure:5
    ports:
      - 8864:8000
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /etc/TZ:/etc/timezone:ro
      - /volume1/docker/vouchervault/db:/opt/app/database:rw

  redis:
    image: redis:7.2-alpine
    container_name: VoucherVault-REDIS
    healthcheck:
     test: ["CMD-SHELL", "redis-cli ping || exit 1"]
    restart: on-failure:5
    volumes:
    - /volume1/docker/vouchervault/redis:/data:rw

Note: Before you paste the code above in the Web editor area below, change the value for DOMAIN and type in your own synology.me DDNS that you have previously created at STEP 6 without https:// at the beginning.
Note: Before you paste the code above in the Web editor area below, change the value for ALLOWED_HOSTS and type in your own synology.me DDNS that you have previously created at STEP 6 without https:// at the beginning.
Note: Before you paste the code above in the Web editor area below, change the value for SECRET_KEY and add your own SECRET KEY. MariushostingMariushostingMari13 is an example for a SECRET KEY. You should invent your own Value. Add 32 random characters, both letters and numbers.

VoucherVault Synology NAS Set up 13

  • STEP 19

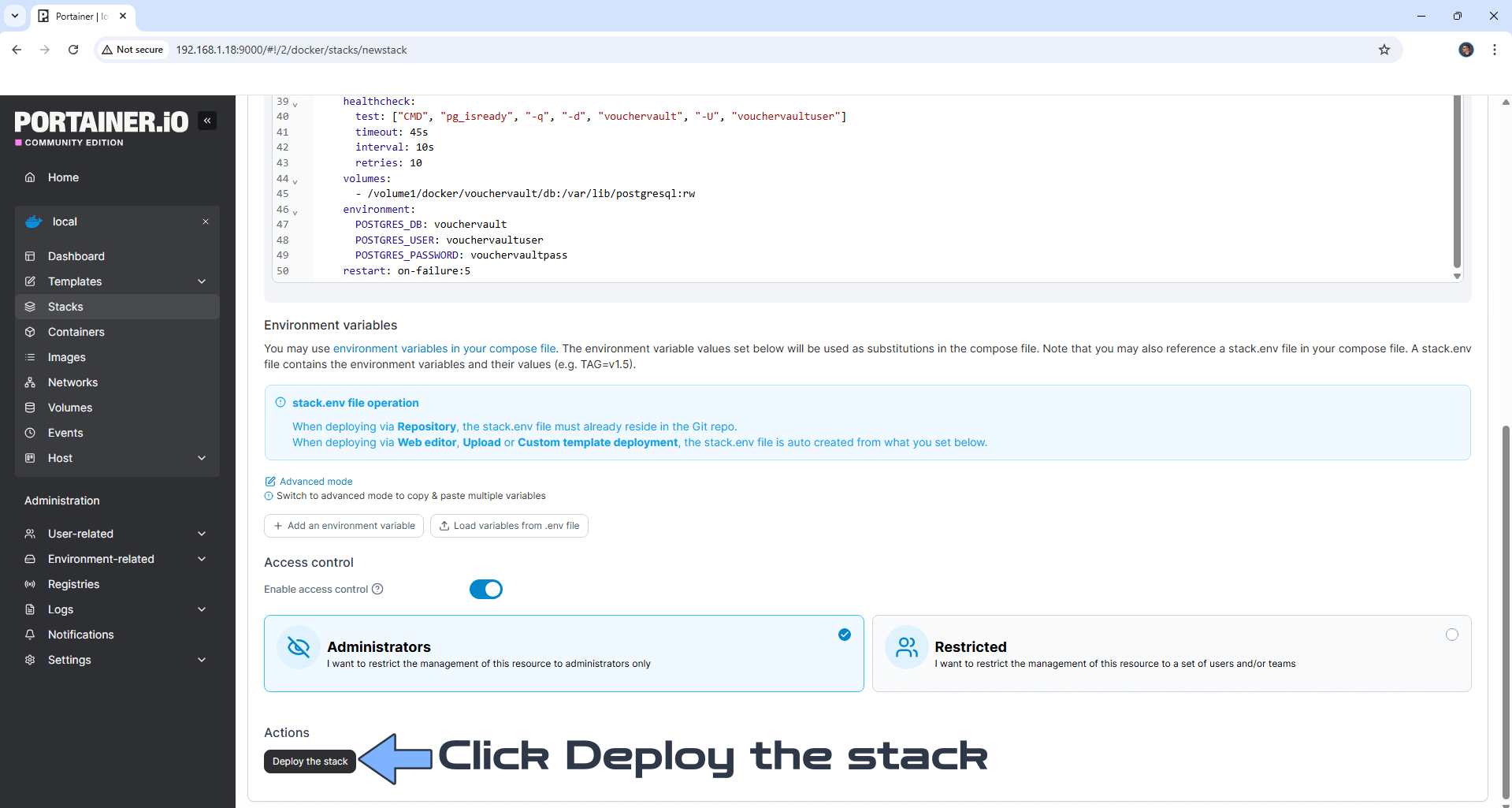

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

VoucherVault Synology NAS Set up 14

  • STEP 20

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

VoucherVault Synology NAS Set up 15

  • STEP 21

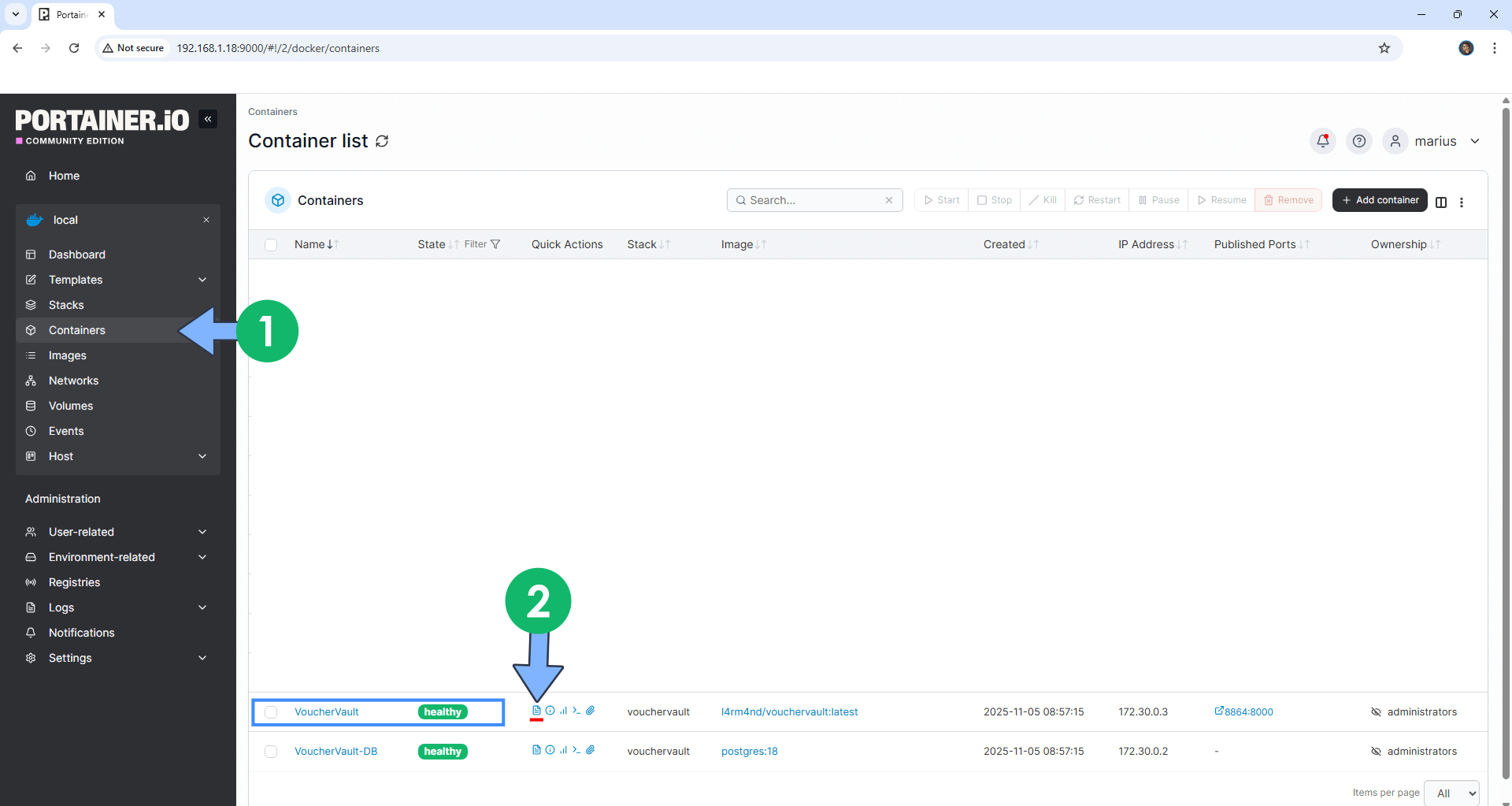

On the left Portainer sidebar, click Containers then check for the VoucherVault container. Click the little log icon. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 16

  • STEP 22

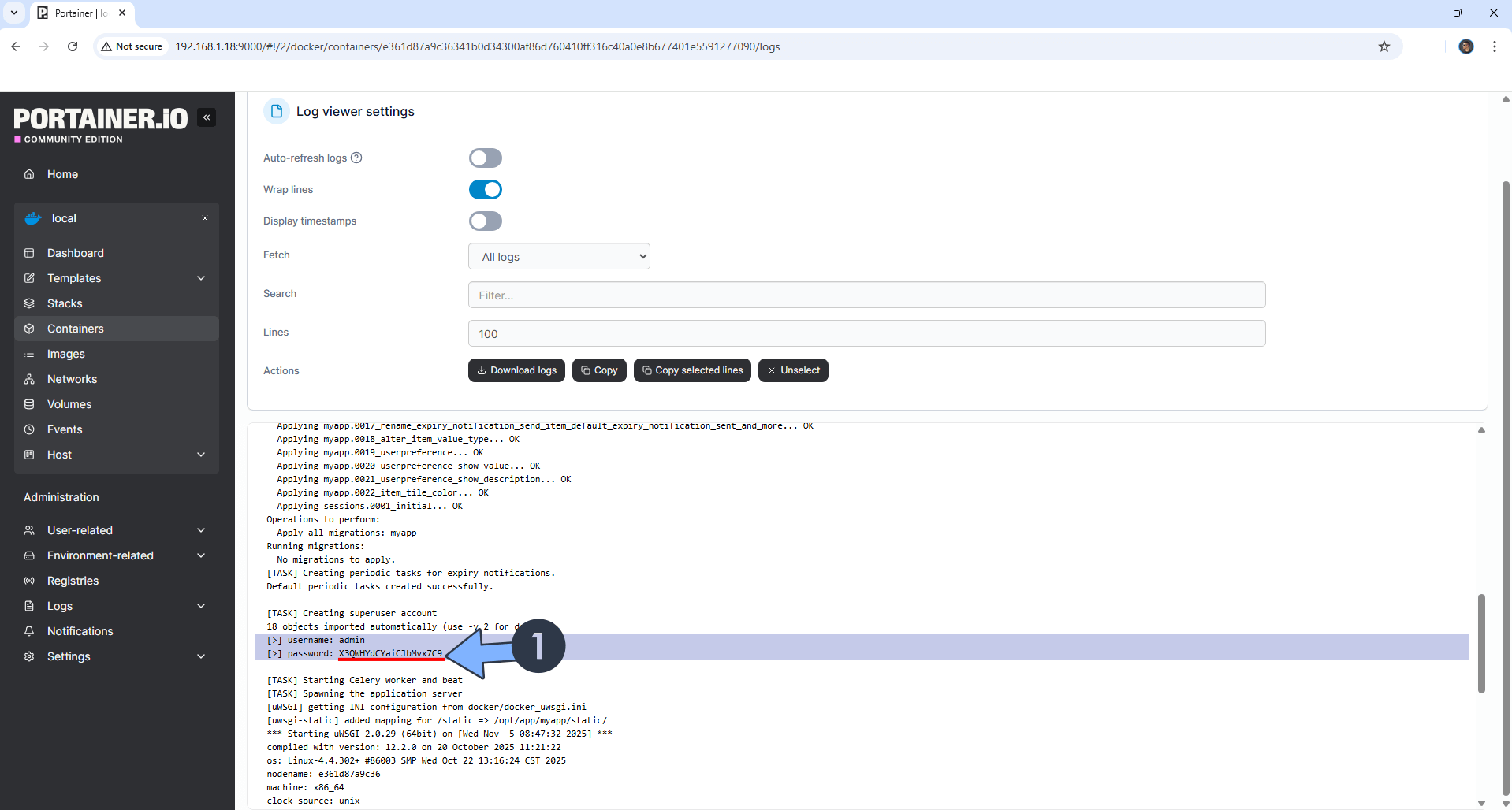

Copy the Randomly generated password. You will need this password later at STEP 24. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 17

  • STEP 23

Go back to STEP 1 or you will deal with karma 🙂

  • STEP 24

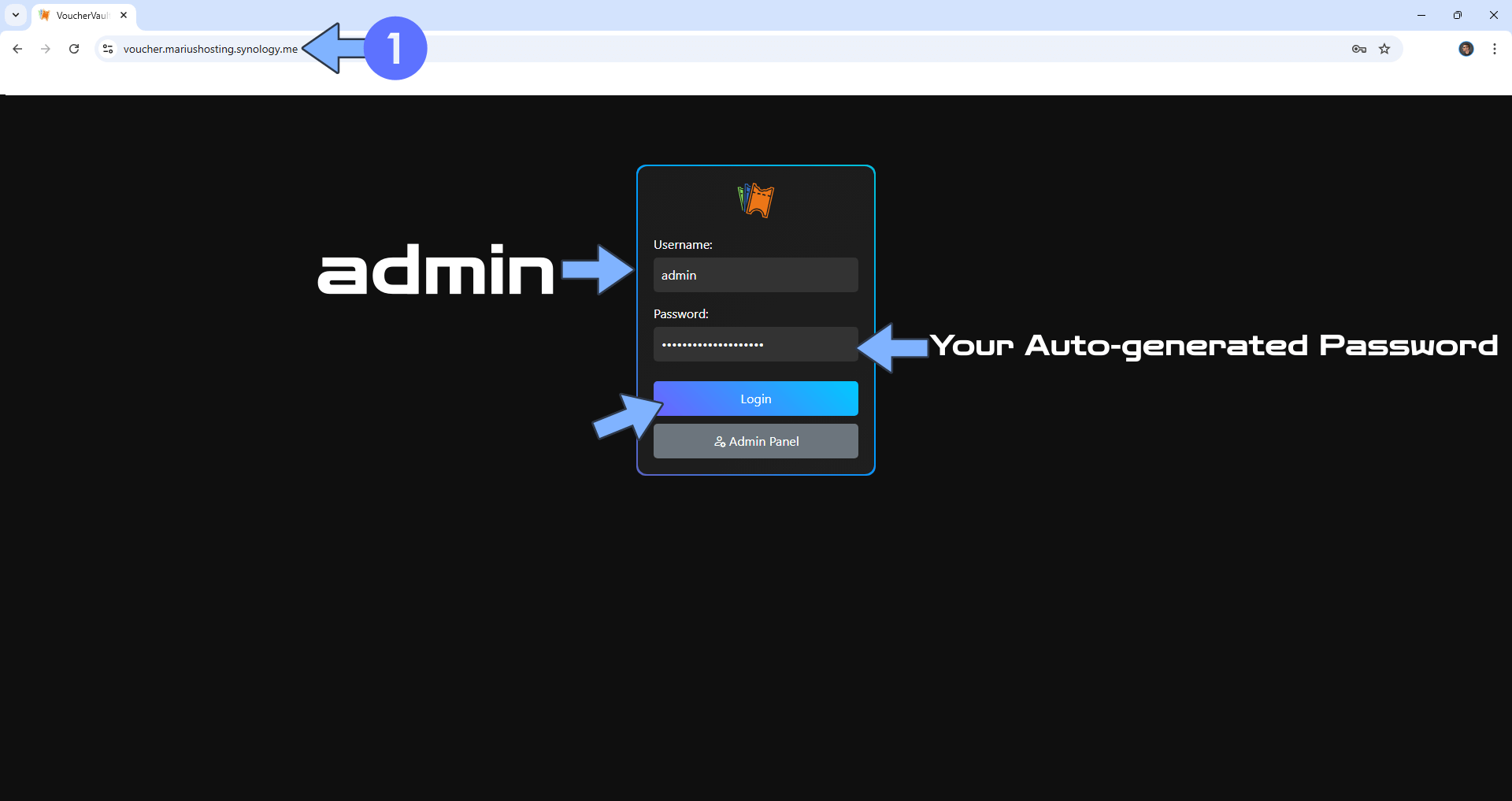

Now open your browser and type in your HTTPS/SSL certificate like this https://voucher.yourname.synology.me that you have previously created at STEP 6. In my case it’s https://voucher.mariushosting.synology.me If everything goes right, you will see the VoucherVault login page. Type in the default username and the Randomly generated password that you have previously copied at STEP 22, then click Log in. Follow the instructions in the image below.

⚠️Warning: the default username is admin and the default password is the Randomly generated password at STEP 22

VoucherVault Synology NAS Set up 18

  • STEP 25

At the top right of the VoucherVault page, click admin then Change Password to change the previous Randomly generated password with your own unique password. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 19

  • STEP 26

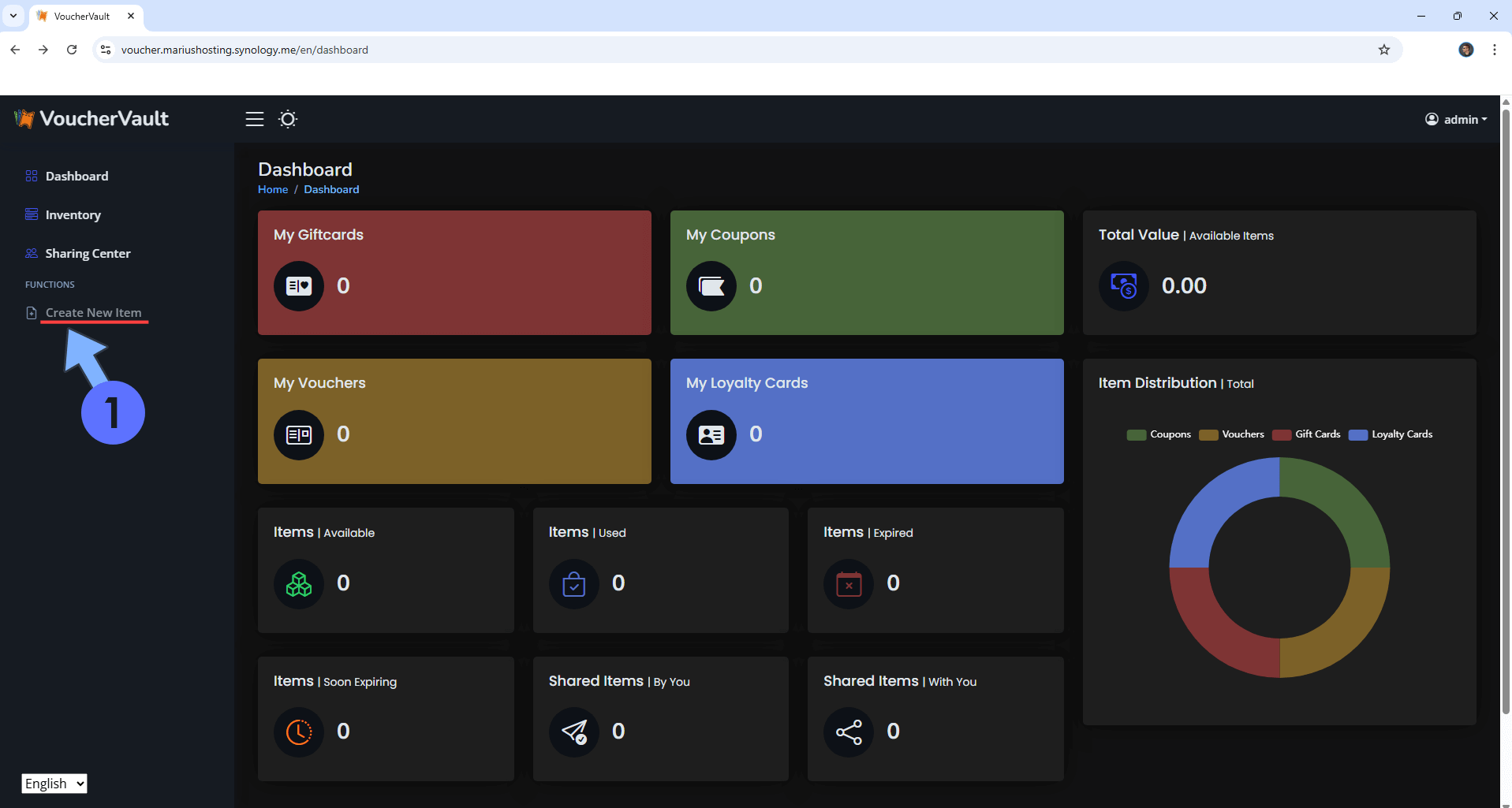

Create your first item. Follow the instructions in the image below.

VoucherVault Synology NAS Set up 20

  • STEP 27

All the items that you have created will be visible in the Inventory.

VoucherVault Synology NAS Set up 21

  • STEP 28

Your VoucherVault dashboard at a glance!

VoucherVault Synology NAS Set up 22

Enjoy VoucherVault!
