How to Install ProxiTok on your Synology NAS

How to Install ProxiTok on your Synology NAS

ProxiTok allows you to use TikTok with an alternative frontend. It’s inspired by Nitter. ProxiTok’s strong point is that all requests made to TikTok are server-side, so you will never connect to their servers, which also means that you won’t see any ADS either. Note: ProxiTok does not need a persistent volume because all the data is cached on the RAM. In this step by step guide I will show you how to install ProxiTok on your Synology NAS using Docker & Portainer.

Note: This guide works perfectly with the latest ProxiTok 2.4.6.0 release.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Portainer using my step by step guide. If you already have Portainer installed on your Synology NAS, skip this STEP. Attention: Make sure you have installed the latest Portainer version.

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go to Control Panel / Login Portal / Advanced Tab / click Reverse Proxy. Follow the instructions in the image below.

ProxiTok Synology NAS Set up 1

  • STEP 5

Now click the “Create” button. Follow the instructions in the image below.

ProxiTok Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in ProxiTok. After that, add the following instructions:

Source:
Protocol: HTTPS
Hostname: proxitok.yourname.synology.me
Port: 443

Check Enable HSTS

Destination:
Protocol: HTTP
Hostname: localhost
Port: 9770

ProxiTok Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom Header tab. Click Create and then, from the drop-down menu, click WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. Click Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

ProxiTok Synology NAS Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP Compression then click Apply. Follow the instructions in the image below.

ProxiTok Synology NAS Set up 5

  • STEP 10

Log into Portainer using your username and password. On the left sidebar in Portainer, click on Stacks then + Add stack. Follow the instructions in the image below.

1 Synology Portainer Add Stack

  • STEP 11

In the Name field type in proxitok. Follow the instructions in the image below.

Note: Copy Paste the code below in the Portainer Stacks Web editor.

version: "3.9"
services:
  redis:
    image: redis
    command: redis-server --save 60 1 --loglevel warning
    container_name: ProxiTok-REDIS
    hostname: proxitok-redis
    mem_limit: 256m
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    read_only: true
    user: 1026:100
    healthcheck:
      test: ["CMD-SHELL", "redis-cli ping || exit 1"]
    restart: on-failure:5

  signer:
    image: ghcr.io/pablouser1/signtok:master
    container_name: ProxiTok-SIGNER
    hostname: proxitok-signer
    mem_limit: 512m
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    read_only: true
    user: 1026:100
    healthcheck:
      test: wget --no-verbose --tries=1 --spider http://localhost:8080/ || exit 1
    restart: on-failure:5

  proxitok:
    image: ghcr.io/pablouser1/proxitok:master
    container_name: ProxiTok
    hostname: proxitok
    mem_limit: 1g
    cpu_shares: 768
    security_opt:
      - no-new-privileges:true
    healthcheck:
      test: stat /etc/passwd || exit 1
    ports:
      - 9770:80
    volumes:
      - proxitok-cache:/cache
    environment:
      LATTE_CACHE: /cache
      API_CACHE: redis
      REDIS_HOST: proxitok-redis
      REDIS_PORT: 6379
      API_SIGNER: remote
      API_SIGNER_URL: http://proxitok-signer:8080/signature
    restart: on-failure:5
    depends_on:
      redis:
        condition: service_healthy
      signer:
        condition: service_healthy

volumes:
  proxitok-cache:

Note: Before you paste the code above in the Web editor area below, change the value numbers for user with your own UID and GID values. (Follow my step by step guide on how to do this.) 1026 is my personal UID value and 100 is my personal GID value. You have to type in your own values.

ProxiTok Synology NAS Set up 6

  • STEP 12

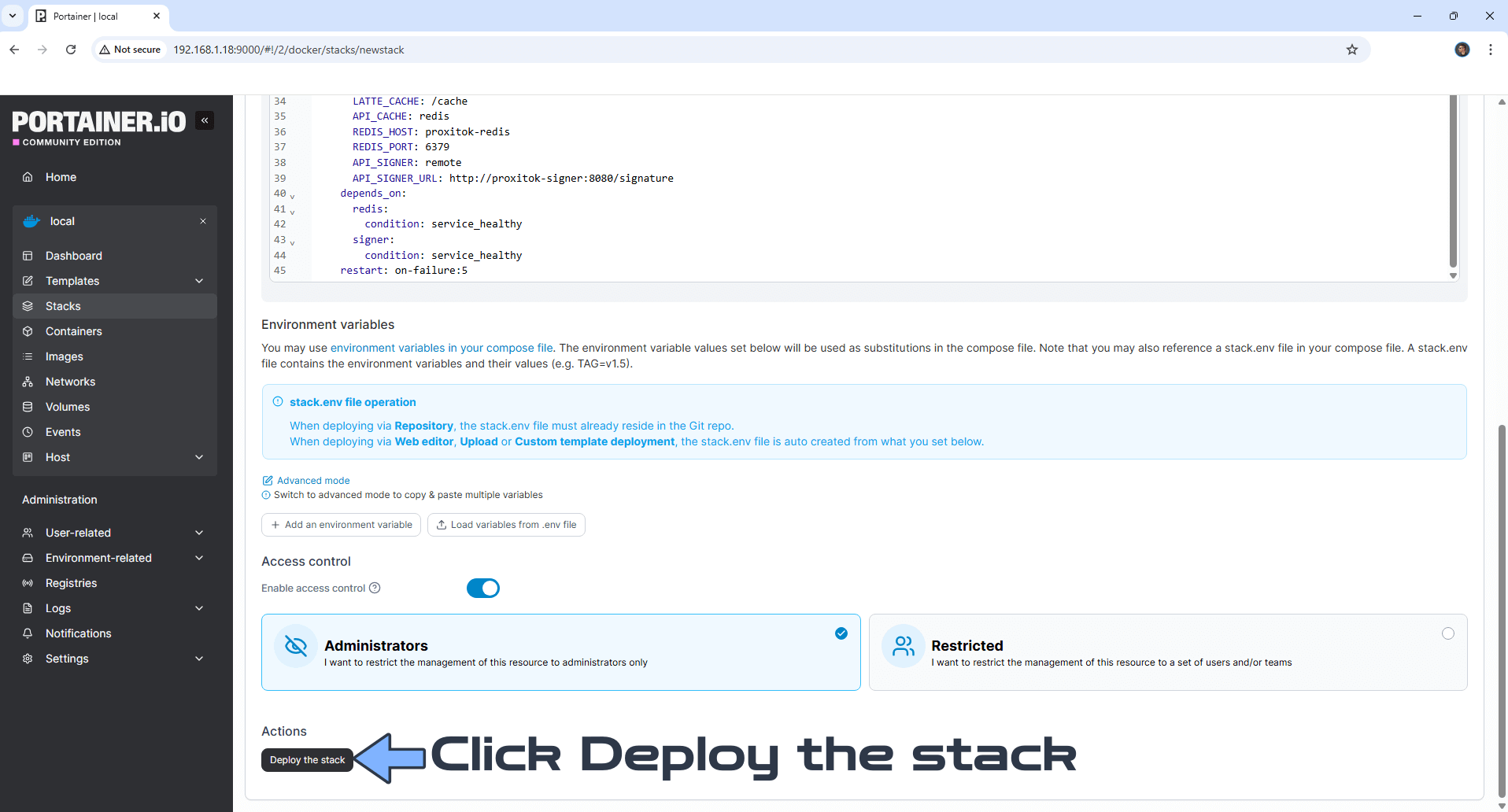

Scroll down on the page until you see a button named Deploy the stack. Click on it. Follow the instructions in the image below. The installation process can take up to a few minutes. It will depend on your Internet speed connection.

ProxiTok Synology NAS Set up 7

  • STEP 13

If everything goes right, you will see the following message at the top right of your screen: “Success Stack successfully deployed“.

ProxiTok Synology NAS Set up 8

  • STEP 14

Go back to STEP 1 or you will deal with karma 🙂.

  • STEP 15

Now open your browser and type in your HTTPS/SSL certificate like this https://proxitok.yourname.synology.me In my case it’s https://proxitok.mariushosting.synology.me If everything goes right, you will see the ProxiTok dashboard. Check your favorite TikToker. Select Username then click Search. Follow the instructions in the image below.

ProxiTok Synology NAS Set up 9

  • STEP 16

Your ProxiTok at a glance!

ProxiTok Synology NAS Set up 10

  • STEP 17

You can also download videos from TikTok for personal use with just one click. Follow the instructions in the image below.

ProxiTok Synology NAS Set up 11

Enjoy ProxiTok!
