How to Install Diosic on Your Synology NAS

How to Install Diosic on Your Synology NAS

Diosic is an open source web-based music collection server and streamer. Mainly suitable for users who need to deploy on servers with low hardware specifications. Diosic is developed using rust, has low memory usage and high performance with an awesome clean interface for streaming music. In this step by step guide I will show you how to install Diosic on your Synology NAS using Docker.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

Install Container Manager via Synology ā€œPackage Centerā€. If you run an older DSM version (under 7.2), search for Docker instead of Container Manager.

Download Container Manager Synology Docker

  • STEP 3

Make sure you have a synology.me Wildcard Certificate. Follow my guide to get a Wildcard Certificate. If you already have a synology.me Wildcard certificate, skip this STEP.

  • STEP 4

Go toĀ Control PanelĀ /Ā Login PortalĀ /Ā AdvancedĀ Tab / clickĀ Reverse Proxy. Follow the instructions in the image below.

Diosic Synology NAS Set up 1

  • STEP 5

Now click the ā€œCreateā€ button. Follow the instructions in the image below.

Diosic Synology NAS Set up 2

  • STEP 6

After you click the Create button, the window below will open. Follow the instructions in the image below.

On the General area, set the Reverse Proxy Name description: type in Diosic. After that, add the following instructions:

Source:
Protocol:Ā HTTPS
Hostname: diosic.yourname.synology.me
Port:Ā 443

Check Enable HSTS

Destination:
Protocol:Ā HTTP
Hostname:Ā localhost
Port: 3177

Diosic Synology NAS Set up 3

  • STEP 7

On the Reverse Proxy Rules click the Custom HeaderĀ tab. ClickĀ CreateĀ and then, from the drop-down menu, clickĀ WebSocket. After you click on WebSocket, two Header Names and two Values will be automatically added. ClickĀ Save. Follow the instructions in the image below.

Synology Proxy WebSocket

  • STEP 8

Go to Control Panel / Network / Connectivity tab/ Check Enable HTTP/2 then click Apply. Follow the instructions in the image below.

Diosic Synology NAS Set up 4

  • STEP 9

Go to Control Panel / Security / Advanced tab/ Check Enable HTTP CompressionĀ then click Apply. Follow the instructions in the image below.

Diosic Synology NAS Set up 5

  • STEP 10

Go toĀ File StationĀ and open the docker folder. Inside the docker folder, create one new folder and name itĀ diosic. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Diosic Synology NAS Set up 6

  • STEP 11

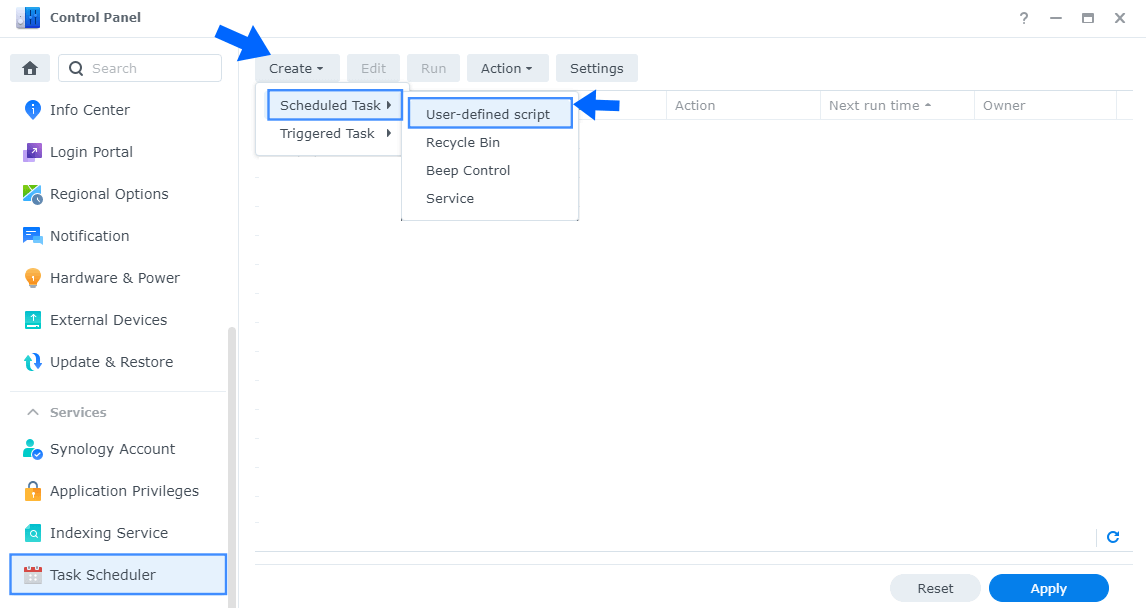

Go to Control Panel / Task Scheduler / Create / Scheduled Task / User-defined script. Follow the instructions in the image below.

Synology User Defined Script

  • STEP 12

Once you click on User-defined script, a new window will open. Follow the instructions below:

  1. General: In the Task field type in Install Diosic. Uncheck the ā€œEnabledā€ option. Select rootĀ User.
  2. Schedule: SelectĀ Run on the following dateĀ then select ā€œDo not repeatā€œ.
  3. Task Settings: Check ā€œSend run details by emailā€œ, add your email then copy paste the code below in the Run command area. After that, click OK.
docker run -d --name=Diosic \
-p 3177:3177 \
-v /volume1/docker/diosic:/data \
-v /volume1/web/downloads:/library \
-e LIB_NAME_1=mariushosting \
--user 1026:100 \
--restart always \
jinker25/diosic:latest

Note: in the code above after -v /volume1/docker/diosic:/data \ you have to add your personal path to music. For example I have used my personal movies path folder -v /volume1/web/downloadsĀ Change it according to your preferences. -v /path/toyour/music
Note: Before you paste the code above in the Run command area below, change the value for LIB_NAME_1. Type in your own library name. mariushosting is an example for a library name you should choose your own library name.
Note: Before you paste the code above in the Run command area below, change the value numbers for user with your own UID and GID values. (Follow my step by step guide on how to do this.) 1026 is my personal UID value and 100 is my personal GID value. You have to type in your own values.

Diosic Synology NAS Set up 8 new 2023

  • STEP 13

After you click OK on STEP 12 a new warning pop up window will open. Click OK.

Diosic Synology NAS Set up 9

After you click OK, type in your DSM Password then click Submit. Follow the instructions in the image below.

Synology Task Scheduler Confirm Admin Password

  • STEP 14

After you click Submit on STEP 13, select your ā€œInstall Diosicā€ Task then click the ā€œRunā€ tab. You will be asked to run Install Diosic ā€“ click OK. Follow the instructions in the image below.

Diosic Synology NAS Set up 10

  • STEP 15

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 16

Now open your browser and type in your HTTPS/SSL certificate like this https://diosic.yourname.synology.me In my case it’s https://diosic.mariushosting.synology.me If everything goes right, you will see the Diosic Login page. Type in your own Username and Password then click Register. Follow the instructions in the image below.

Diosic Synology NAS Set up 11

  • STEP 17

Start to listen to your favorite music!

Diosic Synology NAS Set up 12

Enjoy Diosic!

Note: Can I run Docker on my Synology NAS?Ā See the supported models.
Note: How to Back Up Docker Containers on your Synology NAS.
Note: Find outĀ how to update the Diosic container with the latest image.
Note: How to Free Disk Space on Your NAS if You Run Docker.
Note: How to Schedule Start & Stop For Docker Containers.
Note: How to Activate Email Notifications.
Note: How to Add Access Control Profile on Your NAS.
Note: How to Change Docker Containers Restart Policy.
Note: How to Use Docker Containers With VPN.
Note: Convert Docker Run Into Docker Compose.
Note: How to Clean Docker.
Note: How to Clean Docker Automatically.
Note: Best Practices When Using Docker and DDNS.
Note: Some Docker Containers Need WebSocket.
Note: Find out the Best NAS Models For Docker.
Note: Activate Gmail SMTP For Docker Containers.

This post was updated on Thursday / January 9th, 2025 at 8:13 PM
