How to Install Snipe-IT on Your UGREEN NAS

Snipe-IT is a free, open source IT asset management system written in PHP. Snipe-IT was made for IT asset management, to enable IT departments to track who has which laptop, when it was purchased, which software licenses and accessories are available, and so on. Iā€™ve been using it for a couple of years now to keep track of my own growing collection of devices, software licenses, and network gear at home. What started as a simple way to stop losing track of which laptop had which warranty quickly became indispensable. Now I can see at a glance who *owns* what, when something is due for replacement, and which licenses are still available. In this step by step guide I will show you how to install Snipe-ITĀ on your UGREEN NAS using Docker and Dockhand.

šŸ’”Note: This guide works perfectly with the latest Snipe-IT v8.8.0 release.

šŸ’”Note: Check out my guide on how to Install Snipe-IT on Your Synology NAS.

  • STEP 1

Please Support My work by Making a Donation.

  • STEP 2

InstallĀ Dockhand using my step by step guide. If you already have Dockhand installed on your UGREEN NAS, skip this STEP. Attention: Make sure you have installed the latest Dockhand version.

  • STEP 3

āš ļøMandatory: Enable HTTPS on your UGREEN NAS.

  • STEP 4

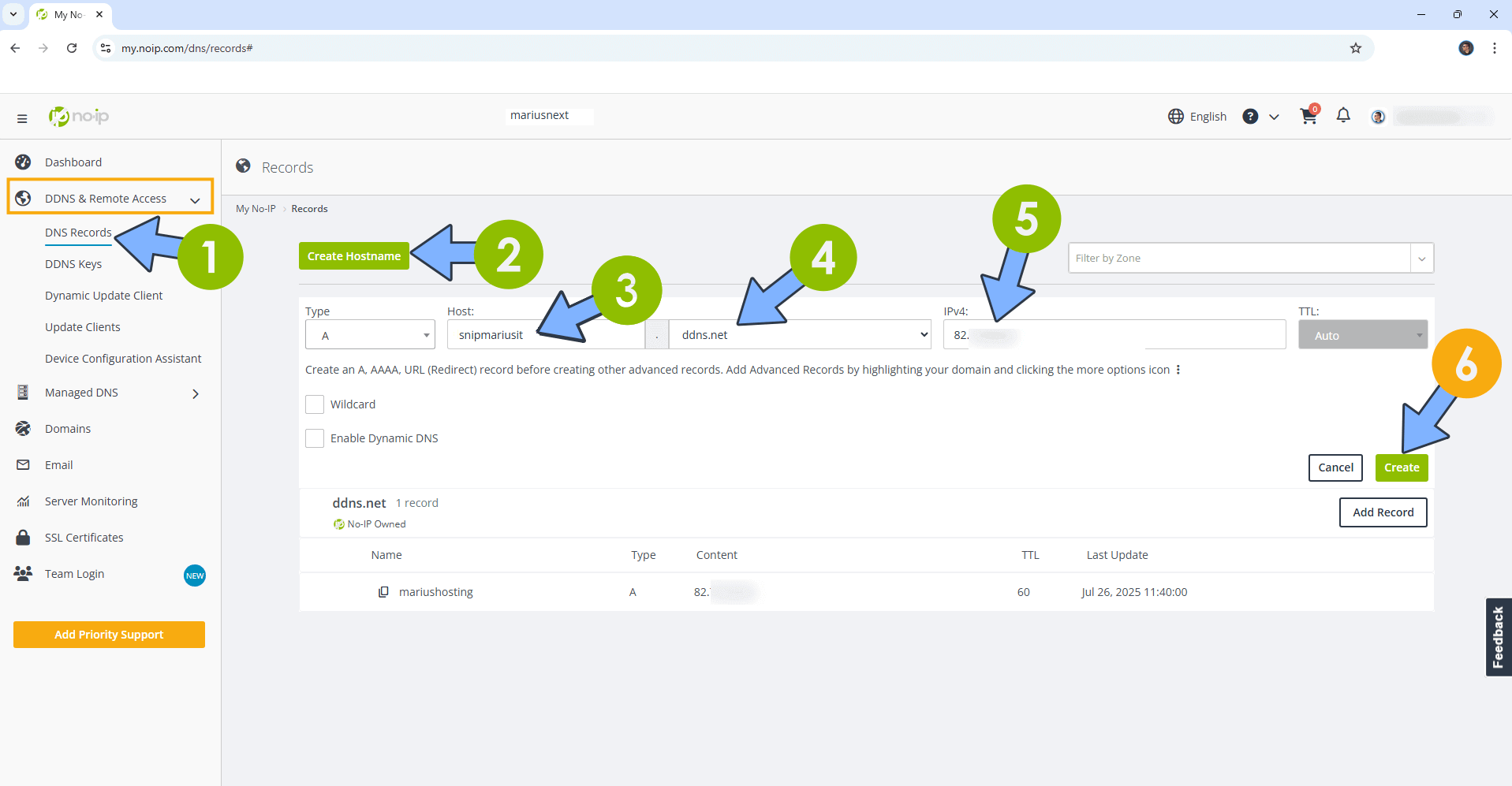

Create a new hostname on the noip website using your noip account. For example, I have created snipmariusitĀ as Host and I use the free ddns.net domain. In the IP Address area, type in your own IPV4 IP address from your ISP, then click Create. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 1

  • STEP 5

āš ļøMandatory: Add Read & Write Permissions to the Docker Folder.

  • STEP 6

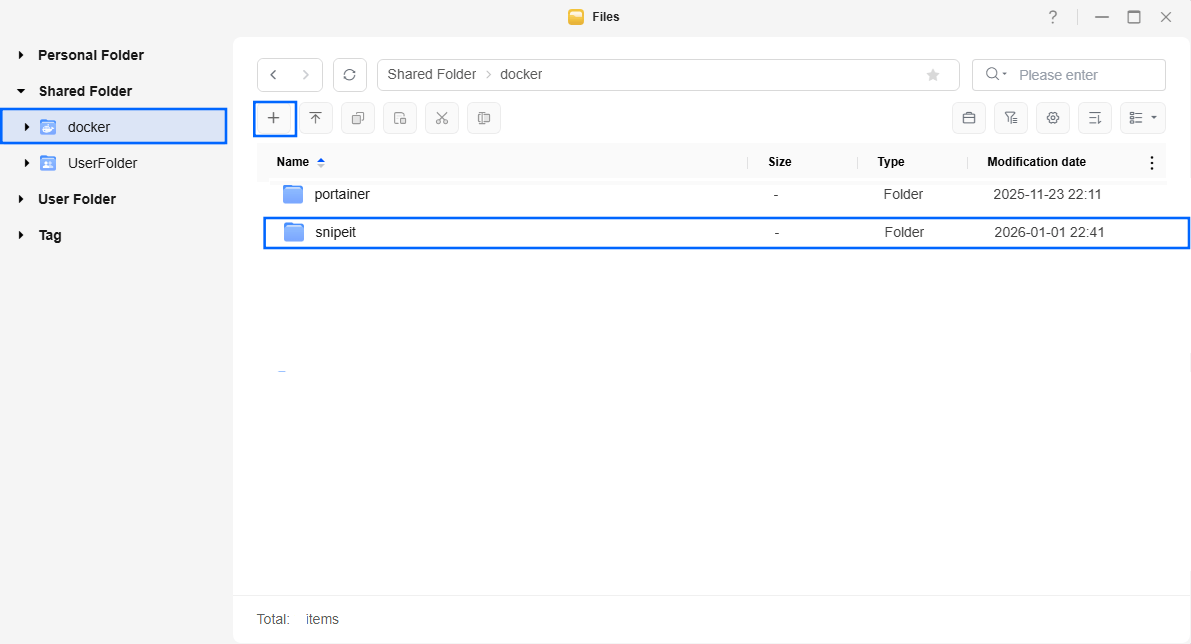

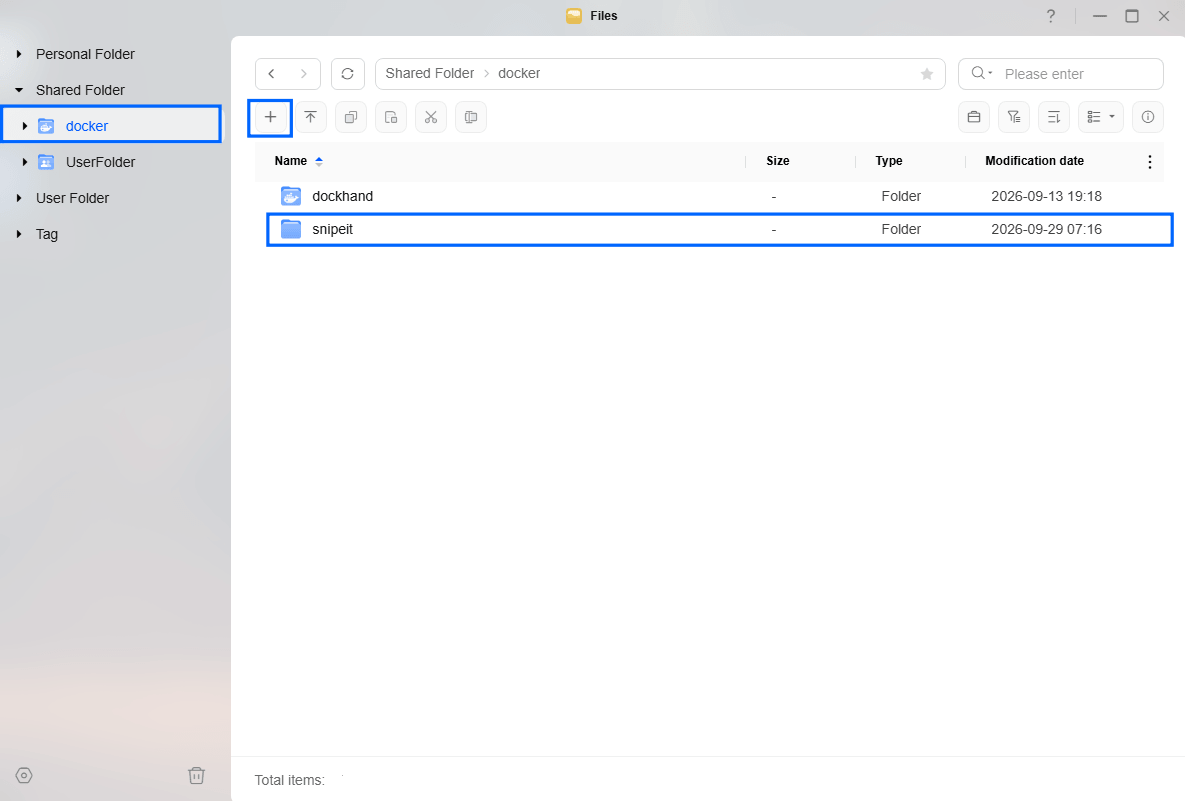

Go toĀ Files and open the docker folder. Inside the docker folder, create one new folder and name itĀ snipeit. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Snipe-IT UGREEN NAS Set up 2 new 2027

  • STEP 7

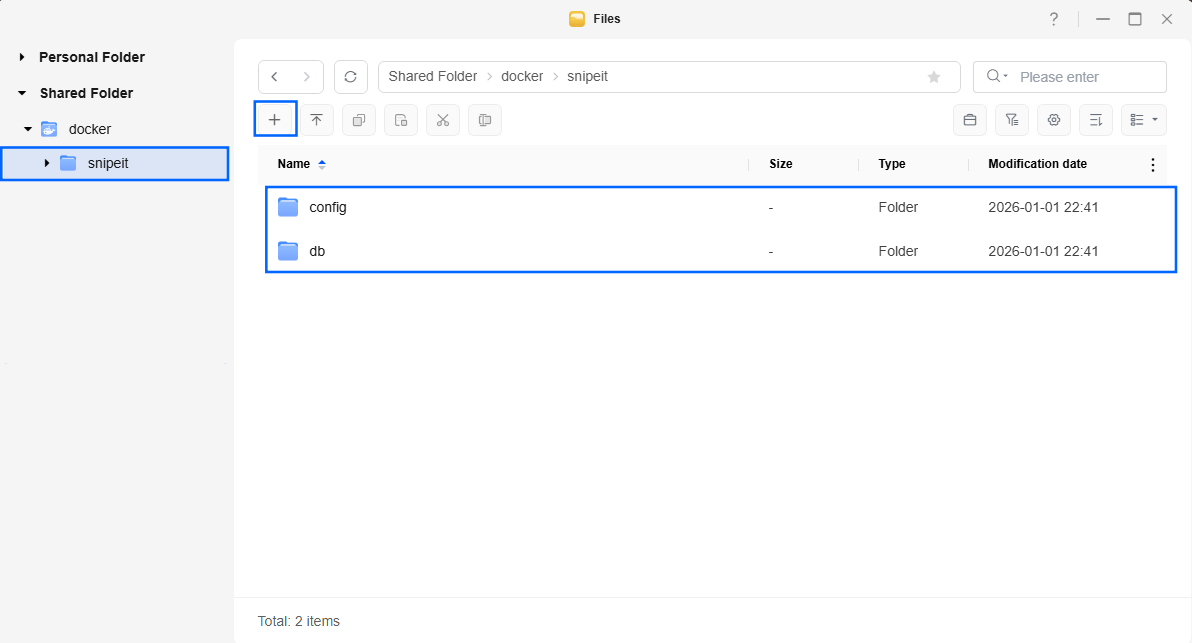

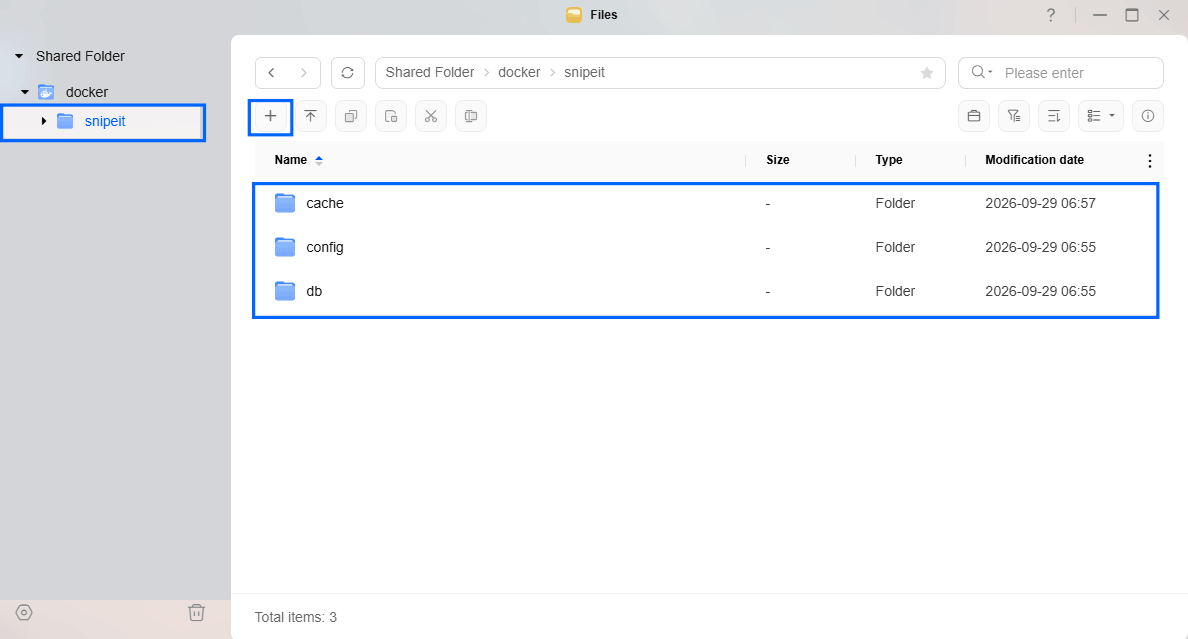

Now create three new folders inside the snipeit folder that you have previosuly created at STEP 6 and name them cache, config, db. Follow the instructions in the image below.
Note: Be careful to enter only lowercase, not uppercase letters.

Snipe-IT UGREEN NAS Set up 3 new 2027

  • STEP 8

Follow my step by step guide on how to activate SMTP for your Gmail account. This step is mandatory. Note: If you don’t want to use the easiest way for SMTP with Google and you already have SMTP details from your own Mail Server, you can just skip this STEP and use your personalized email SMTP details instead.

  • STEP 9

Open your browser and type in http://ugreen-ip-address:3866 to connect to your Dockhand container. On the left sidebar, click Stacks then + Create. Follow the instructions in the image below.

Dockhand add stack

  • STEP 10

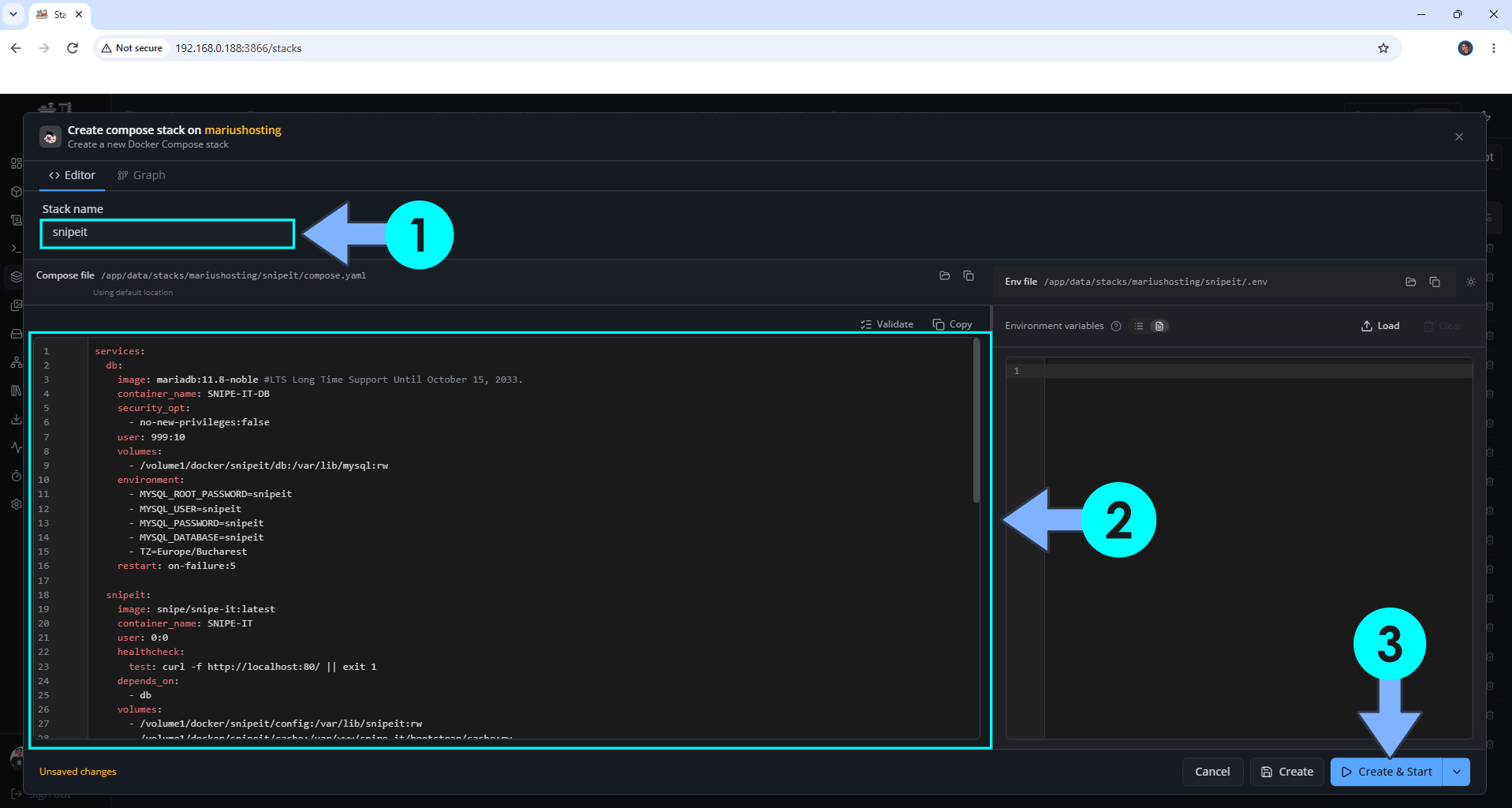

In the Stack name field, type in snipeit. āš ļøWarning: Type in the name in lowercase letters. The installation process can take up to a few seconds/minutes. It will depend on your Internet speed connection. Follow the instructions in the image below.

Note: Copy Paste the code below in the Dockhand Compose Stack then click Create & Start.

services:
  db:
    image: mariadb:11.8-noble #LTS Long Term Support Until October 15, 2033.
    container_name: SNIPE-IT-DB
    security_opt:
      - no-new-privileges:false
    user: 999:10
    volumes:
      - /volume1/docker/snipeit/db:/var/lib/mysql:rw
    environment:
      - MYSQL_ROOT_PASSWORD=snipeit
      - MYSQL_USER=snipeit
      - MYSQL_PASSWORD=snipeit
      - MYSQL_DATABASE=snipeit
      - TZ=Europe/Bucharest
    restart: on-failure:5

  snipeit:
    image: snipe/snipe-it:latest
    container_name: SNIPE-IT
    user: 0:0
    healthcheck:
      test: curl -f http://localhost:80/ || exit 1
    depends_on:
      - db
    volumes:
      - /volume1/docker/snipeit/config:/var/lib/snipeit:rw
      - /volume1/docker/snipeit/cache:/var/www/snipe-it/bootstrap/cache:rw
    environment:
      - APP_ENV=production
      - TZ=Europe/Bucharest
      - APP_TRUSTED_PROXIES="*"
      - APP_URL=https://snipmariusit.ddns.net
      - NGINX_APP_URL=https://snipmariusit.ddns.net
      - APP_KEY=base64:ivoEDdeb+0ywdn/+d/lF8414TrIwbFOyz8DI187V8vo=
      - APP_FORCE_TLS=true
      - DB_CONNECTION=mysql
      - DB_HOST=db
      - DB_SOCKET=null
      - DB_PORT=3306
      - DB_DATABASE=snipeit
      - DB_USERNAME=snipeit
      - DB_PASSWORD=snipeit
      - MYSQL_ROOT_PASSWORD=snipeit
      - DB_PREFIX=null
      - DB_DUMP_PATH='/usr/bin'
      - IMAGE_LIB=gd
      - SESSION_LIFETIME=12000
      - EXPIRE_ON_CLOSE=false
      - ENCRYPT=false
      - COOKIE_NAME=snipeit_session
      - COOKIE_DOMAIN=null
      - SECURE_COOKIES=false
      - MAIL_MAILER=smtp
      - MAIL_HOST=smtp.gmail.com
      - MAIL_PORT=587
      - MAIL_ENCRYPTION=tls
      - MAIL_UNVERIFIED_TLS=false
      - MAIL_TLS_VERIFY_PEER=true
      - MAIL_USERNAME=Your-own-gmail-address
      - MAIL_PASSWORD=Your-own-app-password
      - MAIL_FROM_ADDR=Your-own-gmail-address
      - MAIL_REPLYTO_ADDR=Your-own-gmail-address
      - MAIL_FROM_NAME=mariushosting
      - MAIL_REPLYTO_NAME=mariushosting
      - PHP_UPLOAD_LIMIT=64
      - PHP_POST_MAX_SIZE=70
      - PHP_UPLOAD_MAX_FILESIZE=64
      - PHP_MEMORY_LIMIT=256
    ports:
      - 1339:80
    restart: on-failure:5

Note: Before you paste the code above in the Stack editor area below, change the value numbers for userĀ with your own values. (Follow my step by step guide on how to do this.) 999 is my personal PUID value and 10Ā is my personal PGID value. You have to type in your own values.
Note: Before you paste the code above in the Stack editor area below, change the value for TZ.Ā (Select your current Time Zone from this list.)
Note: Before you paste the code above in the Stack editor area below, change the value for APP_URL and type in your own NO IP DDNS with https:// at the beginning that you have previously created at STEP 4.
Note: Before you paste the code above in the Stack editor area below, change the value for NGINX_APP_URL and type in your own NO IP DDNS withĀ https:// at the beginning that you have previously created at STEP 4.
Note: Before you paste the code above in the Stack editor area below, change the value for APP_KEY.Ā (Generate your own free APP KEY.)
Note: Before you paste the code above in the Stack editor area below, change the value for MAIL_USERNAMEĀ and type in your own Gmail address. STEP 8.
Note: Before you paste the code above in the Stack editor area below, change the value for MAIL_PASSWORDĀ and type in your own Gmail app password. STEP 8. āš ļøWarning: Do NOT confuse with your own Gmail password. This is the Gmail APP password.
Note: Before you paste the code above in the Stack editor area below, change the value for MAIL_FROM_ADDRĀ and type in your own Gmail address. STEP 8.
Note: Before you paste the code above in the Stack editor area below, change the value for MAIL_REPLYTO_ADDRĀ and type in your own Gmail address. STEP 8.
Note: Before you paste the code above in the Stack editor area below, change the value for MAIL_FROM_NAME and type in your name. mariushosting is an example for a name.
Note: Before you paste the code above in the Stack editor area below, change the value for MAIL_REPLYTO_NAME and type in your name. mariushosting is an example for a name.

Snipe-IT UGREEN NAS Set up 4 new 2027

  • STEP 11

If everything goes right, you will see the following message at the bottom right of your screen: ā€œCreated stack “snipeit”ā€œ.

Dockhand add stack successfully

  • STEP 12

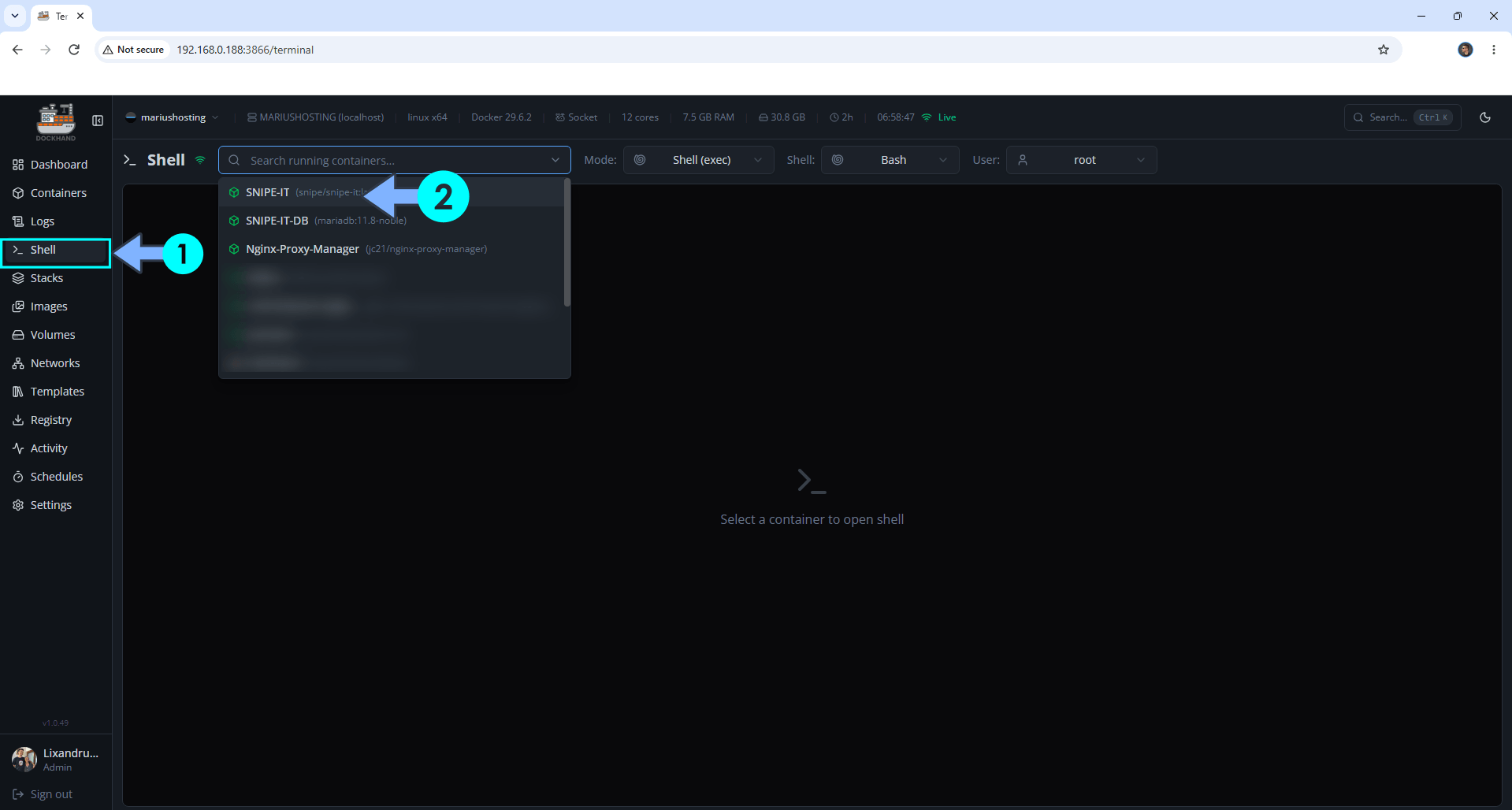

On the left sidebar, click Shell then search for your SNIPE-IT instance. Click SNIPE-IT. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 5 new 2027

  • STEP 13

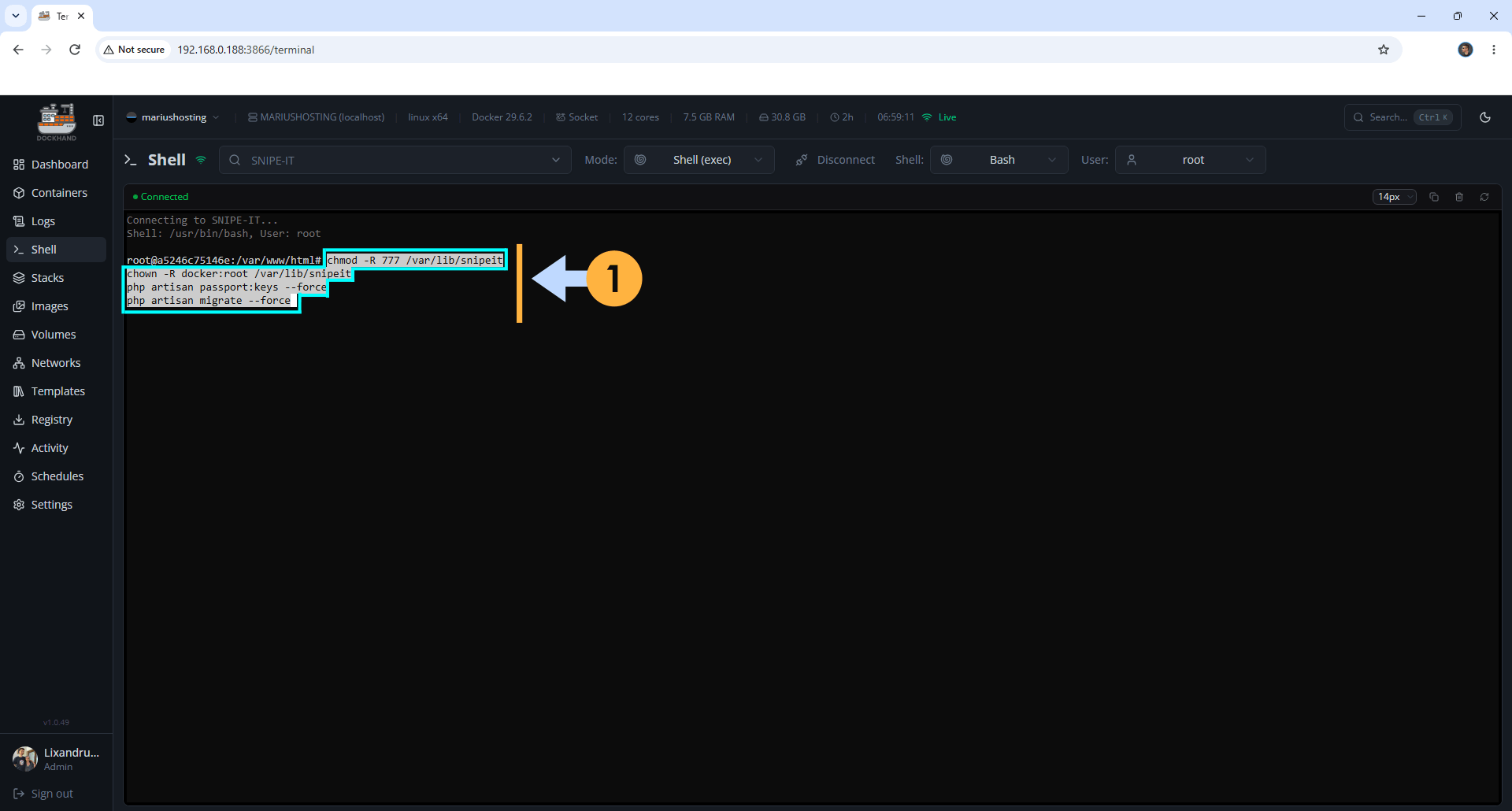

You will be connected to your internal SNIPE-IT Docker terminal. In the terminal area, copy paste the code below then hit enter on your Keyboard.

chmod -R 777 /var/lib/snipeit
chown -R docker:root /var/lib/snipeit
php artisan passport:keys --force
php artisan migrate --force

Snipe-IT UGREEN NAS Set up 6 new 2027

  • STEP 14

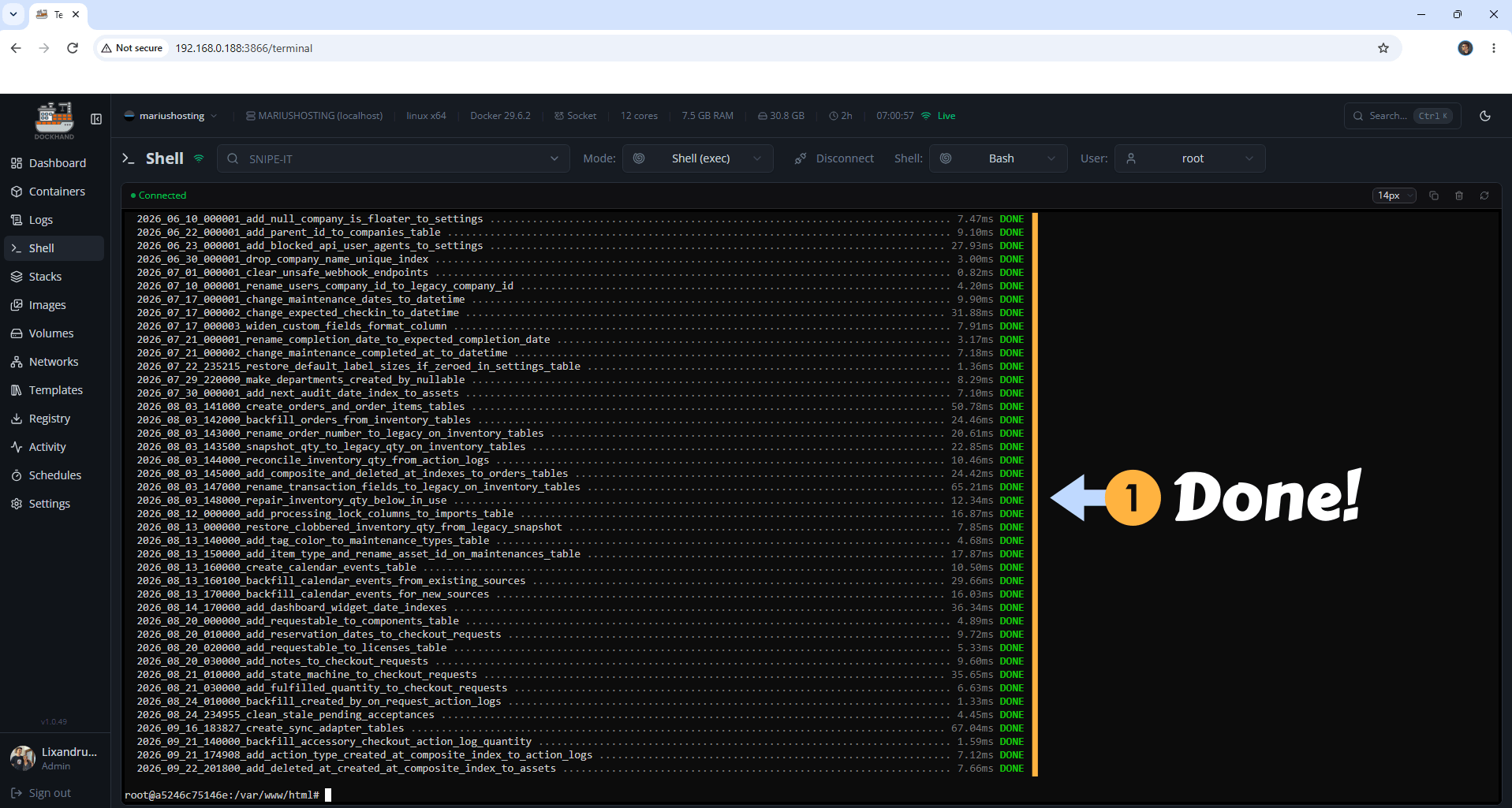

You will force database migration. Once everything is marked as DONE, go straight to the next STEP.

Snipe-IT UGREEN NAS Set up 7 new 2027

  • STEP 15

Open your Nginx Proxy Manager container that you have previously installed at STEP 3. Click Add Proxy Host. A new pop up window will open. Add the following details:

Domain Names: Type in your own noip domain name that you have previously created at STEP 4.
Scheme: http
Forward Hostname/IP: Type in the local NAS IP of your UGREEN NAS.
Forward Port: Type in the Snipe-IT local Port that is 1339
Check Block Common Exploits
Check Websockets Support
Click the SSL tab. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 6

  • STEP 16

After you click the SSL tab, add the following details:

SSL Certificate: Request a new SSL Certificate
Check: Force SSL
Check: HSTS Enabled
Check: HTTP/2 Support
Click Save. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 7

  • STEP 17

In the Proxy Hosts area, if everything goes right, you will see that your Snipe-IT hostname has been generated. Click on it. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 8

  • STEP 18

šŸŸ¢Please Support My work by Making a Donation. Almost 99,9% of the people that install something using my guidesĀ forget to support my work, or justĀ ignoreĀ STEP 1. Iā€™ve been very honest about this aspect of my work since the beginning: I donā€™t run any ADS, I donā€™t require subscriptions, paid or otherwise, I donā€™t collect IPs, emails, and I donā€™t have any referral links from Amazon or other merchants. I also donā€™t have any POP-UPs or COOKIES. I have repeatedly been told over the years how much I have contributed to the community. Itā€™s something I love doing and have been honest about my passion since the beginning. But I also Need The Community to Support me Back to be able to continue doing this work.

  • STEP 19

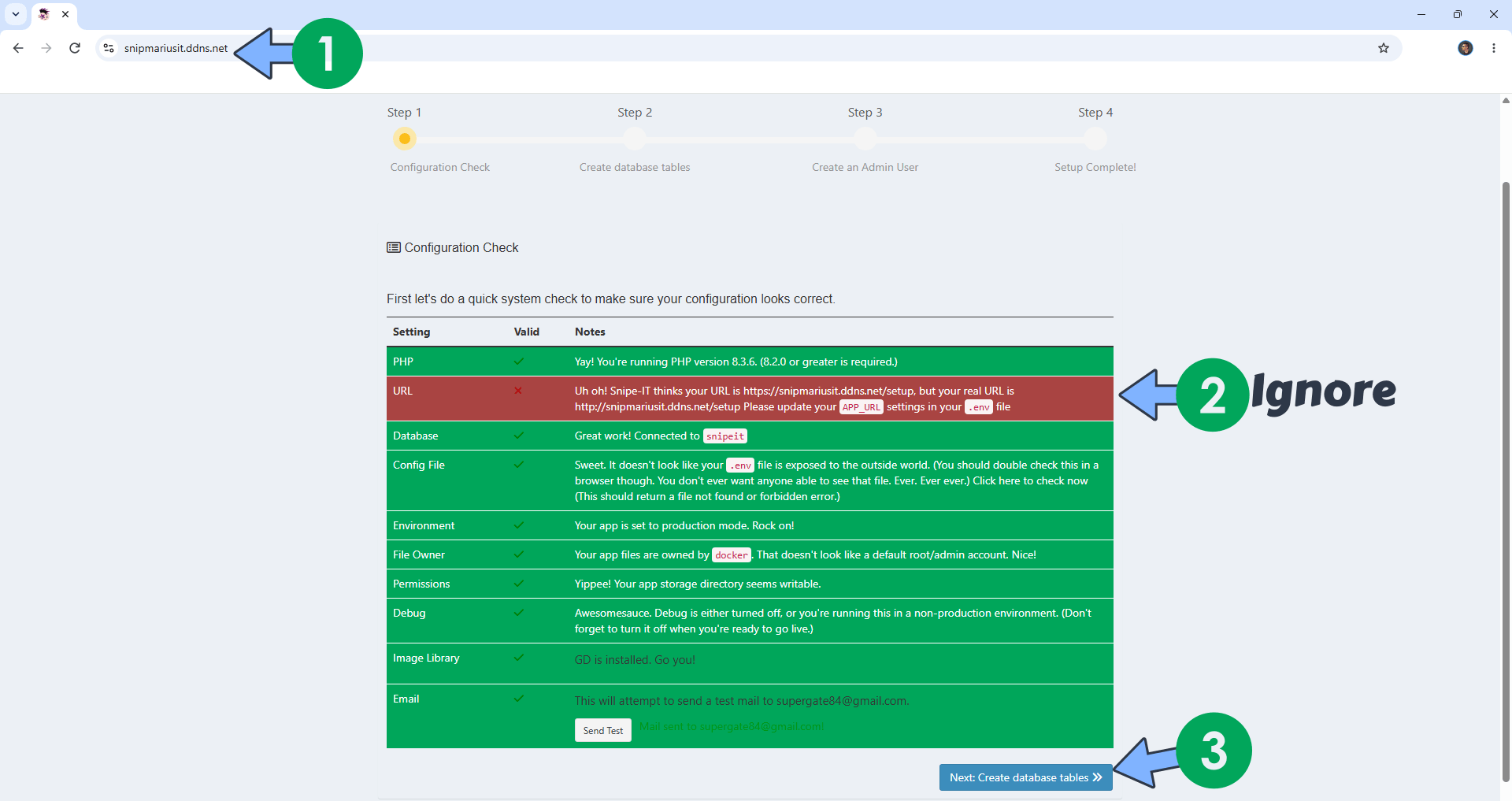

Now open your browser and type in your HTTPS/SSL certificate like this https://snipeit.ddns.netĀ In my case it’s https://snipmariusit.ddns.netĀ If everything goes right, you will see the Snipe-IT installation page. Click Next: Create Database Tables. āš ļøWarning: Ignore the URL issue, it’s just a bug (False positive) in the application. Everything is already correctly set up with https:// in your compose stack at STEP 10.Ā Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 8 new 2027

  • STEP 20

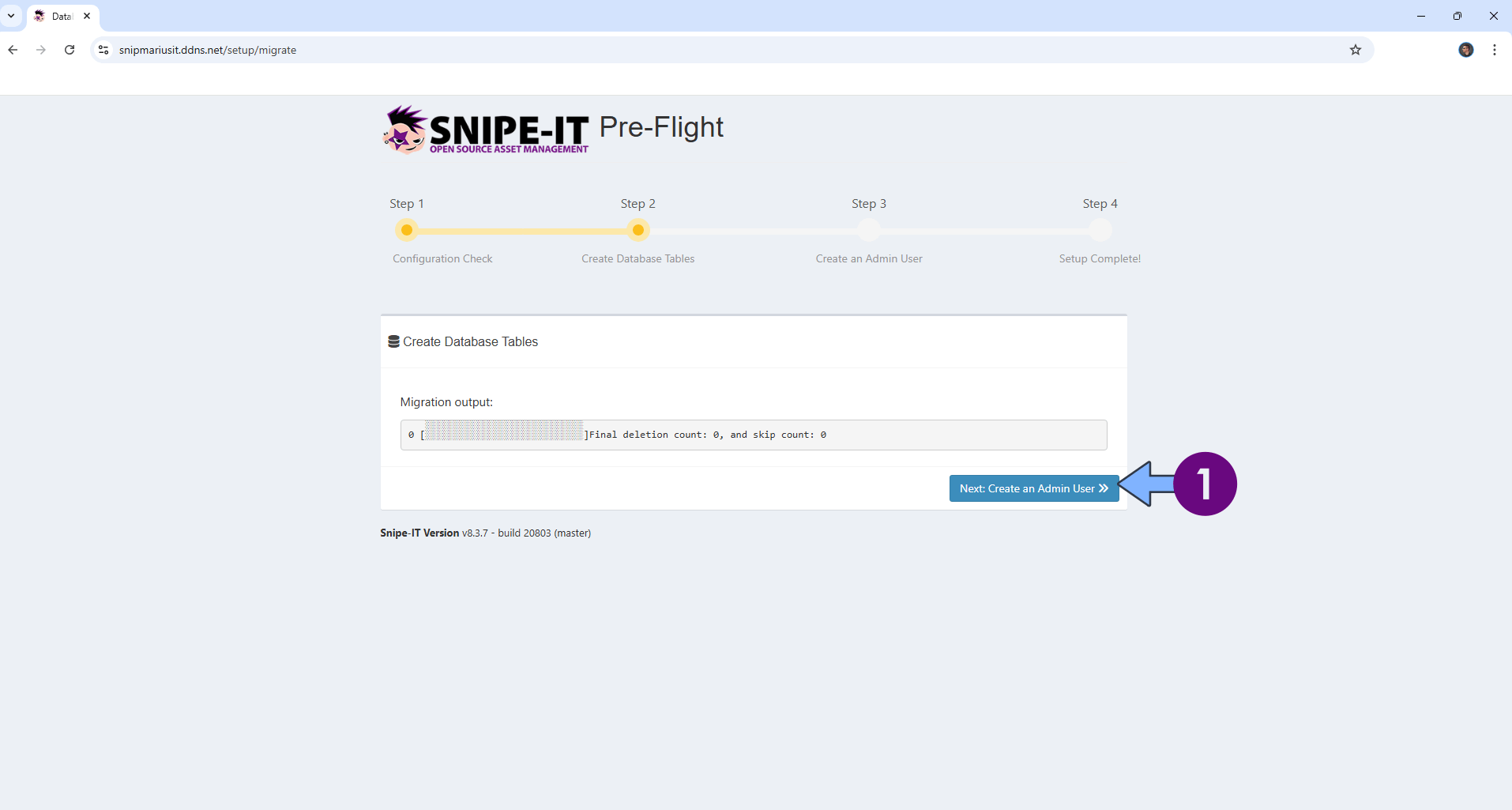

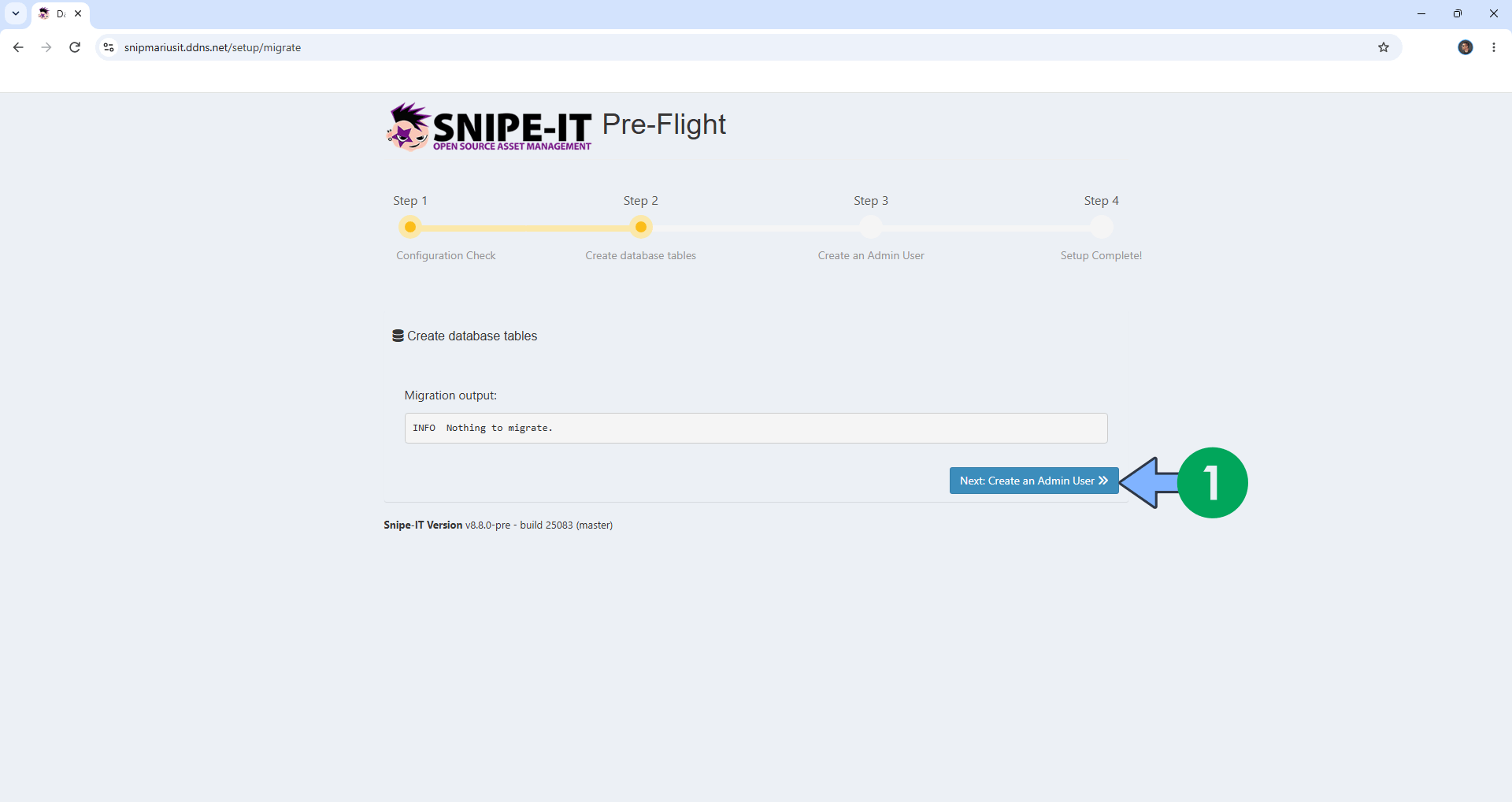

Click Next: Create an Admin User. Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 9 new 2027

  • STEP 21

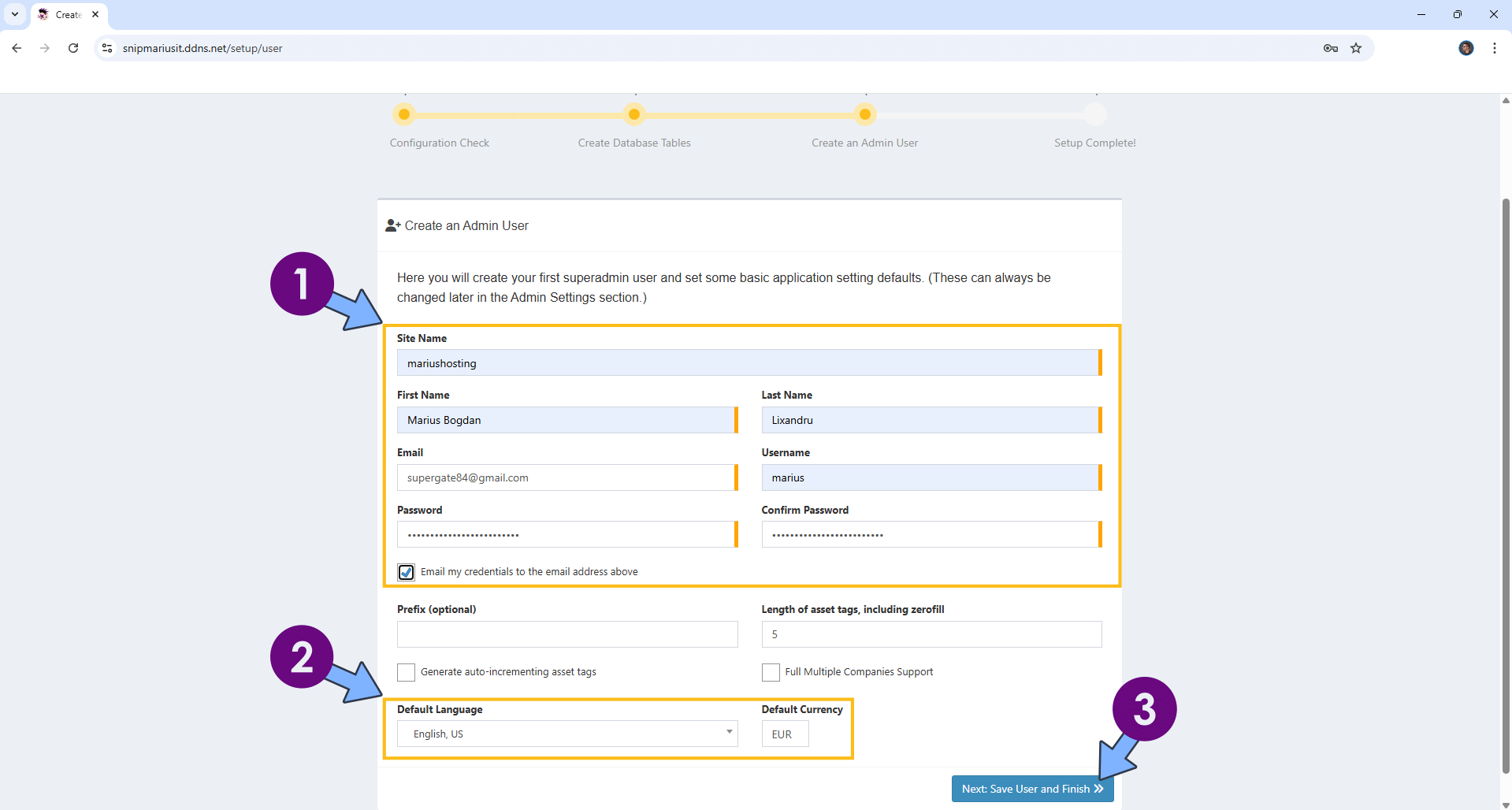

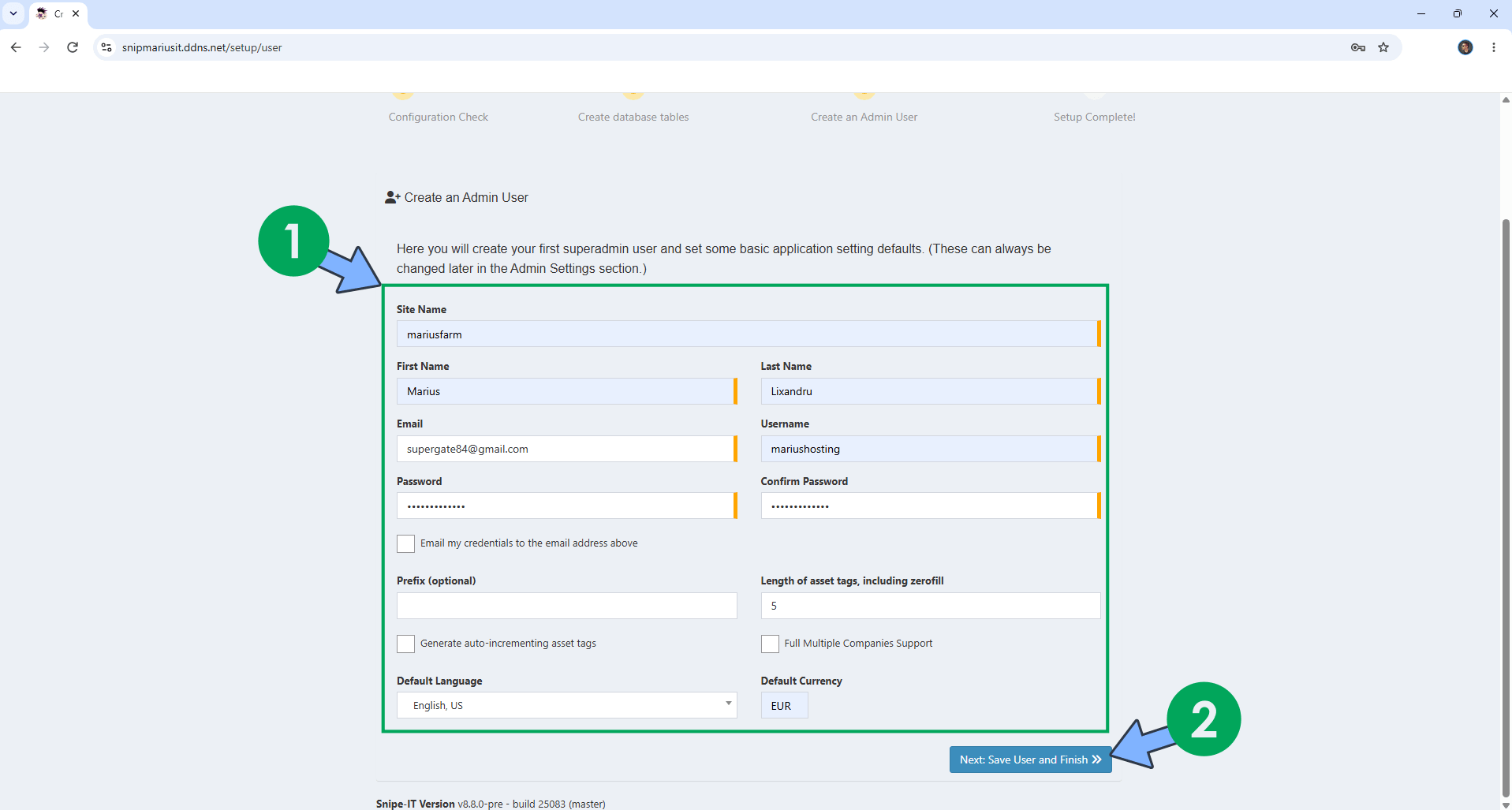

Create the new Admin user using your own credentials, then click Next: Save User and Finish.Ā Follow the instructions in the image below.

Snipe-IT UGREEN NAS Set up 10 new 2027

  • STEP 22

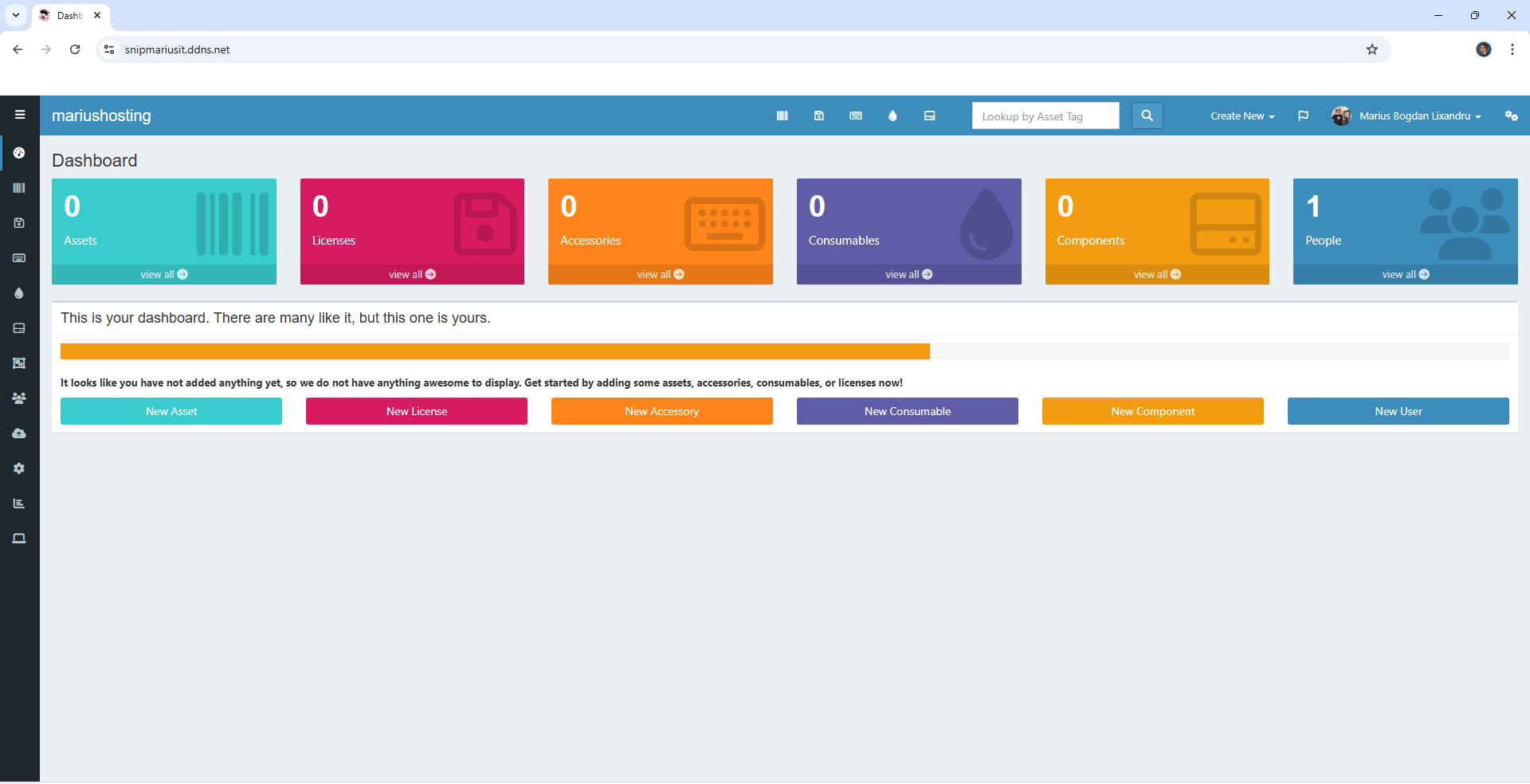

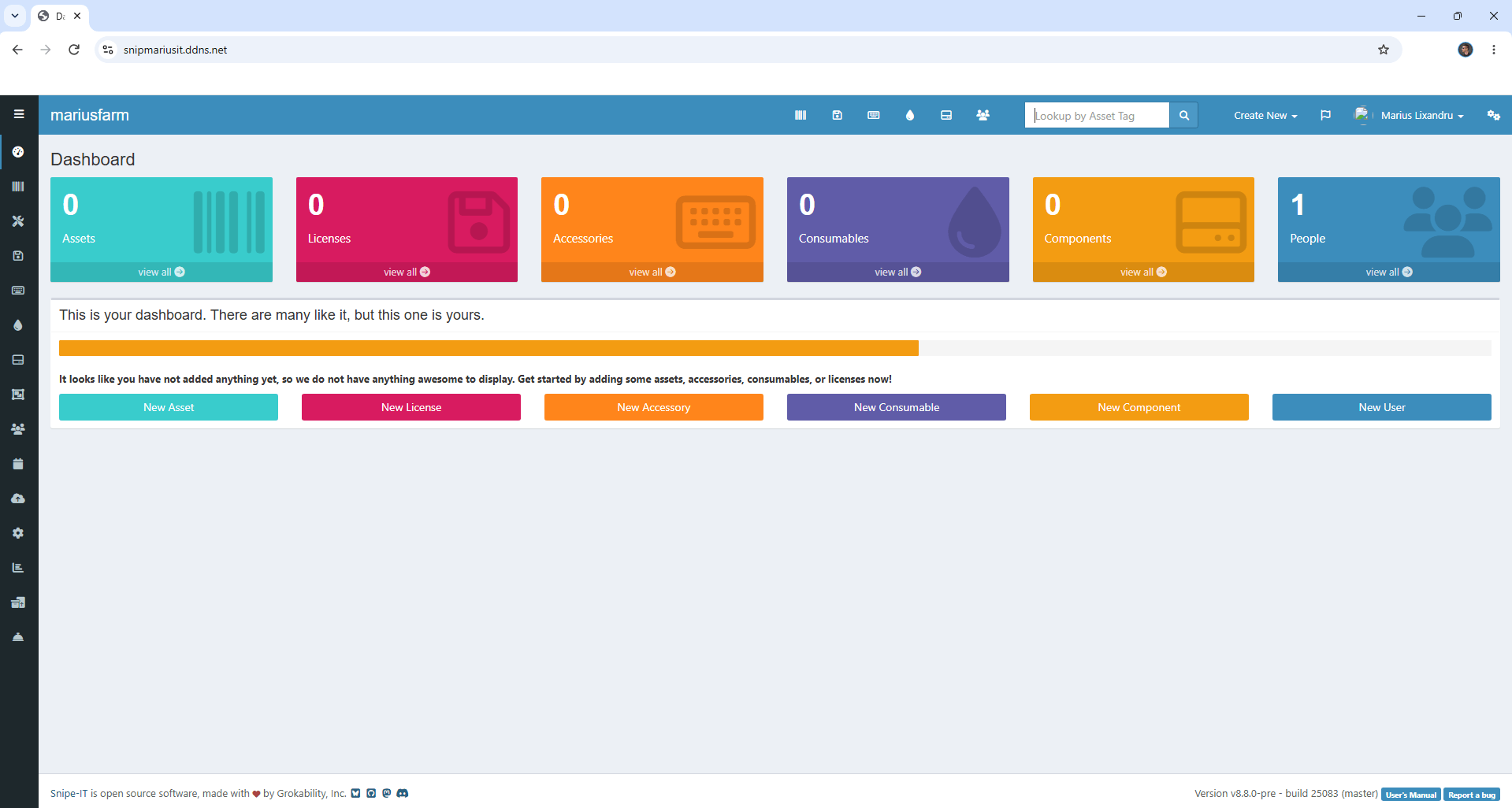

Your Snipe-IT Dashboard at a glance!

Snipe-IT UGREEN NAS Set up 11 new 2027

Enjoy Snipe-IT on Your UGREEN NAS!
